Diagrams for the Kawasaki KHD600A
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Kawasaki KHD600A.
Select year or serial number...
Diagrams for this machine
Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Kawasaki KHD600A
HB600A-AS50

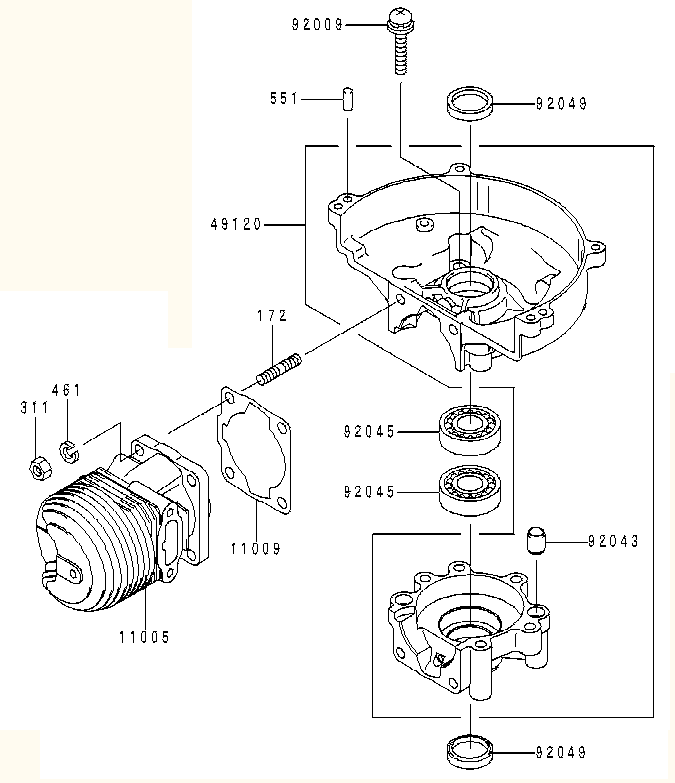

CYLINDER/CRANKCASE

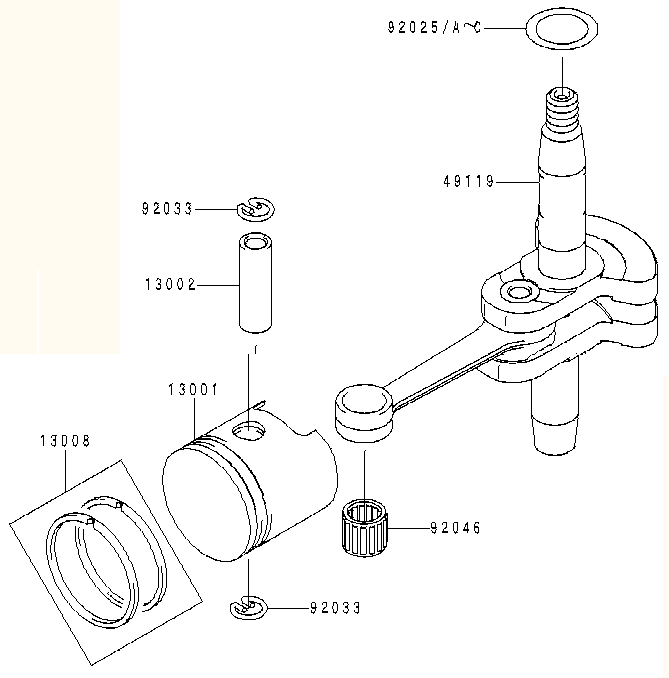

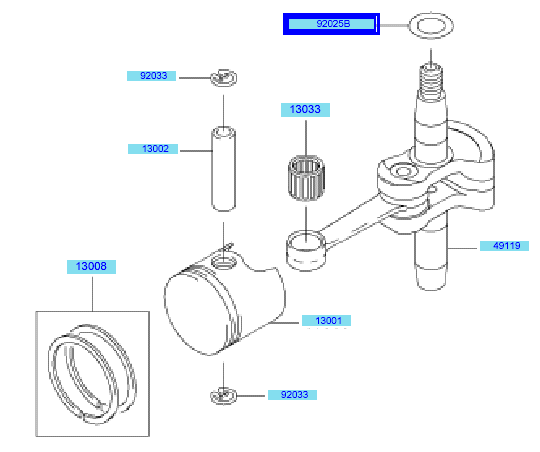

PISTON/CRANKSHAFT

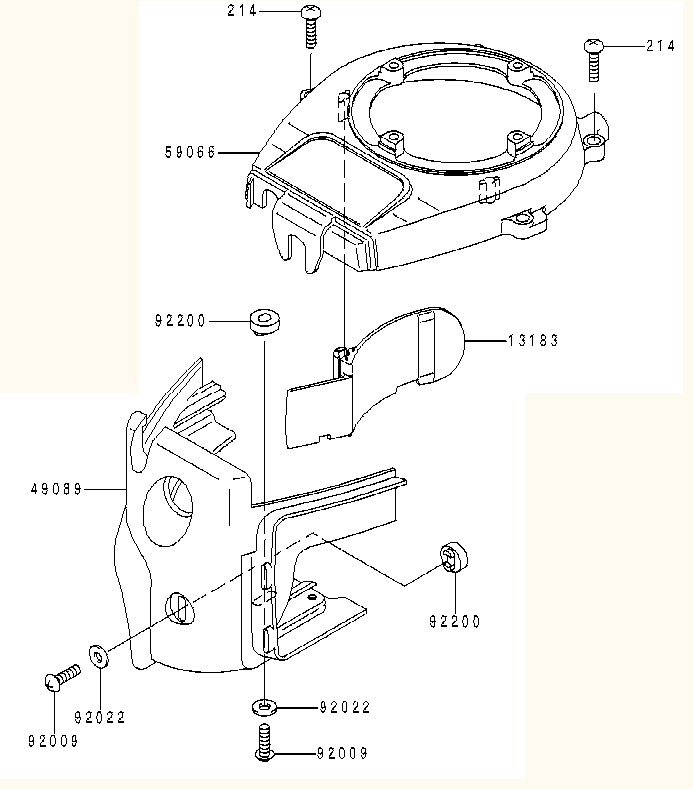

COVERS

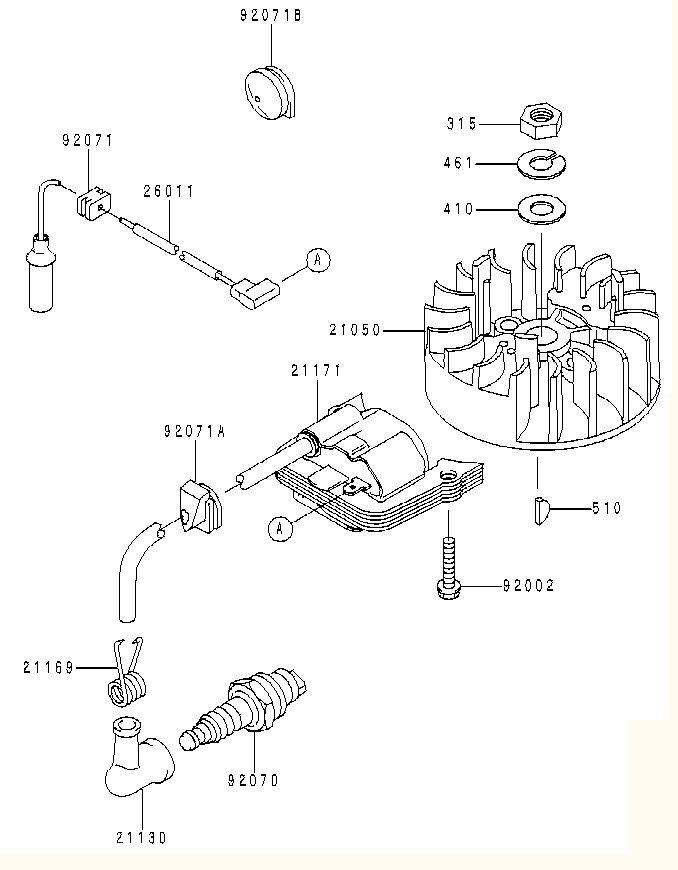

ELECTRIC-EQUIPMENT

CARBURETOR

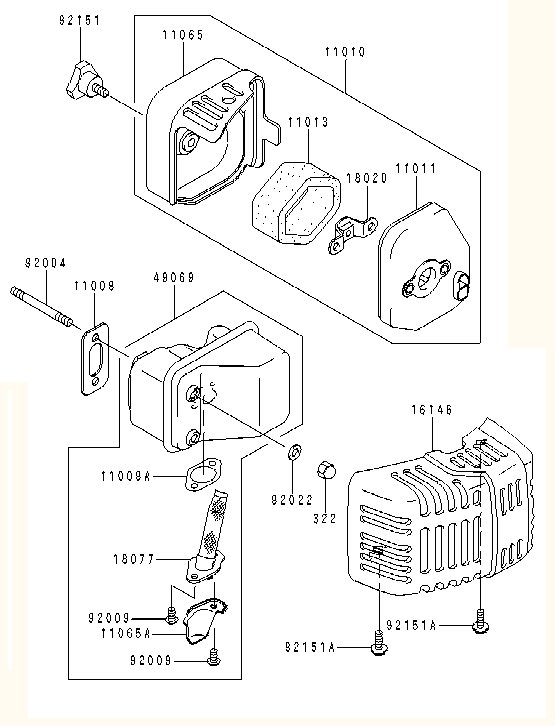

AIR-FILTER/MUFFLER

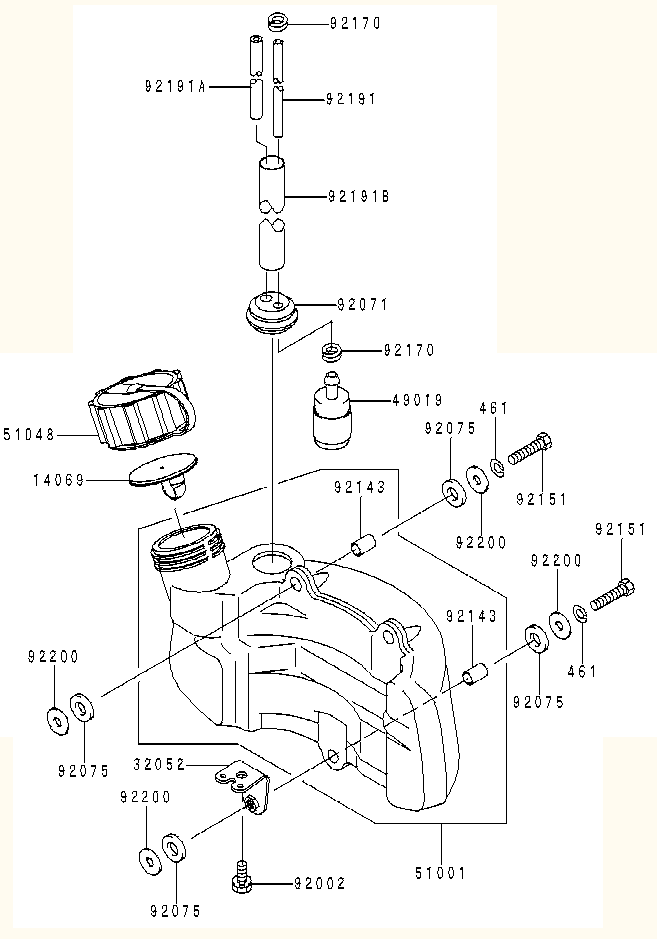

FUEL-TANK/FUEL-VALVE

STARTER

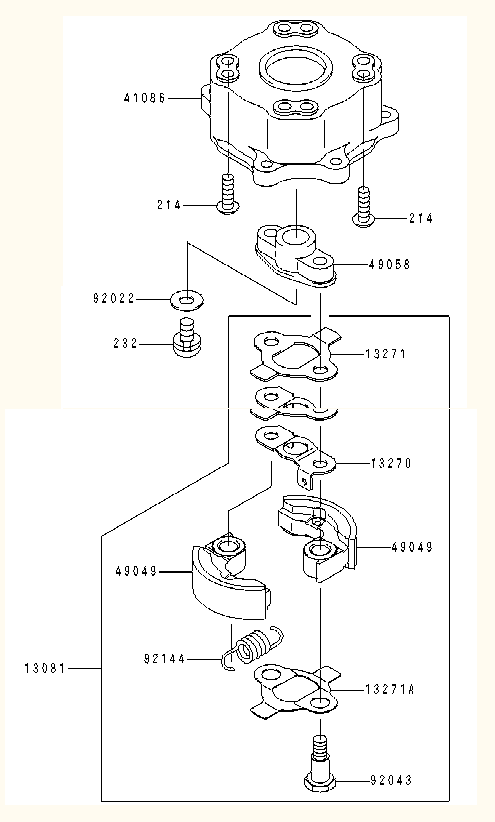

CLUTCH

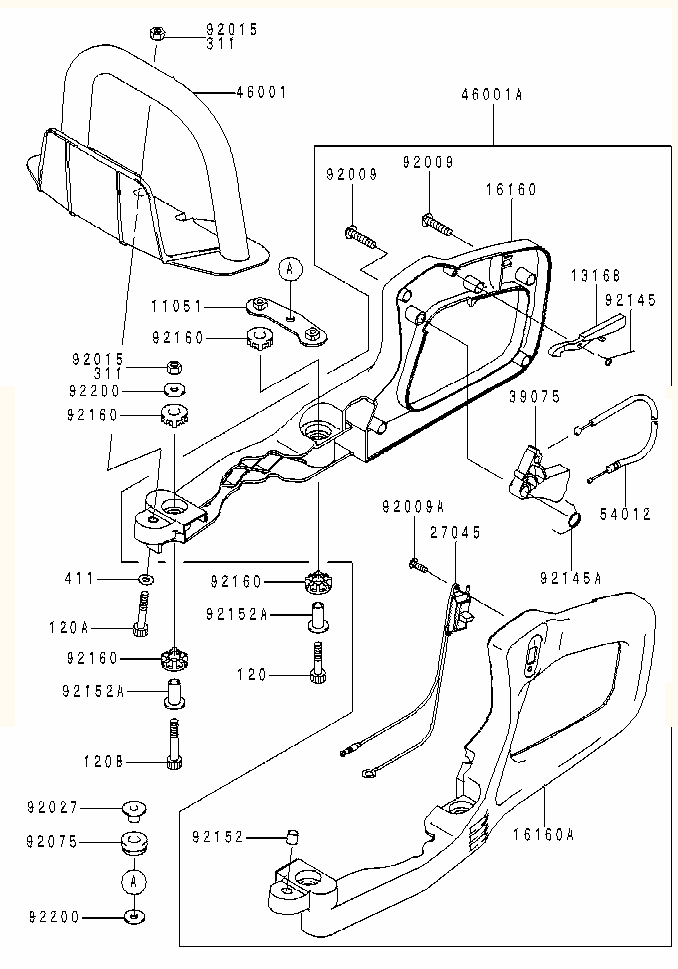

HANDLE

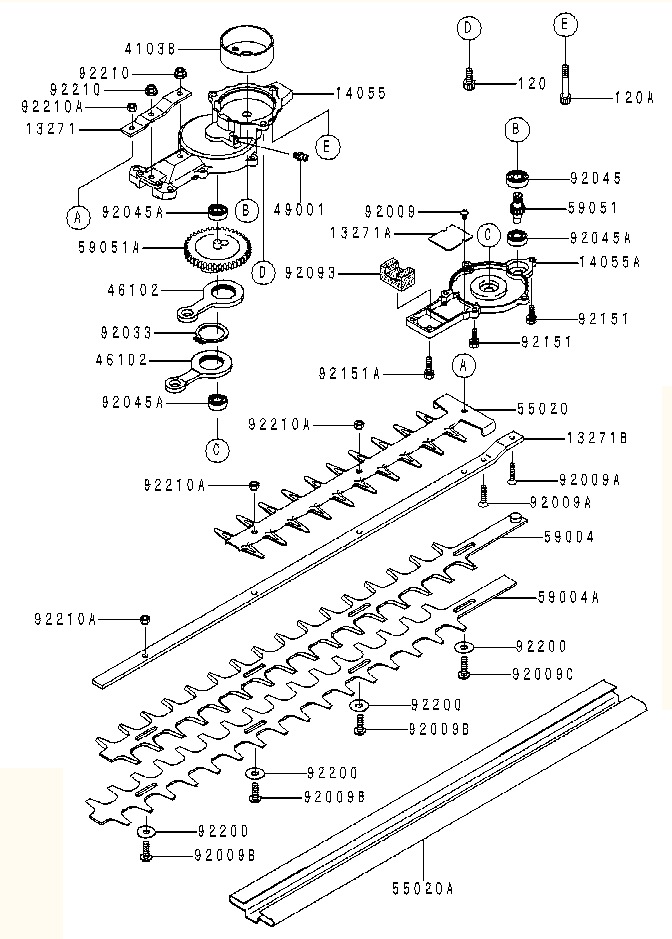

CASE/CUTTER

LABEL
HB600B-AS50

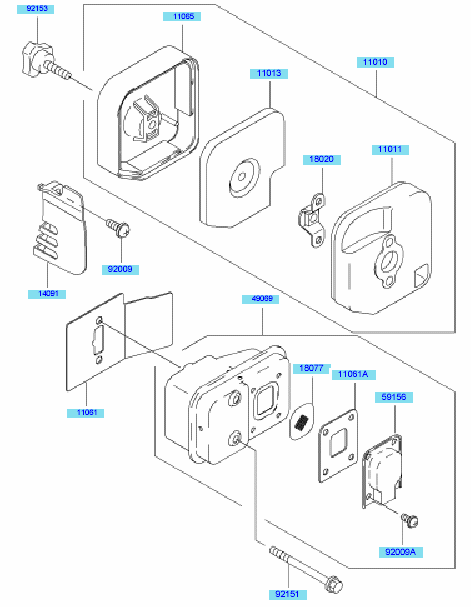

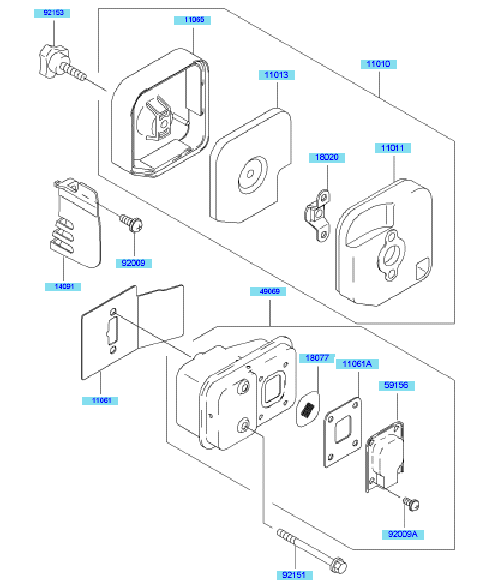

Air Filter & Muffler

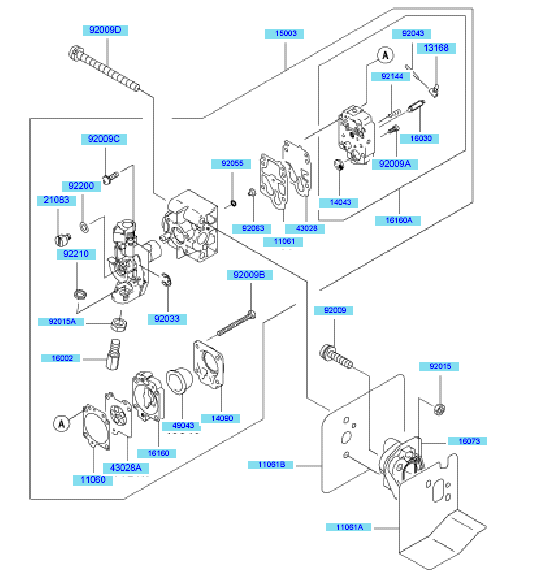

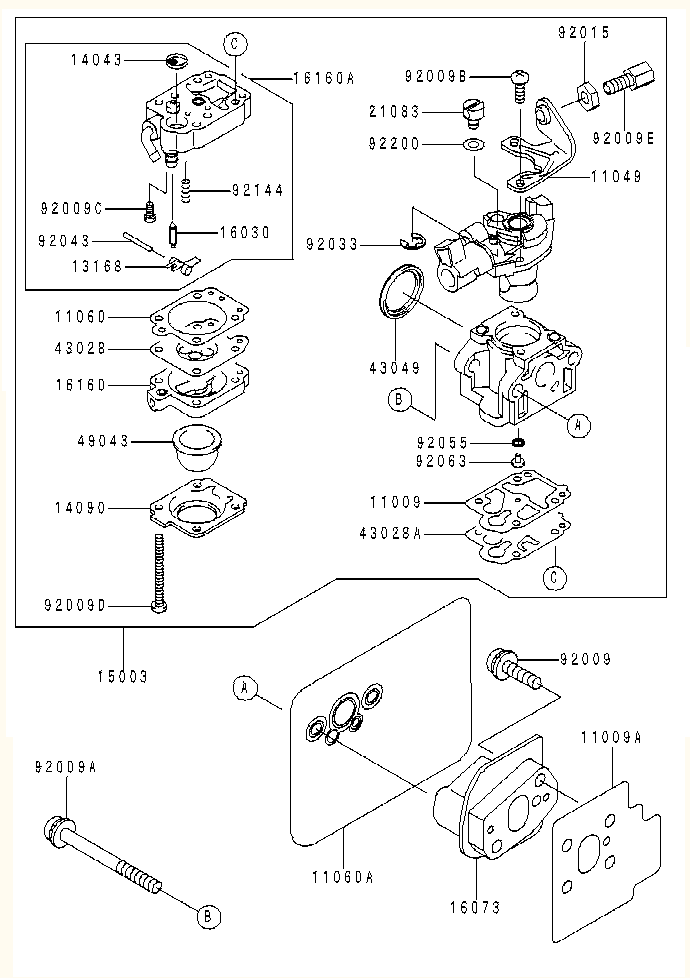

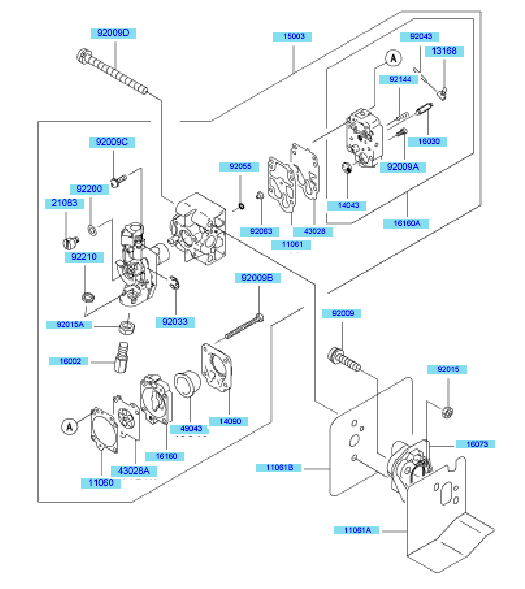

Carburetor

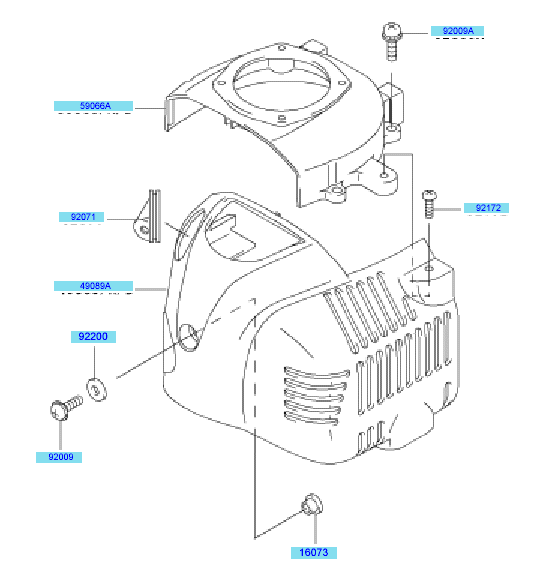

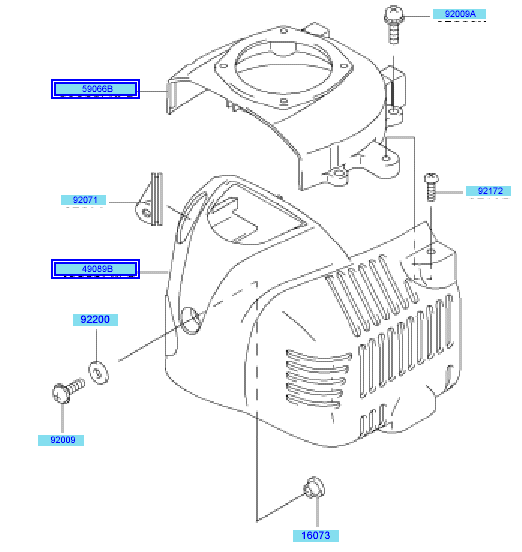

Cooling Equipment

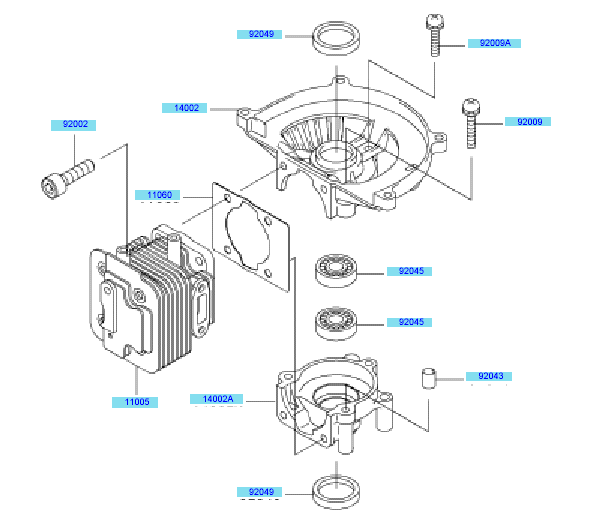

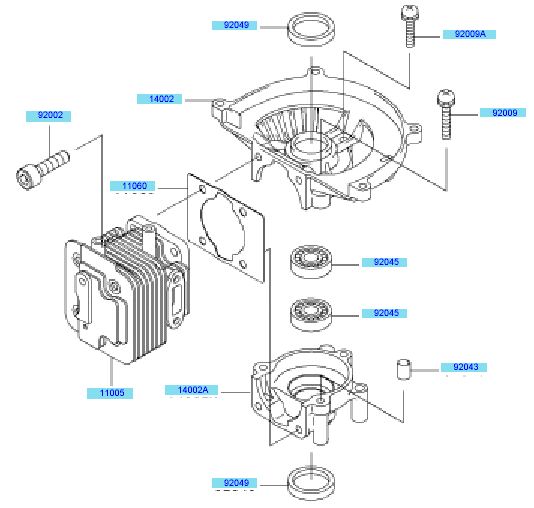

Cylinder & Crankcase

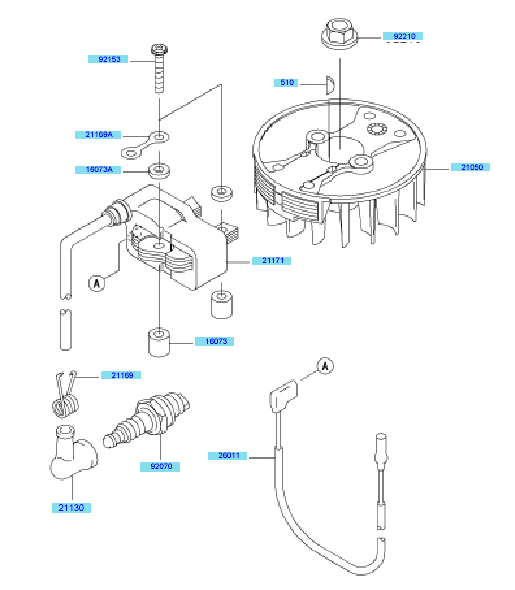

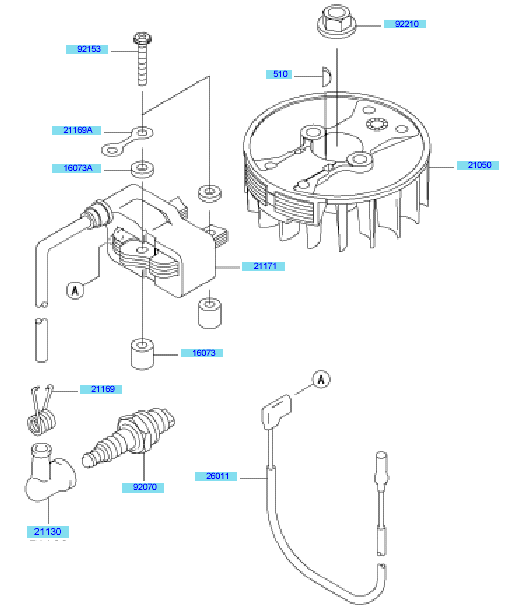

Electric Equipment

Labels

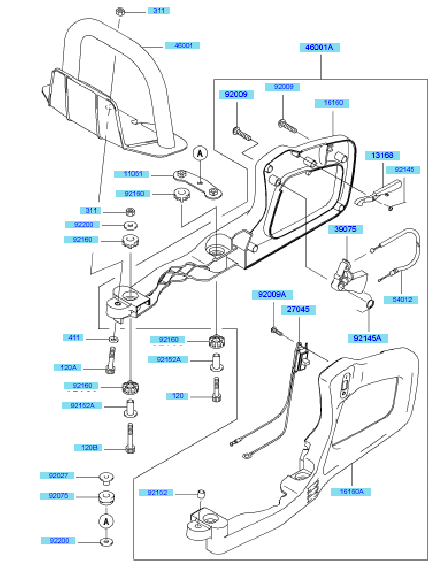

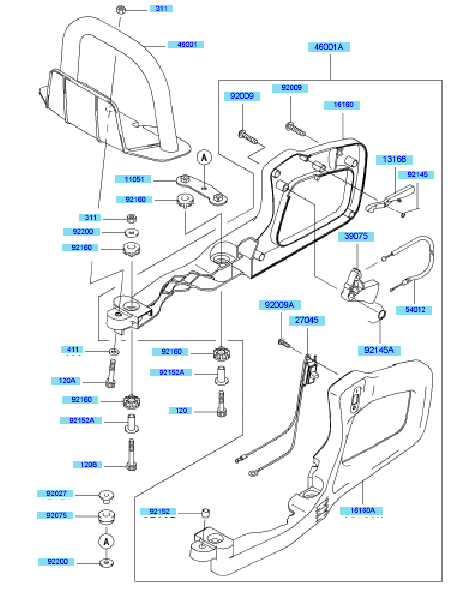

Pipe Handle & Guard

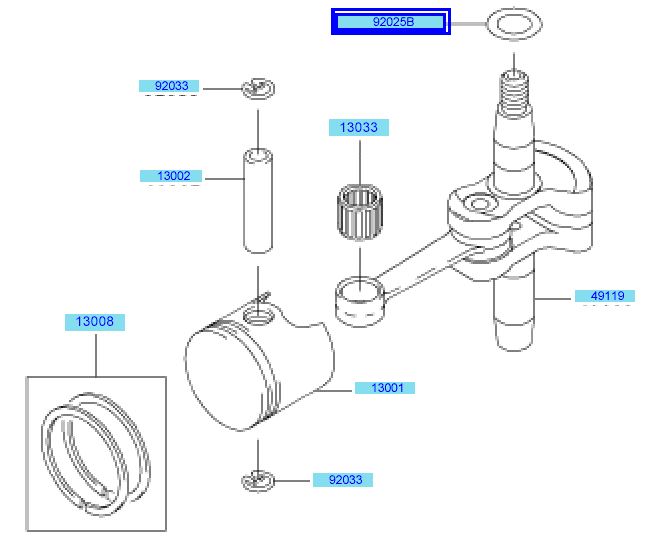

Piston & Crankshaft

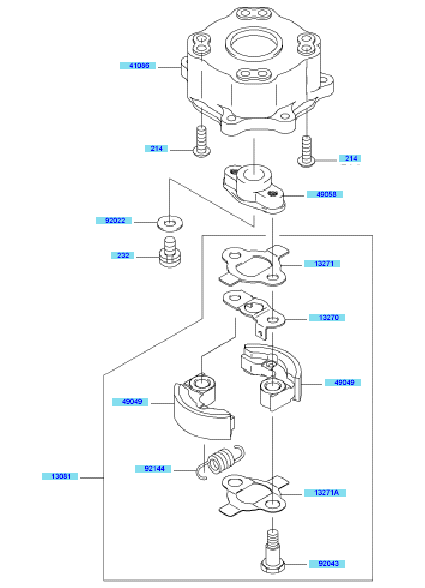

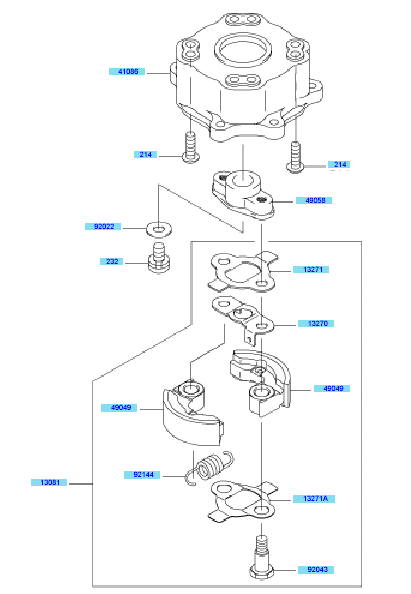

PTO Equipment

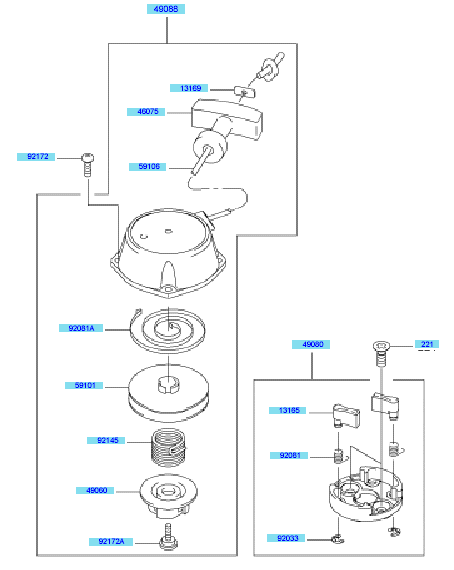

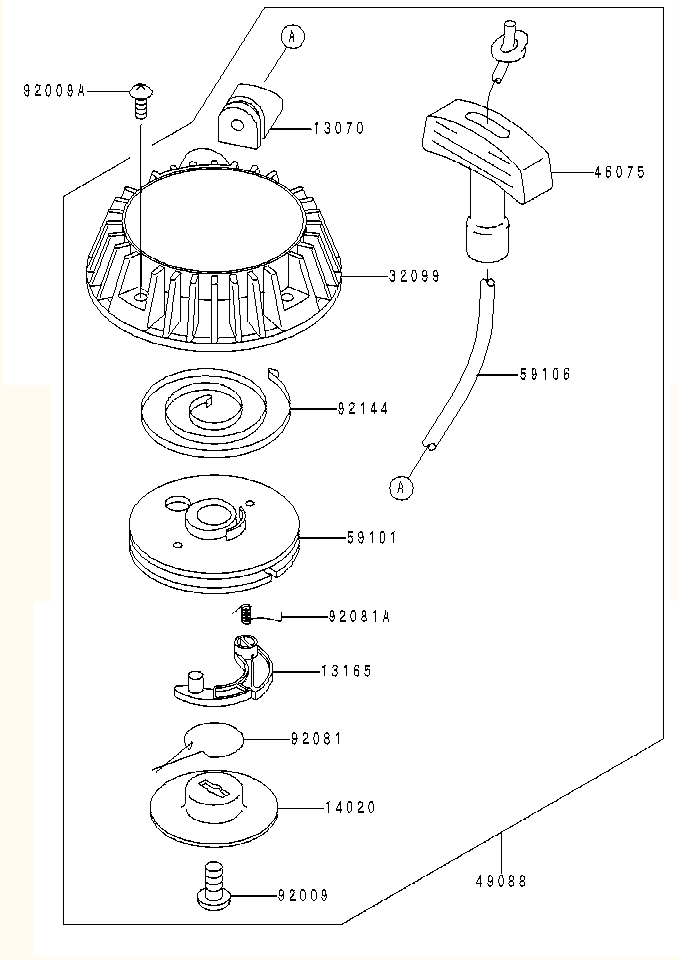

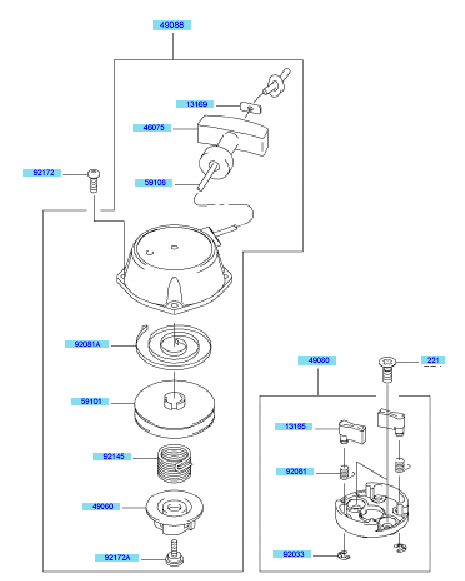

Starter

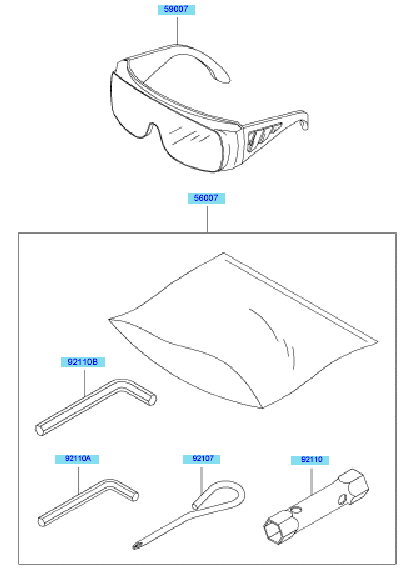

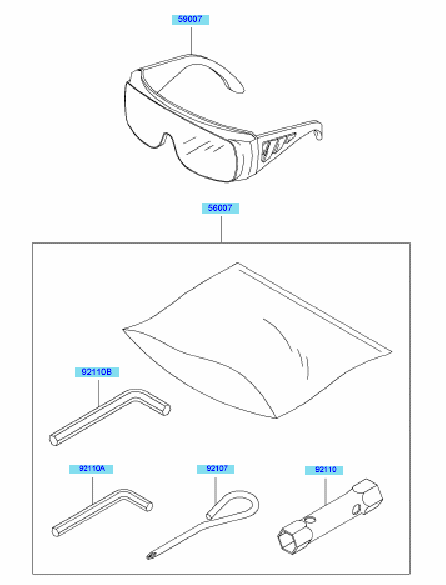

Tools

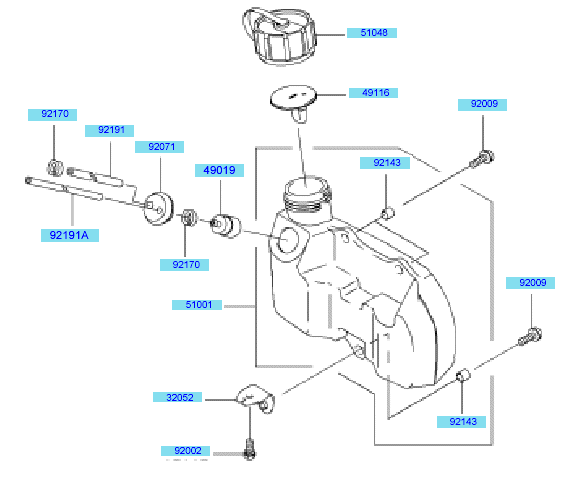

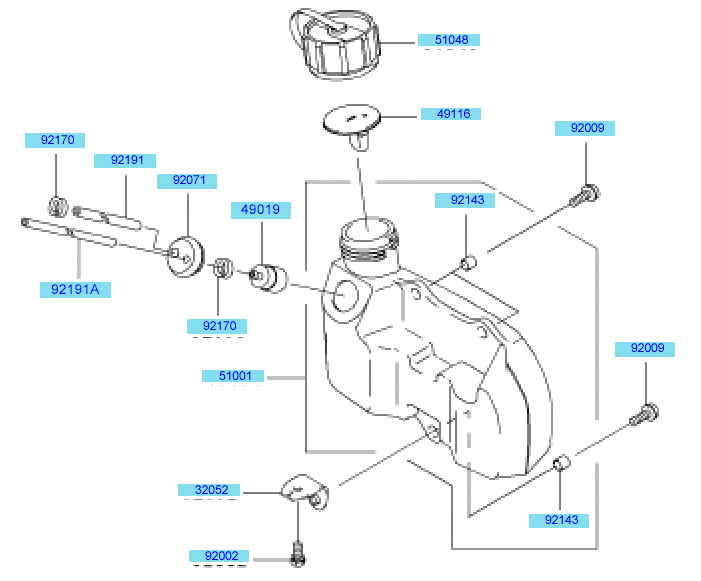

Fuel Tank & Fuel Valve

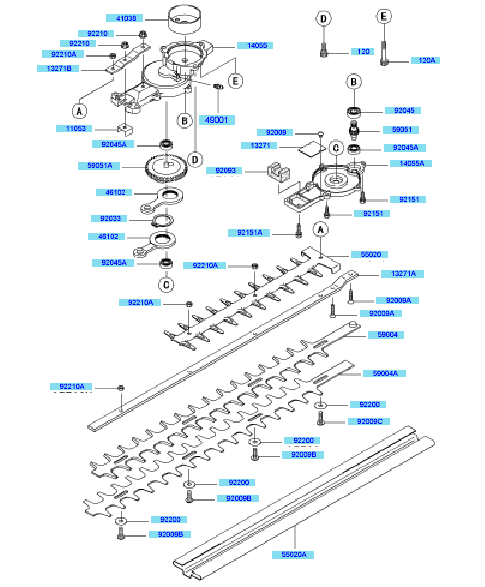

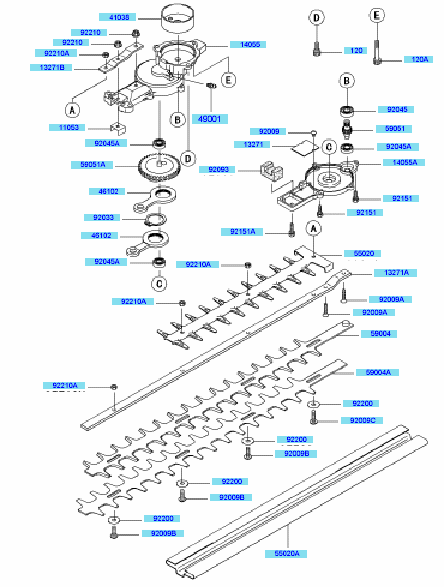

Case/ Cutter
