Husqvarna T560RS (2004) Parts Diagram, Page 1
Look at the diagram and find parts that fit a Husqvarna T560RS, or refer to the list below.
All Parts for T560RS
| # | Part | Price | |
|---|---|---|---|
| 1 |
5310082-40/8 Husqvarna Chassis |
 Husqvarna Chassis£160.63
P/N: 5310082-40/8, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 2 |
5310082-41 Husqvarna Front Handle |
Husqvarna Front Handle£61.56
P/N: 5310082-41, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 3 |
5443077-01/0 Husqvarna Guard |
Husqvarna Guard£14.81
P/N: 5443077-01/0, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 6 |
5196534-60 Husqvarna Support |
£19.84 |
Husqvarna Support£19.84
P/N: 5196534-60, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 7 |
5310085-17 Husqvarna Protector |
Husqvarna Protector£11.33
P/N: 5310085-17, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 8 |
5196530-43 Husqvarna Ring |
£23.44 |
Husqvarna Ring£23.44
P/N: 5196530-43, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 9 |
5196530-41 Husqvarna Housing |
Husqvarna Housing£25.49
P/N: 5196530-41, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 10 |
5196530-42 Husqvarna Housing |
Husqvarna Housing£25.49
P/N: 5196530-42, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 11 |
5971668-01 Husqvarna Stand |
£154.82 |
Husqvarna Stand£154.82
P/N: 5971668-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 31 |
5196534-07 Husqvarna Arm |
£3.40 |
Husqvarna Arm£3.40
P/N: 5196534-07, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 32 |
5196534-24 Husqvarna Spacer |
Husqvarna Spacer£5.15
P/N: 5196534-24, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 34 |
5310085-19 Husqvarna Arm |
Husqvarna Arm£3.22
P/N: 5310085-19, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 35 |
5853650-01 Husqvarna Gear Box |
£317.21 |
Husqvarna Gear Box£317.21
P/N: 5853650-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 40 |
5196534-23 Husqvarna Cover |
£53.81 |
Husqvarna Cover£53.81
P/N: 5196534-23, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 41 |
5310082-25 Husqvarna Cover |
£66.08 |
Husqvarna Cover£66.08
P/N: 5310082-25, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 42 |
5310082-43 Husqvarna Handle |
£69.42 |
Husqvarna Handle£69.42
P/N: 5310082-43, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 43 |
5310082-44 Husqvarna Handle |
Husqvarna Handle£28.32
P/N: 5310082-44, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 44 |
5310082-45 Husqvarna Knob |
Husqvarna Knob£3.25
P/N: 5310082-45, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 50 |
5190026-31 Husqvarna Ball Bearing |
Husqvarna Ball Bearing£5.04
P/N: 5190026-31, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 51 |
5196530-53 Husqvarna Bearing |
£8.30 |
Husqvarna Bearing£8.30
P/N: 5196530-53, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 52 |
5196530-07 Husqvarna Sprocket |
Husqvarna Sprocket£50.04
P/N: 5196530-07, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 53 |
5196530-72/8 Husqvarna Spacer sleeve |
Husqvarna Spacer sleeve
P/N: 5196530-72/8, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 54 |
5853655-01 Husqvarna Spacer |
Husqvarna Spacer£9.37
P/N: 5853655-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 55 |
5753623-01 Husqvarna Chain |
£21.71 |
Husqvarna Chain£21.71
P/N: 5753623-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 56 |
5196533-91 Husqvarna Plug |
Husqvarna Plug£1.90
P/N: 5196533-91, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 57 |
5196530-57 Husqvarna Pinion |
£4.52 |
Husqvarna Pinion£4.52
P/N: 5196530-57, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 58 |
5310085-46 Husqvarna Bearing |
£7.74 |
Husqvarna Bearing£7.74
P/N: 5310085-46, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 59 |
5196530-94 Husqvarna Spacer |
Husqvarna Spacer£4.07
P/N: 5196530-94, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 60 |
5310082-46 Husqvarna Stop |
Husqvarna Stop£3.02
P/N: 5310082-46, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 61 |
5310082-47 Husqvarna Control |
Husqvarna Control£1.90
P/N: 5310082-47, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 62 |
5310082-48 Husqvarna Valve |
£6.80 |
Husqvarna Valve£6.80
P/N: 5310082-48, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 63 |
5310085-83 Husqvarna Cable |
£7.74 |
 Husqvarna Cable£7.74
P/N: 5310085-83, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 64 |

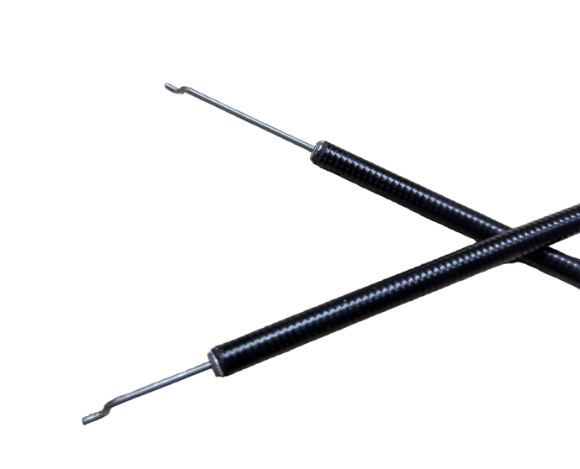

5196530-55 Husqvarna Cable |
£24.55 |
Husqvarna Cable£24.55
P/N: 5196530-55, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 65 |
5196534-09 Husqvarna Wire |
£3.78 |
Husqvarna Wire£3.78
P/N: 5196534-09, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 66 |
5196534-57 Husqvarna Pulley |
£17.94 |
 Husqvarna Pulley£17.94
P/N: 5196534-57, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 67 |
5196534-51 Husqvarna Rod |
Husqvarna Rod£12.24
P/N: 5196534-51, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 68 |
5196530-90 Husqvarna Spring |
Husqvarna Spring£2.27
P/N: 5196530-90, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 69 |
5196532-59/1 Husqvarna Wheel |
Husqvarna Wheel£18.22
P/N: 5196532-59/1, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 70 |
5196502-60 Husqvarna Spring |
£2.83 |
Husqvarna Spring£2.83
P/N: 5196502-60, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 71 |
5442439-01 Husqvarna Pulley |
£20.77 |
Husqvarna Pulley£20.77
P/N: 5442439-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 72 |
5196530-60 Husqvarna Pulley |
£15.11 |
Husqvarna Pulley£15.11
P/N: 5196530-60, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 73 |
5196530-67 Husqvarna Shaft |
£1.90 |
Husqvarna Shaft£1.90
P/N: 5196530-67, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 74 |
5196530-58 Husqvarna Belt |
£21.71 |
 Husqvarna Belt£21.71
P/N: 5196530-58, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 75 |
5310085-82 Husqvarna Grill |
£12.26 |
Husqvarna Grill£12.26
P/N: 5310085-82, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 77 |
5196533-62 Husqvarna Cover |
£15.11 |
Husqvarna Cover£15.11
P/N: 5196533-62, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 78 |
5310085-20 Husqvarna Tine |
£44.36 |
Husqvarna Tine£44.36
P/N: 5310085-20, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 79 |
5310085-21 Husqvarna Tine |
£44.36 |
Husqvarna Tine£44.36
P/N: 5310085-21, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 80 |
5310085-47 Husqvarna Blade |
Husqvarna Blade£10.39
P/N: 5310085-47, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 81 |
5310085-48 Husqvarna Blade |
Husqvarna Blade£10.39
P/N: 5310085-48, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 82 |
5310085-22 Husqvarna Tine |
£48.14 |
Husqvarna Tine£48.14
P/N: 5310085-22, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 83 |
5310085-23 Husqvarna Tine |
£48.14 |
Husqvarna Tine£48.14
P/N: 5310085-23, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 84 |
5310082-49 Husqvarna Control Cylinder |
£22.66 |
Husqvarna Control Cylinder£22.66
P/N: 5310082-49, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 86 |
5310085-77 Husqvarna Belt Guide |
£10.39 |
Husqvarna Belt Guide£10.39
P/N: 5310085-77, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 87 |
5310082-57 Husqvarna Lever |
Husqvarna Lever£4.28
P/N: 5310082-57, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 88 |
5310082-58 Husqvarna Lever |
Husqvarna Lever£3.61
P/N: 5310082-58, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 89 |
5196534-16 Husqvarna Hose |
£4.07 |
Husqvarna Hose£4.07
P/N: 5196534-16, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 90 |
5310082-33 Husqvarna Cable |
Husqvarna Cable£4.20
P/N: 5310082-33, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 91 |
5196530-52 Husqvarna Roller |
£2.46 |
Husqvarna Roller£2.46
P/N: 5196530-52, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 92 |
5196530-91 Husqvarna Handle |
£5.09 |
Husqvarna Handle£5.09
P/N: 5196530-91, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 93 |
5310085-18 Husqvarna Shaft Pivot |
Husqvarna Shaft Pivot£1.90
P/N: 5310085-18, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 94 |
5310082-35 Husqvarna Plate |
£12.26 |
Husqvarna Plate£12.26
P/N: 5310082-35, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 95 |
5310082-36 Husqvarna Spacer |
Husqvarna Spacer£4.58
P/N: 5310082-36, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 97 |
5196534-14 Husqvarna Spacer |
£2.65 |
Husqvarna Spacer£2.65
P/N: 5196534-14, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 98 |
5196534-15 Husqvarna Spacer |
£16.04 |
Husqvarna Spacer£16.04
P/N: 5196534-15, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 99 |
5310083-75 Husqvarna Turning Knob |
£11.33 |
Husqvarna Turning Knob£11.33
P/N: 5310083-75, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 121 |
7322616-01 Husqvarna Nut |
£1.90 |
Husqvarna Nut£1.90
P/N: 7322616-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 123 |
5196534-58 Husqvarna Nut |
£1.90 |
Husqvarna Nut£1.90
P/N: 5196534-58, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 124 |
7252550-51 Husqvarna Nut |
£11.39 |
Husqvarna Nut£11.39
P/N: 7252550-51, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 125 |
5196534-56 Husqvarna Nut |
£1.90 |
Husqvarna Nut£1.90
P/N: 5196534-56, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 126 |
5196534-32 Husqvarna Nut |
£1.90 |
Husqvarna Nut£1.90
P/N: 5196534-32, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 127 |
5196534-56/3 Husqvarna Nut |
Husqvarna Nut£1.44
P/N: 5196534-56/3, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 128 |
5310082-21 Husqvarna Nut |
Husqvarna Nut£1.78
P/N: 5310082-21, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 129 |
5196534-11 Husqvarna Nut |
Husqvarna Nut£1.87
P/N: 5196534-11, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 130 |
5310085-78 Husqvarna Nut |
£1.90 |
Husqvarna Nut£1.90
P/N: 5310085-78, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 141 |
5442081-01 Husqvarna Washer |
Husqvarna Washer£1.90
P/N: 5442081-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 143 |
5196534-53 Husqvarna Washer |
£1.90 |
Husqvarna Washer£1.90
P/N: 5196534-53, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 144 |
5196534-49 Husqvarna Washer |
Husqvarna Washer£1.90
P/N: 5196534-49, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 145 |
5196534-62 Husqvarna Washer |
£1.90 |
Husqvarna Washer£1.90
P/N: 5196534-62, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 146 |
5196530-97 Husqvarna Washer |
Husqvarna Washer£1.13
P/N: 5196530-97, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 160 |
5774536-01 Husqvarna Clip |
£1.90 |
Husqvarna Clip£1.90
P/N: 5774536-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 161 |
5774535-01 Husqvarna Clip |
£1.90 |
Husqvarna Clip£1.90
P/N: 5774535-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 162 |
5196530-21 Husqvarna Key |
£1.90 |
Husqvarna Key£1.90
P/N: 5196530-21, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 163 |
5196534-25 Husqvarna Clip |
£1.90 |
Husqvarna Clip£1.90
P/N: 5196534-25, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 164 |
5196534-66 Husqvarna Retaining Ring |
£1.90 |
Husqvarna Retaining Ring£1.90
P/N: 5196534-66, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 165 |
5196534-26 Husqvarna Screw |
£1.90 |
Husqvarna Screw£1.90
P/N: 5196534-26, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 180 |
5310085-40 Husqvarna Decal |
£1.90 |
Husqvarna Decal£1.90
P/N: 5310085-40, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 183 |
5310082-51 Husqvarna Decal |
£1.90 |
Husqvarna Decal£1.90
P/N: 5310082-51, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 184 |
5196530-85 Husqvarna Label |
£1.90 |
Husqvarna Label£1.90
P/N: 5196530-85, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 185 |
5196530-84 Husqvarna Label |
Husqvarna Label£1.85
P/N: 5196530-84, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 187 |
5196531-03 Husqvarna Decal |
Husqvarna Decal£1.84
P/N: 5196531-03, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 200 |
5310082-52 Husqvarna Screw |
Husqvarna Screw£1.90
P/N: 5310082-52, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 201 |
5196534-12 Husqvarna Screw |
£1.90 |
Husqvarna Screw£1.90
P/N: 5196534-12, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 202 |
5196530-20 Husqvarna Screw |
Husqvarna Screw£0.26
P/N: 5196530-20, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 203 |
5196534-35 Husqvarna Screw |
£1.90 |
Husqvarna Screw£1.90
P/N: 5196534-35, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 204 |
5310082-02 Husqvarna Bolt |
£1.90 |
Husqvarna Bolt£1.90
P/N: 5310082-02, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 205 |
5310082-53 Husqvarna Screw |
Husqvarna Screw£0.44
P/N: 5310082-53, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 206 |
5196534-13 Husqvarna Screw |
£1.90 |
Husqvarna Screw£1.90
P/N: 5196534-13, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 207 |
5196534-63 Husqvarna Screw |
Husqvarna Screw£6.77
P/N: 5196534-63, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 209 |
5196534-37 Husqvarna Screw |
Husqvarna Screw
P/N: 5196534-37, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 211 |
5196530-45 Husqvarna Screw |
£1.90 |
Husqvarna Screw£1.90
P/N: 5196530-45, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 213 |
5196534-55 Husqvarna Screw |
Husqvarna Screw£1.90
P/N: 5196534-55, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 214 |
5196530-46 Husqvarna Screw |
Husqvarna Screw£1.90
P/N: 5196530-46, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 215 |
5196534-54 Husqvarna Screw |
Husqvarna Screw£3.02
P/N: 5196534-54, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 216 |
5196531-31 Husqvarna Screw |
£1.90 |
Husqvarna Screw£1.90
P/N: 5196531-31, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 218 |
5310082-20 Husqvarna Bolt |
£1.90 |
Husqvarna Bolt£1.90
P/N: 5310082-20, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 220 |
5196530-26 Husqvarna Screw |
Husqvarna Screw£3.90
P/N: 5196530-26, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 221 |
5310082-55 Husqvarna Screw |
Husqvarna Screw£1.55
P/N: 5310082-55, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 223 |
5196530-10 Husqvarna Screw |
Husqvarna Screw£1.84
P/N: 5196530-10, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 224 |
5310082-56 Husqvarna Screw |
Husqvarna Screw£1.90
P/N: 5310082-56, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
