Hayter Hunter 46 (321001001-321004356) Parts Diagram, Mainframe Assembly

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Hayter Hunter 46, or refer to the list below.

All Parts for Hunter 46

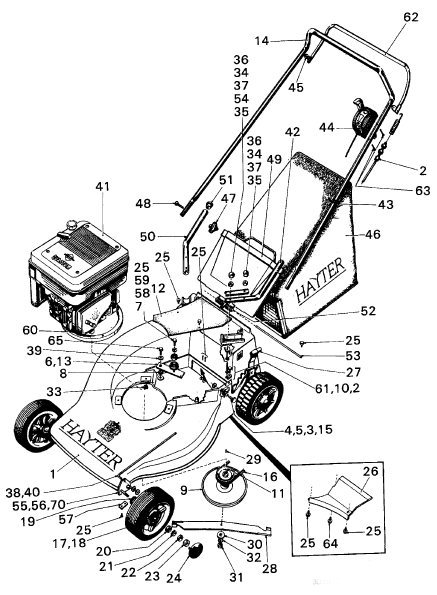

Hayter Hunter 46 (321001001-321004356) Parts Diagram, Mainframe Assembly

#	Part	Price
1	321010 Hayter Obsolete August 2007		Hayter Obsolete August 2007 P/N: 321010, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
2	321082 Hayter Cable Assy Clutch	£58.22	Hayter Cable Assy Clutch £58.22 P/N: 321082, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
3	321012 Hayter Obsolete June 2010		Hayter Obsolete June 2010 P/N: 321012, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
4	915031 Hayter Nut	£3.95	Hayter Nut £3.95 P/N: 915031, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
6	HY321069 Hayter Jockey Pulley Post Assy		Hayter Jockey Pulley Post Assy £88.60 P/N: HY321069, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
8	321021 Hayter Obsolete June 2010		Hayter Obsolete June 2010 P/N: 321021, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
9	321022 Hayter Obsolete March 2010		Hayter Obsolete March 2010 P/N: 321022, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
11	321034 Hayter SPACER		Hayter SPACER £5.60 P/N: 321034, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
12	320049 Hayter Cover Transmission		Hayter Cover Transmission £34.10 P/N: 320049, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
13	321067 Hayter SPRING TORSION		Hayter SPRING TORSION £3.42 P/N: 321067, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
14	321043 Hayter Obsolete October 2010		Hayter Obsolete October 2010 P/N: 321043, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
16	321049 Hayter Belt V 9.5X925La/875Li Gates		Hayter Belt V 9.5X925La/875Li Gates P/N: 321049, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
17	320125 Hayter Wheel C/W Bearings		Hayter Wheel C/W Bearings P/N: 320125, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
18	320125 Hayter Wheel C/W Bearings		Hayter Wheel C/W Bearings P/N: 320125, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
19	320053 Hayter Dust Shield		Hayter Dust Shield £1.01 P/N: 320053, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
20	320054 Hayter Bearing-Cone	£7.20	Hayter Bearing-Cone £7.20 P/N: 320054, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
21	320056 Hayter Bearing-Ballcage		Hayter Bearing-Ballcage P/N: 320056, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
22	320055 Hayter Bearing-Cup		Hayter Bearing-Cup £1.90 P/N: 320055, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
23	9450 Hayter Nut-Hx Lk M10 X 1 Binx		Hayter Nut-Hx Lk M10 X 1 Binx £1.09 P/N: 9450, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
24	320052 Hayter Hub Cap		Hayter Hub Cap £6.98 P/N: 320052, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
25	09365 Hayter Screw M6 X 16 Taptite Hex HD	£1.99	Hayter Screw M6 X 16 Taptite Hex HD £1.99 P/N: 09365, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
26	320012 Hayter Throwplate Assy		Hayter Throwplate Assy £20.57 P/N: 320012, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
27	330050 Hayter Lever Height Adj Assy		Hayter Lever Height Adj Assy £31.81 P/N: 330050, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
28	320019 Hayter Cutterbar 18"	£45.98	Hayter Cutterbar 18" £45.98 P/N: 320019, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
29	1662 Hayter Key Woodruff No 505	£1.78	Hayter Key Woodruff No 505 £1.78 P/N: 1662, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
30	HY4014 Hayter Distance Piece Cutterbar	£14.06	Hayter Distance Piece Cutterbar £14.06 P/N: HY4014, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
31	9121 Hayter Bolt Unf 3/8 X 2 S Qual		Hayter Bolt Unf 3/8 X 2 S Qual £0.97 P/N: 9121, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
32	09273 Hayter Washer 3/8 sc Spring	£1.97	Hayter Washer 3/8 sc Spring £1.97 P/N: 09273, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
33	9591 Hayter Discontinued		Hayter Discontinued P/N: 9591, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
34	09441 Hayter Nut M8 Nyl Insert T Type	£1.97	Hayter Nut M8 Nyl Insert T Type £1.97 P/N: 09441, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
35	9379 Hayter Bolt Coach M8 X 45 C/Sq Gd8.8		Hayter Bolt Coach M8 X 45 C/Sq Gd8.8 £0.97 P/N: 9379, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
36	HY234051 Hayter Cap For M8 Nut Black	£1.91	Hayter Cap For M8 Nut Black £1.91 P/N: HY234051, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
37	320043 Hayter Obsolete June 2010		Hayter Obsolete June 2010 P/N: 320043, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
39	321070 Hayter Pivot Jockey Arm		Hayter Pivot Jockey Arm £10.51 P/N: 321070, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
40	320079 Hayter Obsolete August 2010		Hayter Obsolete August 2010 P/N: 320079, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
41	286002 Hayter Obsolete January 2004		Hayter Obsolete January 2004 P/N: 286002, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
42	320022 Hayter Handlebar Lower Lh Hunter46T		Hayter Handlebar Lower Lh Hunter46T £49.10 P/N: 320022, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
43	HY3966 Hayter Strap Cable	£1.91	Hayter Strap Cable £1.91 P/N: HY3966, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
44	320063 Hayter Throttle Control Assy		Hayter Throttle Control Assy £63.07 P/N: 320063, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
45	226034 Hayter Bush Clutch Lever	£2.68	Hayter Bush Clutch Lever £2.68 P/N: 226034, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
46	320030 Hayter Grassbag Assy		Hayter Grassbag Assy £118.47 P/N: 320030, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
47	226013 Hayter Handwheel Triangular	£8.29	Hayter Handwheel Triangular £8.29 P/N: 226013, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
48	HY226024 Hayter Bolt Handlebar	£1.94	Hayter Bolt Handlebar £1.94 P/N: HY226024, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
49	320014 Hayter Deflector		Hayter Deflector £47.02 P/N: 320014, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
50	320124W Hayter Handlebar Lower R/H		Hayter Handlebar Lower R/H £59.63 P/N: 320124W, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
51	300160 Hayter Tube Plug	£1.97	Hayter Tube Plug £1.97 P/N: 300160, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
52	320016 Hayter Spring-Deflector		Hayter Spring-Deflector P/N: 320016, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
53	320015 Hayter Shaft-deflector 6.3 X 178		Hayter Shaft-deflector 6.3 X 178 £2.57 P/N: 320015, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
54	330025 Hayter Obsolete August 2010		Hayter Obsolete August 2010 P/N: 330025, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
55	320035 Hayter Obsolete December 2008		Hayter Obsolete December 2008 P/N: 320035, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
56	219036 Hayter Moulding Bearing	£7.06	Hayter Moulding Bearing £7.06 P/N: 219036, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
57	219037 Hayter Plate Securing	£2.02	Hayter Plate Securing £2.02 P/N: 219037, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
58	HY6277 Hayter Bearing		Hayter Bearing £17.45 P/N: HY6277, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
59	09263 Hayter Washer 1/4 X 7/8 X .08" Thk	£1.91	Hayter Washer 1/4 X 7/8 X .08" Thk £1.91 P/N: 09263, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
60	320011 Hayter Obsolete January 2009		Hayter Obsolete January 2009 P/N: 320011, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
61	09546 Hayter Screw M6 X 12 Hex W/Hd Pozi Tp	£2.00	Hayter Screw M6 X 12 Hex W/Hd Pozi Tp £2.00 P/N: 09546, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
62	219090 Hayter Lever Clutch	£49.24	Hayter Lever Clutch £49.24 P/N: 219090, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
63	HY09600 Hayter Screw No8X1.5 Posi Pan		Hayter Screw No8X1.5 Posi Pan P/N: HY09600, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
65	9622 Hayter Screw M6 X 30 Pam/Pozi Taptite		Hayter Screw M6 X 30 Pam/Pozi Taptite £0.97 P/N: 9622, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
70	219036 Hayter Moulding Bearing	£7.06	Hayter Moulding Bearing £7.06 P/N: 219036, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
