Micro Compact 30 Parts and Diagrams

Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Micro Compact 30.

Popular for this machine

Flymo Bolt
5149198-01
£3.25
Flymo Disc
5118080-00
£16.93
Flymo Pivot Pin
5140092-03
Flymo Spacer
5138413-00
Flymo Switch
5138415-00

All parts that fit a Micro Compact 30

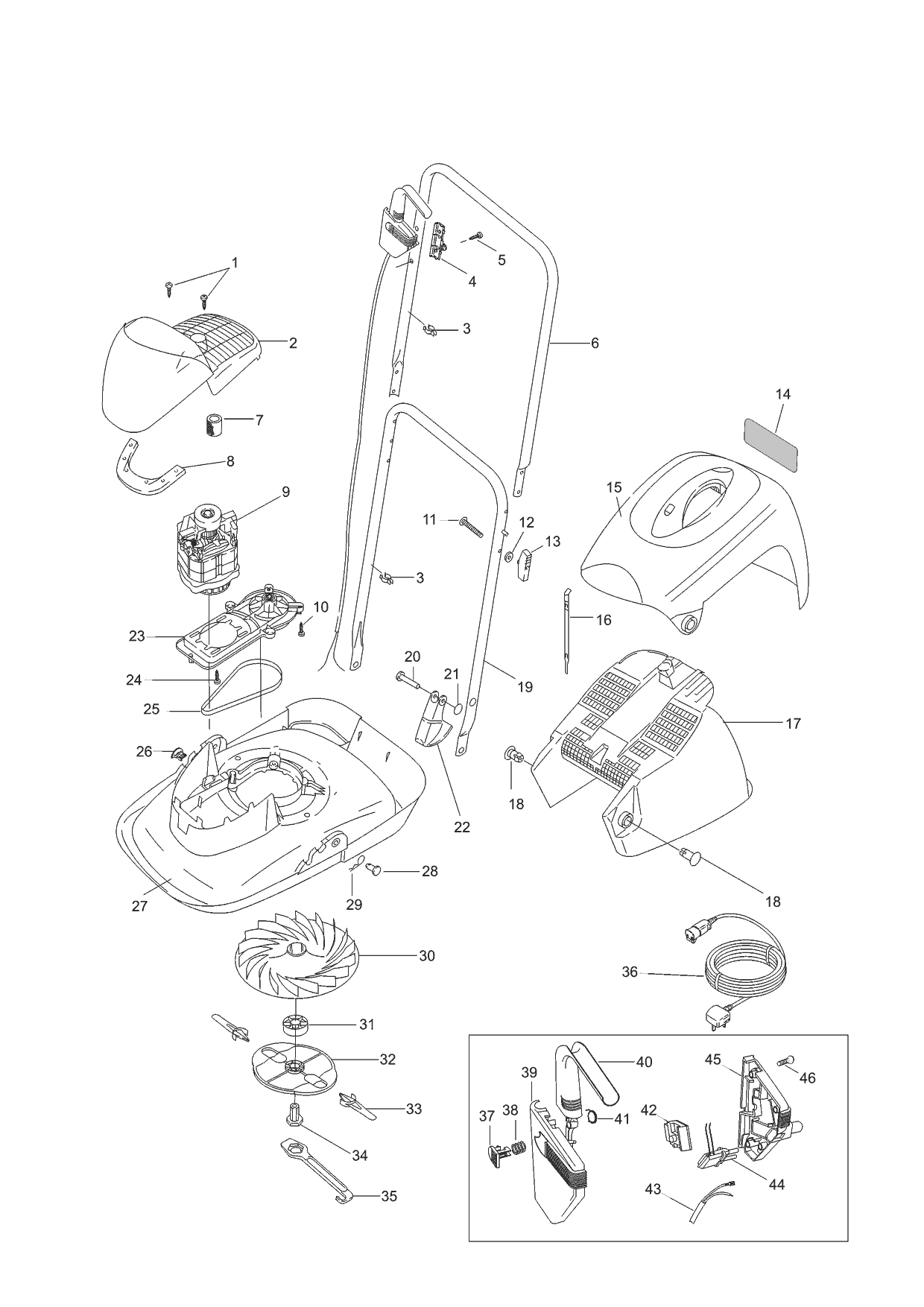

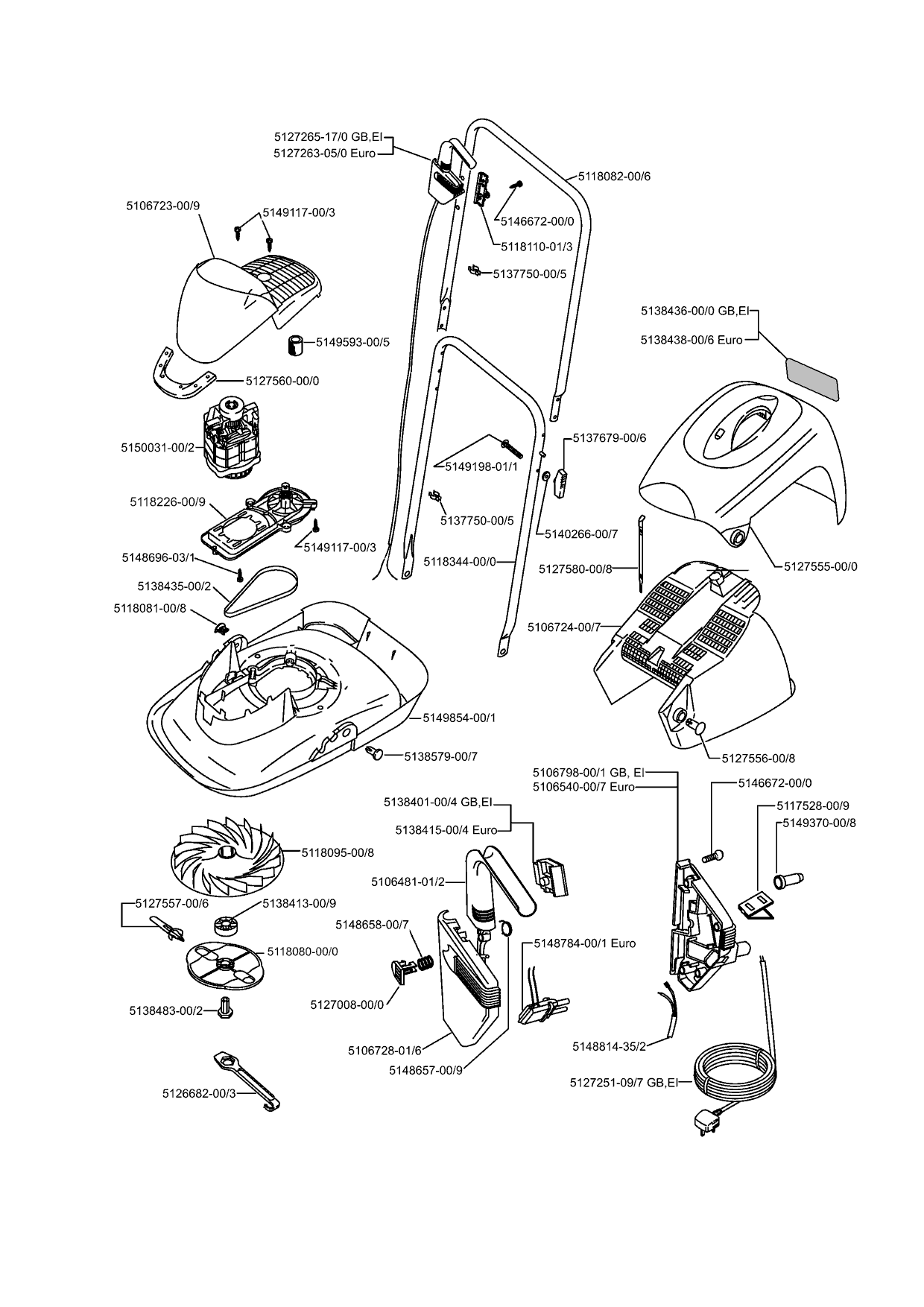

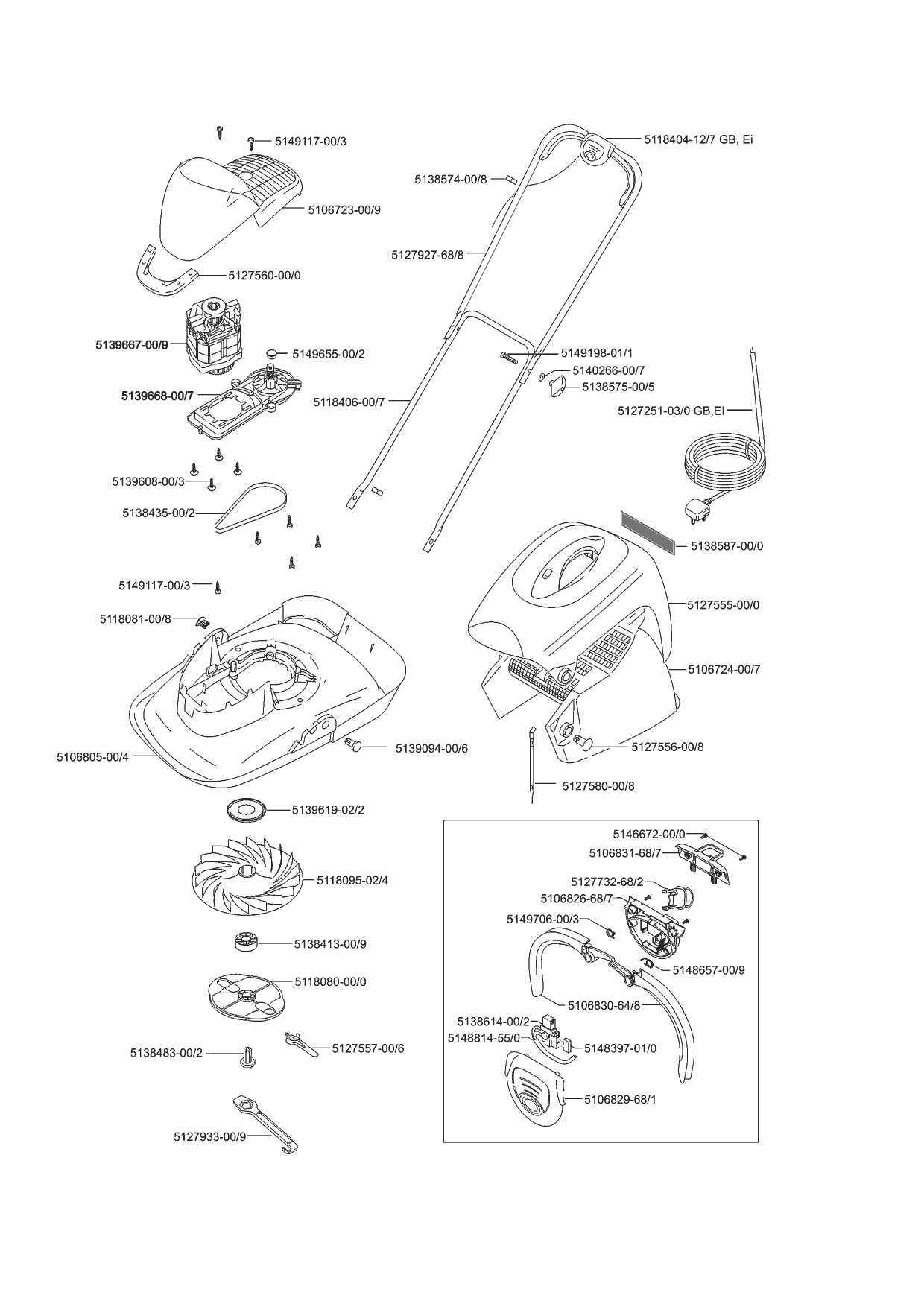

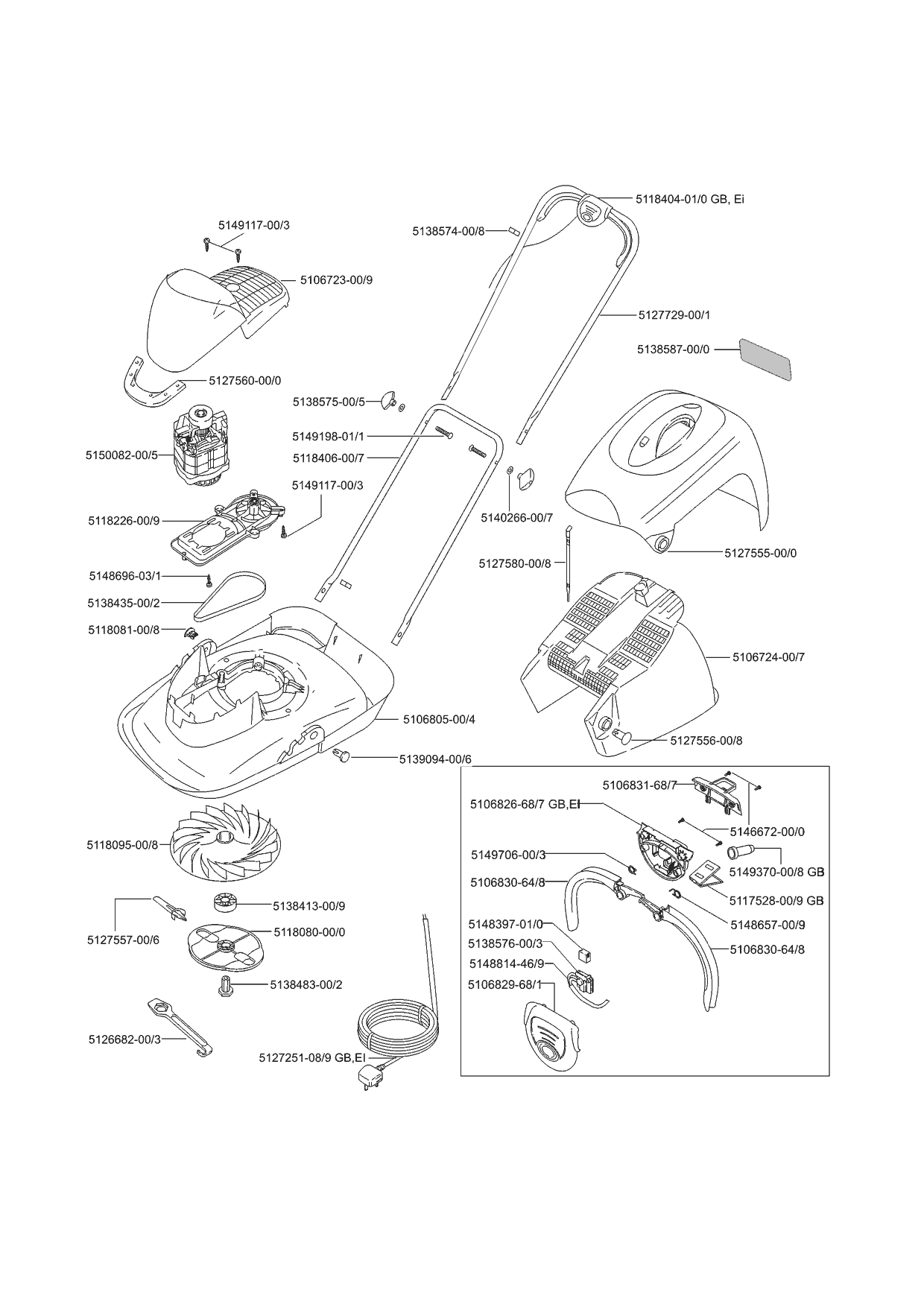

Diagrams for this machine

Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.

9633090

9633092

9633094

9633097

Can't see your part?
