Echo HC-2300 Hedgtrimmer Parts and Diagrams

Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Echo HC-2300 Hedgtrimmer.

All parts that fit a Echo HC-2300 Hedgtrimmer

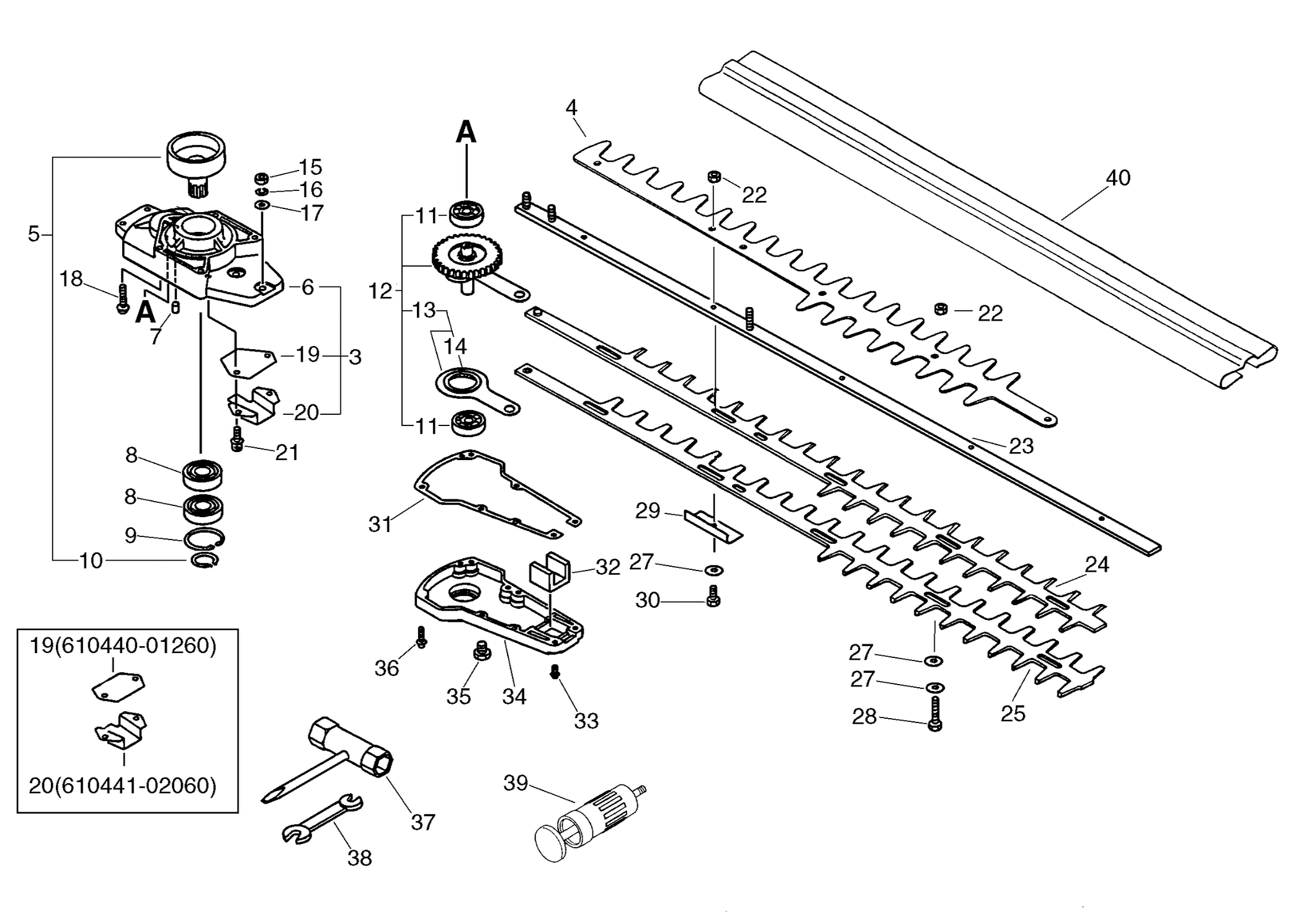

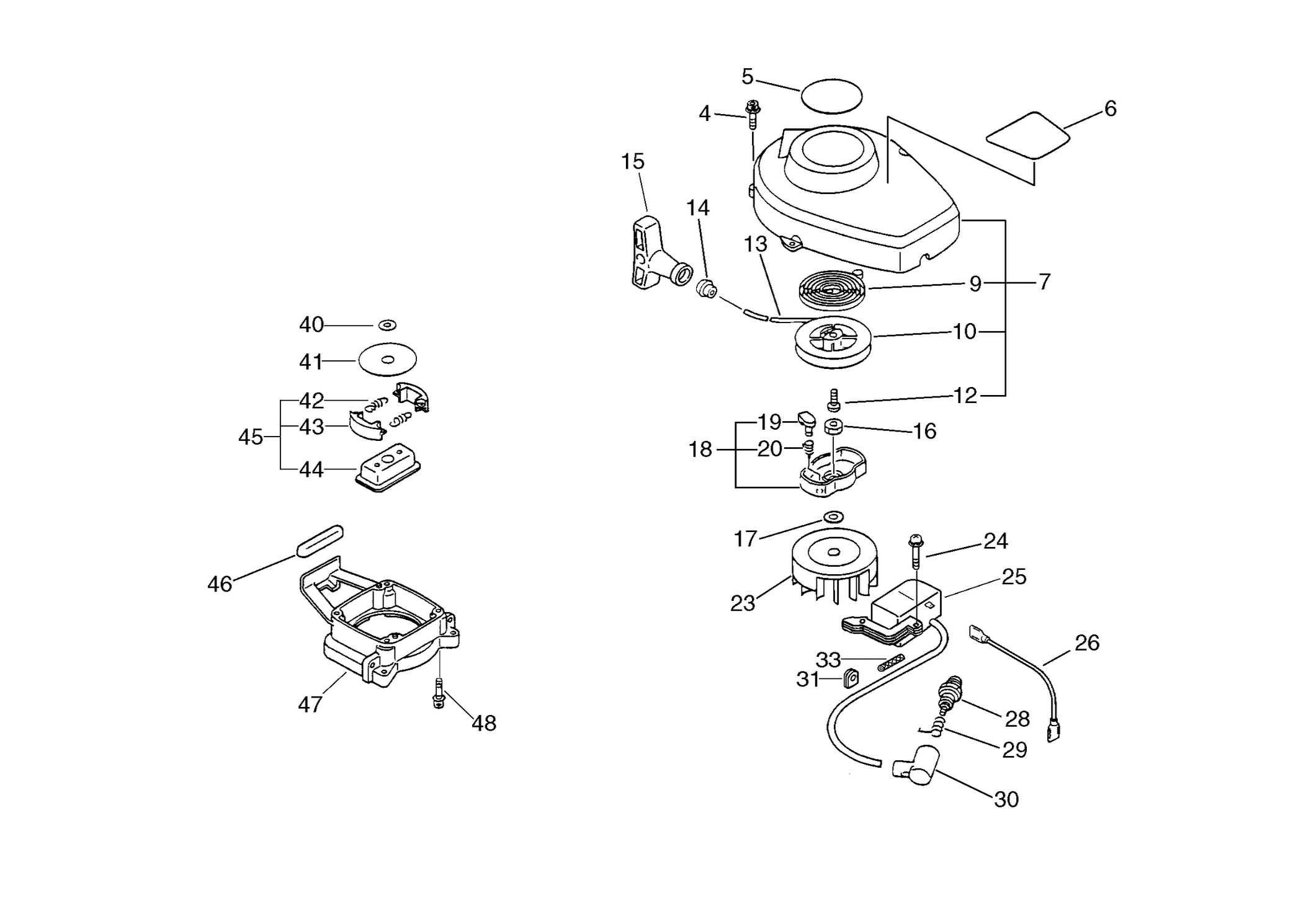

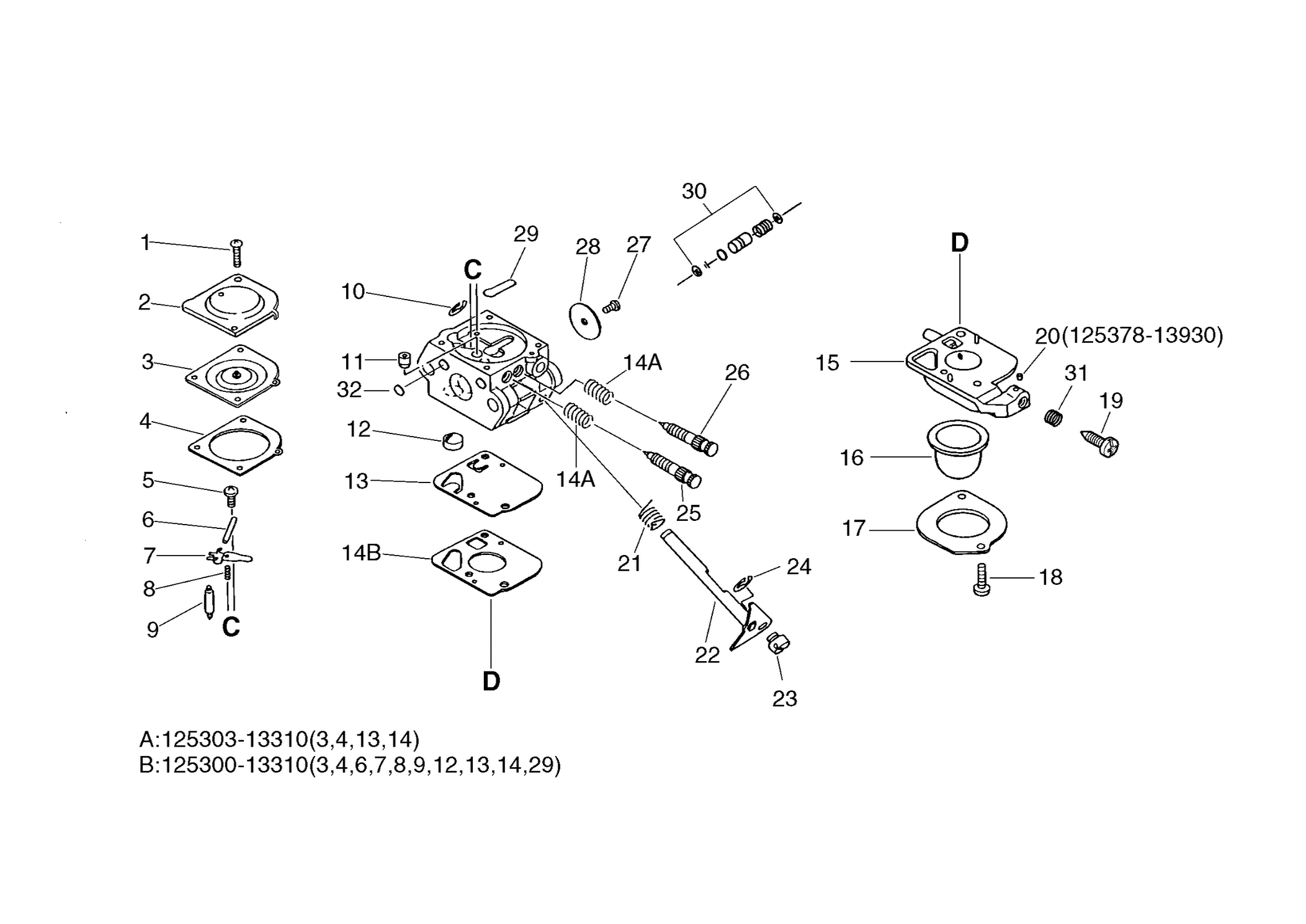

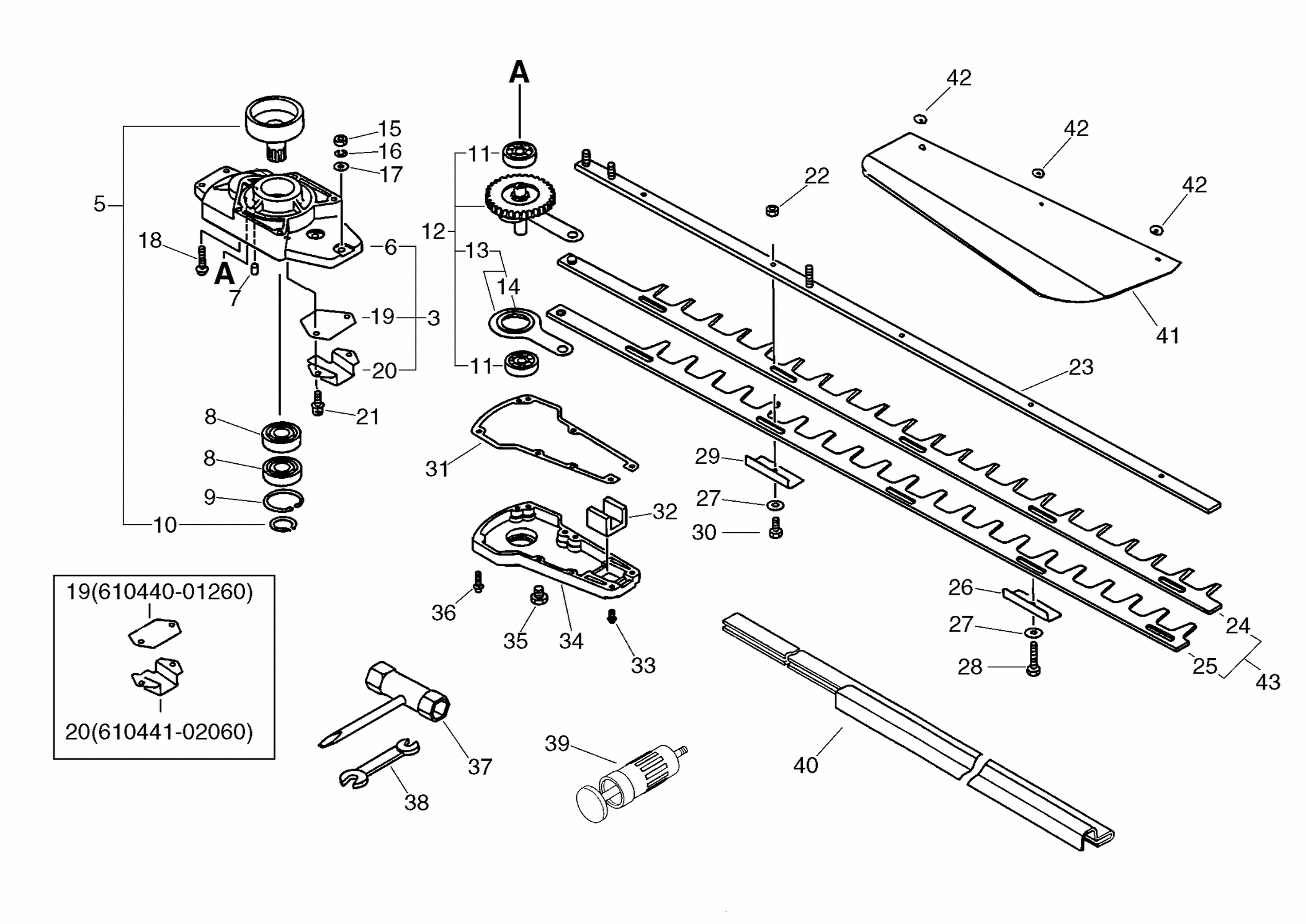

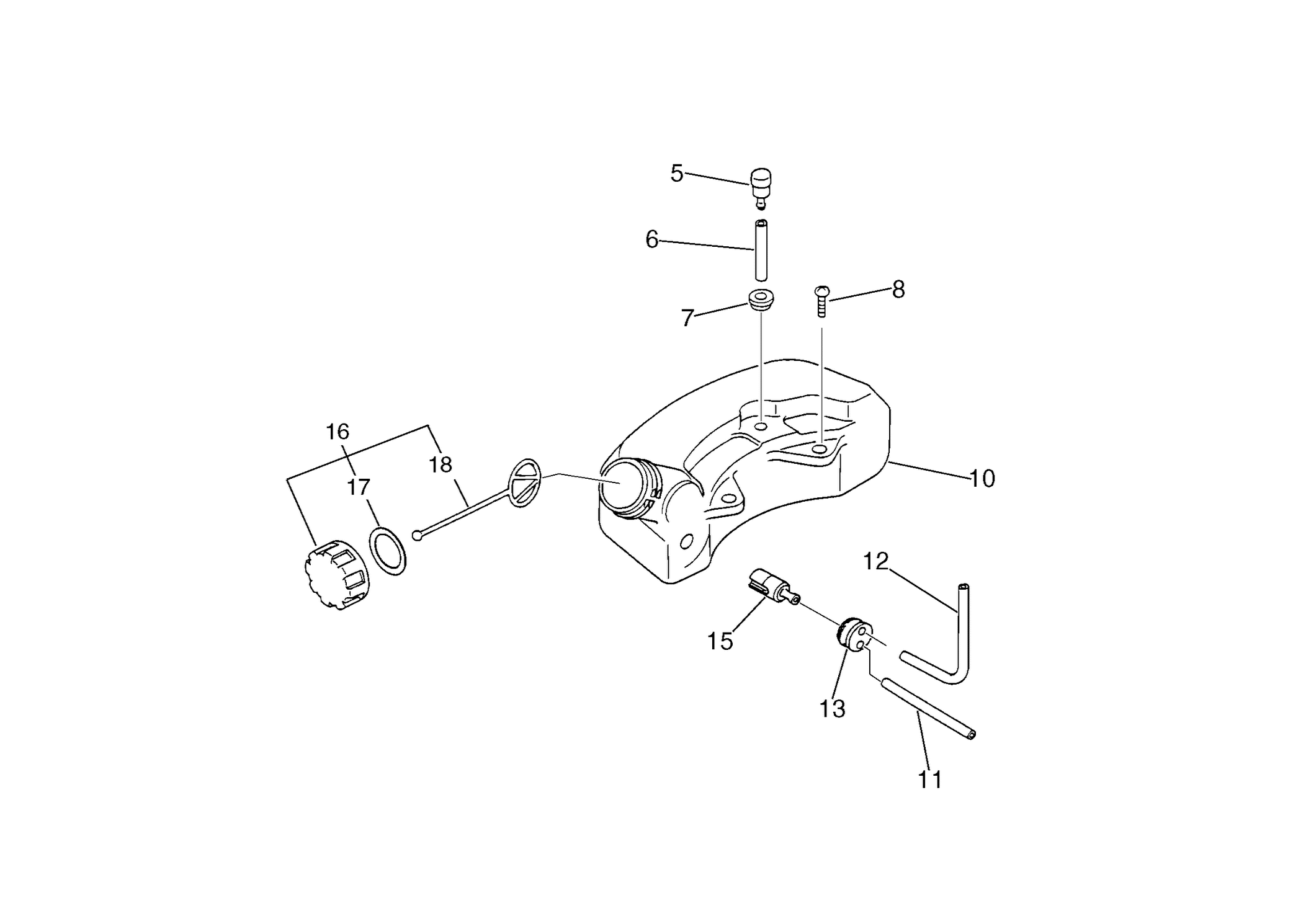

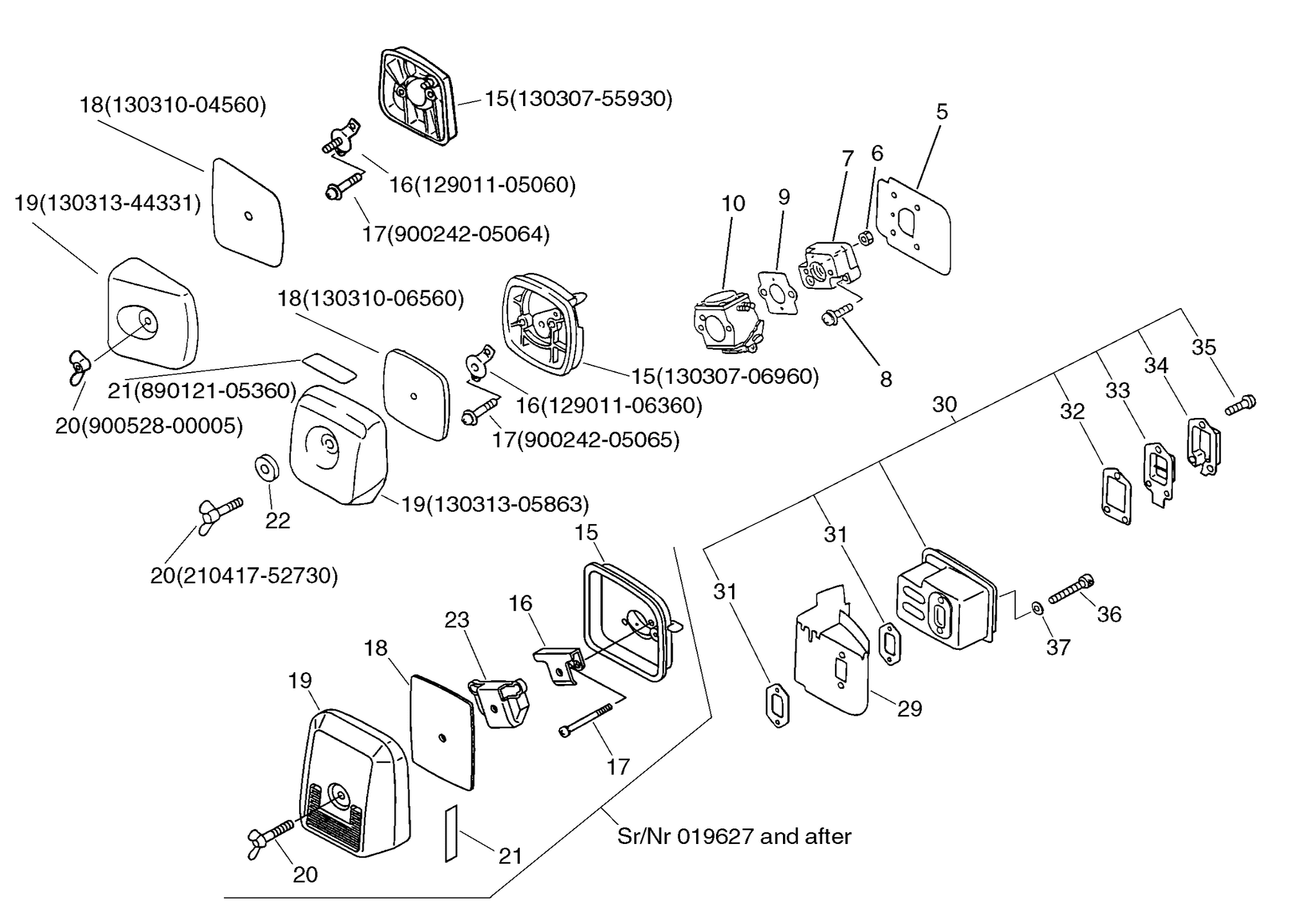

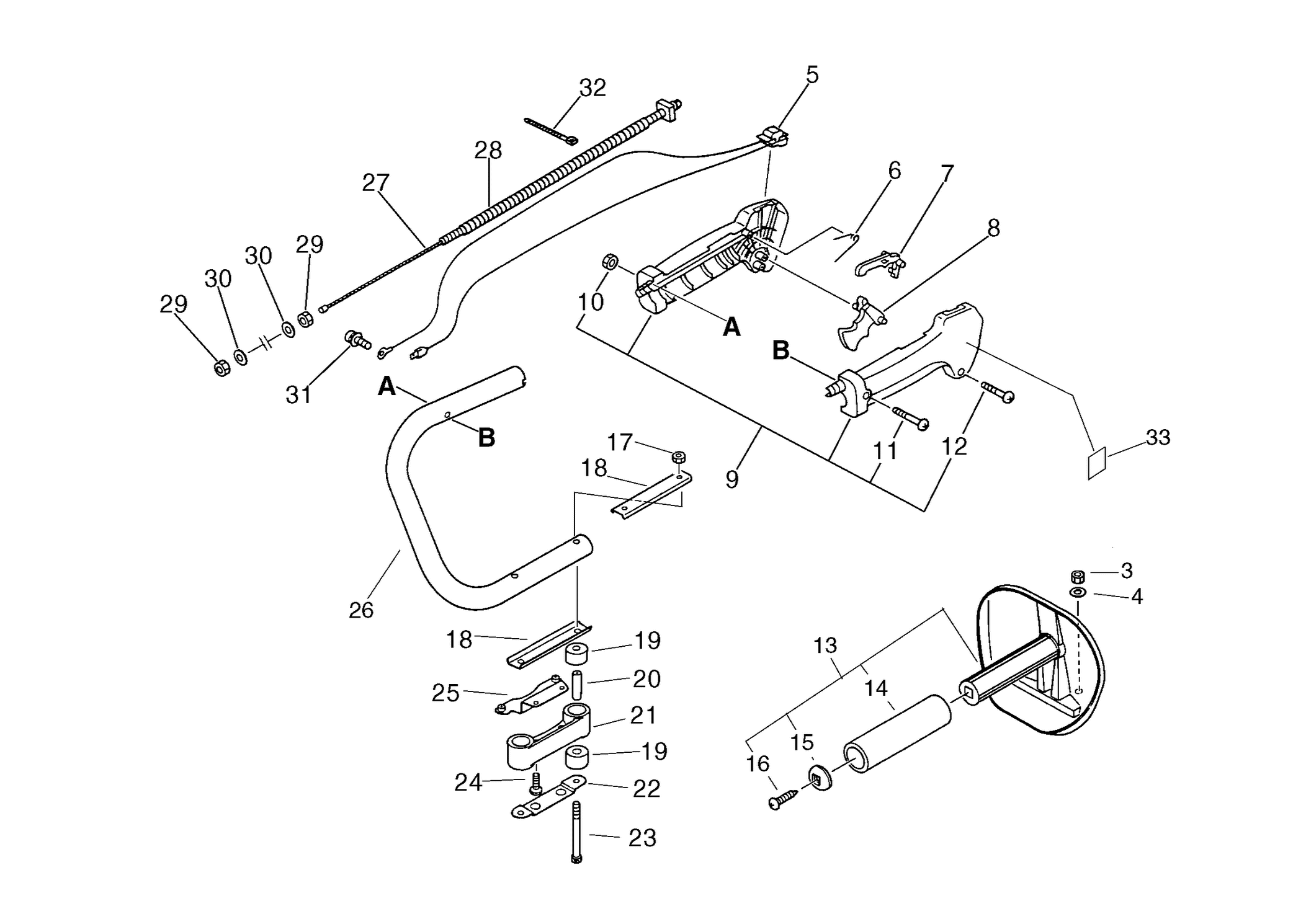

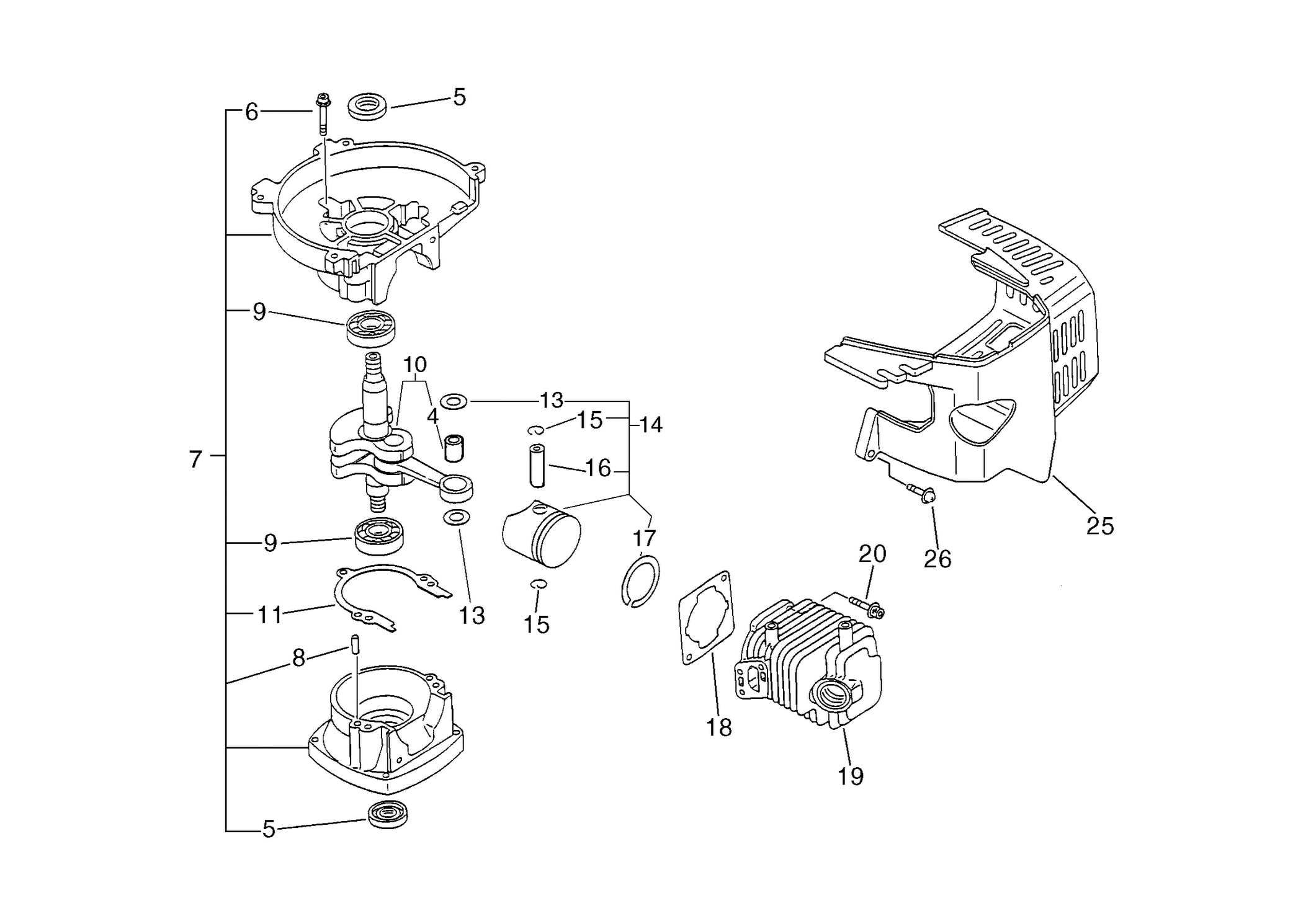

Diagrams for this machine

Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.

Choose your Year/Serial Number

Top

HC2300
