Echo SRM-2455 (SRM-2455) Parts Diagram, Page 2
Look at the diagram and find parts that fit a Echo SRM-2455, or refer to the list below.
All Parts for SRM-2455
| # | Part | Price | |
|---|---|---|---|
| 2 |
90070100012 Echo Retaining Ring |
£0.56 |
Echo Retaining Ring£0.56
P/N: 90070100012, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 2 |
90070100012 Echo Retaining Ring |
£0.56 |
Echo Retaining Ring£0.56
P/N: 90070100012, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 3 |
90080706001 Echo Bearing. Ball |
£11.57 |
Echo Bearing. Ball£11.57
P/N: 90080706001, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 3 |
90080706001 Echo Bearing. Ball |
£11.57 |
Echo Bearing. Ball£11.57
P/N: 90080706001, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 4 |
90070200028 Echo Retaining Ring |
£1.13 |
Echo Retaining Ring£1.13
P/N: 90070200028, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 4 |
90070200028 Echo Retaining Ring |
£1.13 |
Echo Retaining Ring£1.13
P/N: 90070200028, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 5 |
17500547630 Echo Drum. Clutch |
£53.53 |
Echo Drum. Clutch£53.53
P/N: 17500547630, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 5 |
17500547630 Echo Drum. Clutch |
£53.53 |
Echo Drum. Clutch£53.53
P/N: 17500547630, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 6 |

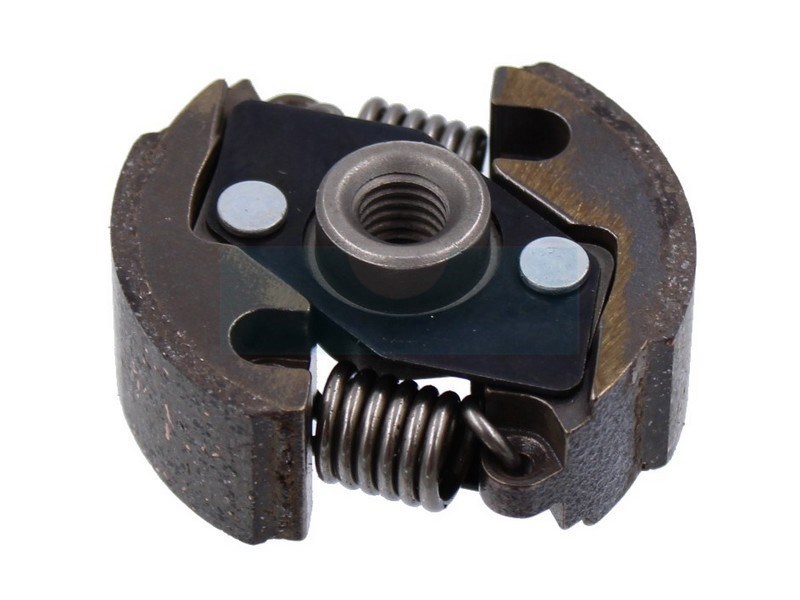

A056000770 Echo Clutch Asy |
£44.81 |
 Echo Clutch Asy£44.81
P/N: A056000770, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 6 |
A056000770 Echo Clutch Asy |
£44.81 |
Echo Clutch Asy£44.81
P/N: A056000770, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 7 |
A566000270 Echo Spring. Clutch |
£2.66 |
Echo Spring. Clutch£2.66
P/N: A566000270, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 7 |
A566000270 Echo Spring. Clutch |
£2.66 |
Echo Spring. Clutch£2.66
P/N: A566000270, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 8 |
15660152130 Echo Coil Ignition |
Echo Coil Ignition
P/N: 15660152130, Genuine OEM spare part. Find other Echo spares, parts and accessories.
No longer available
|
|
| 8 |
156601-52130 Echo Coil, Ignition |
Echo Coil, Ignition
P/N: 156601-52130, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
|
| 9 |
90016204022 Echo Bolt HSH |
£1.13 |
Echo Bolt HSH£1.13
P/N: 90016204022, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 10 |
16201052830 Echo Lead. Ground |
£4.39 |
Echo Lead. Ground£4.39
P/N: 16201052830, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 11 |
15901203433 Echo Cap. Spark Plug |
£9.08 |
Echo Cap. Spark Plug£9.08
P/N: 15901203433, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 11 |
15901203433 Echo Cap. Spark Plug |
£9.08 |
Echo Cap. Spark Plug£9.08
P/N: 15901203433, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 12 |
15901103432 Echo Coil. Spark Plug |
£1.97 |
Echo Coil. Spark Plug£1.97
P/N: 15901103432, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 12 |
15901103432 Echo Coil. Spark Plug |
£1.97 |
Echo Coil. Spark Plug£1.97
P/N: 15901103432, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 13 |
RCJ7Y Echo SPARK PLUG |
£6.83 |
 Echo SPARK PLUG£6.83
P/N: RCJ7Y, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 14 |
15011242030 Echo Bushing |
£1.97 |
Echo Bushing£1.97
P/N: 15011242030, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 15 |
15680144731 Echo Flywheel |
£102.74 |
Echo Flywheel£102.74
P/N: 15680144731, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 15 |
15680144731 Echo Flywheel |
£102.74 |
Echo Flywheel£102.74
P/N: 15680144731, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 21 |
17720212220 Echo Pawl Assy. Starter |
£12.91 |
Echo Pawl Assy. Starter£12.91
P/N: 17720212220, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 21 |
17720212220 Echo Pawl Assy. Starter |
£12.91 |
Echo Pawl Assy. Starter£12.91
P/N: 17720212220, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 22 |
17723412220 Echo Spring. Pawl |
£2.54 |
Echo Spring. Pawl£2.54
P/N: 17723412220, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 22 |
17723412220 Echo Spring. Pawl |
£2.54 |
Echo Spring. Pawl£2.54
P/N: 17723412220, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 23 |
17721844330 Echo Pawl. Starter |
£3.28 |
 Echo Pawl. Starter£3.28
P/N: 17721844330, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 25 |
90025305020 Echo Screw. Tapping |
£0.56 |
Echo Screw. Tapping£0.56
P/N: 90025305020, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 25 |
90025305020 Echo Screw. Tapping |
£0.56 |
Echo Screw. Tapping£0.56
P/N: 90025305020, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 26 |
A051000371 Echo Starter. Recoil |
£123.77 |
Echo Starter. Recoil£123.77
P/N: A051000371, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 27 |
17722827030 Echo Grip. Starter |
£9.95 |
Echo Grip. Starter£9.95
P/N: 17722827030, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 27 |
17722827030 Echo Grip. Starter |
£9.95 |
Echo Grip. Starter£9.95
P/N: 17722827030, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 28 |
P022045770 Echo Guide. Rope |
£6.36 |
Echo Guide. Rope£6.36
P/N: P022045770, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 29 |
A503000010 Echo Plate. Starter |
£2.54 |
Echo Plate. Starter£2.54
P/N: A503000010, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 31 |
A504000001 Echo Spring. Spiral |
£16.01 |
Echo Spring. Spiral£16.01
P/N: A504000001, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 31 |
A504000001 Echo Spring. Spiral |
£16.01 |
Echo Spring. Spiral£16.01
P/N: A504000001, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 32 |
V355000080 Echo Collar. 8 |
£1.27 |
Echo Collar. 8£1.27
P/N: V355000080, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 33 |
V641000040 Echo Pin. Snap |
£0.71 |
Echo Pin. Snap£0.71
P/N: V641000040, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 35 |
A506000010 Echo Reel. Rope |
£22.56 |
Echo Reel. Rope£22.56
P/N: A506000010, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 35 |
A506000010 Echo Reel. Rope |
£22.56 |
Echo Reel. Rope£22.56
P/N: A506000010, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 36 |
17722610120 Echo Rope. Starter |
£5.99 |
Echo Rope. Starter£5.99
P/N: 17722610120, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 36 |
17722610120 Echo Rope. Starter |
£5.99 |
Echo Rope. Starter£5.99
P/N: 17722610120, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 37 |
A514000010 Echo Pawl |
£3.28 |
Echo Pawl£3.28
P/N: A514000010, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 38 |
V450000130 Echo Spring. Compression |
£2.69 |
Echo Spring. Compression£2.69
P/N: V450000130, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 39 |
A053000031 Echo Spring. Asm Power |
£65.28 |
Echo Spring. Asm Power£65.28
P/N: A053000031, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 40 |
A053000031 Echo Spring. Asm Power |
£65.28 |
Echo Spring. Asm Power£65.28
P/N: A053000031, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 43 |
A520000002 Echo Pulley. Starting |
£4.39 |
Echo Pulley. Starting£4.39
P/N: A520000002, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 43 |
A520000002 Echo Pulley. Starting |
£4.39 |
Echo Pulley. Starting£4.39
P/N: A520000002, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 44 |
17721402830 Echo Washer |
£1.13 |
Echo Washer£1.13
P/N: 17721402830, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 45 |
90010505012 Echo Bolt HSH |
£0.92 |
Echo Bolt HSH£0.92
P/N: 90010505012, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 45 |
90010505012 Echo Bolt HSH |
£0.92 |
Echo Bolt HSH£0.92
P/N: 90010505012, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 47 |
V376000160 Echo Spacer |
£7.79 |
Echo Spacer£7.79
P/N: V376000160, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 48 |
90016204016 Echo Bolt HSH |
£1.13 |
Echo Bolt HSH£1.13
P/N: 90016204016, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 48 |
90016204016 Echo Bolt HSH |
£1.13 |
Echo Bolt HSH£1.13
P/N: 90016204016, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 50 |
X502000032 Label. Echo |
£3.89 |
Label. Echo£3.89
P/N: X502000032, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
| 51 |
X505000620 Echo Label. Caution |
£2.54 |
Echo Label. Caution£2.54
P/N: X505000620, Genuine OEM spare part. Find other Echo spares, parts and accessories. |
