LINER 22SA Parts and Diagrams

Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a LINER 22SA.

Popular for this machine

381008021/1
ATCO (New From 2012) Hexagon Nut M6
112292100/0
£1.36
ATCO (New From 2012) L/h Deflector Spring
122450420/1
£1.61
ATCO (New From 2012) Washer M10
112530140/0
£1.86

All parts that fit a LINER 22SA

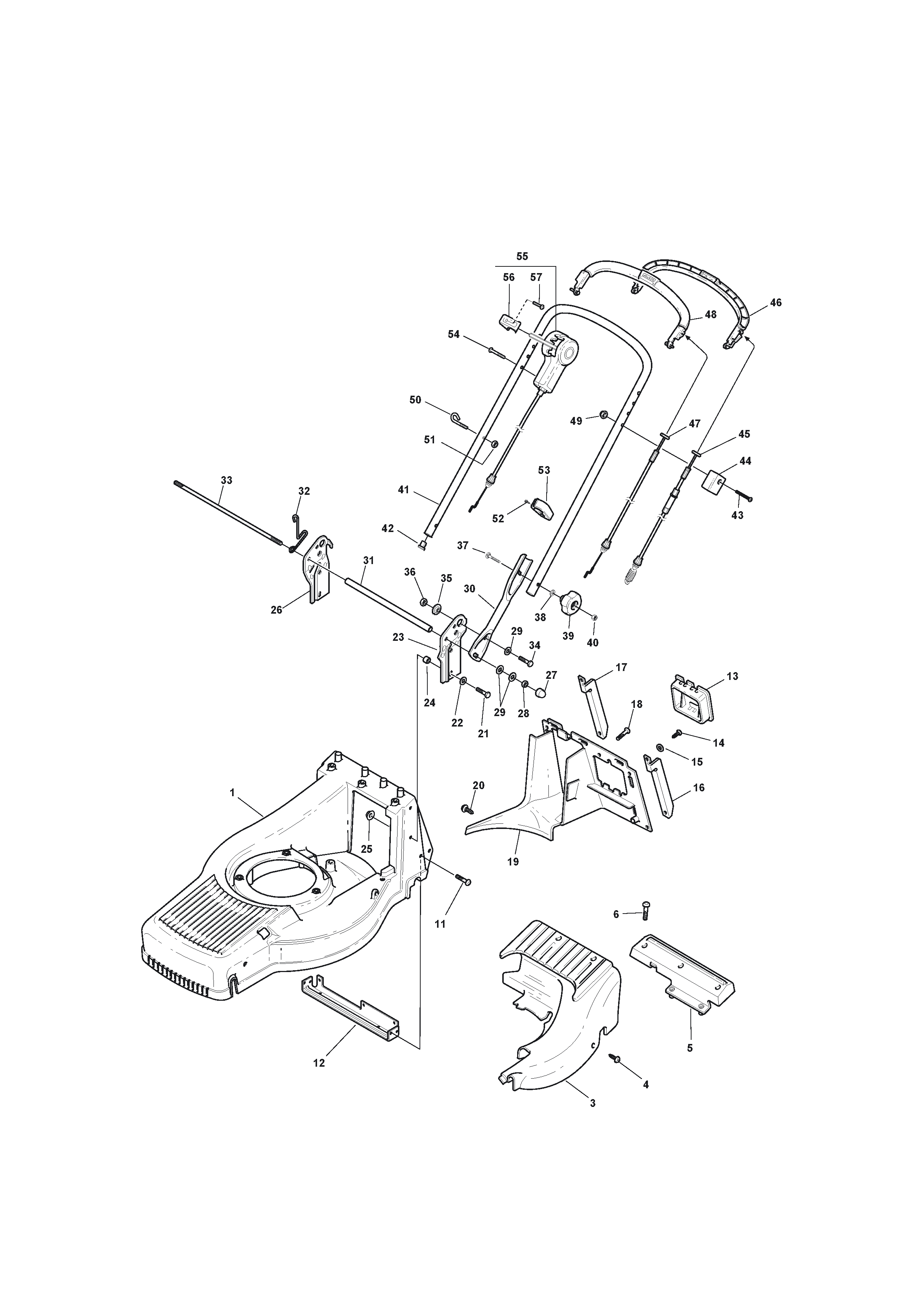

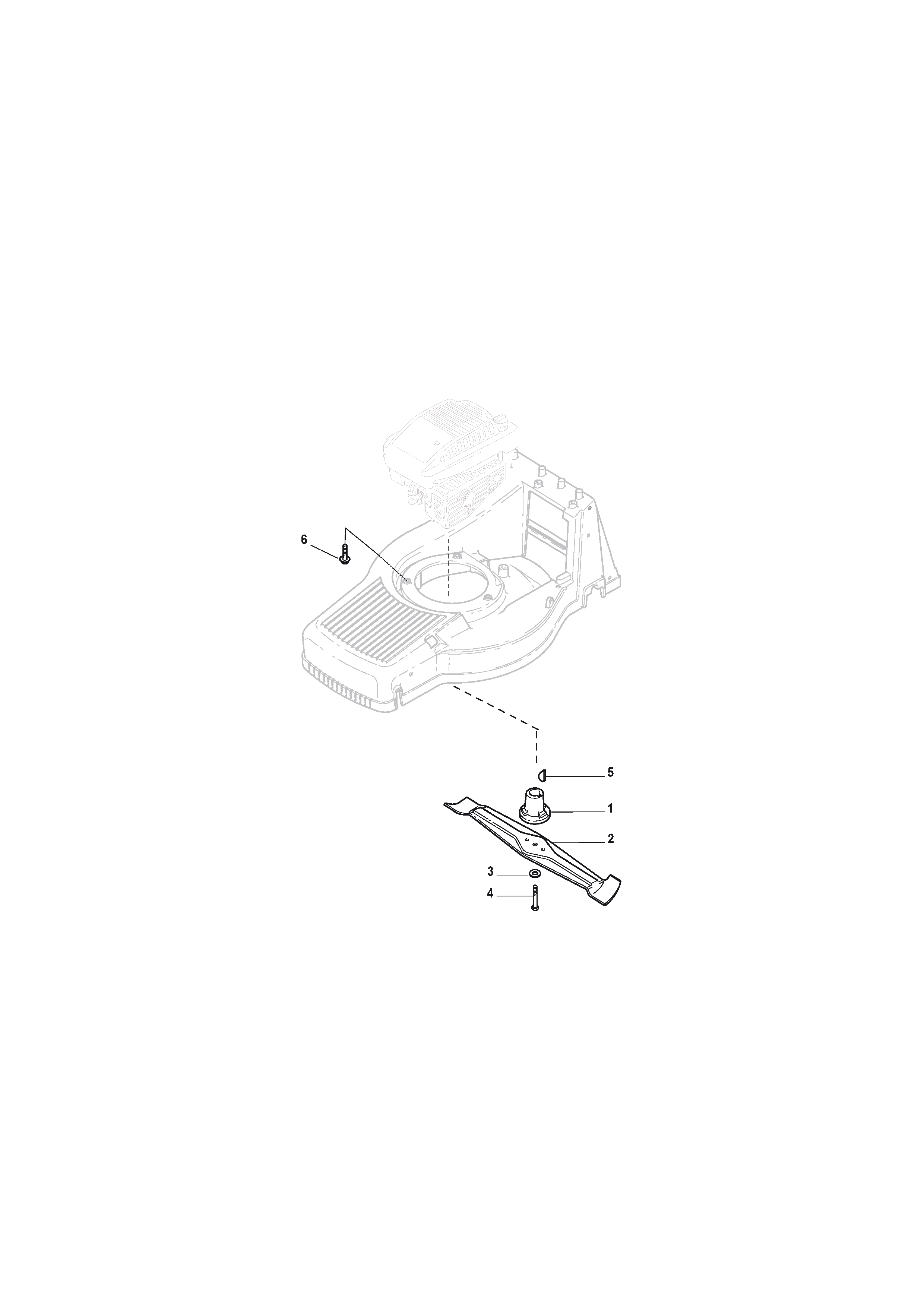

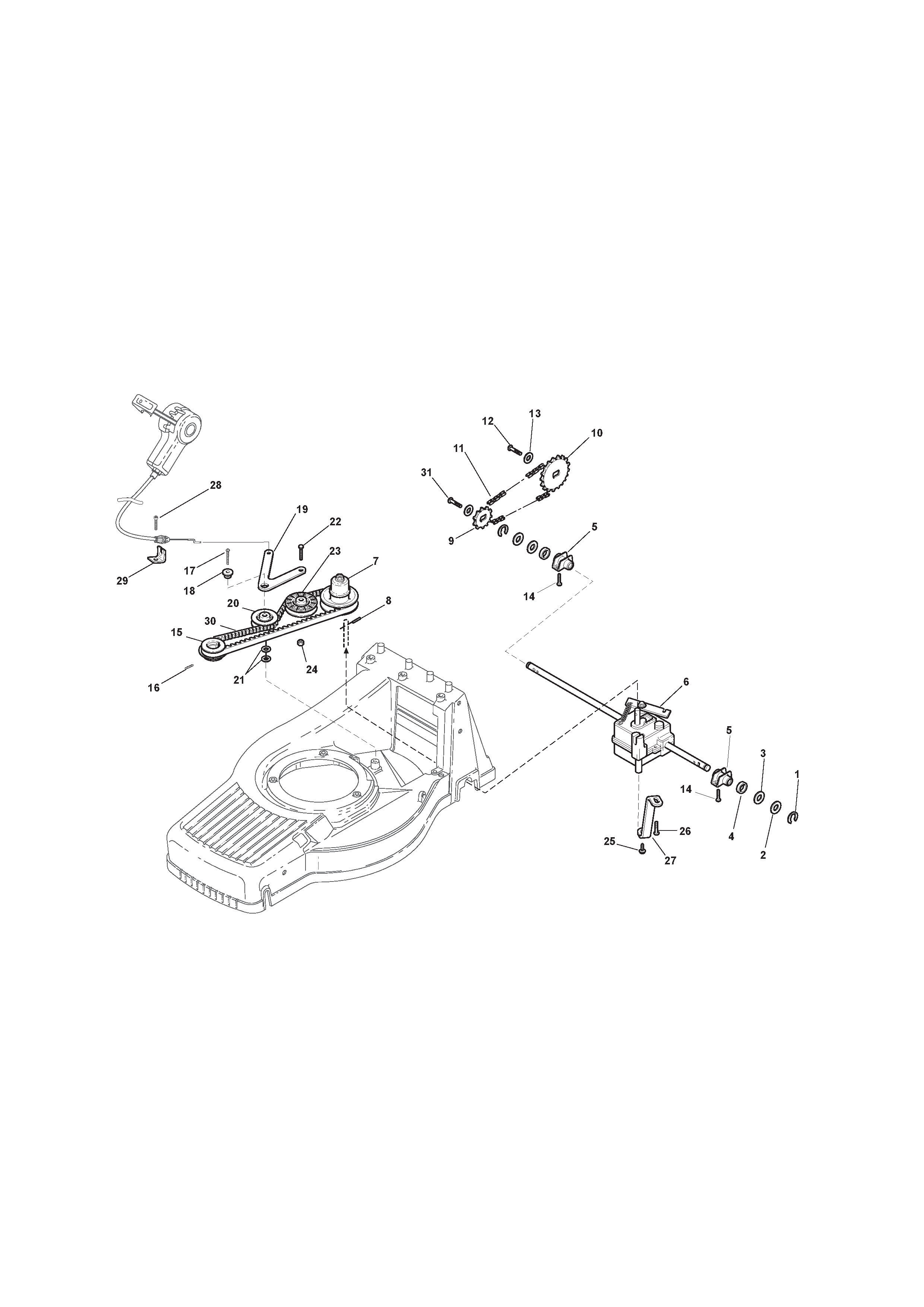

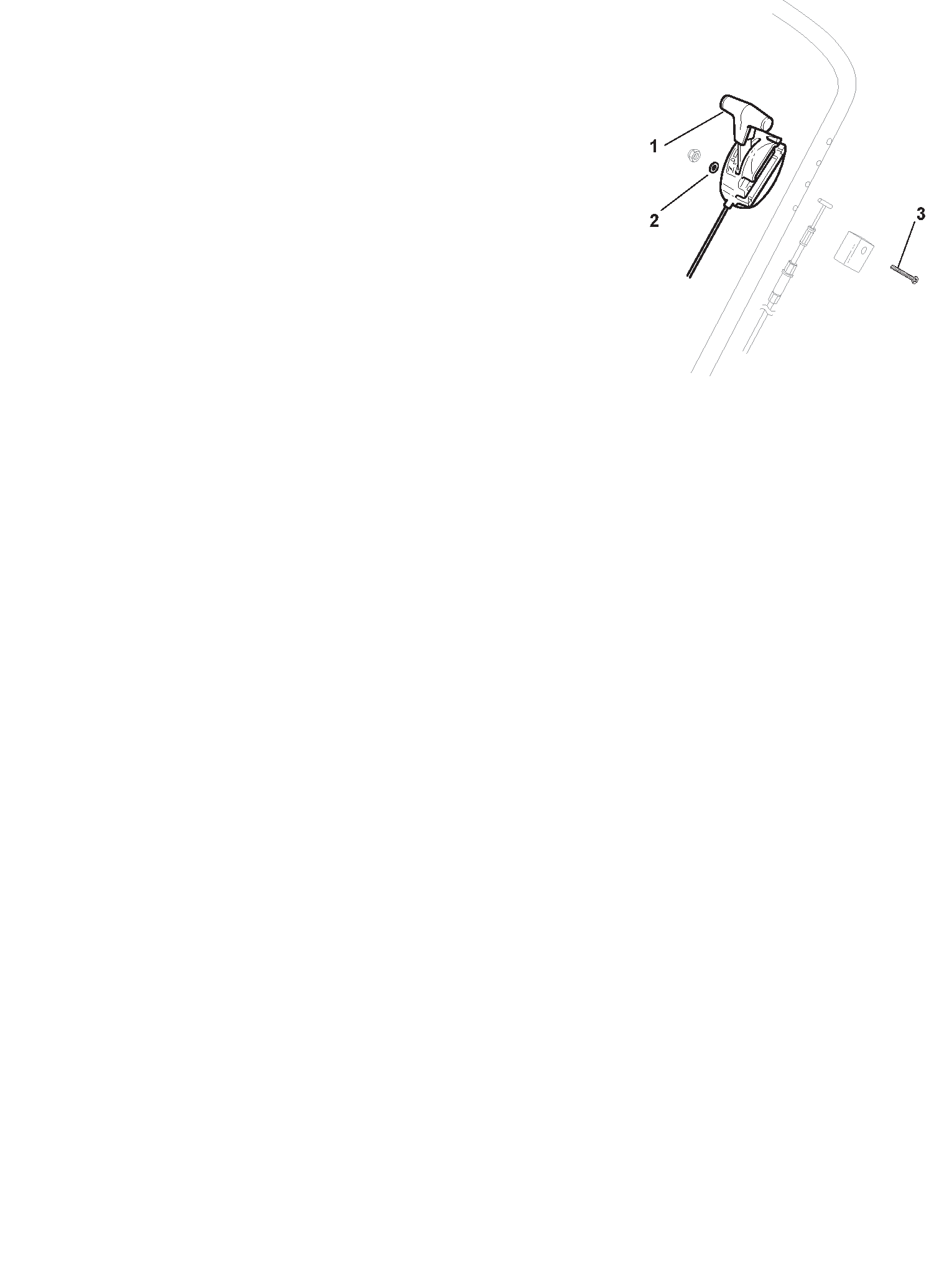

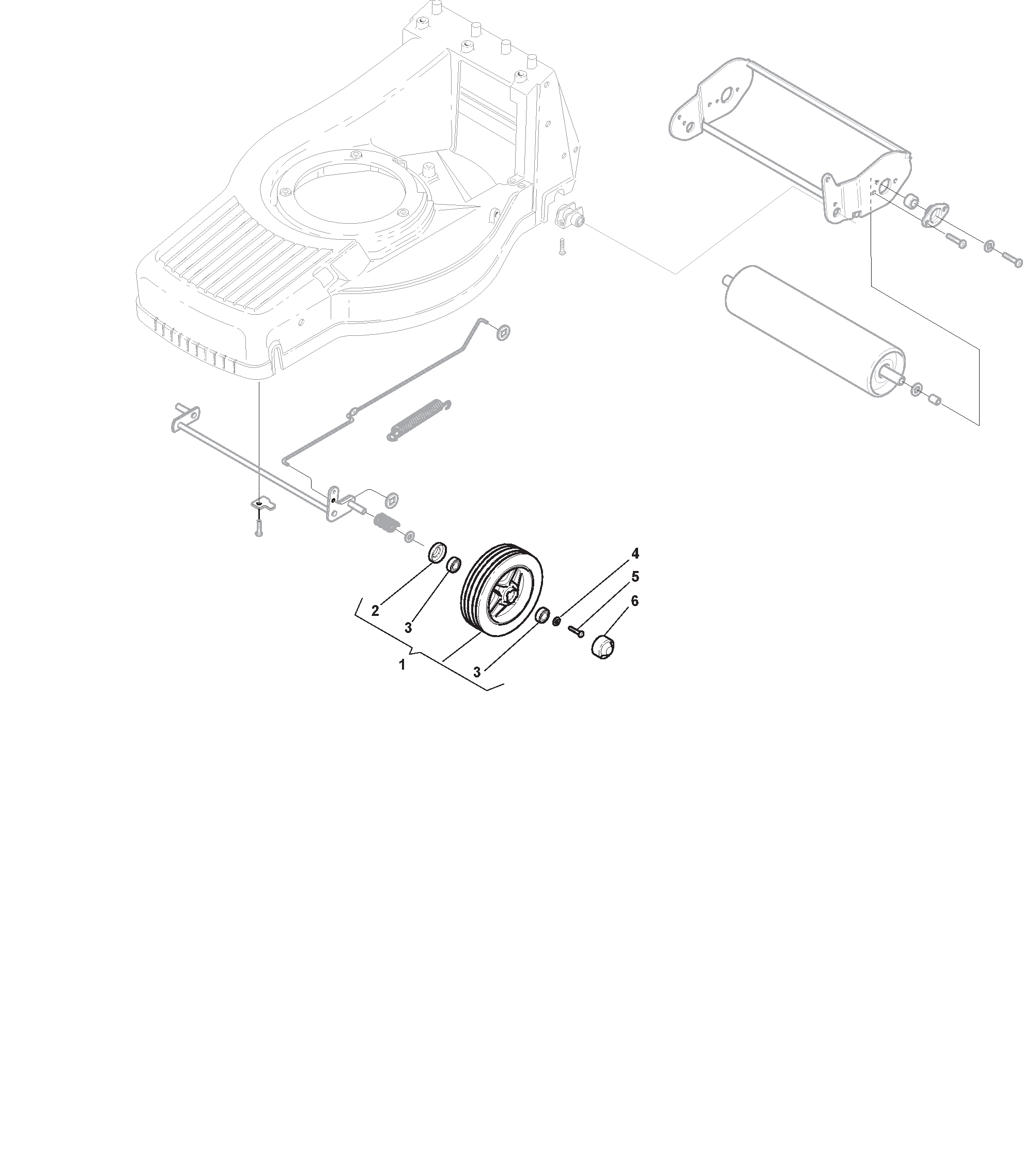

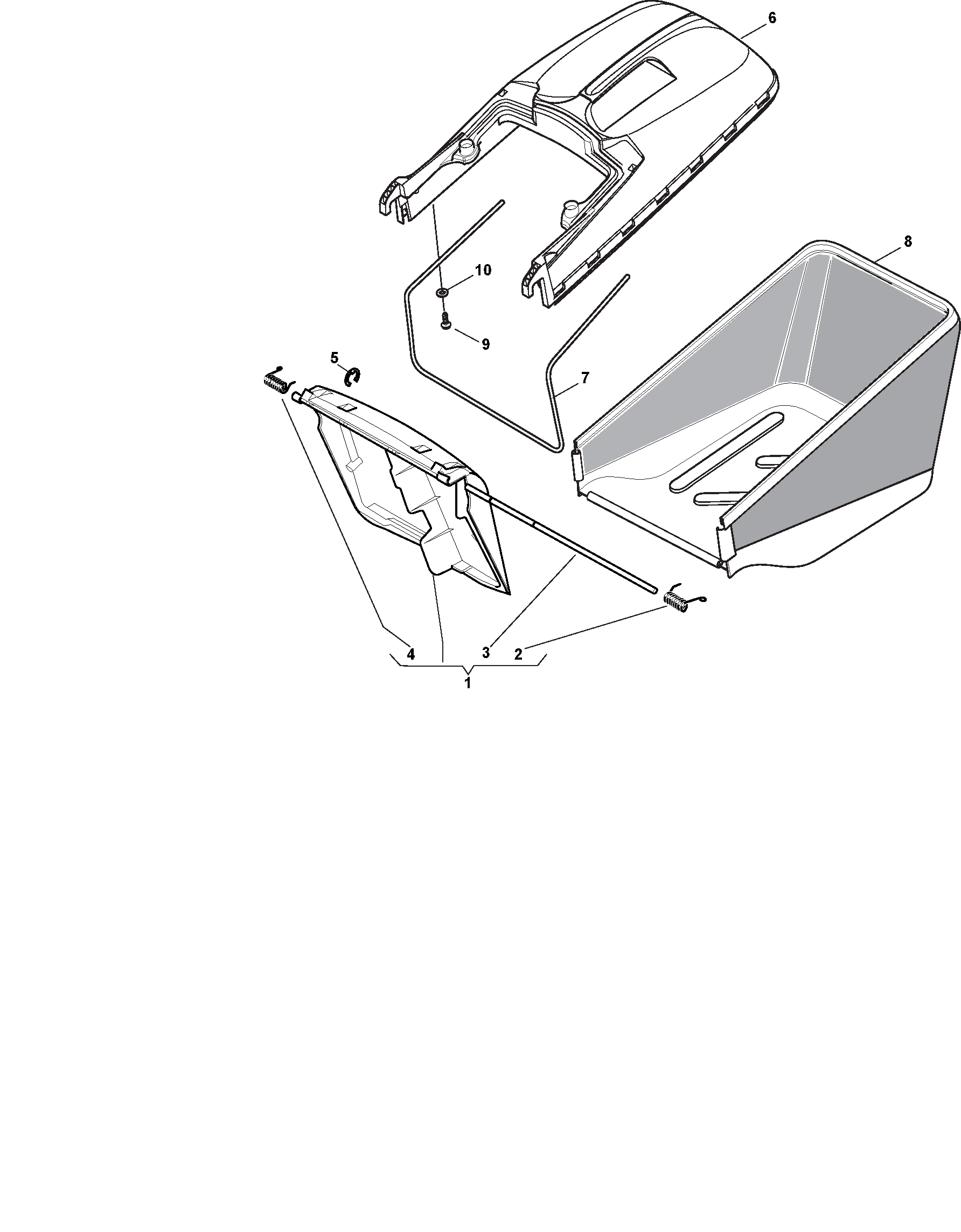

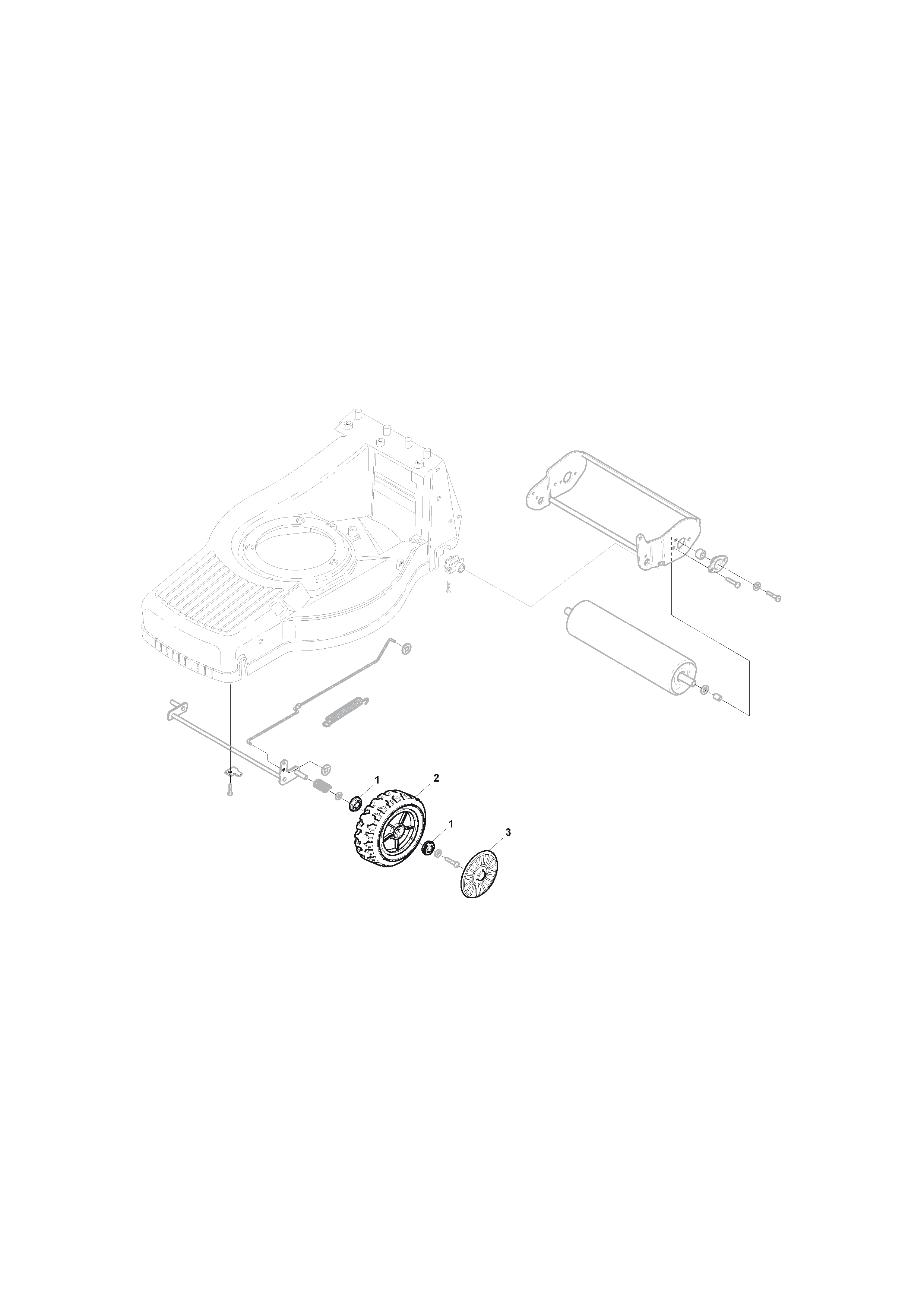

Diagrams for this machine

Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.

2012

2013

2013

2014

Can't see your part?
