LINER 22SA (2012) Parts and Diagrams

Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a LINER 22SA (2012).

Popular for this machine

ATCO (New From 2012) Carriage Bolt M8 X 50
112819110/0
£1.49
ATCO (New From 2012) Hexagon Nut M6
112292100/0
£1.36
ATCO (New From 2012) Tension Pulley
122601915/0
£19.52
ATCO (New From 2012) Variator Pulley
122601932/0
£53.15
ATCO (New From 2012) Washer M12 13 24 X 2.5
112521370/0
£1.61

All parts that fit a LINER 22SA (2012)

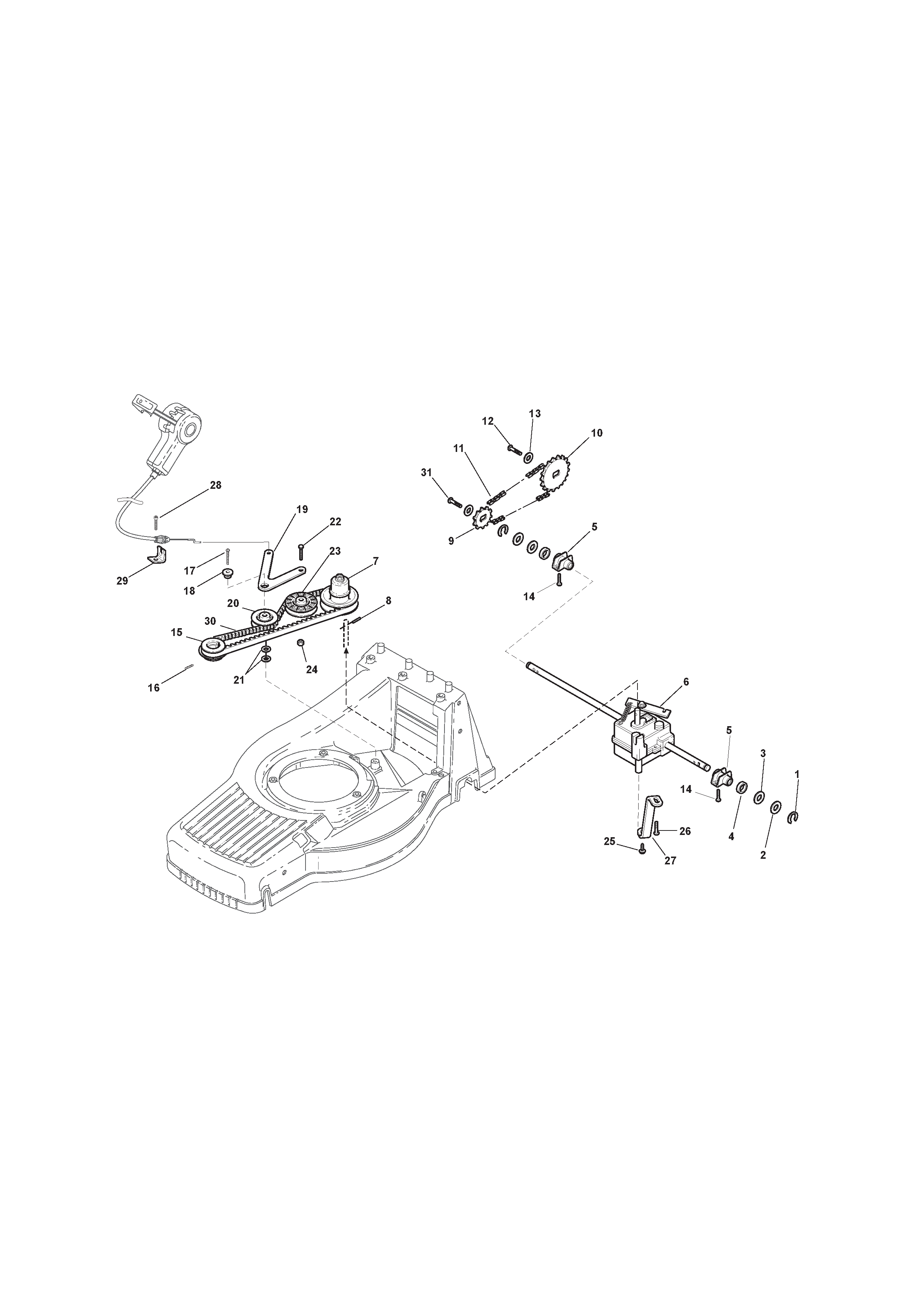

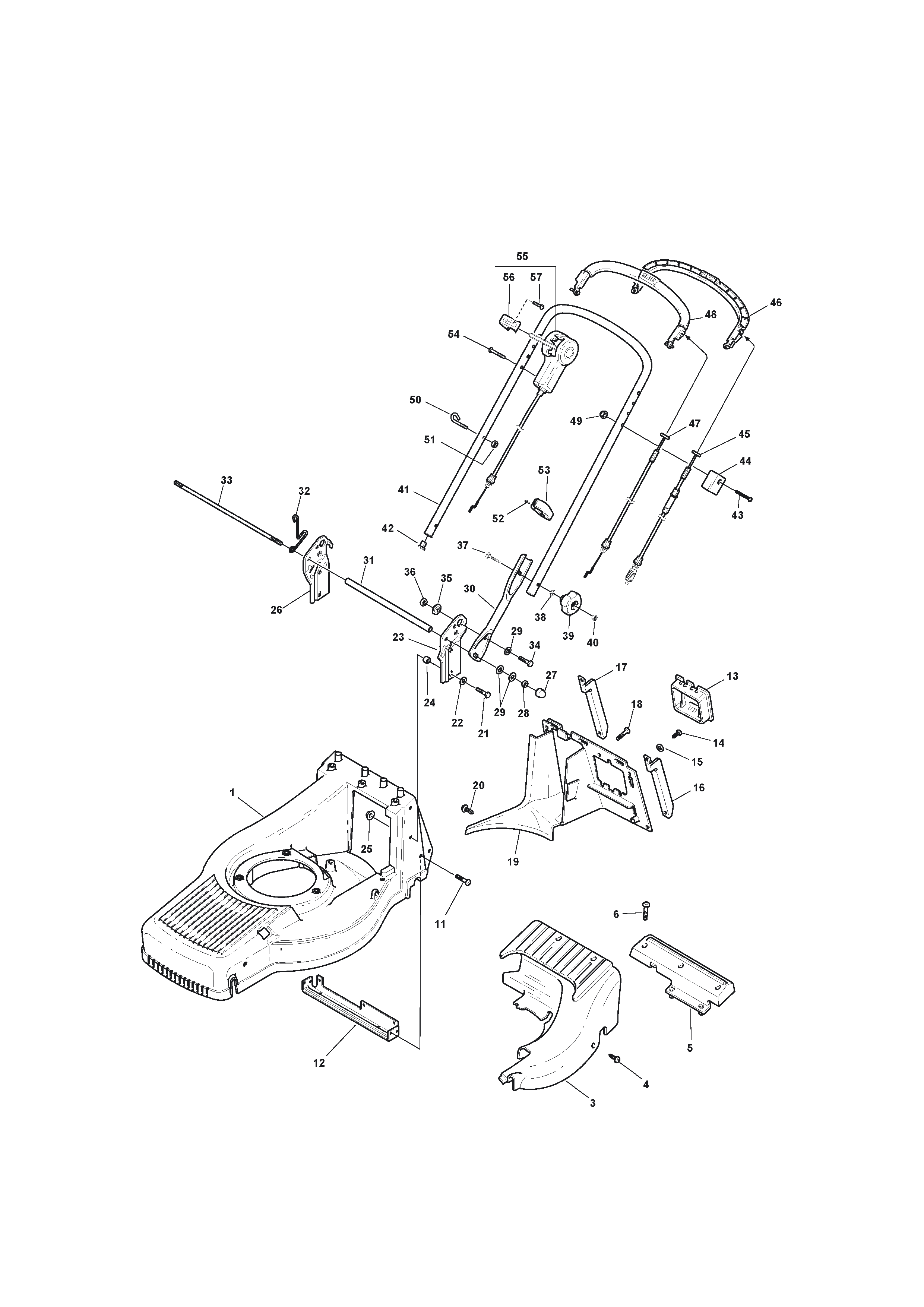

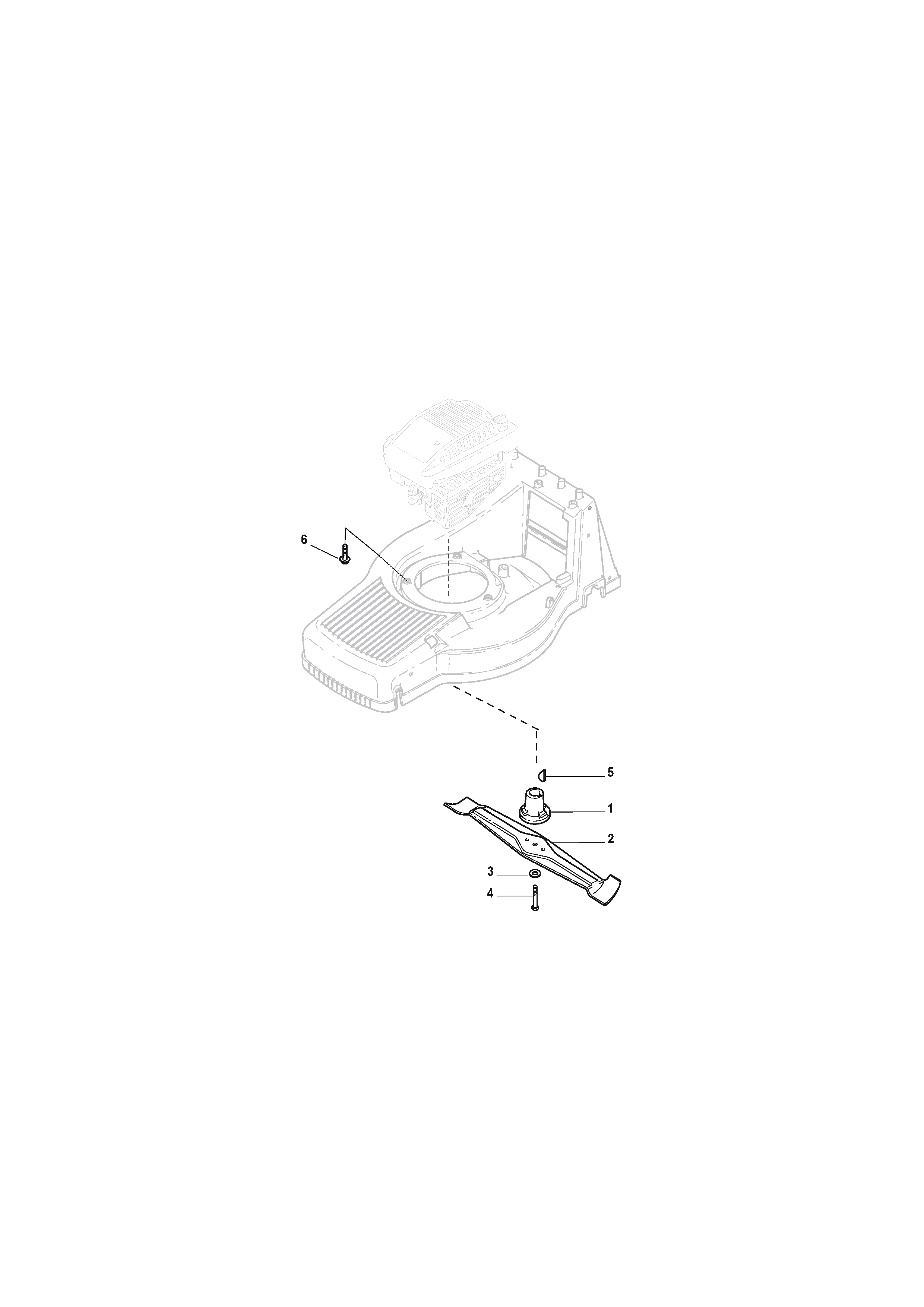

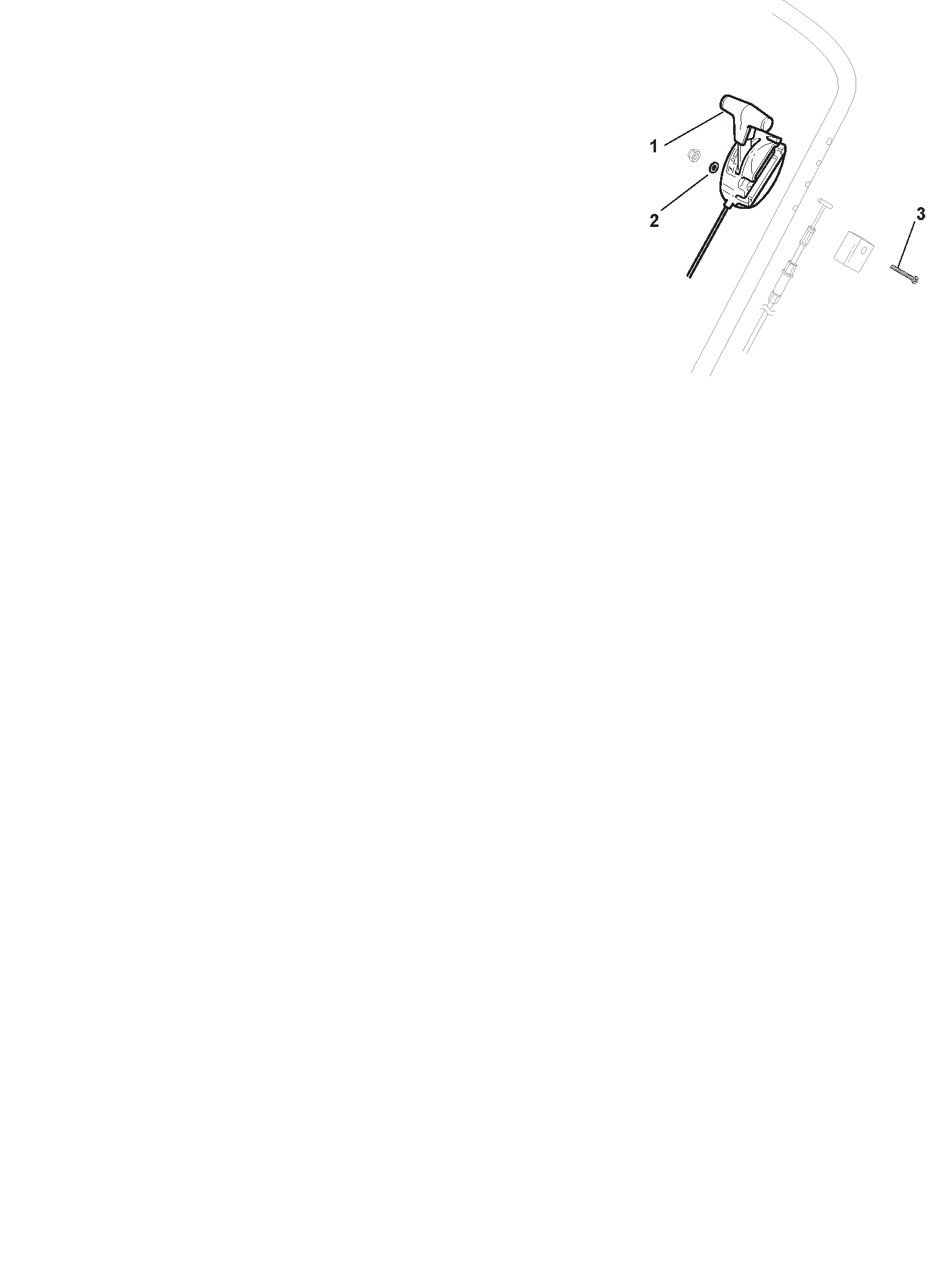

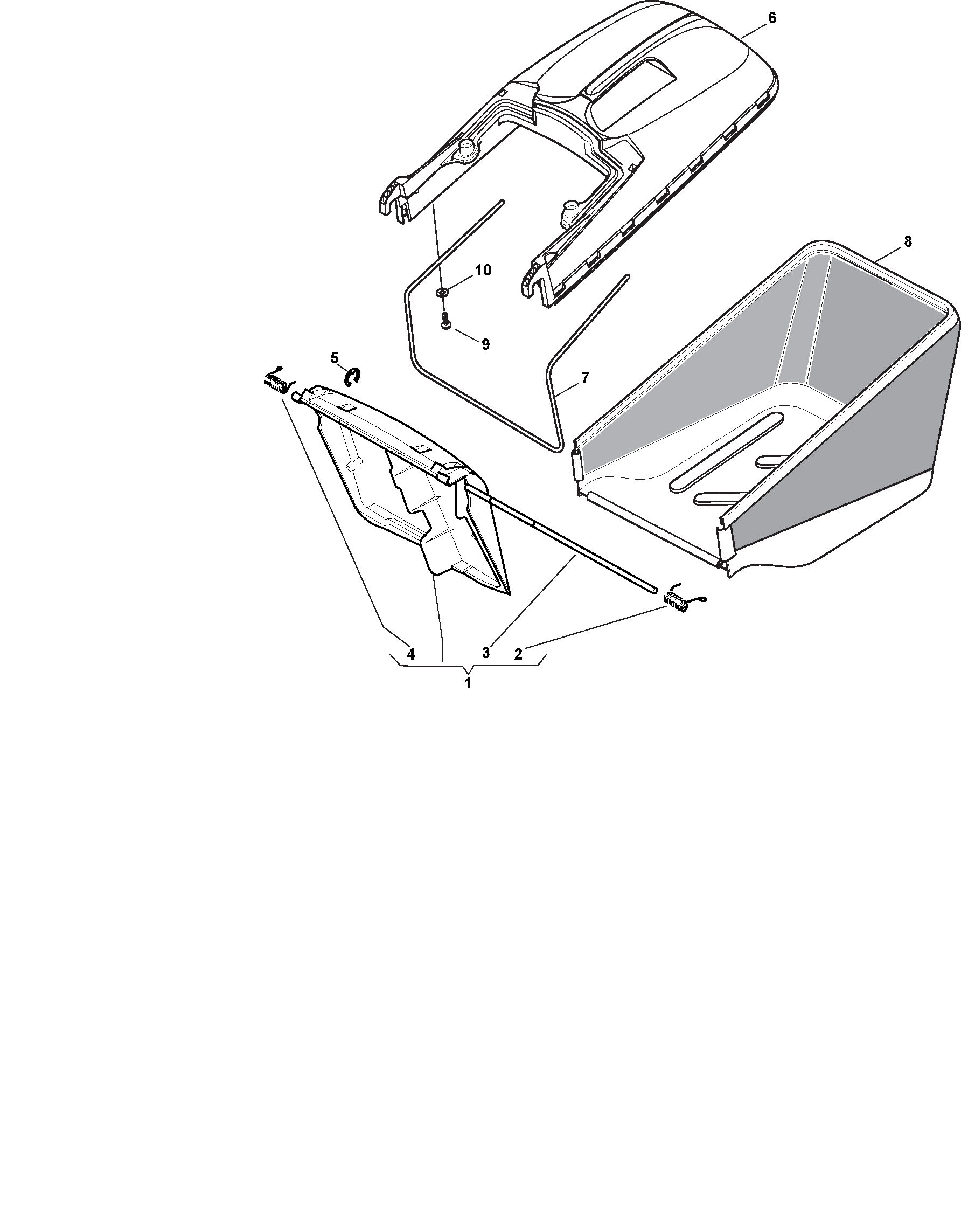

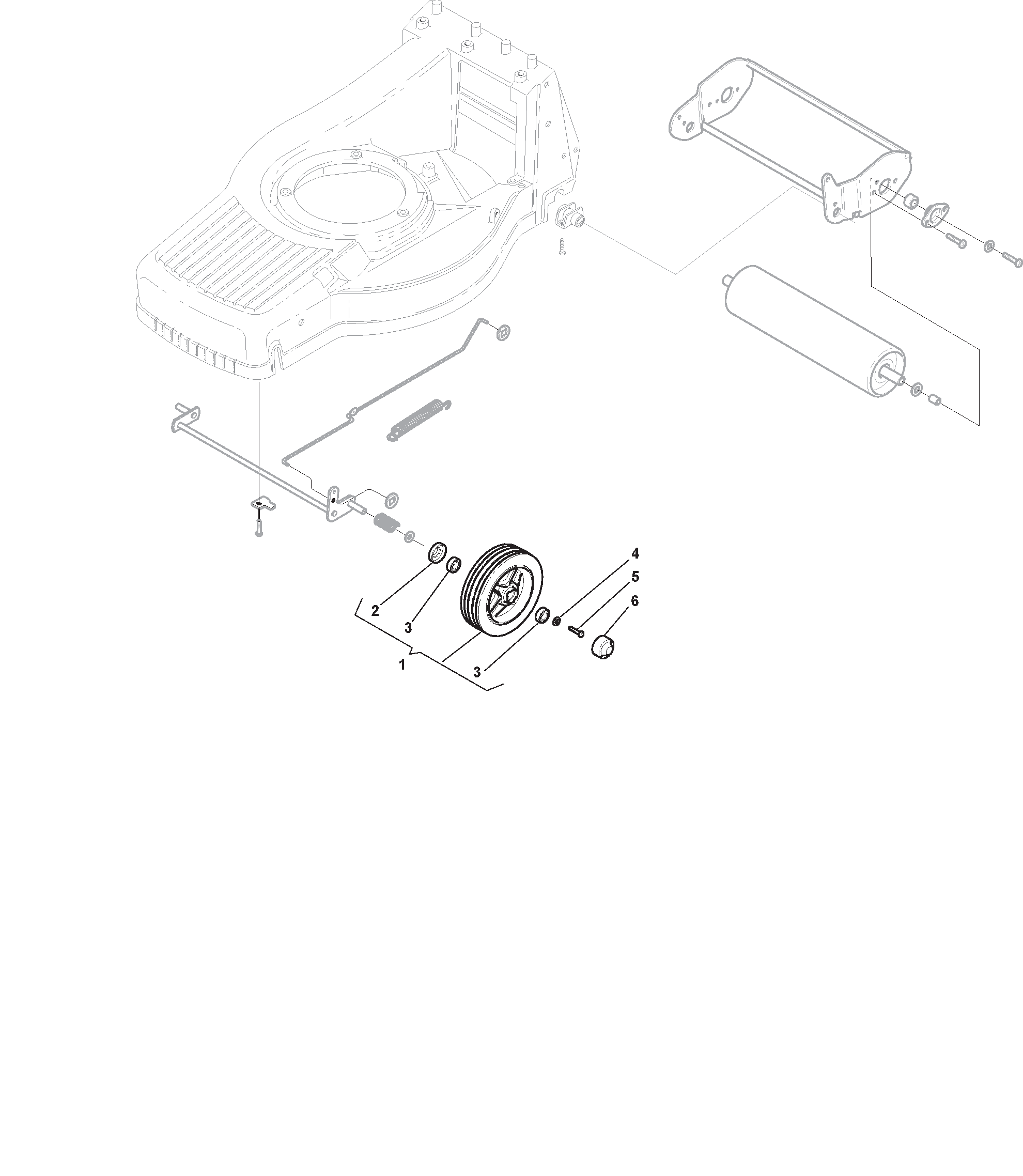

Diagrams for this machine

Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.

2012

Can't see your part?
