V20/50 Tractor 2002-2003
V20/50 Tractor 2002-2003 Parts and Diagrams
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all
parts that fit
a V20/50 Tractor 2002-2003.
All parts that fit a V20/50 Tractor 2002-2003
Diagrams for this machine
Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.
Choose your Year/Serial Number
2002-2003
Top
2002-2003

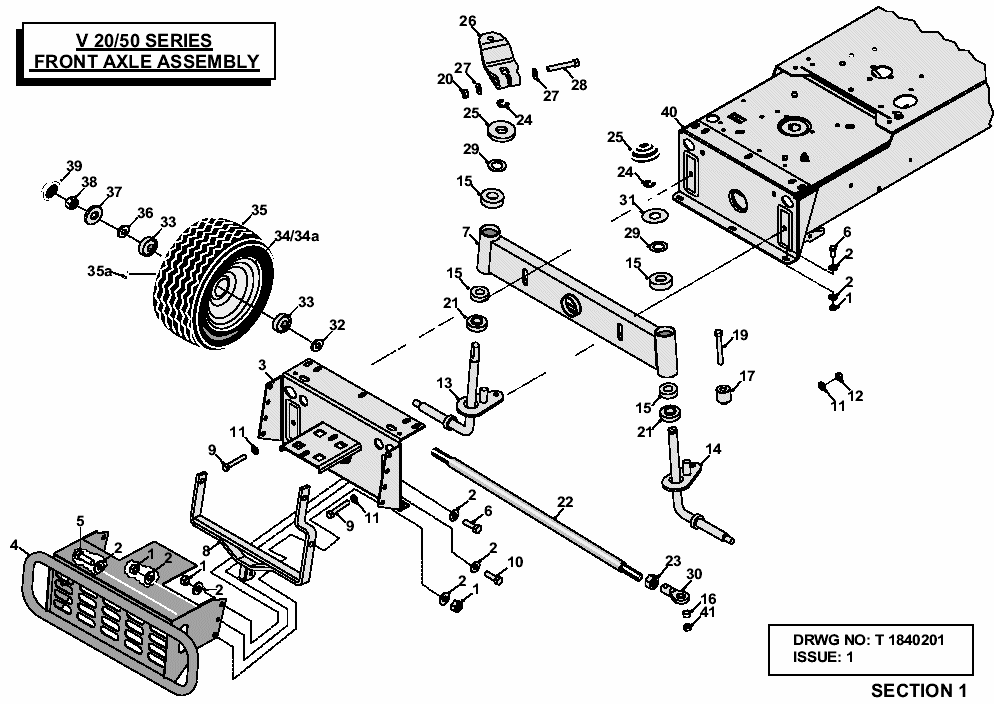

Front Axle Assembly

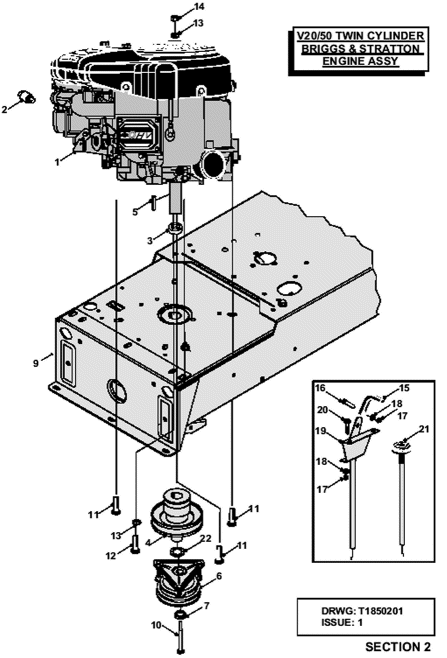

Engine Assembly

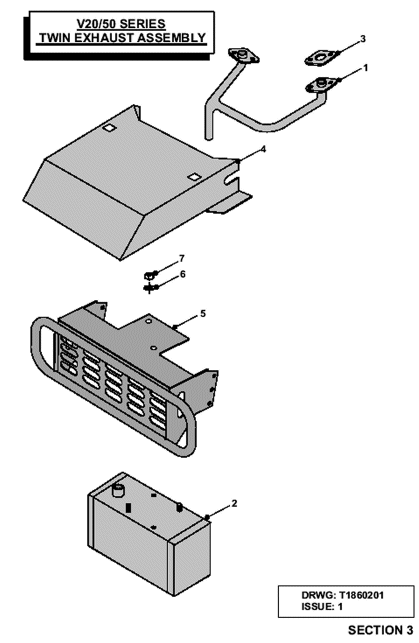

Twin Exhaust Assembly

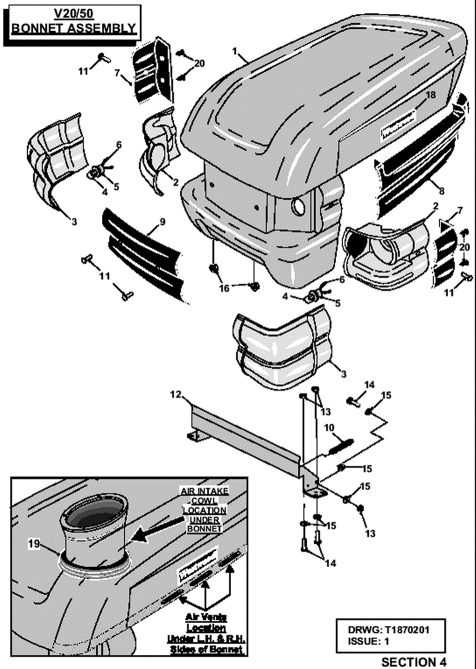

Bonnet Assembly

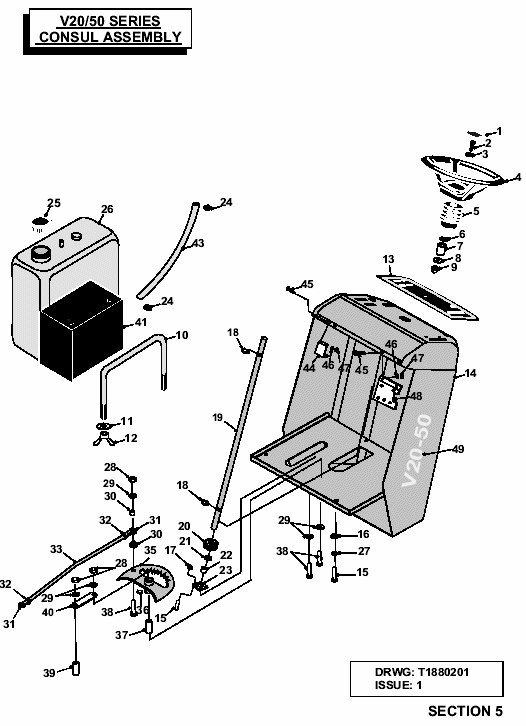

Consul Assembly

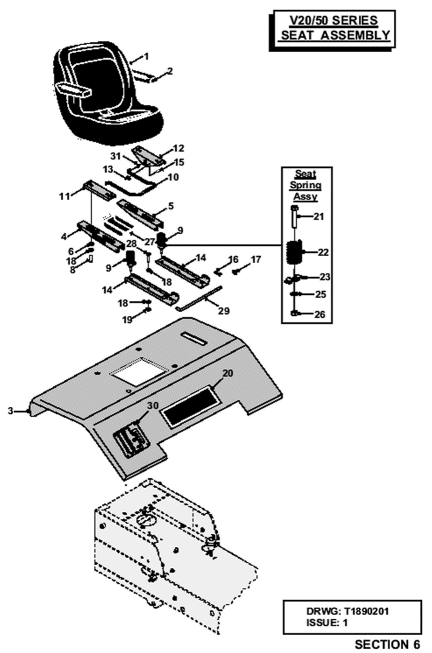

Seat Assembly

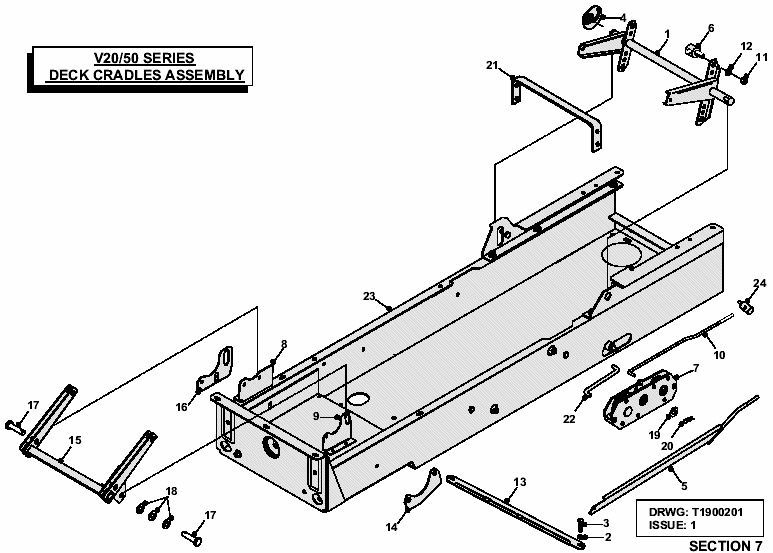

Deck Cradles Assembly

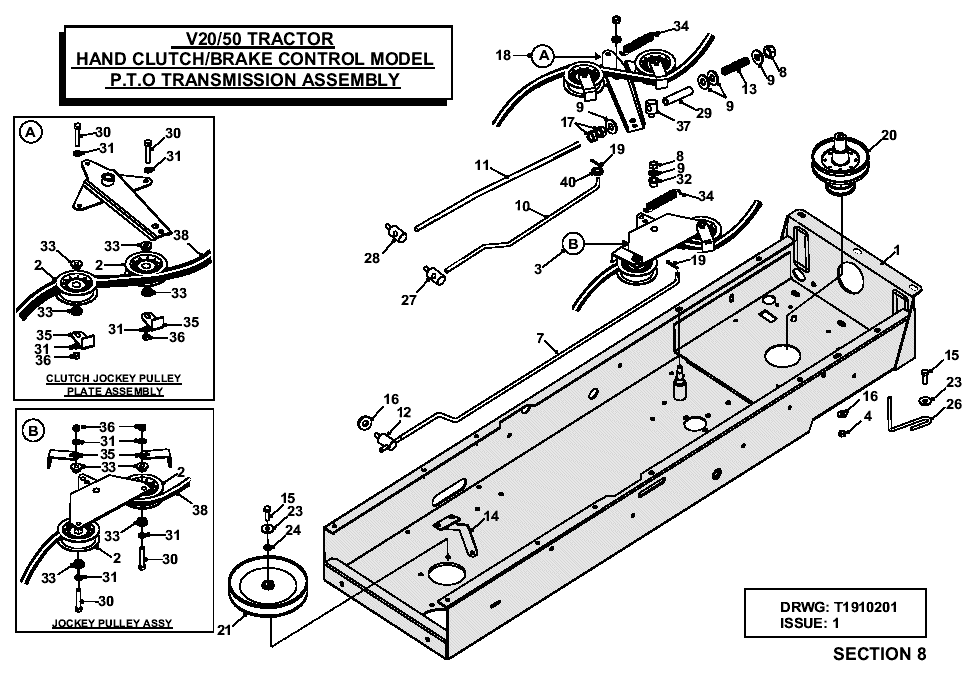

HAND CLUTCH-BRAKE CONTROL MODEL P.T.O. & TRANSMISSION DRIVE ASSEMBLY

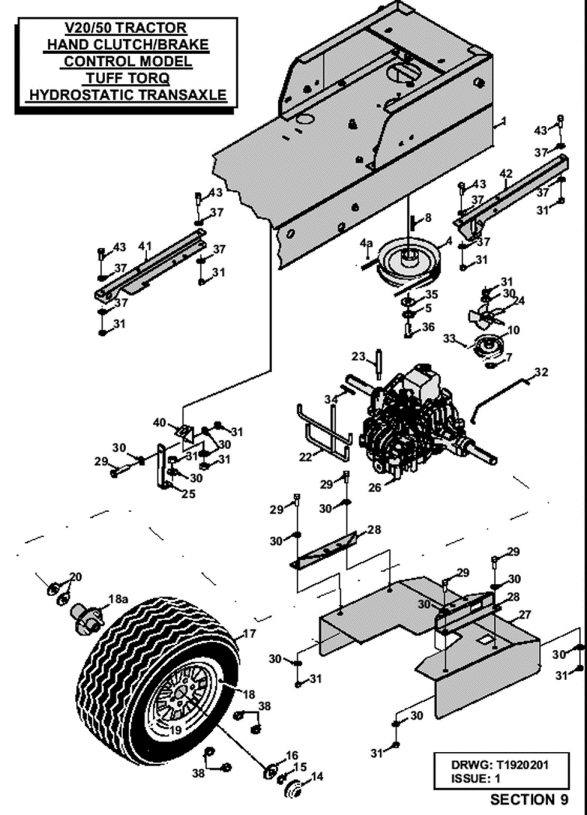

HAND CLUTCH-BRAKE CONTROL MODEL TUFF TORQ HYDROSTATIC

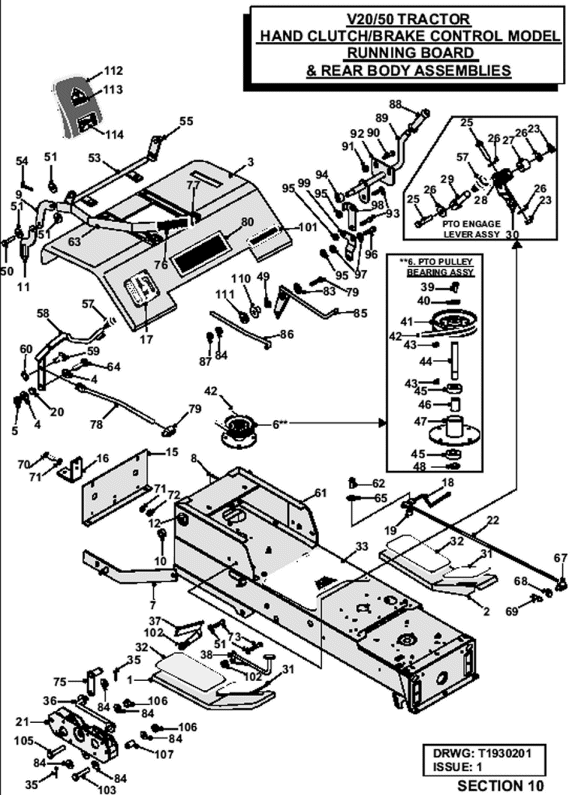

HAND CONTROL MODEL RUNNING BOARD & REAR BODY ASSEMBLIES

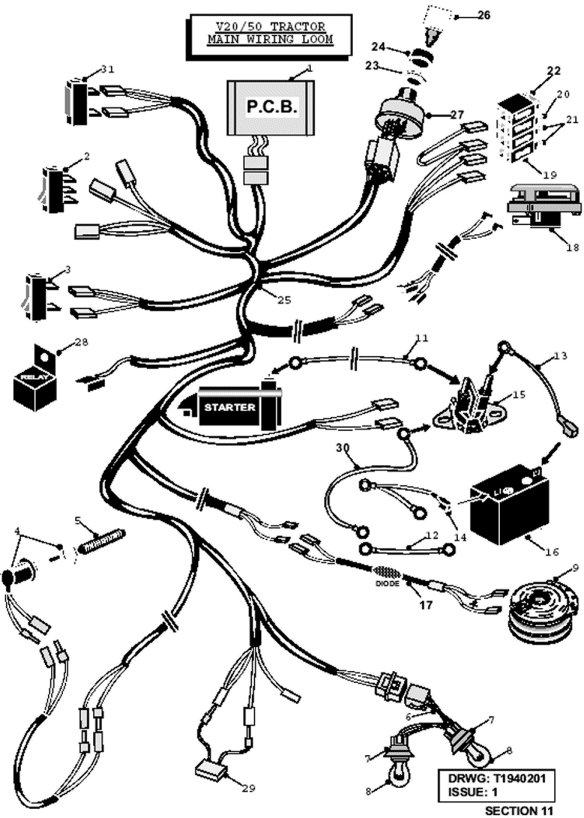

Main Wiring Loom

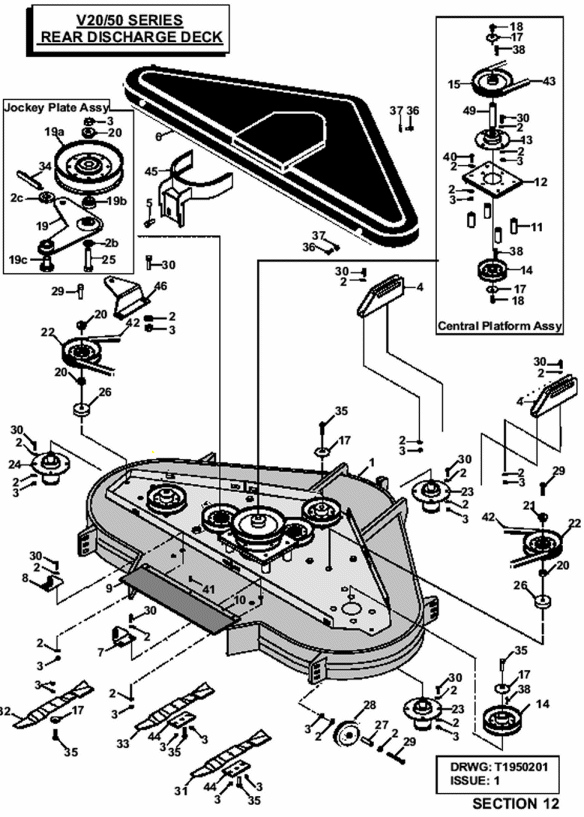

Rear Discharge Deck

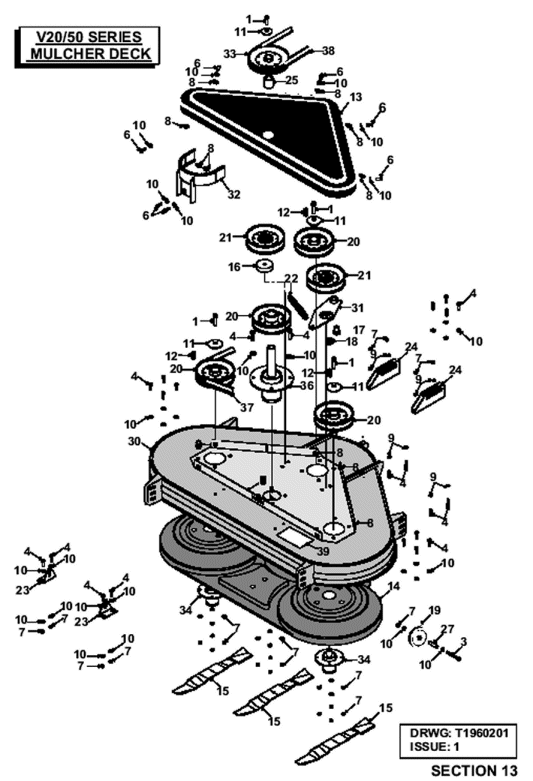

Mulcher Deck
Powered Grass Collector

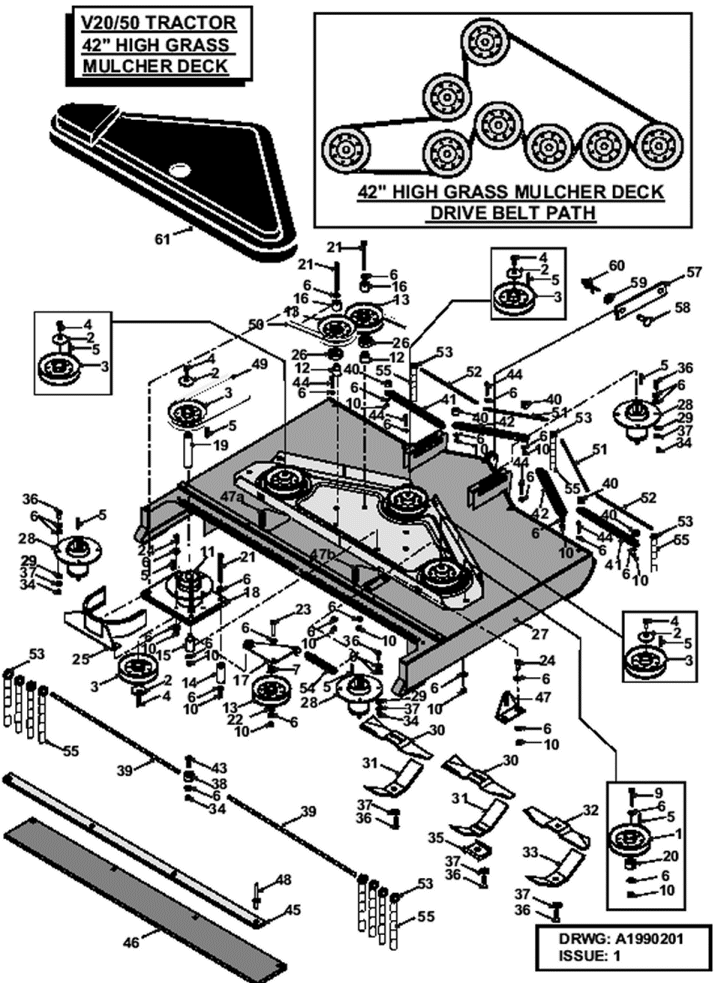

42 High Grass Mulcher Deck
