2016 S&T Series Lawn Tractors Parts and Diagrams

Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a 2016 S&T Series Lawn Tractors.

All parts that fit a 2016 S&T Series Lawn Tractors

Diagrams for this machine

Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.

Choose your Year/Serial Number

Top

2016

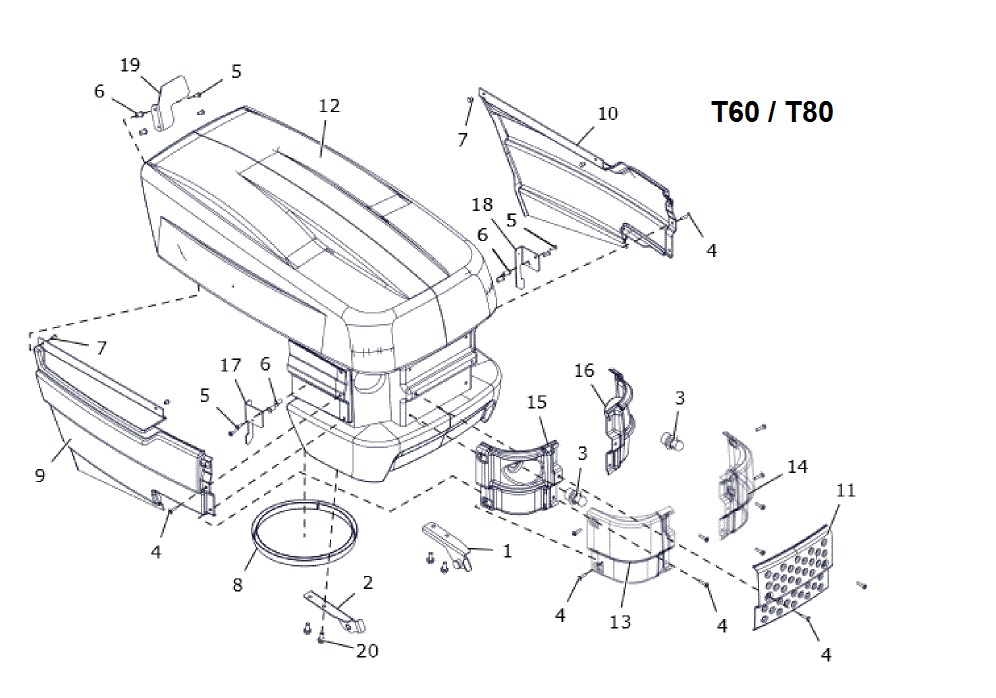

T60 T80 BONNET

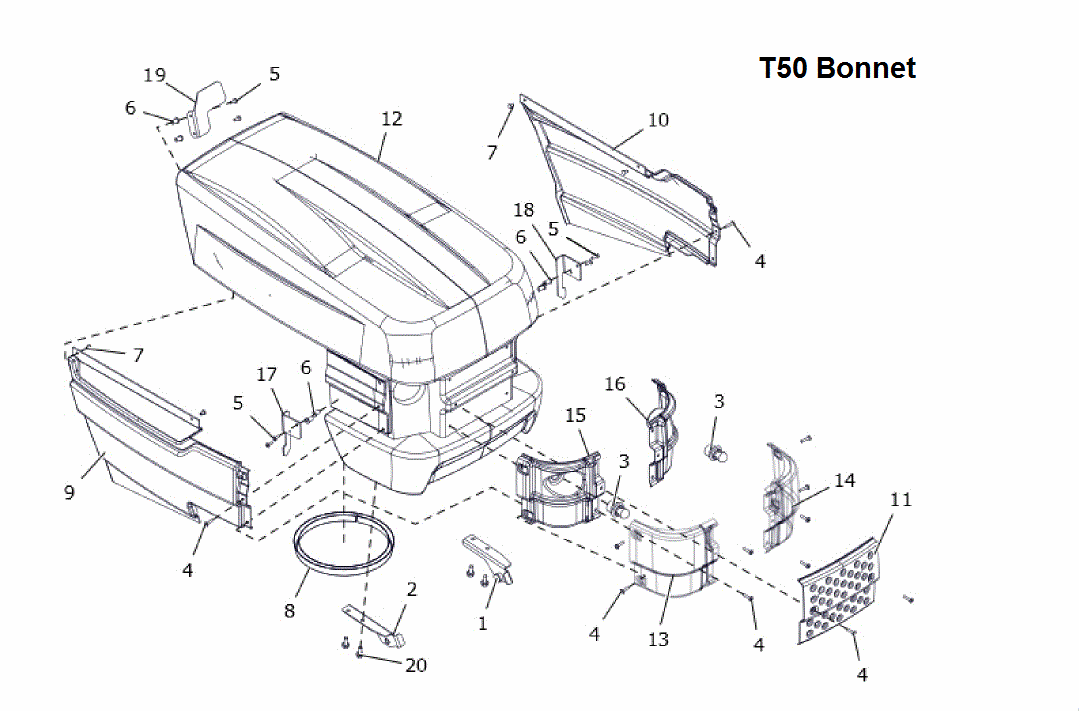

T50 BONNET

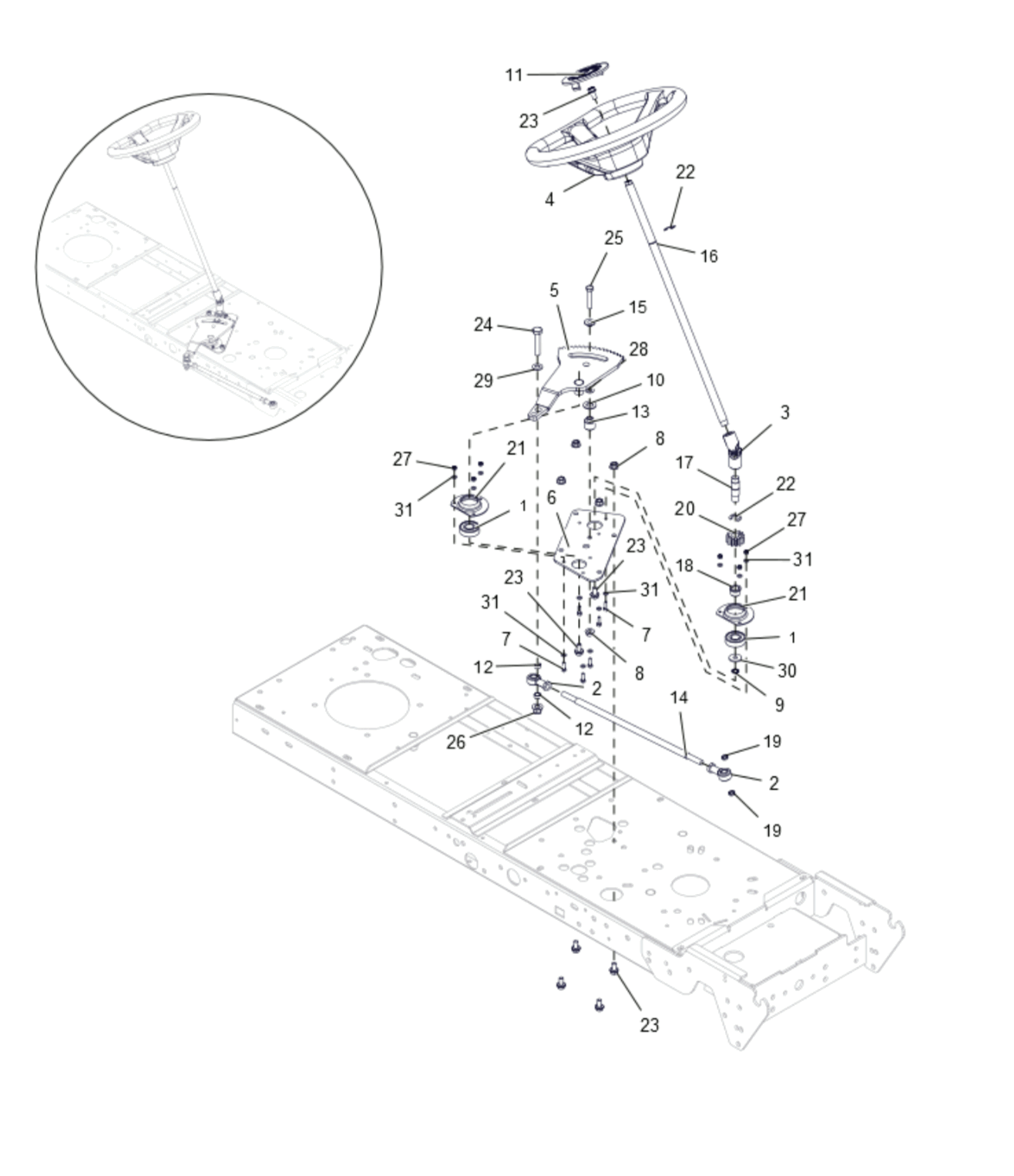

STEERING

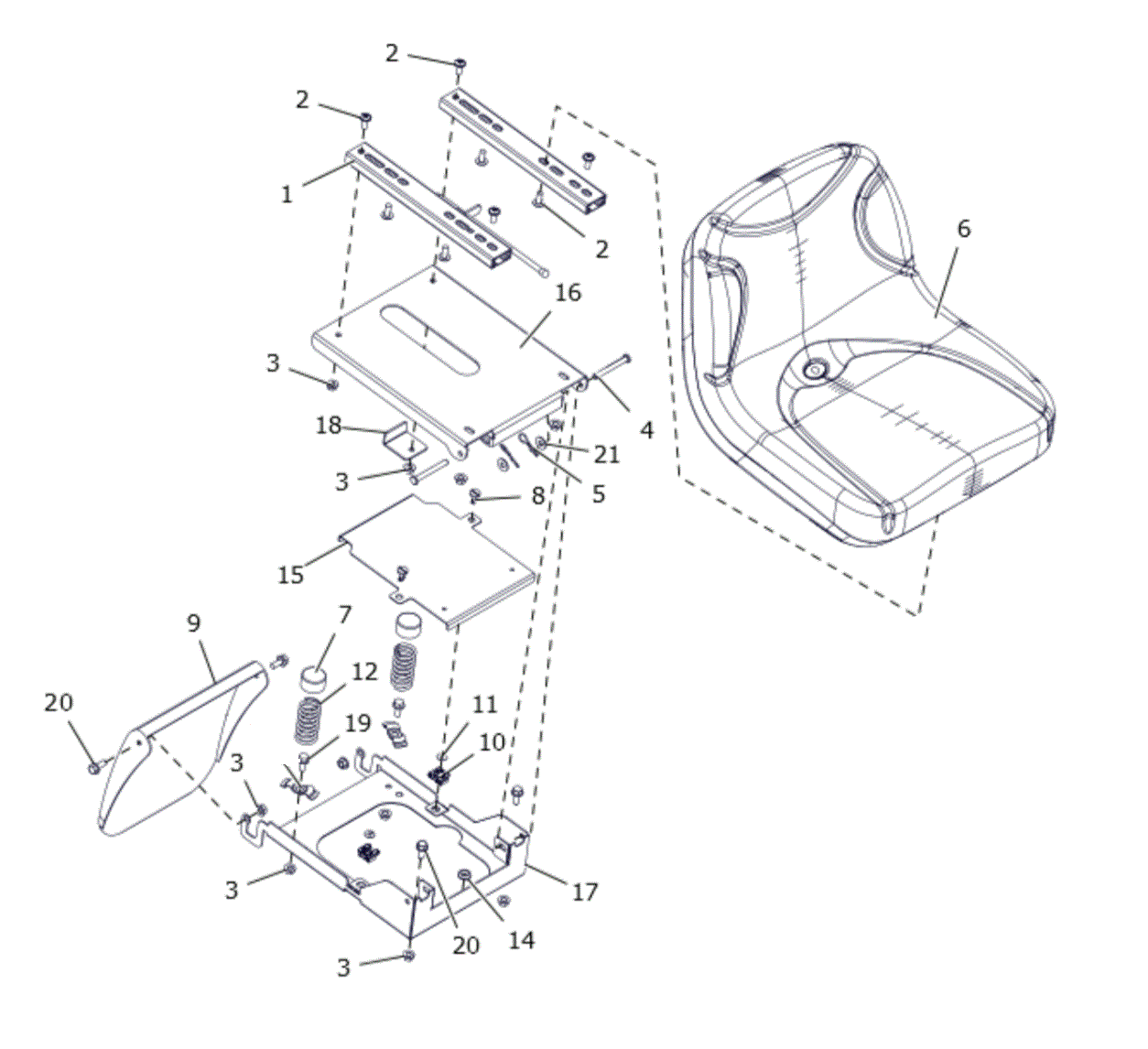

SEAT

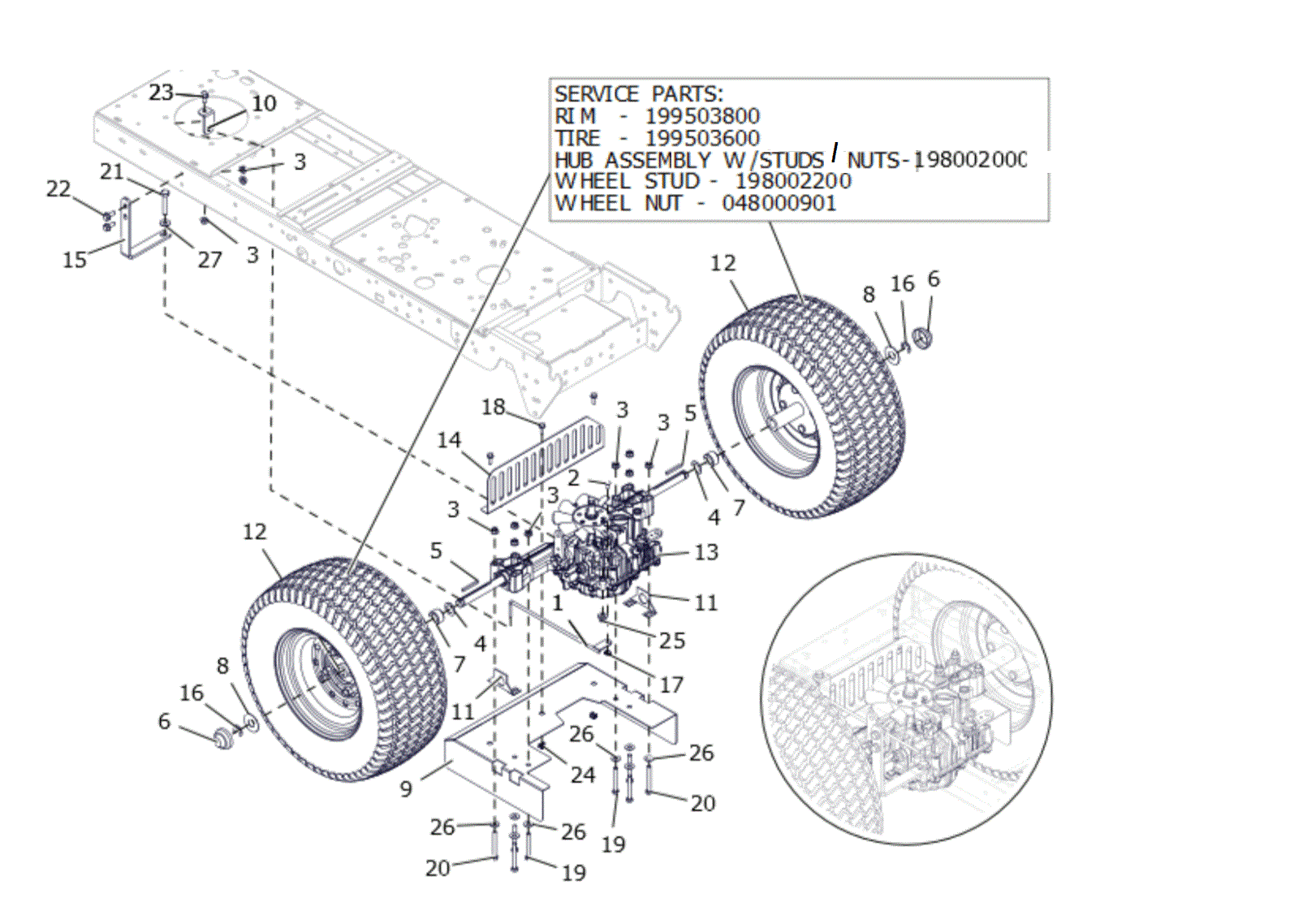

REAR TRANSMISSION

REAR TRANSMISSION

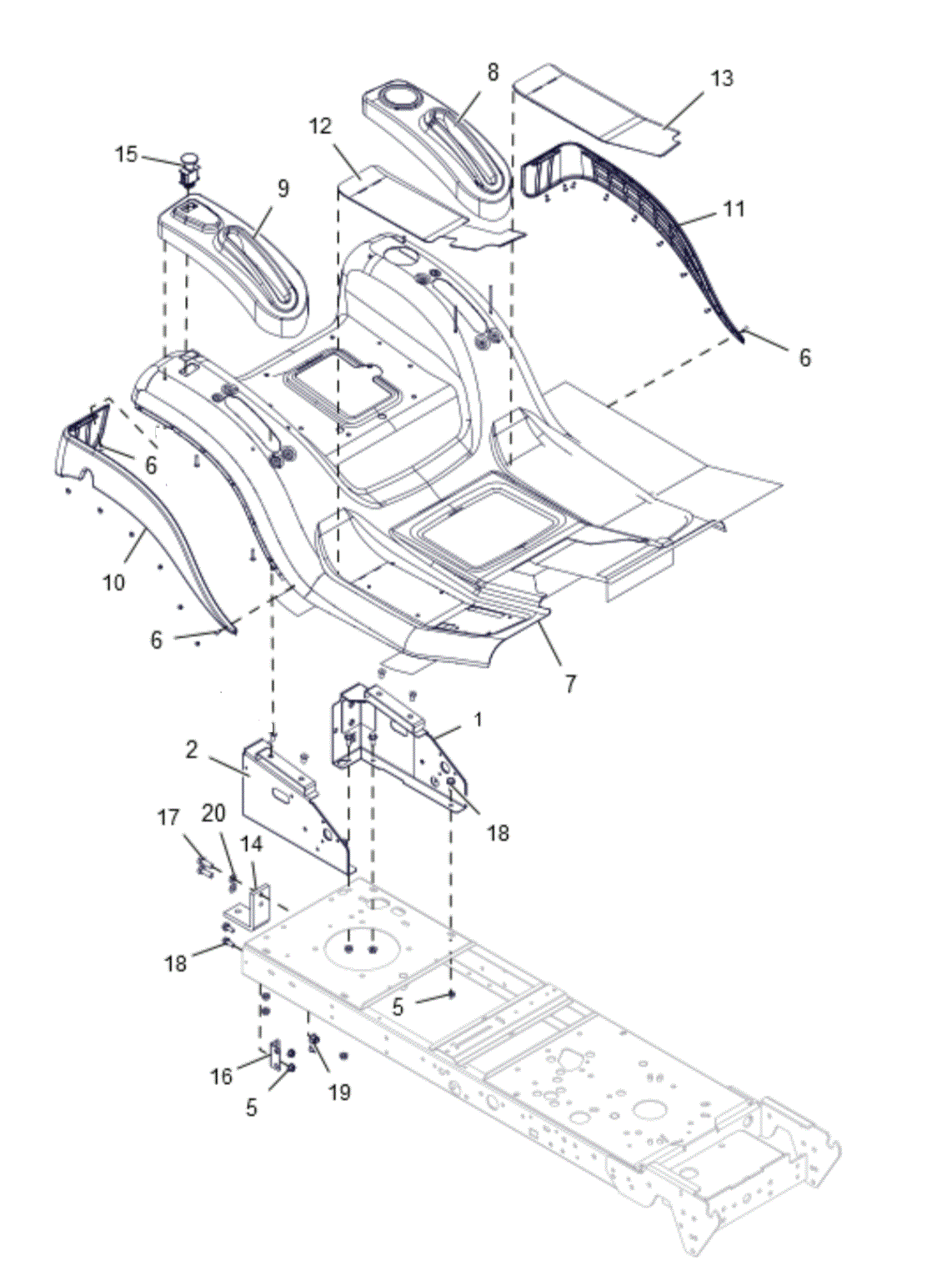

REAR BODY

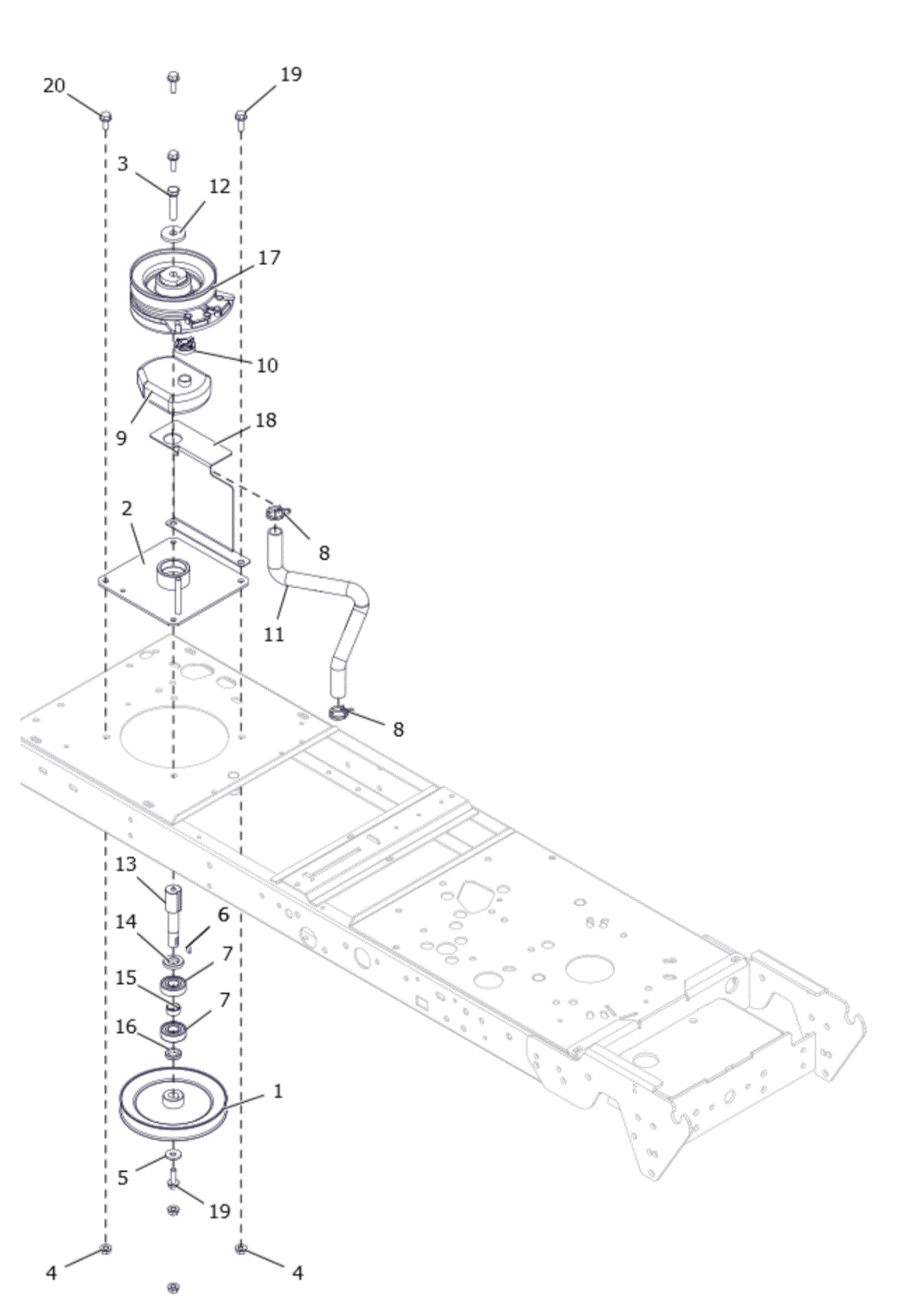

PTO ASSY

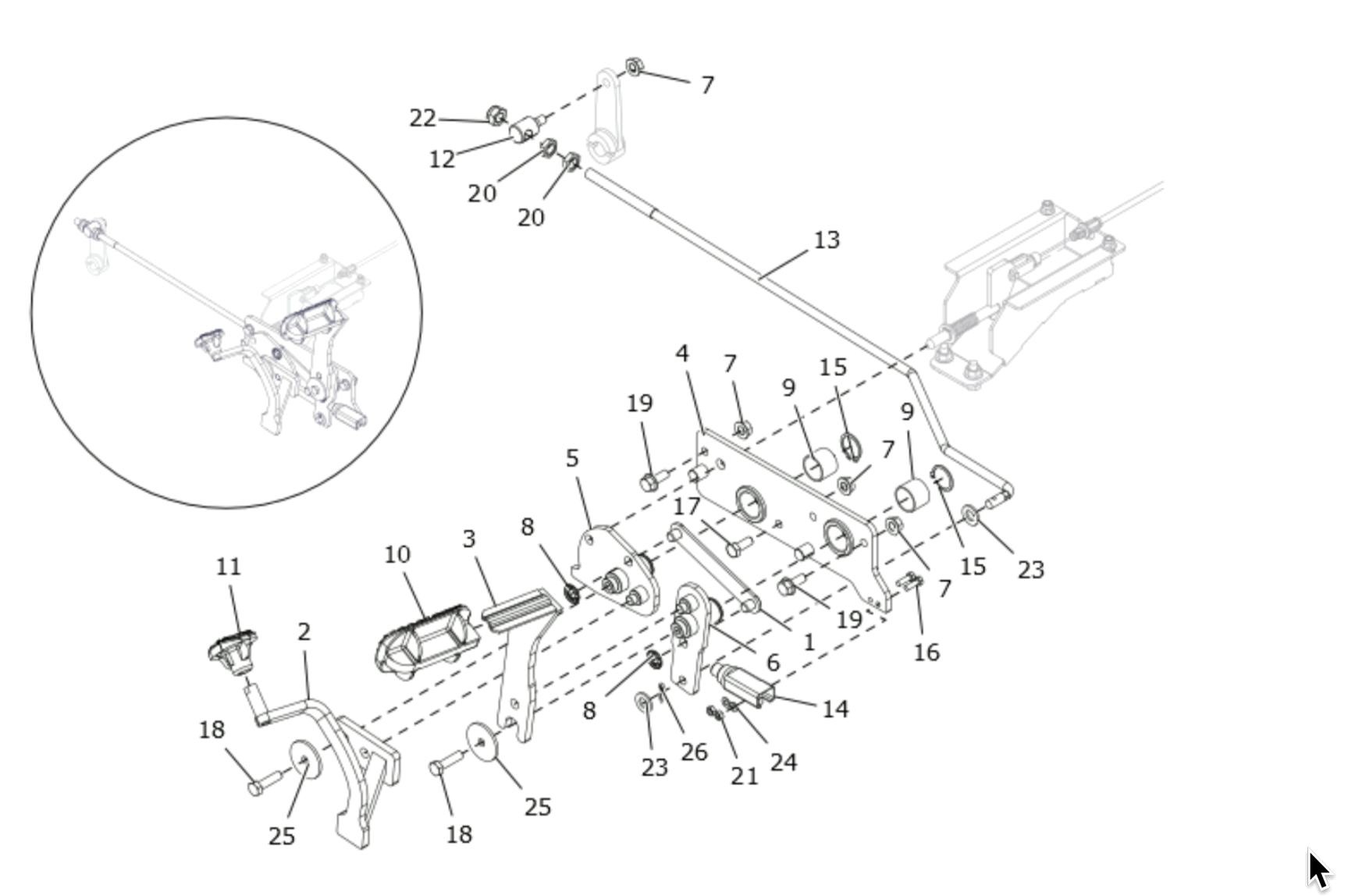

PEDALS

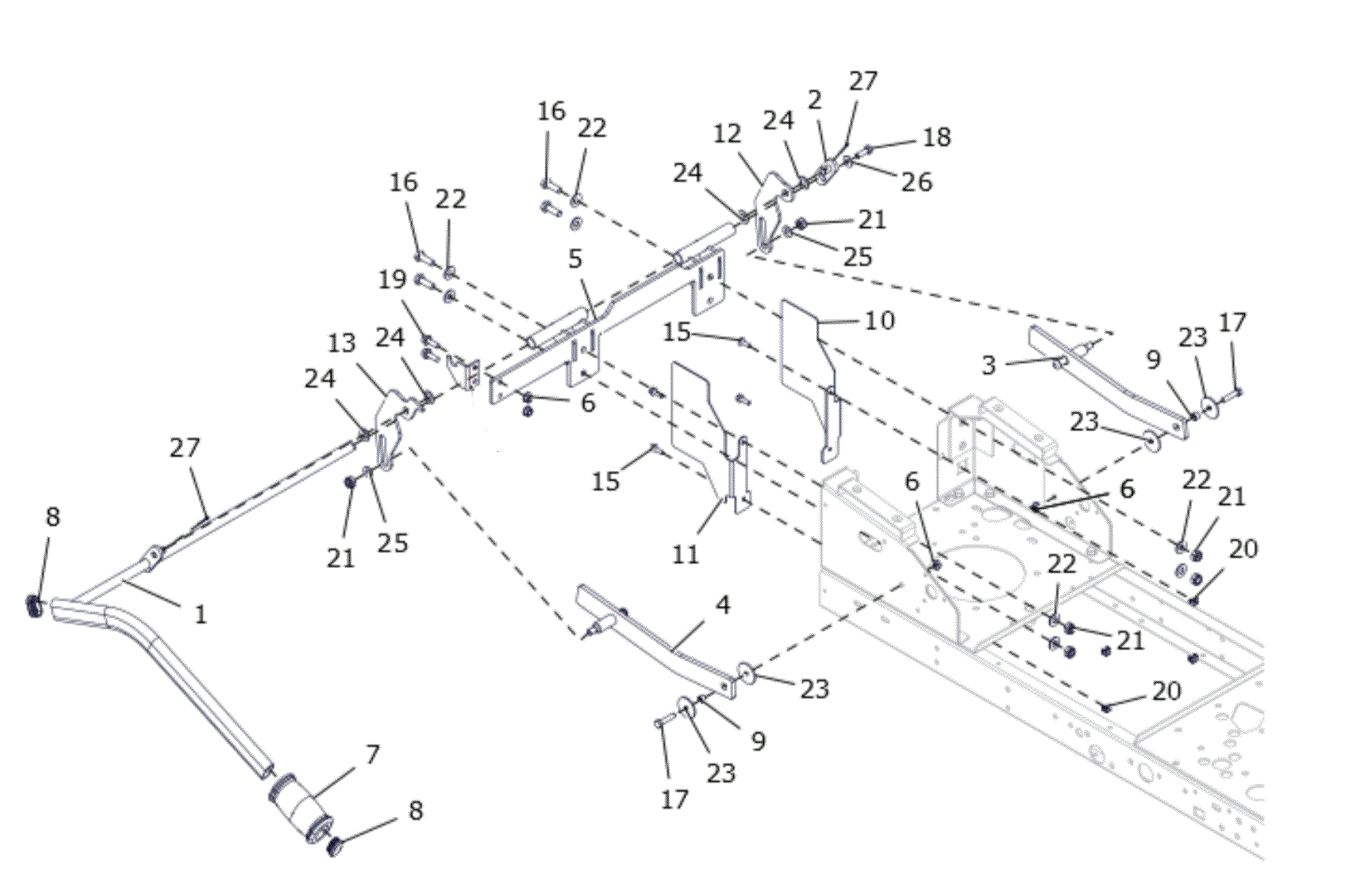

PGC LIFT

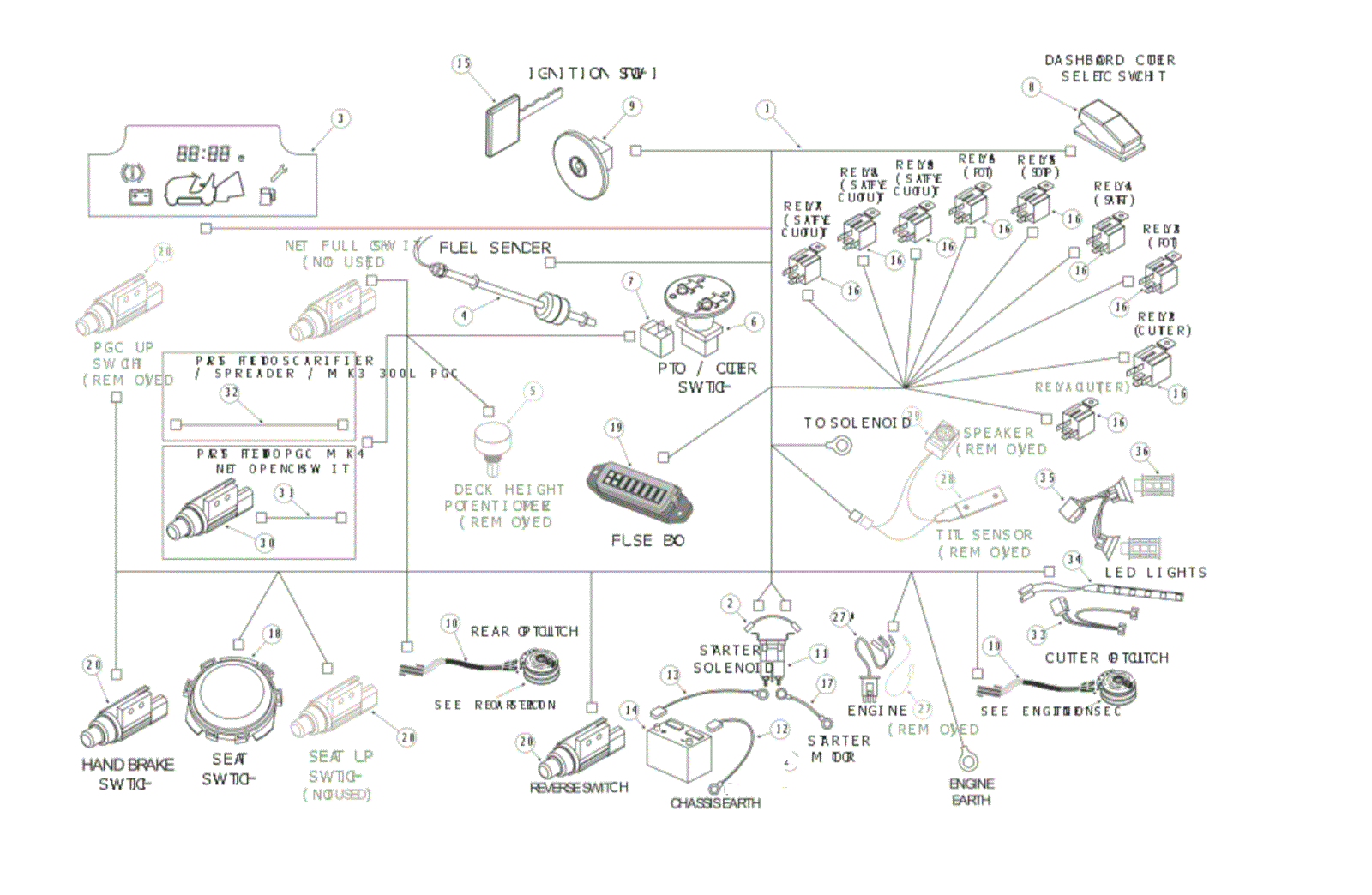

LOOM

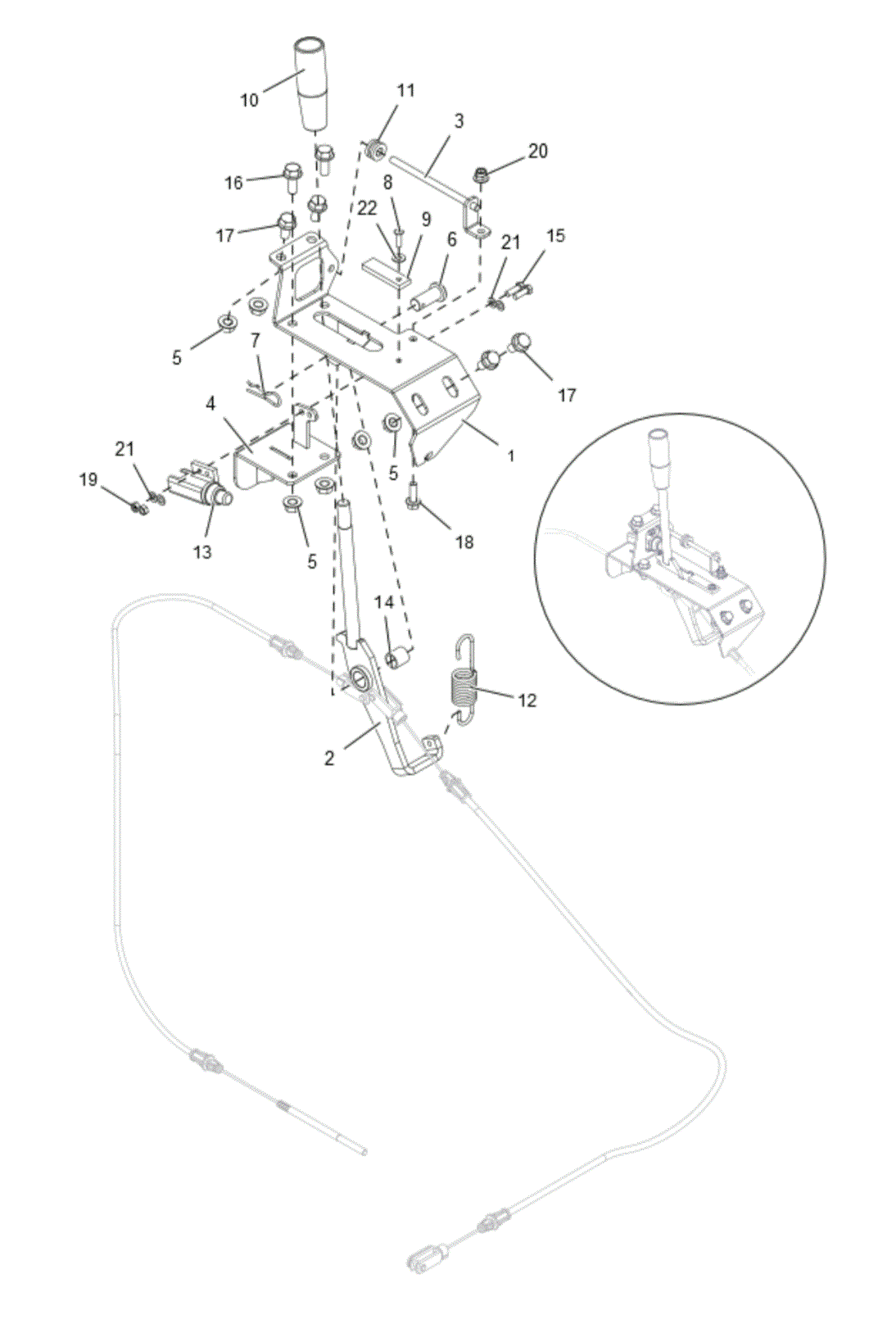

HAND BRAKE

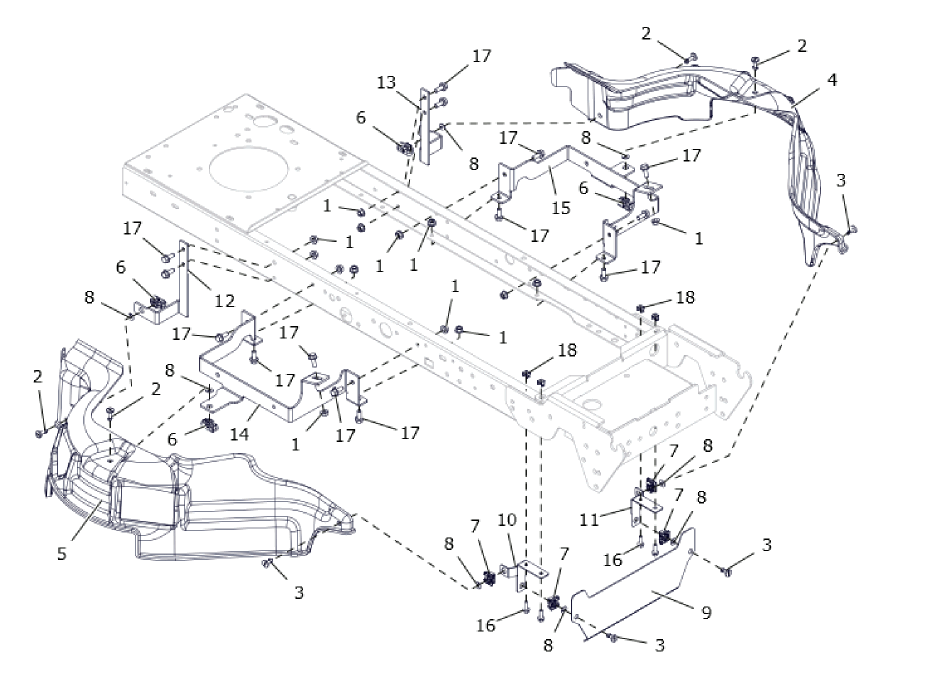

GUARDING ASSY

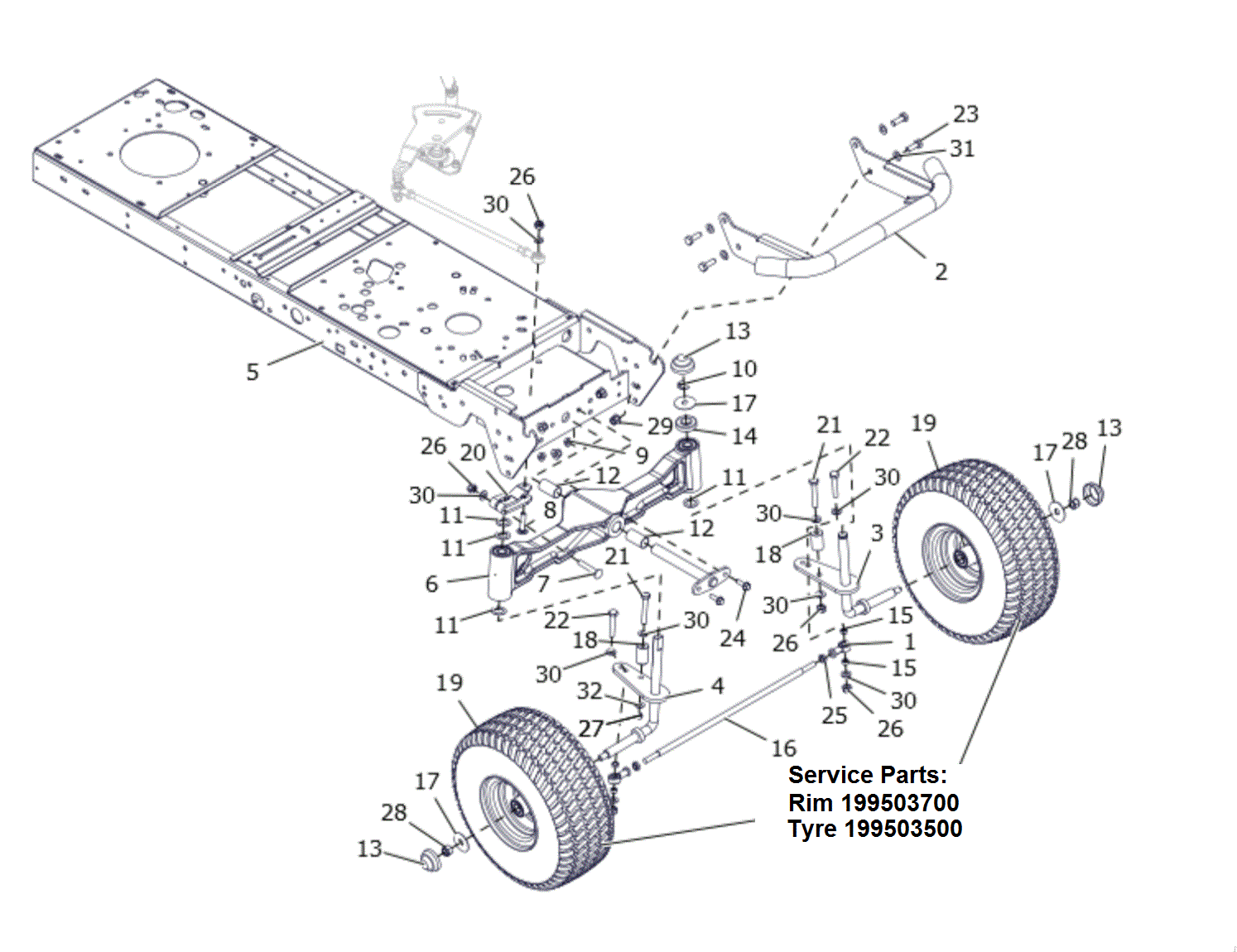

FRONT AXEL

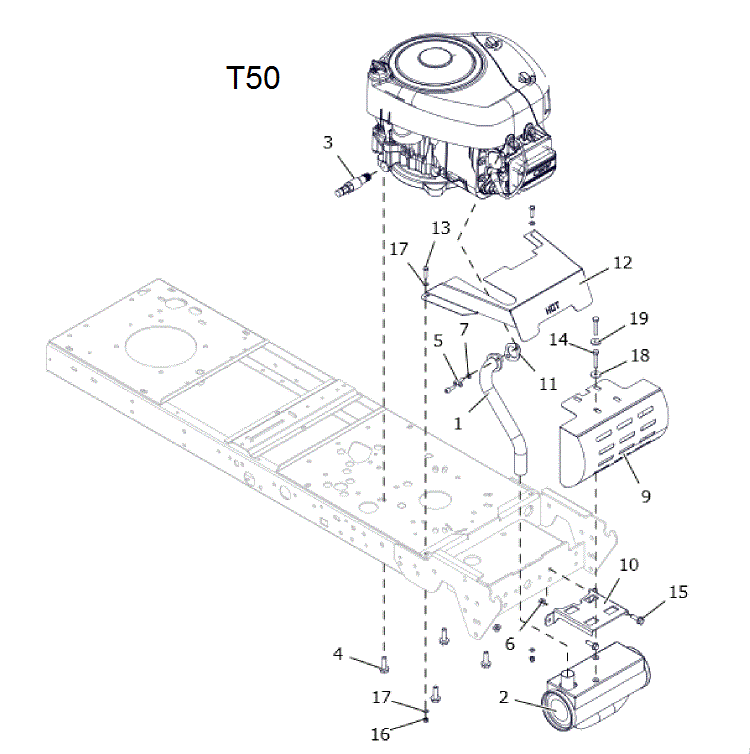

ENGINE ASSY T50

ENGINE ASSY T50

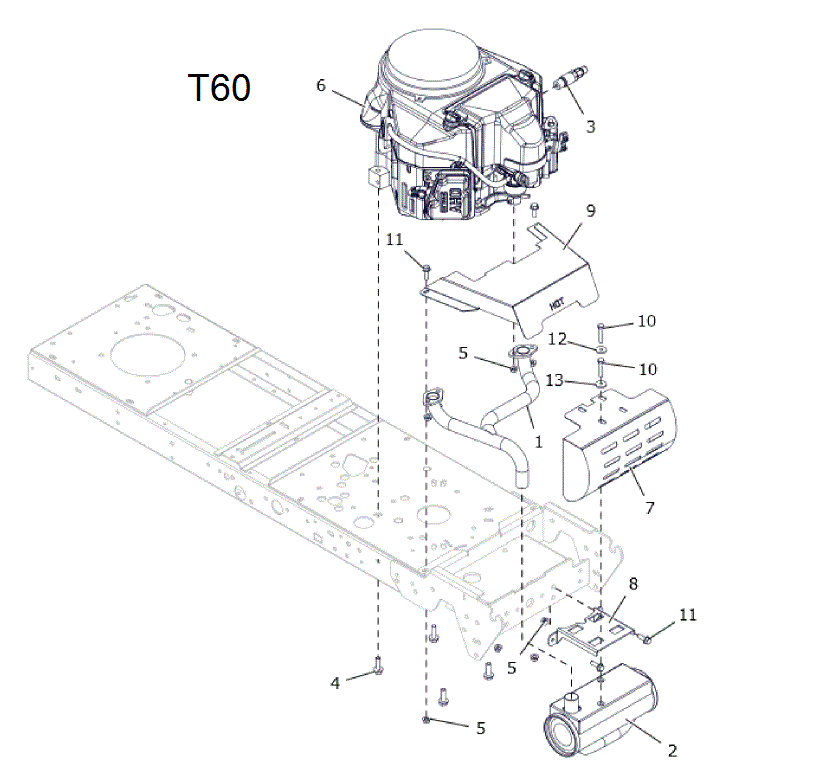

ENGINE ASSY T60

ENGINE ASSY T60

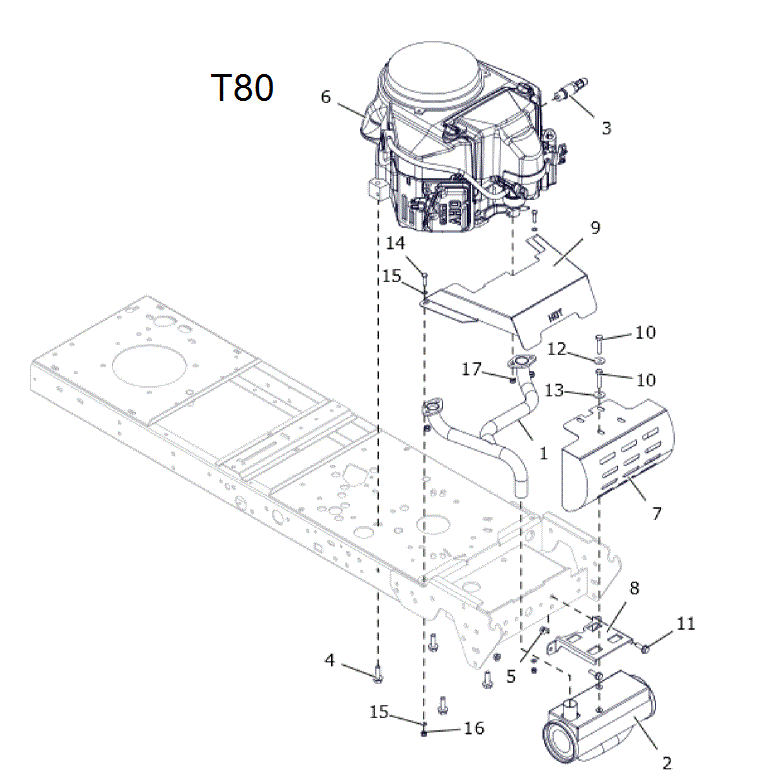

ENGINE ASSY T80

ENGINE ASSY T80

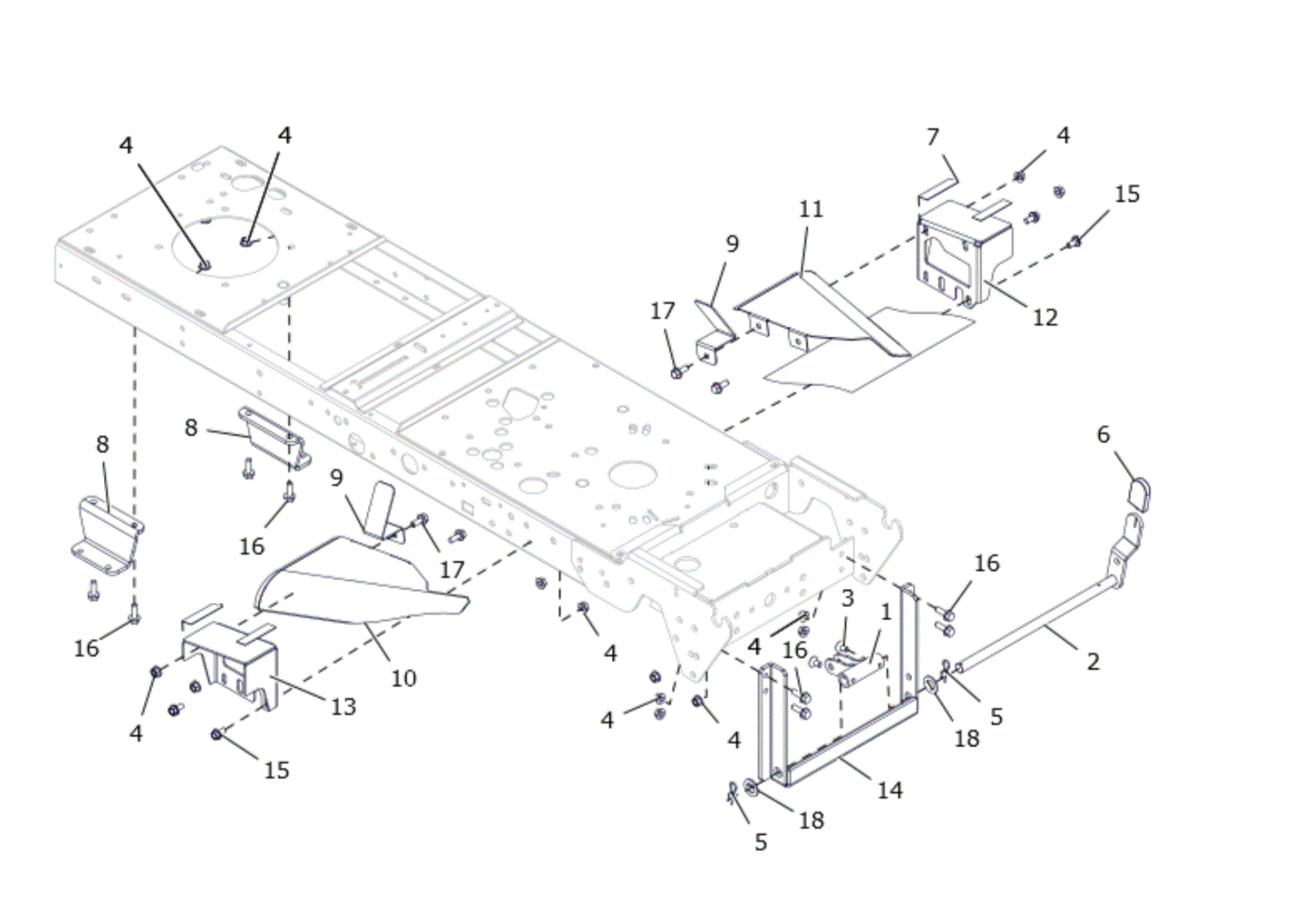

DECK TENSION CRADLE

DECK TENSION CRADLE

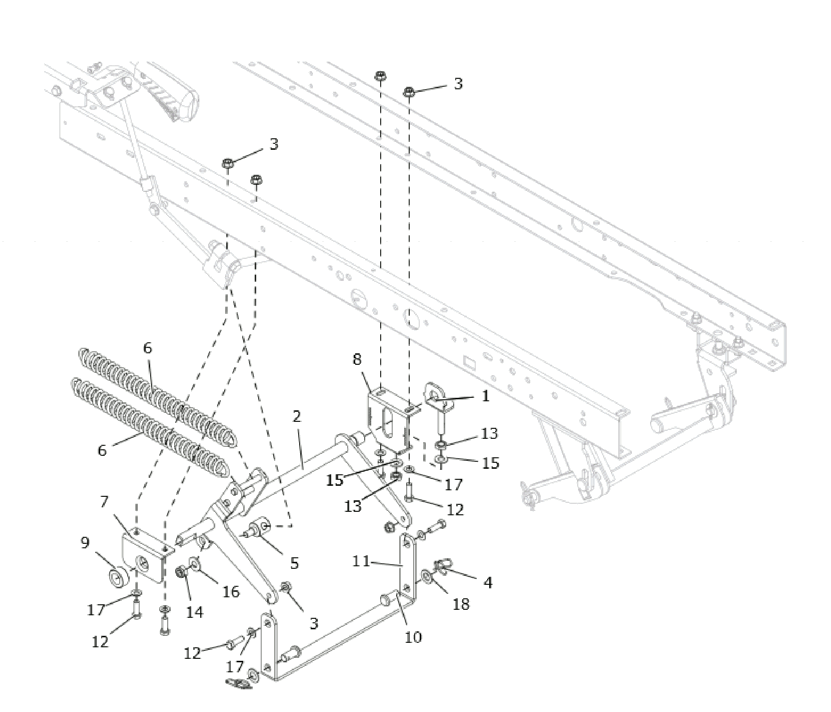

DECK LIFT REAR CRADLE

DECK LIFT REAR CRADLE

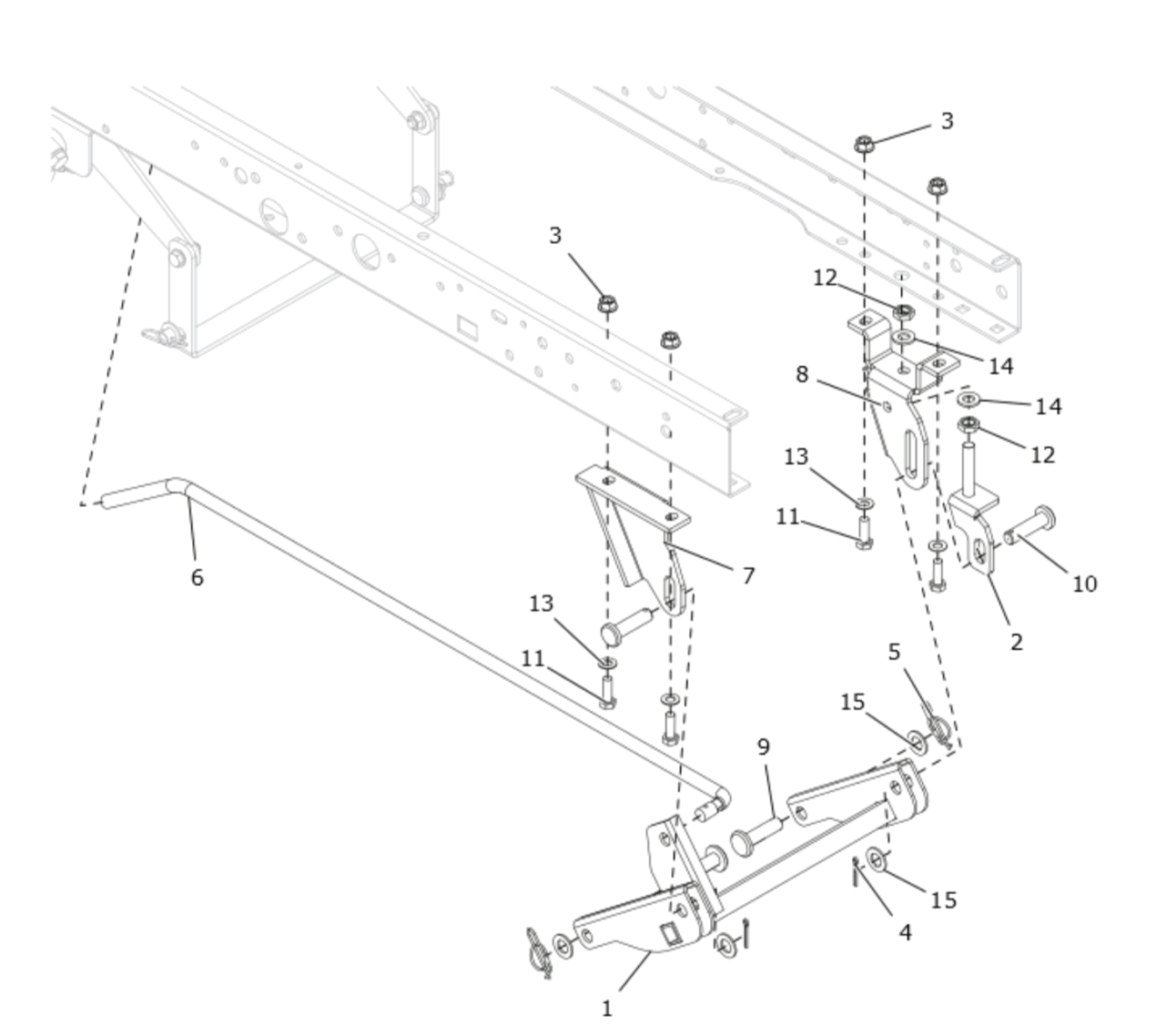

DECK LIFT FRONT CRADLE

DECK LIFT FRONT CRADLE

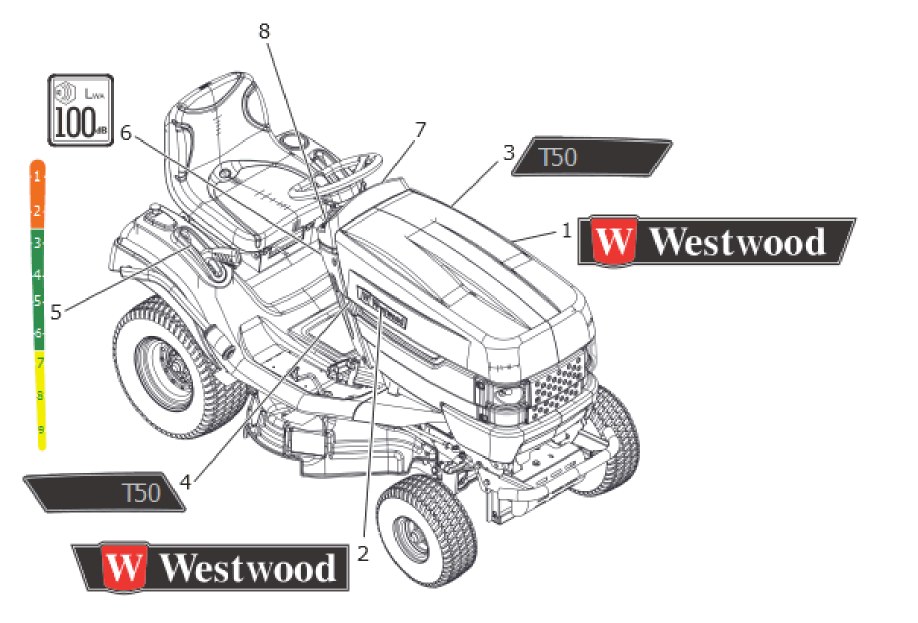

DECALS T50

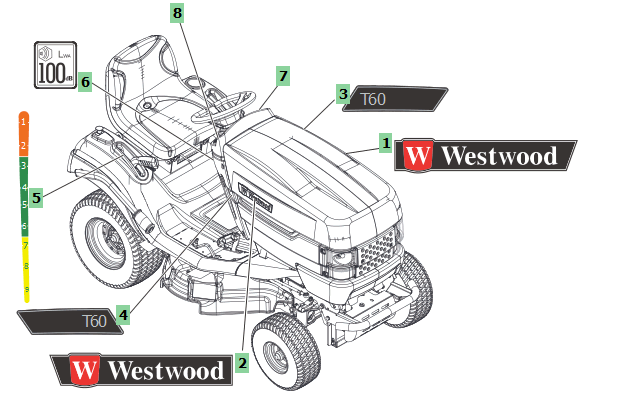

DECALS T60

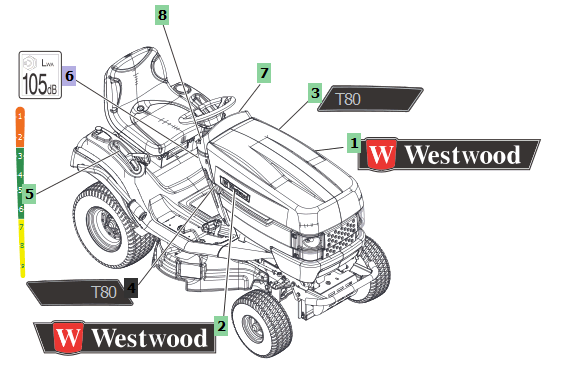

DECALS T80

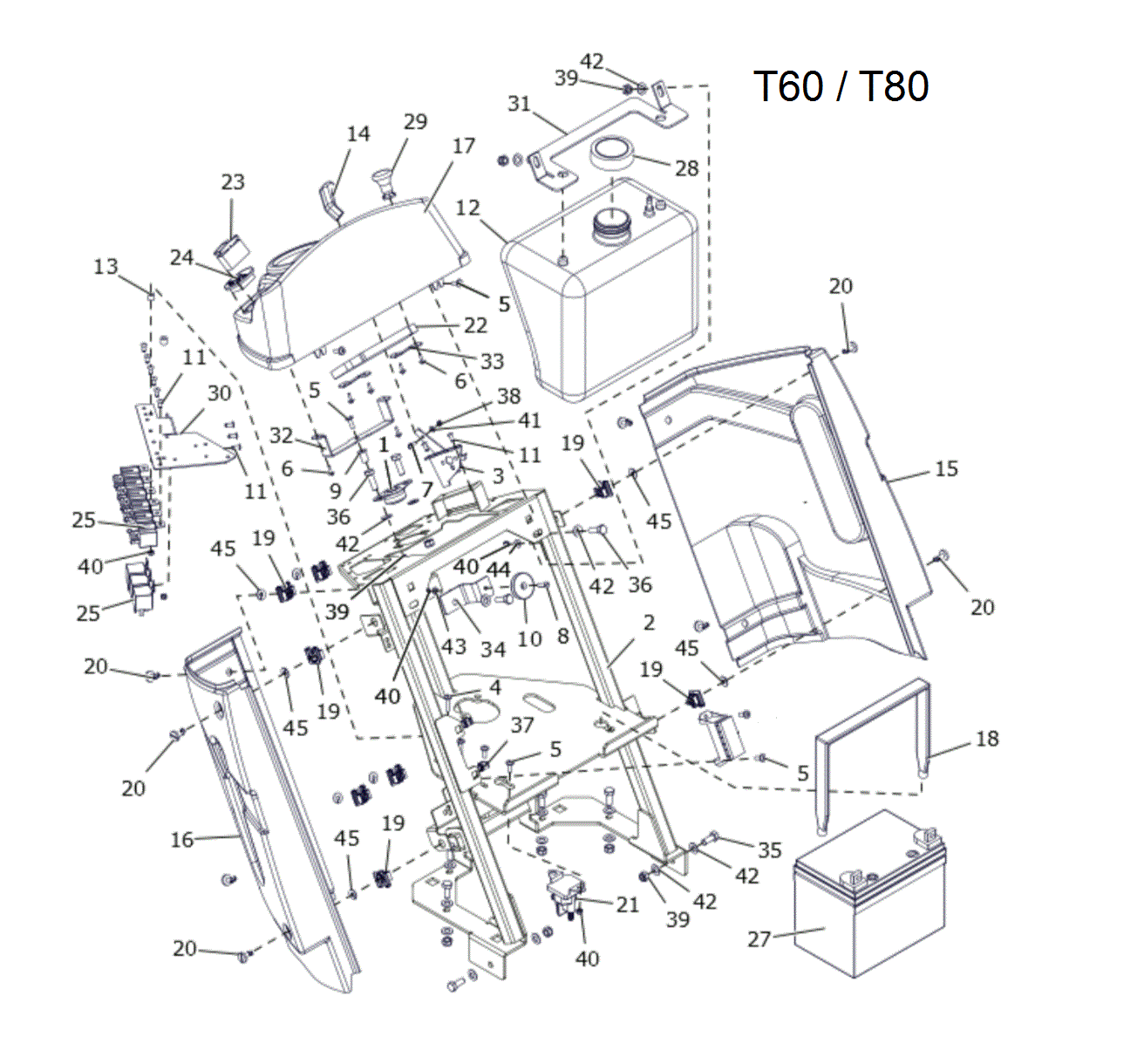

CONSOLE T60 T80

CONSOLE T60 T80

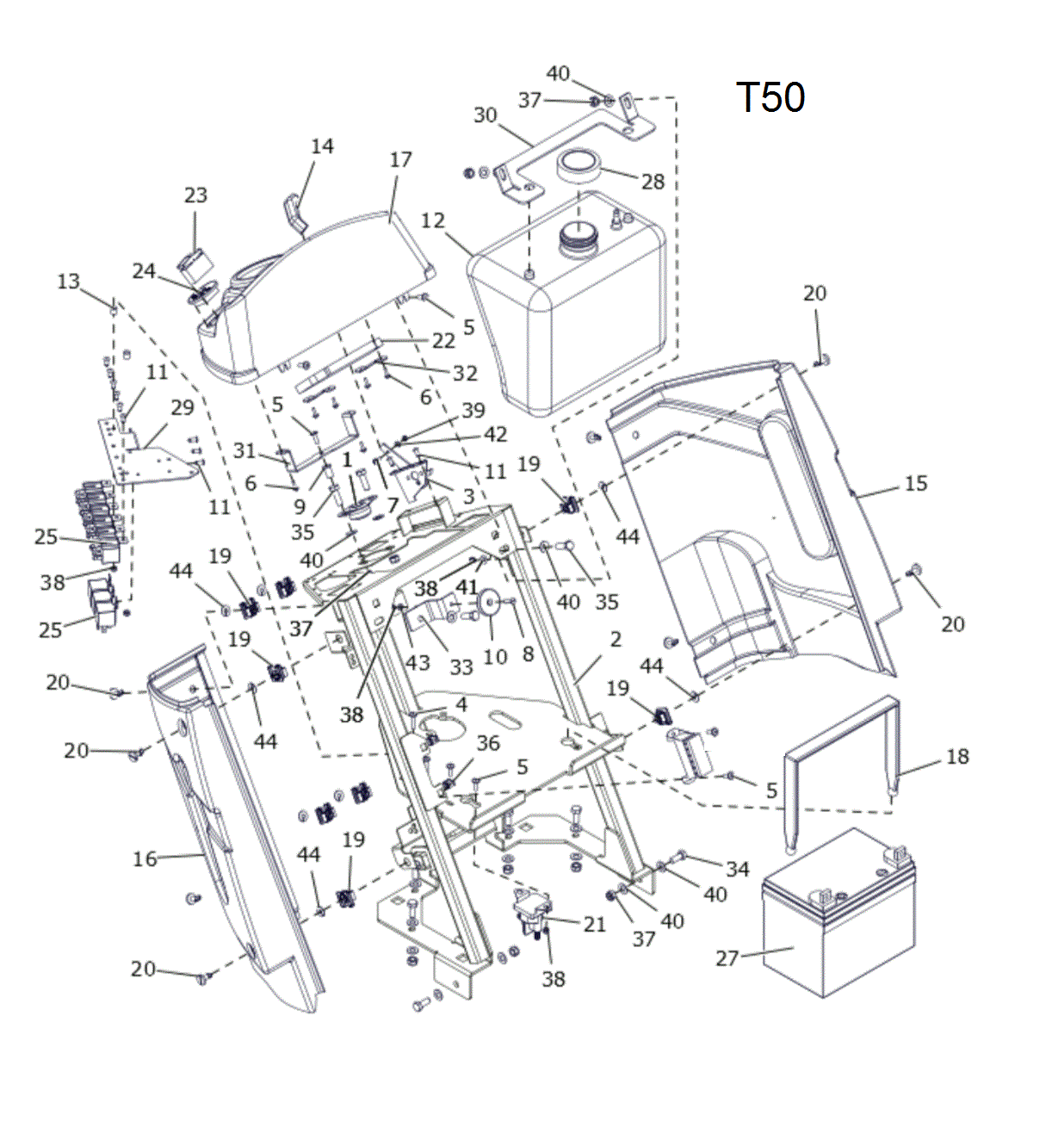

CONSOLE T50

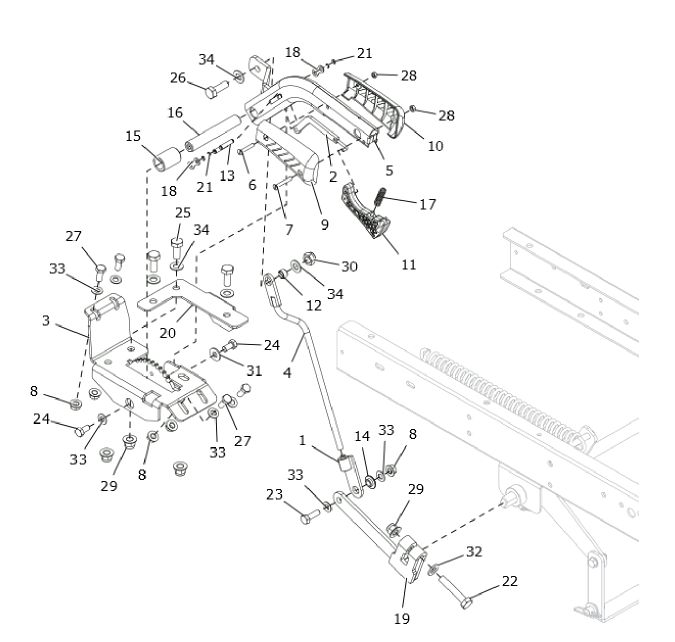

DECK LIFT HANDLE

DECK LIFT HANDLE

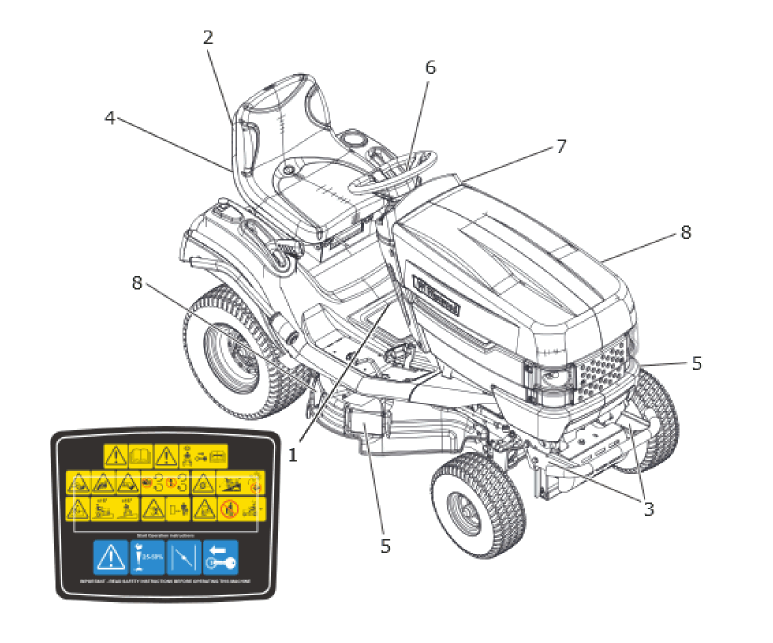

SAFTY DECALS

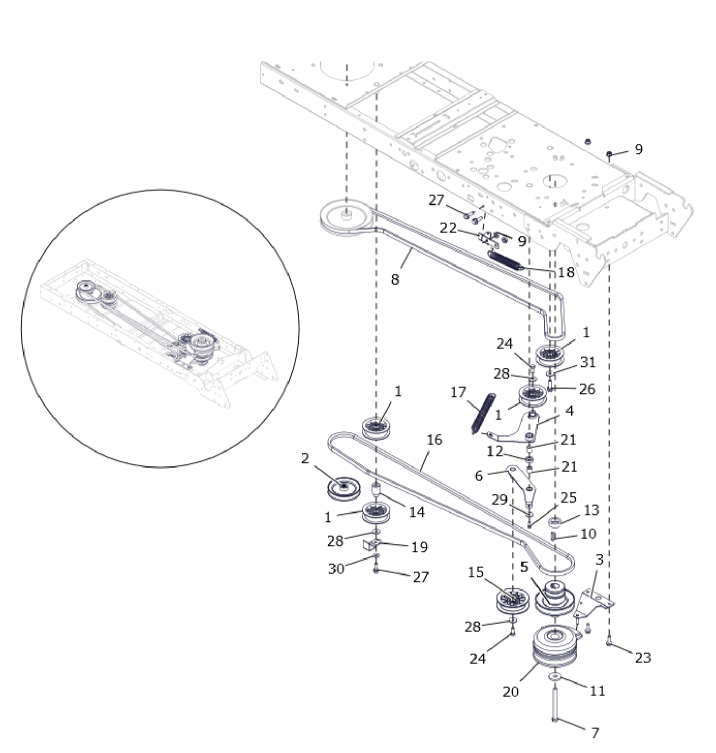

CHASSIS BELTS

Can't see your part?
