Stihl TS 350 Disc Cutter (TS350) Parts Diagram, E-Carburetor HL-292G

Look at the diagram and find parts that fit a Stihl TS 350 Disc Cutter, or refer to the list below.

All parts that fit a TS 350 Disc Cutter

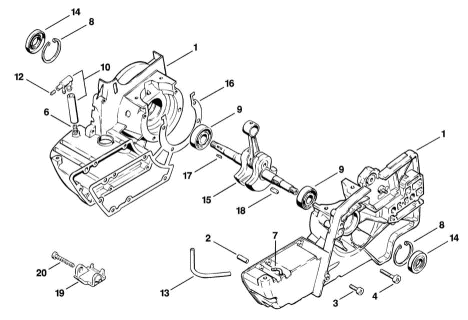

A_-Crankcase
A_-Crankcase
A-Crankcase
A-Crankcase

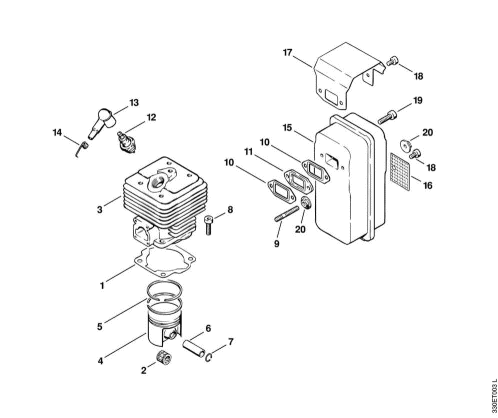

B_-Cylinder
B_-Cylinder
B-Cylinder
B-Cylinder

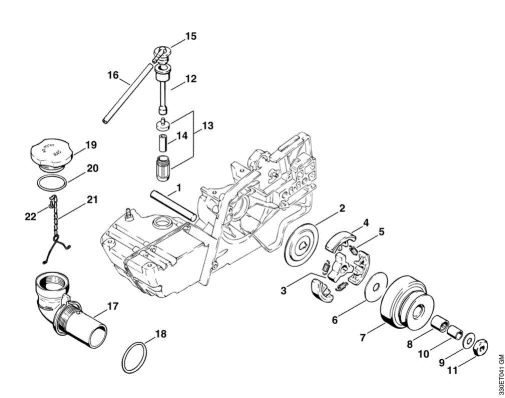

C_-Clutch
C_-Clutch
C-Clutch
C-Clutch

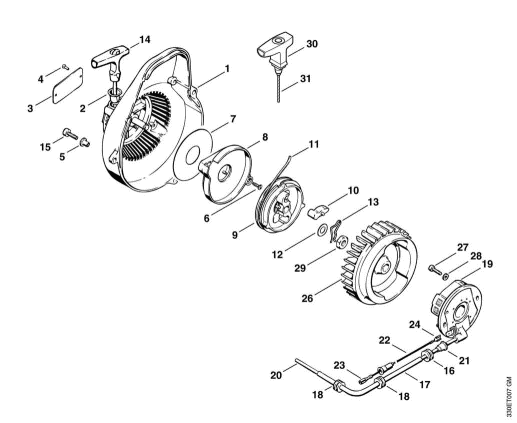

D_-Rewind starter (Pawl)
D_-Rewind starter (Pawl)
D-Rewind starter (Pawl)
D-Rewind starter (Pawl)
E_-Carburetor HL-292G
E_-Carburetor HL-292G
E-Carburetor HL-292G
E-Carburetor HL-292G

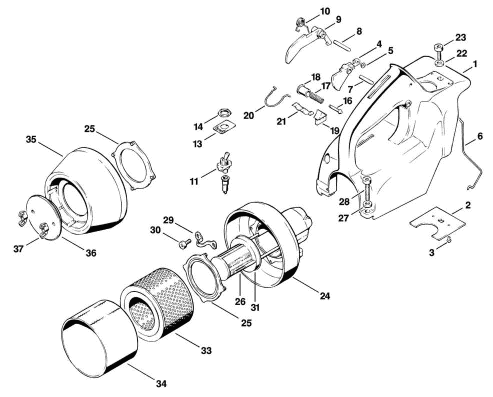

F_-Shroud
F_-Shroud
F-Shroud
F-Shroud
G_-Connector
G_-Connector
G-Connector
G-Connector

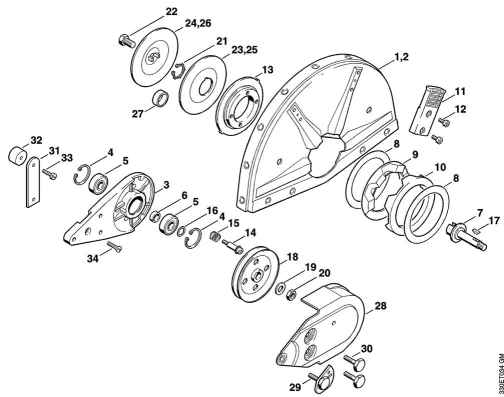

H_-Support with guard
H_-Support with guard
H-Support with guard
H-Support with guard

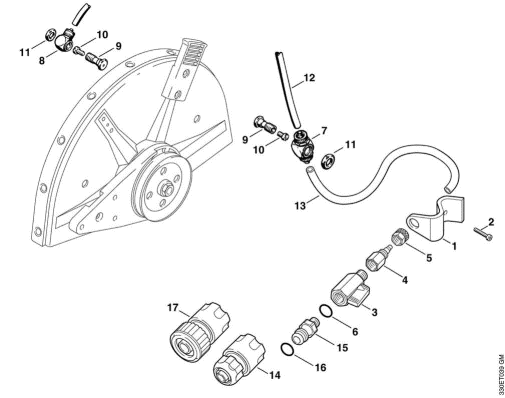

J-Water attachment
J-Water attachment

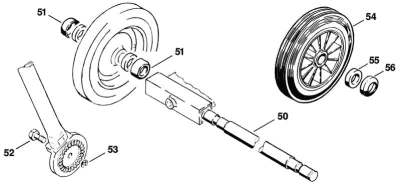

K_-Cutquik cart
K_-Cutquik cart

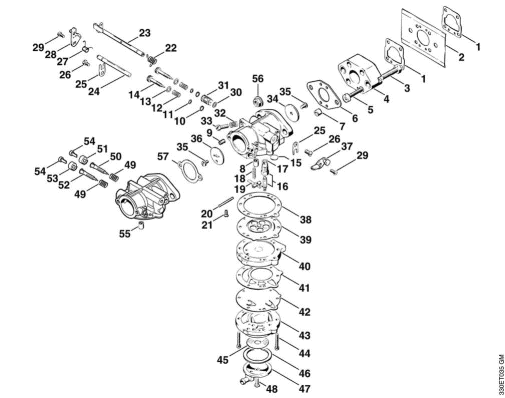

Stihl TS 350 Disc Cutter (TS350) Parts Diagram, E-Carburetor HL-292G
# Part Price
1 1108 129 1110 - Stihl Gasket £1.25
To Basket
2 1108 121 2200 - Stihl Cooling plate £1.75
To Basket
3 9008 319 1350 - Stihl Screw £0.98
To Basket
4 1108 120 2300 - Stihl Intermediate flange £16.27
To Basket
5 9022 313 0740 - Stihl Spline screw IS-M4x25 £0.84
To Basket
6 1108 129 1102 - Stihl Gasket £1.25
To Basket
7 1106 121 8701 - Stihl Bushing £3.34
To Basket
8 1106 121 5400 - Stihl Valve nozzle £16.27
To Basket
9 9795 003 0350 - Stihl HELICOIL INSERT £0.54
10 1106 129 2300 - Stihl Gasket £2.17
To Basket
11 1106 129 3500 - Stihl Sealing ring £6.01
To Basket
12 1106 122 3000 - Stihl Spring £2.29
To Basket
13 1106 129 3505 - Stihl Sealing Ring £5.62
14 1108 122 6800 - Stihl Low speed screw £10.85
15 6503 122 9410 - Stihl Cup plug £3.68
To Basket
16 1106 120 8801 - Stihl Inlet needle £32.53
To Basket
17 6503 129 2500 - Stihl Gasket £2.17
To Basket
18 1106 122 3005 - Stihl Spring £2.29
To Basket
19 1106 121 5000 - Stihl Inlet control lever £3.19
To Basket
21 1110 122 7800 - Stihl Oval Head Screw £7.38
22 1108 122 3210 - Stihl Hook on spring £1.04
To Basket
23 1108 120 7100 - Stihl Throttle shaft £21.70
To Basket
24 1108 121 3000 - Stihl Choke shaft £18.30
To Basket
25 6503 122 9300 - Stihl Clip £1.22
To Basket
26 6503 122 7720 - Stihl Oval head screw £3.34
To Basket
27 1108 122 3201 - Stihl Torsion spring £1.03
To Basket
28 1108 120 7000 - Stihl Plate £6.50
To Basket
29 1106 122 7201 - Stihl Cylinder head screw £3.95
To Basket
30 1110 129 3000 - Stihl Gasket £5.62
32 6503 122 3020 - Stihl Spring £2.29
To Basket
33 4201 122 6200 - Stihl Idle speed screw £10.85
To Basket
34 4201 121 3310 - Stihl Throttle shutter £4.40
To Basket
35 1106 122 7400 - Stihl Screw and lock washer £7.91
To Basket
36 6503 121 2910 - Stihl Shutter £2.03
37 1108 120 7010 - Stihl Plate £6.08
38 6503 129 0910 - Stihl Gasket £2.17
To Basket
39 6503 121 4700 - Stihl Metering diaphragm £15.18
To Basket
40 6503 121 0500 - Stihl DIAPHRAGM COVER £15.05
41 1108 129 1100 - Stihl Gasket £2.17
To Basket
42 1106 121 4803 - Stihl Fuel pump diaphragm £15.18
To Basket
43 6503 121 0400 - Stihl Top £29.20
44 6503 122 7710 - Stihl Oval Head Screw £17.88
45 6503 121 7810 - Stihl Strainer £3.25
To Basket
46 6503 129 3010 - Stihl Sealing ring £6.01
To Basket
47 6503 121 0800 - Stihl End cover £17.35
To Basket
48 6503 122 7700 - Stihl Oval head screw £4.57
To Basket
56 9220 260 0900 - Stihl Hexagon nut DIN6923-M6-8 £0.43
To Basket
57 1106 149 1200 - Stihl Filter gasket £1.81
To Basket
150 4201 120 0611 - Stihl Carburettor HL-372A £186.38
To Basket
152 4201 007 1060 - Stihl Set of carburettor parts £29.99
To Basket
