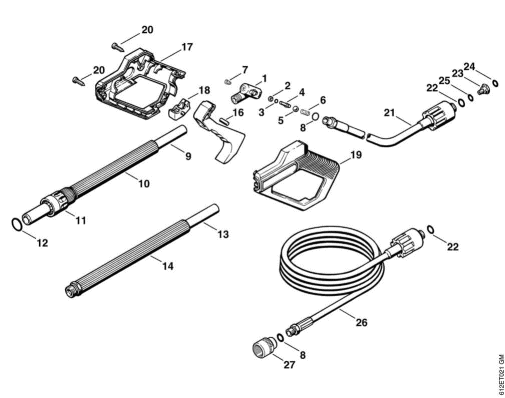

Stihl RE 110 K Pressure Washer (RE 110 K) Parts Diagram, G-Spray gun

#	Part	Price
2	9652 945 1604 - Stihl RING
3	9645 951 3133 - Stihl O RING	£0.55
4	4925 500 6500 - Stihl COLLAR STUD	£4.67
5	9516 003 3020 - Stihl BALL	£3.10
6	4915 505 0100 - Stihl SPRING	£0.79
7	4915 505 0120 - Stihl *SPRING	£0.38
8	9645 945 7522 - Stihl O-ring 11x2	£1.00	To Basket
9	4915 500 1110 - Stihl SPRAY LANCE RE110	£45.55
12	9645 945 7724 - Stihl O RING	£1.60
16	9371 470 2620 - Stihl Cylindrical pin (DIN7) - 5m6x20	£0.56	To Basket
17	4915 502 1811 - Stihl HANDLE MOULDING RIGHT	£11.75
18	4915 502 1600 - Stihl CATCH	£4.84
19	4915 502 1801 - Stihl HANDLE (RE110)	£11.75
20	9104 003 9942 - Stihl Self-tapping screw P4x20	£0.70	To Basket
21	4915 500 0800 - Stihl HP hose metre (sb)	£110.20	To Basket
22	9645 945 7561 - Stihl O-ring 14x2	£0.35	To Basket
23	4915 500 6300 - Stihl Nozzle	£25.08	To Basket
24	9645 945 7484 - Stihl O-ring 8x2	£0.35	To Basket
25	9645 945 7477 - Stihl O-ring 7x2	£0.70	To Basket
26	4915 500 0810 - Stihl H P Extension Hose Met	£77.85
27	4915 503 0800 - Stihl COUPLING	£23.70
150	4900 501 0600 - Stihl HANDLE HOSE	£12.95
151	4900 501 0600 - Stihl HANDLE HOSE	£12.95
152	4703 007 1052 - Stihl TRIGGER VALVE KIT	£14.23
