Look at the diagram and find parts that fit a Stihl FS 490 C-EM Clearing Saw, or refer to the list below.

All Parts for FS 490 C-EM Clearing Saw

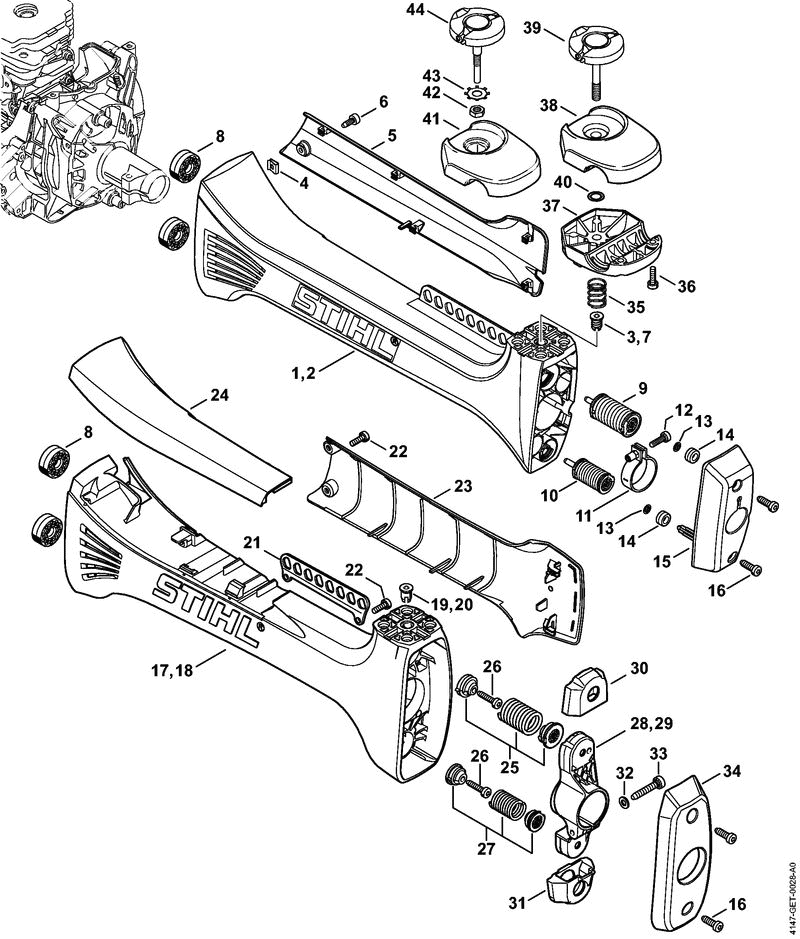

Stihl FS 490 C-EM Clearing Saw (FS 490 C-EM) Parts Diagram, J AV SYSTEM

#	Part	Price
1	4147 790 0906 Stihl Av Housing		Stihl Av Housing £52.40 P/N: 4147 790 0906, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
2	4147 790 0903 Stihl AV housing (006.2016)	£59.80	Stihl AV housing £59.80 (006.2016) P/N: 4147 790 0903, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
3	9799 003 0410 Stihl Helicoil thread insert M6x15.4 (48.2014), (006.2016)	£0.92	Stihl Helicoil thread insert M6x15.4 £0.92 (48.2014), (006.2016) P/N: 9799 003 0410, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
4	9286 620 9821 Stihl Flat nut 4.8	£1.14	Stihl Flat nut 4.8 £1.14 P/N: 9286 620 9821, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
5	4147 791 4300 Stihl Guard	£7.93	Stihl Guard £7.93 P/N: 4147 791 4300, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
6	9074 478 4125 Stihl Pan head self-tapping screw IS-5x14	£0.80	Stihl Pan head self-tapping screw IS-5x14 £0.80 P/N: 9074 478 4125, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
7	9799 003 0500 Stihl Helicoil thread insert	£1.03	Stihl Helicoil thread insert £1.03 P/N: 9799 003 0500, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
8	4148 792 9303 Stihl Rubber buffer	£2.41	Stihl Rubber buffer £2.41 P/N: 4148 792 9303, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
9	4147 790 8301 Stihl AV spring	£14.83	Stihl AV spring £14.83 P/N: 4147 790 8301, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
10	4147 790 8300 Stihl AV spring	£11.39	Stihl AV spring £11.39 P/N: 4147 790 8300, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
11	4128 710 6700 Stihl Hose clamp	£5.06	Stihl Hose clamp £5.06 P/N: 4128 710 6700, Genuine OEM spare part. Find other Stihl spares, parts and accessories.

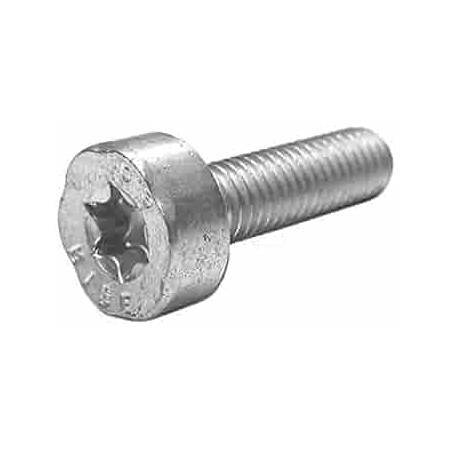

12	9022 341 1010 Stihl Spline screw IS-M5x18	£0.92	Stihl Spline screw IS-M5x18 £0.92 P/N: 9022 341 1010, Genuine OEM spare part. Find other Stihl spares, parts and accessories.

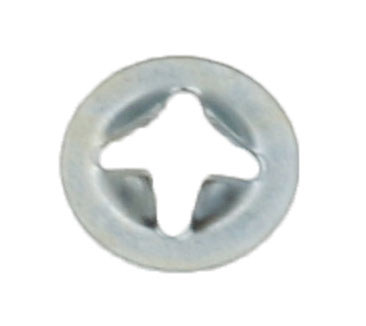

13	9417 003 7512 Stihl Push Nut 4x9.6x1.8	£1.14	Stihl Push Nut 4x9.6x1.8 £1.14 P/N: 9417 003 7512, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
14	4147 791 2801 Stihl Annular buffer	£3.46	Stihl Annular buffer £3.46 P/N: 4147 791 2801, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
15	4147 791 7600 Stihl Support	£14.38	Stihl Support £14.38 P/N: 4147 791 7600, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
16	9074 478 4435 Stihl Pan head self-tapping screw IS-P6x19	£0.92	Stihl Pan head self-tapping screw IS-P6x19 £0.92 P/N: 9074 478 4435, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
35	0000 997 1701 Stihl Coil spring	£1.62	Stihl Coil spring £1.62 P/N: 0000 997 1701, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
36	9039 488 0984 Stihl Screw DIN 7500-M5x16	£0.92	Stihl Screw DIN 7500-M5x16 £0.92 P/N: 9039 488 0984, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
37	4147 791 0901 Stihl Clamp	£13.45	Stihl Clamp £13.45 P/N: 4147 791 0901, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
38	4147 791 0904 Stihl Clamp	£13.22	Stihl Clamp £13.22 P/N: 4147 791 0904, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
39	4147 790 7503 Stihl Tommy screw	£13.12	Stihl Tommy screw £13.12 P/N: 4147 790 7503, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
40	9646 945 0490 Stihl O-ring DIN3771-S7x1.5	£0.46	Stihl O-ring DIN3771-S7x1.5 £0.46 P/N: 9646 945 0490, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
41	4147 790 4800 Stihl Clamp (006.2016), (007.2016)		Stihl Clamp £15.74 (006.2016), (007.2016) P/N: 4147 790 4800, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available

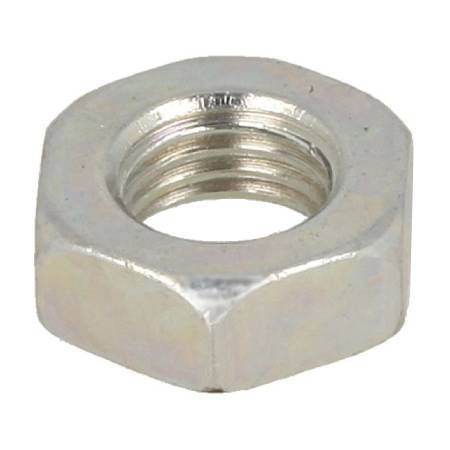

42	9211 260 1150 Stihl Hexagon nut DIN936-M8x1LH-05 (006.2016), (007.2016)	£0.46	Stihl Hexagon nut DIN936-M8x1LH-05 £0.46 (006.2016), (007.2016) P/N: 9211 260 1150, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
43	9451 621 2925 Stihl Shakeproof washer 24x0.5 (006.2016), (007.2016)	£1.03	Stihl Shakeproof washer 24x0.5 £1.03 (006.2016), (007.2016) P/N: 9451 621 2925, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
44	4147 790 7501 Stihl Tommy screw (006.2016), (007.2016)	£13.34	Stihl Tommy screw £13.34 (006.2016), (007.2016) P/N: 4147 790 7501, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
