XR16 Hover Lawnmower Parts and Diagrams

Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a XR16 Hover Lawnmower.

Popular for this machine

Hayter DECAL - SAFETY
111-0083
£2.11
Hayter ENGINE FRAME
H290003
£29.74
Hayter GRIP-HANDLE
H292276
£11.41
Hayter KEY WOODRUFF D16 X 4
H292329
£0.74
Hayter KIT SECURING BOLTS & C
H190139
£6.32
Hayter KIT-DECK TO FRAME SCRE
H290004
£9.62

All parts that fit a XR16 Hover Lawnmower

Diagrams for this machine

Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.

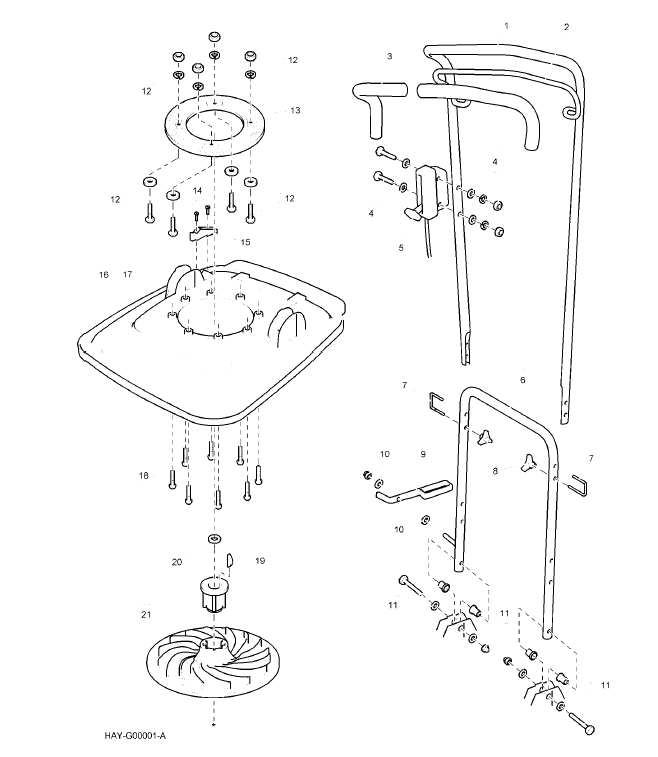

185E311000001 onwards

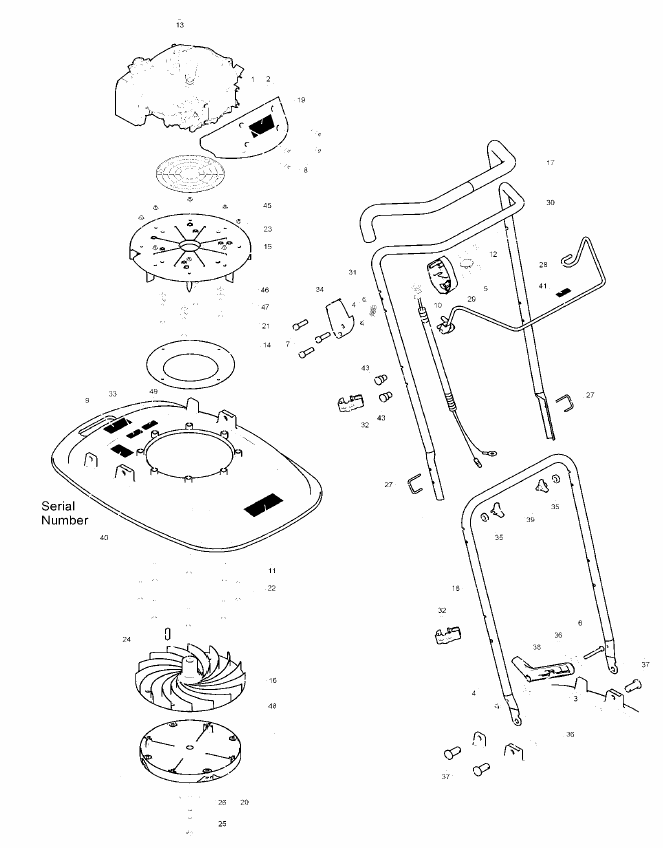

185E280000001-185E310999999

Can't see your part?
