Spirit 41 Push Rear Roller Lawnmower (617) Parts and Diagrams

Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Spirit 41 Push Rear Roller Lawnmower (617).

All parts that fit a Spirit 41 Push Rear Roller Lawnmower (617)

Diagrams for this machine

Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.

Choose your Year/Serial Number

617

617J315000001 and up

617J314000001 - 617J314999999

617J313001001-617J313999999

617E311090001 - 617E311999999

617E270000001 onwards

617D260000001-617D260999999

617J402000000 AND UP

617J400000000 AND UP

617J316000001-AND UP

Top

617

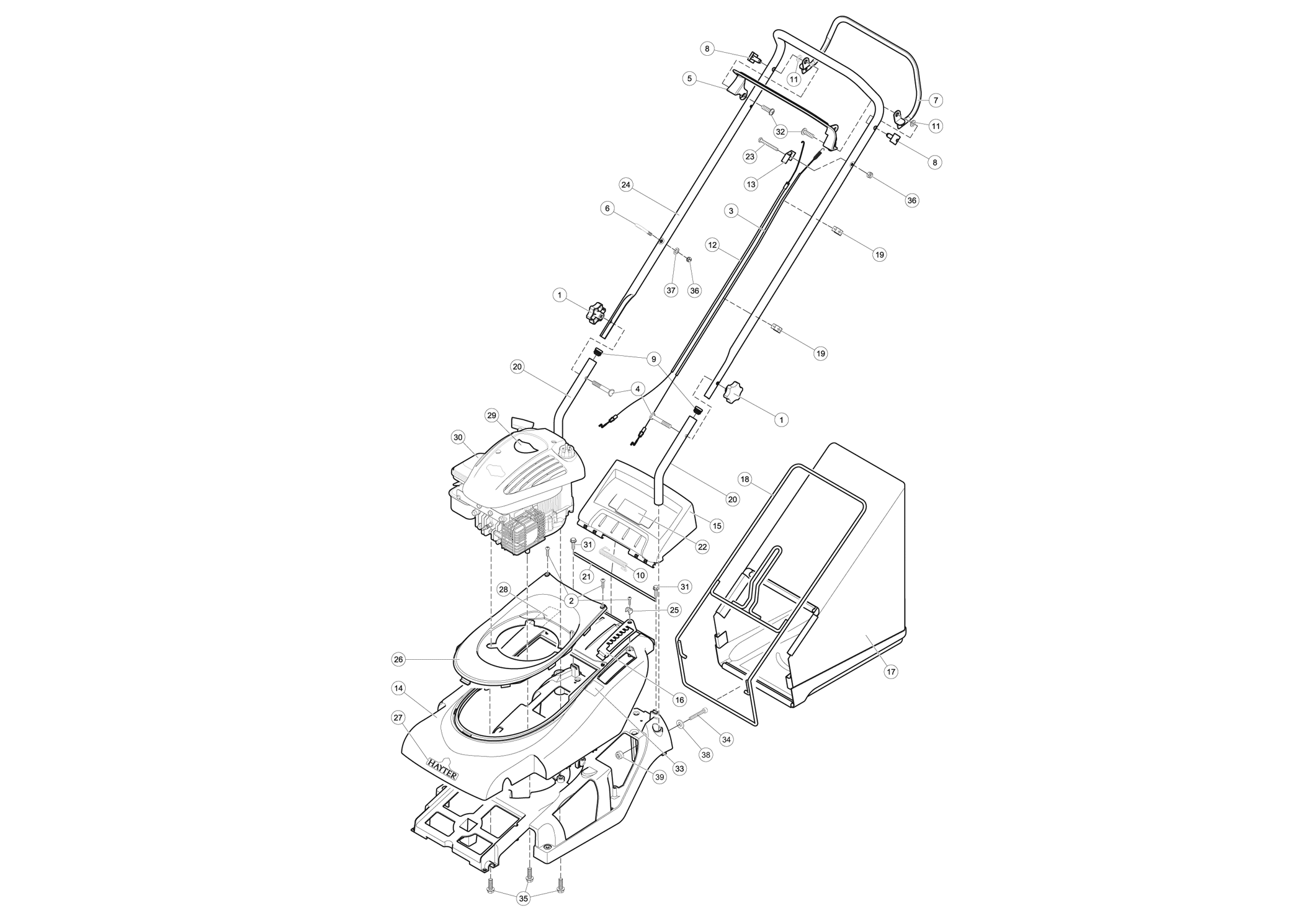

Page:1
Page:1

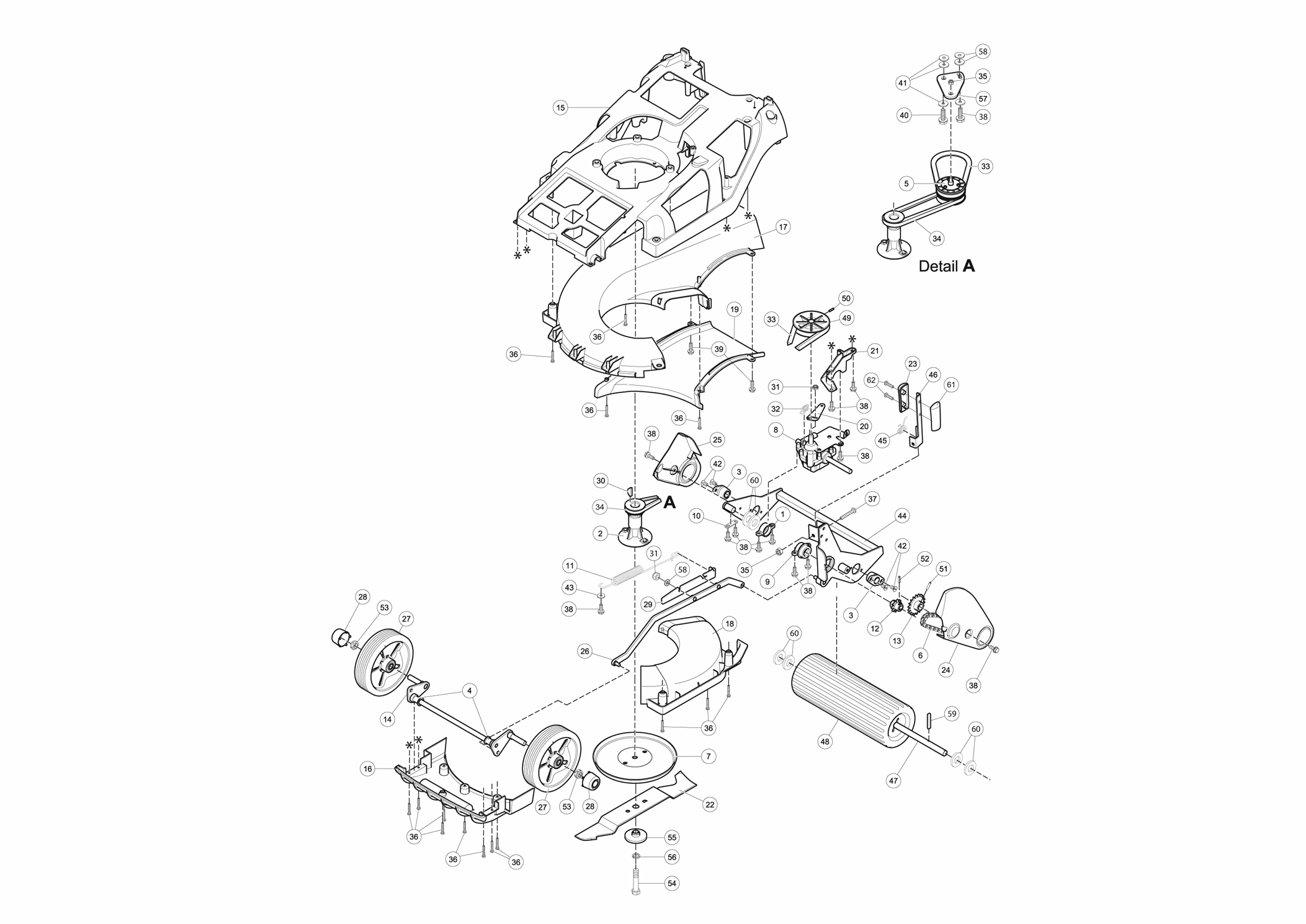

Page:2
Page:2

617J315000001 and up

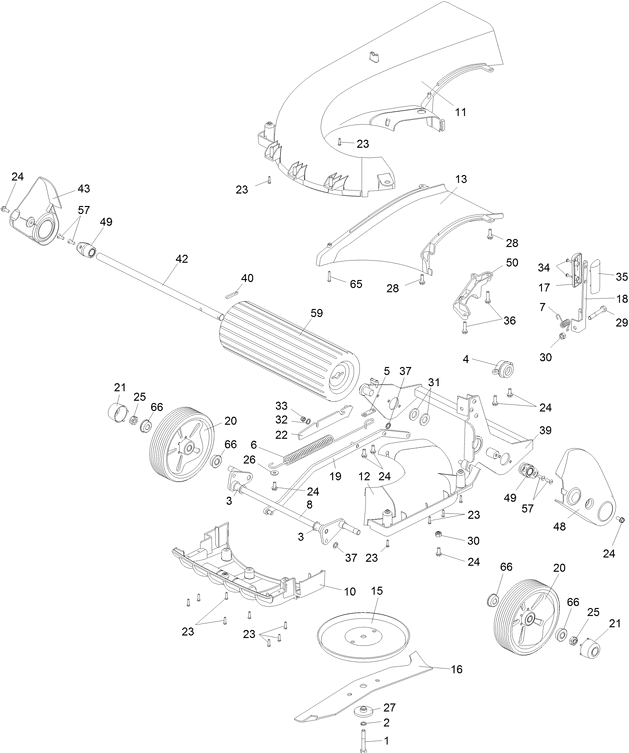

Lower Assembly
Lower Assembly

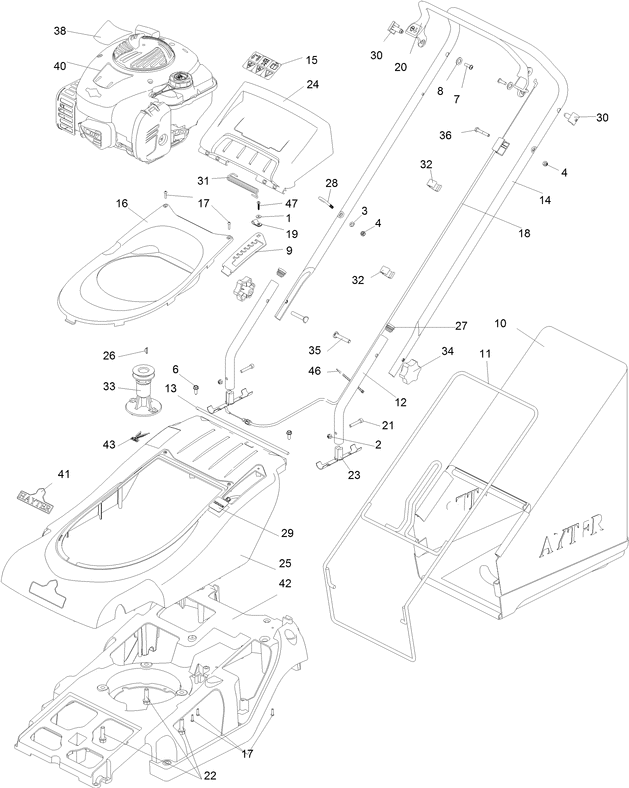

Upper Assembly
Upper Assembly

617J314000001 - 617J314999999

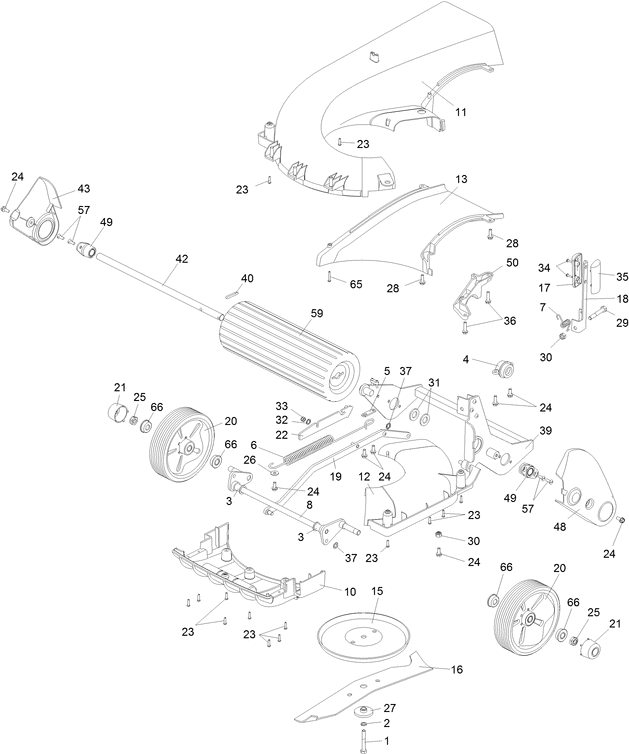

Lower Assembly
Lower Assembly
Upper Assembly
Upper Assembly

617J313001001-617J313999999

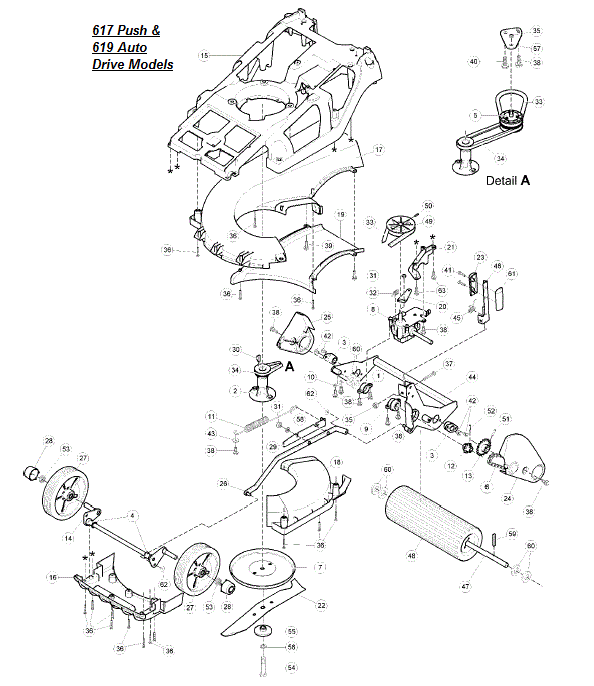

Lower Mainframe
Lower Mainframe

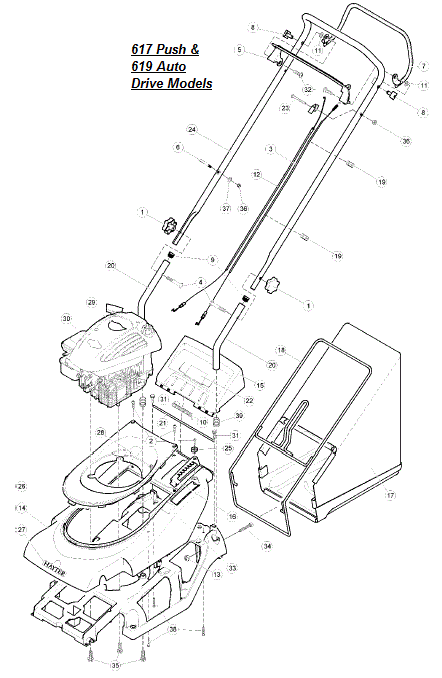

Upper Mainframe
Upper Mainframe

617E311090001 - 617E311999999

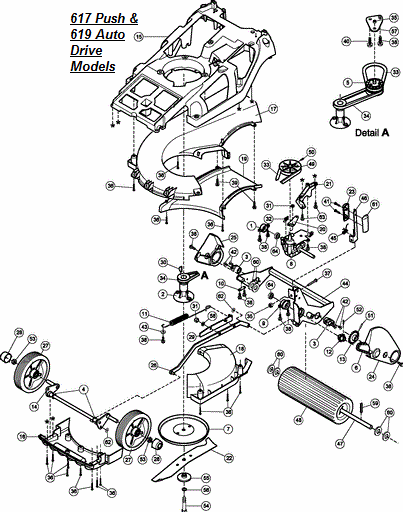

Lower Mainframe
Lower Mainframe

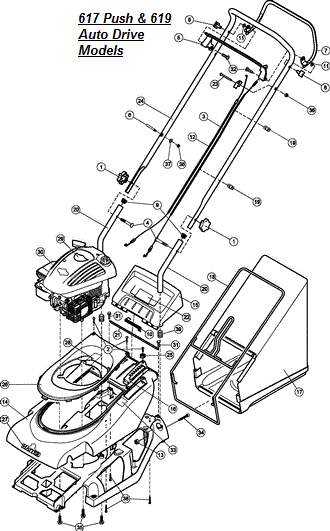

Upper Mainframe
Upper Mainframe

617E270000001 onwards

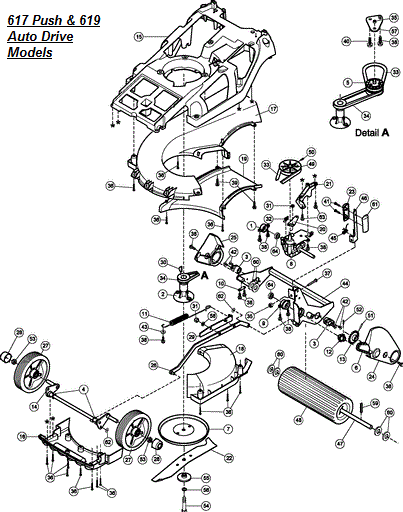

Lower Mainframe
Lower Mainframe

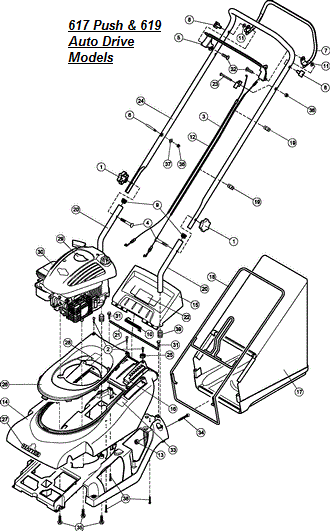

Upper Mainframe
Upper Mainframe

617D260000001-617D260999999

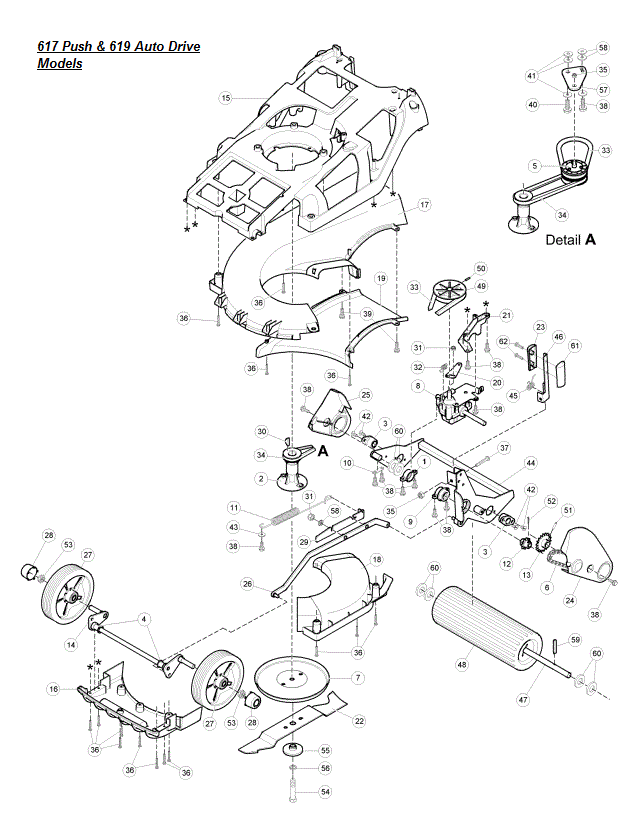

Lower Frame
Lower Frame

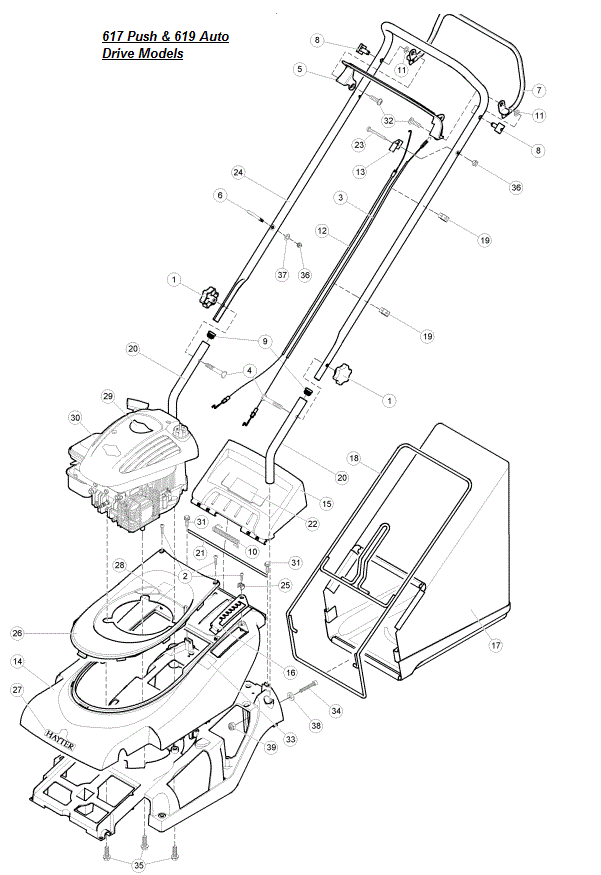

Upper Frame
Upper Frame

617J402000000 AND UP

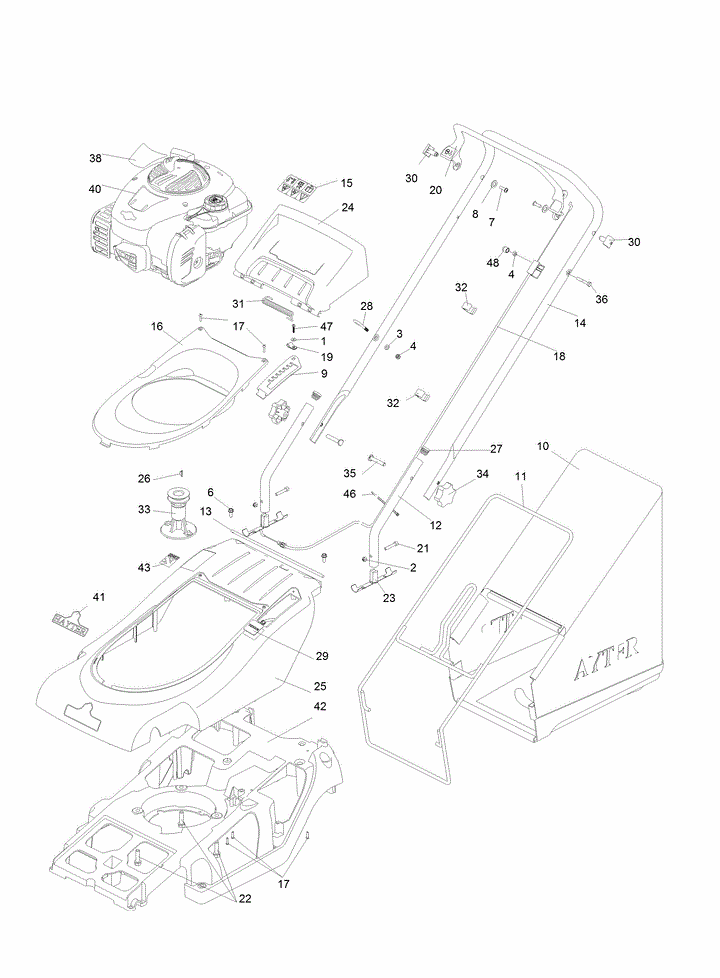

Upper Deck
Upper Deck

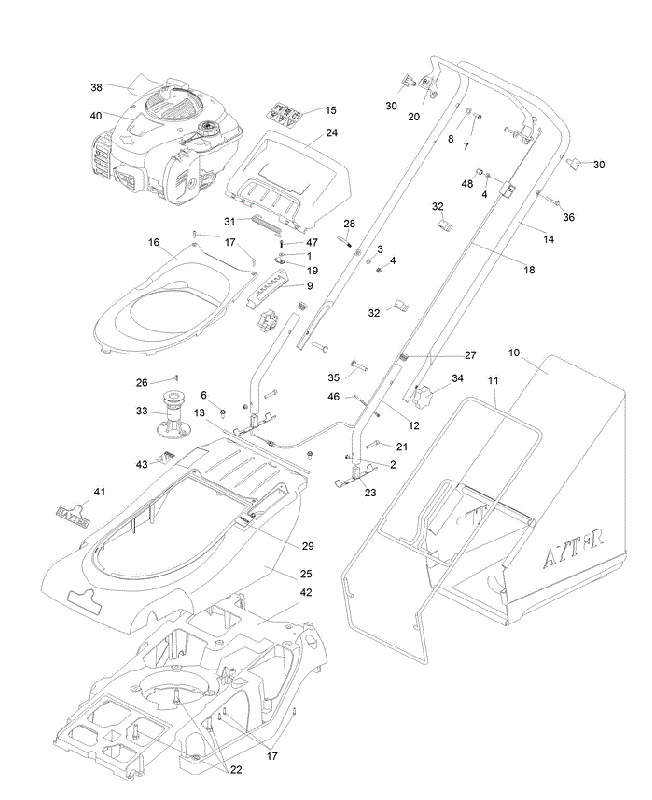

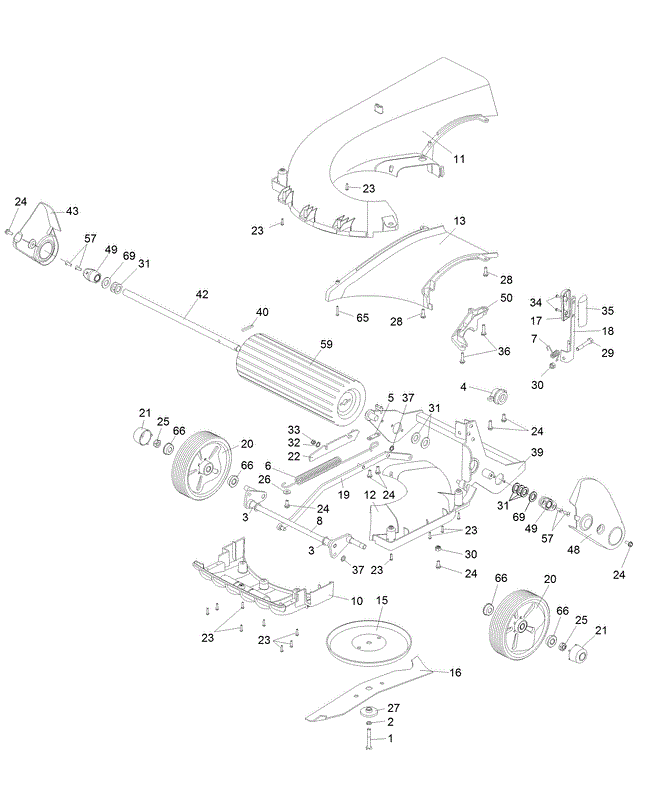

Lower Deck
Lower Deck

617J400000000 AND UP

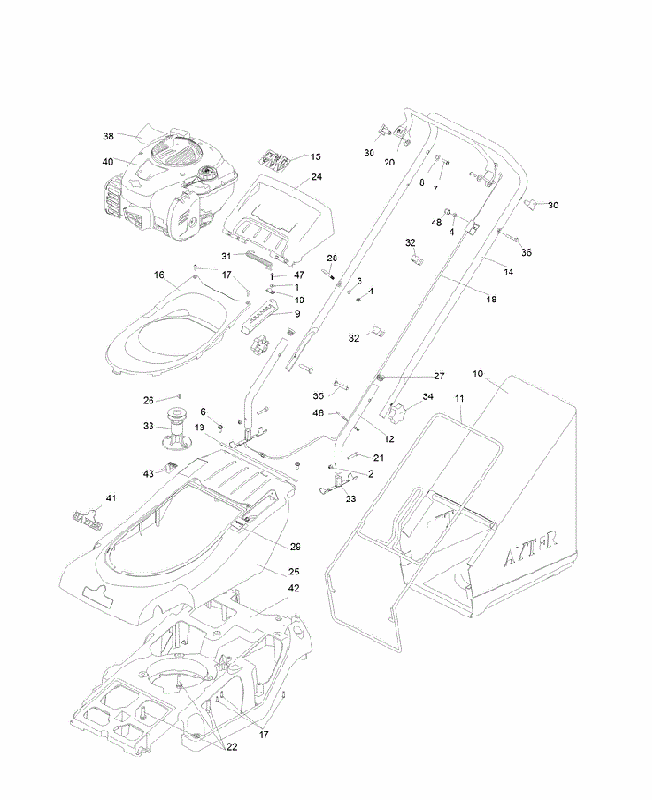

Upper Deck
Upper Deck

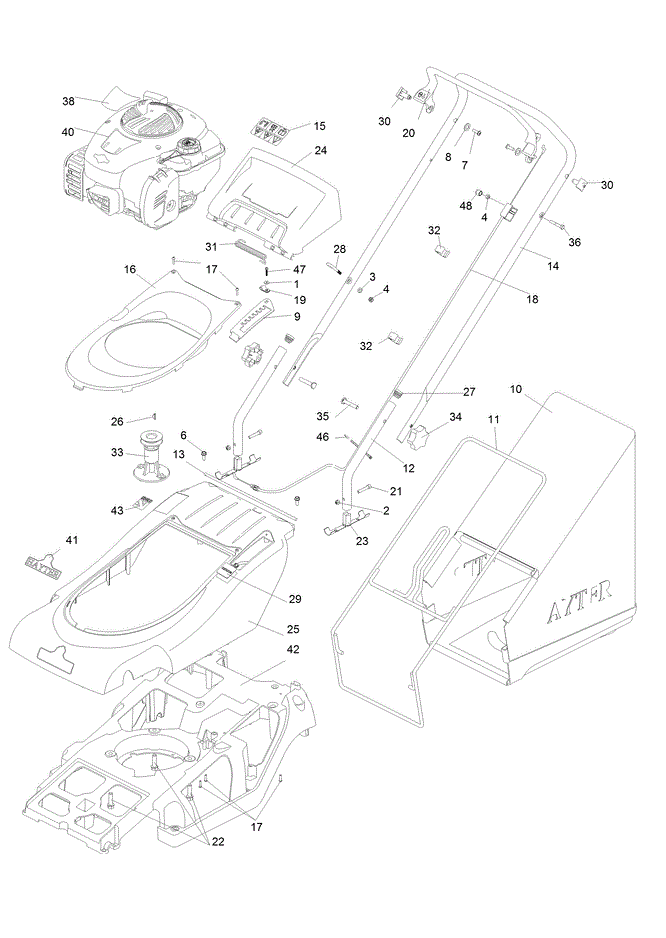

Lower Deck
Lower Deck

617J316000001-AND UP

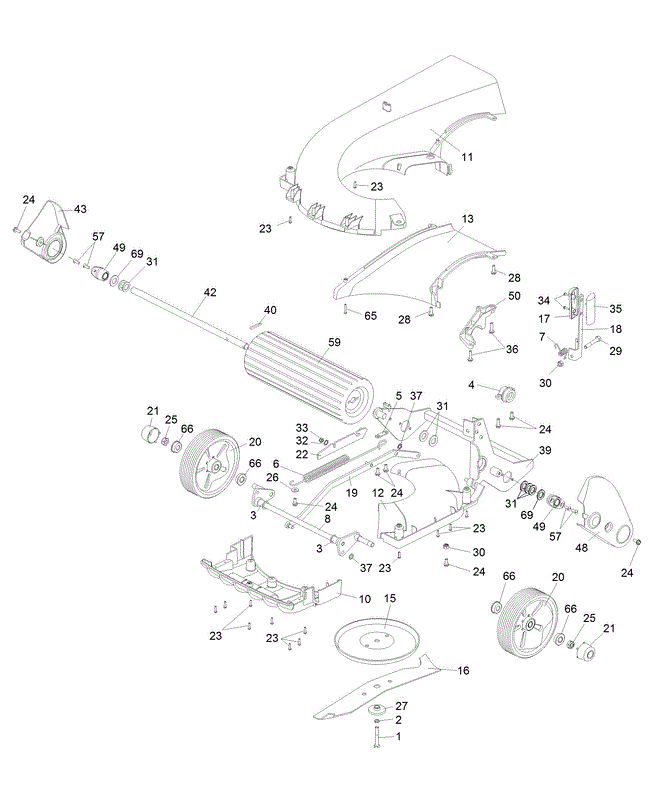

Lower Deck
Lower Deck
Upper Deck
Upper Deck
