Harrier 48 (488) Lawnmower Parts and Diagrams

Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Harrier 48 (488) Lawnmower.

Popular for this machine

Hayter Adapter-elbow. 90 Deg
340-168
£41.77
Hayter Battery Replacement Kit
HY220015
£95.87
Hayter Distance Piece Cutterbar
HY4014
£12.40
Hayter Nut Unf 1/2in Nyloc Ext Thin5/16
HY4486
£1.69
Hayter Roll Pin 3/16 X 3/4 Lg
03997
£1.74
Hayter Screw M6 X 16 Taptite Hex Hd
09365
£1.75

All parts that fit a Harrier 48 (488) Lawnmower

Diagrams for this machine

Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.

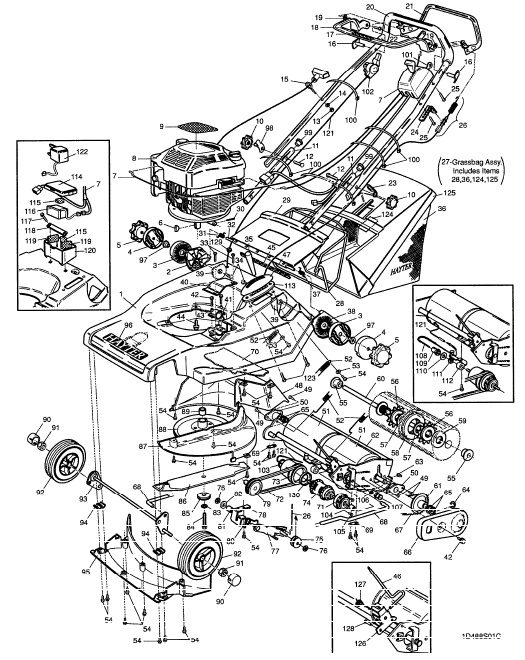

488T001001-488T099999

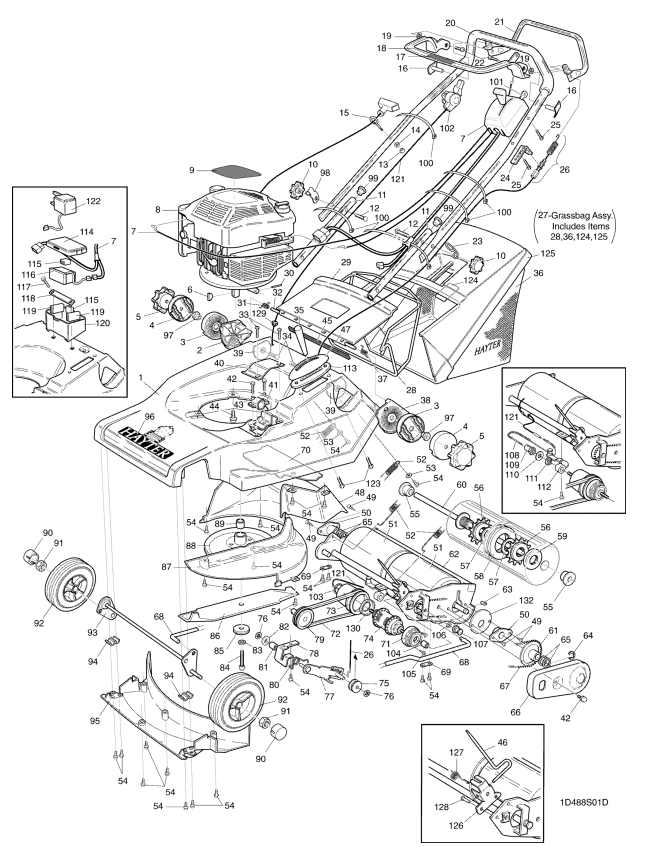

488S001001-488S099999

Can't see your part?
