Harrier 48 (485) Lawnmower Parts and Diagrams

Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Harrier 48 (485) Lawnmower.

Popular for this machine

Hayter Bolt Handlebar

HY226024

£1.72

Hayter Handwheel Assy

480054

£7.91

Hayter Knob Handlebar

480088

£5.74

Hayter Pulley Drive

480038

£66.30

Hayter Roll Pin 3/16 X 3/4 Lg

03997

£1.74

Hayter Screw M6 X 16 Taptite Hex Hd

09365

£1.75

All parts that fit a Harrier 48 (485) Lawnmower

Diagrams for this machine

Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.

485V001001-485V099999

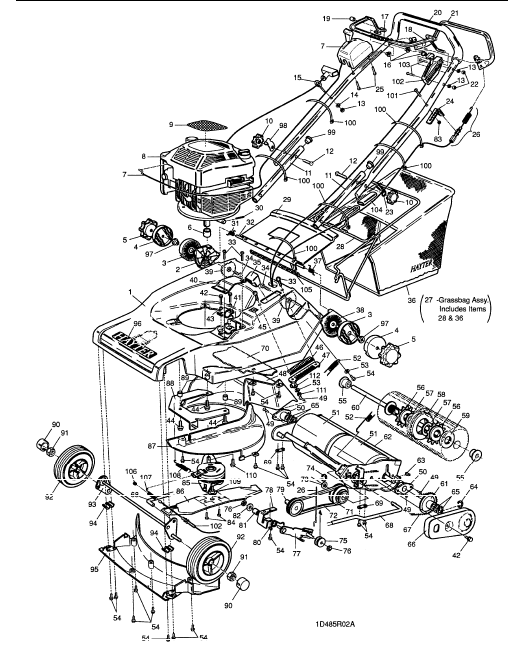

Mainframe Assembly

485T001001-485T099999

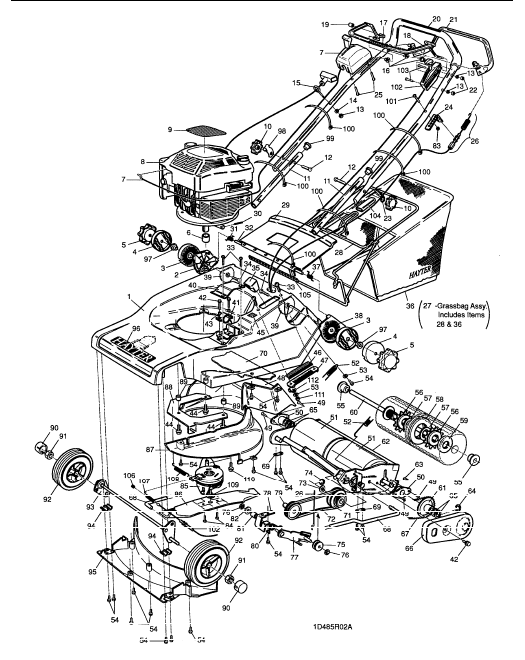

Mainframe Assembly

485S001001-485S099999

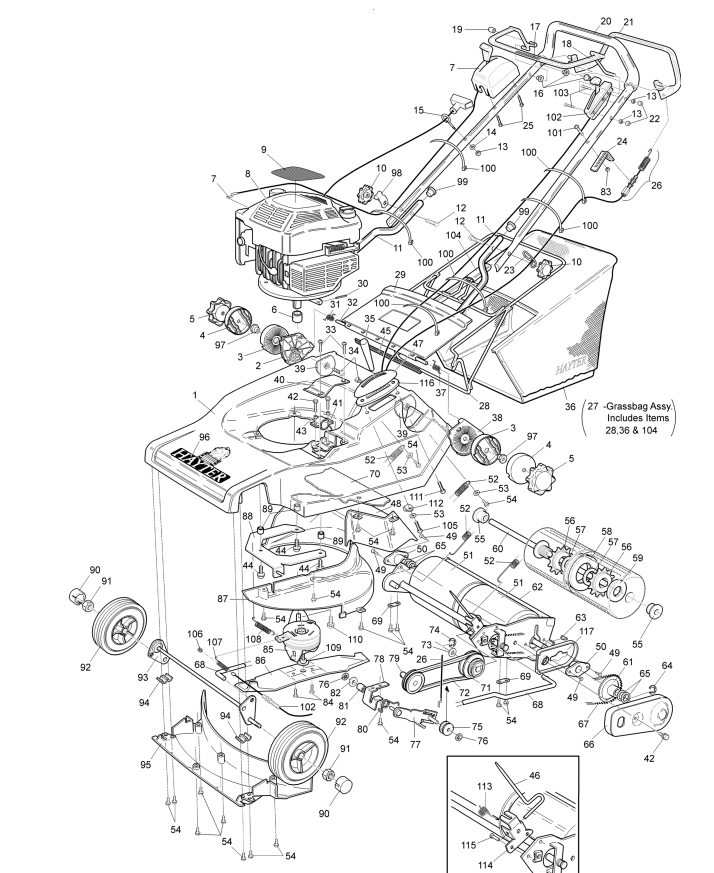

Mainframe Assembly

485R001001-485R099999

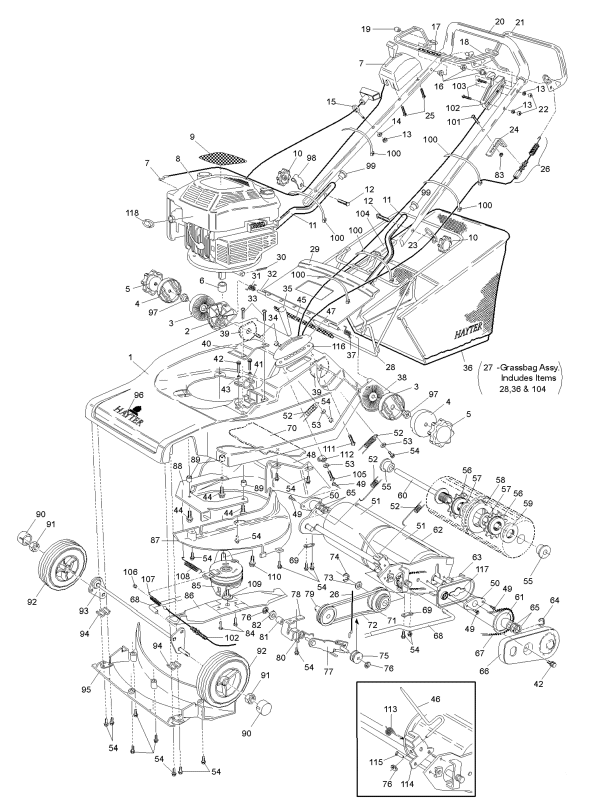

Mainframe Assembly

485C001001-485C099999

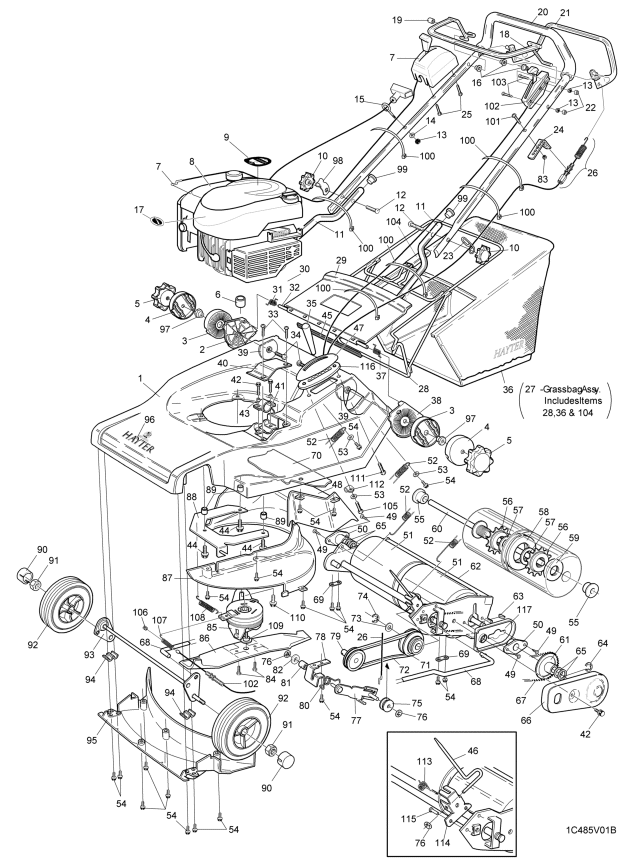

Mainframe Assembly

485A001001-485A099999

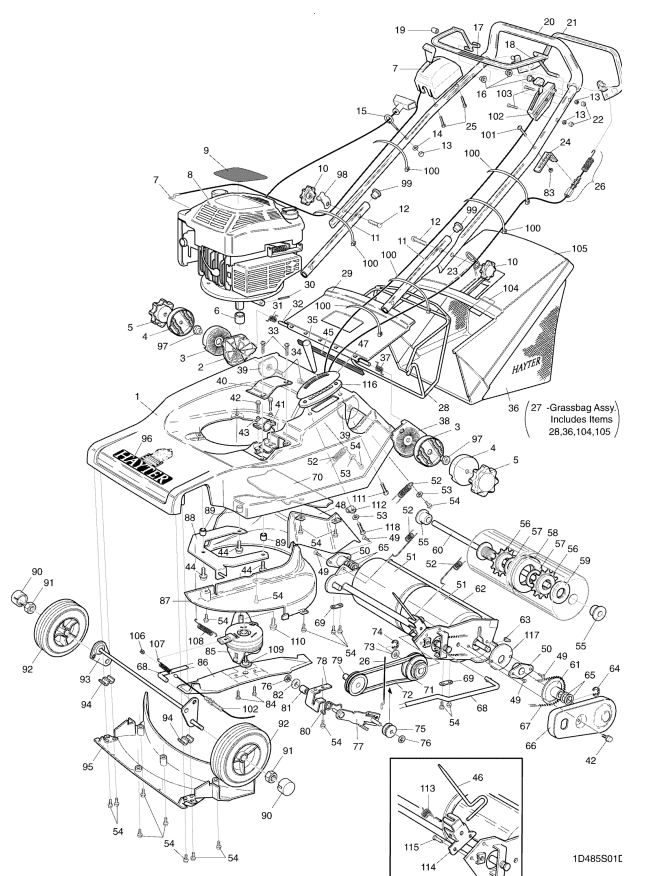

Mainframe Assembly
