Harrier 48 (419) Lawnmower Parts and Diagrams

Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Harrier 48 (419) Lawnmower.

Popular for this machine

Hayter Bolt Coach M8 X 45 C/sq Gd 4.6
09569
£1.63
Hayter Moulding Bearing
219036
£6.59
Hayter Plate Securing
219037
£1.74
Hayter Roll Pin 3/16 X 3/4 Lg
03997
£1.74

All parts that fit a Harrier 48 (419) Lawnmower

Diagrams for this machine

Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.

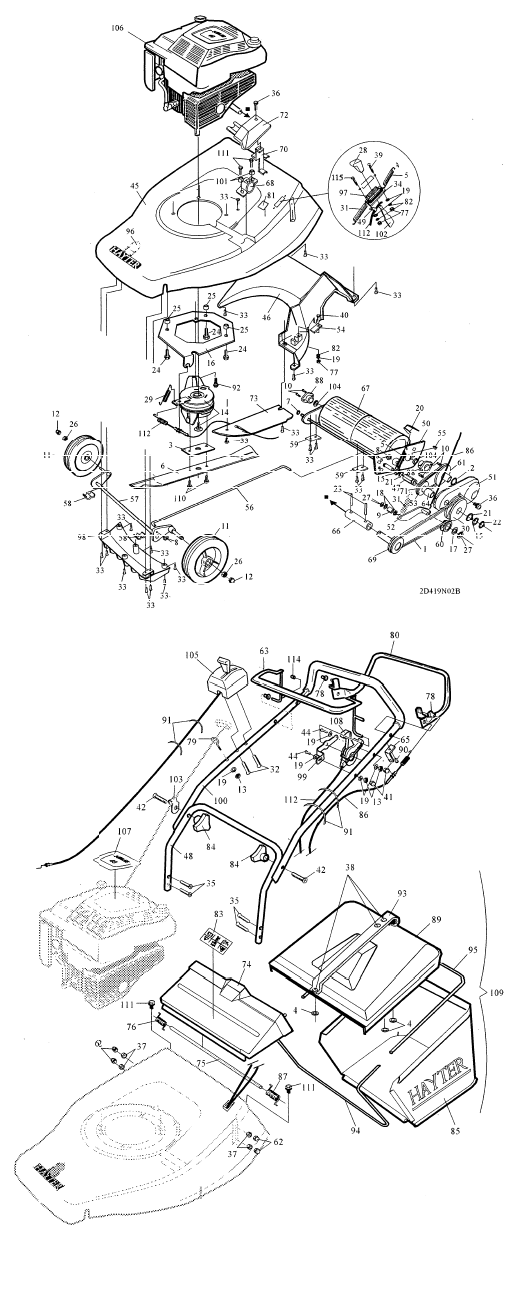

419R001001-419R099999

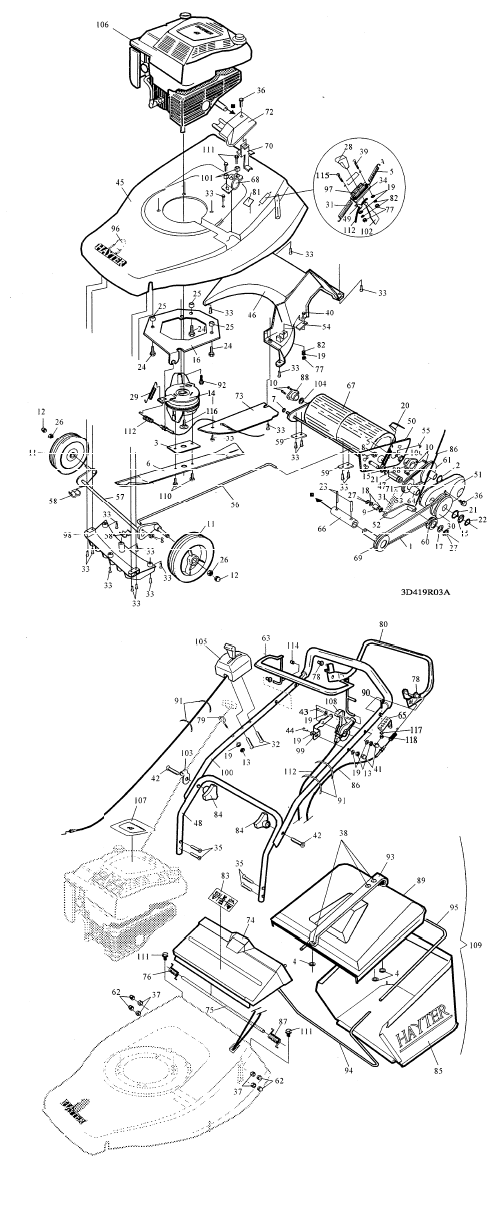

419N001001-419N099999

Can't see your part?
