Hayter Envoy (100) (100C) Parts Diagram, Page 1
Look at the diagram and find parts that fit a Hayter Envoy (100), or refer to the list below.
All Parts for Hayter Envoy (100)
| # | Part | Price | |
|---|---|---|---|
| 1 |
111-7714 Hayter Motor |
£98.70 |
 Hayter Motor£98.70
P/N: 111-7714, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 2 |
HY100002 Hayter Capacitor |
£43.02 |
Hayter Capacitor£43.02
P/N: HY100002, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 3 |
HY100003 Hayter Underdeck |
£120.32 |
Hayter Underdeck£120.32
P/N: HY100003, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 4 |
HY100004 Hayter Throwplate |
£23.18 |
Hayter Throwplate£23.18
P/N: HY100004, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 5 |
HY100506 Hayter Wheel Assy Wide |
£17.66 |
Hayter Wheel Assy Wide£17.66
P/N: HY100506, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 6 |
HY100033 Hayter Bearing, Wheel |
£5.06 |
 Hayter Bearing, Wheel£5.06
P/N: HY100033, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 7 |
HY100036 Hayter Hub Cap |
£2.23 |
Hayter Hub Cap£2.23
P/N: HY100036, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 8 |
HY100047 Hayter Washer-Starlock |
£1.74 |
Hayter Washer-Starlock£1.74
P/N: HY100047, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 9 |
HY100068 Hayter Rear Axle Rod |
£13.67 |
Hayter Rear Axle Rod£13.67
P/N: HY100068, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 10 |
HY100505 Hayter Wheel Assy Thin |
£16.91 |
Hayter Wheel Assy Thin£16.91
P/N: HY100505, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 11 |
HY100038 Hayter Lever Hoc |
£6.94 |
Hayter Lever Hoc£6.94
P/N: HY100038, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 12 |
HY100041 Hayter Spring Hoc |
£1.74 |
Hayter Spring Hoc£1.74
P/N: HY100041, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 13 |
HY100504 Hayter Rear Axle Assy |
£33.70 |
Hayter Rear Axle Assy£33.70
P/N: HY100504, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 14 |
HY100064 Hayter Plate Axle Pivot |
£1.74 |
Hayter Plate Axle Pivot£1.74
P/N: HY100064, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 15 |
111-9904 Hayter Screw |
£1.82 |
Hayter Screw£1.82
P/N: 111-9904, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 16 |

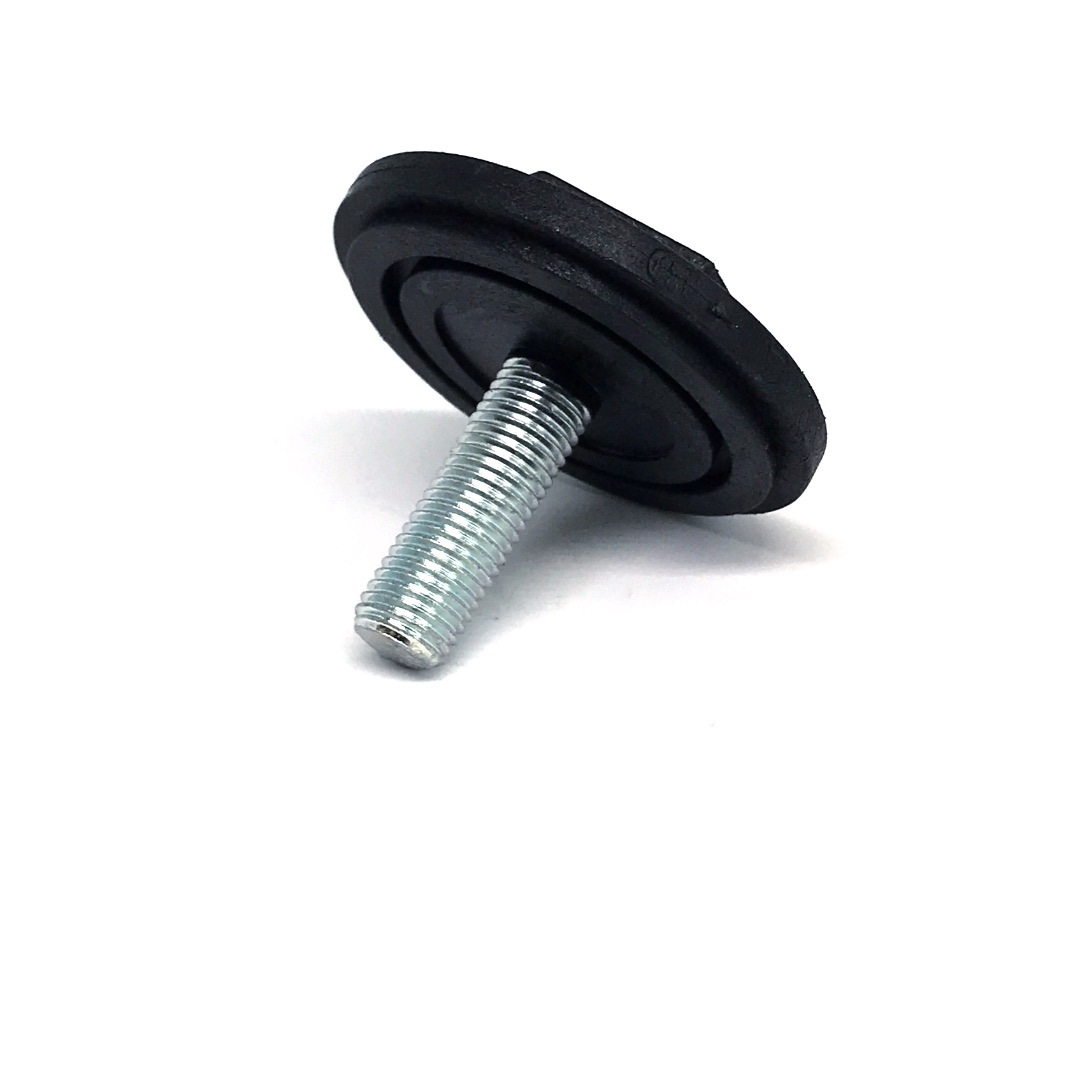

134-3399 Hayter Bolt, Overmould (Code100) |
£3.73 |
 Hayter Bolt, Overmould (Code100)£3.73
P/N: 134-3399, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 17 |
HY100012 Hayter Cutterbar |
£32.35 |
 Hayter Cutterbar£32.35
P/N: HY100012, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 18 |
100014 Hayter Carrier Cutterbar |
£19.31 |
 Hayter Carrier Cutterbar£19.31
P/N: 100014, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 19 |
100037 Hayter Connecting Rod |
£13.88 |
Hayter Connecting Rod£13.88
P/N: 100037, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 20 |
HY100048 Hayter Washer Starlock 8Mm |
£1.74 |
Hayter Washer Starlock 8Mm£1.74
P/N: HY100048, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 21 |
HY100503 Hayter Front Axle Assy |
£35.68 |
Hayter Front Axle Assy£35.68
P/N: HY100503, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 22 |
HY100006 Hayter Fins |
£30.92 |
Hayter Fins£30.92
P/N: HY100006, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 23 |
HY100076 Hayter Bolt Motor |
£1.74 |
Hayter Bolt Motor£1.74
P/N: HY100076, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 24 |
100125 Hayter |
Hayter
P/N: 100125, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 25 |
410087 Hayter Logo (03) |
£6.73 |
Hayter Logo (03)£6.73
P/N: 410087, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 26 |
HY100011 Hayter Filter |
Hayter Filter
P/N: HY100011, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 27 |
410064 Hayter Decal Grass Blade |
£10.78 |
Hayter Decal Grass Blade£10.78
P/N: 410064, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 28 |
100082 Hayter DECAL-ENVOY |
Hayter DECAL-ENVOY£2.32
P/N: 100082, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 29 |
HY100010 Hayter COVER, AIR VENTS |
Hayter COVER, AIR VENTS£15.72
P/N: HY100010, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 30 |
HY100026 Hayter Handlebar Lower |
Hayter Handlebar Lower£16.26
P/N: HY100026, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 31 |
100025-03 Hayter Handlebar-Middle |
£29.08 |
Hayter Handlebar-Middle£29.08
P/N: 100025-03, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 32 |
100024 Hayter Handlebar Upper |
£56.59 |
Hayter Handlebar Upper£56.59
P/N: 100024, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 33 |

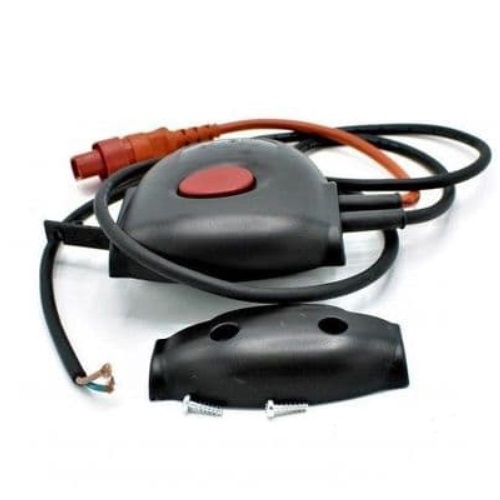

100515 Hayter Switch & Lead Assy |
£47.58 |
 Hayter Switch & Lead Assy£47.58
P/N: 100515, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 34 |
134-0440 Hayter Screw - TX |
£1.76 |
Hayter Screw - TX£1.76
P/N: 134-0440, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 35 |
134-2162 Hayter Arm-Bail |
£9.07 |
Hayter Arm-Bail£9.07
P/N: 134-2162, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 36 |
HY100510 Hayter Mount Baile Arm Assy |
£8.38 |
Hayter Mount Baile Arm Assy£8.38
P/N: HY100510, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 37 |
480088 Hayter Knob Handlebar |
£6.52 |
 Hayter Knob Handlebar£6.52
P/N: 480088, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 38 |
HY226024 Hayter Bolt Handlebar |
£1.94 |
 Hayter Bolt Handlebar£1.94
P/N: HY226024, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 39 |
111-1042 Hayter Rear Deflector |
£26.39 |
Hayter Rear Deflector£26.39
P/N: 111-1042, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 40 |
100126 Hayter Rod, Deflector Rev 2 |
£2.33 |
Hayter Rod, Deflector Rev 2£2.33
P/N: 100126, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 41 |
111-7417 Hayter Spring-Deflector |
£1.67 |
Hayter Spring-Deflector£1.67
P/N: 111-7417, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 42 |
HY100039 Hayter Knob Hoc |
Hayter Knob Hoc£1.08
P/N: HY100039, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 43 |
HY100040 Hayter RATCHET HOC |
Hayter RATCHET HOC£4.91
P/N: HY100040, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 44 |
100119 Hayter Washer Spring |
Hayter Washer Spring
P/N: 100119, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
|
| 45 |
100513 Hayter Grassbag Fabric & Bottom Only |
£66.42 |
Hayter Grassbag Fabric & Bottom Only£66.42
P/N: 100513, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 46 |
100016-03 Hayter Frame-Grassbag |
£28.18 |
Hayter Frame-Grassbag£28.18
P/N: 100016-03, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 47 |

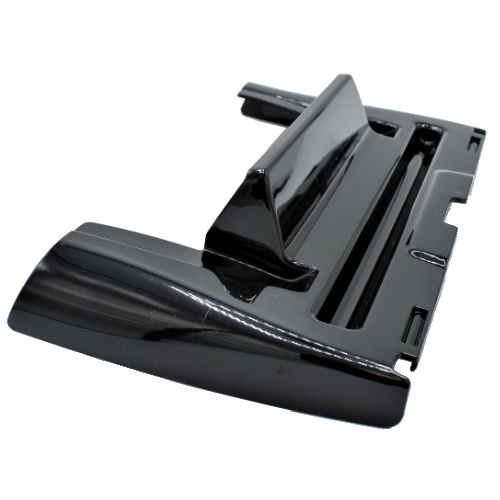

HY100075 Hayter Top-Grassbag |
£17.88 |
 Hayter Top-Grassbag£17.88
P/N: HY100075, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 48 |
HY100127 Hayter Screw Pt M6X20 |
Hayter Screw Pt M6X20
P/N: HY100127, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
|
| 49 |
09392 Hayter Setscrew M10 X 30 Hex HD |
£1.86 |
Hayter Setscrew M10 X 30 Hex HD£1.86
P/N: 09392, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 50 |
HY100019 Hayter Fan Motor Top |
Hayter Fan Motor Top
P/N: HY100019, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
|
| 51 |
HY100030 Hayter Spacer Rear Wheels |
£1.74 |
Hayter Spacer Rear Wheels£1.74
P/N: HY100030, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 52 |
HY100042 Hayter Pin Spring Hoc |
£1.74 |
Hayter Pin Spring Hoc£1.74
P/N: HY100042, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 53 |
100080 Hayter Spring-Balance, Counter |
£1.76 |
Hayter Spring-Balance, Counter£1.76
P/N: 100080, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 54 |
100105 Hayter Cleat, Cable |
£4.80 |
Hayter Cleat, Cable£4.80
P/N: 100105, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 55 |
HY100077 Hayter Terminal Block |
£1.74 |
Hayter Terminal Block£1.74
P/N: HY100077, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 56 |
HY100079 Hayter Washer |
£1.74 |
Hayter Washer£1.74
P/N: HY100079, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 57 |
104961 Hayter Discontinued |
Hayter Discontinued
P/N: 104961, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 58 |
100023 Hayter Cable Clip |
£1.76 |
Hayter Cable Clip£1.76
P/N: 100023, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 59 |
100106 Hayter Washer |
|
|
| 60 |

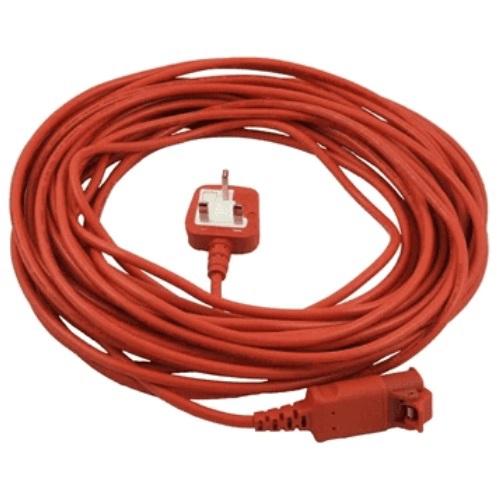

HY100135 Hayter Main Lead (Uk Only) |
£60.82 |
 Hayter Main Lead (Uk Only)£60.82
P/N: HY100135, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 61 |
HY100136 Hayter Main Lead (European) |
Hayter Main Lead (European)
P/N: HY100136, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
