K SERIES K1850 Lawn Tractor 2007 Parts and Diagrams

Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a K SERIES K1850 Lawn Tractor 2007.

All parts that fit a K SERIES K1850 Lawn Tractor 2007

Diagrams for this machine

Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.

Choose your Year/Serial Number

2007

Top

2007

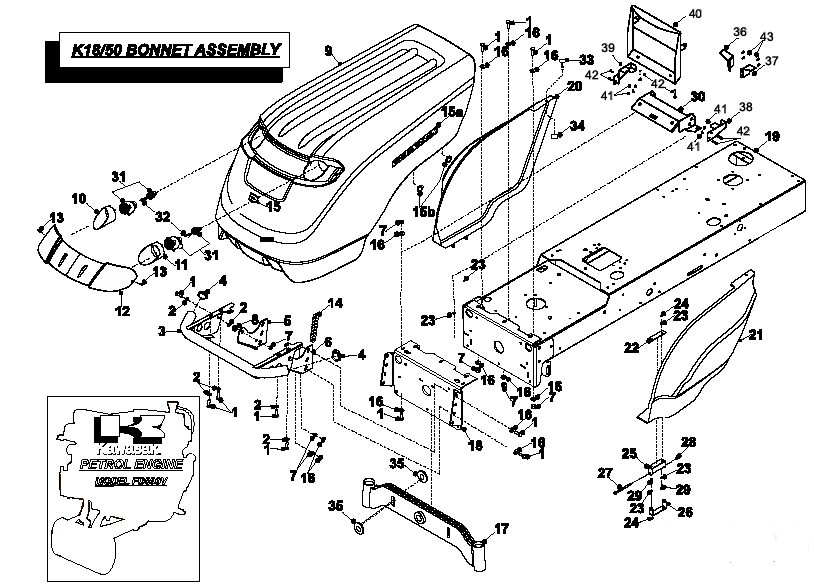

Bonnet Assembly

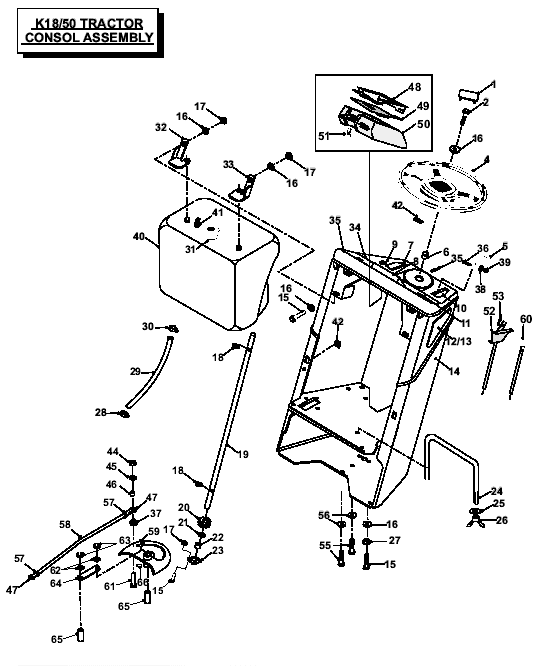

Consol Assembly

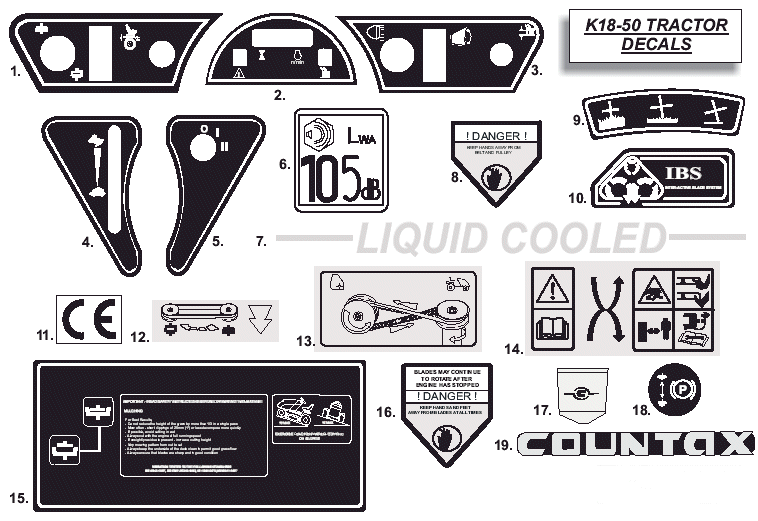

Decals

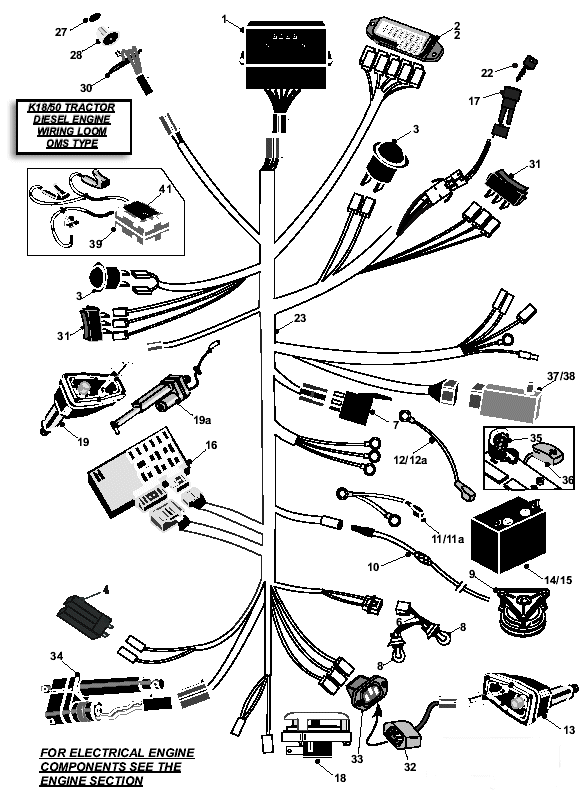

Diesel Engine Wiring Loom OMS Type

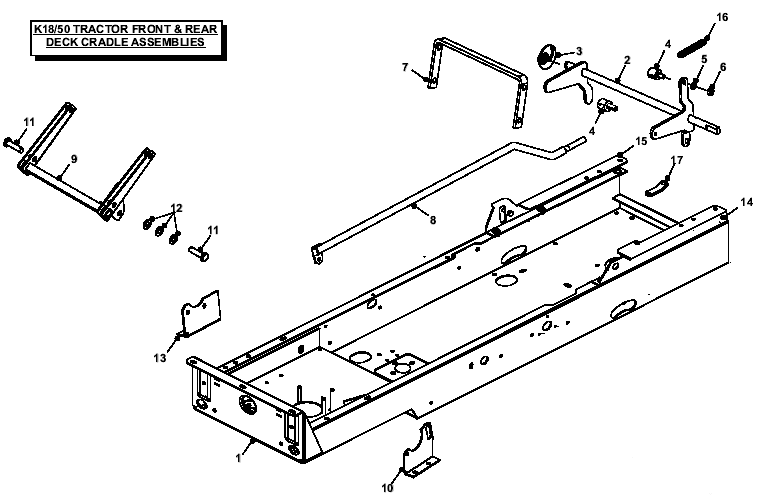

Front & Rear Deck Cradle Assemblies

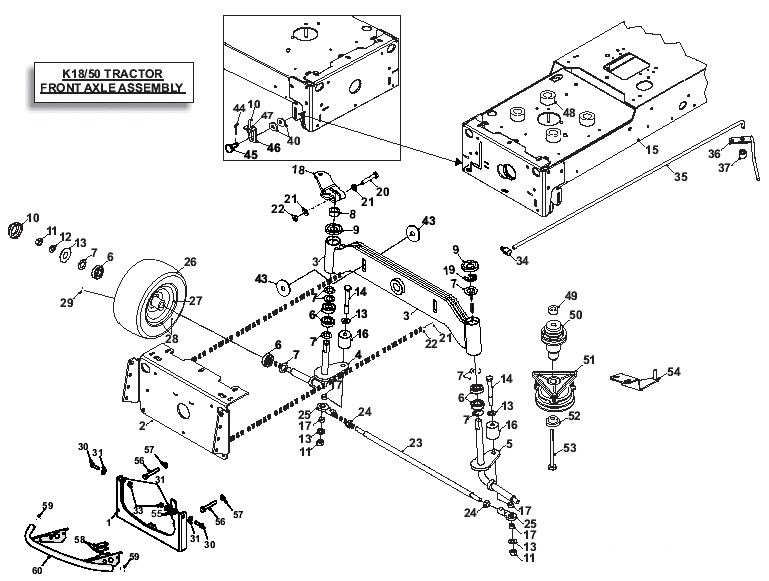

Front Axle Assembly

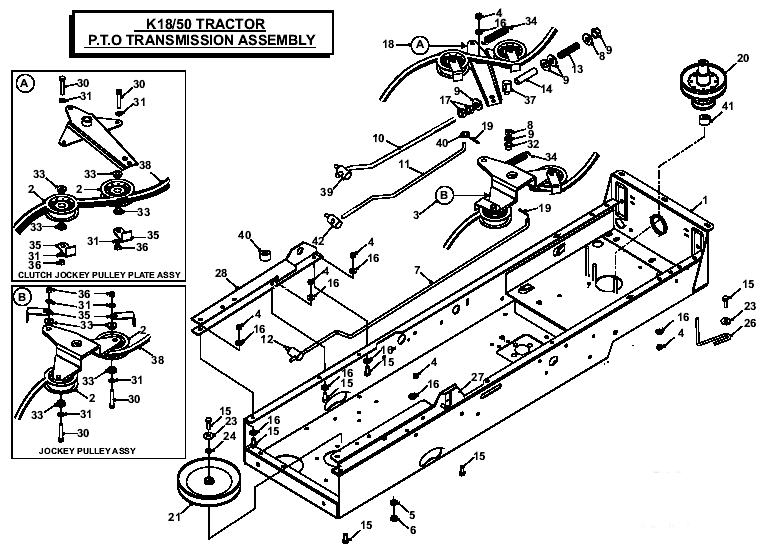

PTO Transmission Assembly

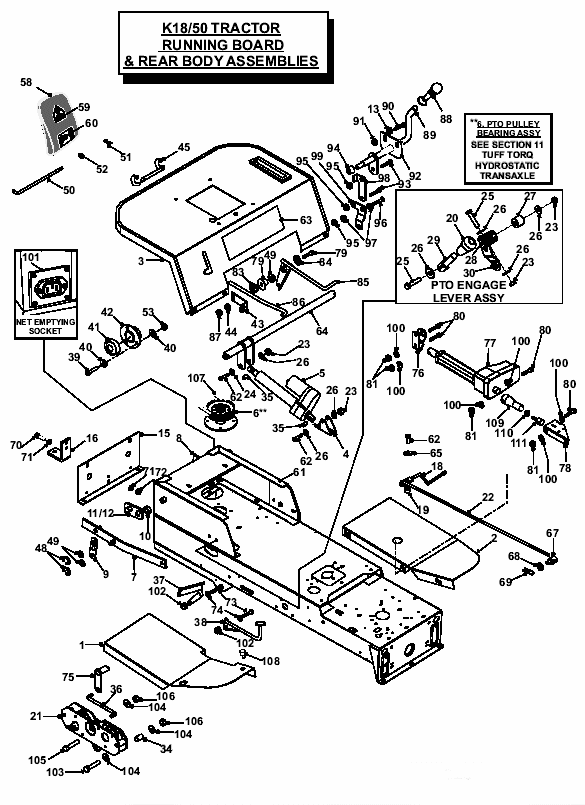

Running Board & Rear Body Assemblies

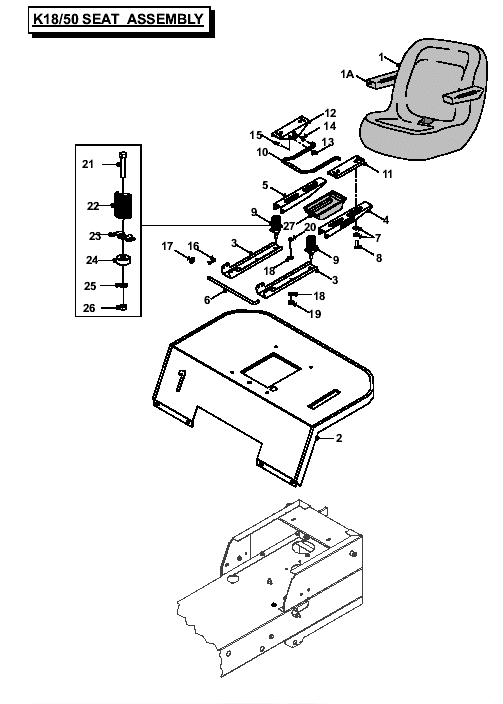

Seat Assembly

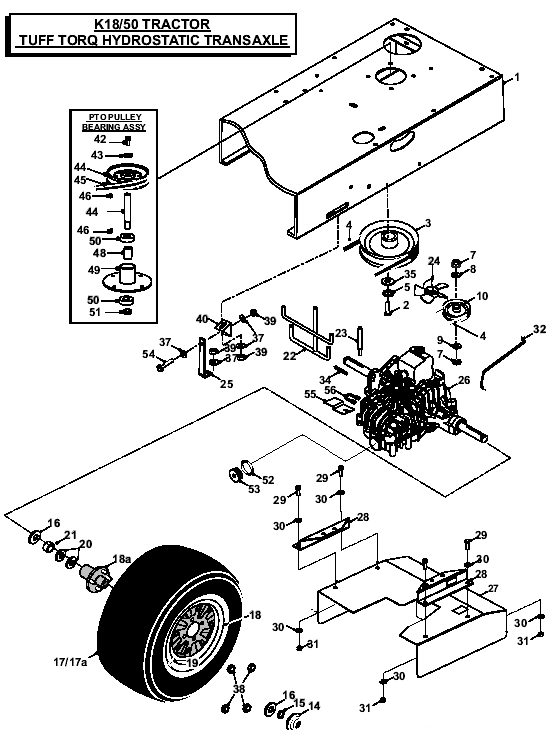

Tuff Torq Hydrostatic Transaxle
