Countax X Series Rider 2009 Parts and Diagrams

Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Countax X Series Rider 2009.

All parts that fit a Countax X Series Rider 2009

Diagrams for this machine

Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.

Choose your Year/Serial Number

2009

Top

2009

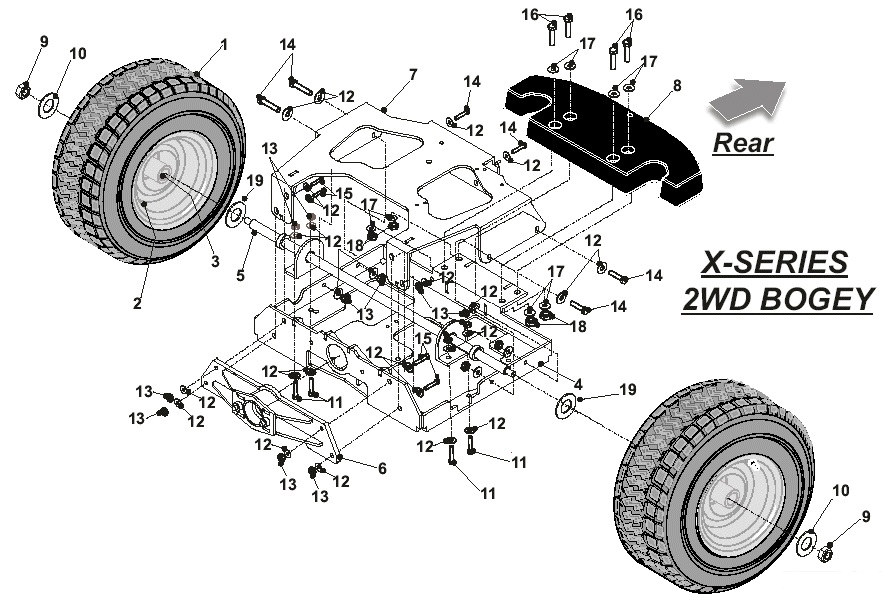

2WD Bogey Assembly
2WD Bogey Assembly

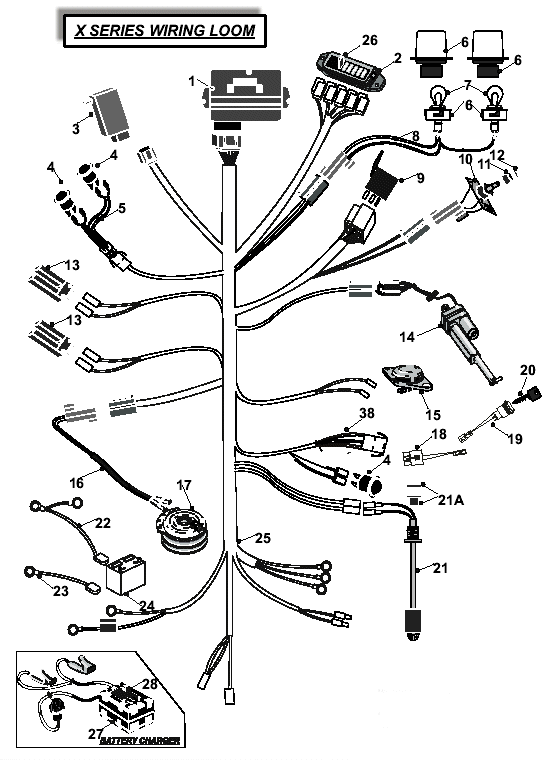

2WD Dial Height Loom
2WD Dial Height Loom

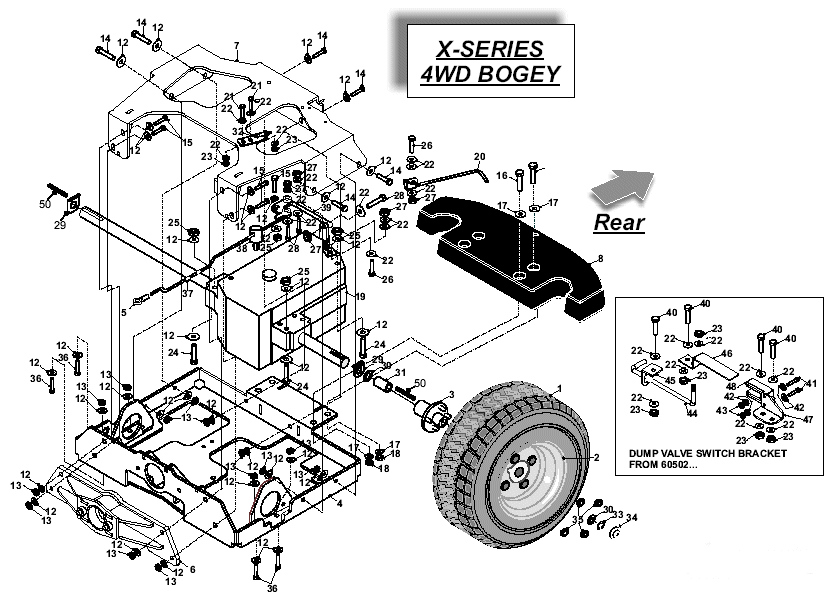

4WD Bogey Assembly
4WD Bogey Assembly

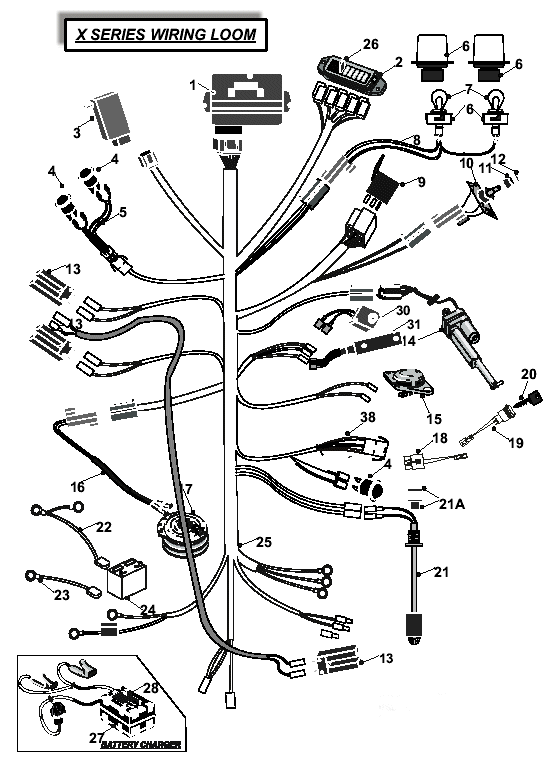

4WD Dial Height Loom
4WD Dial Height Loom

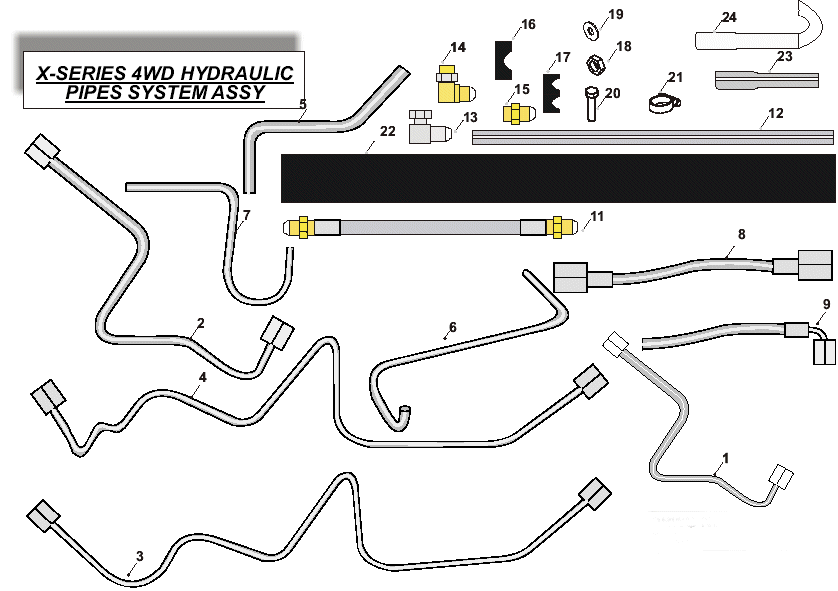

4WD Hydraulic Pipes System Assembly
4WD Hydraulic Pipes System Assembly

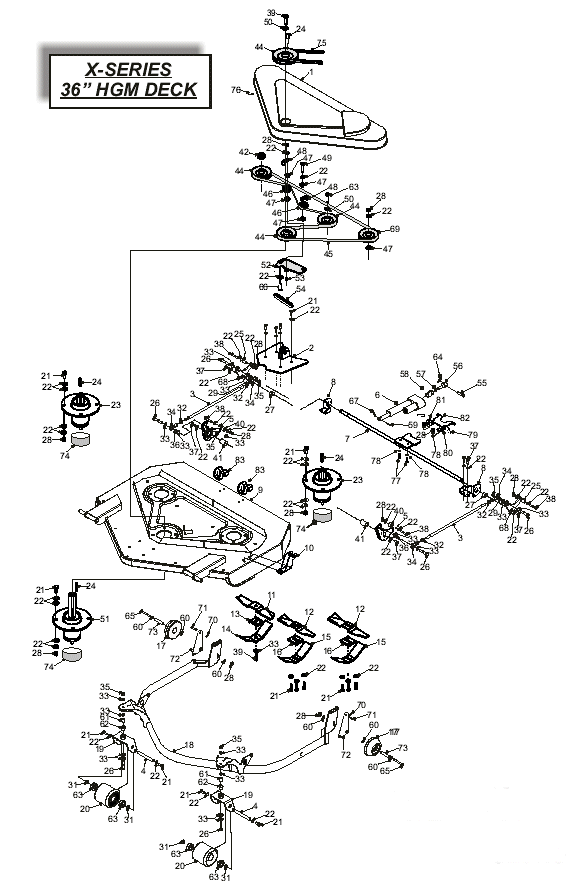

36 inch HGM Deck
36 inch HGM Deck

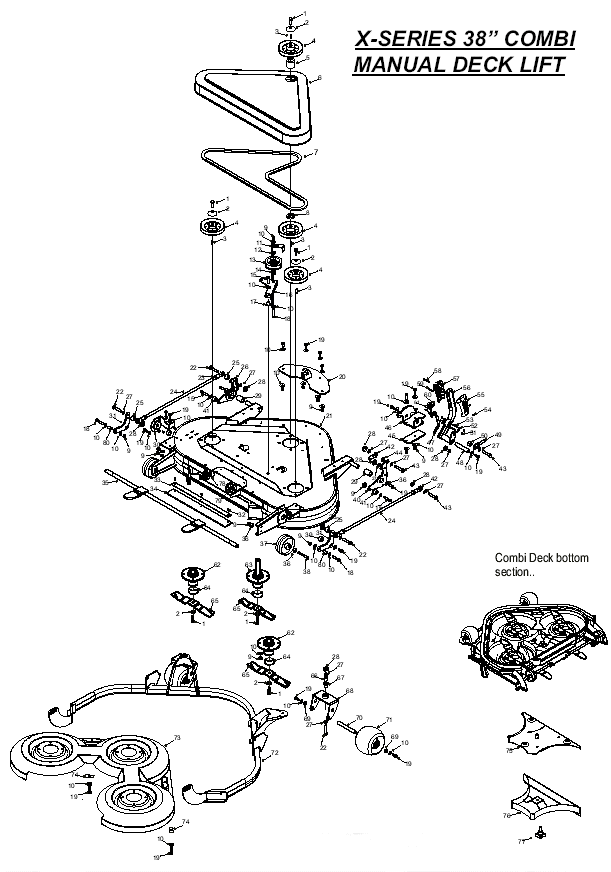

38 inch Combi Manual Deck Lift
38 inch Combi Manual Deck Lift

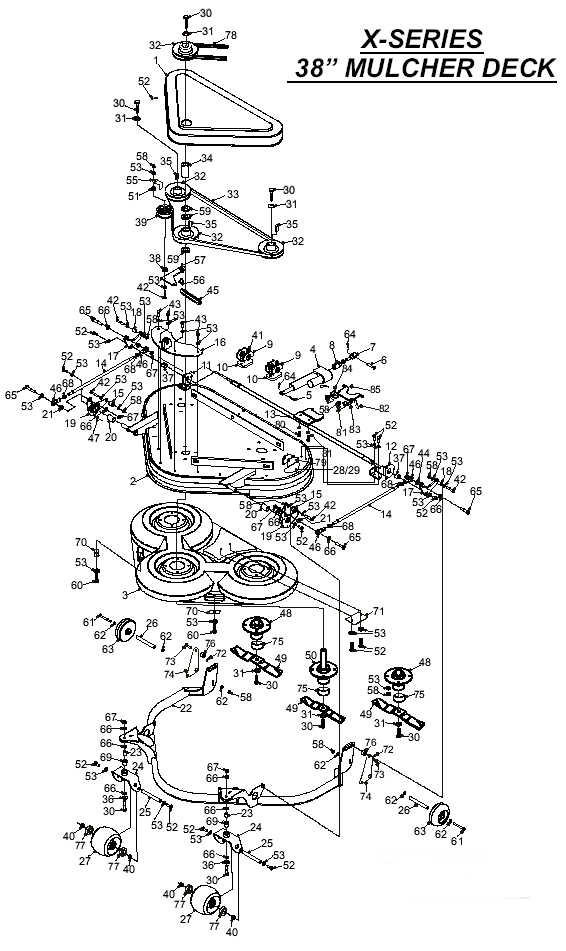

38 inch Mulcher Deck
38 inch Mulcher Deck

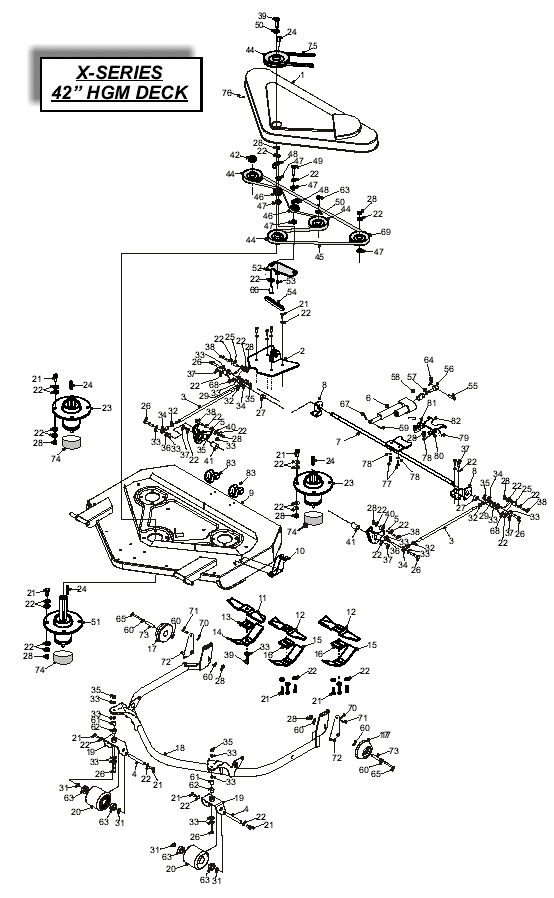

42 inch HGM deck
42 inch HGM deck

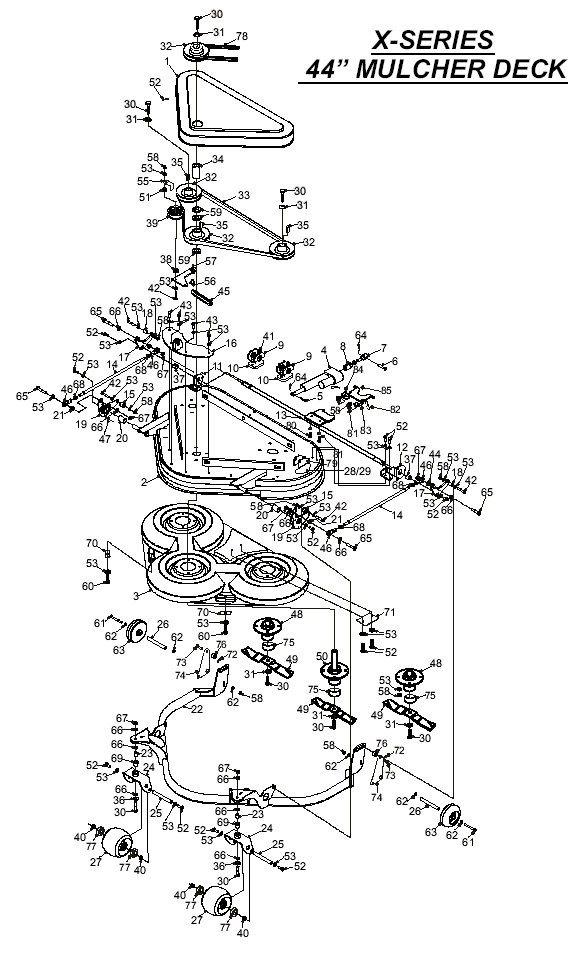

44 inch Mulcher Deck
44 inch Mulcher Deck

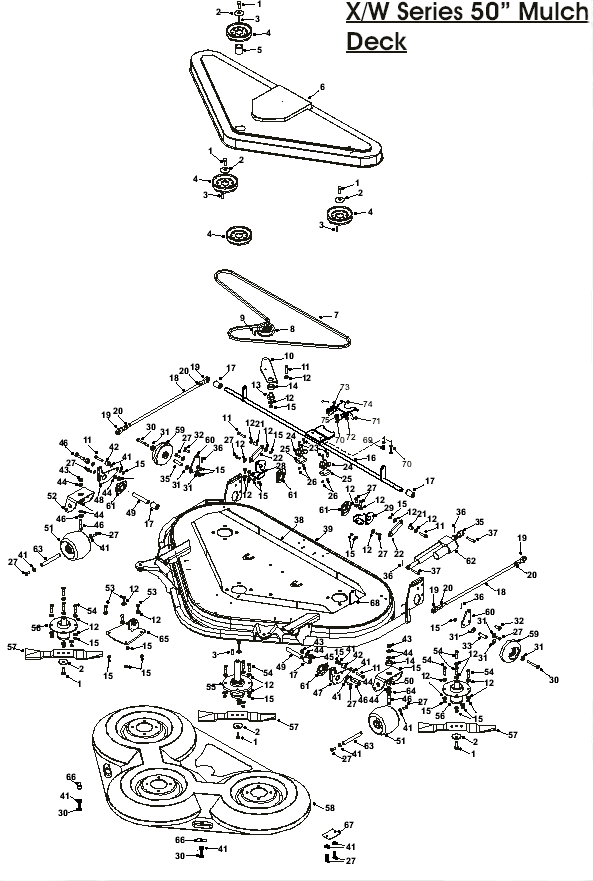

50 inch mulch deck
50 inch mulch deck

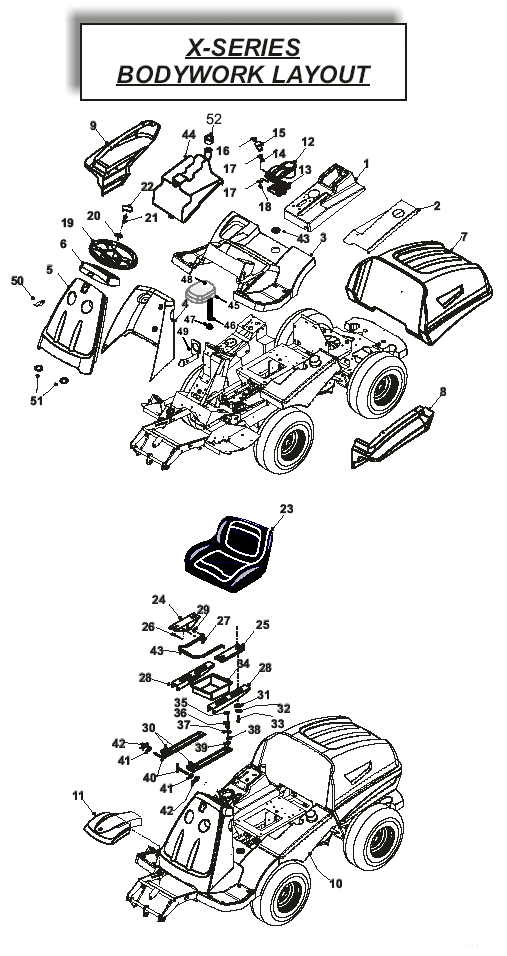

Bodywork Layout
Bodywork Layout

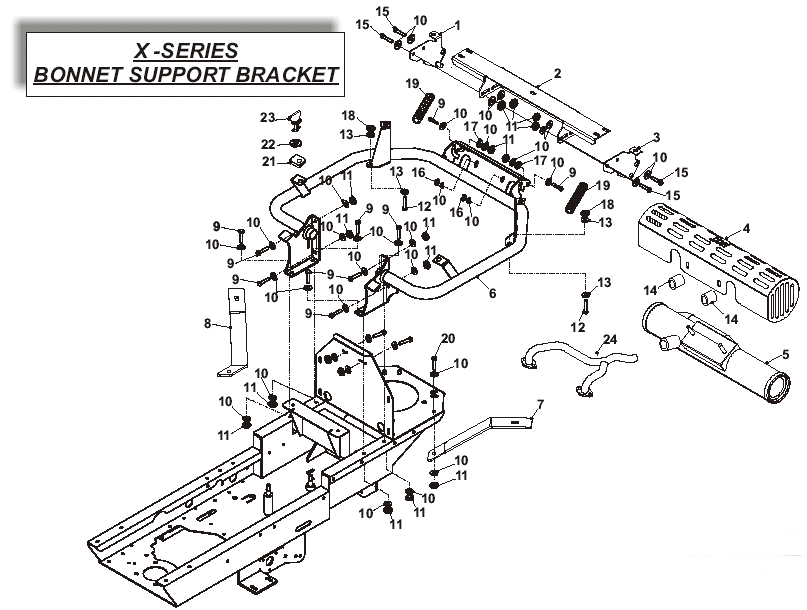

Bonnet Support Bracket
Bonnet Support Bracket

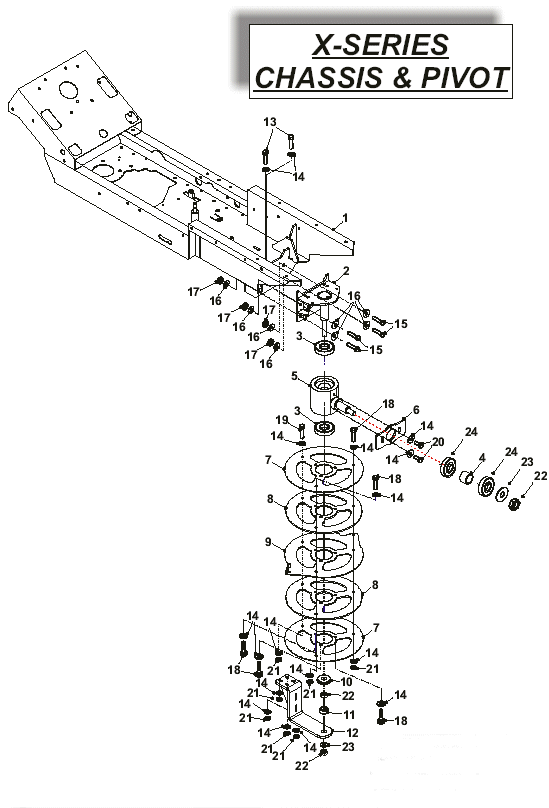

Chassis & Pivot
Chassis & Pivot

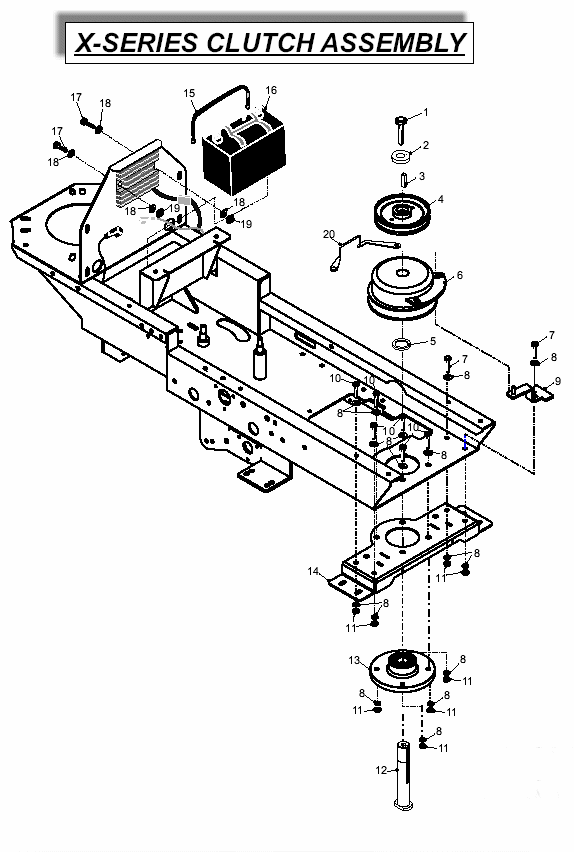

Clutch Assembly
Clutch Assembly

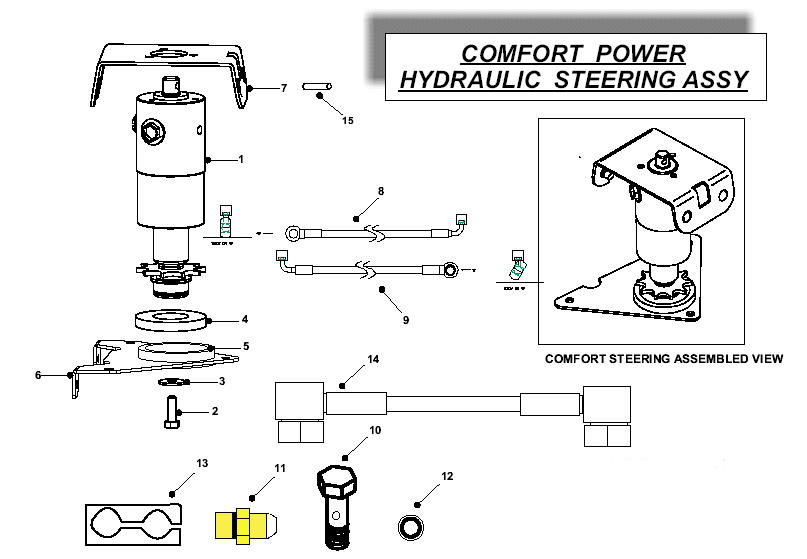

Comfort Power Hydraulic Steering Assembly
Comfort Power Hydraulic Steering Assembly

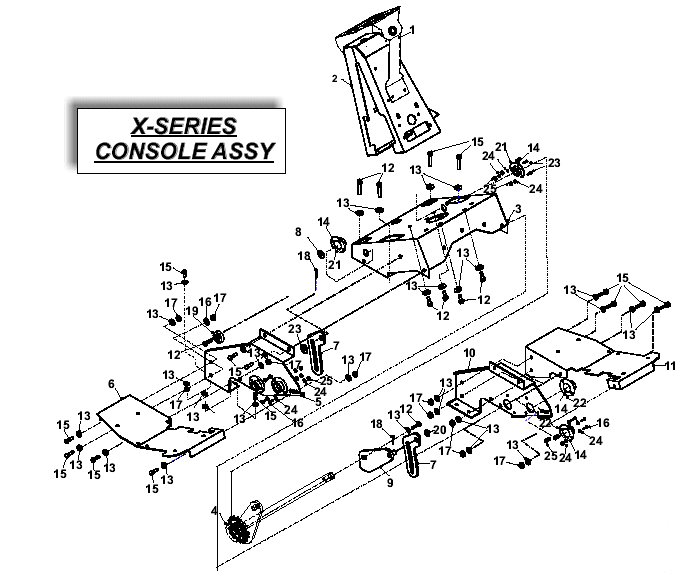

Consol Assembly
Consol Assembly

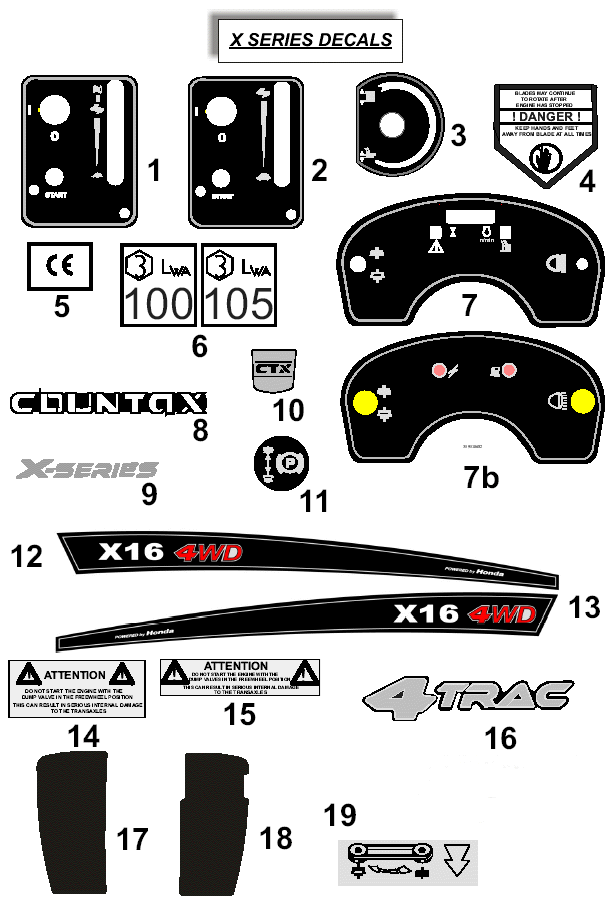

Decals
Decals

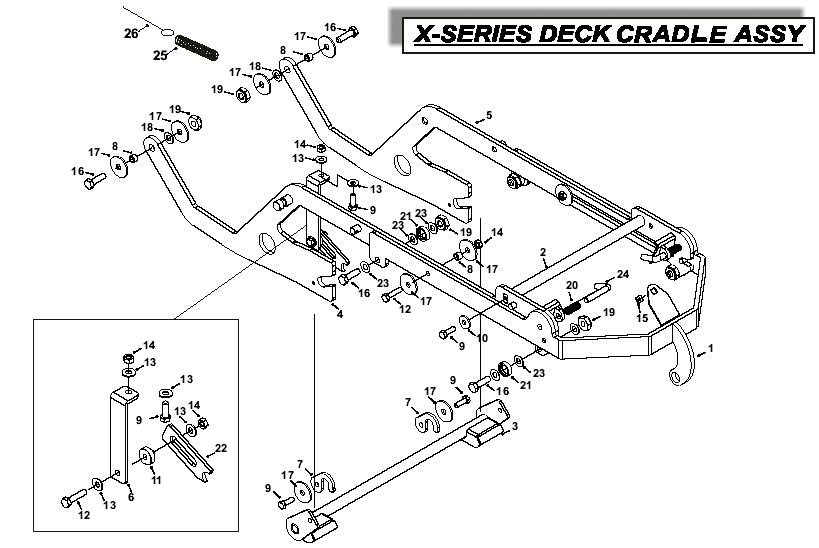

Deck Cradle Assembly
Deck Cradle Assembly

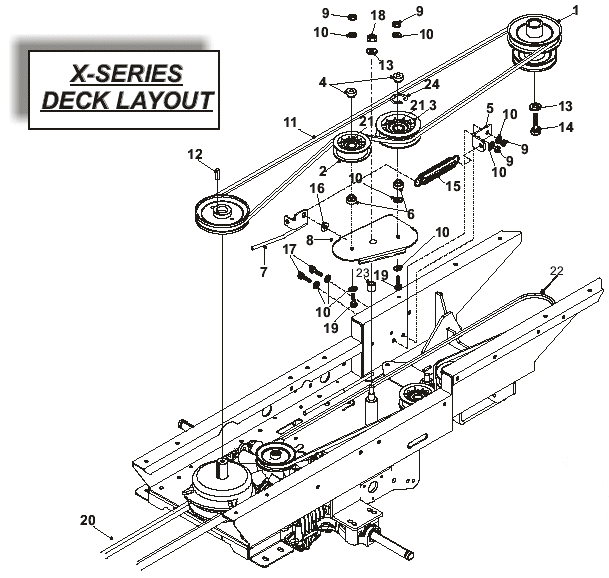

Deck Layout
Deck Layout

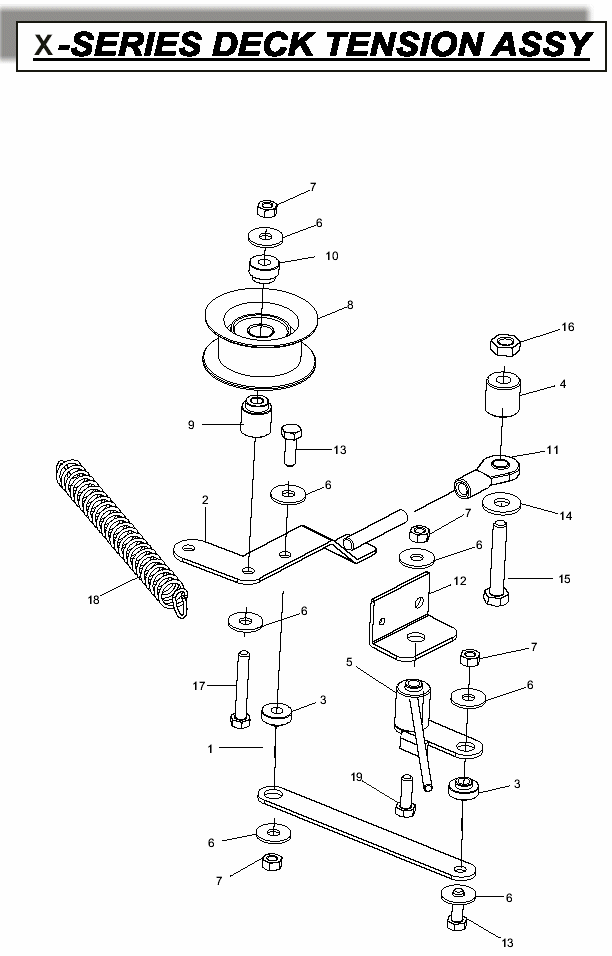

Deck Tension Assembly
Deck Tension Assembly

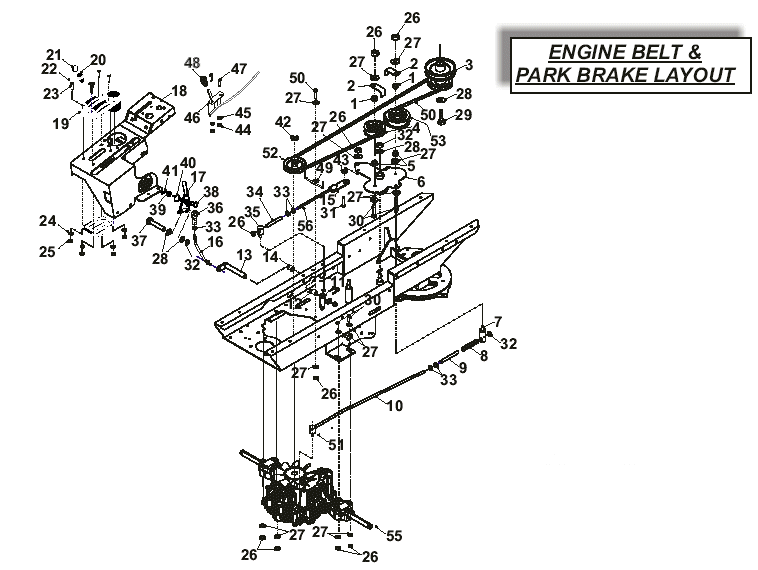

Engine Belt & Park Brake Layout
Engine Belt & Park Brake Layout

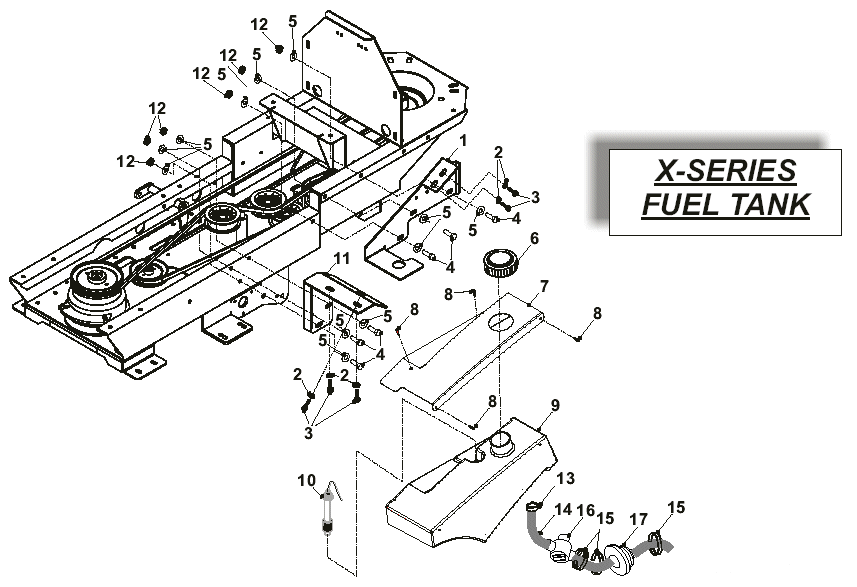

Fuel Tank
Fuel Tank

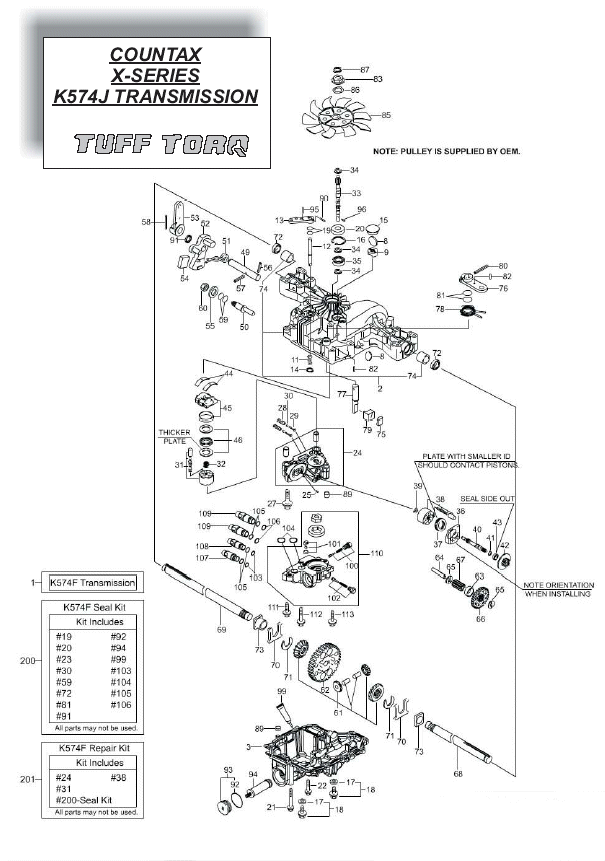

K574J Transmission Tuff Torq
K574J Transmission Tuff Torq

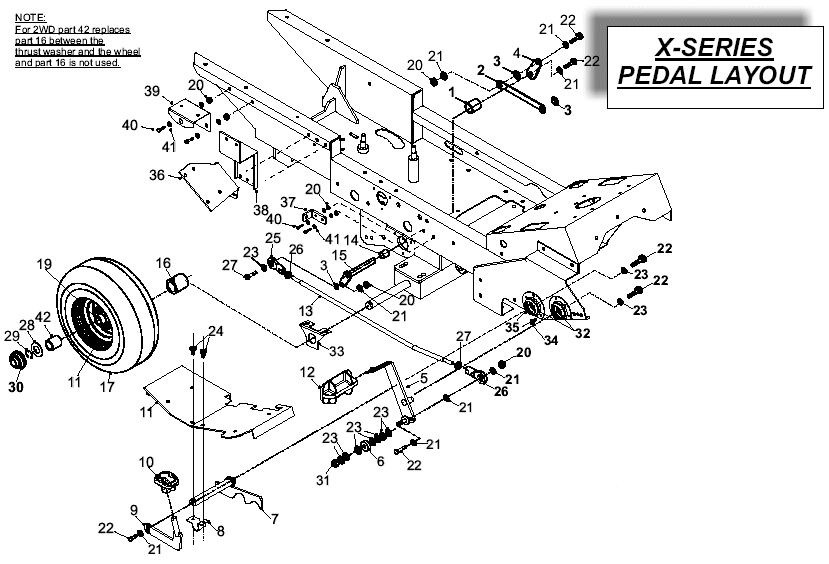

Pedal Layout
Pedal Layout

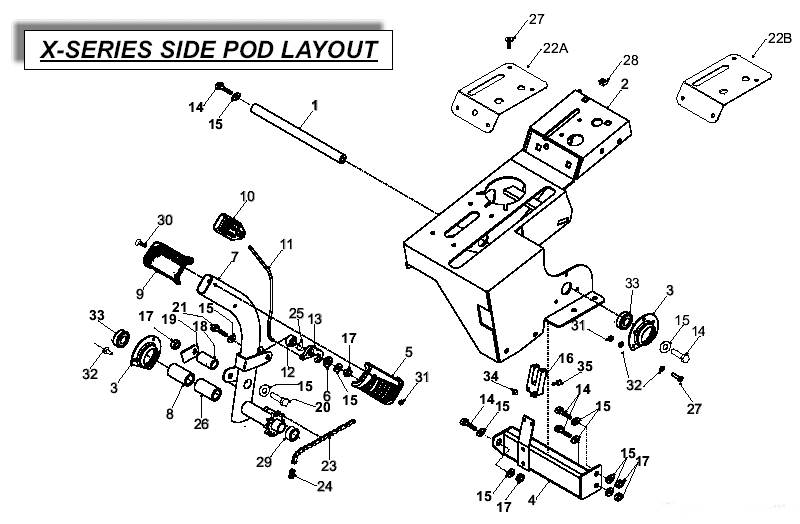

Side Pod Layout
Side Pod Layout

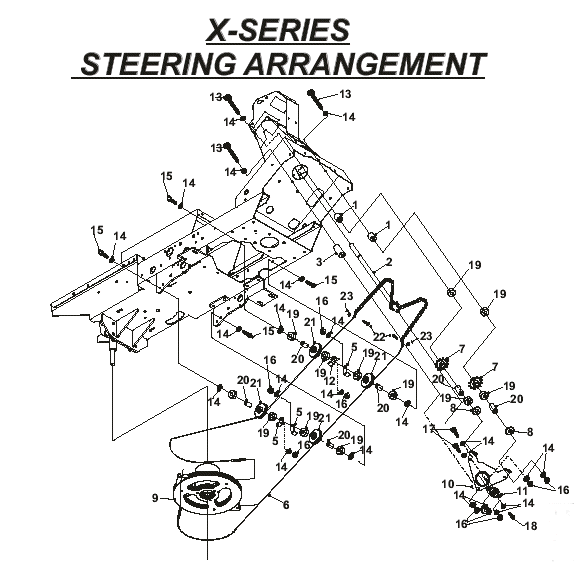

Steering Arrangement
Steering Arrangement

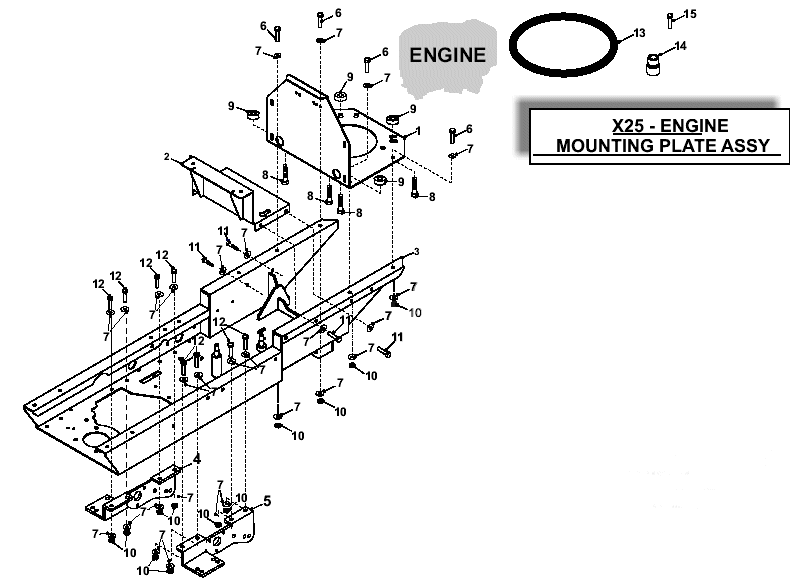

X25 Engine Mounting Plate Assembly
X25 Engine Mounting Plate Assembly
