Countax 38" X Series Mulch Deck 2007 - 2008 (2007 - 2008) Parts Diagram, Page 1

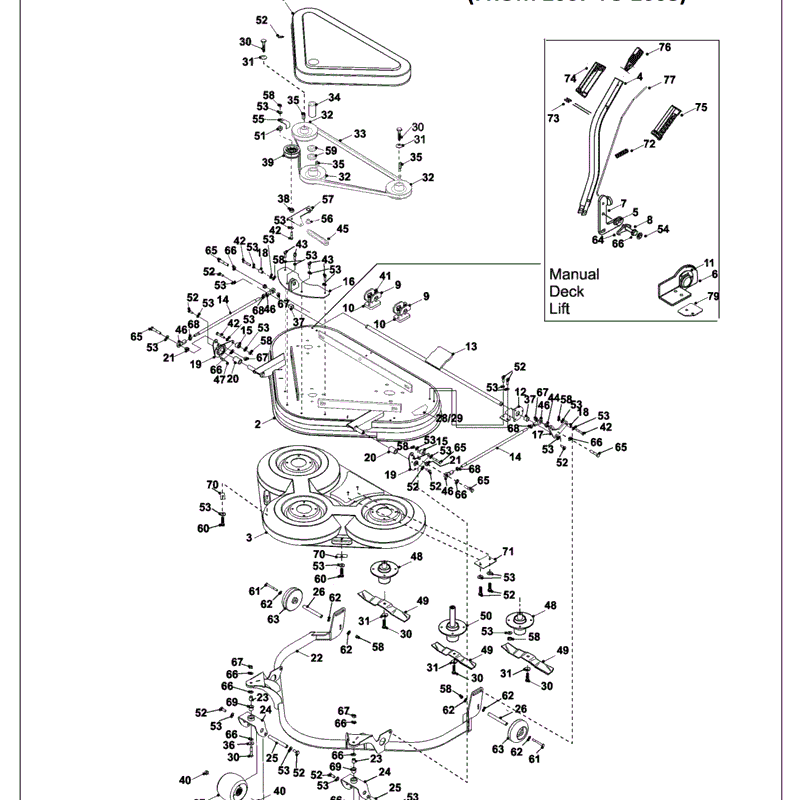

Look at the diagram and find parts that fit a Countax 38" X Series Mulch Deck 2007 - 2008, or refer to the list below.
All Parts for 38" X Series Mulch Deck 2007 - 2008
| # | Part | Price | |
|---|---|---|---|
| 1 |
149545900 Countax X 38Mlc Dk Lid Cover |
£121.75 |
 Countax X 38Mlc Dk Lid Cover£121.75
P/N: 149545900, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 2 |
328963100 Countax X/W 38" Mulch Deck |
Countax X/W 38" Mulch Deck
P/N: 328963100, Genuine OEM spare part. Find other Countax spares, parts and accessories.
No longer available
|
|
| 3 |
148002600 Countax Mulcher Deck Liner |
£215.40 |
Countax Mulcher Deck Liner£215.40
P/N: 148002600, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 4 |
174203000 Countax Manual Deck Height A |
£63.67 |
Countax Manual Deck Height A£63.67
P/N: 174203000, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 5 |
183521200 Countax Latch Pivot Bush |
£4.16 |
Countax Latch Pivot Bush£4.16
P/N: 183521200, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 6 |
301957300 Countax Quadrant.Manual Lift |
£76.92 |
Countax Quadrant.Manual Lift£76.92
P/N: 301957300, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 7 |
301893600 Countax Handle Mounting Brac |
£36.83 |
Countax Handle Mounting Brac£36.83
P/N: 301893600, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 8 |
018002400 Countax M10 X 55 Hex Head Bolt |
Countax M10 X 55 Hex Head Bolt£0.82
P/N: 018002400, Genuine OEM spare part. Find other Countax spares, parts and accessories.
No longer available
|
|
| 9 |
307252502 Countax 17mm Shaft Clamp |
£18.41 |
Countax 17mm Shaft Clamp£18.41
P/N: 307252502, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 10 |
307252800 Countax Shaft Clamp 8mm Pack |
£2.64 |
Countax Shaft Clamp 8mm Pack£2.64
P/N: 307252800, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 11 |
301048100 Countax Cassette Bearing Hsg |
£51.16 |
Countax Cassette Bearing Hsg£51.16
P/N: 301048100, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 12 |
30837200 Countax X Ser LH R/Bear Brk |
£39.41 |
Countax X Ser LH R/Bear Brk£39.41
P/N: 30837200, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 13 |
32954900 Countax X Ser 36" Hgm S/W/As |
£60.16 |
Countax X Ser 36" Hgm S/W/As£60.16
P/N: 32954900, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 14 |
189509900 Countax 38 Mulch Link Rod |
£44.27 |
Countax 38 Mulch Link Rod£44.27
P/N: 189509900, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 15 |
18317400 Countax Spacer |
£8.98 |
Countax Spacer£8.98
P/N: 18317400, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 16 |
328963800 Countax 38"Pickup Plate |
£44.12 |
Countax 38"Pickup Plate£44.12
P/N: 328963800, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 17 |
307250200 Countax 38 / 44" Pivot Link |
£42.61 |
Countax 38 / 44" Pivot Link£42.61
P/N: 307250200, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 18 |
189502700 Countax Spacer 12.7/10.2./9 |
£19.14 |
Countax Spacer 12.7/10.2./9£19.14
P/N: 189502700, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 19 |
307250001 Countax 38 / 44" Front Pivot |
£20.77 |
Countax 38 / 44" Front Pivot£20.77
P/N: 307250001, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 20 |
189511500 Countax Pivot Spacer |
£4.34 |
Countax Pivot Spacer£4.34
P/N: 189511500, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 21 |
189513700 Countax 15mm Rose Joint Spac |
£2.80 |
Countax 15mm Rose Joint Spac£2.80
P/N: 189513700, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 22 |
327365800 Countax 38 Mulch Frame |
Countax 38 Mulch Frame
P/N: 327365800, Genuine OEM spare part. Find other Countax spares, parts and accessories.
No longer available
|
|
| 23 |
189510800 Countax Caster Pivot Spacer |
Countax Caster Pivot Spacer£2.38
P/N: 189510800, Genuine OEM spare part. Find other Countax spares, parts and accessories.
No longer available
|
|
| 24 |
328962200 Countax Deck Caster Bracket |
Countax Deck Caster Bracket
P/N: 328962200, Genuine OEM spare part. Find other Countax spares, parts and accessories.
No longer available
|
|
| 25 |
189510900 Countax Caster Axle |
£49.51 |
Countax Caster Axle£49.51
P/N: 189510900, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 26 |
31337600 Countax Spacer Wheel Hub |
£45.34 |
Countax Spacer Wheel Hub£45.34
P/N: 31337600, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 27 |
148019400 Countax Wheel Front Castor |
£90.59 |
Countax Wheel Front Castor£90.59
P/N: 148019400, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 30 |
028892300 Countax Screw Hex Hd Din933 M10 X 30 Grade 10.9 |
Countax Screw Hex Hd Din933 M10 X 30 Grade 10.9
P/N: 028892300, Genuine OEM spare part. Find other Countax spares, parts and accessories.
No longer available
|
|
| 31 |
08819900 Countax Dome Washer |
£9.54 |
 Countax Dome Washer£9.54
P/N: 08819900, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 32 |
20869502 Countax 5"Internal Pulley |
£56.40 |
Countax 5"Internal Pulley£56.40
P/N: 20869502, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 33 |
228000500 Countax Belt A72 Super 2 |
£54.76 |
Countax Belt A72 Super 2£54.76
P/N: 228000500, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 34 |
31328301 Countax Spacer |
£47.29 |
Countax Spacer£47.29
P/N: 31328301, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 35 |
09921900 Countax Key 1/4 X 1in Rounded |
Countax Key 1/4 X 1in Rounded£5.70
P/N: 09921900, Genuine OEM spare part. Find other Countax spares, parts and accessories.
No longer available
|
|
| 36 |
088004500 Countax M10 X 24 X 2 Tl Washer |
£8.80 |
Countax M10 X 24 X 2 Tl Washer£8.80
P/N: 088004500, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 37 |
31330002 Countax Roller Shaft Spcr |
£15.42 |
Countax Roller Shaft Spcr£15.42
P/N: 31330002, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 38 |
18831600 Countax Spacer Jockey Wheel |
£30.36 |
Countax Spacer Jockey Wheel£30.36
P/N: 18831600, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 39 |
20811500 Countax PTO Jockey Pulley |
£23.11 |
 Countax PTO Jockey Pulley£23.11
P/N: 20811500, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 40 |
189511000 Countax Caster Wheel Spacer |
£5.70 |
Countax Caster Wheel Spacer£5.70
P/N: 189511000, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 41 |
02941200 Countax M6 X 20 Socket Button Head BZP Set Screw |
£1.10 |
Countax M6 X 20 Socket Button Head BZP Set Screw£1.10
P/N: 02941200, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 42 |
02941000 Countax Bolt M8 X 45mm (vac) |
£186.12 |
Countax Bolt M8 X 45mm (vac)£186.12
P/N: 02941000, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 43 |
02826000 Countax Bolt M8 X 25mm |
£0.44 |
Countax Bolt M8 X 25mm£0.44
P/N: 02826000, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 44 |
189505300 Countax Rose Joint Spacer |
£2.21 |
Countax Rose Joint Spacer£2.21
P/N: 189505300, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 45 |
25906200 Countax Dk Tens. Spring |
£19.82 |
Countax Dk Tens. Spring£19.82
P/N: 25906200, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 46 |
01820800 Countax Bolt 5/16in Unf X 1 3/4in BZP |
Countax Bolt 5/16in Unf X 1 3/4in BZP£0.71
P/N: 01820800, Genuine OEM spare part. Find other Countax spares, parts and accessories.
No longer available
|
|
| 47 |
128000100 Countax Rivet |
Countax Rivet
P/N: 128000100, Genuine OEM spare part. Find other Countax spares, parts and accessories.
No longer available
|
|
| 48 |
40503607 Countax Driven Deck Shaft St |
£115.58 |
 Countax Driven Deck Shaft St£115.58
P/N: 40503607, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 49 |
16937900 Countax 15" L.H Mulch Blade |
£29.20 |
 Countax 15" L.H Mulch Blade£29.20
P/N: 16937900, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 50 |
408020600 Countax Front Bearing Assy |
£126.38 |
Countax Front Bearing Assy£126.38
P/N: 408020600, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 51 |
31351100 Countax Sweeper Jockey Cap |
£27.00 |
Countax Sweeper Jockey Cap£27.00
P/N: 31351100, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 52 |
01902300 Countax Shcs M61 X 20 Drilled 306686 |
Countax Shcs M61 X 20 Drilled 306686£0.44
P/N: 01902300, Genuine OEM spare part. Find other Countax spares, parts and accessories.
No longer available
|
|
| 53 |
089420400 Countax M8 Spring Washer Single Coil Flat Sect. |
£0.74 |
Countax M8 Spring Washer Single Coil Flat Sect.£0.74
P/N: 089420400, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 55 |
307187100 Countax Belt Keeper |
£13.38 |
Countax Belt Keeper£13.38
P/N: 307187100, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 56 |
183012500 Countax Spacer |
£6.56 |
Countax Spacer£6.56
P/N: 183012500, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 57 |
328962400 Countax X-Series Mulch 38 |
£77.56 |
Countax X-Series Mulch 38£77.56
P/N: 328962400, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 58 |
04920100 Countax M8 Nyloc Nut |
£1.25 |
Countax M8 Nyloc Nut£1.25
P/N: 04920100, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 59 |
183023100 Countax Spacer 8 X 38.1 X 25 |
£4.49 |
Countax Spacer 8 X 38.1 X 25£4.49
P/N: 183023100, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 60 |
028893500 Countax Screw Hex Hd Din933 M8 X 20 Grade 10.9 |
Countax Screw Hex Hd Din933 M8 X 20 Grade 10.9
P/N: 028893500, Genuine OEM spare part. Find other Countax spares, parts and accessories.
No longer available
|
|
| 61 |
028663200 Countax M8x70mm Hex Bolt Zinc And Clear Passivated |
Countax M8x70mm Hex Bolt Zinc And Clear Passivated
P/N: 028663200, Genuine OEM spare part. Find other Countax spares, parts and accessories.
No longer available
|
|
| 62 |
089418600 Countax Washer M8 X 25 X 3 Unplated |
£1.25 |
Countax Washer M8 X 25 X 3 Unplated£1.25
P/N: 089418600, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 63 |
149495800 Countax Antiscalp Wheel |
£23.22 |
 Countax Antiscalp Wheel£23.22
P/N: 149495800, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 64 |
301957401 Countax Manual Deck Lift Lat |
£28.18 |
Countax Manual Deck Lift Lat£28.18
P/N: 301957401, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 65 |
018002300 Countax M10 X 50 Hex Head Bolt |
Countax M10 X 50 Hex Head Bolt£0.82
P/N: 018002300, Genuine OEM spare part. Find other Countax spares, parts and accessories.
No longer available
|
|
| 66 |
088002400 Countax Washer 10.8id X 20.7od X 2mm Thk |
Countax Washer 10.8id X 20.7od X 2mm Thk
P/N: 088002400, Genuine OEM spare part. Find other Countax spares, parts and accessories.
No longer available
|
|
| 67 |
04886100 Countax M10 Nyloc Nut |
Countax M10 Nyloc Nut
P/N: 04886100, Genuine OEM spare part. Find other Countax spares, parts and accessories.
No longer available
|
|
| 68 |
04872100 Countax M10 Locknut |
£0.49 |
Countax M10 Locknut£0.49
P/N: 04872100, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 69 |
18341000 Countax Rider Bush 2.36Shldr |
£5.82 |
Countax Rider Bush 2.36Shldr£5.82
P/N: 18341000, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 70 |
301127500 Countax X-Series 38 Mulch |
£11.38 |
Countax X-Series 38 Mulch£11.38
P/N: 301127500, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 71 |
301127400 Countax 38"M Central Fix Lin |
£9.47 |
Countax 38"M Central Fix Lin£9.47
P/N: 301127400, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 72 |
25805000 Countax Park Brake Spring |
£8.27 |
Countax Park Brake Spring£8.27
P/N: 25805000, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 73 |
053000000 Countax Snowblade Hand Grip Pin |
£2.21 |
Countax Snowblade Hand Grip Pin£2.21
P/N: 053000000, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 74 |
149547200 Countax X Tport Lvr LH Grip |
£3.46 |
Countax X Tport Lvr LH Grip£3.46
P/N: 149547200, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 75 |
149547100 Countax X Tport Lvr RH Grip |
£3.46 |
Countax X Tport Lvr RH Grip£3.46
P/N: 149547100, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 76 |
149547000 Countax Xtransport Lve Butn |
£5.52 |
Countax Xtransport Lve Butn£5.52
P/N: 149547000, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 77 |
313513400 Countax X/W Belt Keep |
£11.57 |
Countax X/W Belt Keep£11.57
P/N: 313513400, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
| 79 |
301957500 Countax Bearing Carrier Pack |
£33.10 |
Countax Bearing Carrier Pack£33.10
P/N: 301957500, Genuine OEM spare part. Find other Countax spares, parts and accessories. |
