Mountfield 462R-PD (2008) Parts Diagram, Page 1

Look at the diagram and find parts that fit a Mountfield 462R-PD, or refer to the list below.

All parts that fit a 462R-PD


Page:1
Page:1
Page:2
Page:2


Mountfield 462R-PD (2008) Parts Diagram, Page 1
# Part Price
1 112793701/0 - Mountfield Hex - Head Screw M8 X 30 £1.48
To Basket
1 112691800/0 - Mountfield Hex - Head Screw M8 X 60 £1.48
To Basket
2 112155000/0 - Mountfield Low Self - Locking Nut M8 £1.48
To Basket
2 112293201/0 - Mountfield Hexagon Nut M8 With Exagonal Flange £1.61
To Basket
3 112727791/0 - Mountfield Cross - Head Screw M6X20 Uni 7687 Acc.4.8 £1.48
To Basket
4 122060192/0 - Mountfield Belt Protection Guard [Td/TDL 48] £5.35
To Basket
5 112731350/0 - Mountfield Self - Tap Screw Te 5.5 X 19 Uni 6949 C15 £1.48
To Basket
6 322545154/0 - Mountfield Axle catch Plate £1.48
To Basket
7 322291150/0 - Mountfield Rubber Insert £1.48
To Basket
8 381002565/0 - Mountfield Steel Deck 46Cm Roller [Red]
10 122450420/1 - Mountfield L/H Deflector Spring £1.87
To Basket
11 122517906/1 - Mountfield Deflector Rod £4.15
To Basket
12 381008021/3 - Mountfield Deflector Assembly - Black £19.75
To Basket
13 112000930/0 - Mountfield Circlip D=6 £1.48
To Basket
14 122450410/1 - Mountfield R/H Deflector Spring £11.53
To Basket
15 112293202/0 - Mountfield Hexagonal Nut M8 £1.87
To Basket
16 122399900/0 - Mountfield 3 Spoke Handwheel - Black £1.48
To Basket
17 322041955/0 - Mountfield Metal Handle Bush £1.48
To Basket
18 112793701/0 - Mountfield Hex - Head Screw M8 X 30 £1.48
To Basket
19 112792610/0 - Mountfield Hex - Head Screw M8 X 16 £1.66
To Basket
20 112155000/0 - Mountfield Low Self - Locking Nut M8 £1.48
To Basket
25 112819125/0 - Mountfield Carriage Bolt M8 X 55 £1.48
To Basket
26 122680006/1 - Mountfield Plastic Washer £1.74
To Basket
27 122430309/0 - Mountfield Pull Cord Guide £2.94
To Basket
28 112154330/0 - Mountfield Low Self - Locking Nut M5 Uni7474 Acc.6S £1.48
To Basket
29 381008642/0 - Mountfield Screw Assembly Kit - 46R £26.74
To Basket
30 381006973/0 - Mountfield Lower Handle - Black £33.10
31 381006981/0 - Mountfield UPPER HANDLE £47.10
32 118566112/0 - Mountfield Handle Cap D=20 £1.48
To Basket
33 181000641/0 - Mountfield Engine Brake Cable £14.06
To Basket
34 181003291/3 - Mountfield Engine Brake Lever £14.20
To Basket
38 122291050/0 - Mountfield Soft Hand Grip - Black £13.52
To Basket
40 181003288/1 - Mountfield Drive Control Lever £11.05
To Basket
151 112291000/0 - Mountfield Hexagon Nut M5 £1.48
To Basket
152 112581500/0 - Mountfield Washer M5 £1.48
To Basket
153 22171005/0 - Mountfield SPACER £3.40
154 112521360/0 - Mountfield Washer M10 10.5 X 20 X 2 £1.48
To Basket
155 112508100/0 - Mountfield Spring Washer 10.2 X 20 X 0.8 £1.48
To Basket
156 381007279/1 - Mountfield Throttle Lever £1.48
To Basket
157 481007080/0 - Mountfield Throttle Cable £23.30
To Basket
158 112815000/0 - Mountfield Carriage Bolt M5 X 45 £1.48
To Basket
159 114356702/0 - Mountfield Throttle Decal £1.87
To Basket

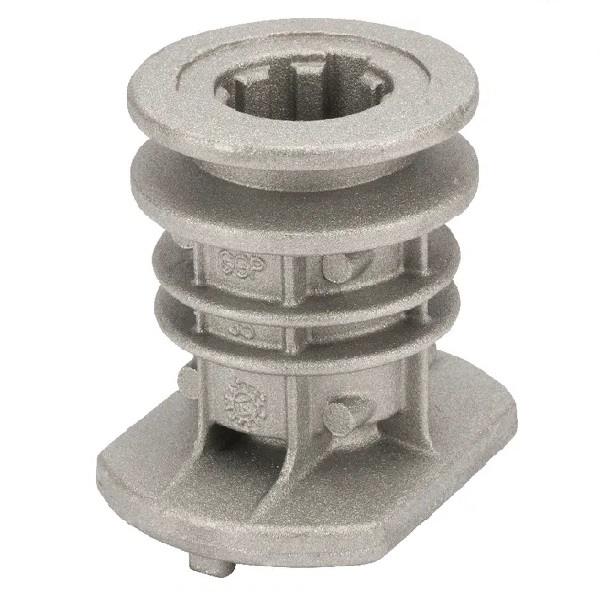

501 122465608/3 - Mountfield Blade Boss D=25mm £9.17
To Basket
502 181004346/3 - Mountfield Blade 46cm £14.06
To Basket
503 122160400/0 - Mountfield Spring Washer 50 X 2 X 10.2 £1.74
To Basket
504 112523080/0 - Mountfield Washer M10 11 X 30 X 2.5 £1.48
To Basket
505 112735698/0 - Mountfield Hex - Head Screw 3/8" X 2" £1.74
To Basket
506 112139150/0 - Mountfield Woodruff Key D=25mm £2.00
To Basket
601 381486014/0 - Mountfield Grasscatcher Top - Full Indicator - Black £20.35
To Basket
602 122608527/0 - Mountfield Grasscatcher Frame £10.85
To Basket
603 181002227/0 - Mountfield Grassbag - Roller - Black £49.55
To Basket
604 112728680/0 - Mountfield Flanged Screw D=5 X 25 £1.48
To Basket
605 112523050/0 - Mountfield Washer M6 6.6 X 24 X 2 £1.48
To Basket
