Countax C Series Lawn Tractor (2006) Parts Diagram, Page 3

Look at the diagram and find parts that fit a Countax C Series Lawn Tractor , or refer to the list below.

All parts that fit a C Series Lawn Tractor


Page:1
Page:1
Page:2
Page:2
Page:3
Page:3
Page:4
Page:4
Page:5
Page:5
Page:6
Page:6
Page:7
Page:7
Page:8
Page:8
Page:9
Page:9
Page:10
Page:10
Page:11
Page:11


Countax C Series Lawn Tractor (2006) Parts Diagram, Page 3
# Part Price
1 148015200 - Countax Steer Wheel CTR Cap £23.02
To Basket
2 02826000 - Countax Bolt M8 X 25mm £0.44
To Basket
3 08819500 - Countax Washer 5/16 T3 Lp Zinc Plated £0.72
To Basket
4 149591300 - Countax Steering Wheel £113.81
To Basket
5 08820100 - Countax Washer 3/8 T3 Z/p £0.17
6 028663300 - Countax No 10 X 1/2in Flat Ended Self Tapper £0.70
7 149588800 - Countax Column Upper Bush £5.21
To Basket
8 327028401 - Countax 2002 C Series Consol £213.86
To Basket
9 148986200 - Countax C, D, A, Knee Pad LH £58.69
To Basket
10 14859300 - Countax Rubber Knee Pad L/H
11 14810400 - Countax Control Knob £11.39
To Basket
12 02826300 - Countax M4 X 12 Pozi Pan S/s Zinc Plated £0.17
To Basket
13 04826400 - Countax M4 Nyloc T £0.42
To Basket
14 08826200 - Countax Cap Tank £0.20
To Basket
15 12860100 - Countax Rivet Pop 4.8 X 16mm £0.36
To Basket
16 528005401 - Countax Throttle-Twin Honda £29.63
To Basket
17 31328400 - Countax Steering Column £89.15
To Basket
18 07823800 - Countax Circlip 5/8 External £1.03
To Basket
19 213112100 - Countax Steering Gear £83.24
To Basket
20 08822700 - Countax Washer 5/8 T3 Lp £0.66
To Basket
21 18401500 - Countax Steering Rod Spacer £11.74
To Basket
22 04920100 - Countax M8 Nyloc Nut £0.31
To Basket
23 10801700 - Countax Column Lower Bearing £23.42
To Basket
24 11867100 - Countax Hose Clip £1.03
To Basket
25 14803200 - Countax Fuel Feed Pipe £12.25
To Basket
26 11856900 - Countax Jubilee Clip £2.76
To Basket
27 327015800 - Countax Steering Quad £186.08
To Basket
28 028893500 - Countax Screw Hex Hd Din933 M8 X 20 Grade 10.9 £1.03
To Basket
29 31337400 - Countax Steering Rack Pivot £20.34
To Basket
30 018005300 - Countax M10 X 65mm Hex Head Bolt - BZP £0.77
To Basket
31 11808600 - Countax Grease Nipple £1.07
To Basket
32 31337500 - Countax Steering Suppt Boss £20.78
To Basket
33 27102400 - Countax Steering Link Plate
34 088002400 - Countax Washer 10.8id X 20.7od X 2mm Thk £0.36
To Basket
35 04886100 - Countax M10 Nyloc Nut £0.83
To Basket
36 313007800 - Countax Tractor Steering Rod £21.12
To Basket
37 10872600 - Countax 10mm Rod End £31.54
To Basket
38 04872100 - Countax M10 Locknut £0.48
To Basket
39 04886100 - Countax M10 Nyloc Nut £0.83
To Basket
40 088002400 - Countax Washer 10.8id X 20.7od X 2mm Thk £0.36
To Basket
41 183016900 - Countax Track Rod End Spacer £8.30
To Basket
42 189513700 - Countax 15mm Rose Joint Spac £2.80
To Basket
43 148015900 - Countax Side Panel - RH D/K £185.76
To Basket
44 148012900 - Countax Insert - Upper Left £4.96
To Basket
45 RCL290058-00 - Countax Choke Cable £38.71
To Basket
46 458141201 - Countax Sealed 12V Battery £273.72
To Basket
47 148015400 - Countax Fuel Tank With Hole £68.98
To Basket

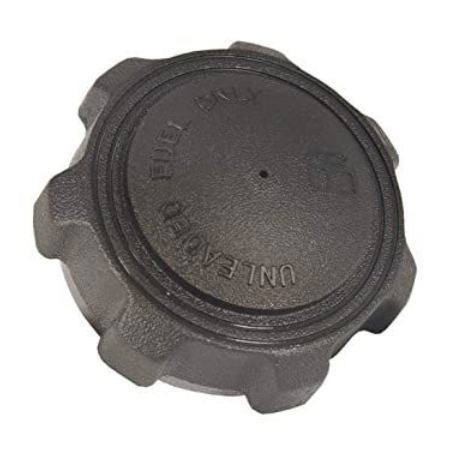

48 01538400 - Countax Fuel Cap £8.44
To Basket
49 301139400 - Countax 2002 Fusebox Holder £20.16
To Basket
50 307187400 - Countax 2002 Fuel Tank Brkt £11.29
To Basket
51 448009402 - Countax Main PCB + Fuel 2003 £218.02
To Basket
52 028893500 - Countax Screw Hex Hd Din933 M8 X 20 Grade 10.9 £1.03
To Basket
53 08819500 - Countax Washer 5/16 T3 Lp Zinc Plated £0.72
To Basket
54 04920100 - Countax M8 Nyloc Nut £0.31
To Basket
55 148012801 - Countax Consol Top - 2002 £80.51
To Basket
56 449665300 - Countax Fuel Level Sender06 £48.38
To Basket
56a 149510900 - Countax Fuel Sndr Seal Kit £29.40
To Basket
57 301069200 - Countax D1850 Relay Mtg Plt £17.88
To Basket
