Park Mirage 5.0
Park Mirage 5.0 Parts and Diagrams
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all
parts that fit
a Park Mirage 5.0.
All parts that fit a Park Mirage 5.0
Diagrams for this machine
Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.
Choose your Year/Serial Number
13-6090-11 [2011]
13-6090-12 [2012]
13-6090-13 [2013]
Top
13-6090-11 [2011]

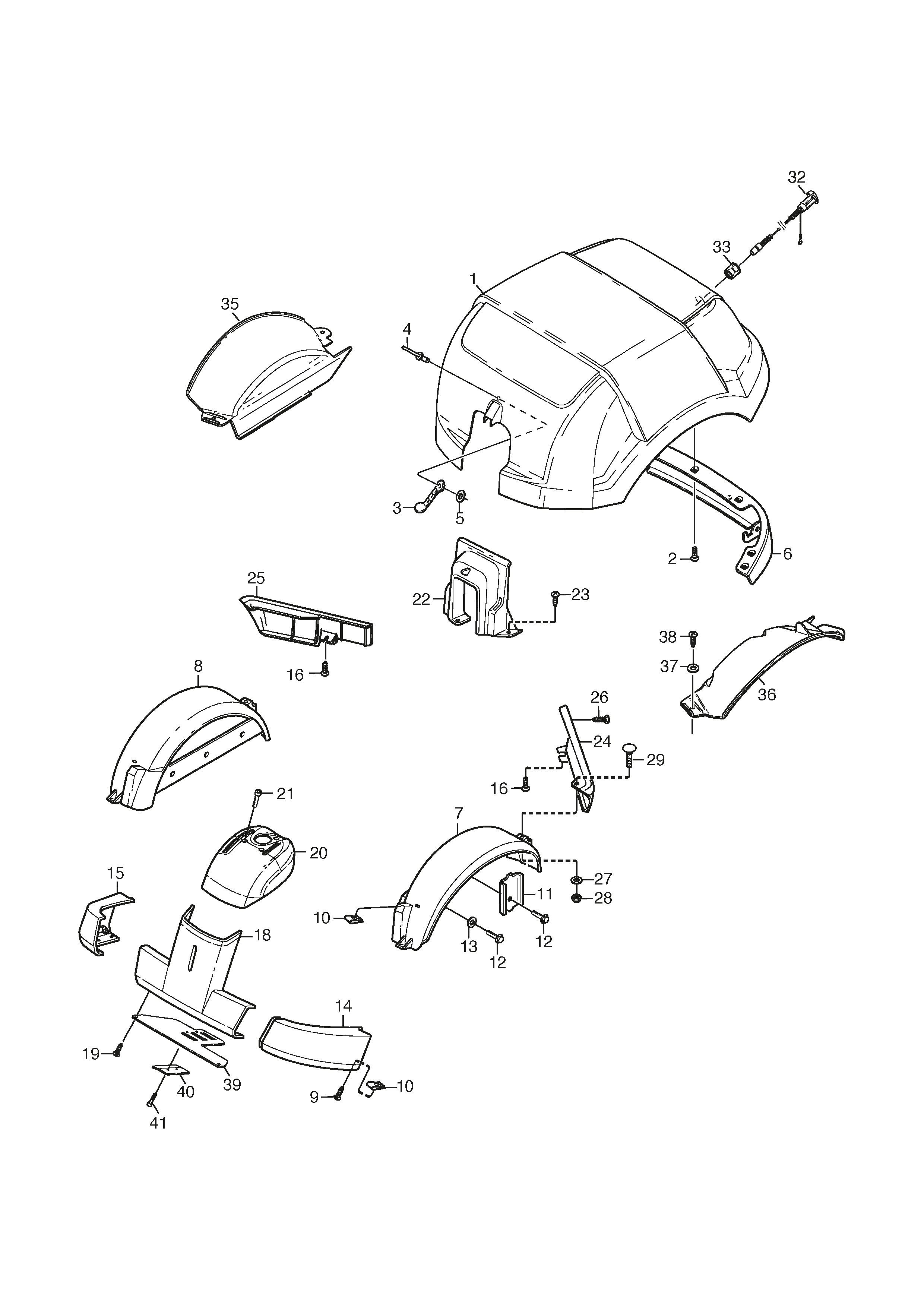

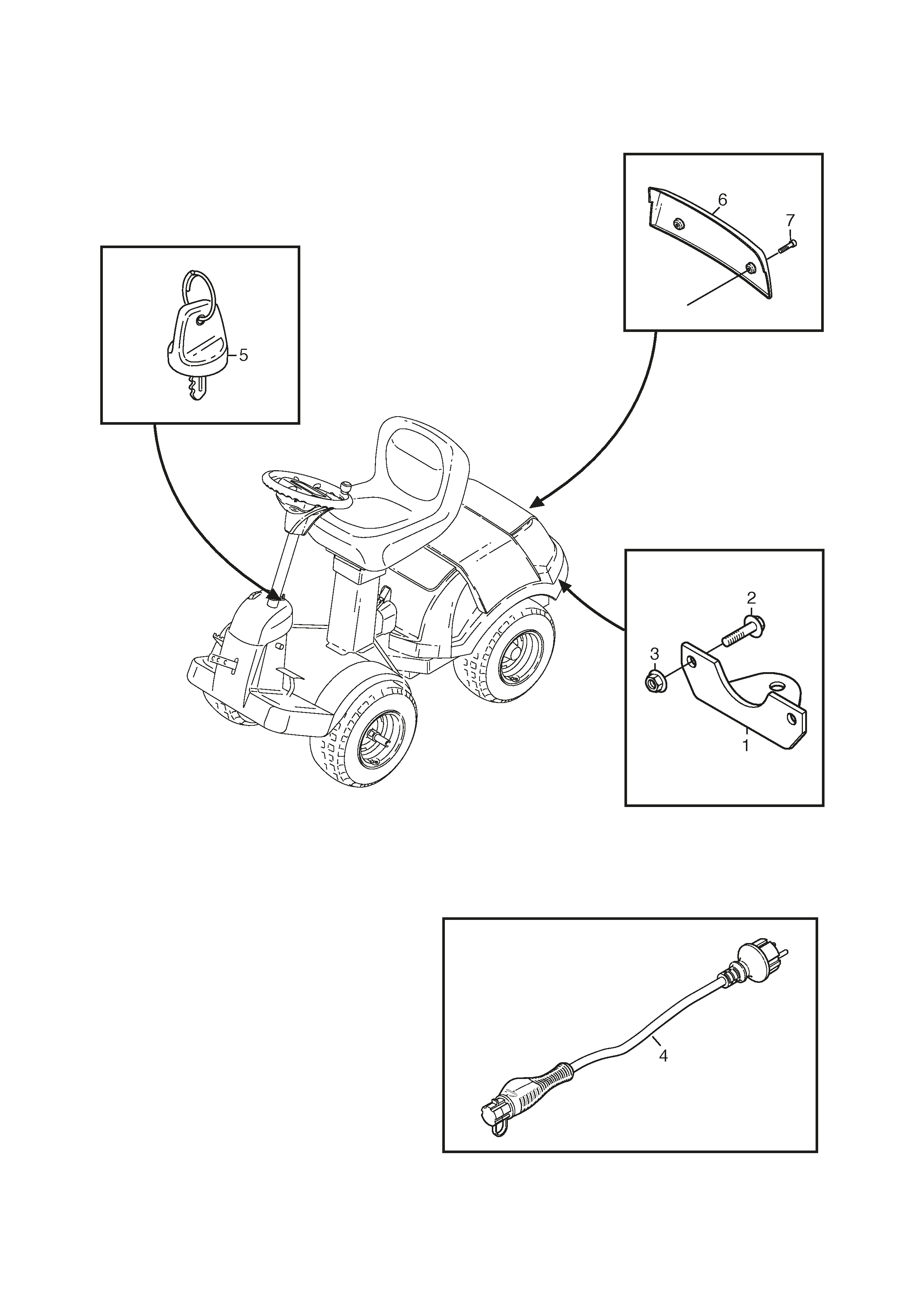

Assembly Parts_0

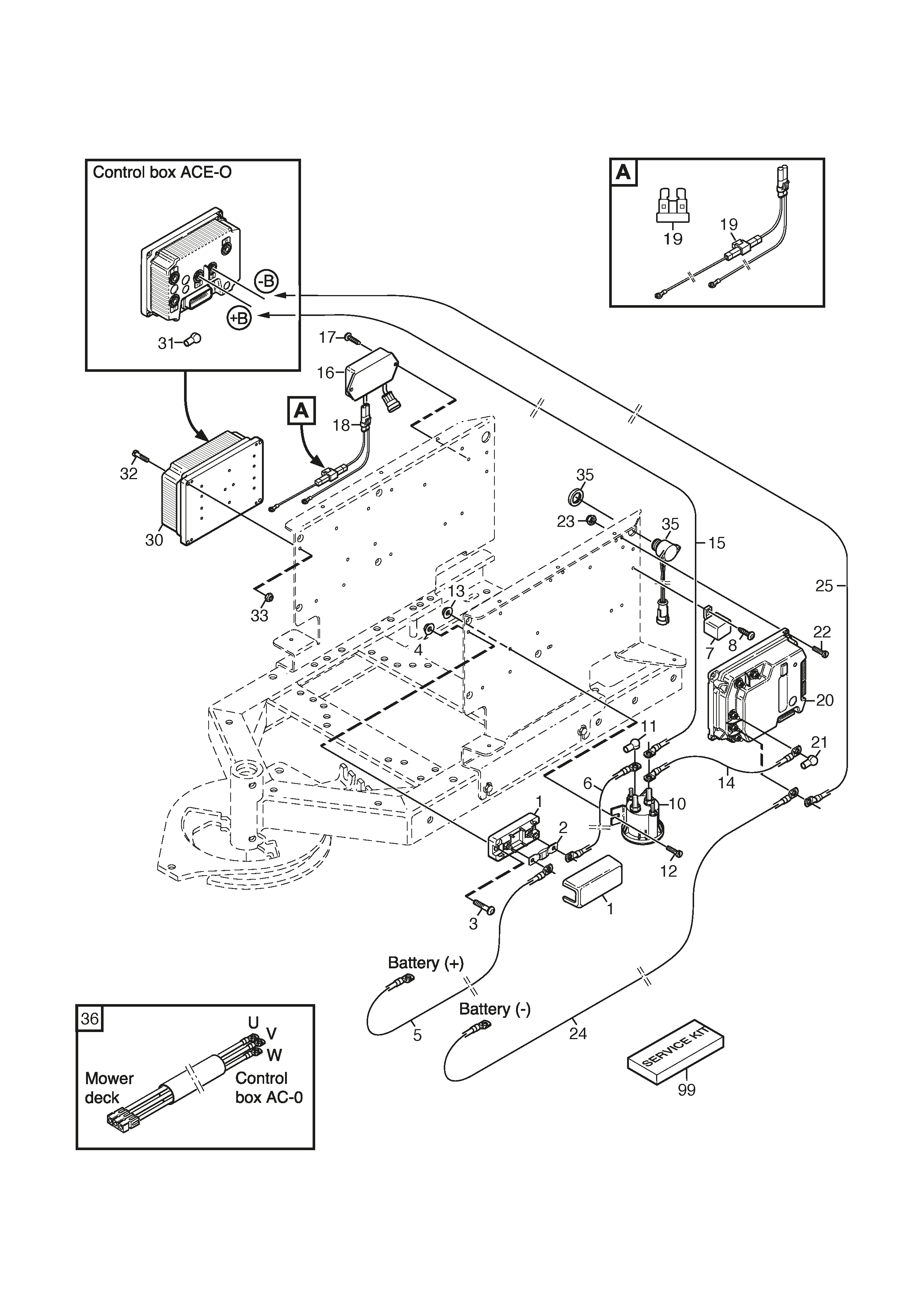

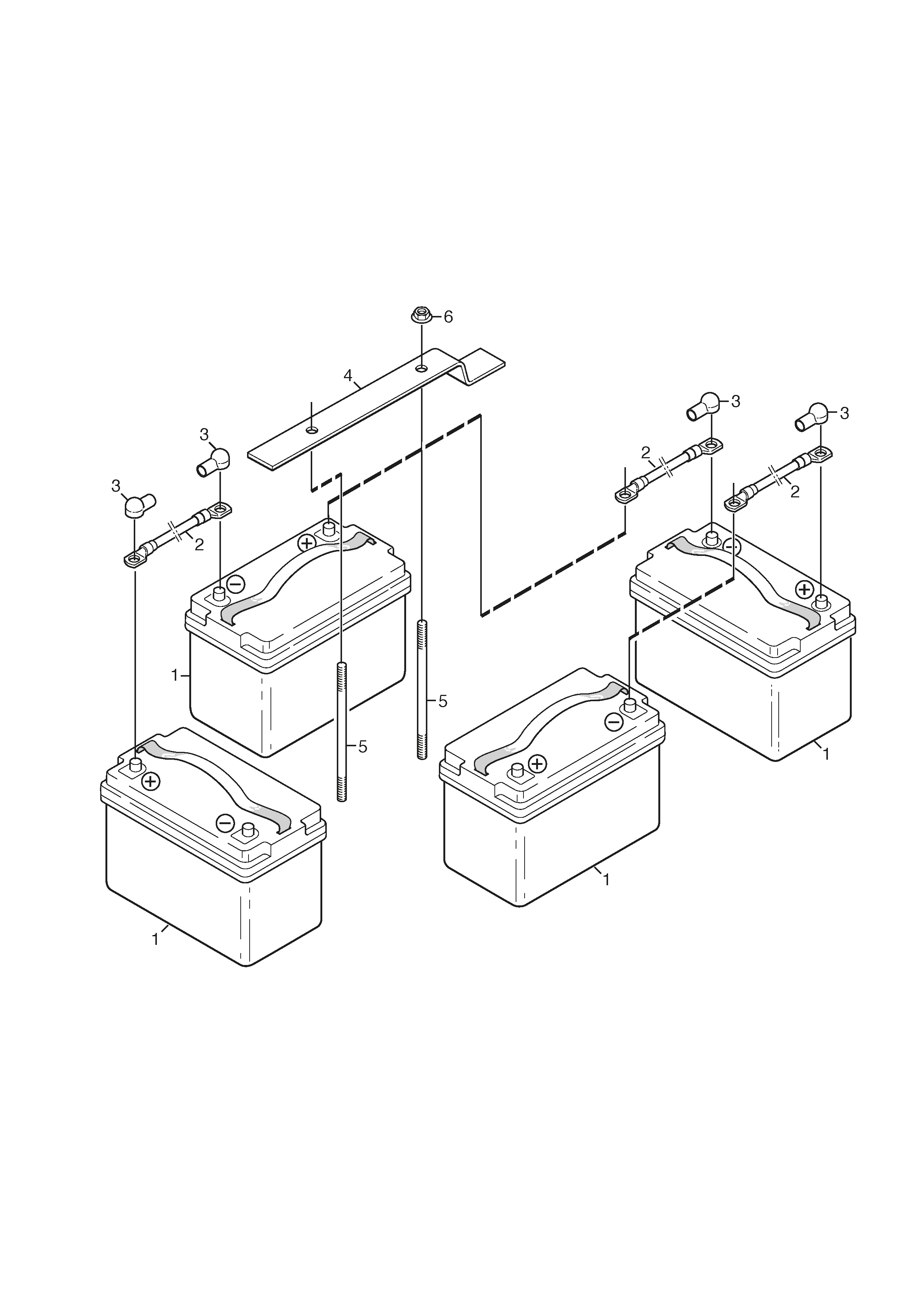

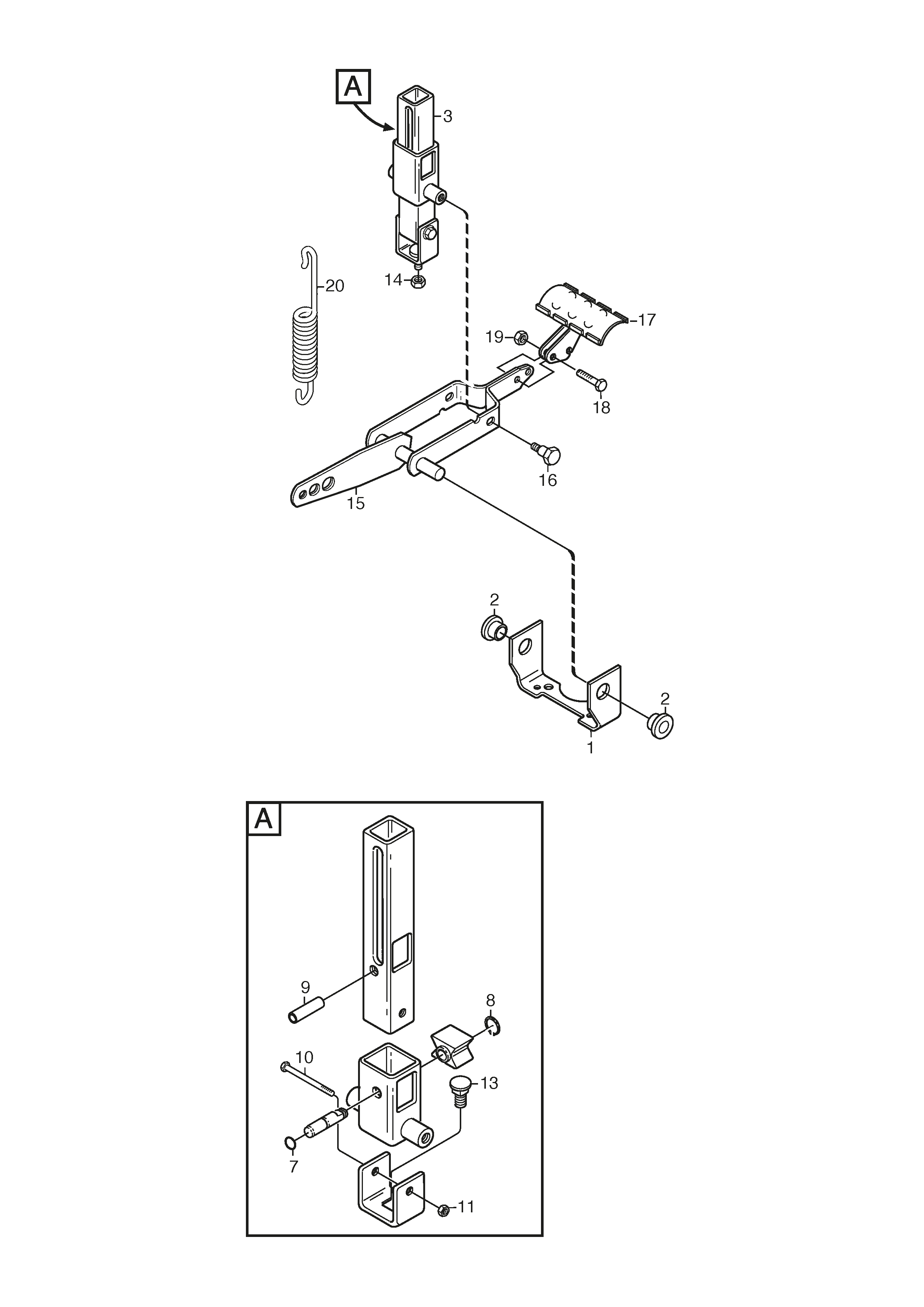

Battery Pack_0

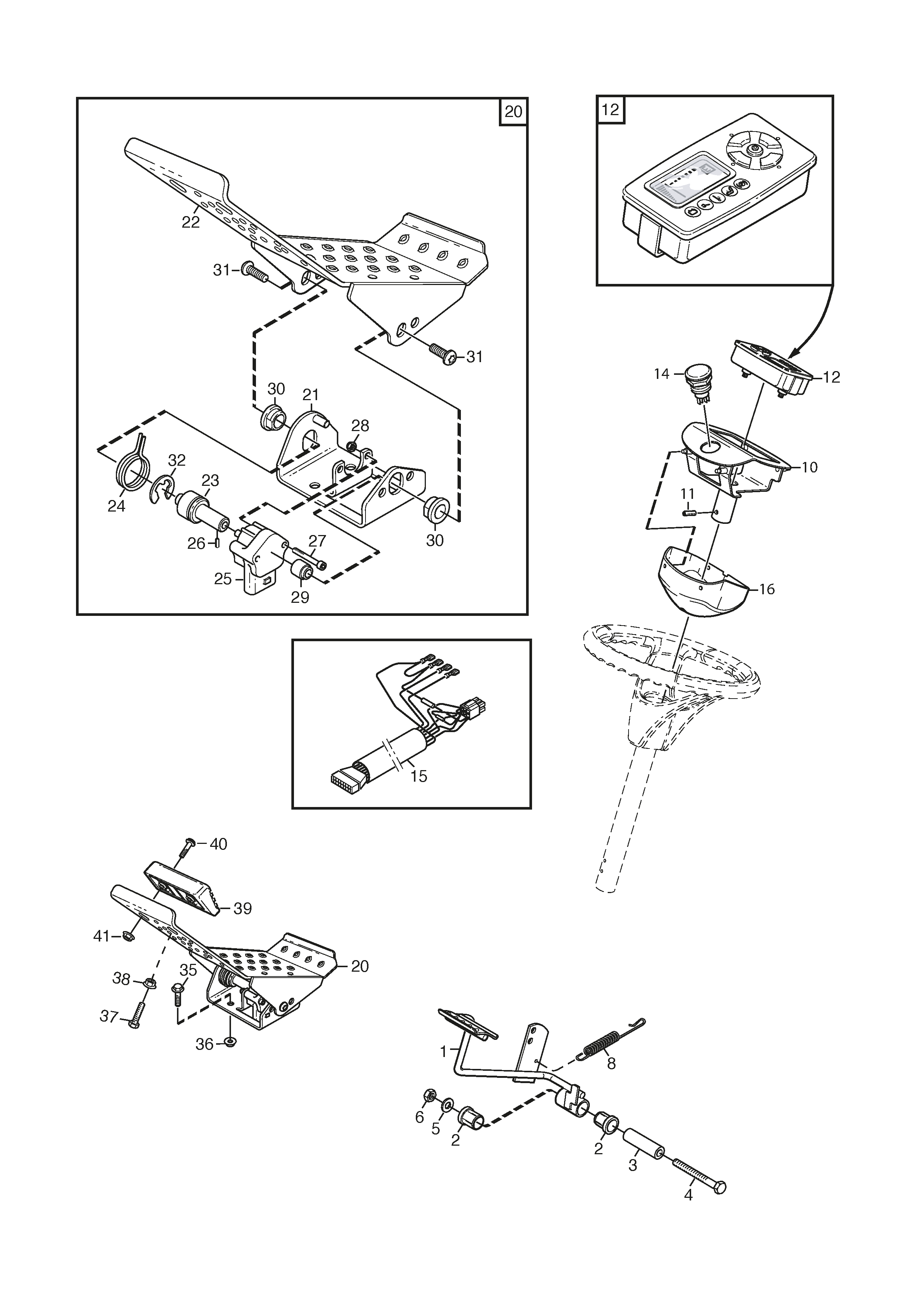

Body Work_0
Control Units_0
Controls_0

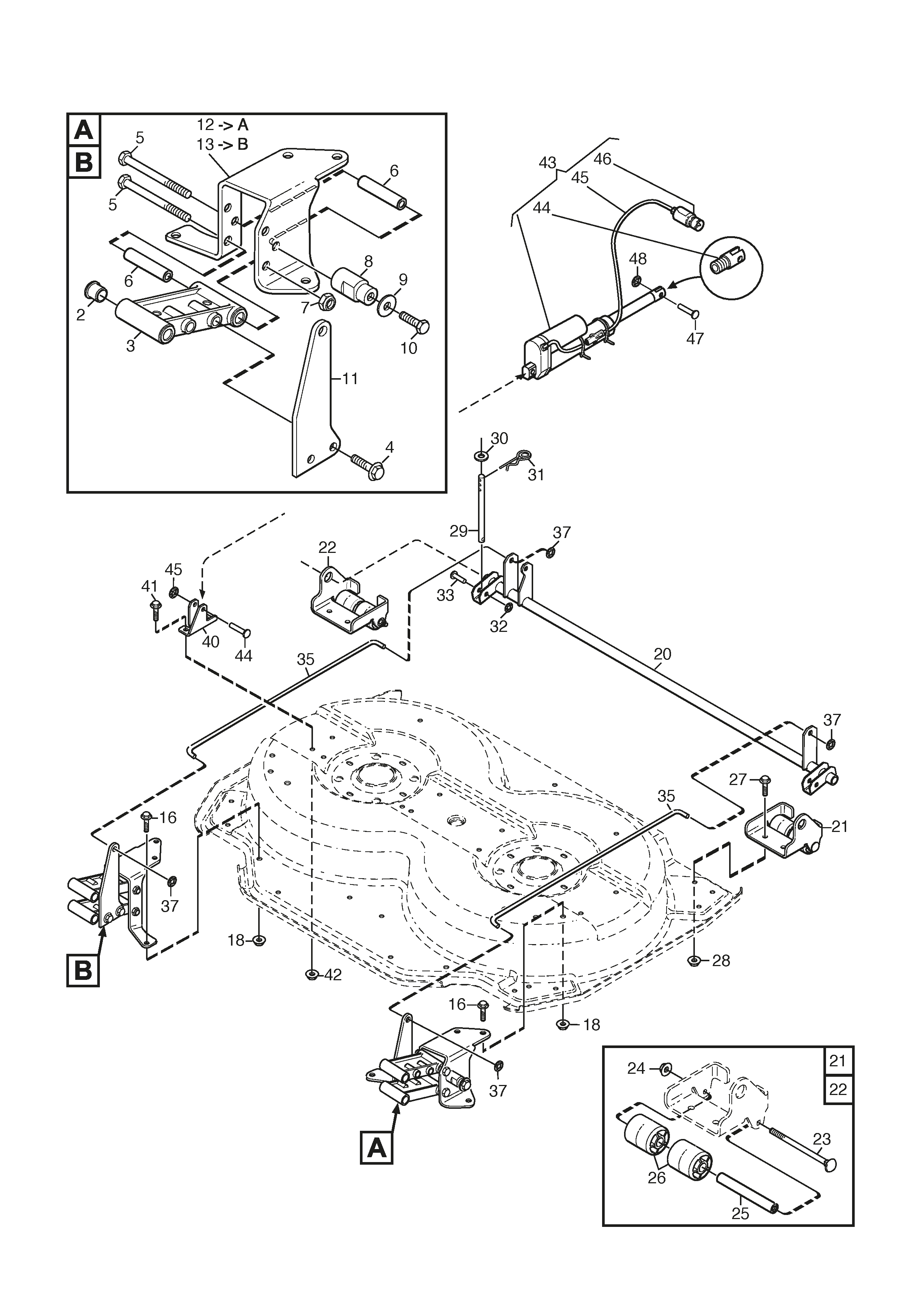

Cutting Plate Lifting_0

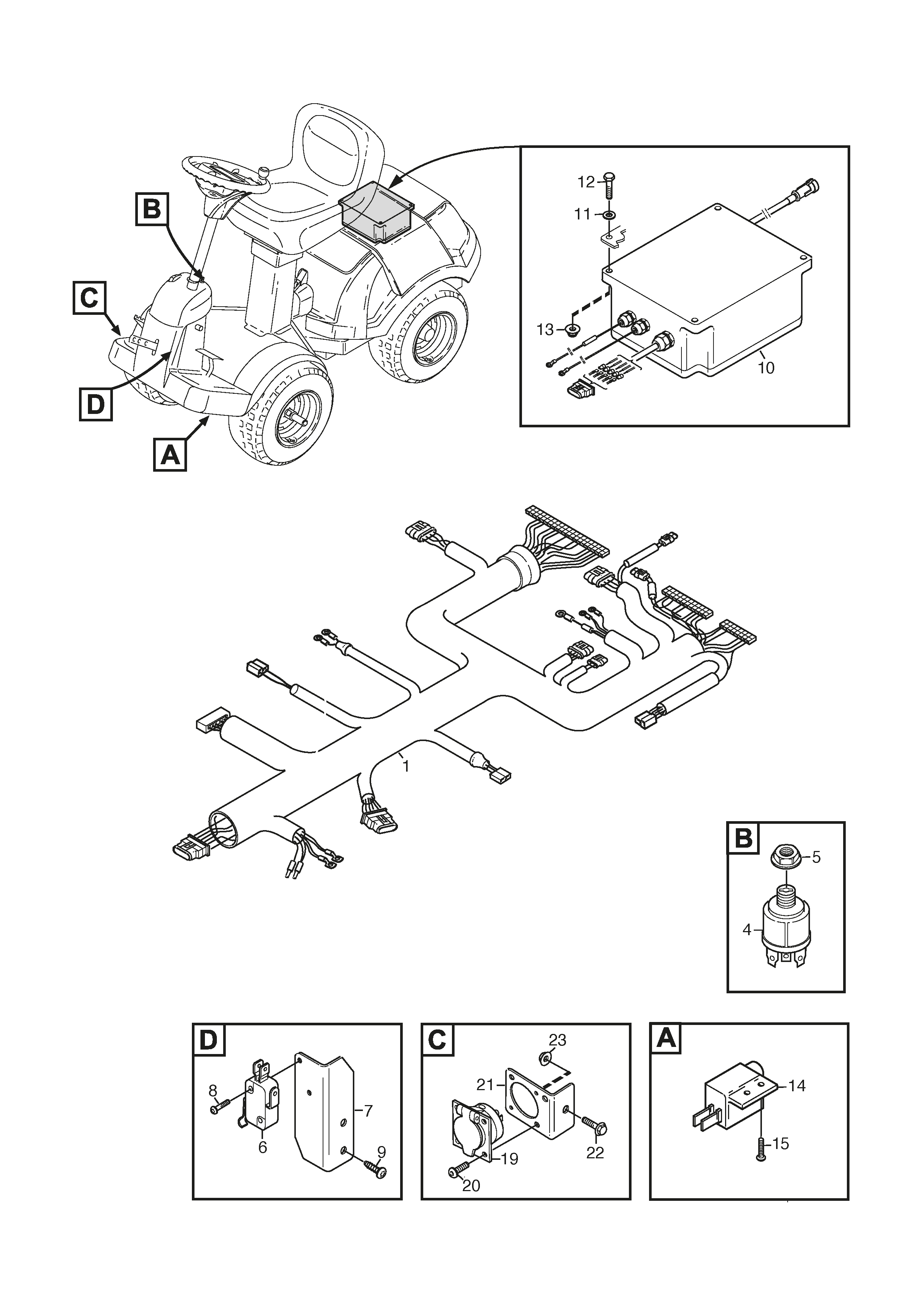

Electric Equipment_0

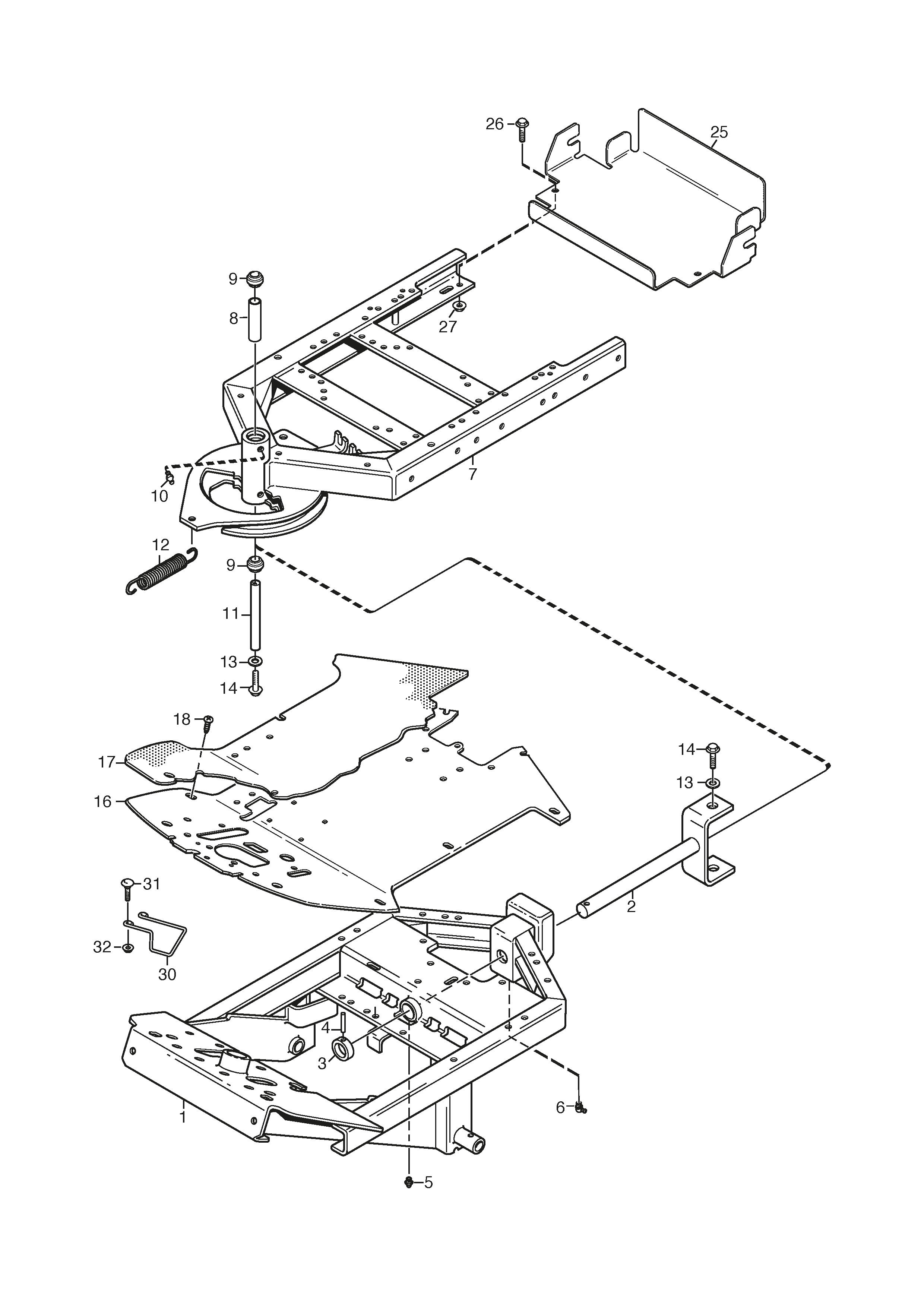

Frame_0

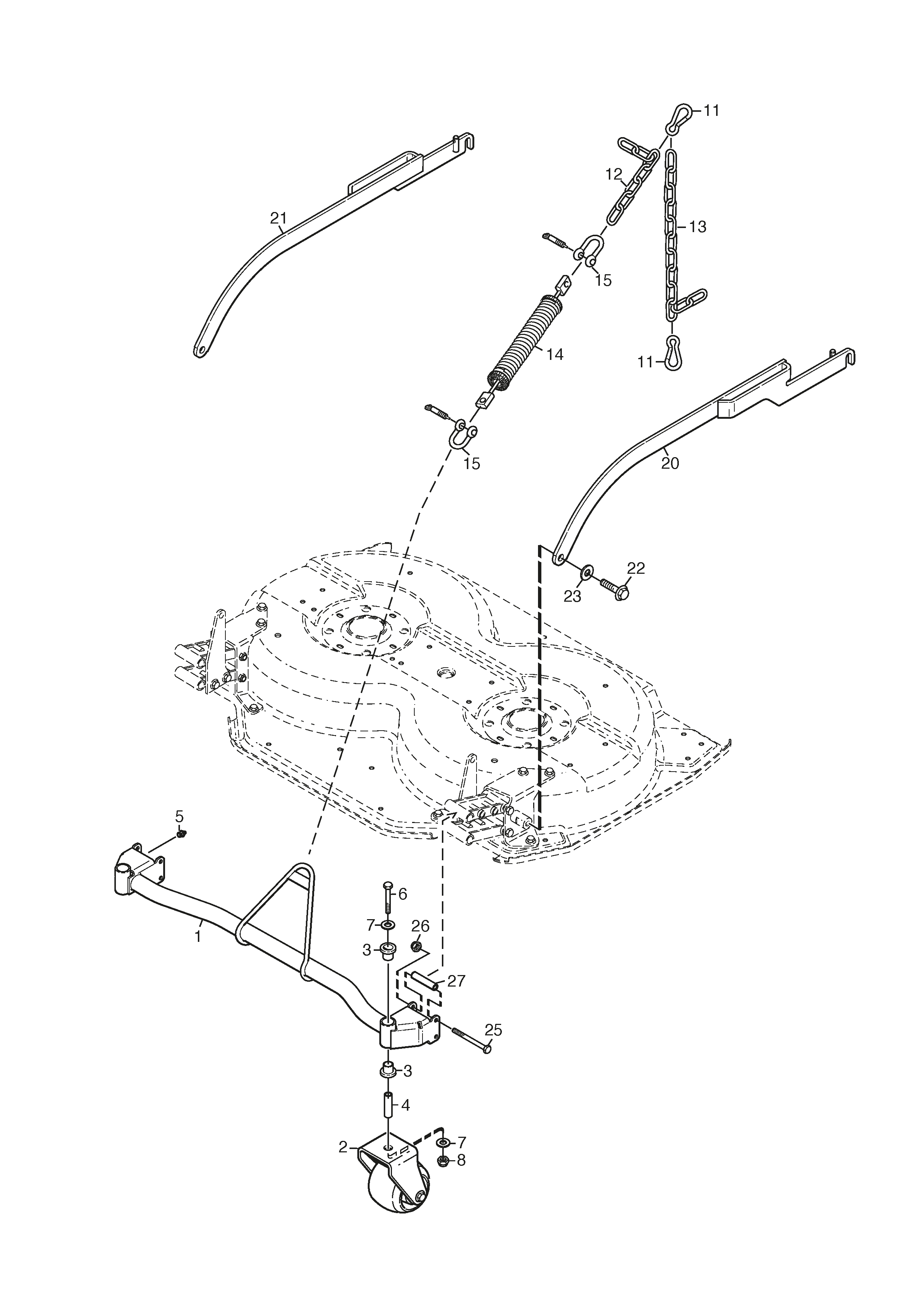

Mower Deck Frame_0

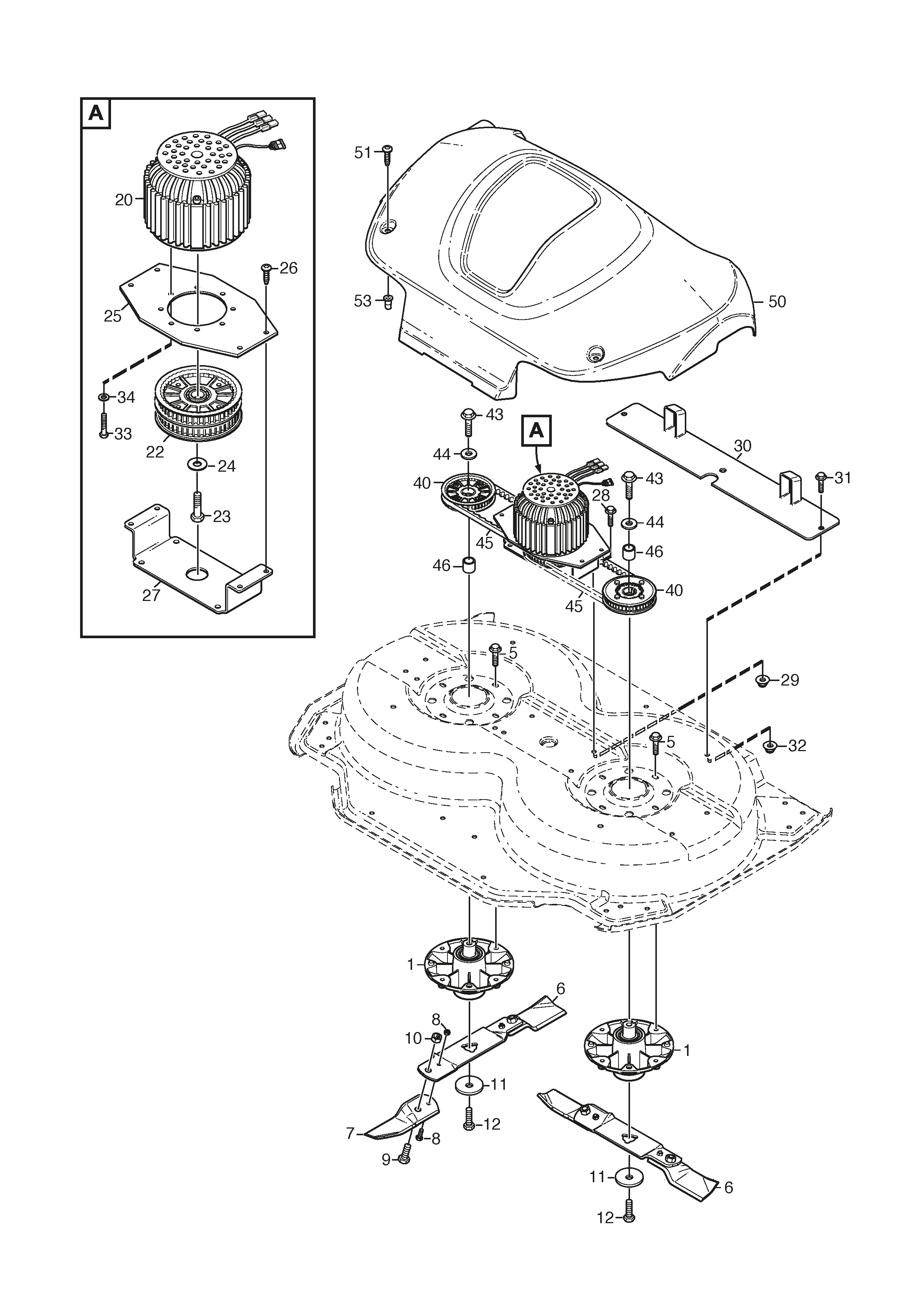

Mower Deck Transmission_0

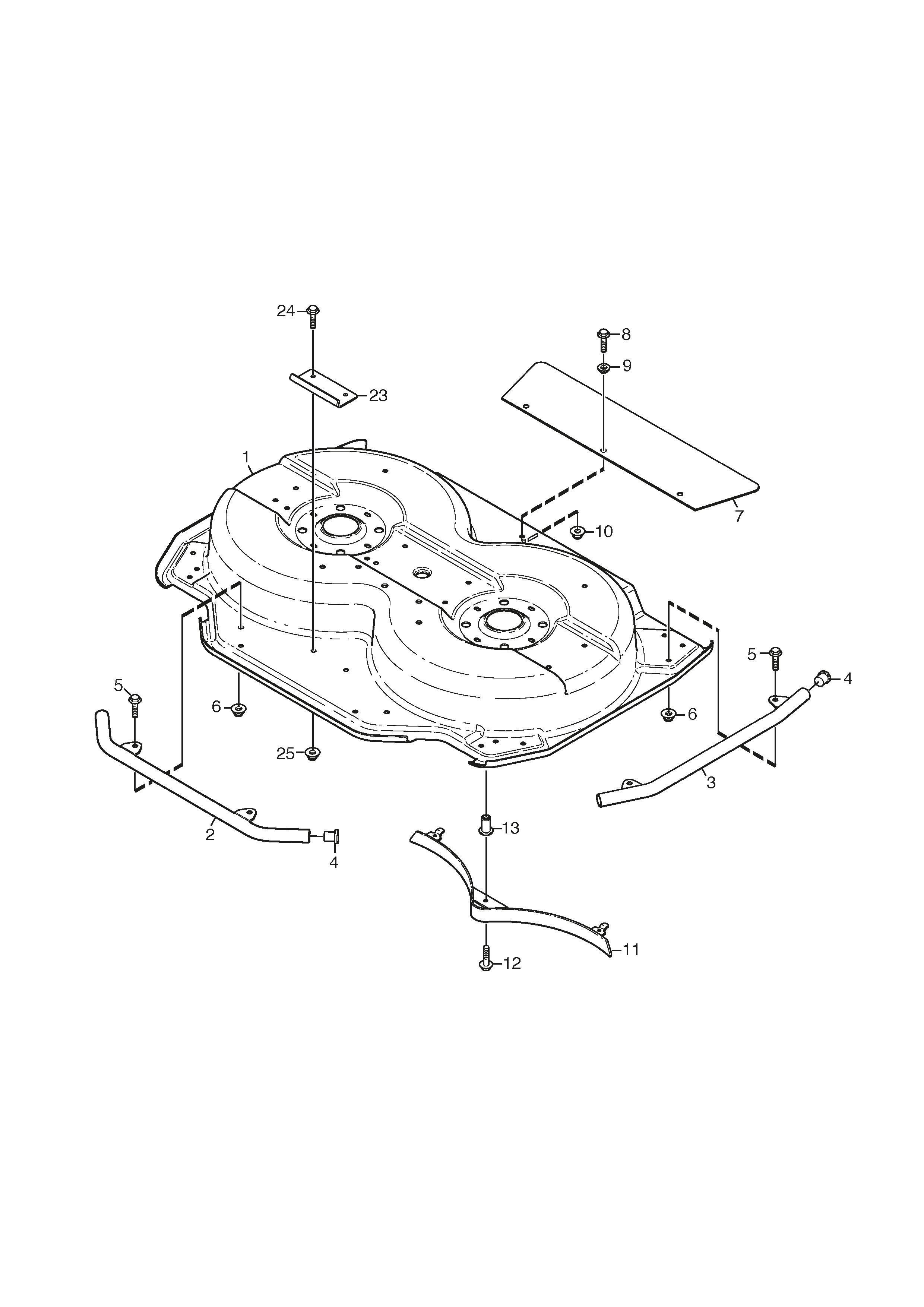

Mower Deck_0
Pedal Lift_0

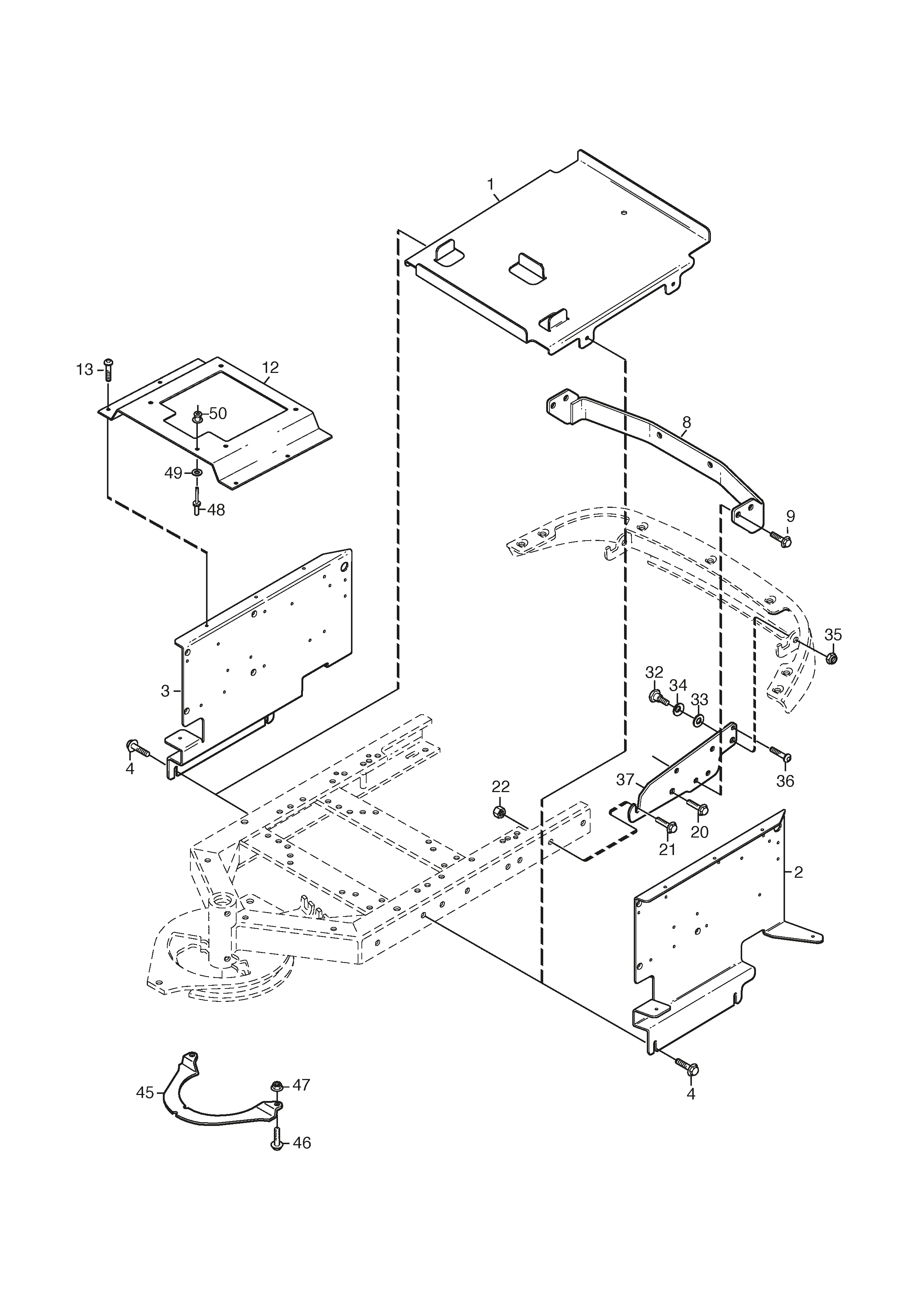

Rear Frame_0

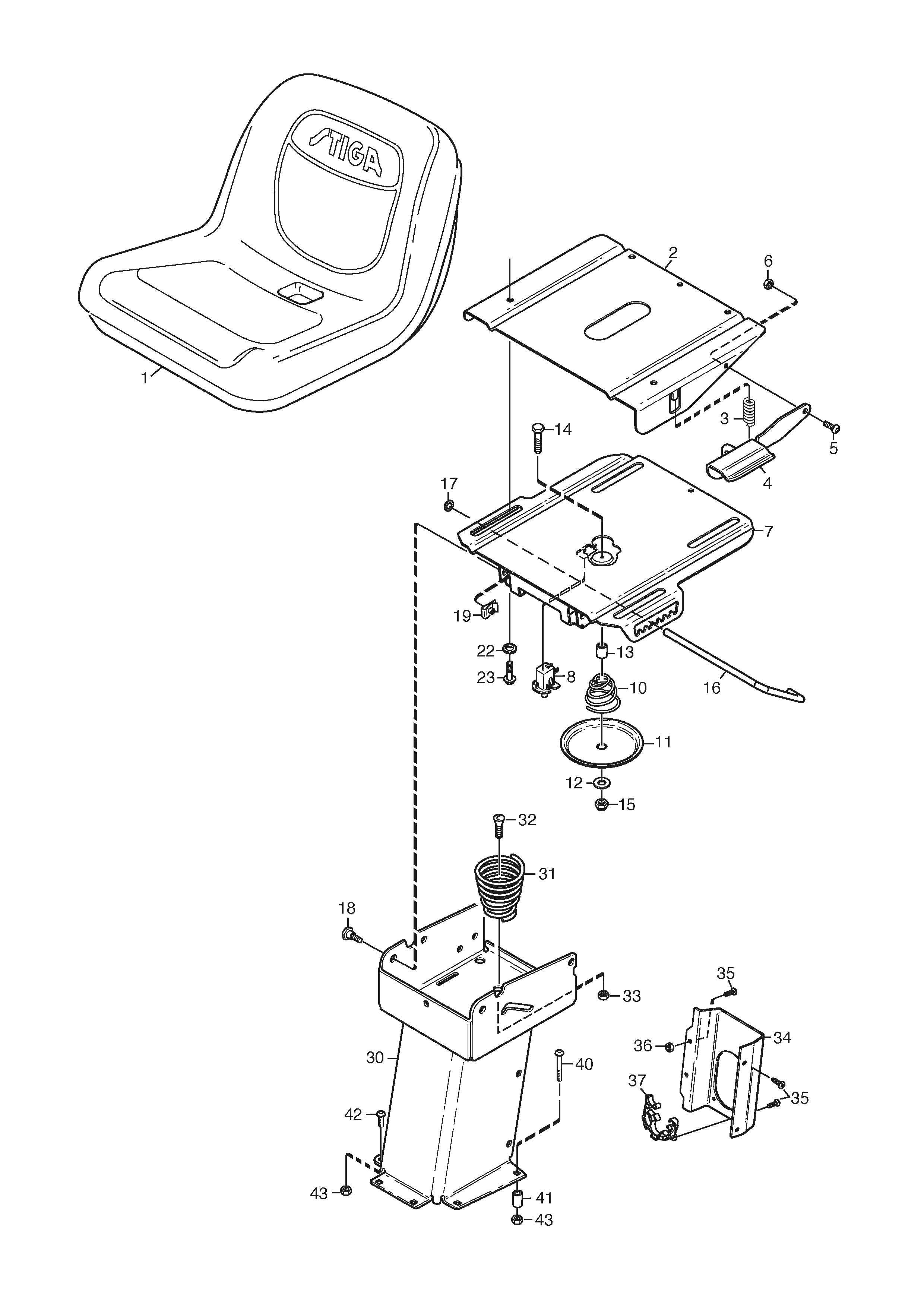

Seat_0

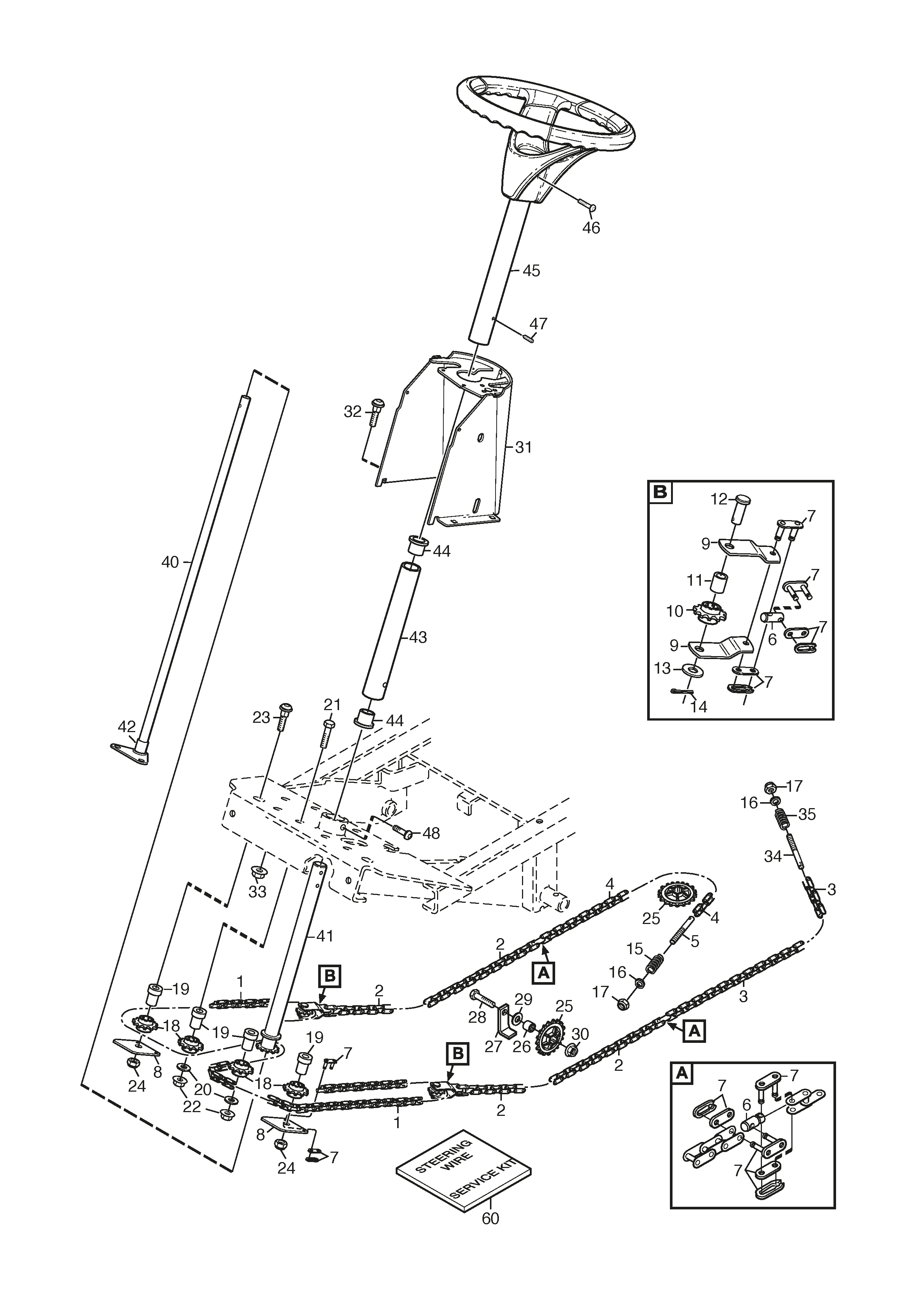

Steering_0

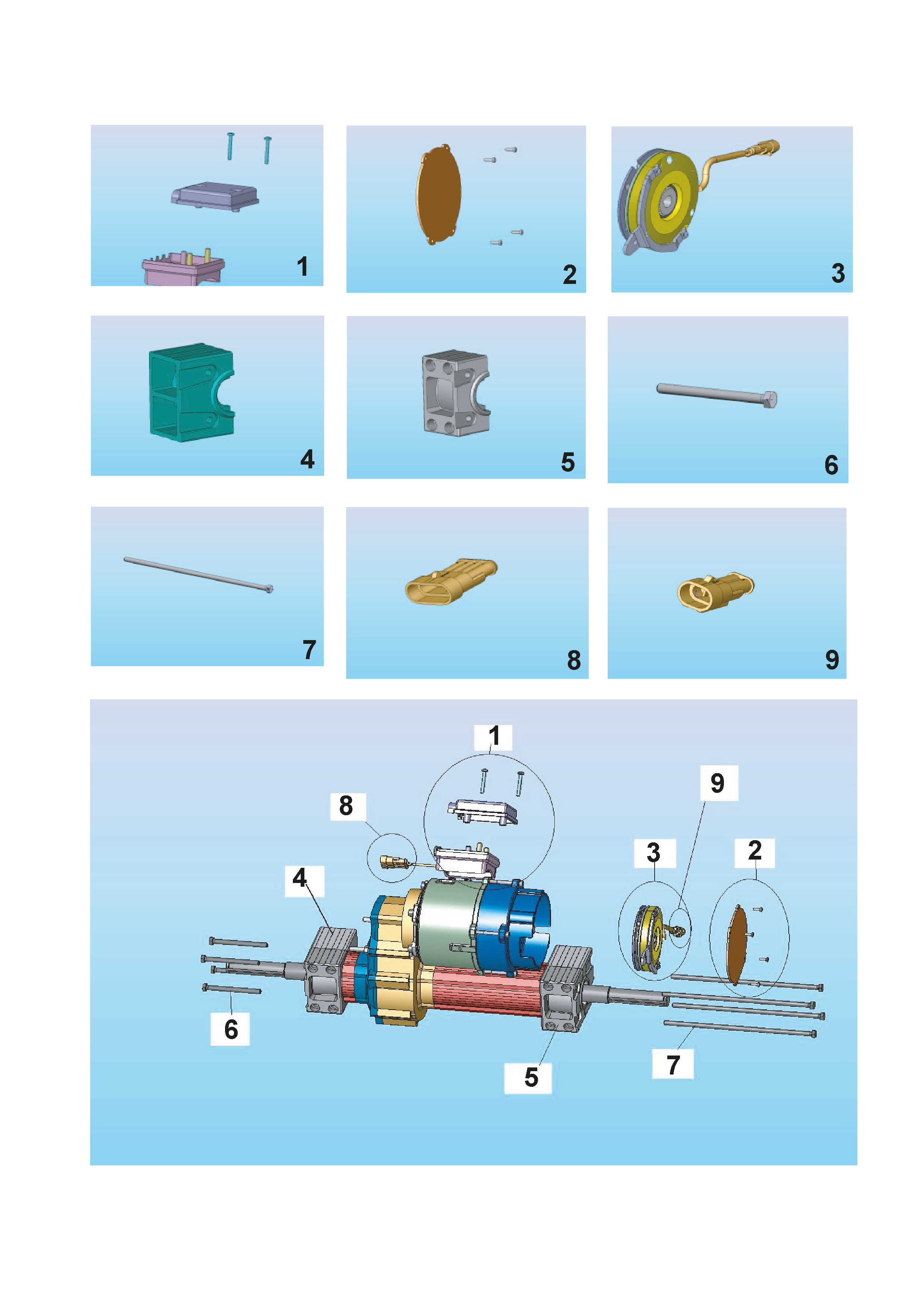

01_0

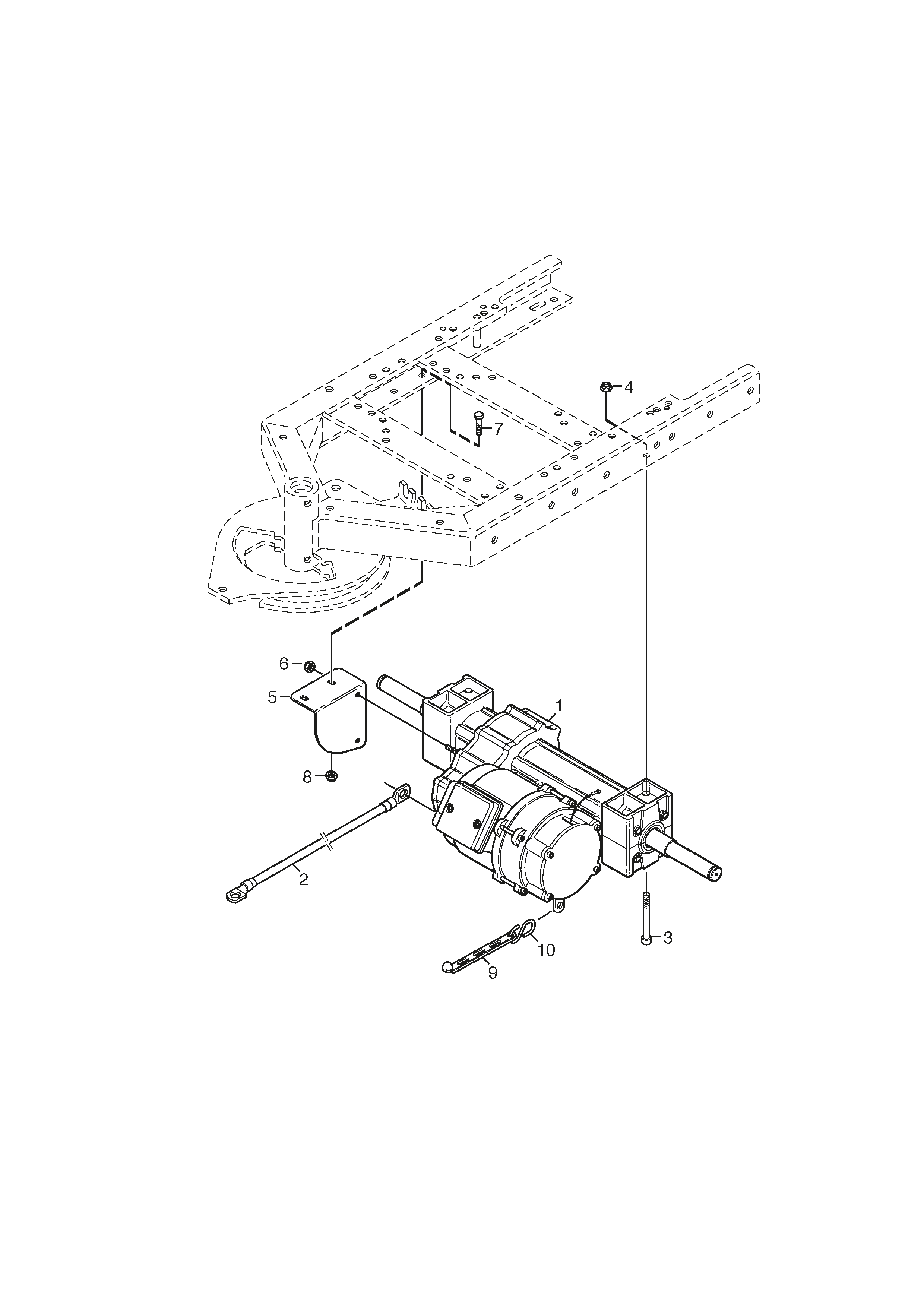

Transmission_0

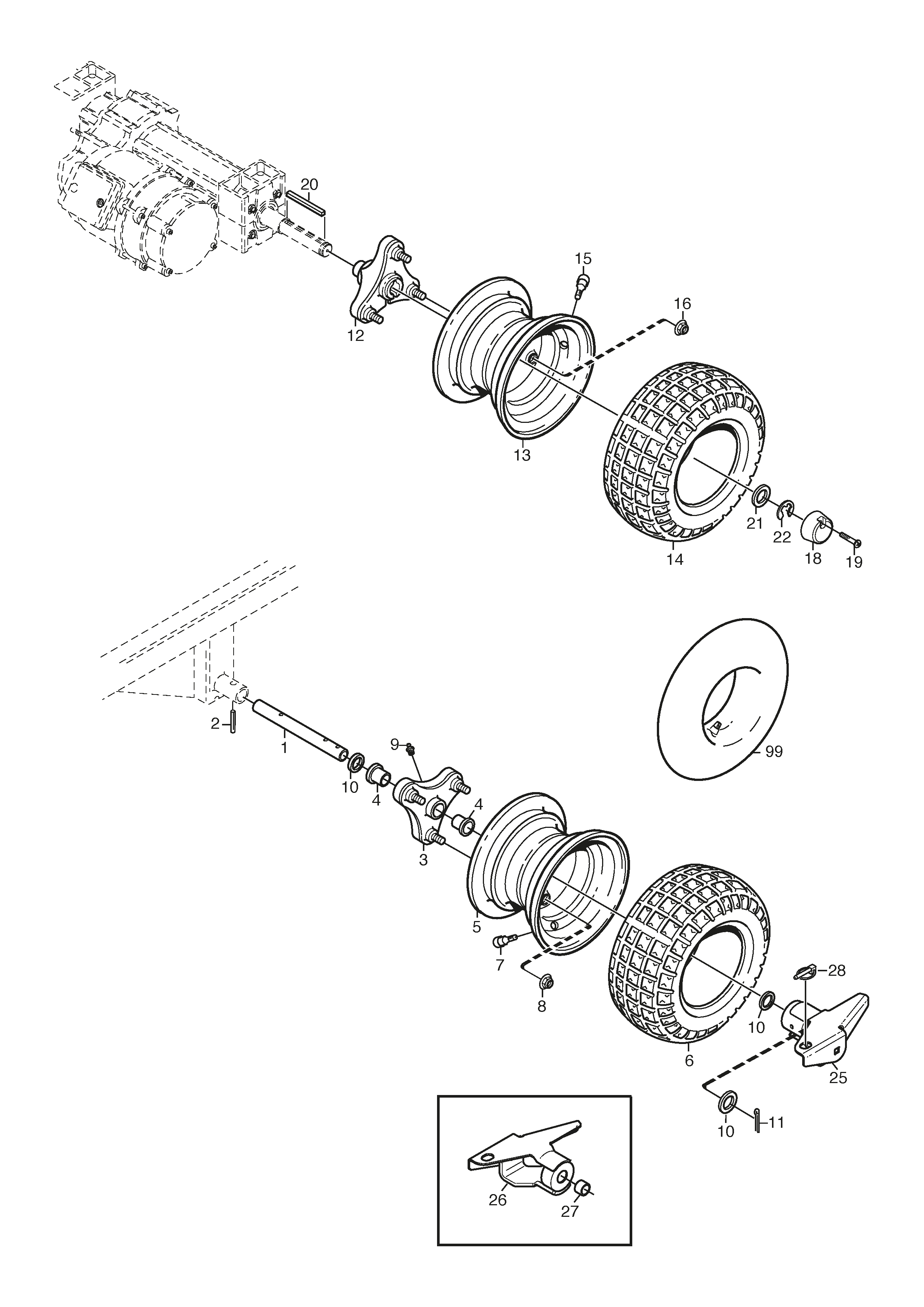

Wheel_0
13-6090-12 [2012]
Assembly Parts_0
Battery Pack_0
Body Work_0
Control Units_0
Controls_0
Cutting Plate Lifting_0
Electric Equipment_0
Frame_0
Mower Deck Frame_0
Mower Deck Transmission_0
Mower Deck_0
Pedal Lift_0
Rear Frame_0
Seat_0
Steering_0
01_0
Transmission_0
Wheel_0
13-6090-13 [2013]
Assembly Parts_0
Battery Pack_0
Body Work_0
Control Units_0
Controls_0
Cutting Plate Lifting_0
Electric Equipment_0
Frame_0
Mower Deck Frame_0
Mower Deck Transmission_0
Mower Deck_0
Pedal Lift_0
Rear Frame_0
Seat_0
Steering_0
01_0
Transmission_0
Wheel_0
