MAX 53 TK ALLROAD ALUMINIUM (K800 Parts and Diagrams

Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a MAX 53 TK ALLROAD ALUMINIUM (K800.

All parts that fit a MAX 53 TK ALLROAD ALUMINIUM (K800

Diagrams for this machine

Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.

Choose your Year/Serial Number

MAX 53 TK ALLROAD ALUMINIUM (K800) (2018)

MAX 53 TK ALLROAD ALUMINIUM (K800)

Top

MAX 53 TK ALLROAD ALUMINIUM (K800) (2018)

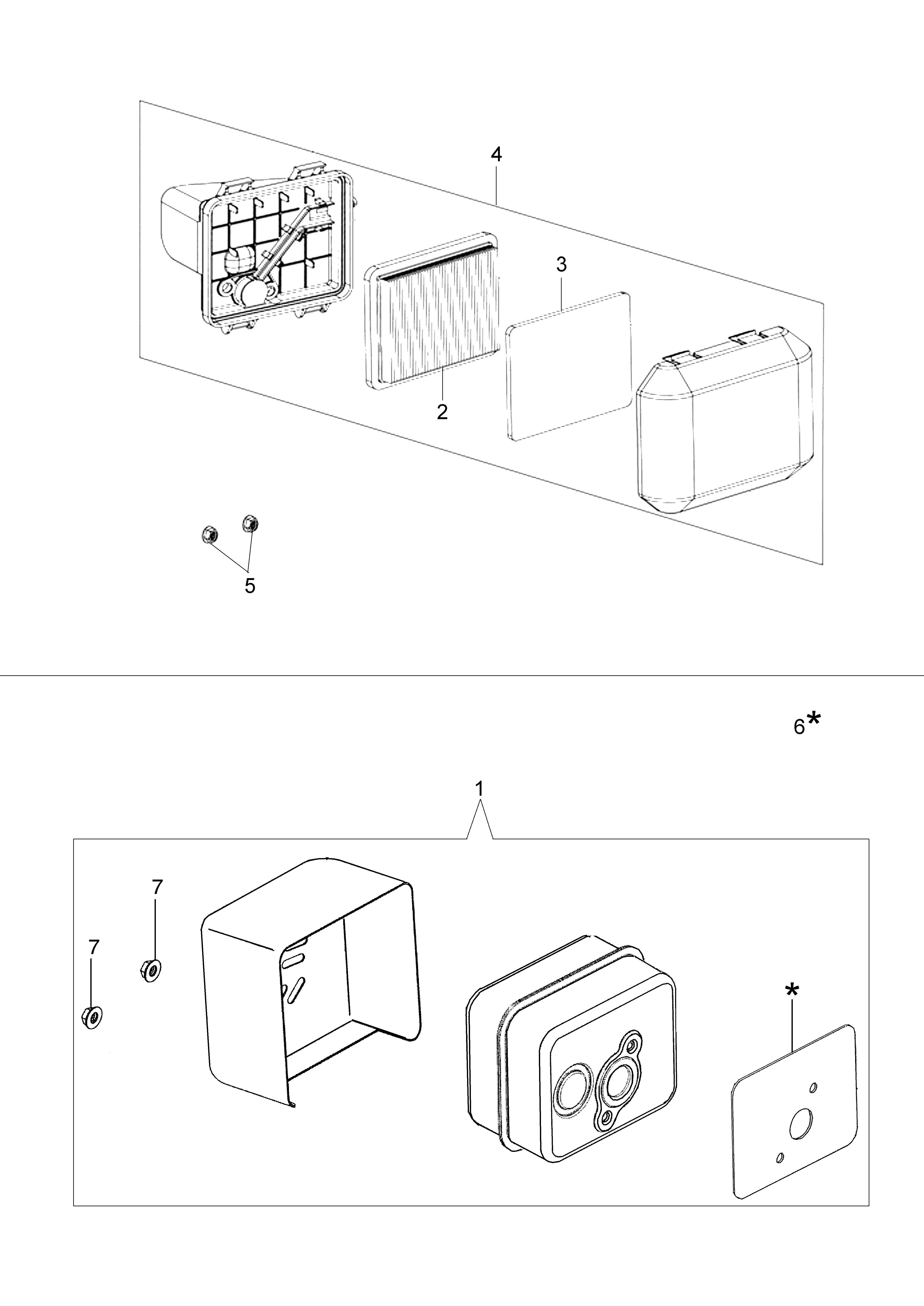

Air filter and muffler
Air filter and muffler

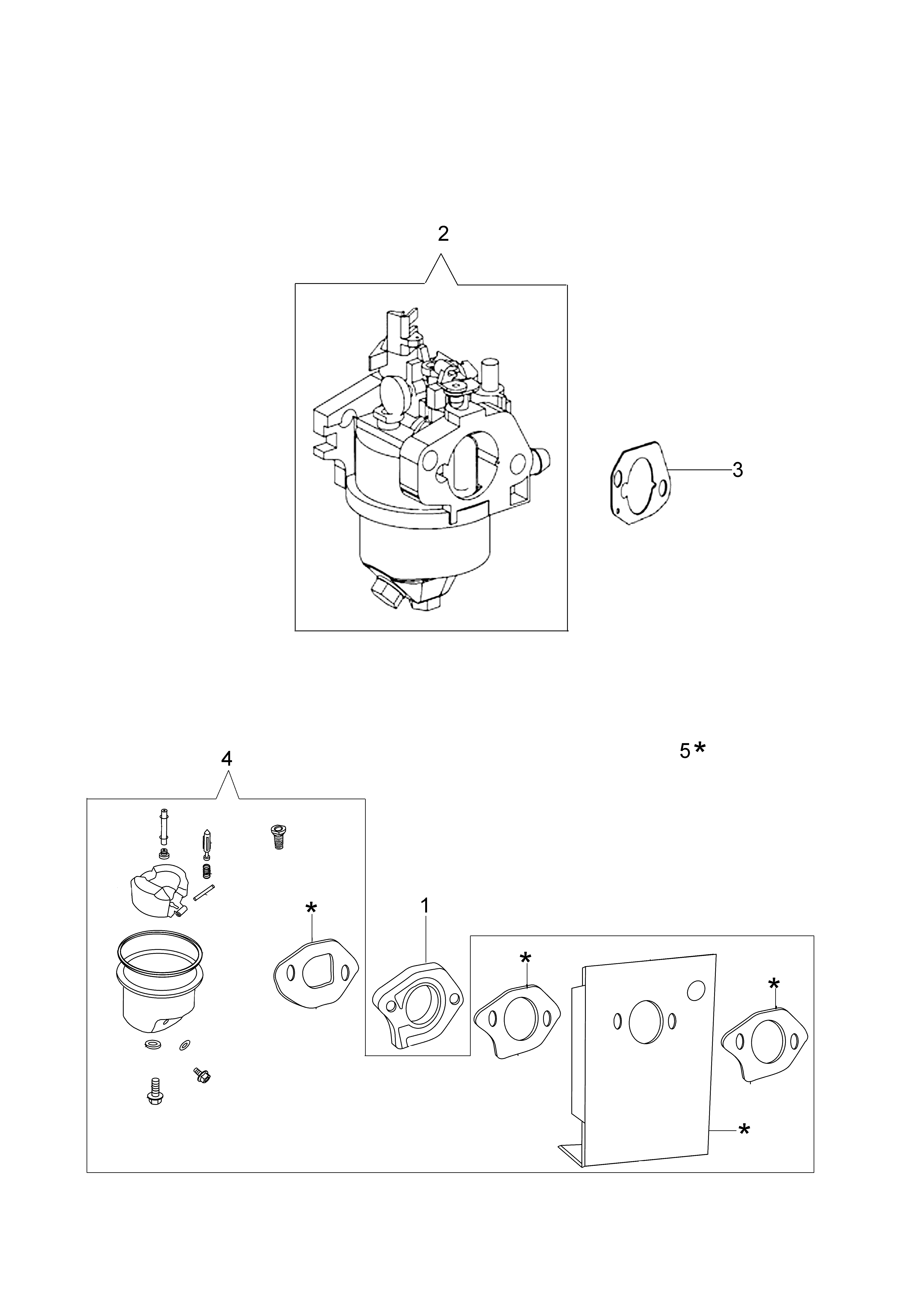

Carburetor
Carburetor

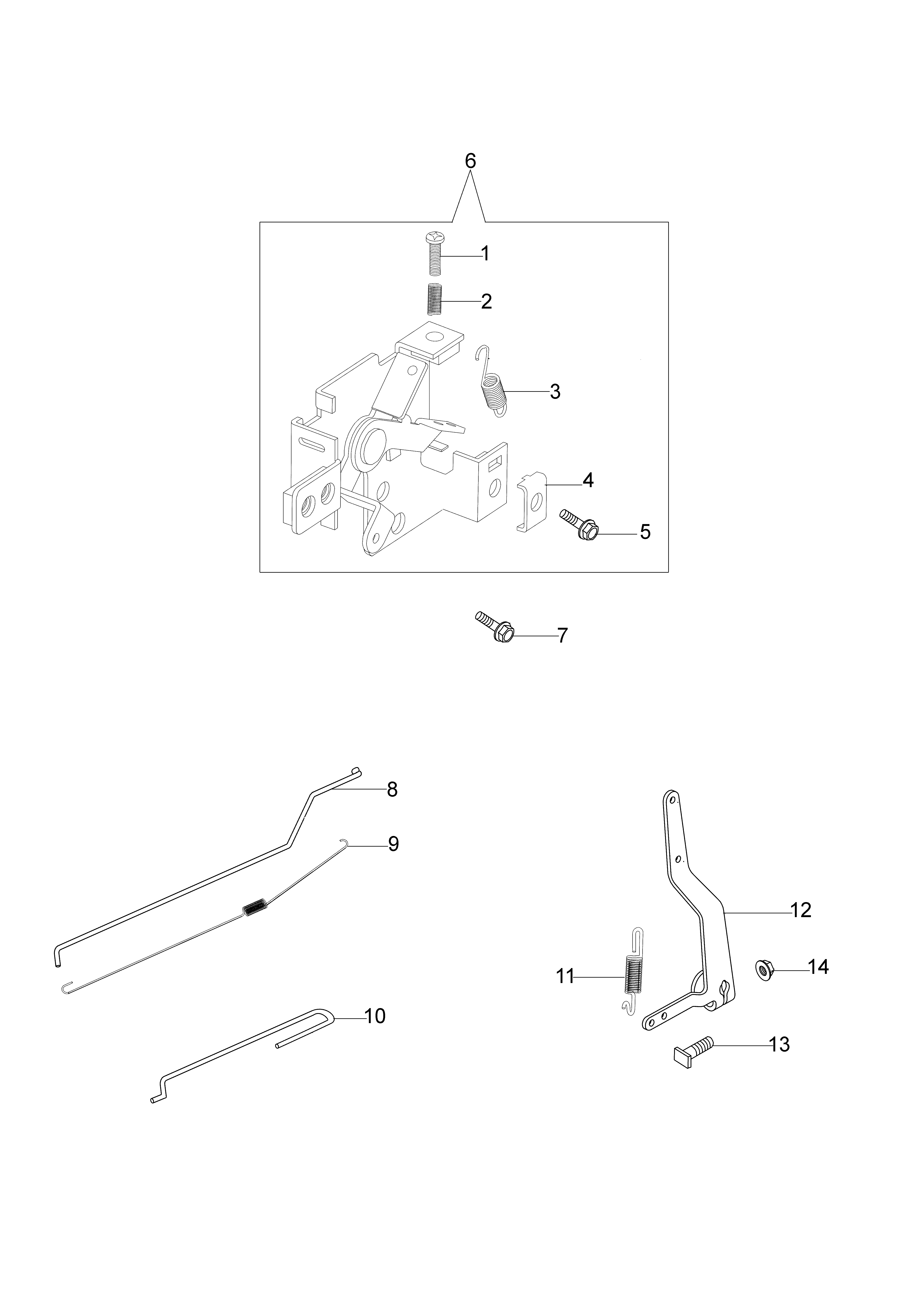

Control lever
Control lever

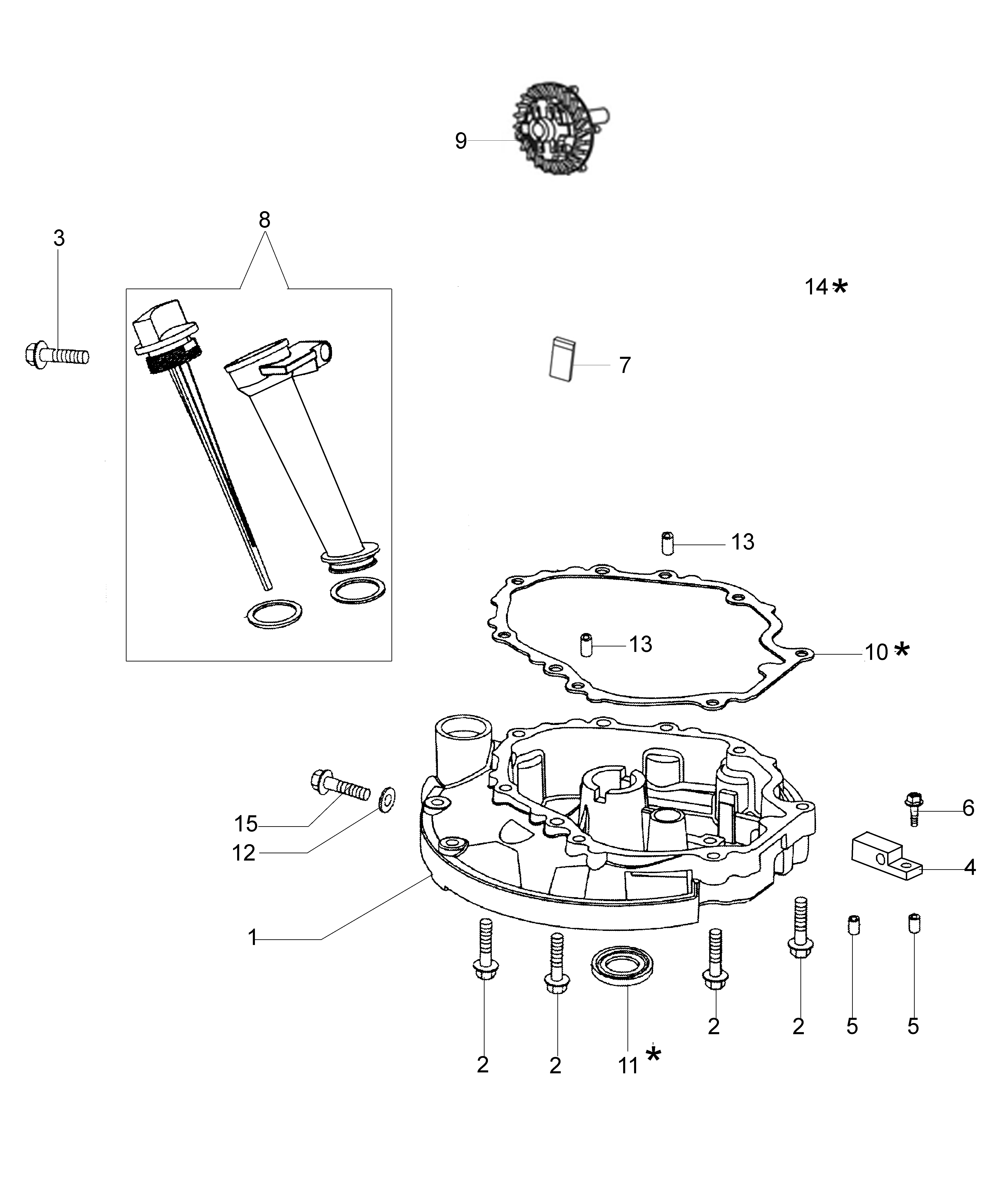

Crankcase cover
Crankcase cover

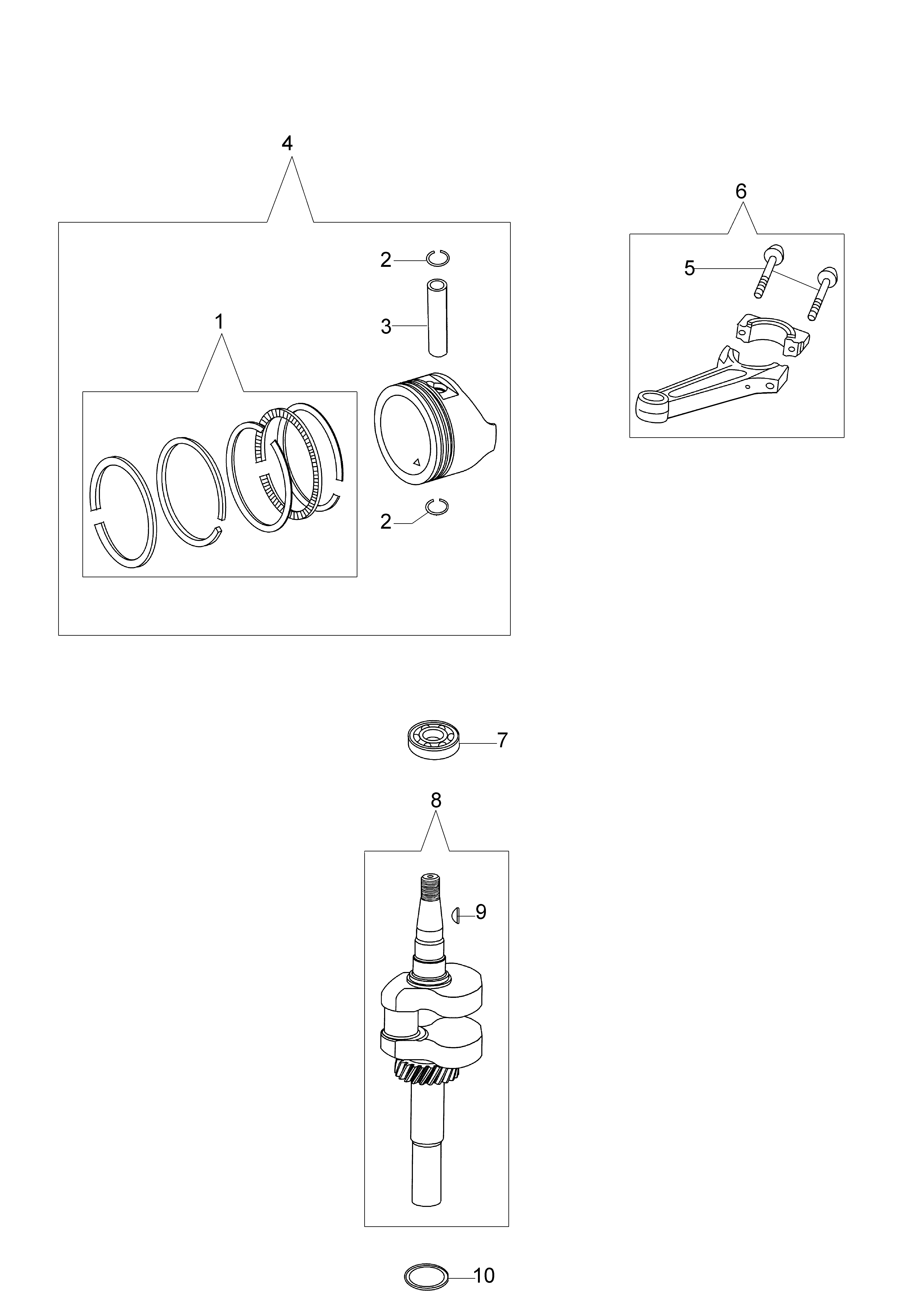

Crankshaft and piston
Crankshaft and piston

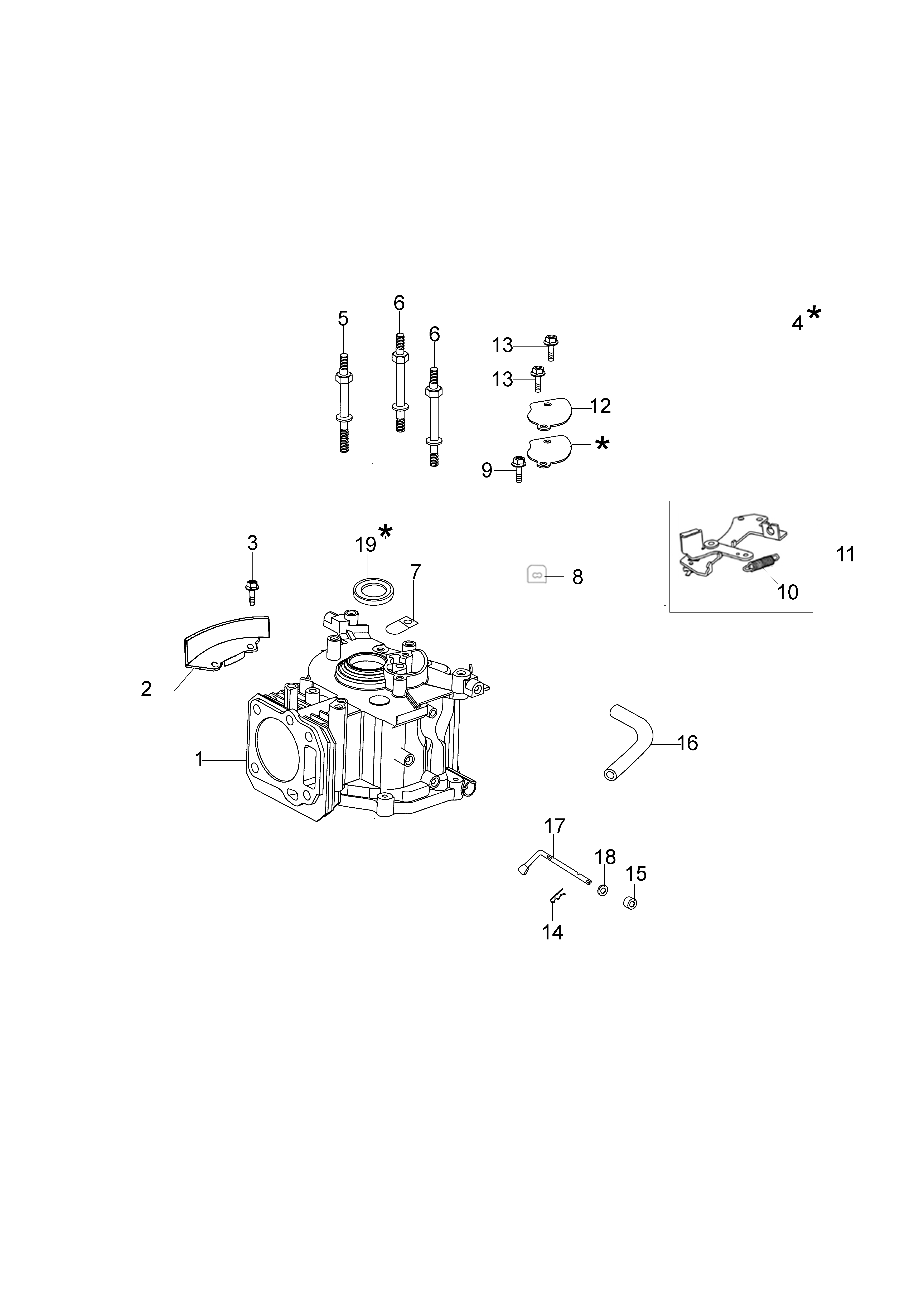

Cylinder and crankcase
Cylinder and crankcase

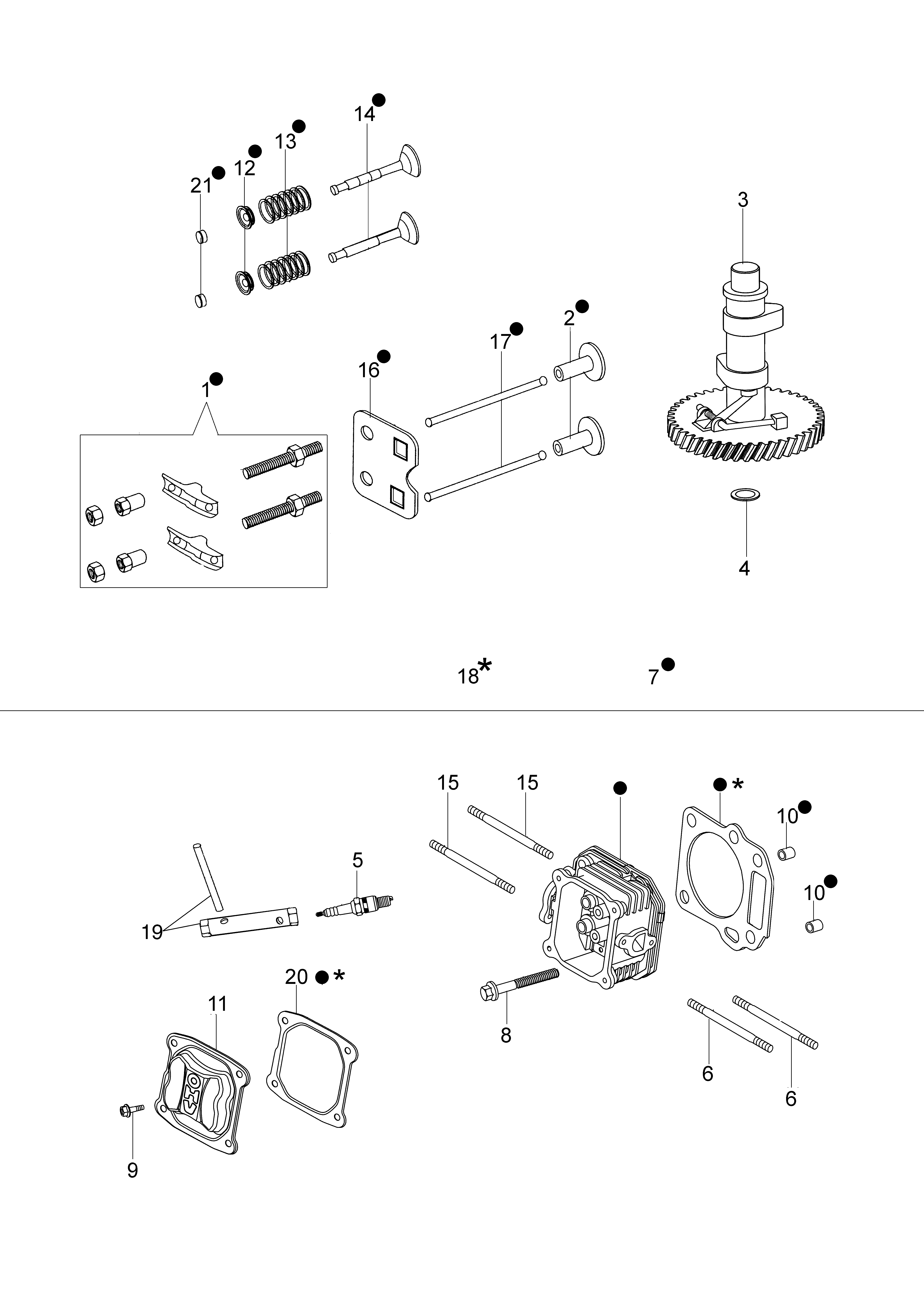

Cylinder head and valve
Cylinder head and valve

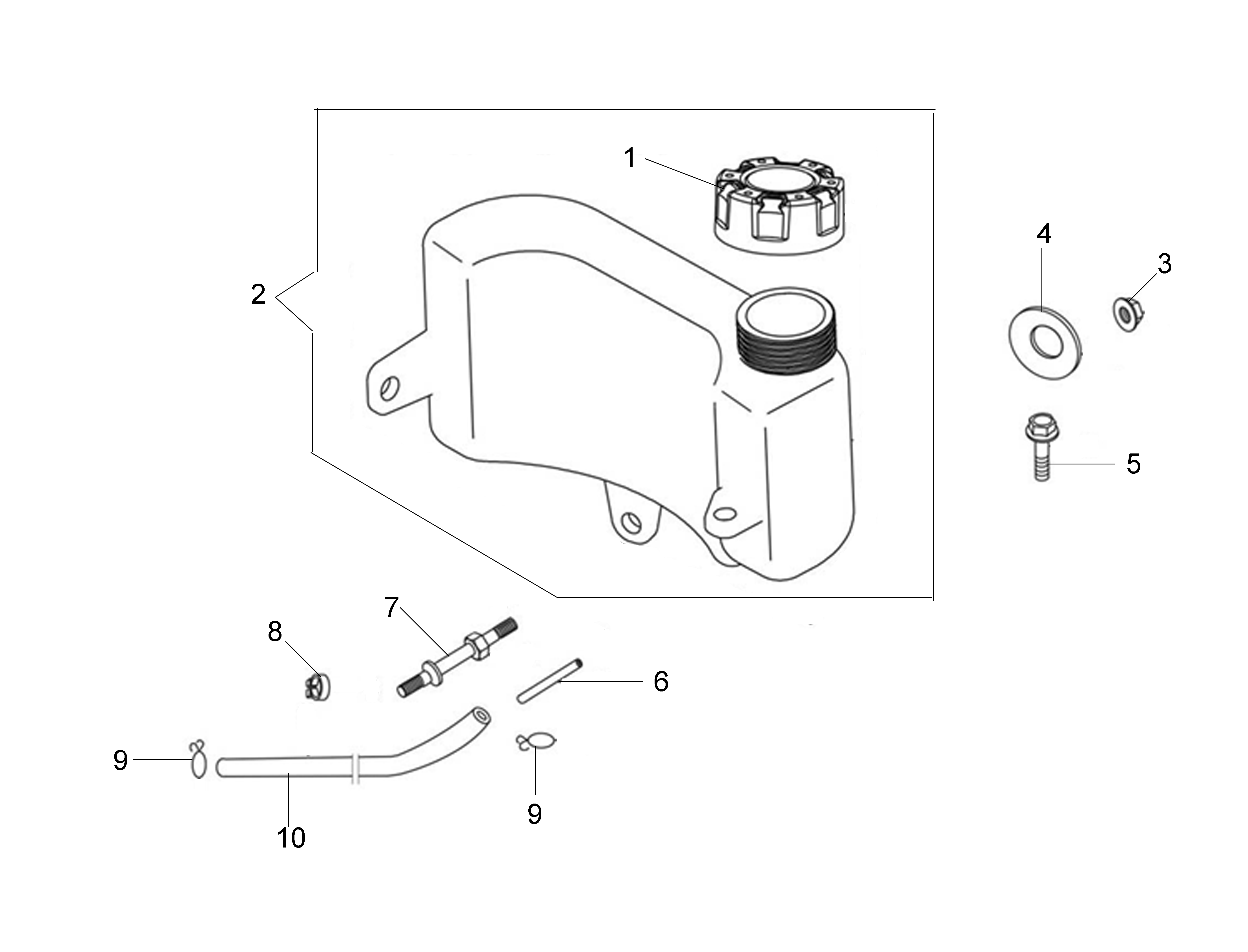

Fuel tank and cover
Fuel tank and cover

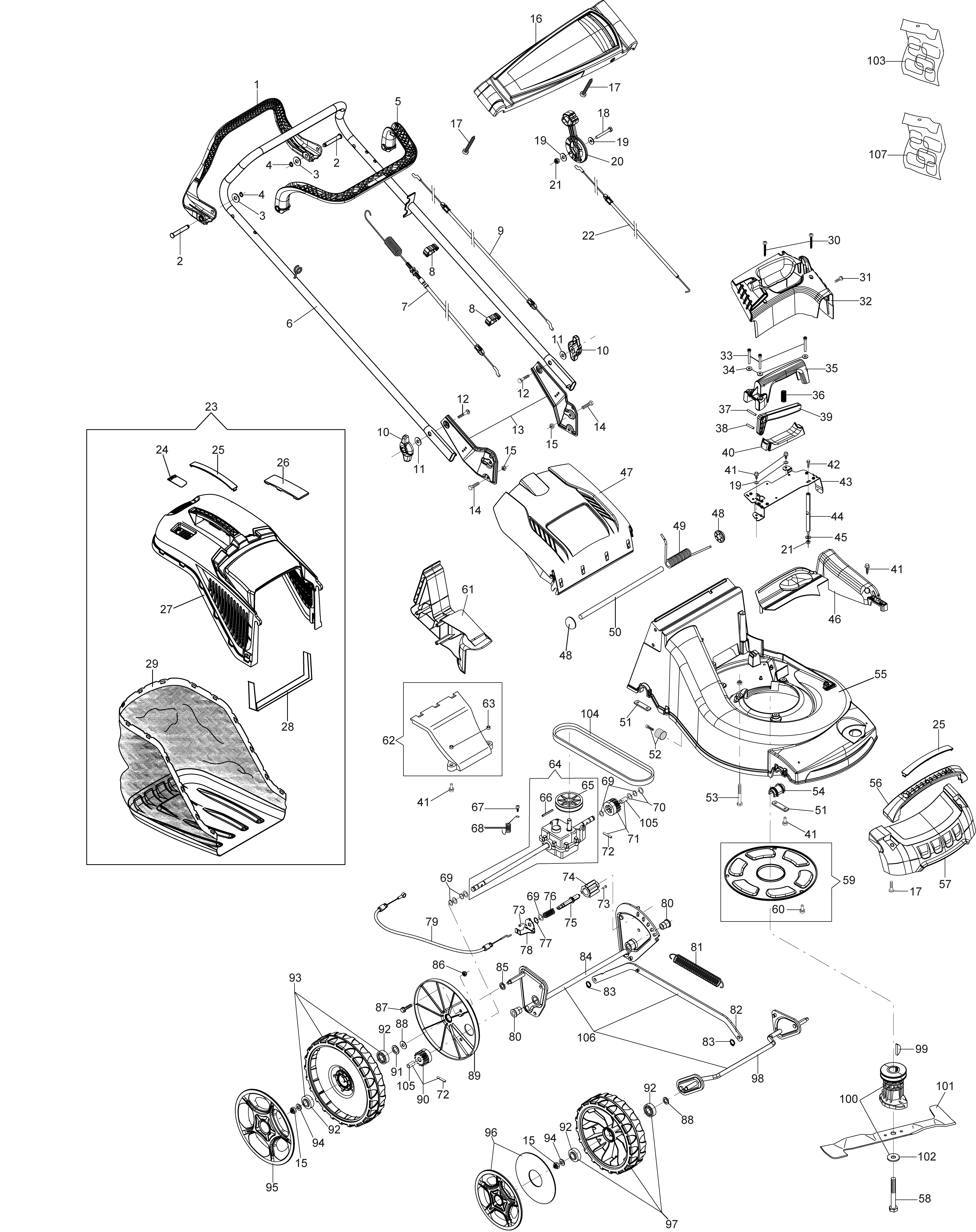

Illustrated parts list
Illustrated parts list

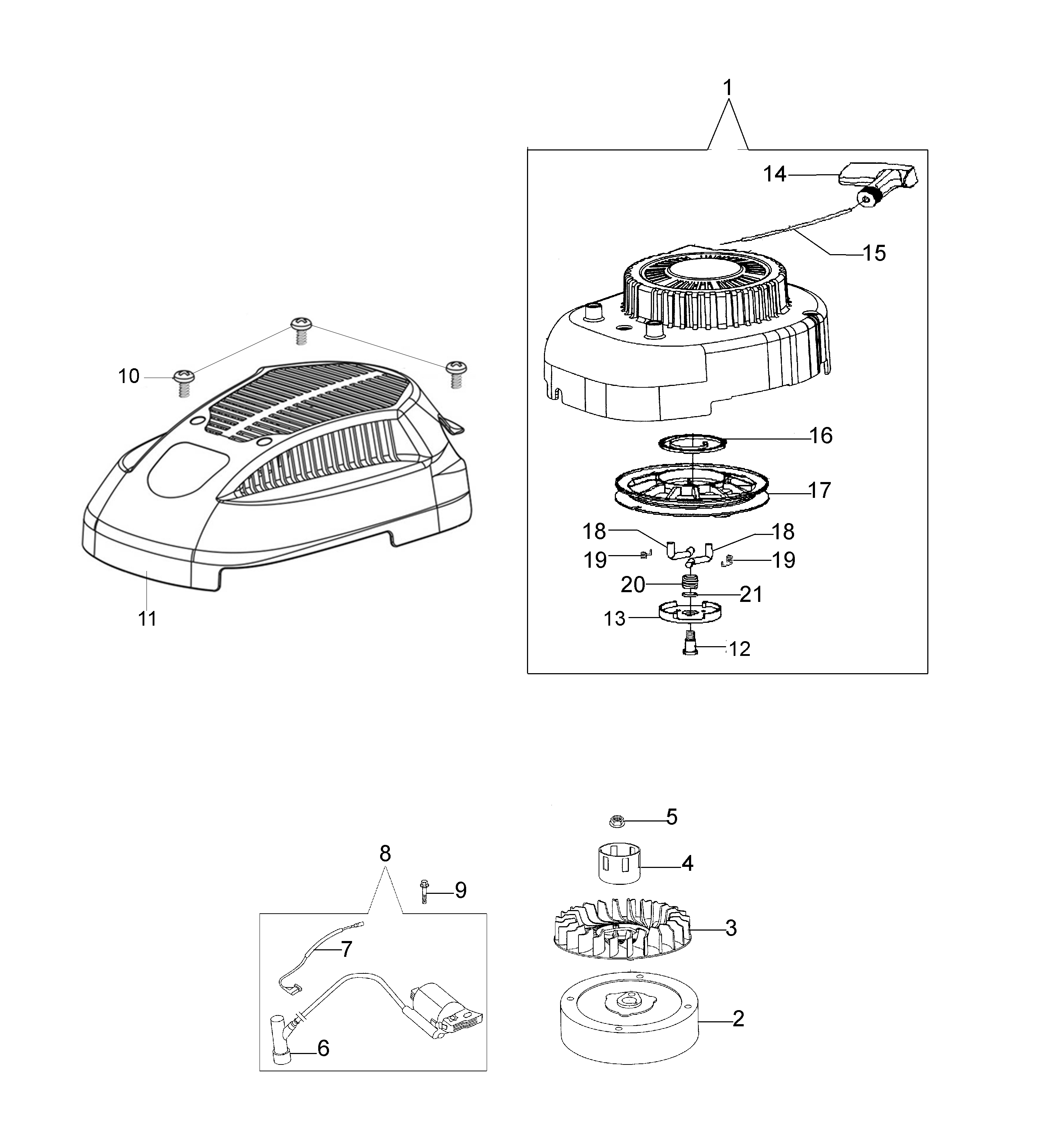

Starter assy and flywheel
Starter assy and flywheel

MAX 53 TK ALLROAD ALUMINIUM (K800)

Air filter and muffler
Air filter and muffler
Carburetor
Carburetor
Control lever
Control lever
Crankcase cover
Crankcase cover
Crankshaft and piston
Crankshaft and piston
Cylinder and crankcase
Cylinder and crankcase
Cylinder head and valve
Cylinder head and valve
Fuel tank and cover
Fuel tank and cover
Illustrated parts list
Illustrated parts list
Starter assy and flywheel
Starter assy and flywheel
