APACHE 92 EVO 4x4 (K2400AVD V-Twin - EURO5) Cat.2022 Parts and Diagrams

Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a APACHE 92 EVO 4x4 (K2400AVD V-Twin - EURO5) Cat.2022.

All parts that fit a APACHE 92 EVO 4x4 (K2400AVD V-Twin - EURO5) Cat.2022

Diagrams for this machine

Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.

Choose your Year/Serial Number

APACHE 92 EVO 4x4 (K2400AVD V-Twin - EURO5) Cat.20

Top

APACHE 92 EVO 4x4 (K2400AVD V-Twin - EURO5) Cat.20

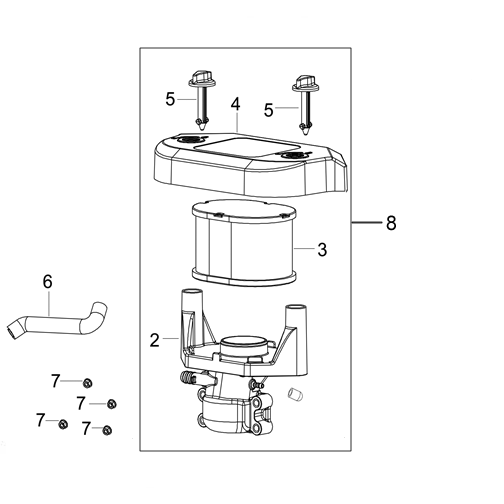

Air filter
Air filter

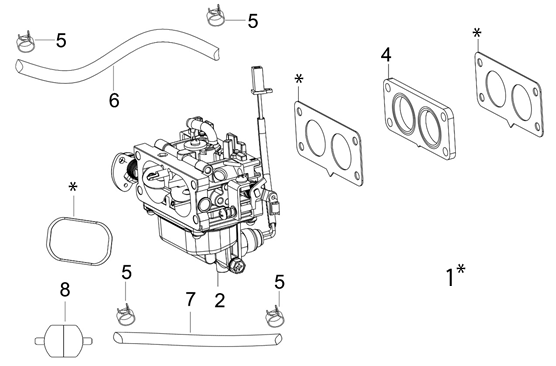

Carburetor
Carburetor

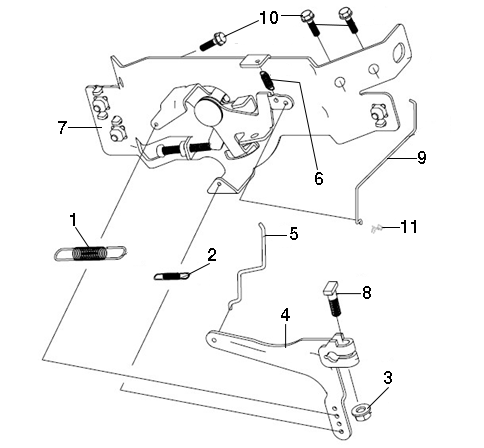

Control lever
Control lever

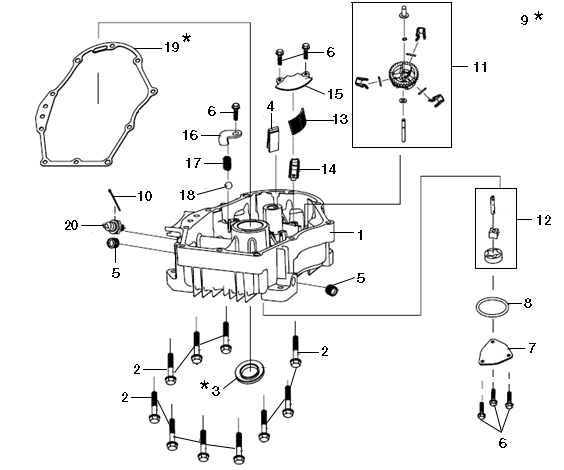

Crankcase cover
Crankcase cover

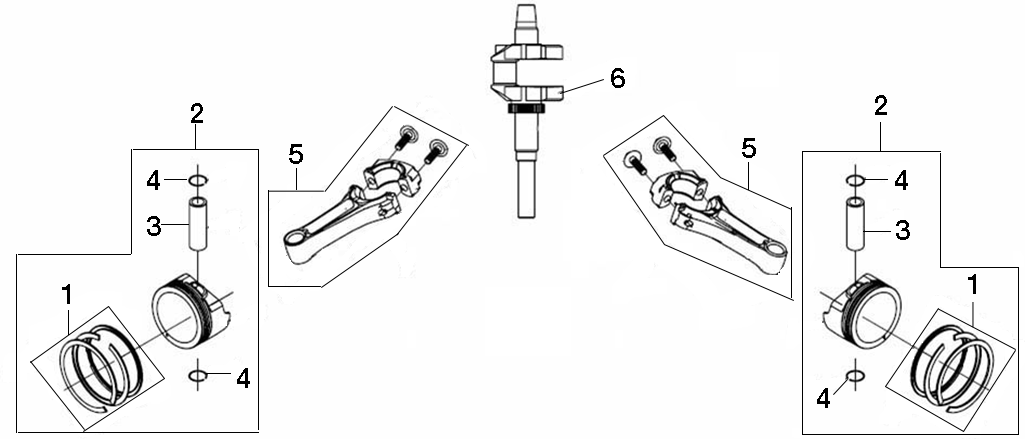

Crankshaft and piston
Crankshaft and piston

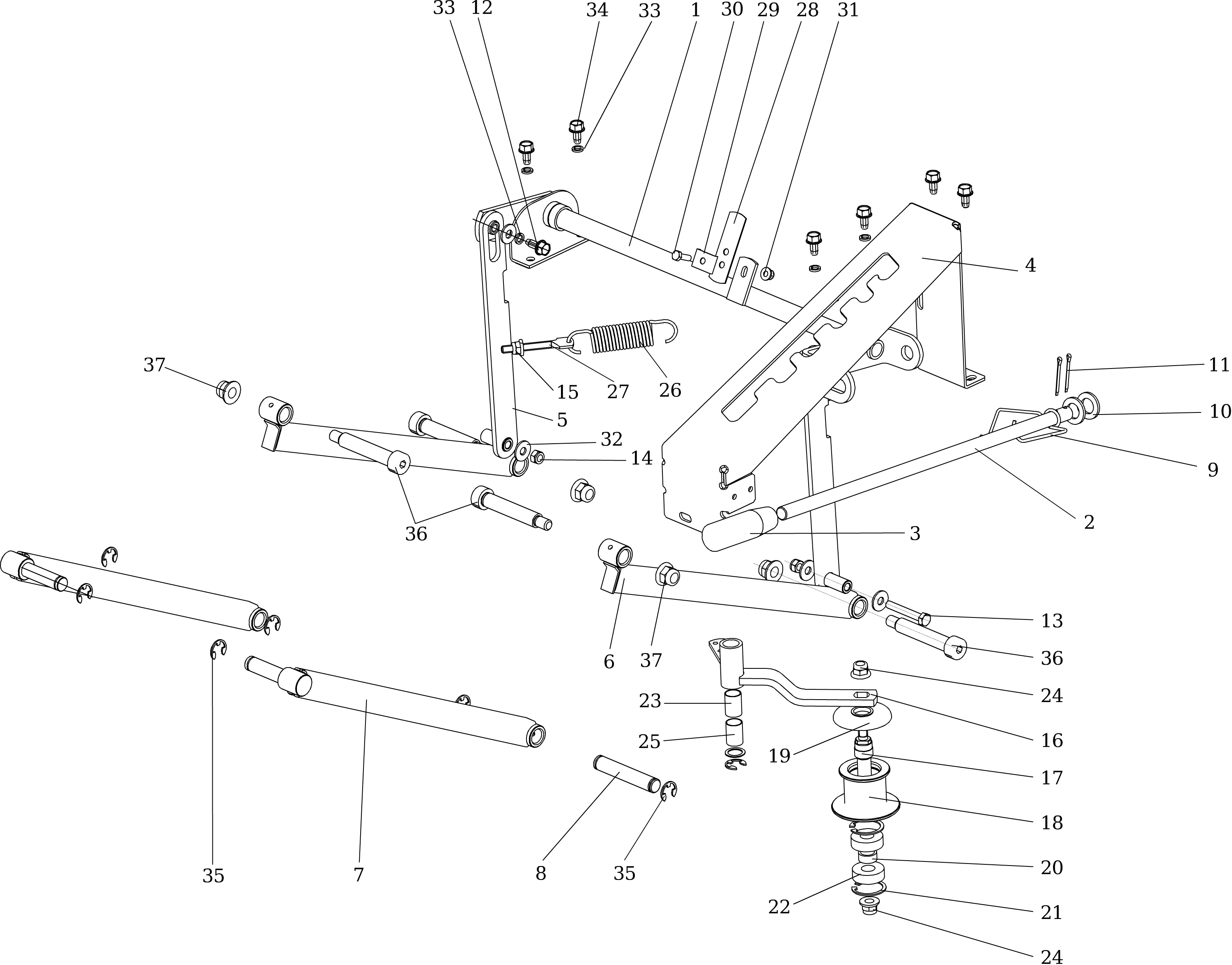

Cutting plate lifting
Cutting plate lifting
No Image Available
Cylinder and crankcase

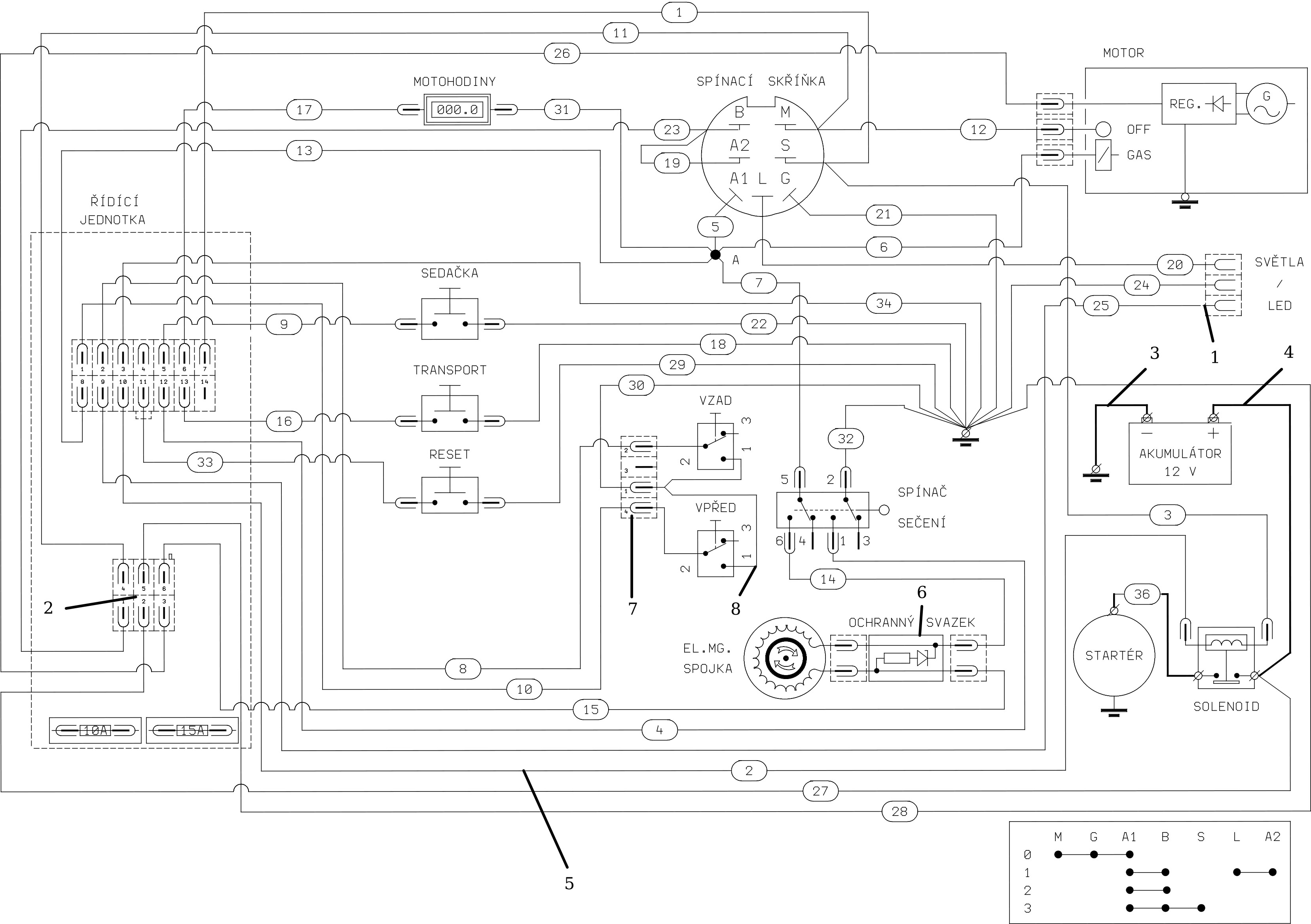

Electric diagram
Electric diagram

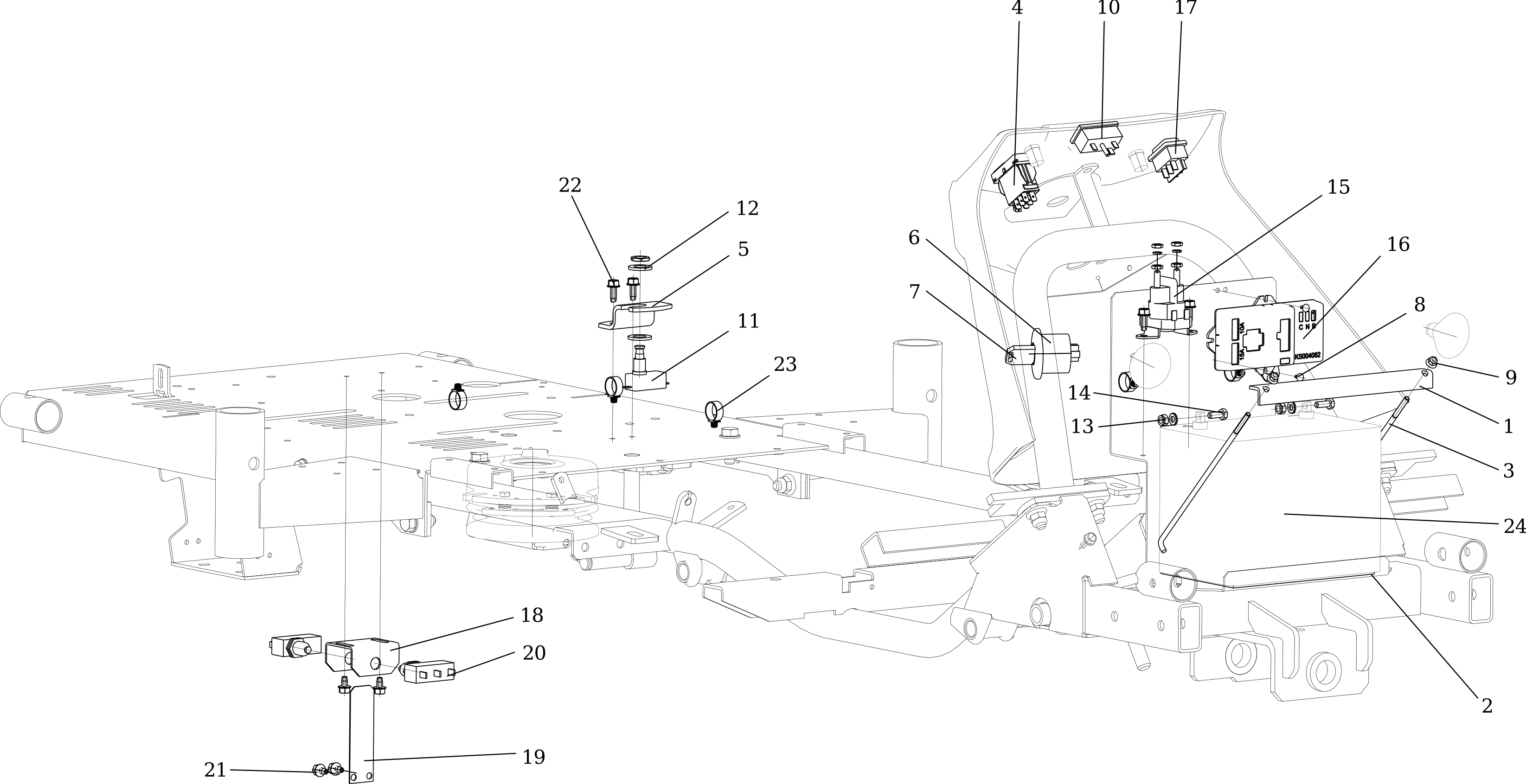

Electrical parts
Electrical parts

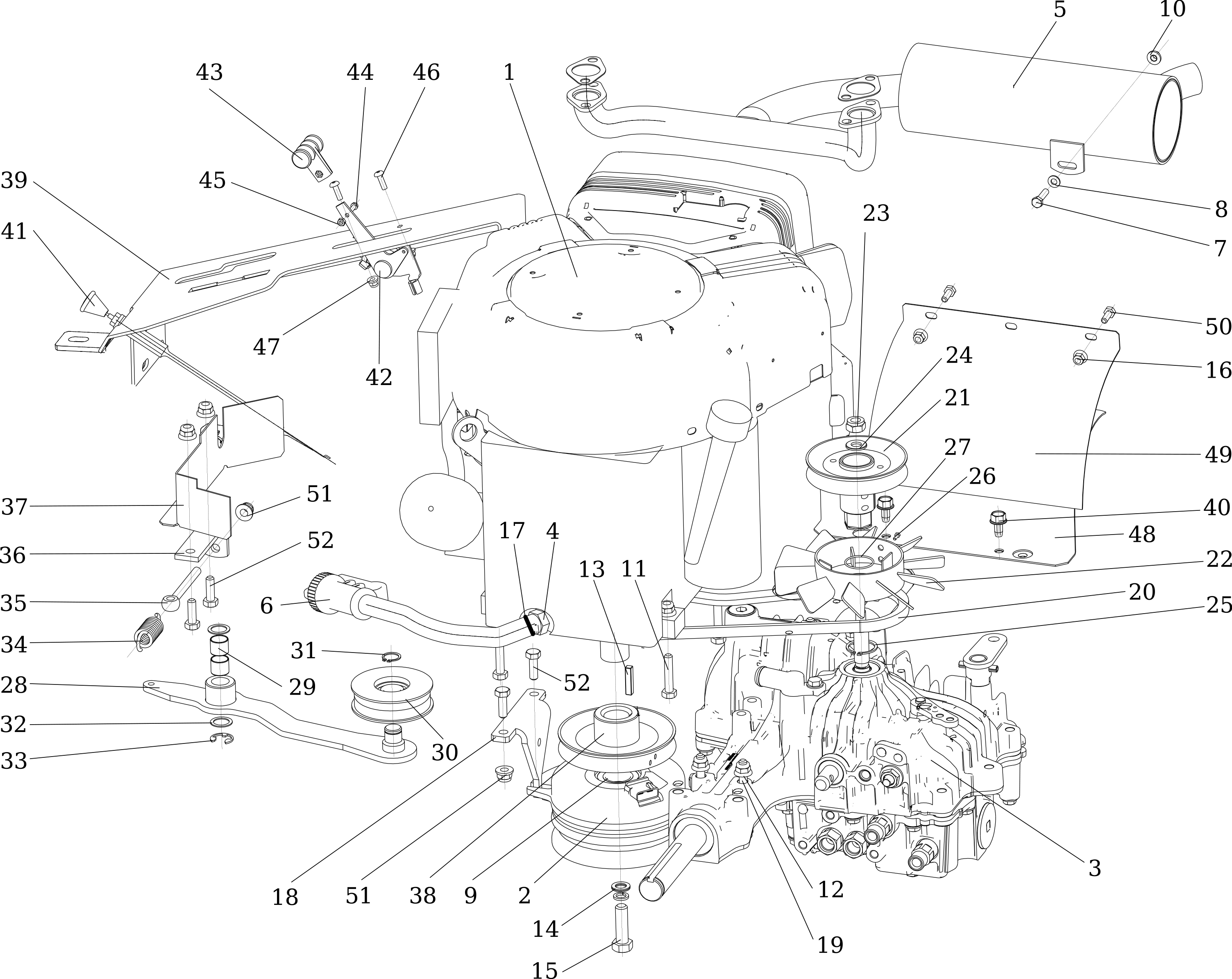

Engine
Engine

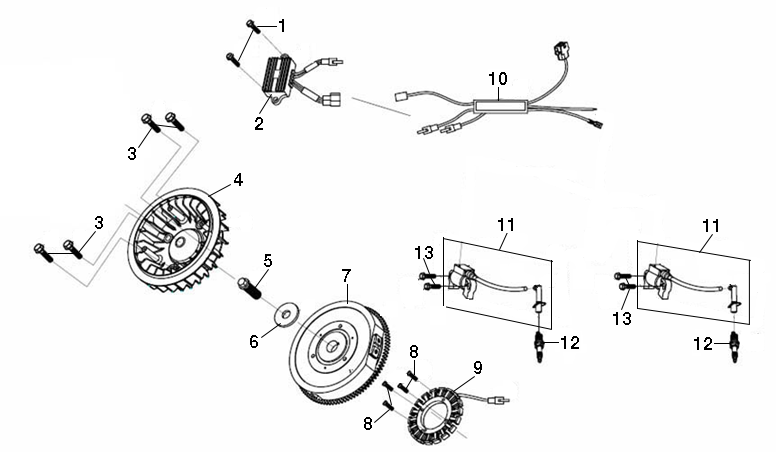

Flywheel and coil
Flywheel and coil

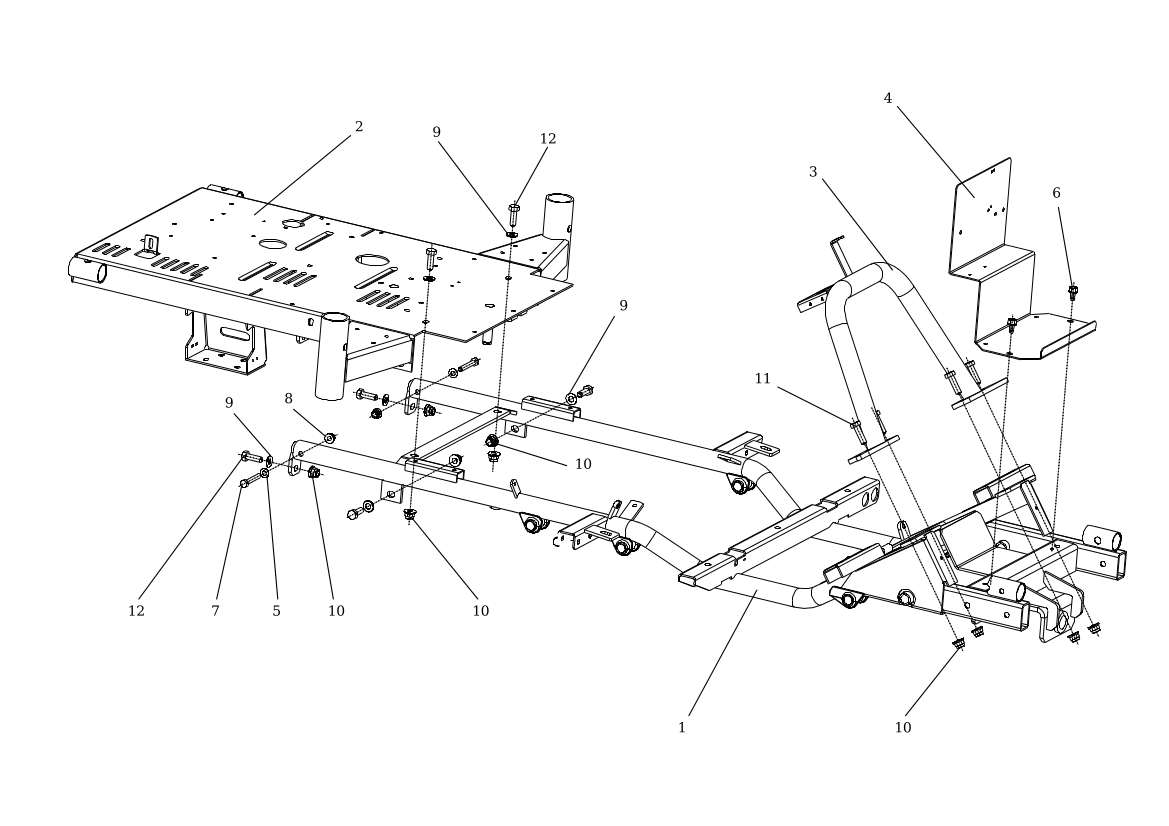

Frame
Frame

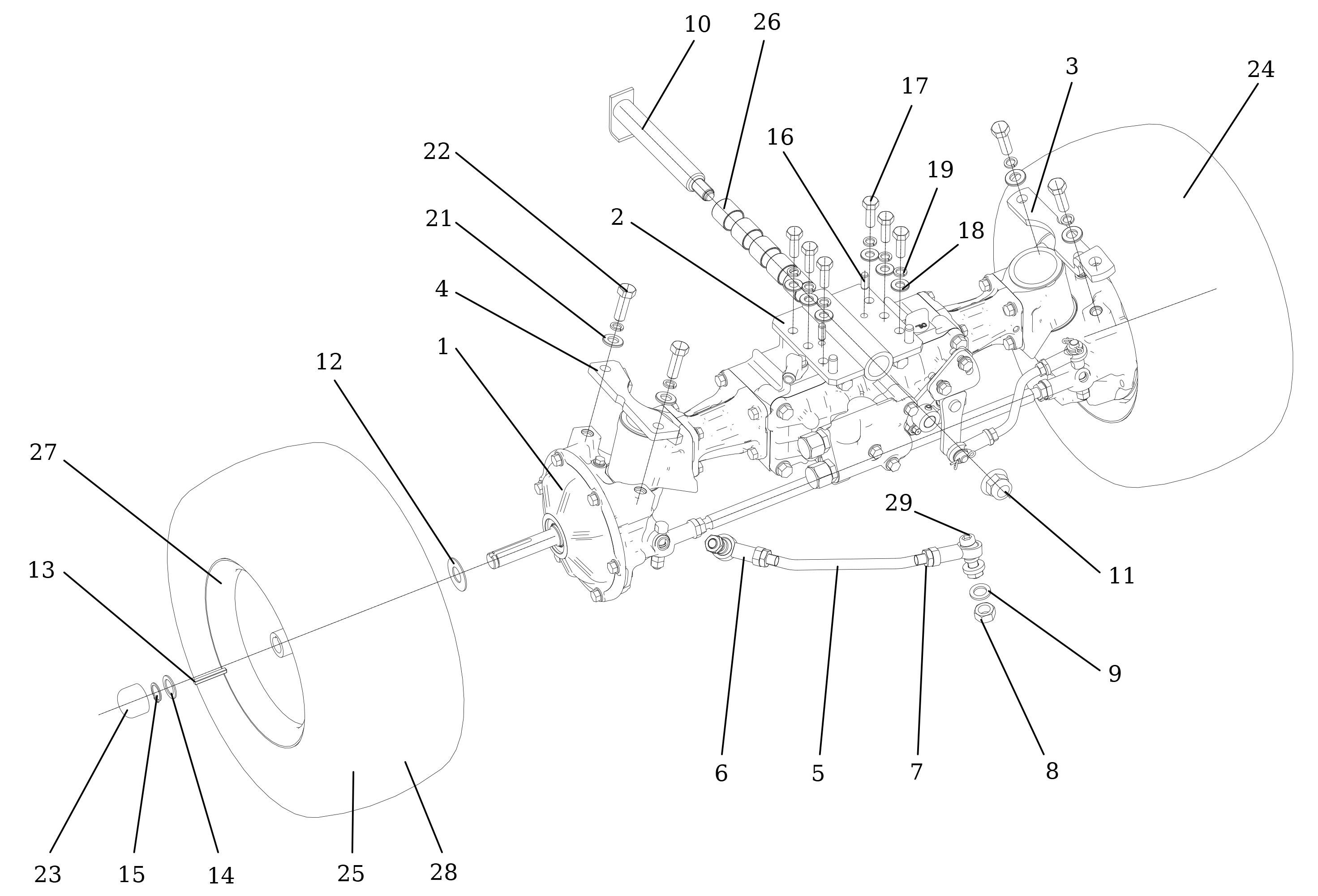

Front axle
Front axle

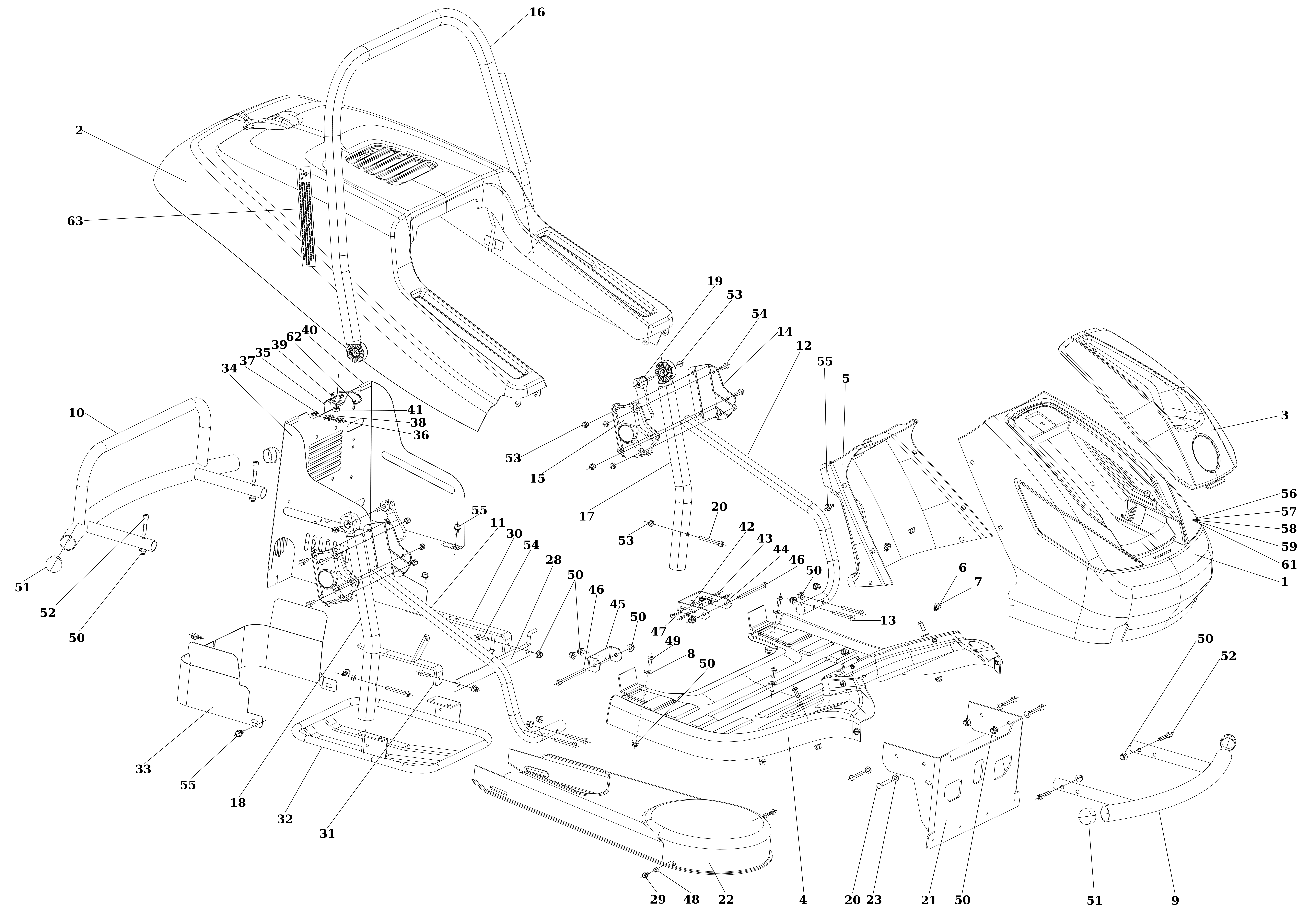

2)
2)
No Image Available
Hydraulic distribution

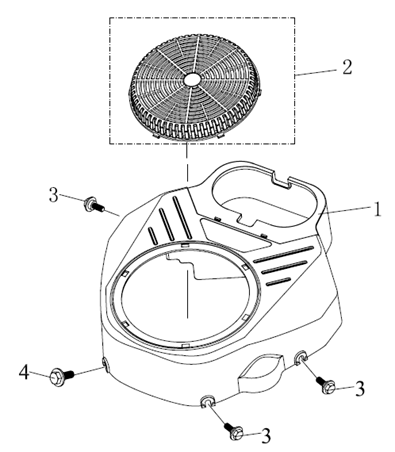

Ignition system
Ignition system

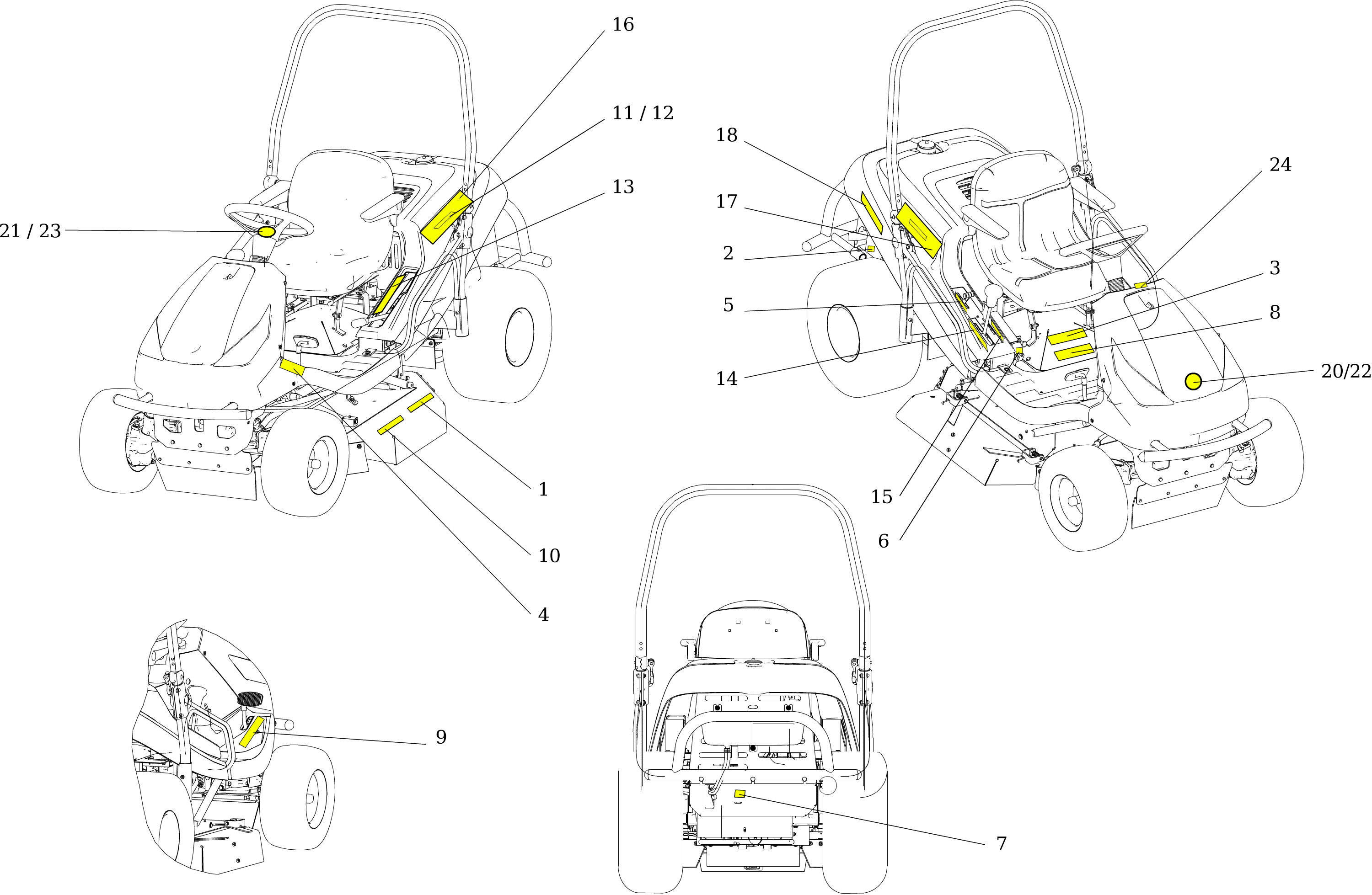

Labels
Labels

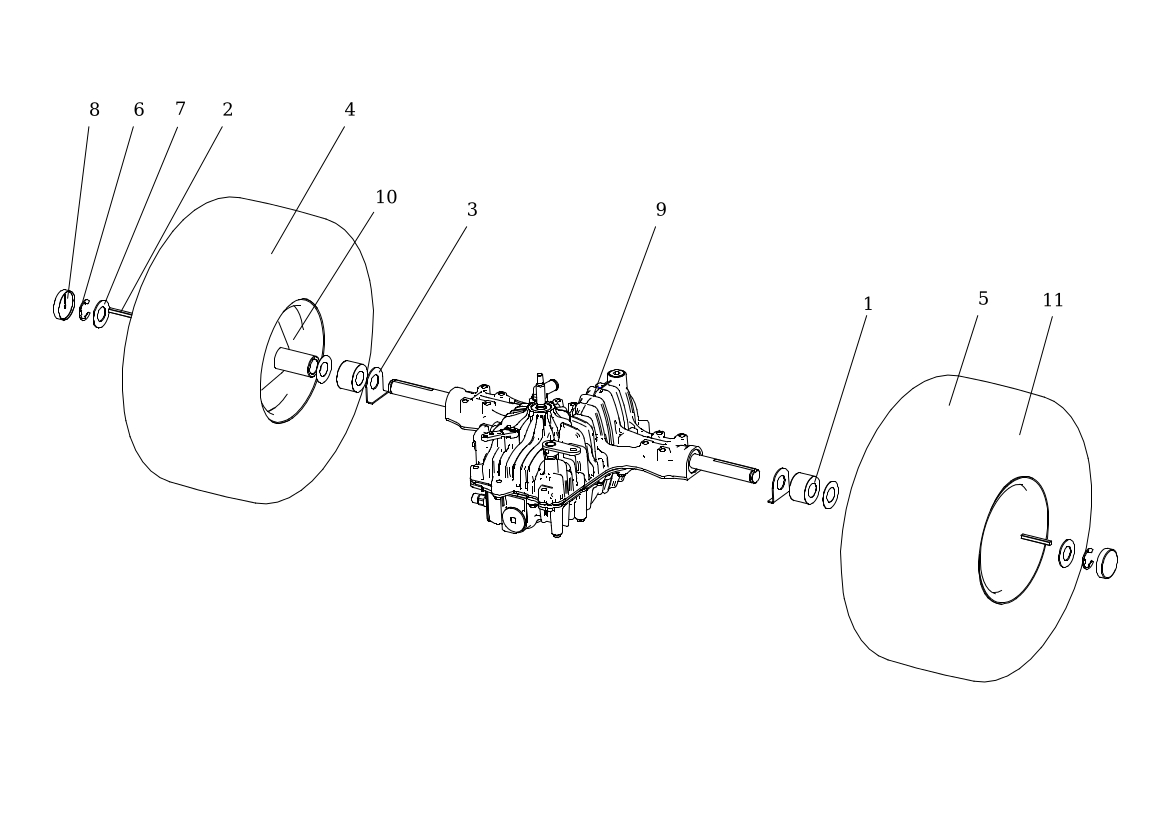

Rear axle
Rear axle

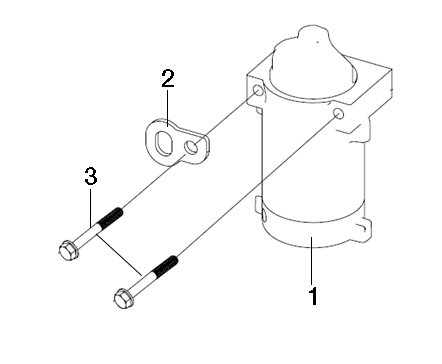

Starter lever
Starter lever

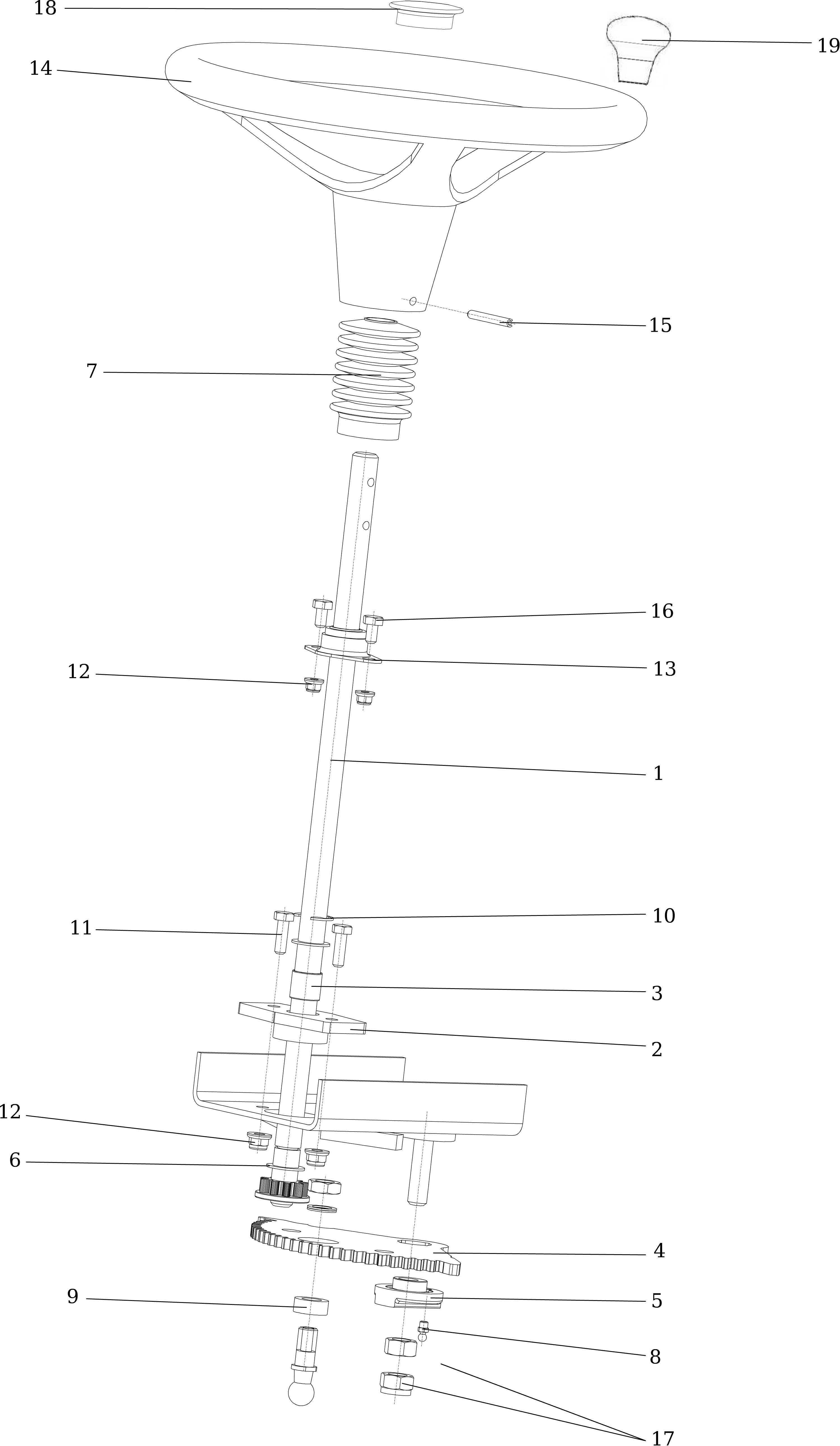

Steering arm
Steering arm

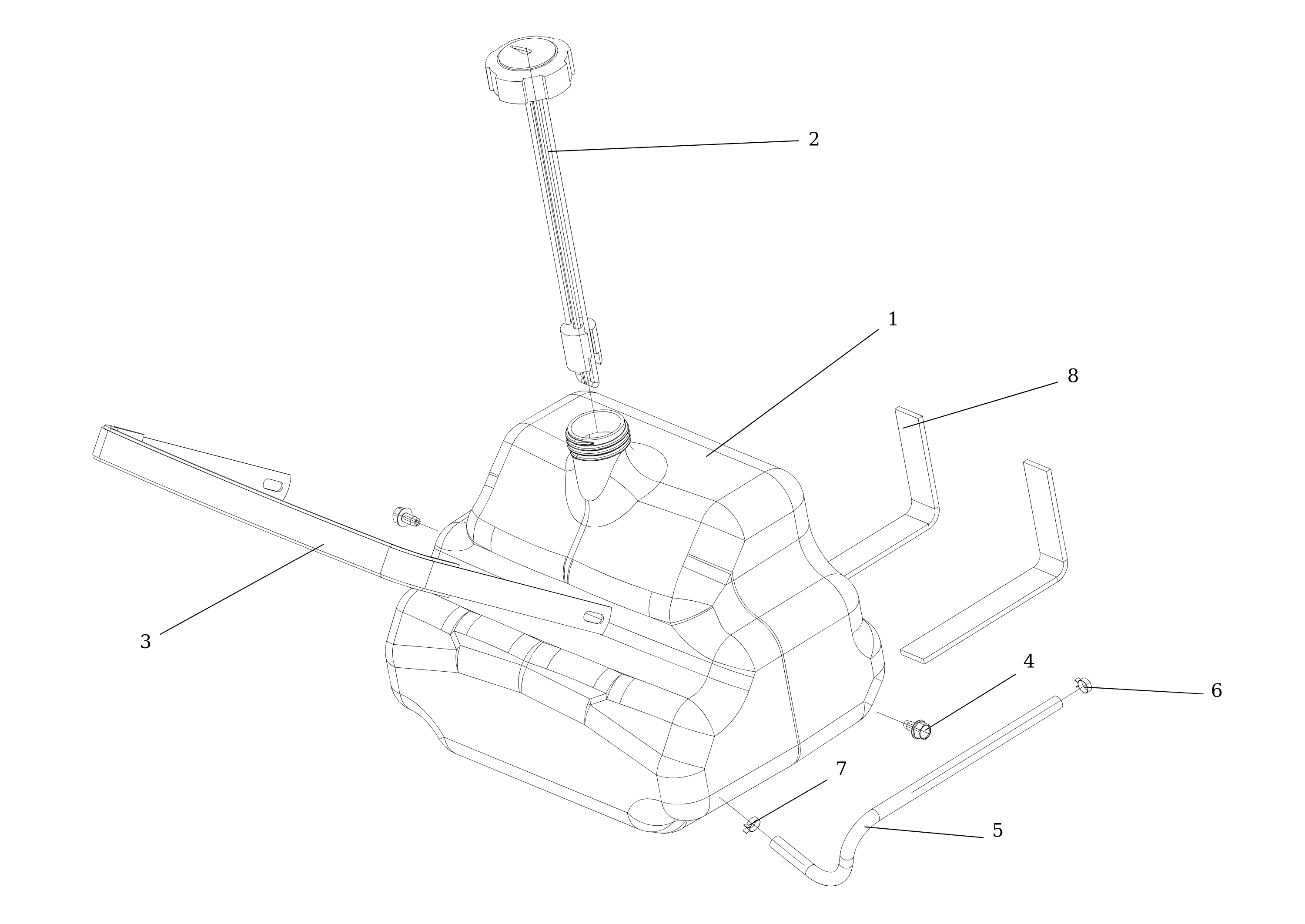

Tank
Tank

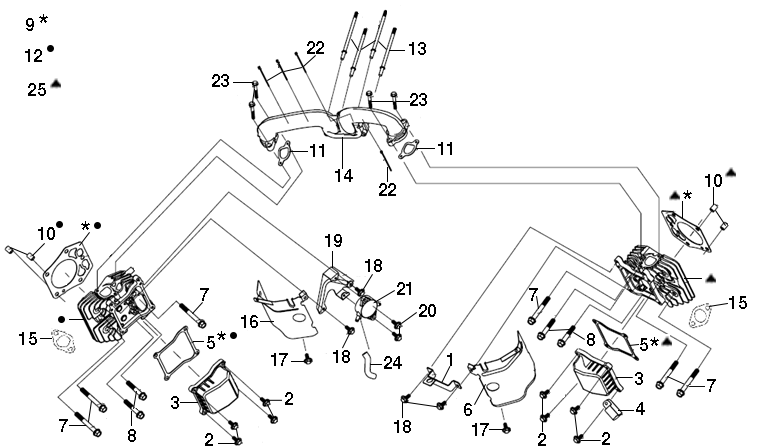

Top cover
Top cover

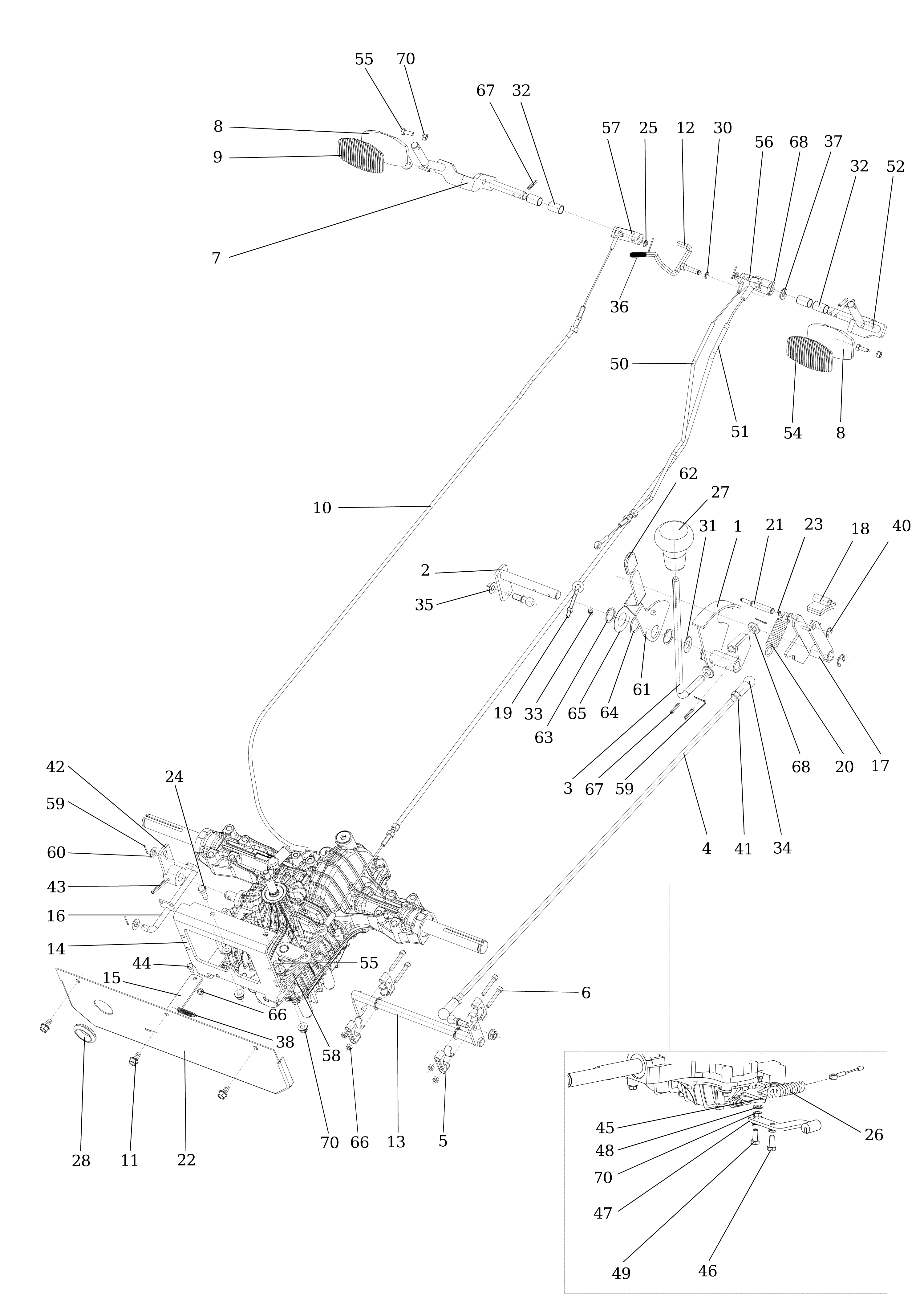

Transmission
Transmission

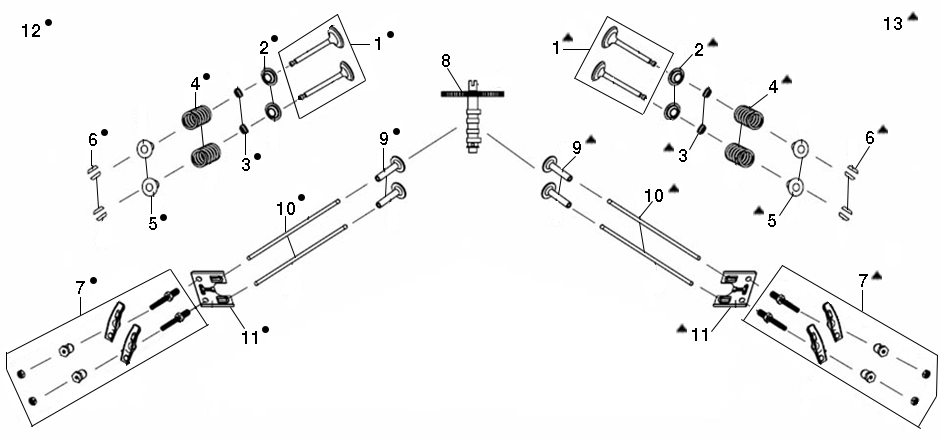

Valves
Valves
