Harrier 48 (493) Blade Brake Clutch Autodrive Parts and Diagrams

Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Harrier 48 (493) Blade Brake Clutch Autodrive.

All parts that fit a Harrier 48 (493) Blade Brake Clutch Autodrive

Diagrams for this machine

Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.

Choose your Year/Serial Number

491E270000001-491E270999999

493H315000001 and up

493H314000001 - 493H314999999

493H313000001 - 493H313999999

493F310000001 onwards

493F280000001-493F29099999

493D260000001-493D260999999

493J400000000 AND UP

Top

491E270000001-491E270999999

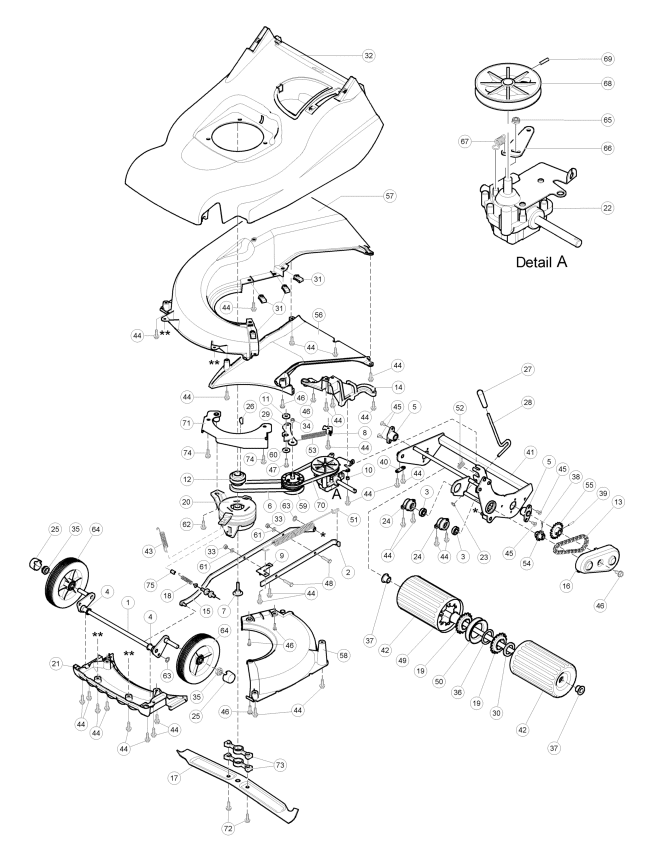

Lower Mainframe

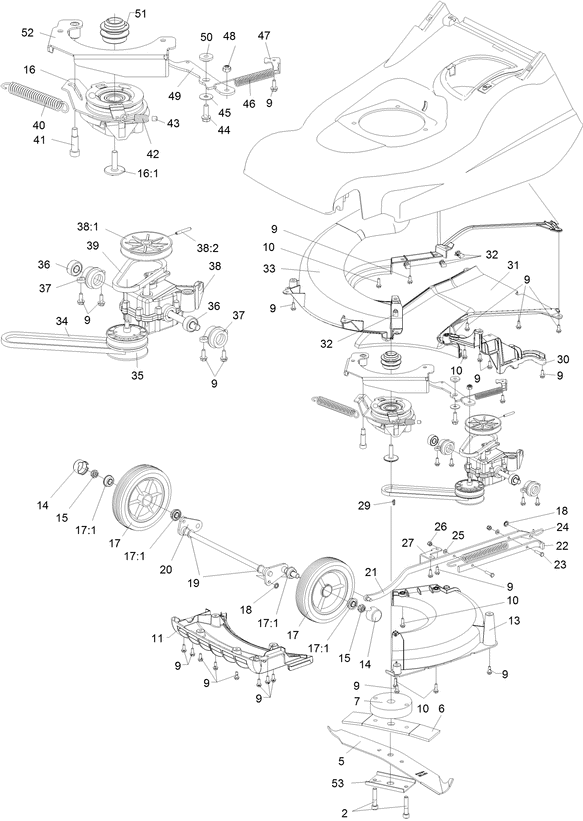

Lower Mainframe

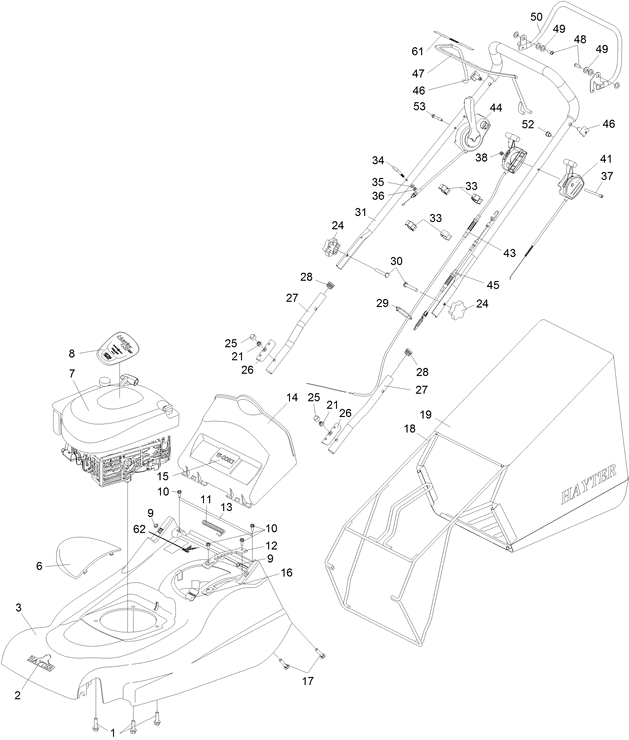

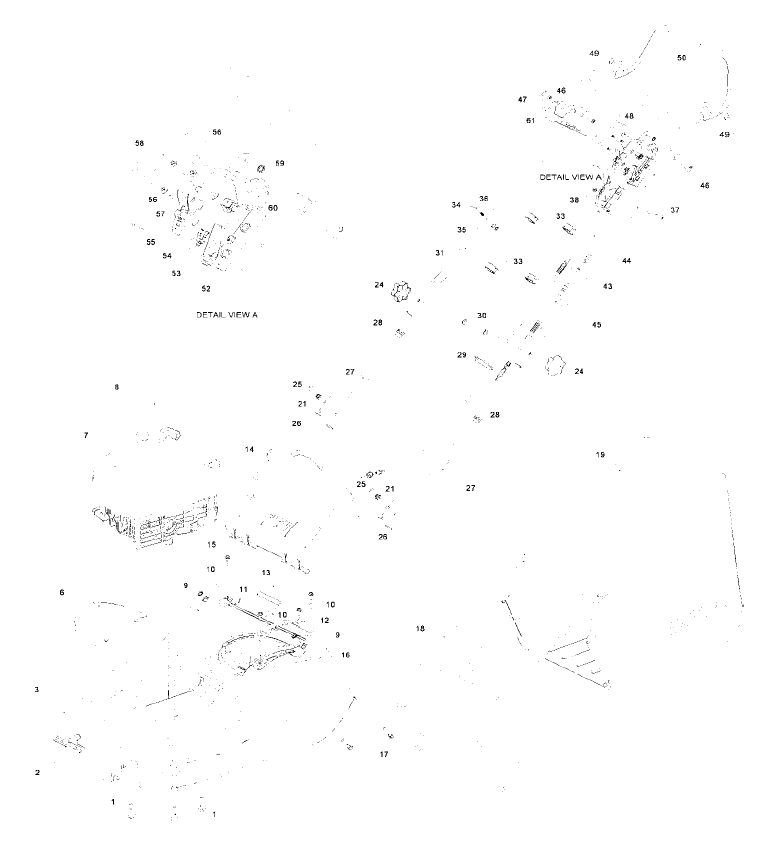

Upper Mainframe
Upper Mainframe

493H315000001 and up

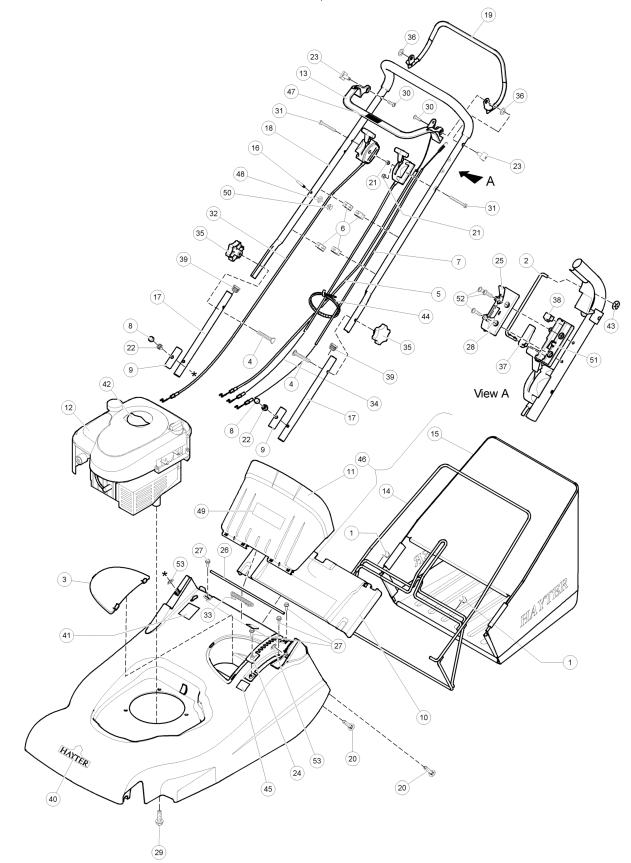

Upper Mainframe
Upper Mainframe

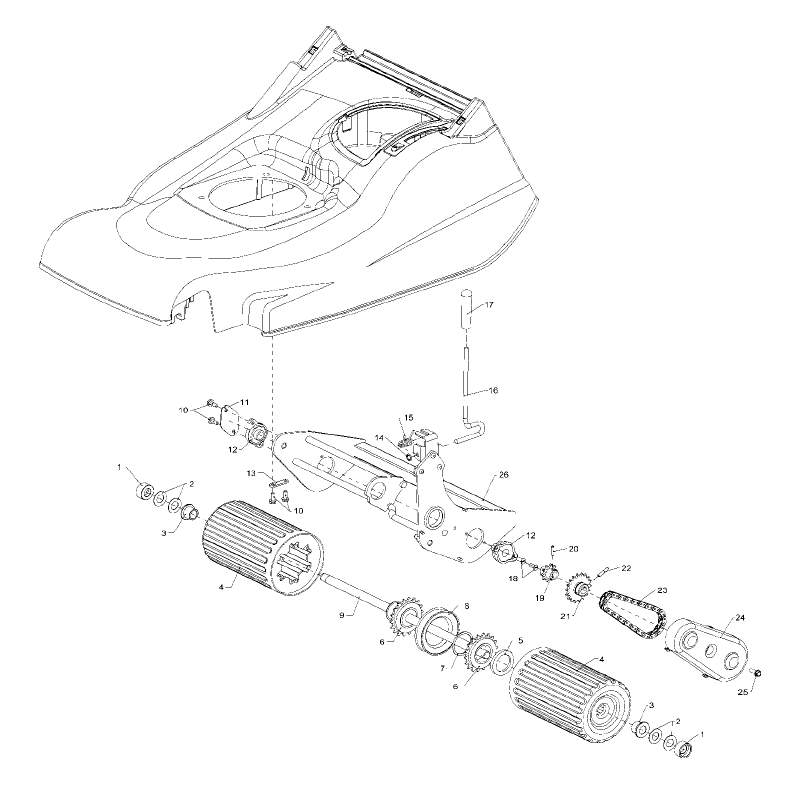

Rear Roller Assy
Rear Roller Assy

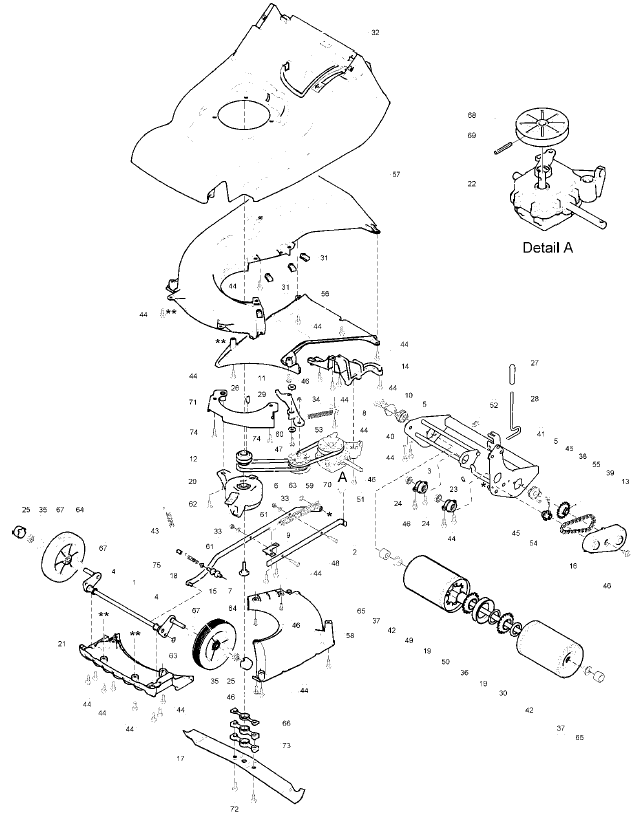

Lower Mainframe
Lower Mainframe

493H314000001 - 493H314999999

Lower Mainframe
Lower Mainframe

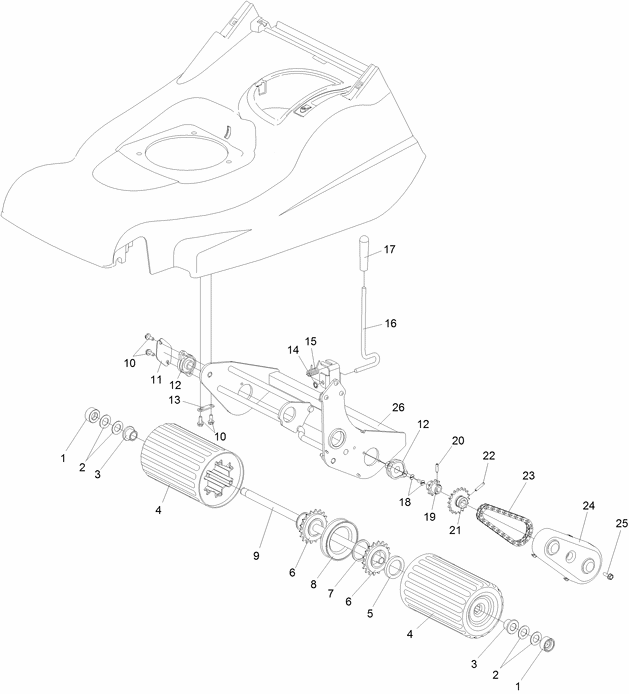

Lower Mainframe 1
Lower Mainframe 1

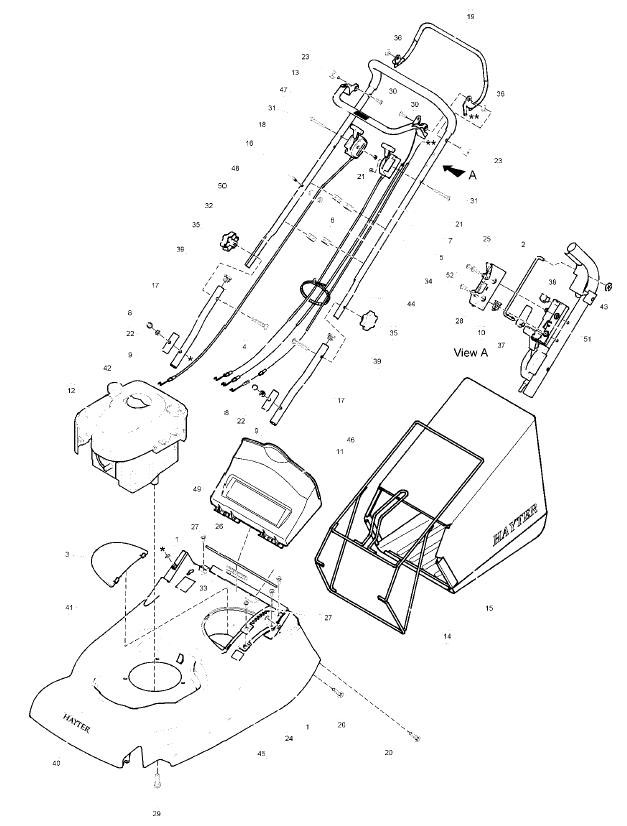

Upper Mainframe
Upper Mainframe

493H313000001 - 493H313999999

Lower Mainframe 1
Lower Mainframe 1
Lower Mainframe
Lower Mainframe
Upper Mainframe
Upper Mainframe

493F310000001 onwards

Lower Mainframe
Lower Mainframe
Rear Roller Assy
Rear Roller Assy
Upper Mainframe
Upper Mainframe

493F280000001-493F29099999

Lower Mainframe
Lower Mainframe
Upper Mainframe
Upper Mainframe

493D260000001-493D260999999

Lower Mainframe
Lower Mainframe
Upper Mainframe
Upper Mainframe

493J400000000 AND UP

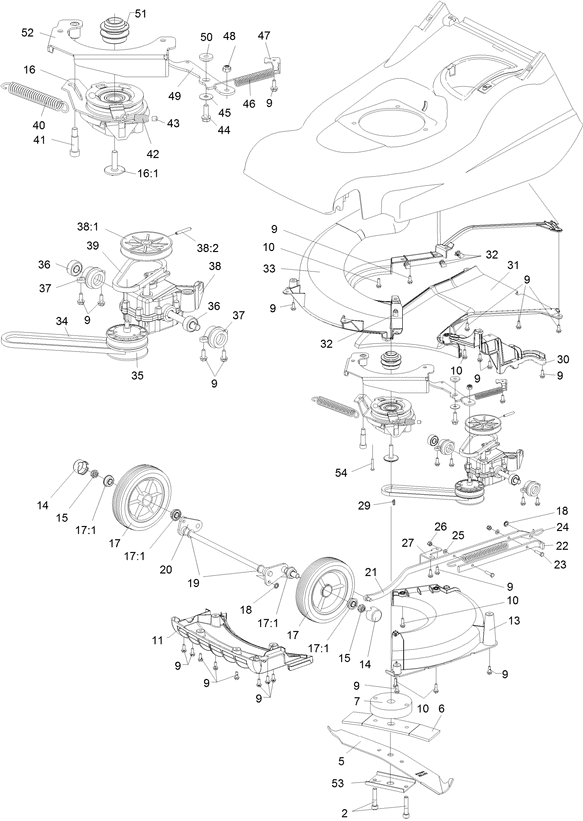

Lower Frame
Lower Frame

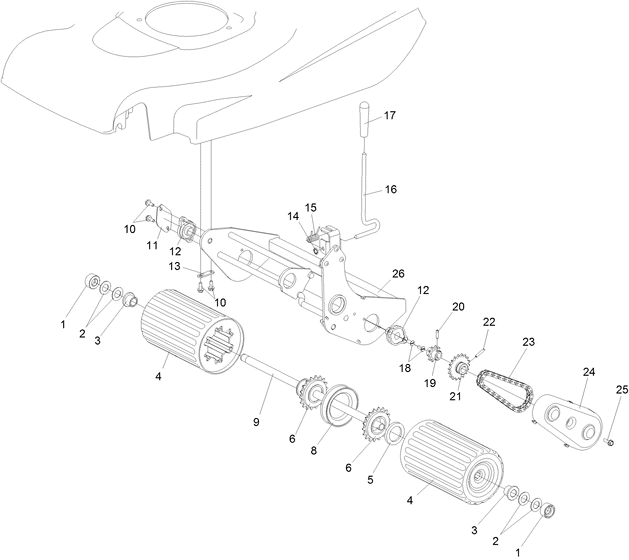

Rear Roller Mainframe
Rear Roller Mainframe

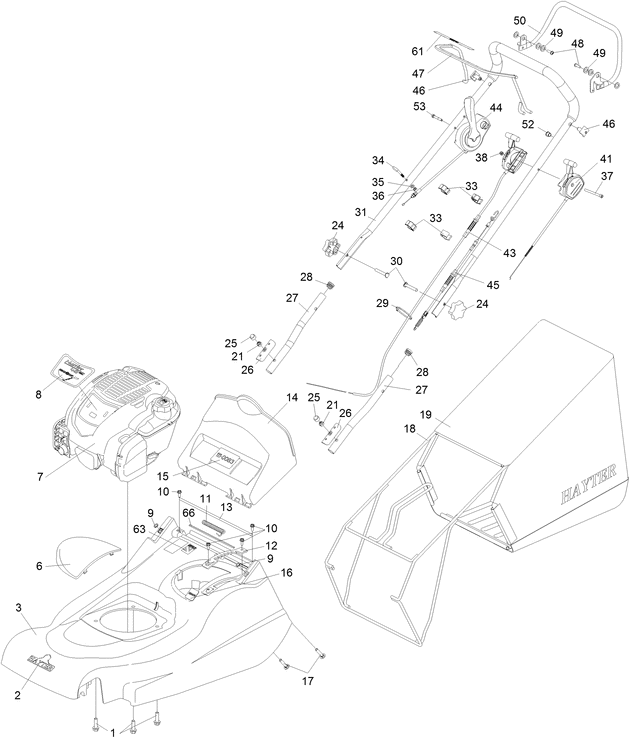

Upper Mainframe
Upper Mainframe
