195 (K800 H - SN TA32) Parts and Diagrams

Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a 195 (K800 H - SN TA32).

All parts that fit a 195 (K800 H - SN TA32)

Diagrams for this machine

Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.

Choose your Year/Serial Number

195 (K800 H - SN TA32)

Top

195 (K800 H - SN TA32)

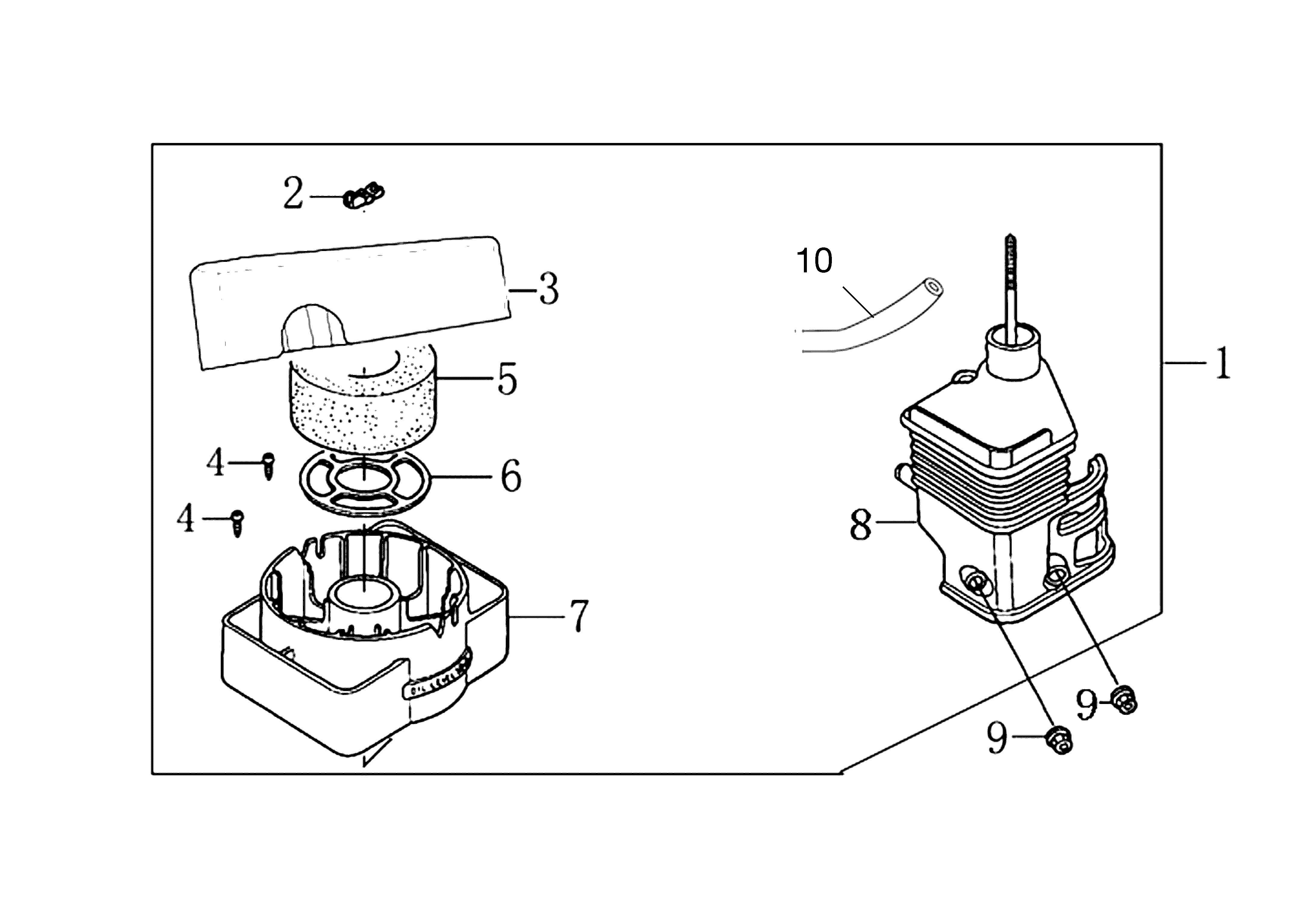

Air filter

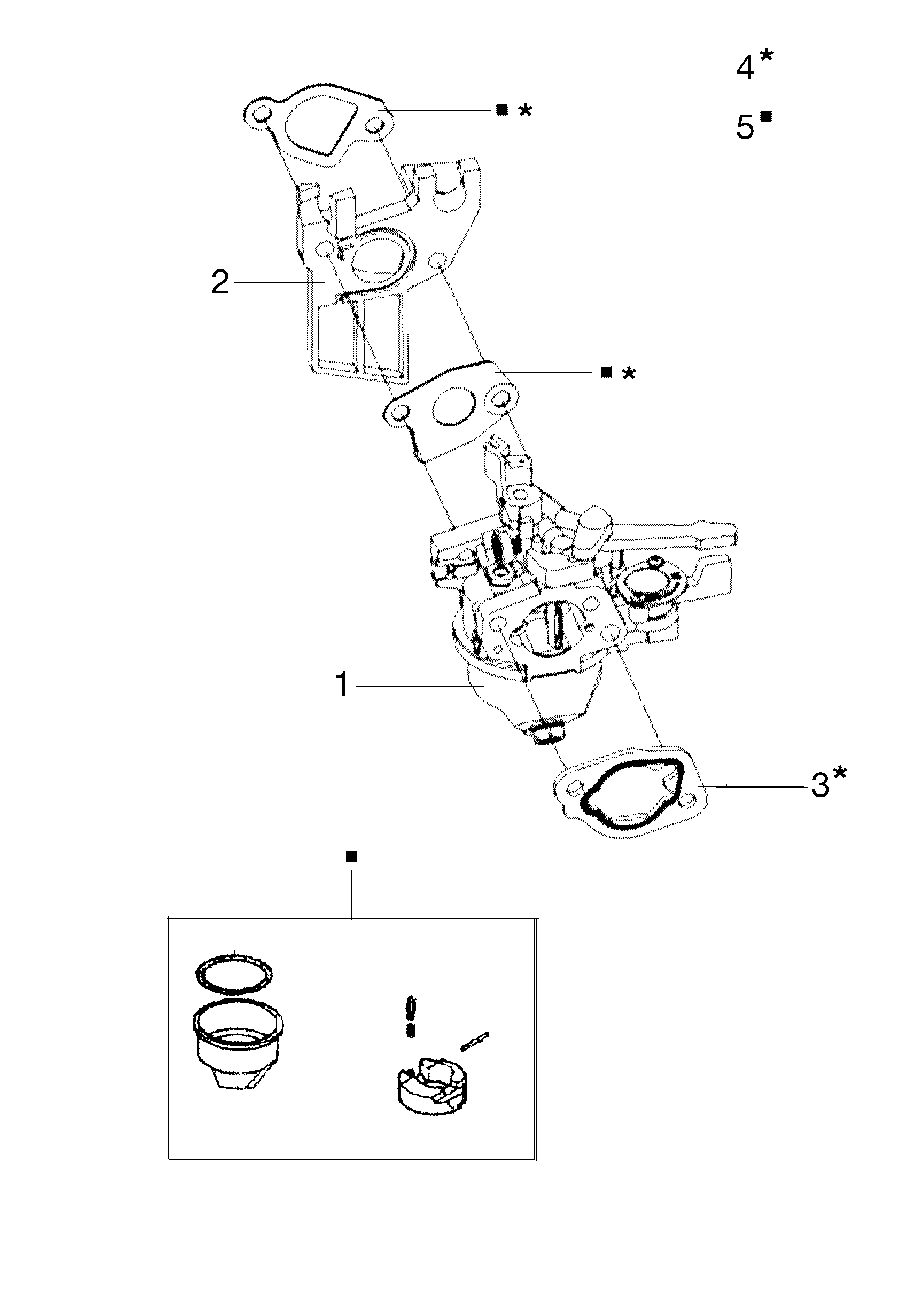

Carburetor

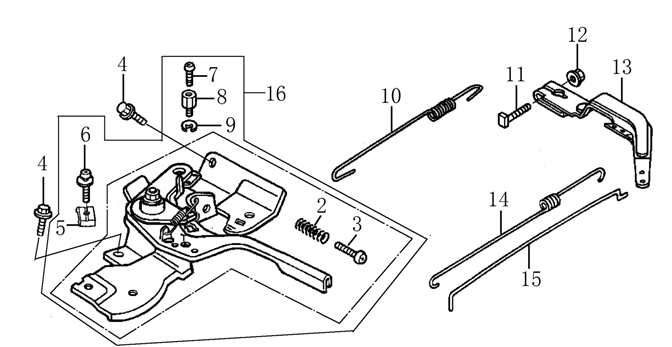

Control lever

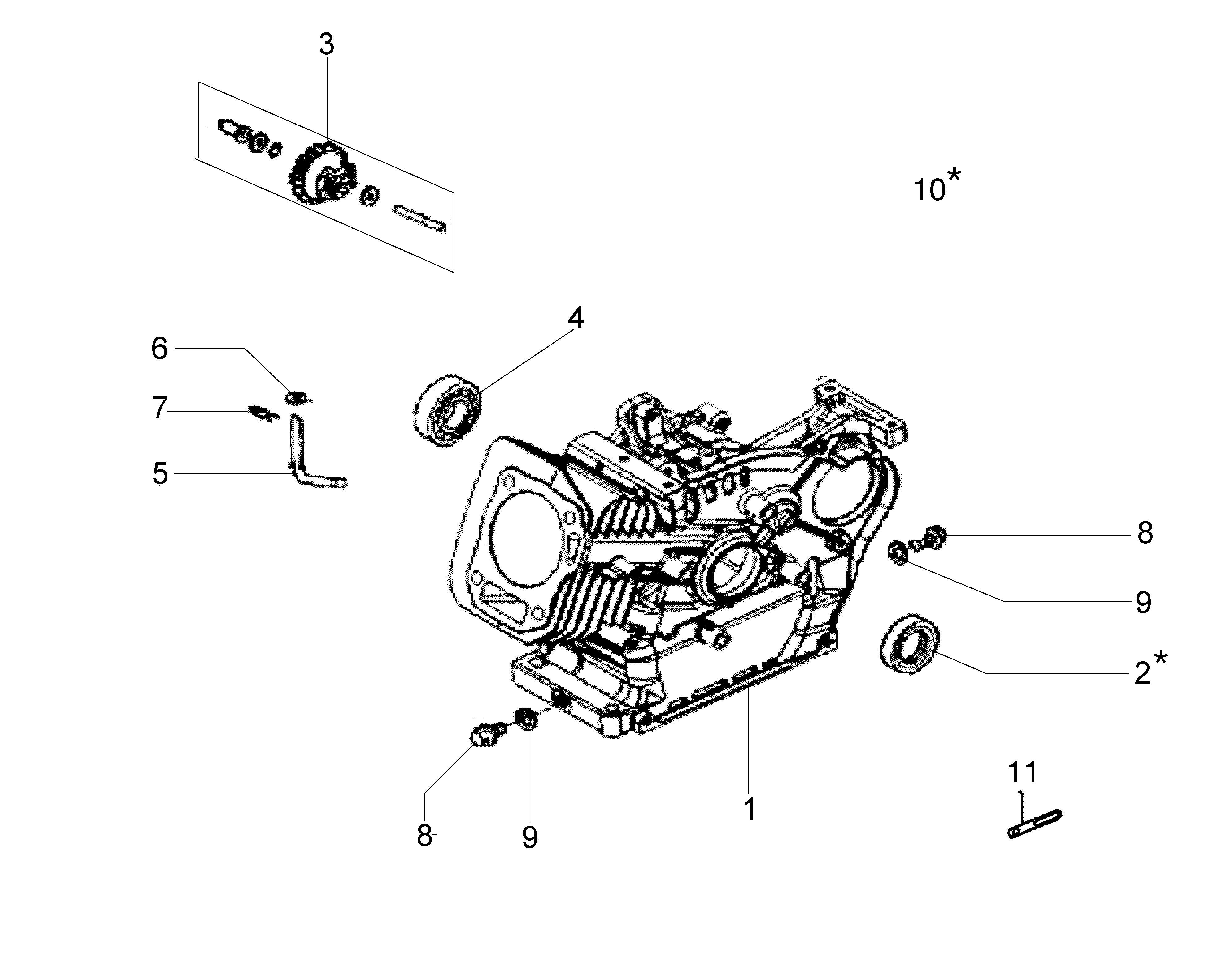

Crankcase assy

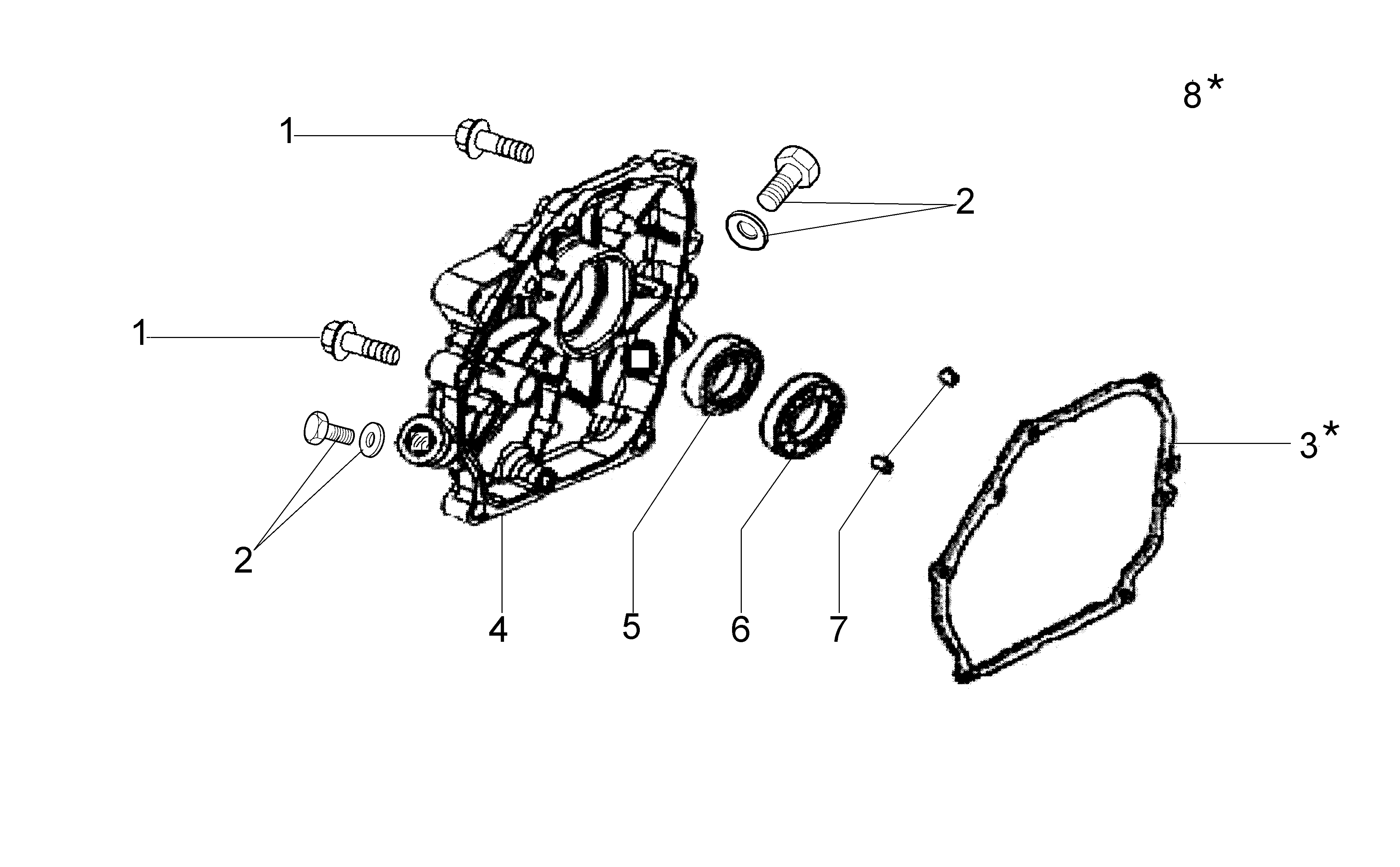

Crankcase cover

Crankcase cover

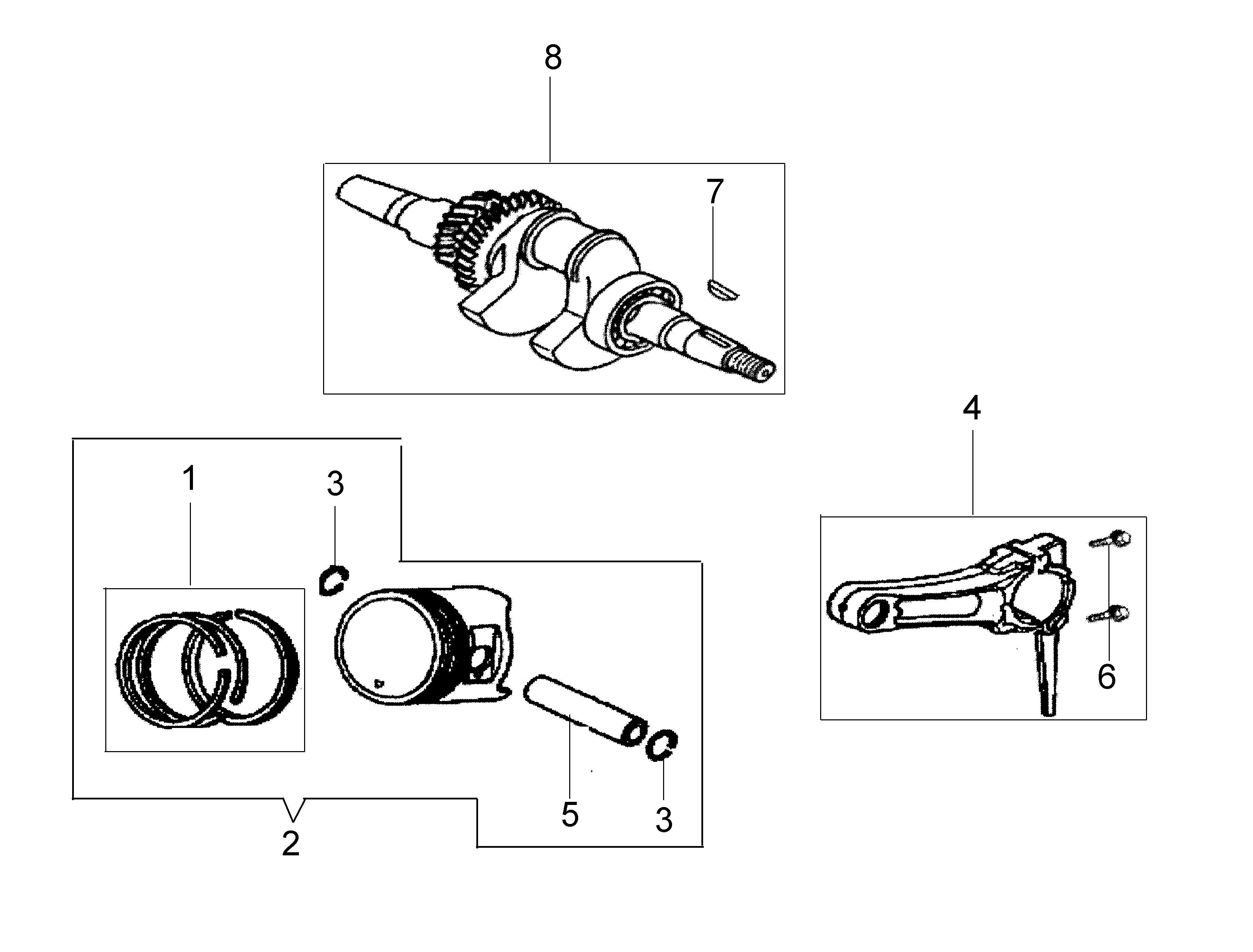

Crankshaft and piston

Crankshaft and piston

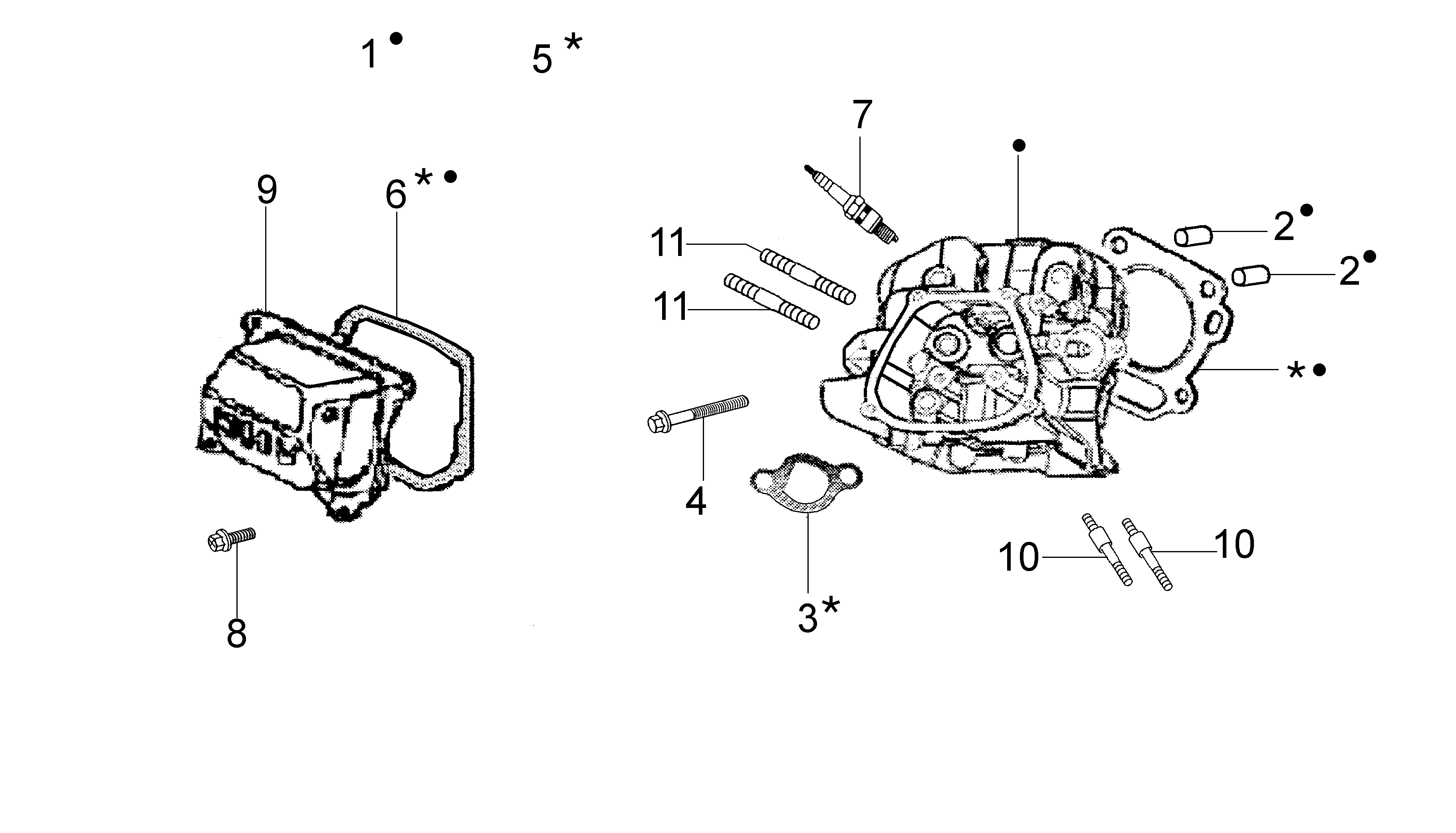

Cylinder head

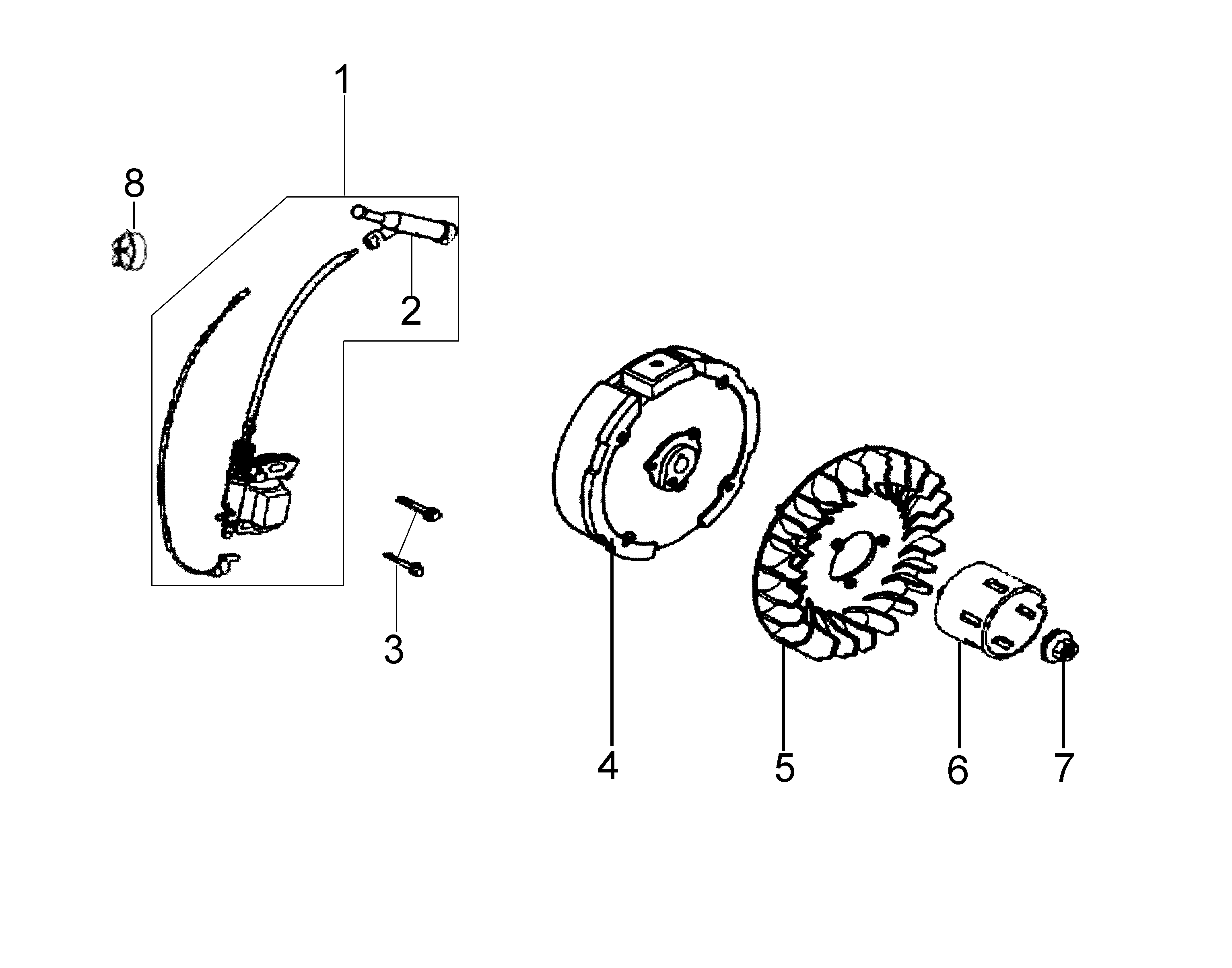

Flywheel and coil

Flywheel and coil

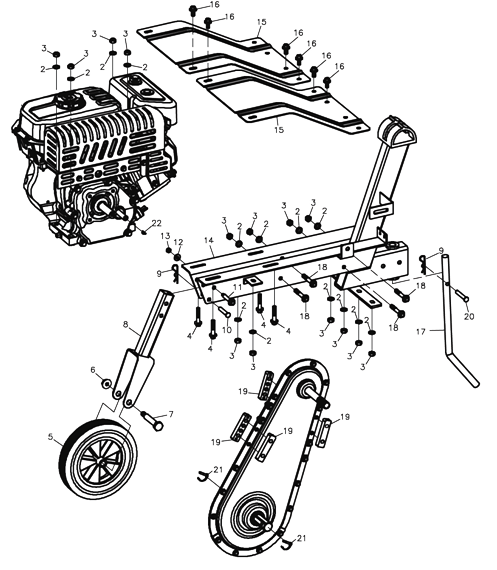

Frame

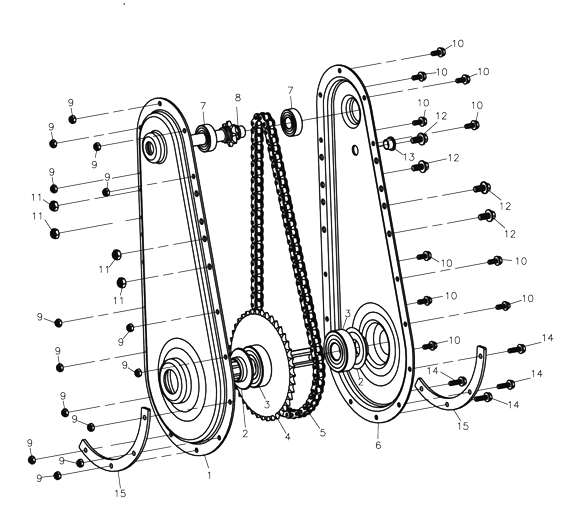

Gears

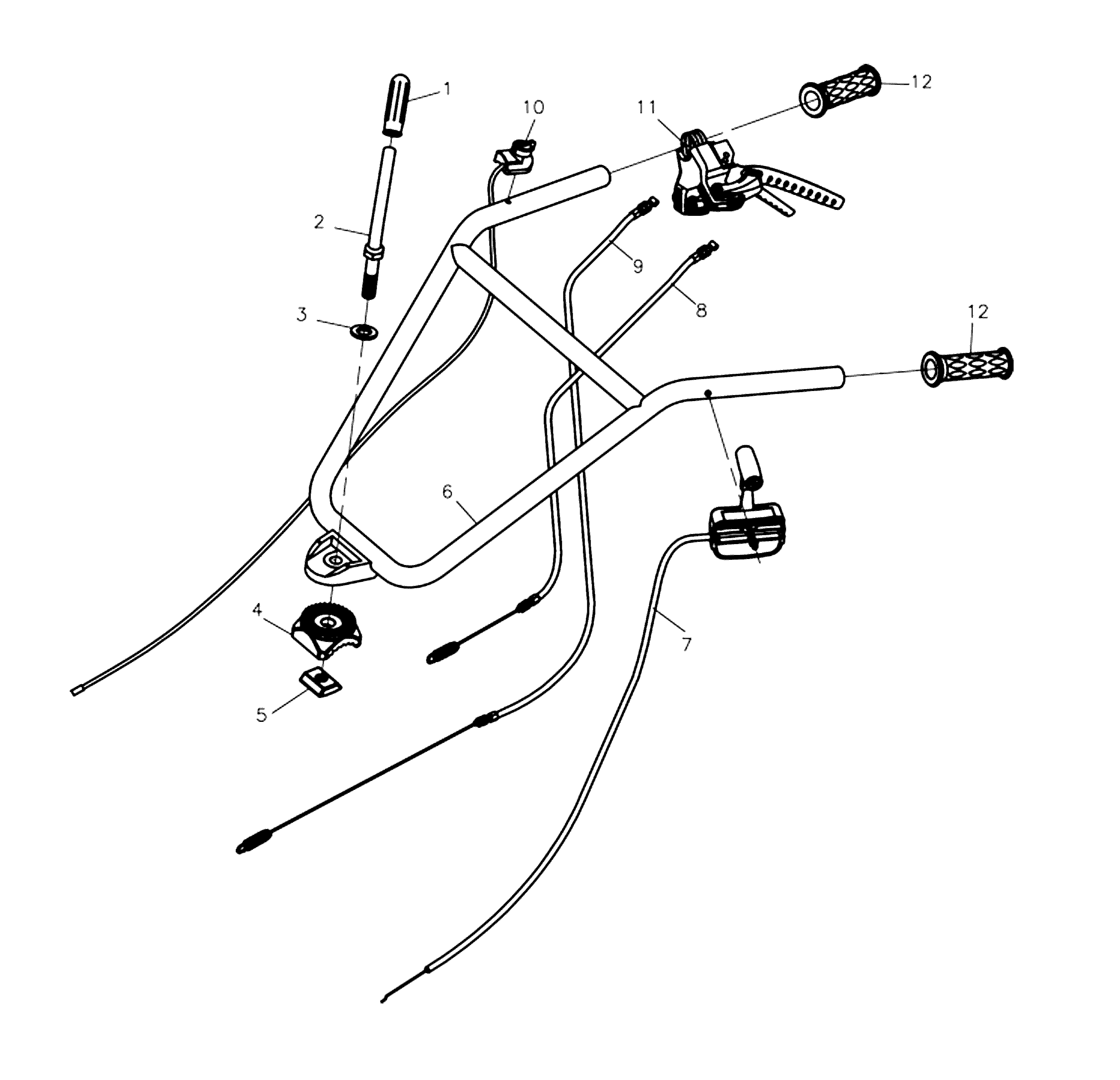

Handlebar

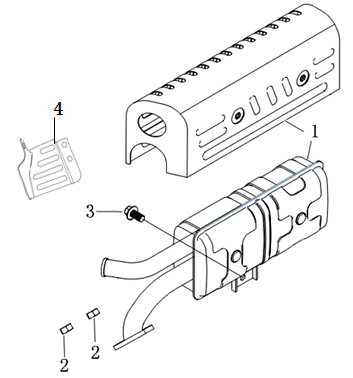

Muffler

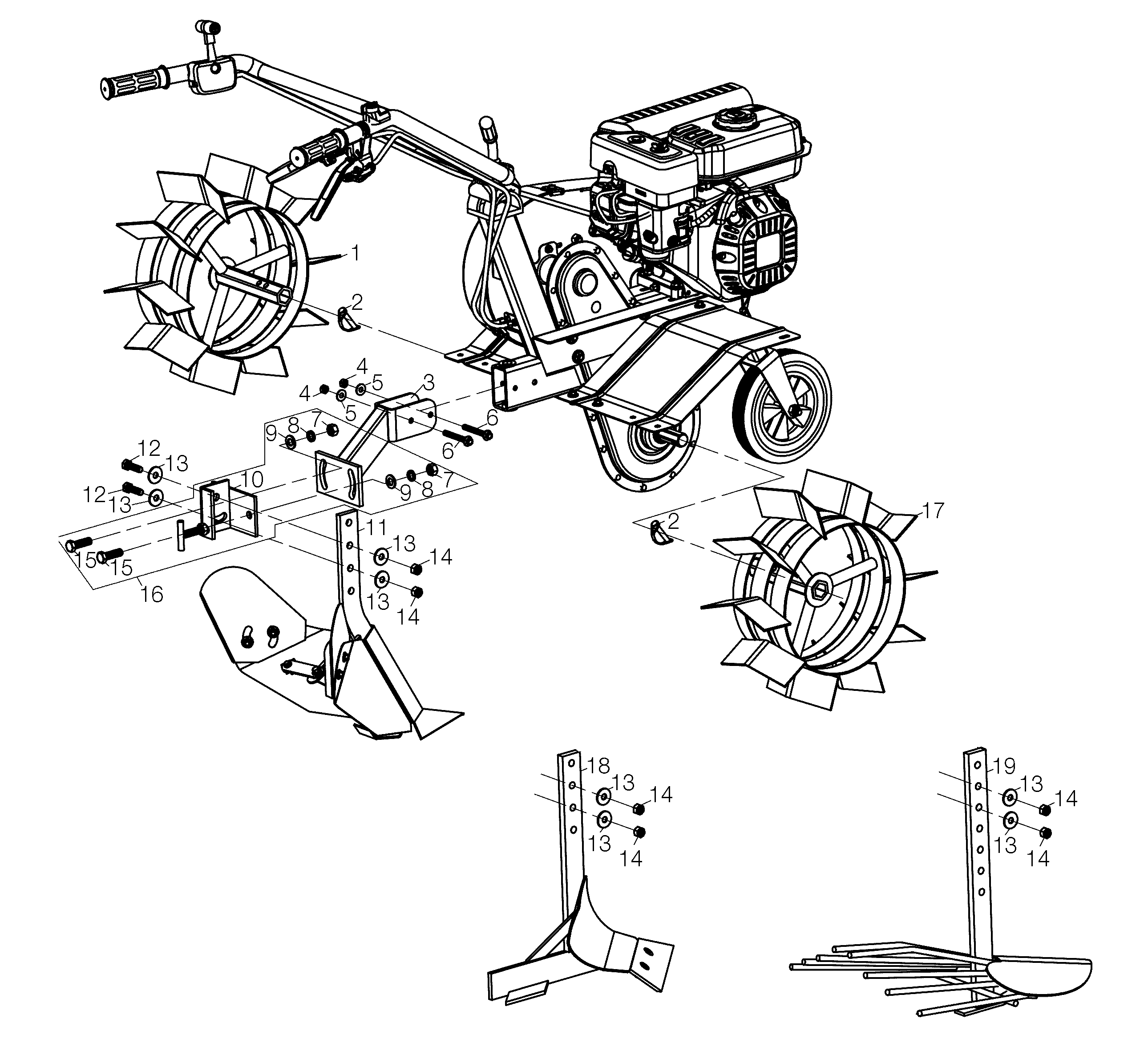

Optional

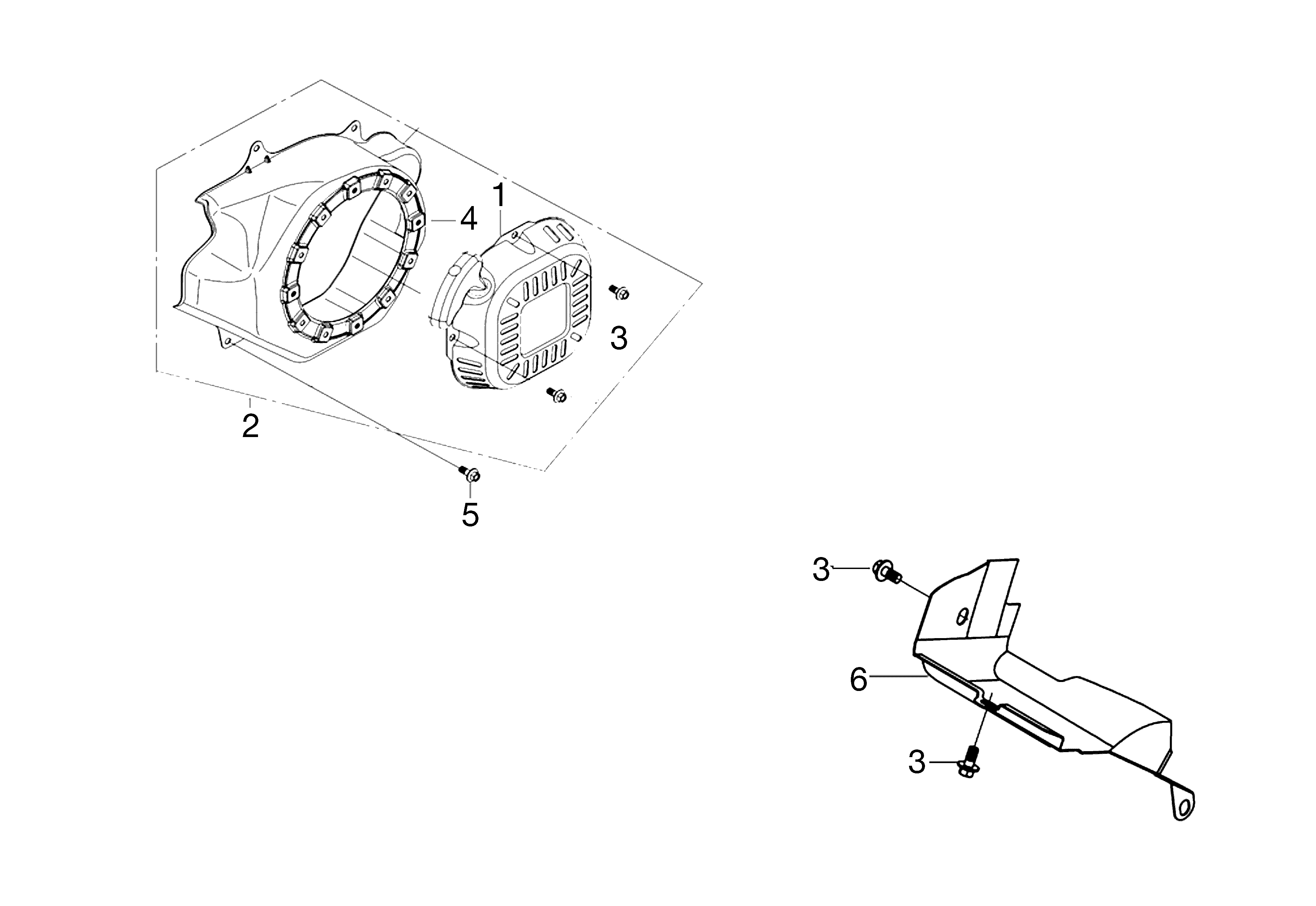

Starter assy

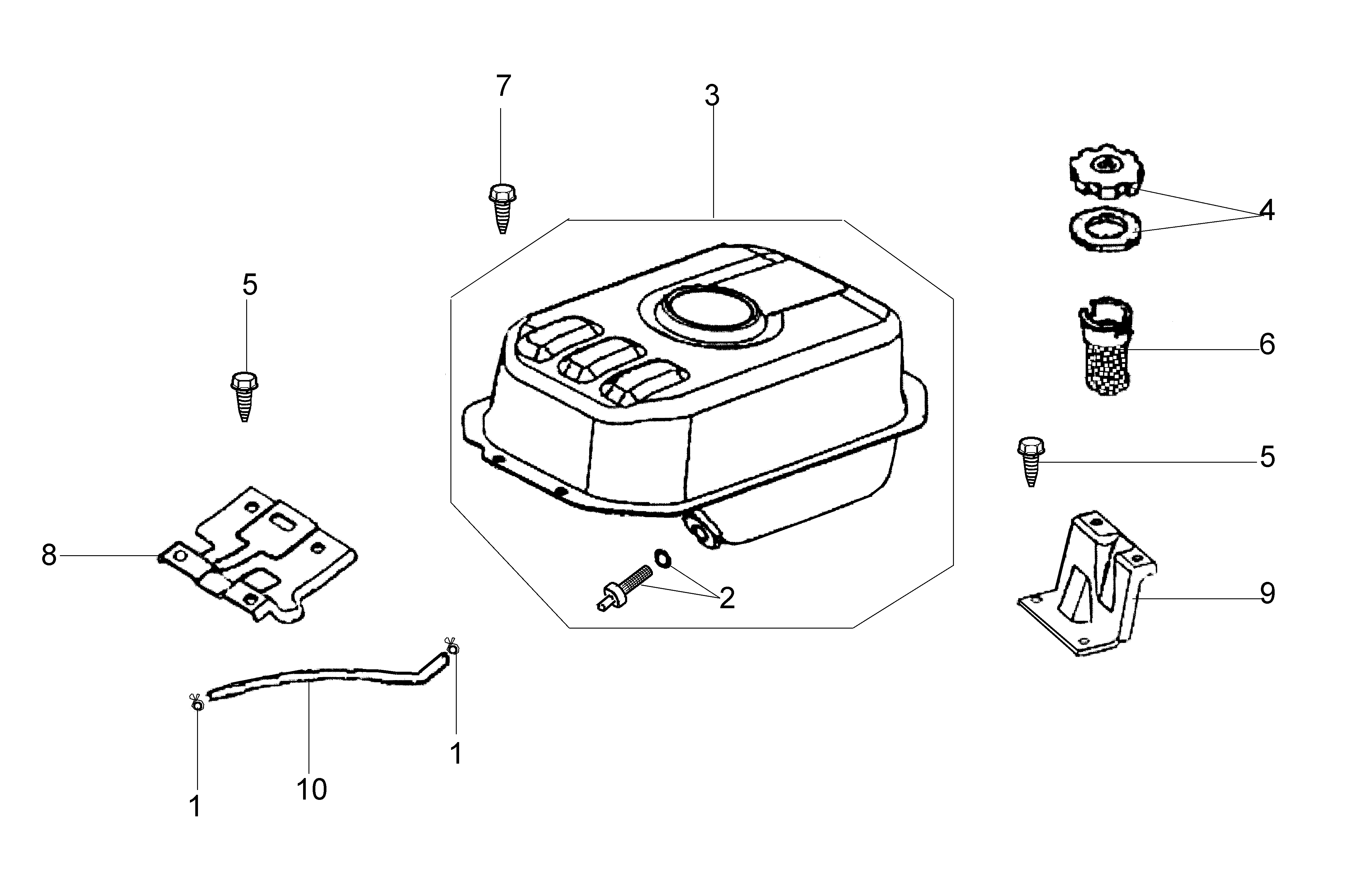

Tank

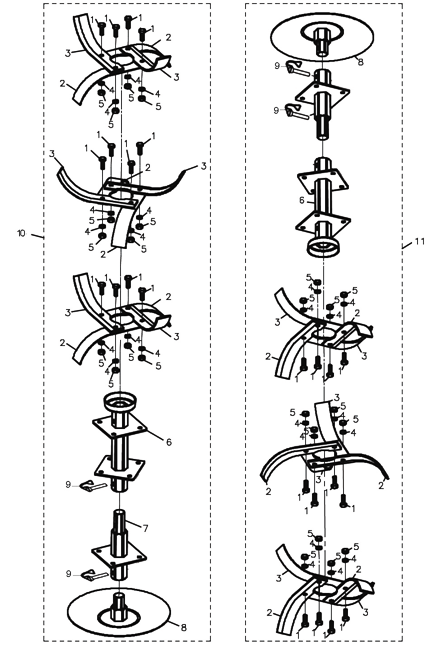

Tiller

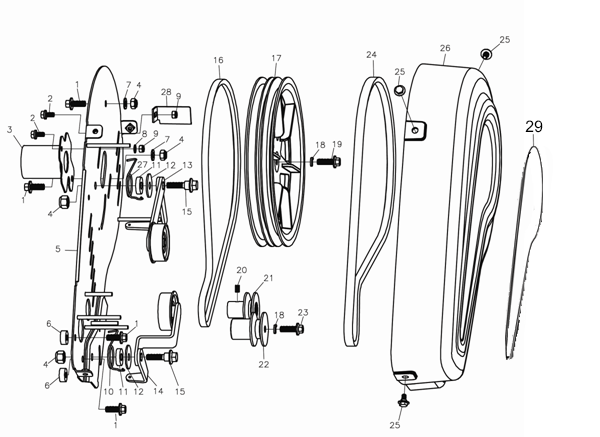

Unit (Bonnets)

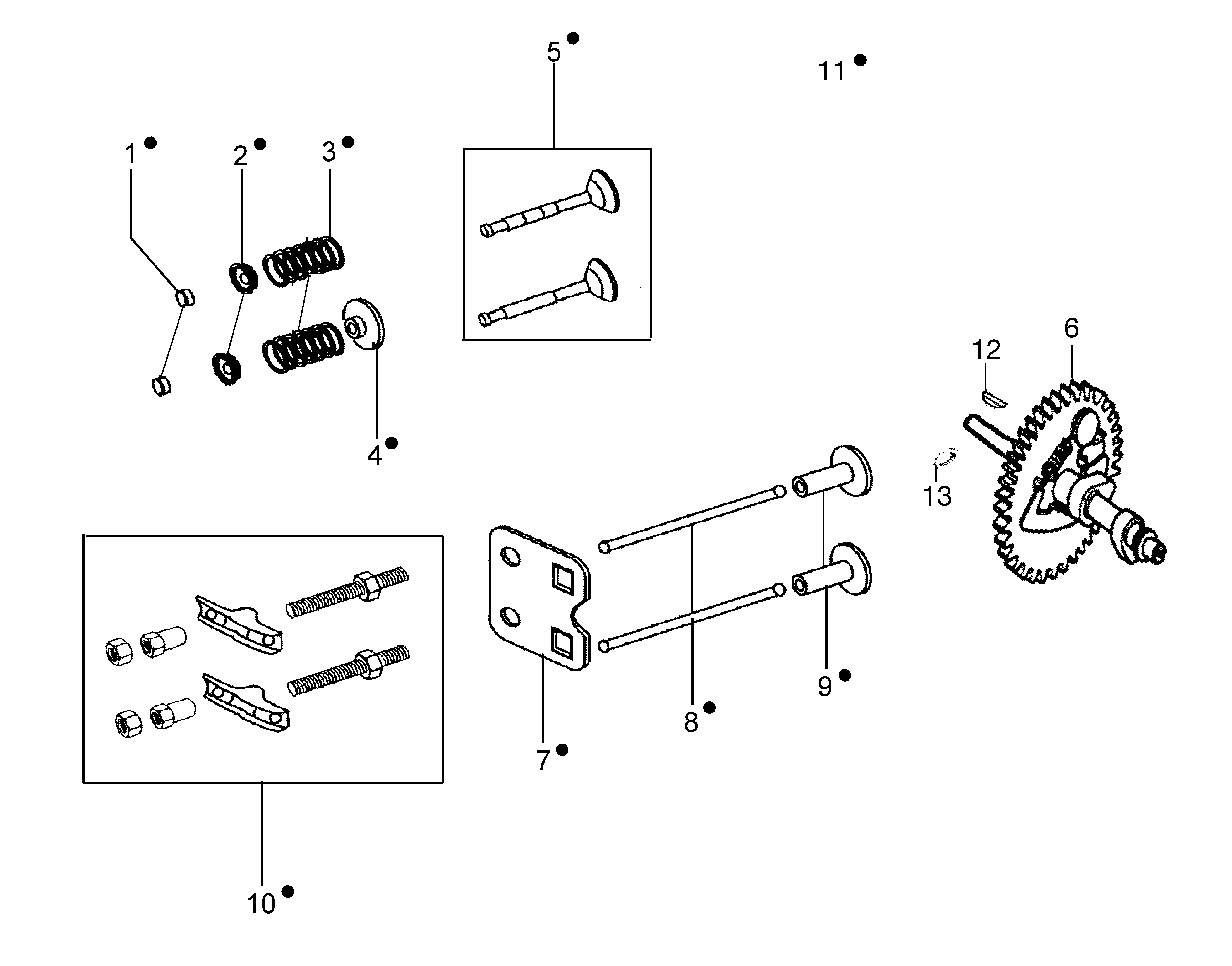

Valve and governor

Valve and governor
