204 (K800 HC) Parts and Diagrams

Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a 204 (K800 HC).

All parts that fit a 204 (K800 HC)

Diagrams for this machine

Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.

Choose your Year/Serial Number

Top

204 (K800 HC)

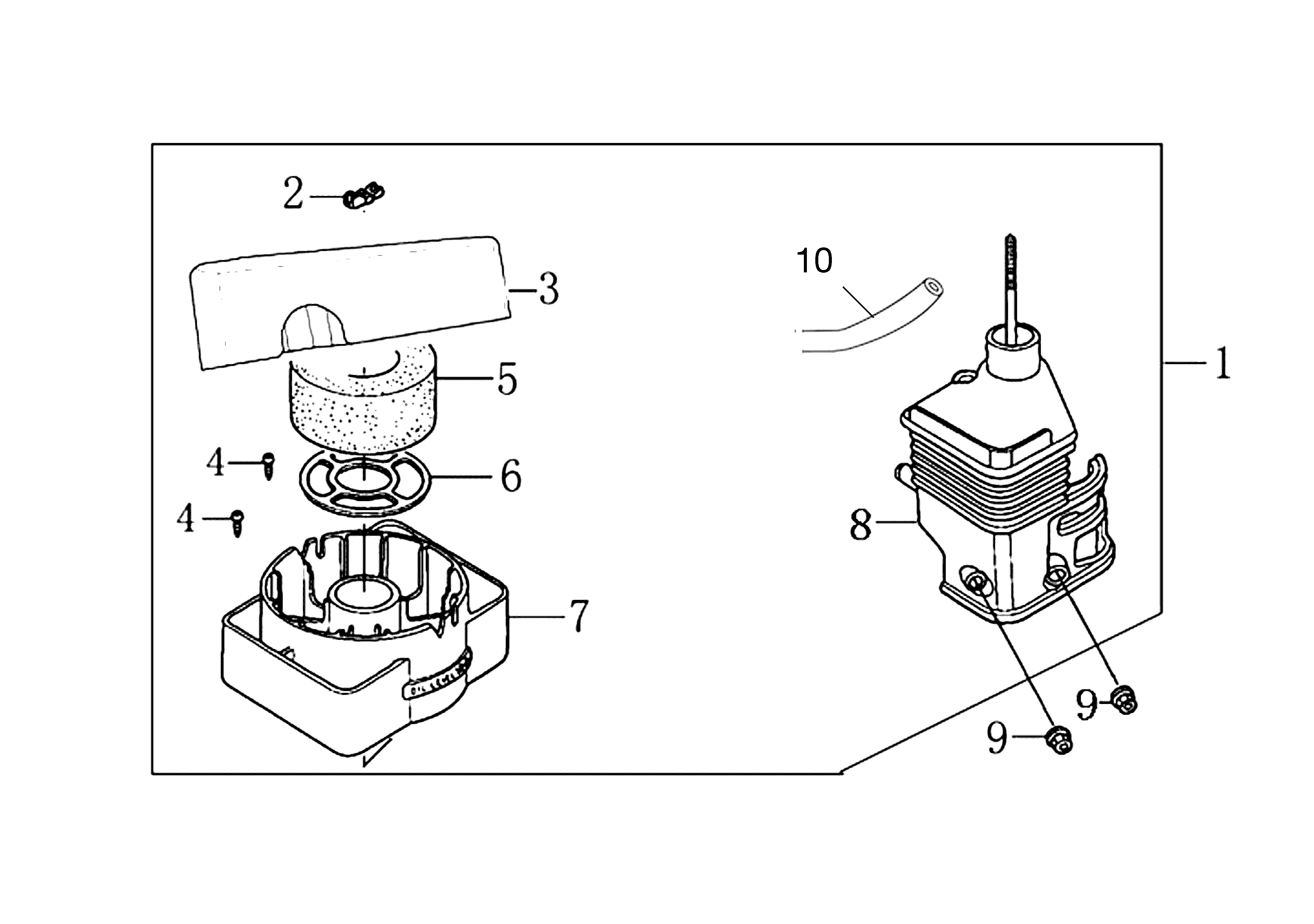

Air filter

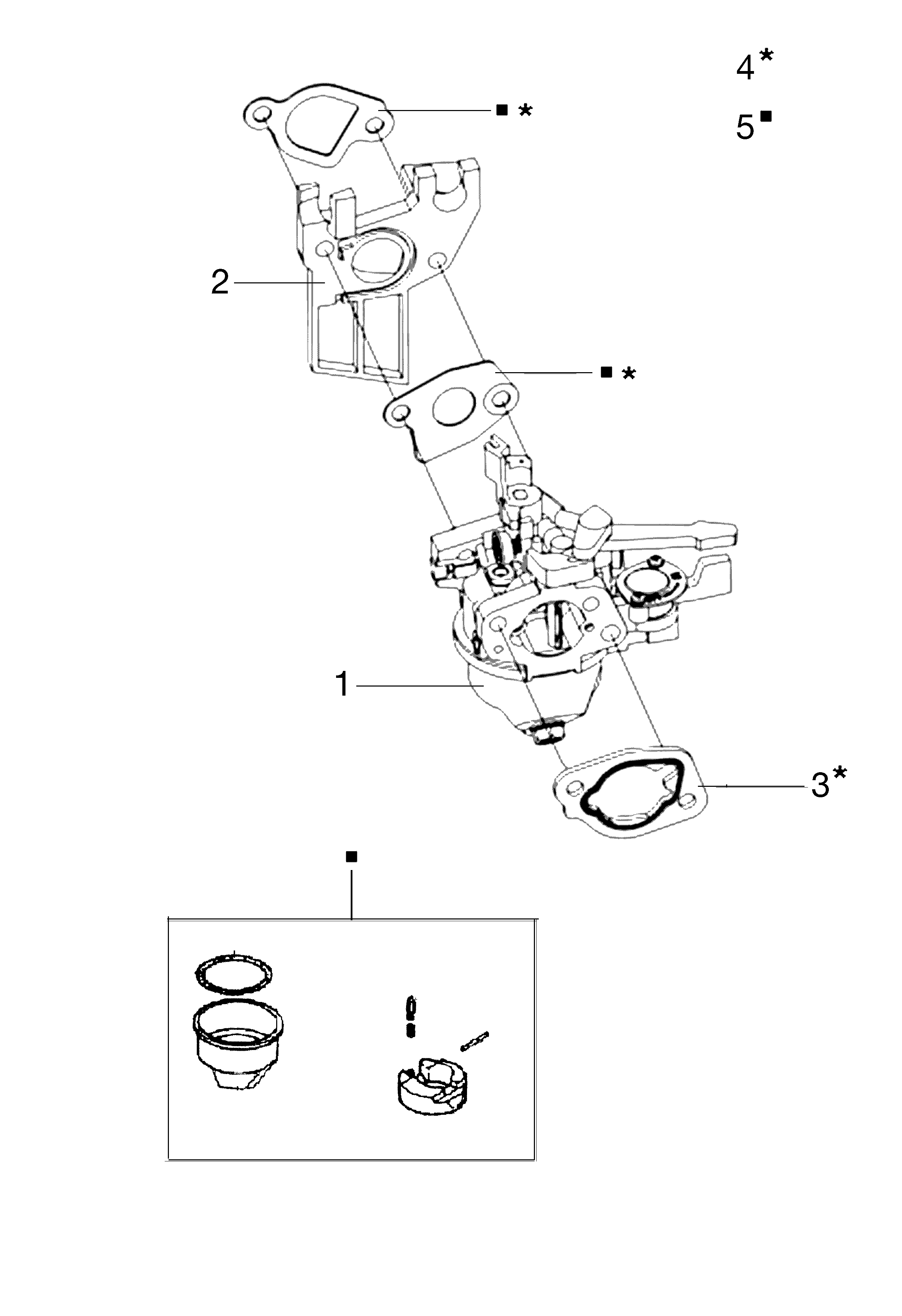

Carburetor

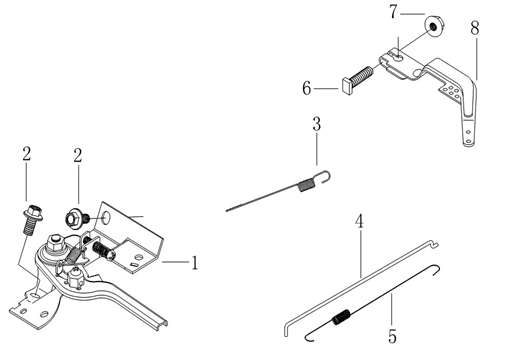

Control lever

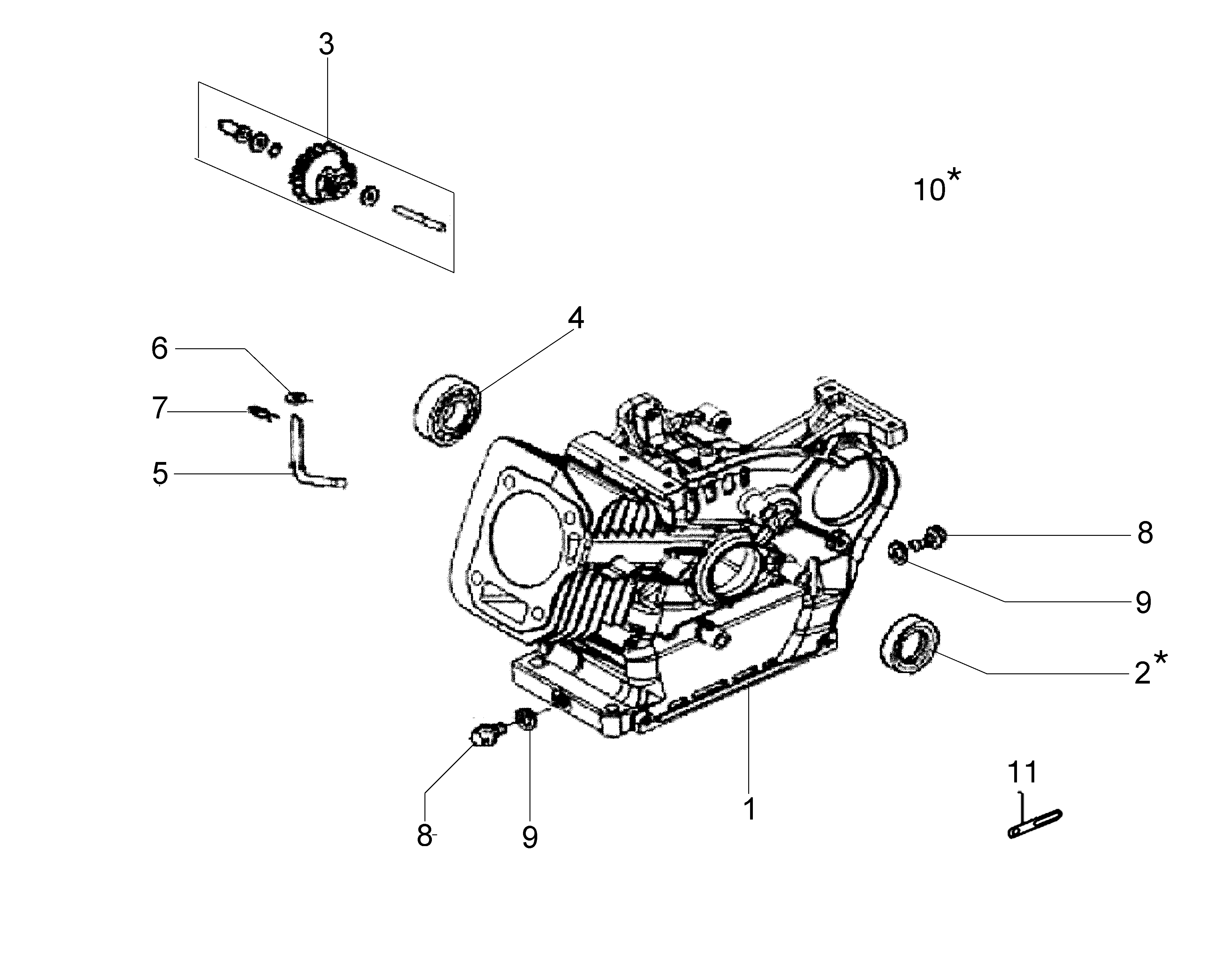

Crankcase assy

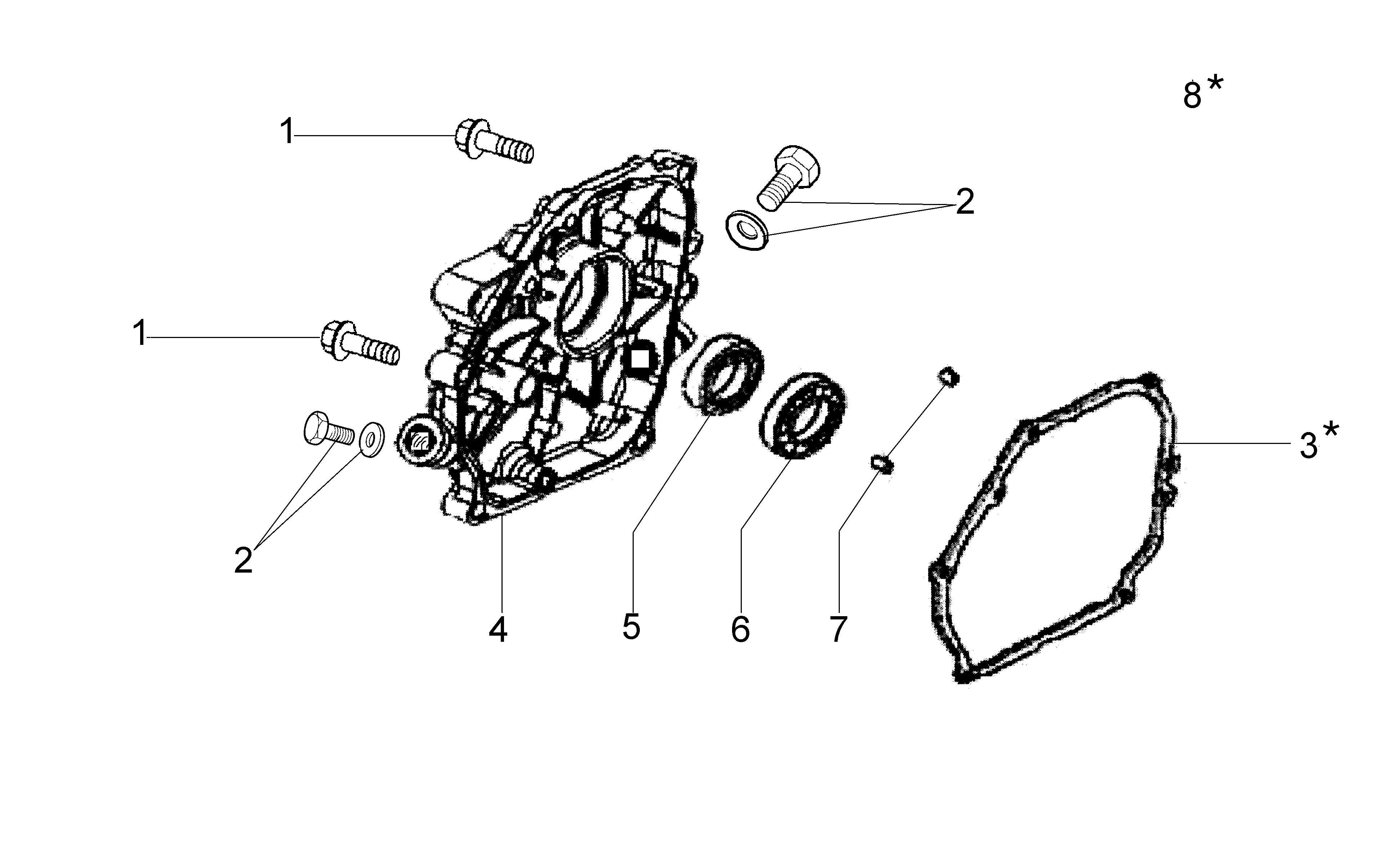

Crankcase cover

Crankcase cover

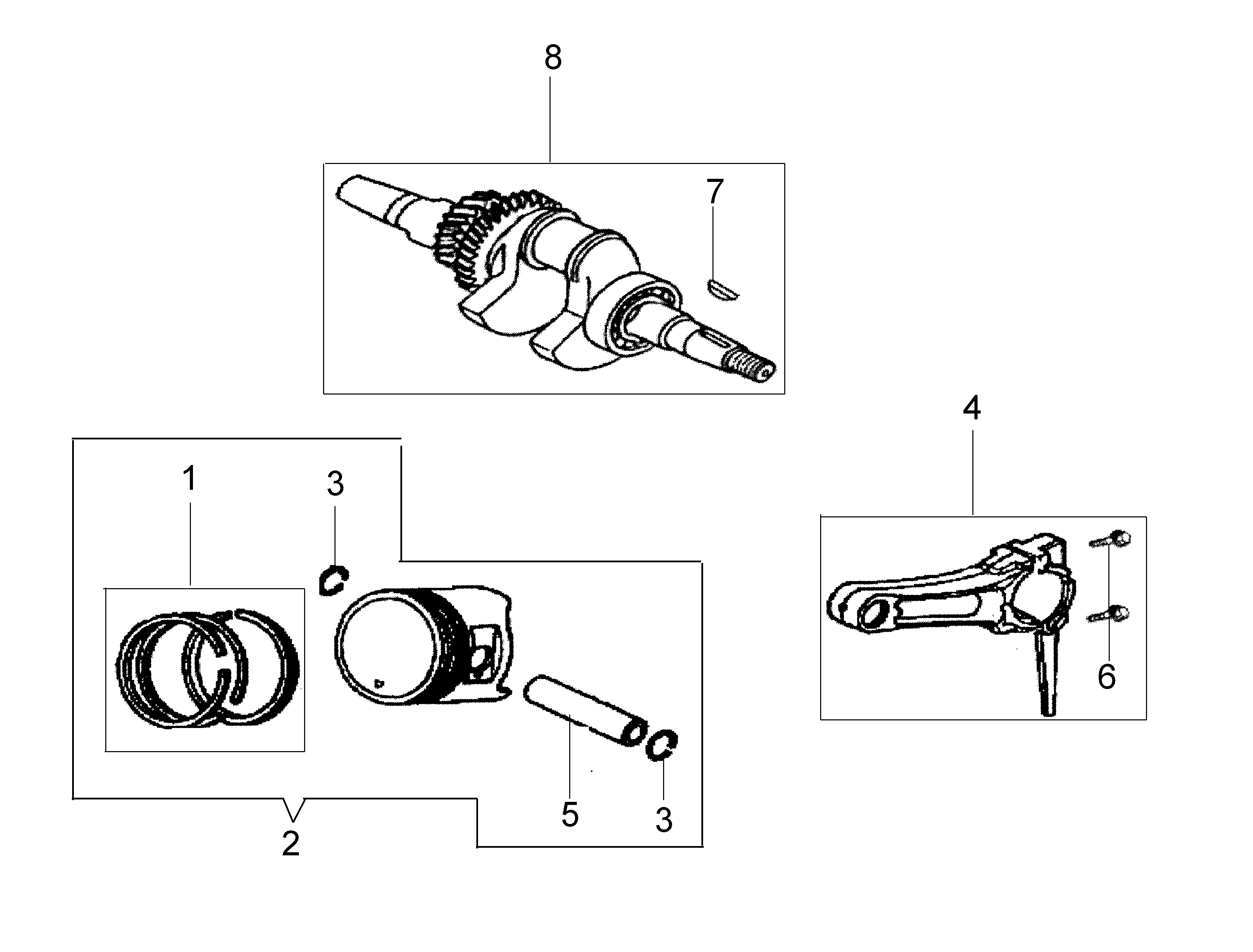

Crankshaft and piston

Crankshaft and piston

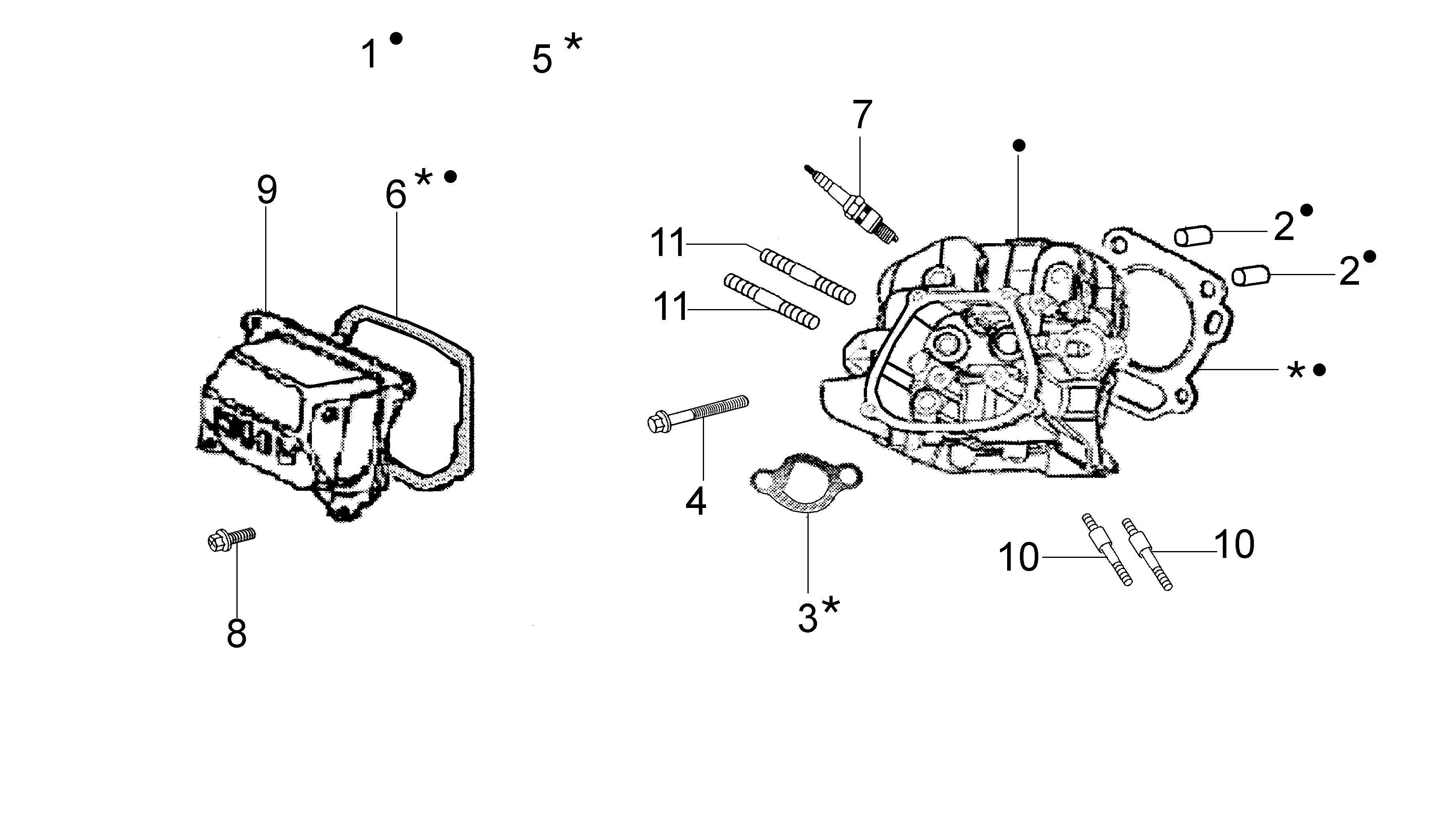

Cylinder head

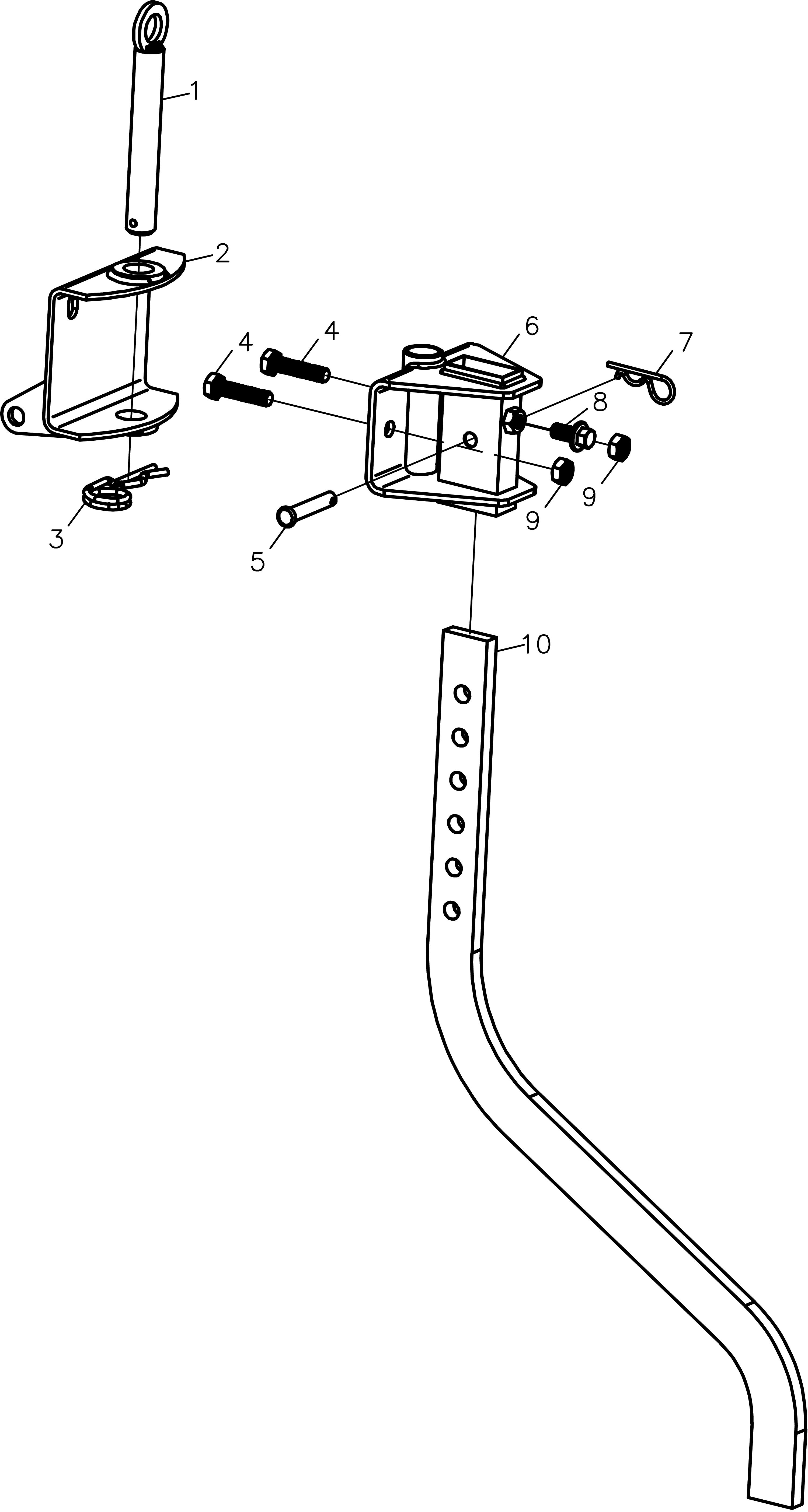

Drag bar

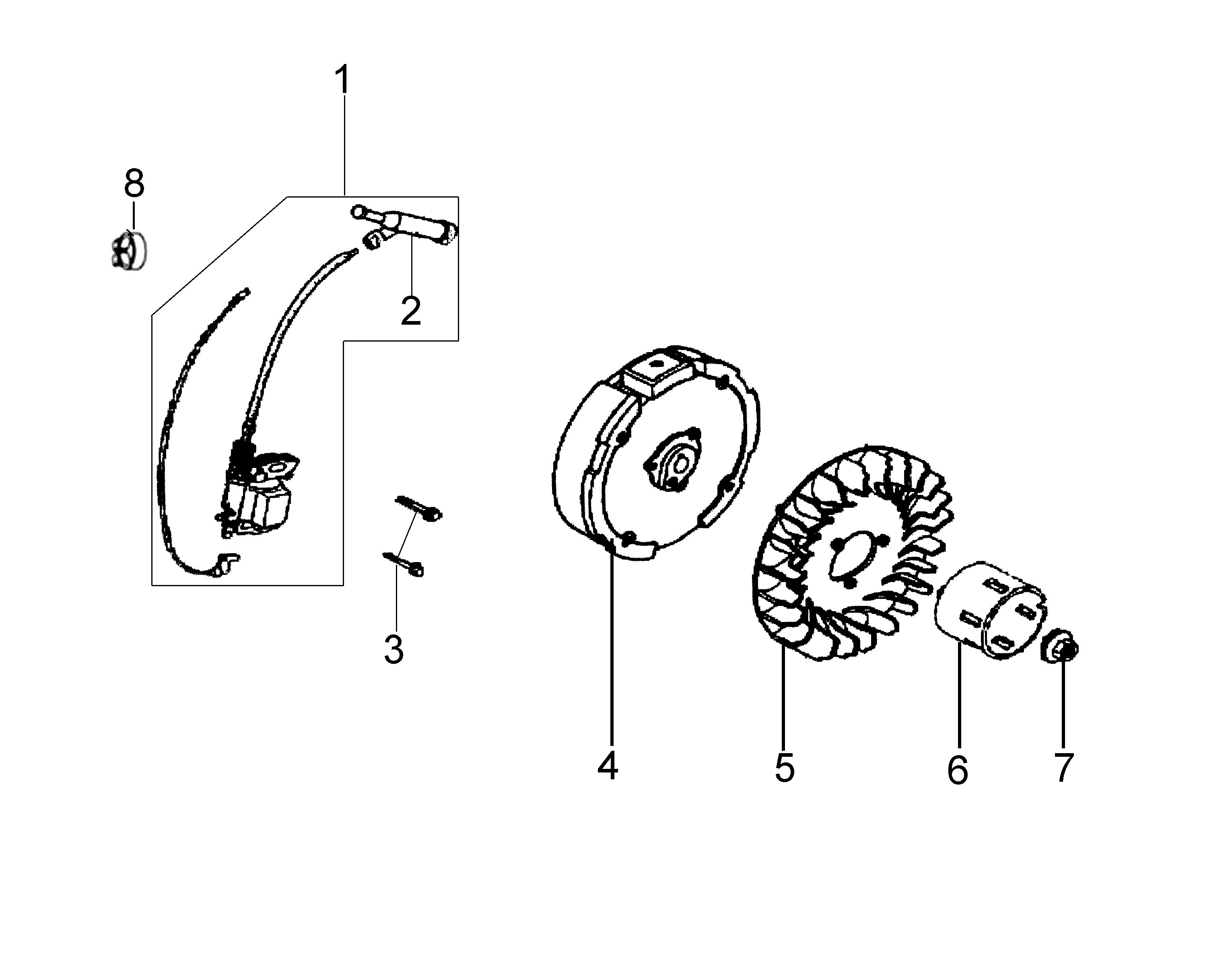

Flywheel and coil

Flywheel and coil

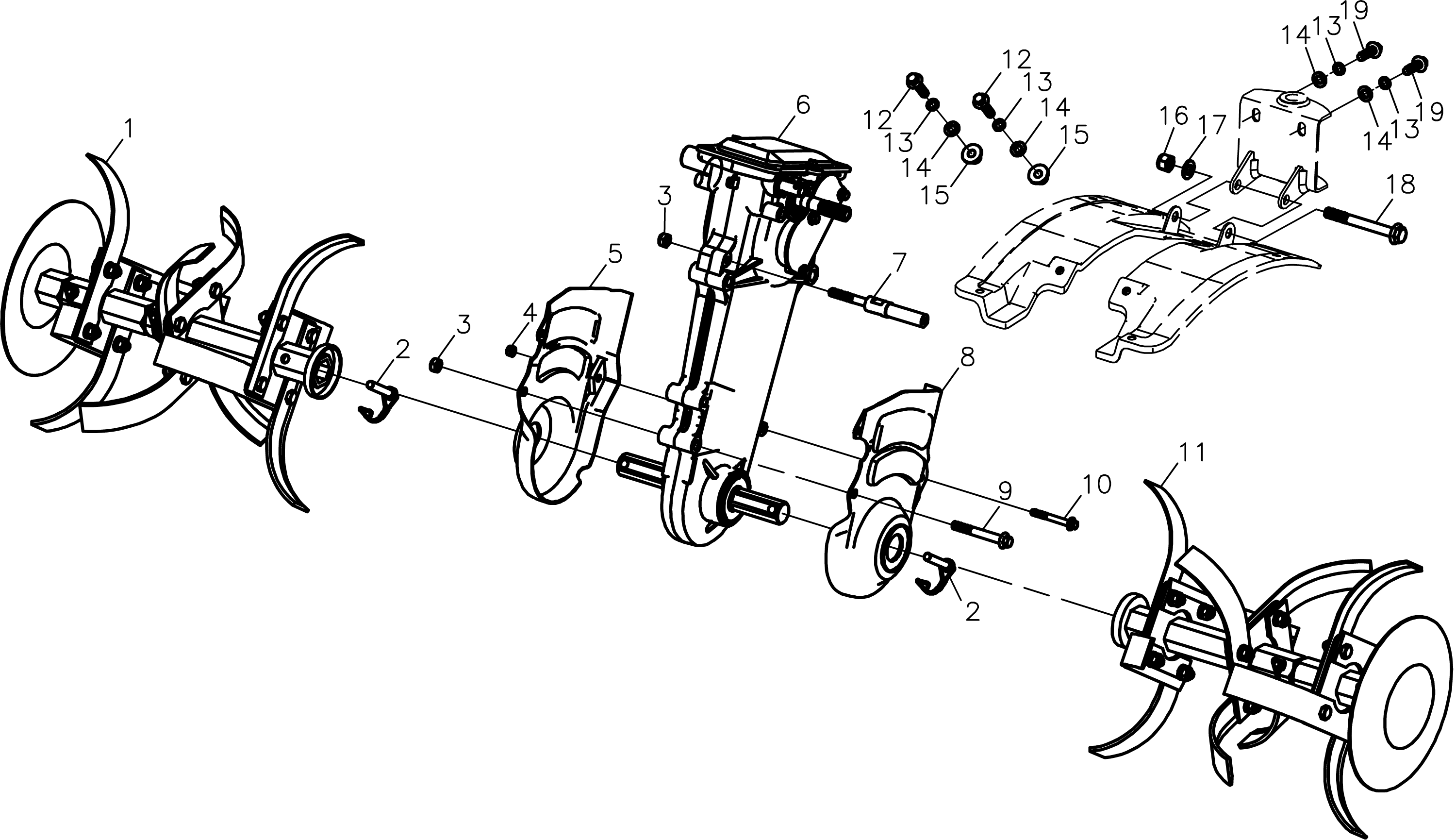

Frame

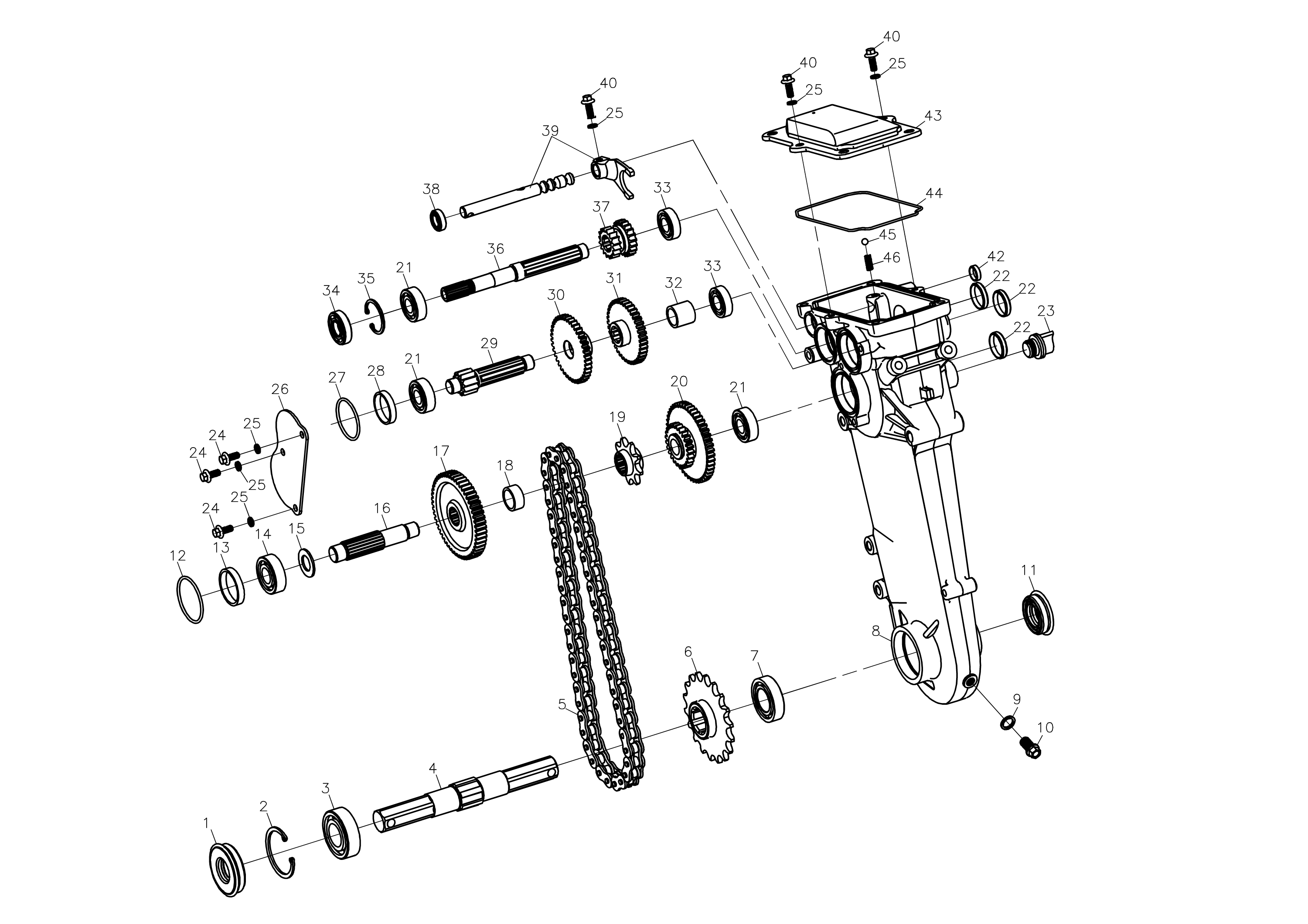

2)

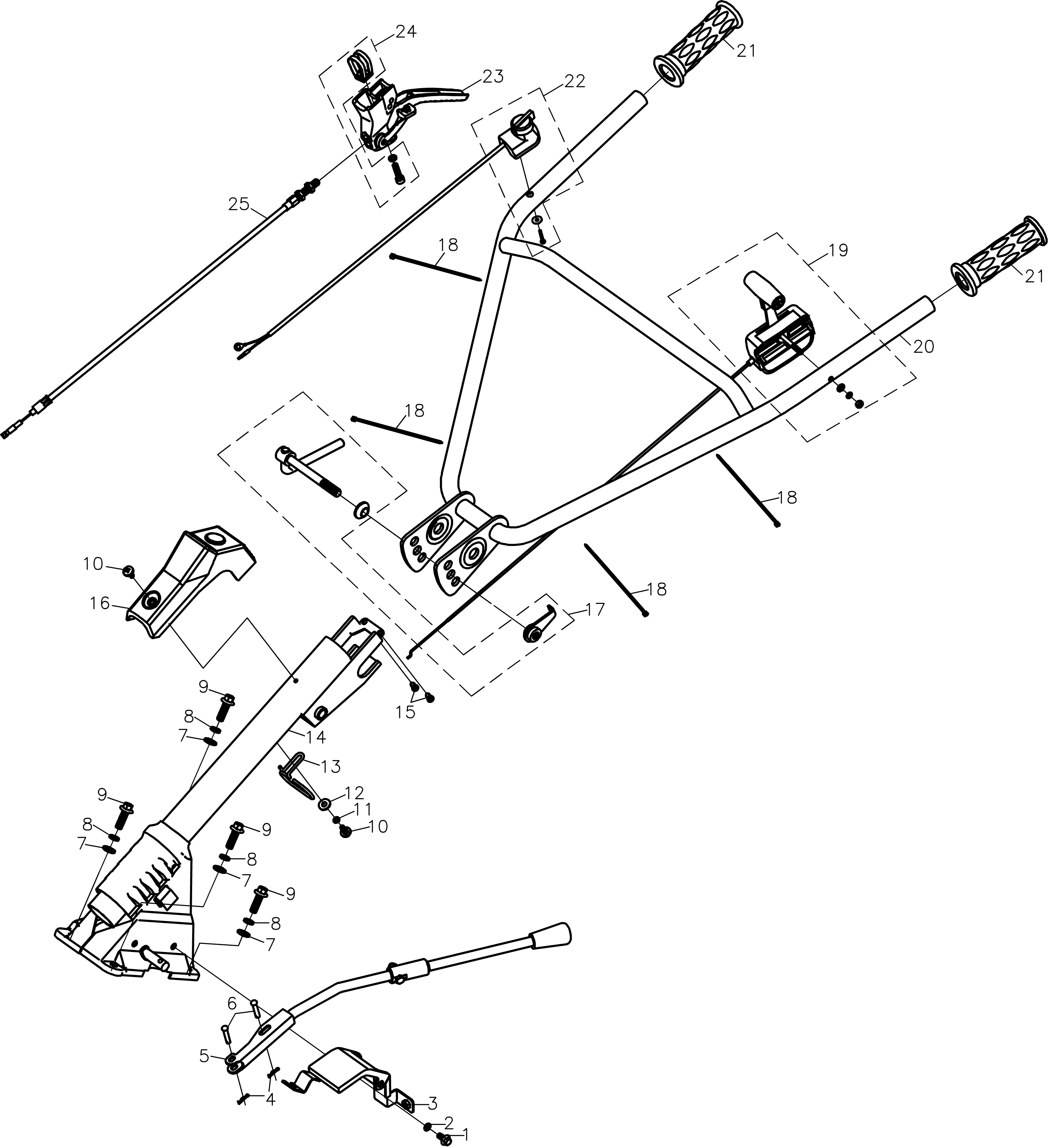

Handlebar

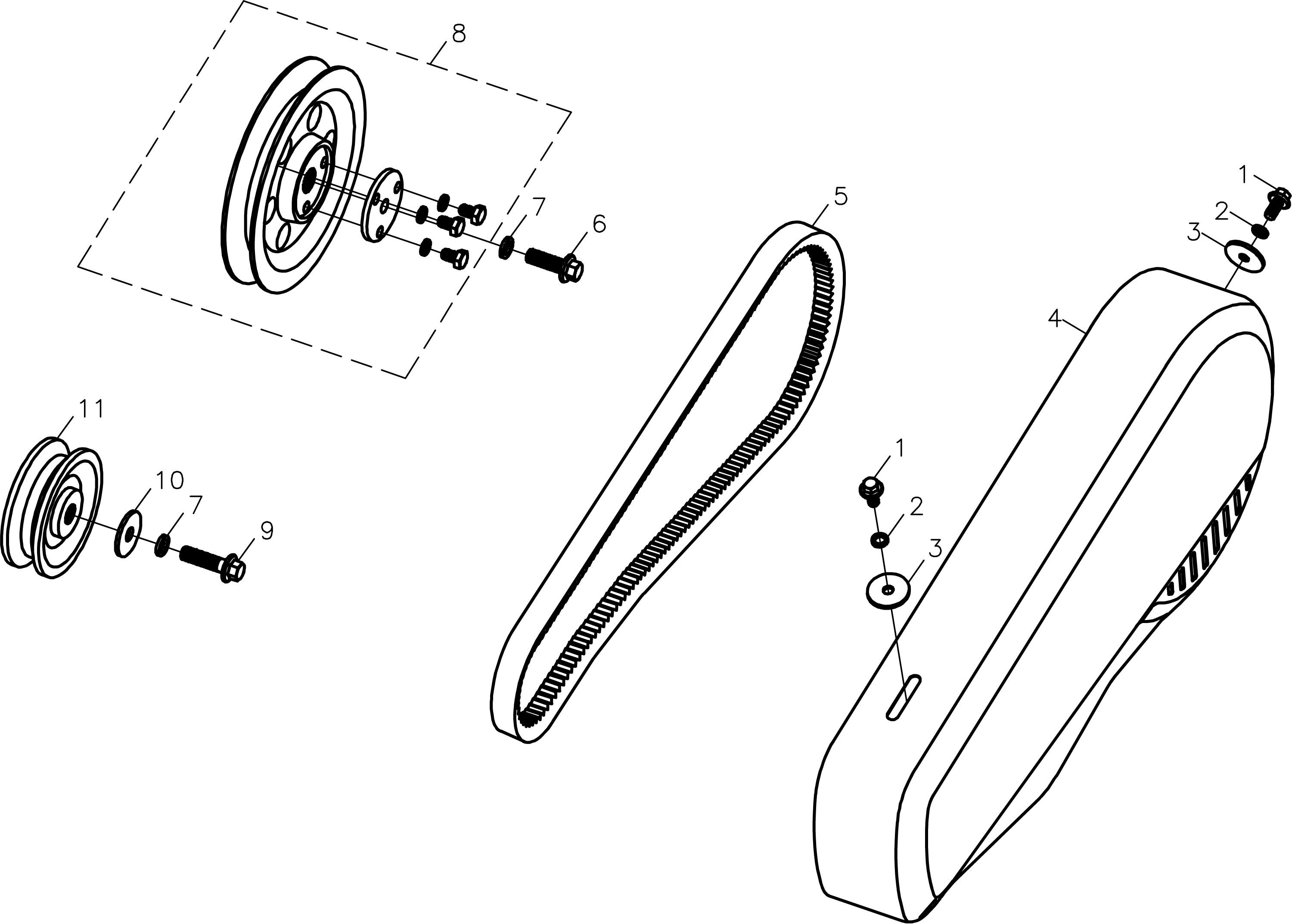

Hood

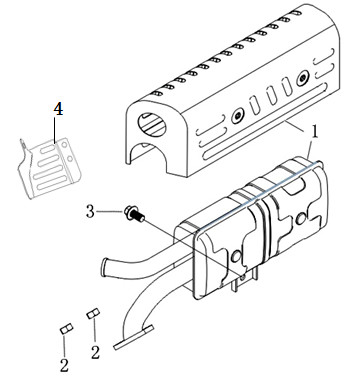

Muffler

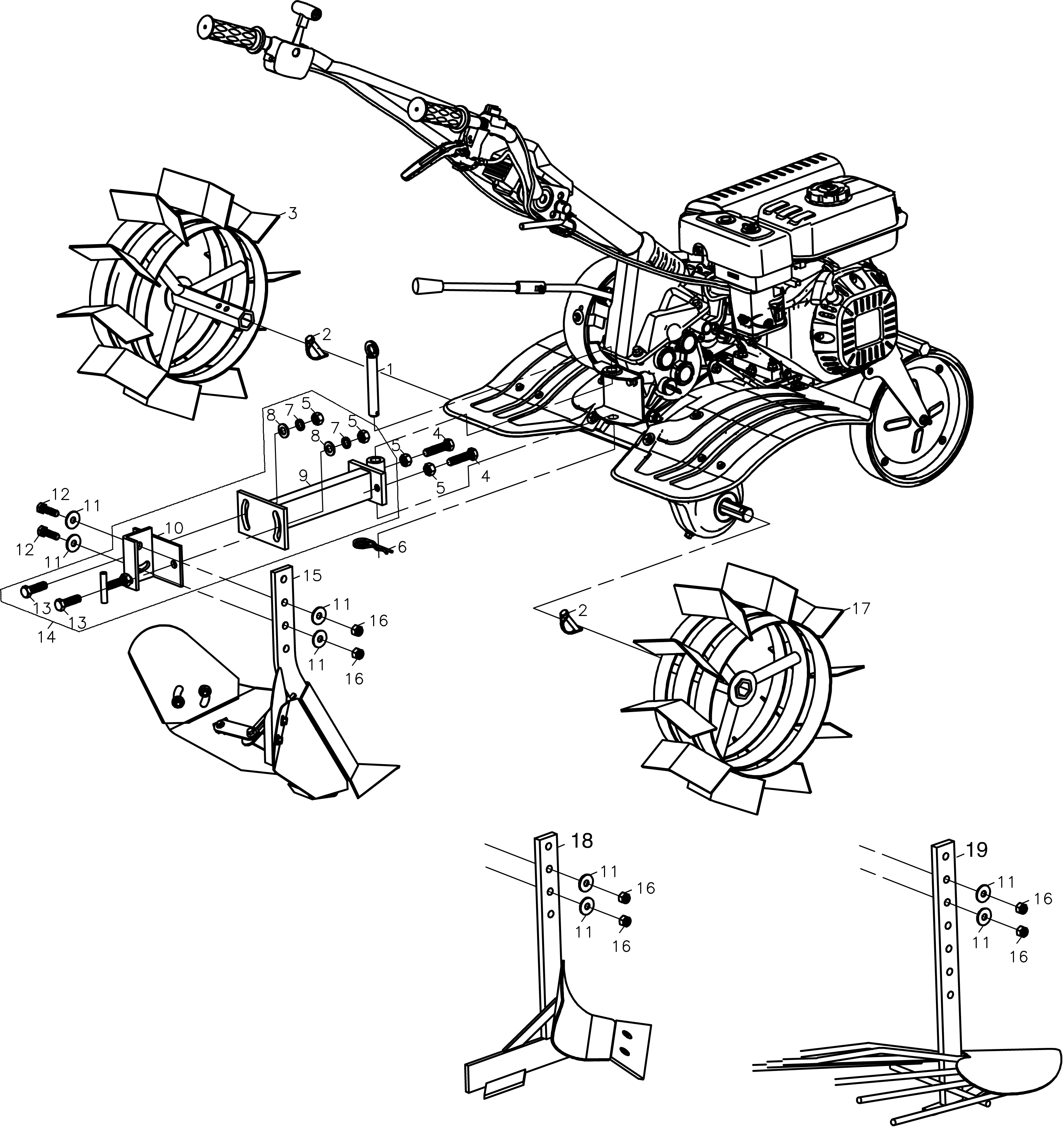

Optional

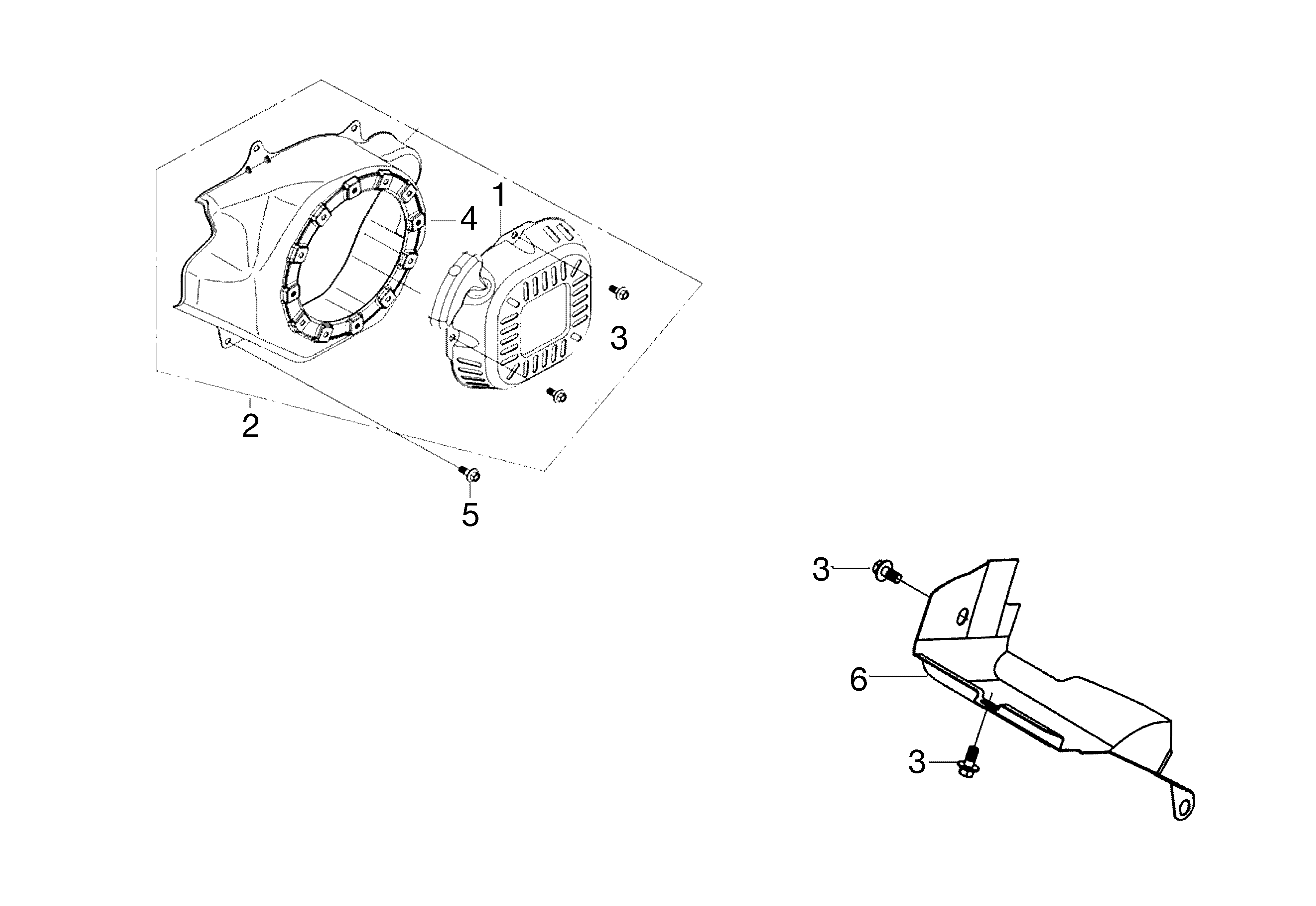

Starter assy

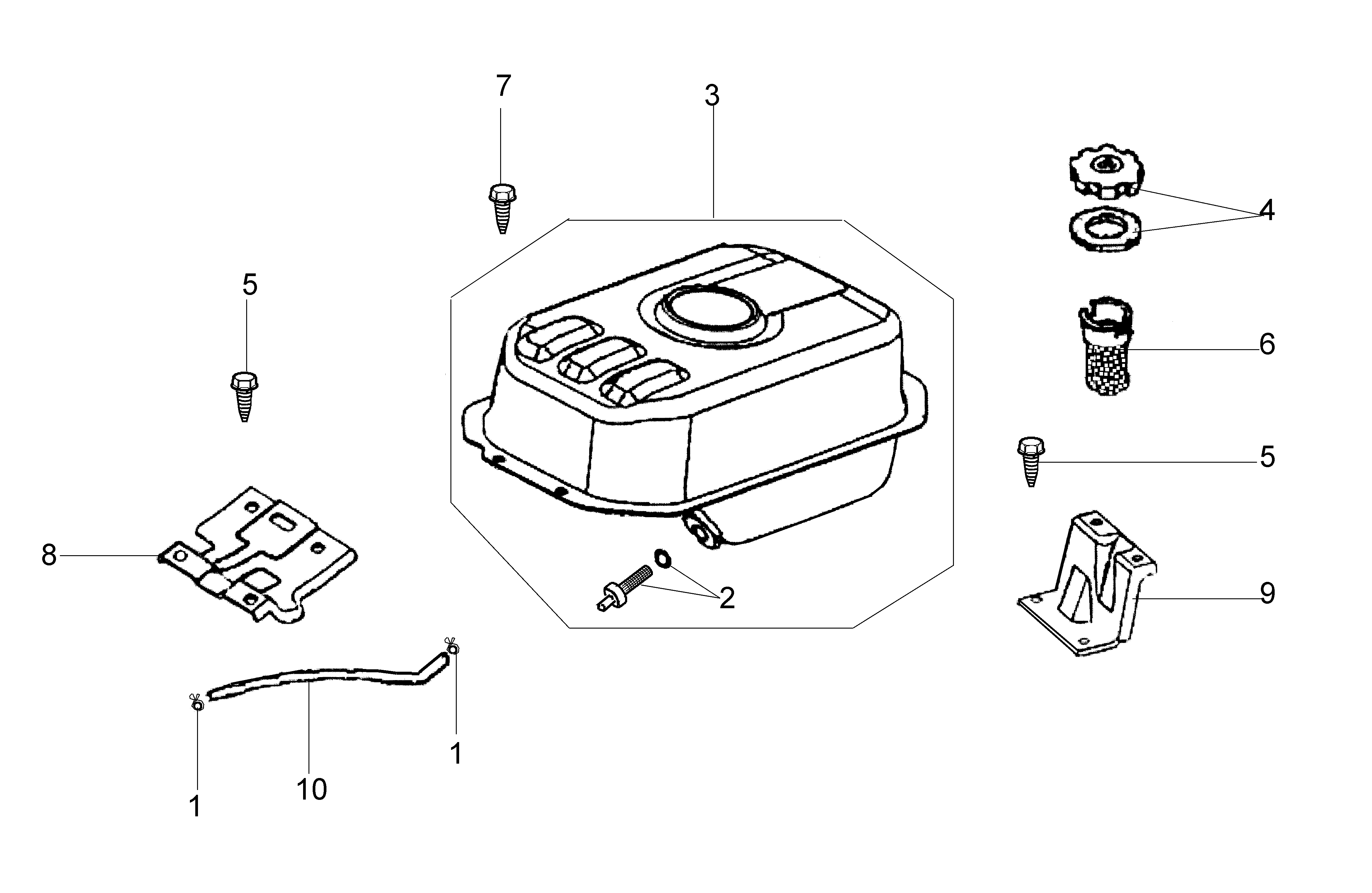

Tank

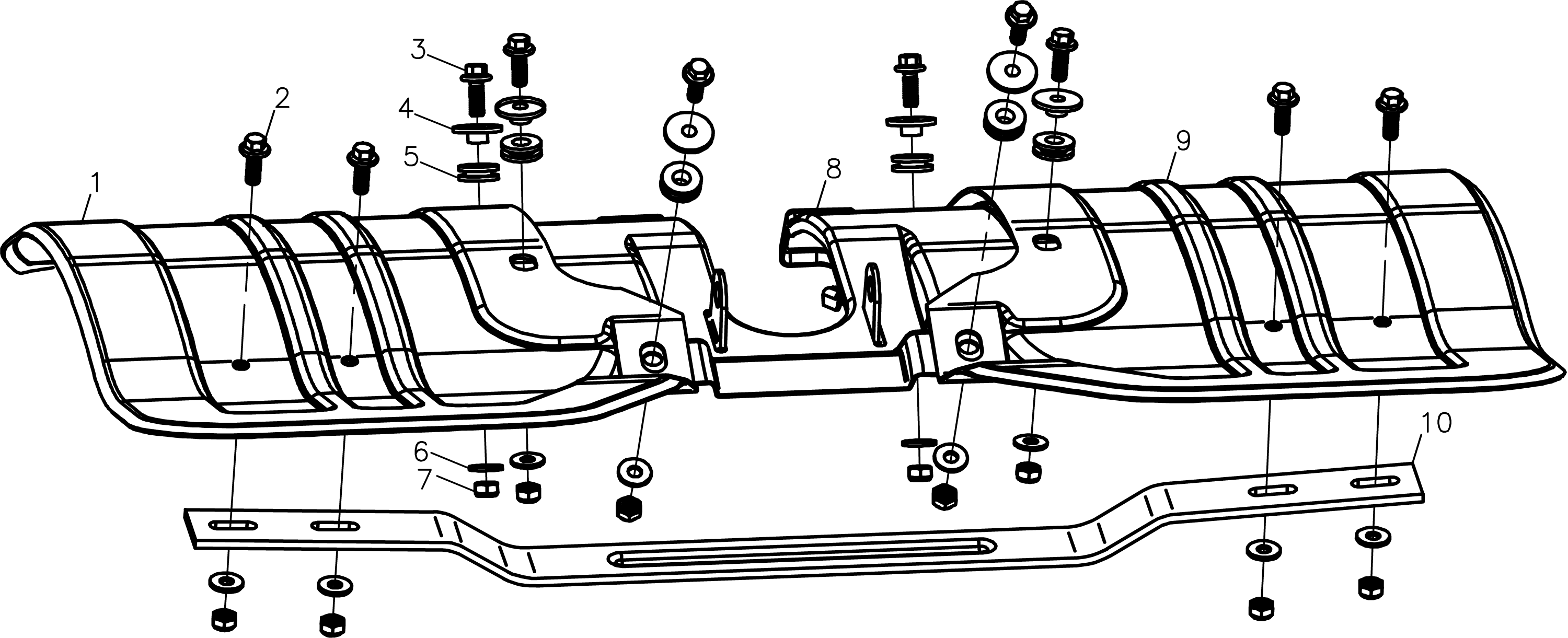

Tiller hood

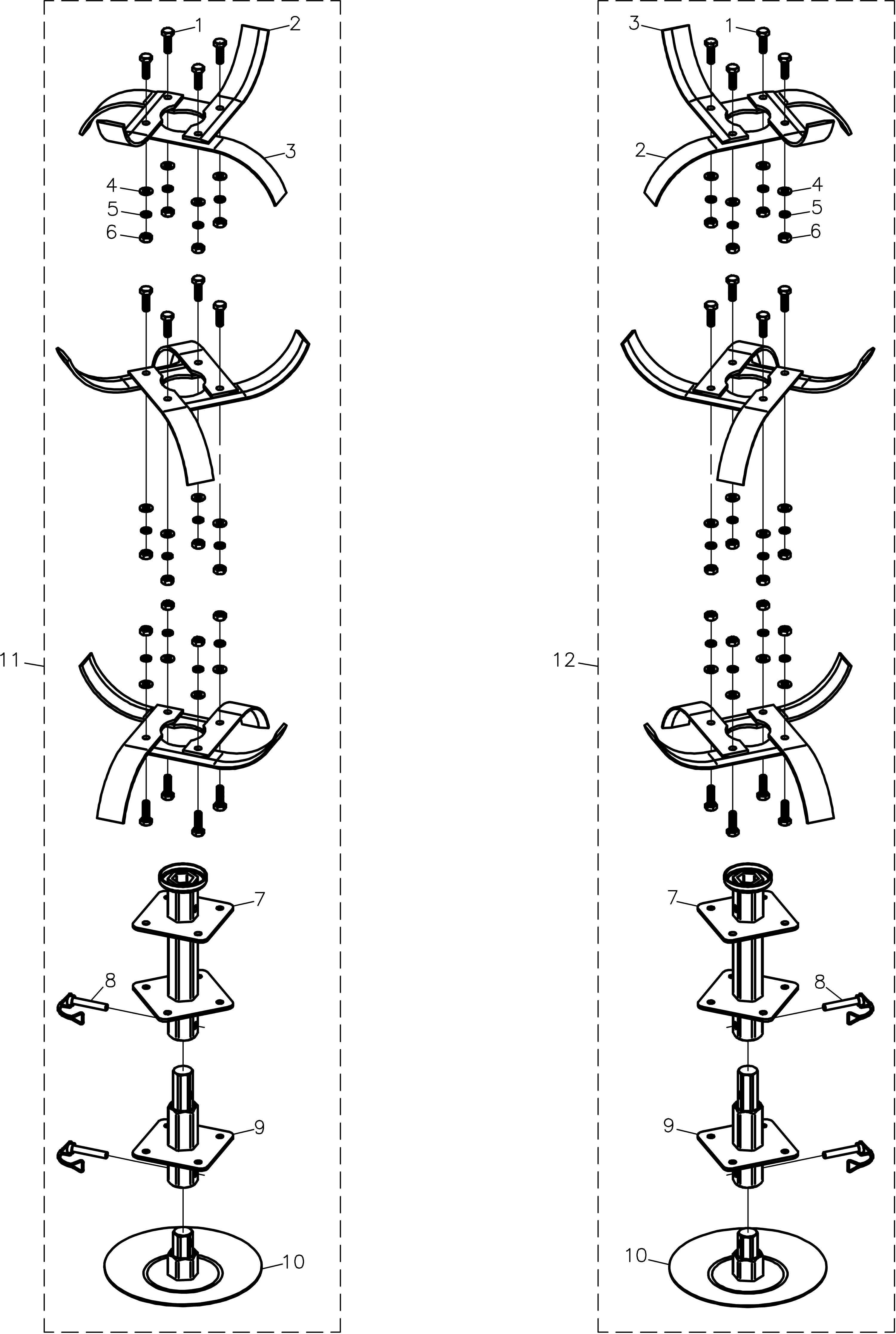

Tiller

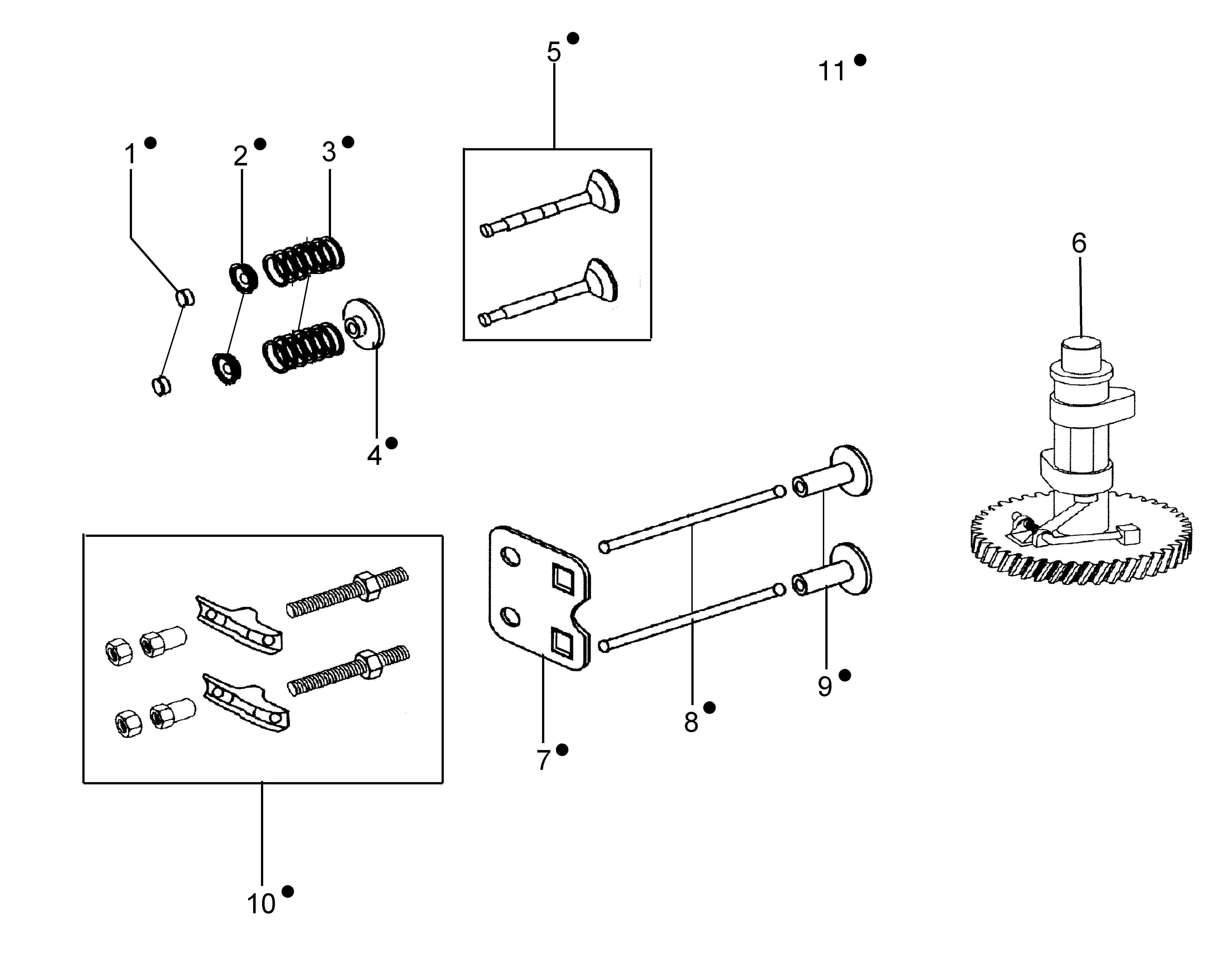

Valve and governor

Valve and governor

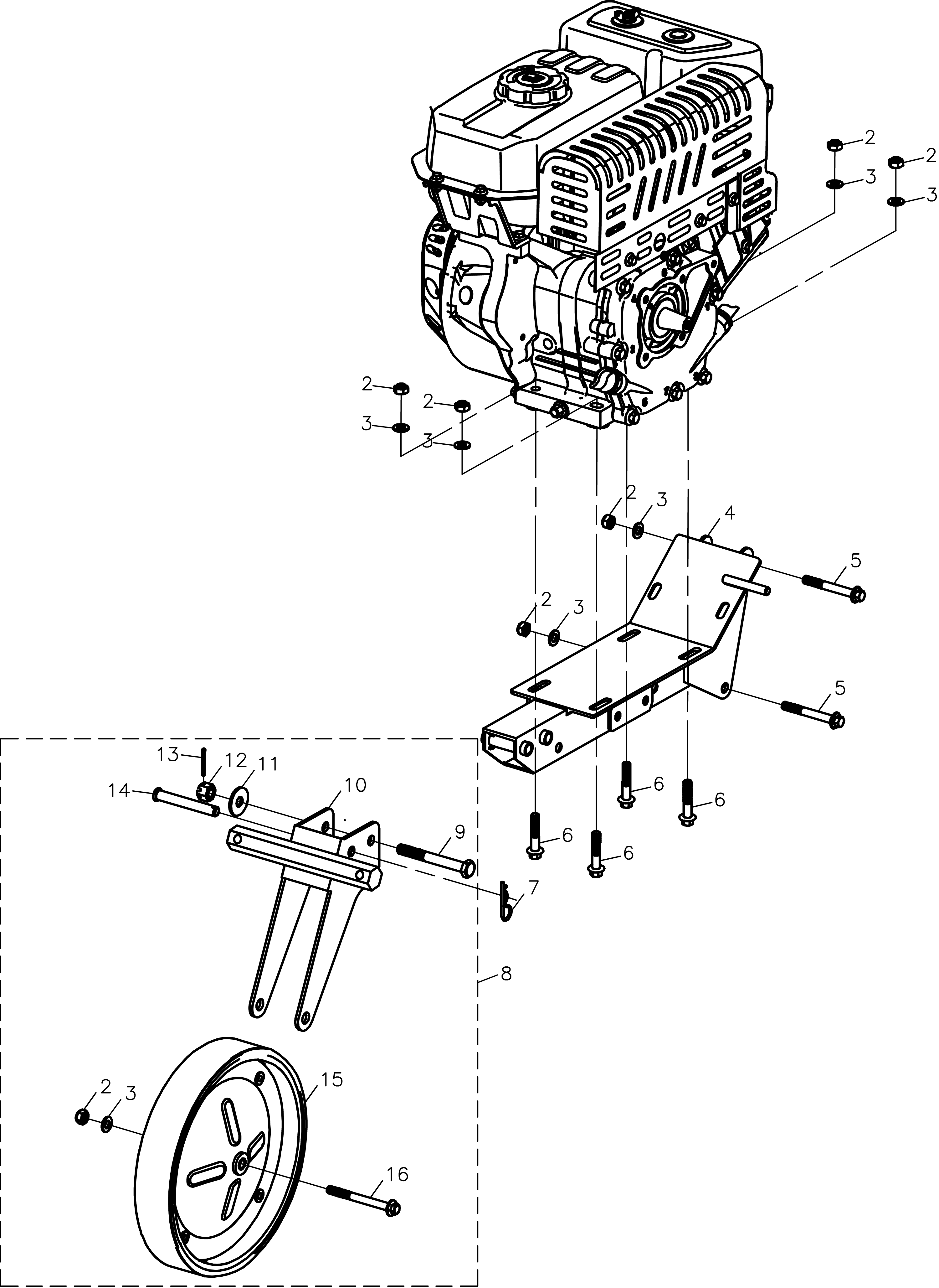

Wheel
