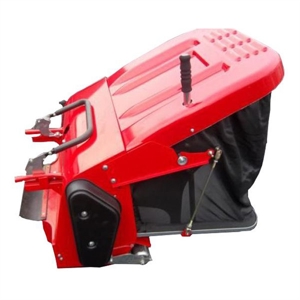

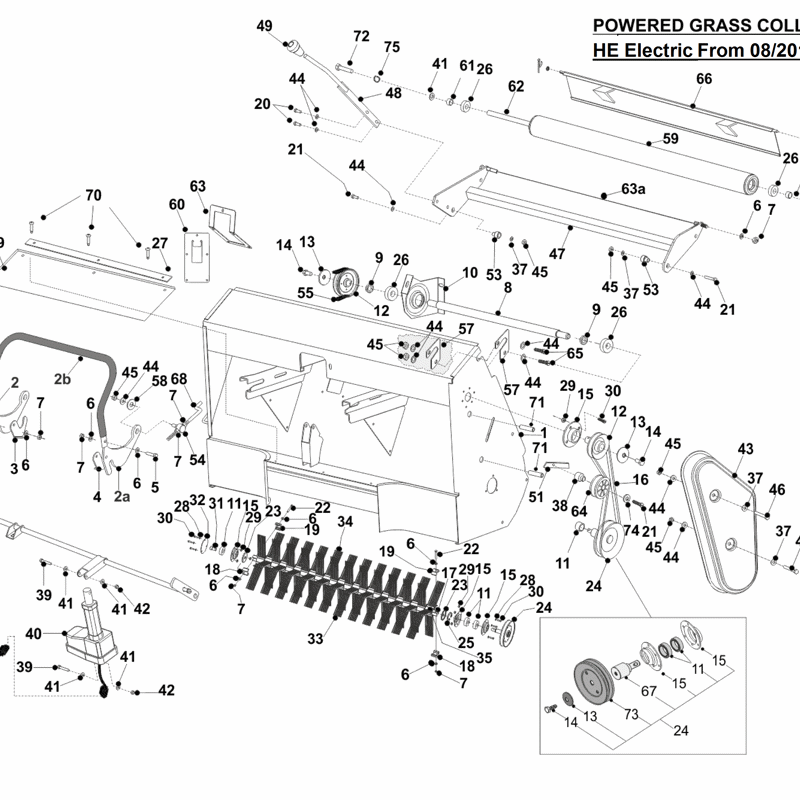

Westwood V Series HE Body From 08/2011 (08/2011) Parts Diagram, Page 1
Look at the diagram and find parts that fit a Westwood V Series HE Body From 08/2011, or refer to the list below.
All Parts for V Series HE Body From 08/2011

# | Part | Price | |
---|---|---|---|
2 |
178966301 Westwood Plate |
£106.79 |
![]() Westwood Plate£106.79 ![]() P/N: 178966301, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
2A |
307177800 Westwood PGC Locking Plate |
£40.56 |
![]() Westwood PGC Locking Plate£40.56 ![]() P/N: 307177800, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
2B |
149496600 Westwood Npvc Hand Grip Sweep |
£19.68 |
![]() Westwood Npvc Hand Grip Sweep£19.68 ![]() P/N: 149496600, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
3 |
30149800 Westwood L/H PGC Lever Lock |
£11.06 |
![]() Westwood L/H PGC Lever Lock£11.06 ![]() P/N: 30149800, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
4 |
30150300 Westwood R/H PGC Lever Lock |
£11.26 |
![]() Westwood R/H PGC Lever Lock£11.26 ![]() P/N: 30150300, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
5 |
028002900 Westwood Bolt M6x25 Plated |
£0.66 |
![]() Westwood Bolt M6x25 Plated£0.66 ![]() P/N: 028002900, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
6 |
08825600 Westwood Washer 1/4 Lp |
£1.25 |
![]() Westwood Washer 1/4 Lp£1.25 ![]() P/N: 08825600, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
7 |
04920500 Westwood Nut M6 Nyloc |
£1.25 |
![]() Westwood Nut M6 Nyloc£1.25 ![]() P/N: 04920500, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
8 |
183009800 Westwood Shaft |
£33.01 |
![]() Westwood Shaft£33.01 ![]() P/N: 183009800, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
9 |
31306200 Westwood PTO End Spacer |
£35.40 |
![]() Westwood PTO End Spacer£35.40 ![]() P/N: 31306200, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
10 |
301043800 Westwood Bracket |
£37.32 |
![]() Westwood Bracket£37.32 ![]() P/N: 301043800, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
11 |
10845500 Westwood Bearing 6203ZZ |
![]() Westwood Bearing 6203ZZ£13.96 ![]() P/N: 10845500, Genuine OEM spare part. Find other Westwood spares, parts and accessories.
No longer available
|
|
12 |
32727600 Westwood 3" Pulley |
£23.51 |
![]() Westwood 3" Pulley£23.51 ![]() P/N: 32727600, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
13 |
08819900 Westwood Dome Washer |
£9.54 |
![]() Westwood Dome Washer£9.54 ![]() P/N: 08819900, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
14 |
028002300 Westwood M10 X 25 S/screw BZP |
![]() Westwood M10 X 25 S/screw BZP£0.82 ![]() P/N: 028002300, Genuine OEM spare part. Find other Westwood spares, parts and accessories.
No longer available
|
|
15 |
27106601 Westwood Bearing Housing 17mm |
£28.68 |
![]() Westwood Bearing Housing 17mm£28.68 ![]() P/N: 27106601, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
16 |
22950300 Westwood A38 Super 2 Belt |
£24.80 |
![]() Westwood A38 Super 2 Belt£24.80 ![]() P/N: 22950300, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
17 |
174004400 Westwood 390L Brush Stock |
£117.26 |
![]() Westwood 390L Brush Stock£117.26 ![]() P/N: 174004400, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
18 |
14832900 Westwood Brush Drive Mold Lrg |
£4.28 |
![]() Westwood Brush Drive Mold Lrg£4.28 ![]() P/N: 14832900, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
19 |
14834100 Westwood Brush Drive Mould Sm |
£4.27 |
![]() Westwood Brush Drive Mould Sm£4.27 ![]() P/N: 14834100, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
20 |
028893500 Westwood Screw Hex Hd Din933 M8 X 20 Grade 10.9 |
![]() Westwood Screw Hex Hd Din933 M8 X 20 Grade 10.9![]() P/N: 028893500, Genuine OEM spare part. Find other Westwood spares, parts and accessories.
No longer available
|
|
21 |
018001800 Westwood Bolt M8 X 50mm |
![]() Westwood Bolt M8 X 50mm![]() P/N: 018001800, Genuine OEM spare part. Find other Westwood spares, parts and accessories.
No longer available
|
|
22 |
018004000 Westwood M6 X 45mm Hex Head - Bright Zinc Plate |
![]() Westwood M6 X 45mm Hex Head - Bright Zinc Plate![]() P/N: 018004000, Genuine OEM spare part. Find other Westwood spares, parts and accessories.
No longer available
|
|
23 |
32121800 Westwood Slinger |
£15.83 |
![]() Westwood Slinger£15.83 ![]() P/N: 32121800, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
24 |
401001500 Westwood Pulley Bearing Kit |
![]() Westwood Pulley Bearing Kit![]() P/N: 401001500, Genuine OEM spare part. Find other Westwood spares, parts and accessories.
No longer available
|
|
25 |
07914800 Westwood Circlip (PGC Pulley And Shaft) |
![]() Westwood Circlip (PGC Pulley And Shaft)![]() P/N: 07914800, Genuine OEM spare part. Find other Westwood spares, parts and accessories.
No longer available
|
|
26 |
10811600 Westwood Bearing (PTO Housing |
£16.38 |
![]() Westwood Bearing (PTO Housing£16.38 ![]() P/N: 10811600, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
27 |
541113000 Westwood Sweeper + Deck Flap |
£24.89 |
![]() Westwood Sweeper + Deck Flap£24.89 ![]() P/N: 541113000, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
28 |
08911500 Westwood M5 Washer |
£1.25 |
![]() Westwood M5 Washer£1.25 ![]() P/N: 08911500, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
29 |
04885900 Westwood Nut |
£1.86 |
![]() Westwood Nut£1.86 ![]() P/N: 04885900, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
30 |
02940500 Westwood M5 X 16mm Pozi Pan |
![]() Westwood M5 X 16mm Pozi Pan![]() P/N: 02940500, Genuine OEM spare part. Find other Westwood spares, parts and accessories.
No longer available
|
|
31 |
31323900 Westwood Brush Stock Spindle |
£36.60 |
![]() Westwood Brush Stock Spindle£36.60 ![]() P/N: 31323900, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
32 |
30117500 Westwood Sweeper Bearing Cap |
£6.97 |
![]() Westwood Sweeper Bearing Cap£6.97 ![]() P/N: 30117500, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
33 |
14898101 Westwood Yellow Non Web |
£1.43 |
![]() Westwood Yellow Non Web£1.43 ![]() P/N: 14898101, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
34 |
14936301 Westwood Bristle |
£1.43 |
![]() Westwood Bristle£1.43 ![]() P/N: 14936301, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
35 |
14833000 Westwood Bristle Boss |
£2.04 |
![]() Westwood Bristle Boss£2.04 ![]() P/N: 14833000, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
36 |
327362200 Westwood 2050 PGC Shaft Assy |
£137.50 |
![]() Westwood 2050 PGC Shaft Assy£137.50 ![]() P/N: 327362200, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
37 |
089418600 Westwood Washer M8 X 25 X 3 Unplated |
£1.25 |
![]() Westwood Washer M8 X 25 X 3 Unplated£1.25 ![]() P/N: 089418600, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
38 |
31350400 Westwood Sweeper Jockey Space |
£12.97 |
![]() Westwood Sweeper Jockey Space£12.97 ![]() P/N: 31350400, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
39 |
018002300 Westwood M10 X 50 Hex Head Bolt |
![]() Westwood M10 X 50 Hex Head Bolt£0.82 ![]() P/N: 018002300, Genuine OEM spare part. Find other Westwood spares, parts and accessories.
No longer available
|
|
40 |
448002800 Westwood Actuator |
![]() Westwood Actuator![]() P/N: 448002800, Genuine OEM spare part. Find other Westwood spares, parts and accessories.
No longer available
|
|
41 |
088002400 Westwood Washer 10.8id X 20.7od X 2mm Thk |
![]() Westwood Washer 10.8id X 20.7od X 2mm Thk![]() P/N: 088002400, Genuine OEM spare part. Find other Westwood spares, parts and accessories.
No longer available
|
|
42 |
04886100 Westwood M10 Nyloc Nut |
![]() Westwood M10 Nyloc Nut![]() P/N: 04886100, Genuine OEM spare part. Find other Westwood spares, parts and accessories.
No longer available
|
|
43 |
148005400 Westwood Belt Guard, C + 20/5 |
£62.76 |
![]() Westwood Belt Guard, C + 20/5£62.76 ![]() P/N: 148005400, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
44 |
08819500 Westwood Washer 5/16 T3 Lp Zinc Plated |
£1.25 |
![]() Westwood Washer 5/16 T3 Lp Zinc Plated£1.25 ![]() P/N: 08819500, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
45 |
04920100 Westwood M8 Nyloc Nut |
£1.25 |
![]() Westwood M8 Nyloc Nut£1.25 ![]() P/N: 04920100, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
46 |
028662700 Westwood Bolt M8x65mm |
![]() Westwood Bolt M8x65mm£0.71 ![]() P/N: 028662700, Genuine OEM spare part. Find other Westwood spares, parts and accessories.
No longer available
|
|
47 |
328955300 Westwood A/D Roller Wld Assy |
£113.02 |
![]() Westwood A/D Roller Wld Assy£113.02 ![]() P/N: 328955300, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
48 |
327171800 Westwood Roll Hand Asy-Sw A+D |
£64.32 |
![]() Westwood Roll Hand Asy-Sw A+D£64.32 ![]() P/N: 327171800, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
49 |
14804800 Westwood Lever Knob |
£7.51 |
![]() Westwood Lever Knob£7.51 ![]() P/N: 14804800, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
50 |
448004800 Westwood Net Emptying Loom |
£62.93 |
![]() Westwood Net Emptying Loom£62.93 ![]() P/N: 448004800, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
51 |
30121900 Westwood Bearing Shield |
£4.50 |
![]() Westwood Bearing Shield£4.50 ![]() P/N: 30121900, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
52 |
08819500 Westwood Washer 5/16 T3 Lp Zinc Plated |
£1.25 |
![]() Westwood Washer 5/16 T3 Lp Zinc Plated£1.25 ![]() P/N: 08819500, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
53 |
183024300 Westwood Boss Roller Pivot |
£8.59 |
![]() Westwood Boss Roller Pivot£8.59 ![]() P/N: 183024300, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
54 |
183003800 Westwood Trunnion |
£9.53 |
![]() Westwood Trunnion£9.53 ![]() P/N: 183003800, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
55 |
228001200 Westwood Belt A49 Super Ii |
£26.76 |
![]() Westwood Belt A49 Super Ii£26.76 ![]() P/N: 228001200, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
56 |
06855200 Westwood 1/8 X 1/2 Split Pin |
![]() Westwood 1/8 X 1/2 Split Pin£0.31 ![]() P/N: 06855200, Genuine OEM spare part. Find other Westwood spares, parts and accessories.
No longer available
|
|
57 |
307191500 Westwood Outer Shaft Lckg Plt |
£40.88 |
![]() Westwood Outer Shaft Lckg Plt£40.88 ![]() P/N: 307191500, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
58 |
14850500 Westwood Nylon Washer |
![]() Westwood Nylon Washer![]() P/N: 14850500, Genuine OEM spare part. Find other Westwood spares, parts and accessories.
No longer available
|
|
59 |
327010600 Westwood Roller-PGC-A/K/D |
£197.03 |
![]() Westwood Roller-PGC-A/K/D£197.03 ![]() P/N: 327010600, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
60 |
148005100 Westwood Actuator Gaitor Flap |
![]() Westwood Actuator Gaitor Flap![]() P/N: 148005100, Genuine OEM spare part. Find other Westwood spares, parts and accessories.
No longer available
|
|
61 |
31330002 Westwood Roller Shaft Spcr |
£15.42 |
![]() Westwood Roller Shaft Spcr£15.42 ![]() P/N: 31330002, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
62 |
183010000 Westwood 20/50 Roller Shaft |
£76.15 |
![]() Westwood 20/50 Roller Shaft£76.15 ![]() P/N: 183010000, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
63 |
301051600 Westwood 2050 Actuator Clamp |
£15.06 |
![]() Westwood 2050 Actuator Clamp£15.06 ![]() P/N: 301051600, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
63A |
528004301 Westwood Cable Roller- 2050 |
£30.08 |
![]() Westwood Cable Roller- 2050£30.08 ![]() P/N: 528004301, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
64 |
20811500 Westwood PTO Jockey Pulley |
£23.11 |
![]() Westwood PTO Jockey Pulley£23.11 ![]() P/N: 20811500, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
65 |
02826000 Westwood Bolt M8 X 25mm |
£0.44 |
![]() Westwood Bolt M8 X 25mm£0.44 ![]() P/N: 02826000, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
66 |
327012100 Westwood 2050 Flap Plate Assy |
£71.88 |
![]() Westwood 2050 Flap Plate Assy£71.88 ![]() P/N: 327012100, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
67 |
189497400 Westwood 2002 Brush Spin Lng |
£22.92 |
![]() Westwood 2002 Brush Spin Lng£22.92 ![]() P/N: 189497400, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
68 |
313003500 Westwood PGC Belt Tension Adjust Rod |
£51.24 |
![]() Westwood PGC Belt Tension Adjust Rod£51.24 ![]() P/N: 313003500, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
69 |
148005200 Westwood 2050 Air Chute Rubb |
£16.67 |
![]() Westwood 2050 Air Chute Rubb£16.67 ![]() P/N: 148005200, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
70 |
12860100 Westwood Rivet Pop 4.8 X 16mm |
£1.25 |
![]() Westwood Rivet Pop 4.8 X 16mm£1.25 ![]() P/N: 12860100, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
71 |
31337600 Westwood Spacer Wheel Hub |
£45.34 |
![]() Westwood Spacer Wheel Hub£45.34 ![]() P/N: 31337600, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
72 |
028002300 Westwood M10 X 25 S/screw BZP |
![]() Westwood M10 X 25 S/screw BZP£0.82 ![]() P/N: 028002300, Genuine OEM spare part. Find other Westwood spares, parts and accessories.
No longer available
|
|
73 |
209044100 Westwood Pulley, 5" Sweeper |
£58.40 |
![]() Westwood Pulley, 5" Sweeper£58.40 ![]() P/N: 209044100, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
74 |
31351100 Westwood Sweeper Jockey Cap |
£27.00 |
![]() Westwood Sweeper Jockey Cap£27.00 ![]() P/N: 31351100, Genuine OEM spare part. Find other Westwood spares, parts and accessories. |
75 |
089420600 Westwood M10 Washer Single Coil Flat Sect Zp And Cp |
![]() Westwood M10 Washer Single Coil Flat Sect Zp And Cp£0.95 ![]() P/N: 089420600, Genuine OEM spare part. Find other Westwood spares, parts and accessories.
No longer available
|
