Stihl MS 201 T Chainsaw (MS201 T) Parts Diagram, Carburetor C1Q-S251-S249-S215 & S189

Look at the diagram and find parts that fit a Stihl MS 201 T Chainsaw, or refer to the list below.

All parts that fit a MS 201 T Chainsaw


Air Filter and Cover
Air Filter and Cover
Carburetor C1Q-S250-S248-S214 & S188
Carburetor C1Q-S250-S248-S214 & S188
Carburetor C1Q-S251-S249-S215 & S189
Carburetor C1Q-S251-S249-S215 & S189

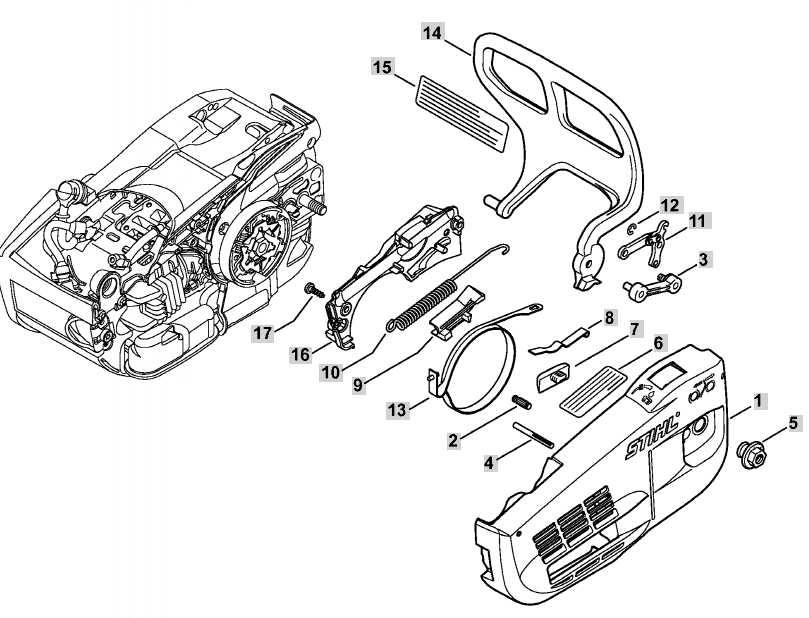

Chain and Sprocket
Chain and Sprocket
Crankecase & Cylinder Assy
Crankecase & Cylinder Assy
Handle Housing and Handlebar
Handle Housing and Handlebar
Ignition System
Ignition System
Oil Pump and Clutch Assy
Oil Pump and Clutch Assy
Rewind Starter Ergo-Easy Start
Rewind Starter Ergo-Easy Start
Rewind Starter
Rewind Starter
Tank Housing
Tank Housing
Tools
Tools


Stihl MS 201 T Chainsaw (MS201 T) Parts Diagram, Carburetor C1Q-S251-S249-S215 & S189
# Part Price
0.B 1145 120 0653 - Stihl Carburettor C1Q-S284B £147.92
To Basket
0.D 1145 120 0602 - Stihl Carburettor £64.52
0.E 1145 007 1700 - Stihl Set of carburettor parts £29.99
To Basket
1 4116 121 5100 - Stihl Inlet needle £10.85
To Basket
2 1145 122 3000 - Stihl Spring £2.29
To Basket
3 1125 121 5000 - Stihl Inlet control lever £3.31
To Basket
4 1120 121 9200 - Stihl Spindle £1.26
To Basket
5 0000 122 7101 - Stihl Screw £4.36
To Basket
6 4241 122 6600 - Stihl Collar screw £3.74
To Basket
7 1145 129 0900 - Stihl Gasket £2.17
To Basket
8 1145 121 4700 - Stihl Metering diaphragm £15.18
To Basket
9 1145 121 0801 - Stihl END COVER £11.74
10 9646 945 0490 - Stihl O-ring DIN3771-S7x1.5 £0.43
To Basket
11 1120 122 6601 - Stihl Collar screw £4.15
To Basket
12 1123 121 7800 - Stihl Strainer £3.25
To Basket
13 1129 121 4800 - Stihl Pump diaphragm £15.18
To Basket
14 1123 129 0905 - Stihl Gasket £2.17
To Basket
15 1145 120 2600 - Stihl Pump cover £11.26
To Basket
16 1145 122 6200 - Stihl Idle speed screw £10.85
To Basket
17 1120 122 7800 - Stihl Oval head screw £4.36
To Basket
18 1145 122 6700 - Stihl High speed screw £10.85
To Basket
19 1141 121 2704 - Stihl Cap £5.63
To Basket
20 1145 120 6800 - Stihl Low speed screw £16.43
To Basket
21 0000 121 2703 - Stihl Cap £5.63
To Basket
22 4228 122 6801 - Stihl Low speed screw £10.85
To Basket
23 1145 121 3501 - Stihl Throttle lever £6.50
To Basket
24 1145 121 3500 - Stihl THROTTLE LEVER £4.42
25 4132 122 6600 - Stihl Collar screw £4.36
To Basket
27 1145 122 3200 - Stihl Torsion spring £1.03
To Basket
28 1145 123 0800 - Stihl DETENT LEVER £3.29
29 1145 121 6600 - Stihl Lever £2.51
To Basket
30 1145 121 6601 - Stihl Lever £2.72
To Basket
31 1139 122 7101 - Stihl Screw £4.79
To Basket
32 1145 141 1800 - Stihl Sleeve £1.01
To Basket
33 1145 182 1504 - Stihl Throttle rod £1.54
To Basket
