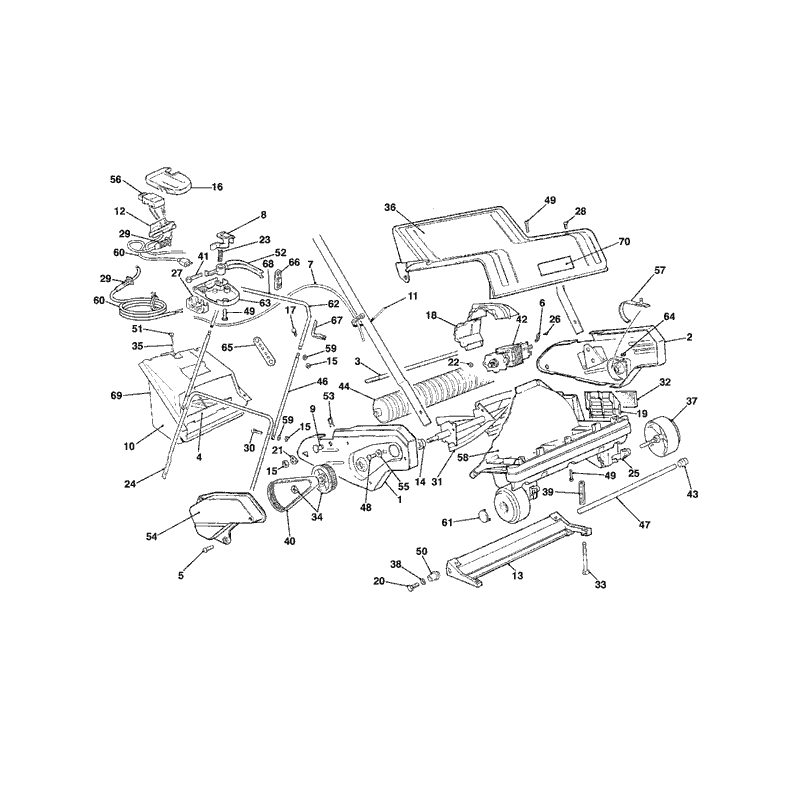

Qualcast Concorde XR25 (F016T48888) Parts Diagram, Page 1

Look at the diagram and find parts that fit a Qualcast Concorde XR25, or refer to the list below.

All parts that fit a Qualcast Concorde XR25




Qualcast Concorde XR25 (F016T48888) Parts Diagram, Page 1
# Part Price
3 F016T48787 - Qualcast Spindle £2.18
4 F016T48898 - Qualcast Compactor £4.97
5 F016L36179 - Qualcast Screw £0.76
6 F016T46305 - Qualcast Cable Cleat £1.14
8 F016T49223 - Qualcast Knob £1.97
9 F016T48910 - Qualcast Retaining Pin £0.64
11 F016L11580 - Qualcast Cable Cleat £0.76
12 F016T49222 - Qualcast Fastening Clamp £0.97
13 F016T45164 - Qualcast Lower Blade £22.64
14 F016T40530 - Qualcast Bushing £1.14
15 F016L35329 - Qualcast Nut £1.14
16 F016T49431 - Qualcast Switch Box £1.88
17 F016T46339 - Qualcast Trunnion £1.46
18 F016T46665 - Qualcast Cover £1.88
19 F016T46724 - Qualcast Holder £1.46
20 F016T48048 - Qualcast Hex Screw £0.76
21 F016T48053 - Qualcast Washer £0.85
22 F016T40589 - Qualcast Hex Nut £0.64
23 F016T49226 - Qualcast Compression Spring (FGA) £2.52
24 F016T49197 - Qualcast #N/A £11.83
25 F016T48908 - Qualcast Adjusting Part £3.58
26 F016L37433 - Qualcast Self-cutting Screw £0.76
27 F016T49224 - Qualcast Cable Grip £0.97
28 F016T48977 - Qualcast Tapping Screw £0.64
29 F016T44500 - Qualcast Grommet £1.14
30 F016T48068 - Qualcast Screw
31 F016T49213 - Qualcast #N/A £49.01
32 F016T46774 - Qualcast Filter
33 F016T43163 - Qualcast Screw
35 F016T48063 - Qualcast Cord £0.64
36 F016T48911 - Qualcast Upper Housing £13.67
37 F016T48903 - Qualcast Wheel £5.75
38 F016T48058 - Qualcast Plain Washer £0.64
39 F016T43125 - Qualcast Spring £0.85
40 F016T41945 - Qualcast Belt - 11695CS £11.23
41 F016T49845 - Qualcast Spring Lever £2.52
42 F016S10220 - Qualcast Service Instructions £0.97
43 F016T45586 - Qualcast Parts Set £1.88
44 F016T45075 - Qualcast Roller £7.62
46 F016T48813 - Qualcast Lengthening Piece £6.80
47 F016T46193 - Qualcast #N/A £7.62
48 F016T40588 - Qualcast Stud bolt £0.64
49 F016T49429 - Qualcast Self-cutting Screw £0.76
50 F016T45585 - Qualcast Threaded Bushing £0.64
51 F016T48901 - Qualcast Sealing cap £10.74
52 F016L65676 - Qualcast Positioning Lever (CS10066) £10.14
53 F016T45870 - Qualcast Pickup Clip £0.76
54 F016T48905 - Qualcast #N/A £10.74
55 F016T48531 - Qualcast Plain Washer £1.75
56 F016T49229 - Qualcast Switch £6.80
57 F016T43913 - Qualcast Bow £4.37
58 F016T48909 - Qualcast Motor Hood £13.67
59 F016T48727 - Qualcast Plain Washer £2.04
60 F016102094 - Qualcast #N/A
61 F016T48875 - Qualcast Bearing £0.85
62 F016T48906 - Qualcast Handle £13.67
63 F016T49432 - Qualcast Switch Box £0.76
64 F016T49100 - Qualcast Set ring £2.60
65 F016T47898 - Qualcast Assembly Wrench £1.46
66 F016L65387 - Qualcast Strain-relief Clamp £7.68
67 F016T56137 - Qualcast #N/A £3.78
69 F016T48880 - Qualcast Sticker £0.64
70 F016T48913 - Qualcast #N/A £1.07
