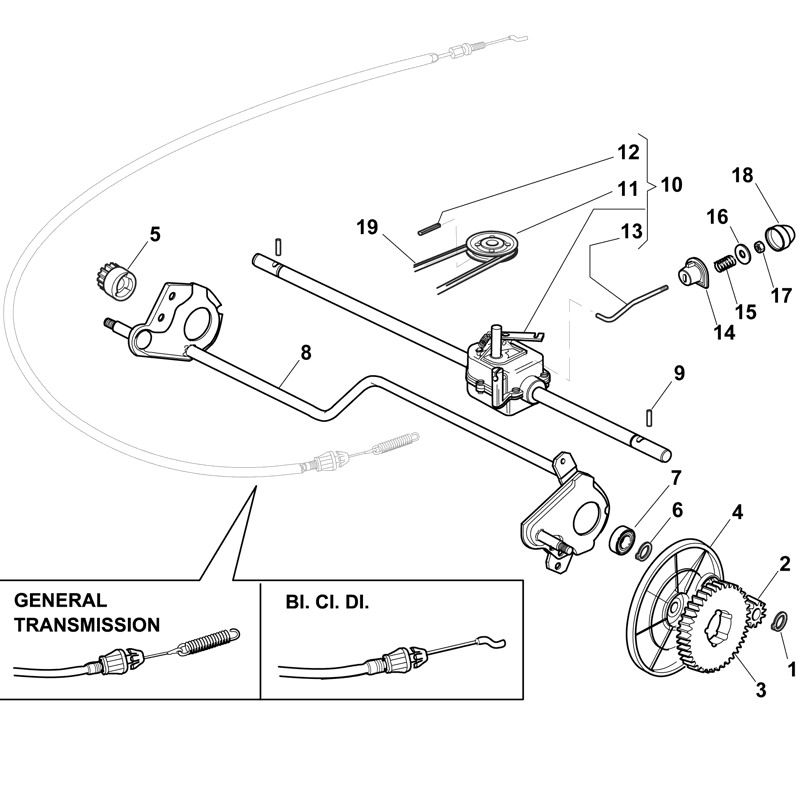

Mountfield SP530 (2012) Parts Diagram, Page 4

Look at the diagram and find parts that fit a Mountfield SP530, or refer to the list below.

All Parts for SP530

Mountfield SP530 (2012) Parts Diagram, Page 4

#	Part	Price
1	112608600/0 Mountfield Circlip D=12 Uni 7435 C60	£1.49	Mountfield Circlip D=12 Uni 7435 C60 £1.49 P/N: 112608600/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
2	122570120/1 Mountfield L/H Pinion Gear Z10 [Metal]	£7.12	Mountfield L/H Pinion Gear Z10 [Metal] £7.12 P/N: 122570120/1, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
4	322600160/0 Mountfield Wheel Cover D=300	£5.02	Mountfield Wheel Cover D=300 £5.02 P/N: 322600160/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
5	122570110/1 Mountfield R/H Pinion Gear Z10 [Metal]	£7.12	Mountfield R/H Pinion Gear Z10 [Metal] £7.12 P/N: 122570110/1, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
6	112608600/0 Mountfield Circlip D=12 Uni 7435 C60	£1.49	Mountfield Circlip D=12 Uni 7435 C60 £1.49 P/N: 112608600/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
7	119216035/0 Mountfield Bearing 6001 2RS (12 X 28 X 8)	£3.38	Mountfield Bearing 6001 2RS (12 X 28 X 8) £3.38 P/N: 119216035/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
8	381002863/0 Mountfield Rear Wheels Axle Znw NP53	£96.17	Mountfield Rear Wheels Axle Znw NP53 £96.17 P/N: 381002863/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
9	122753000/0 Mountfield Pin D=5.2 X 25.65	£1.49	Mountfield Pin D=5.2 X 25.65 £1.49 P/N: 122753000/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
10	181003079/1 Mountfield Gearbox [Black]	£95.27	Mountfield Gearbox [Black] £95.27 P/N: 181003079/1, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
11	122601909/0 Mountfield Pulley	£5.42	Mountfield Pulley £5.42 P/N: 122601909/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
12	112645705/0 Mountfield Roll Pin D=5 X 32	£1.49	Mountfield Roll Pin D=5 X 32 £1.49 P/N: 112645705/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
13	122033281/0 Mountfield Gear Adjustment Rod	£4.60	Mountfield Gear Adjustment Rod £4.60 P/N: 122033281/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
14	122041957/1 Mountfield Spring Guide Bush	£1.49	Mountfield Spring Guide Bush £1.49 P/N: 122041957/1, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
15	122450063/0 Mountfield Spring	£1.49	Mountfield Spring £1.49 P/N: 122450063/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
16	322680009/0 Mountfield Flat Washer 6.5 X 32 X 4	£1.75	Mountfield Flat Washer 6.5 X 32 X 4 £1.75 P/N: 322680009/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
17	112154510/0 Mountfield Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.49	Mountfield Low Self-Locking Nut M6 Uni7474 Acc.6S £1.49 P/N: 112154510/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
18	122110230/0 Mountfield Hub Cover	£1.49	Mountfield Hub Cover £1.49 P/N: 122110230/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
19	135064195/0 Mountfield Trapezoidal Belt Z33	£10.46	Mountfield Trapezoidal Belt Z33 £10.46 P/N: 135064195/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
