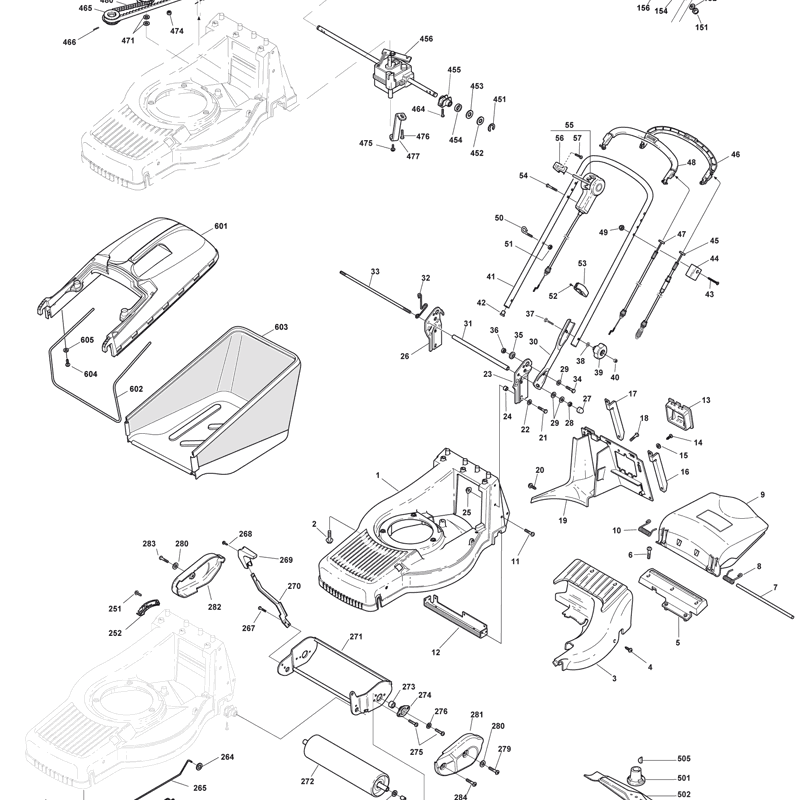

Mountfield M5510R-PD (2008) Parts Diagram, Page 1

Look at the diagram and find parts that fit a Mountfield M5510R-PD , or refer to the list below.

All parts that fit a M5510R-PD


Page:1
Page:1


Mountfield M5510R-PD (2008) Parts Diagram, Page 1
# Part Price
1 381002662/0 - Mountfield Chassis Red Roller Tu55 Avs £439.46
2 112735108/1 - Mountfield Screw 3/8" X 1�" Unc £2.00
To Basket
3 322060155/1 - Mountfield Deck Cover - Red £18.84
4 112728300/0 - Mountfield Self - Tapping Screw K50 X 22 £1.48
To Basket
5 322785164/0 - Mountfield Deflector Support [Black] £3.52
6 112735664/0 - Mountfield Screw M6 X 16 £1.34
To Basket
7 122517906/1 - Mountfield Deflector Rod £4.15
To Basket
8 122450420/1 - Mountfield L/H Deflector Spring £1.87
To Basket
9 381008021/3 - Mountfield Deflector Assembly - Black £19.75
To Basket
10 122450410/1 - Mountfield R/H Deflector Spring £11.53
To Basket
11 112735592/0 - Mountfield Self - Tap Screw M6 X 20 £1.87
To Basket
12 322608521/0 - Mountfield Deck Strut £29.89
13 322109531/0 - Mountfield Battery Cover £14.34
To Basket
14 112728124/0 - Mountfield Self - Tap Screw TCB Torx 4.2 X 16 £1.48
To Basket
15 112523040/0 - Mountfield Washer M6 6.6 X 18 X 1.6 £1.48
To Basket
16 322775183/0 - Mountfield Left Bracket £19.27
17 322775185/0 - Mountfield Right Bracket £19.87
18 112735664/0 - Mountfield Screw M6 X 16 £1.34
To Basket
19 322108278/0 - Mountfield Plastic Rear Baffle £45.53
To Basket
20 112728300/0 - Mountfield Self - Tapping Screw K50 X 22 £1.48
To Basket
21 112793102/0 - Mountfield Screw Te M8X20 Uni 5739 Acc.8.8 £1.48
To Basket
22 112521350/0 - Mountfield Washer M8 8.4 X 16 X 1.6 £1.48
To Basket
23 322778411/0 - Mountfield Left Handle Bracket £8.71
24 122041959/0 - Mountfield Bush £4.39
25 112293201/0 - Mountfield Hexagon Nut M8 With Exagonal Flange £1.61
To Basket
26 322778413/0 - Mountfield Right Handle Bracket £6.17
27 118203854/0 - Mountfield Nut Cap M8 - Black £1.48
To Basket
28 112293200/0 - Mountfield Hexagon Nut M8 Uni 5588 Acc.6S £1.48
To Basket
29 112523060/0 - Mountfield Washer M8 8.4 X 24 X 2 £1.48
To Basket
30 381006614/0 - Mountfield Lower Handle - Black £38.83
To Basket
31 322869711/0 - Mountfield Spacer Tube £7.02
32 122430312/0 - Mountfield Lower Pull Cord Guide £5.89
To Basket
33 122517856/1 - Mountfield Deflector Rod £4.82
To Basket
34 112793301/0 - Mountfield Hex - Head Screw M8 X 25 £1.48
To Basket
35 322041955/0 - Mountfield Metal Handle Bush £1.48
To Basket
36 112293200/0 - Mountfield Hexagon Nut M8 Uni 5588 Acc.6S £1.48
To Basket
37 112819110/0 - Mountfield Carriage Bolt M8 X 50 £1.74
To Basket
38 122680006/1 - Mountfield Plastic Washer £1.74
To Basket
39 122399900/0 - Mountfield 3 Spoke Handwheel - Black £1.48
To Basket
40 112293200/0 - Mountfield Hexagon Nut M8 Uni 5588 Acc.6S £1.48
To Basket
41 381006619/1 - Mountfield Upper Handle [Black] £46.86
42 118566110/0 - Mountfield Handle Cap D=22 - Black £1.48
To Basket
43 112727786/0 - Mountfield Cross - Head Screw M6 X 60 4.8 Zn £1.87
To Basket
44 322551685/0 - Mountfield Cable Holder Block D=22 £7.16
To Basket
45 381000697/0 - Mountfield Clutch Drive Cable £19.28
To Basket
46 381003297/1 - Mountfield Drive Control Lever £21.02
To Basket
47 181000688/0 - Mountfield Engine Brake Cable L=1050 £12.92
To Basket
48 381003298/1 - Mountfield Brake Control Lever £30.80
To Basket
49 112154510/0 - Mountfield Low Self - Locking Nut M6 Uni7474 Acc.6S £1.48
To Basket
50 122430313/0 - Mountfield Pull Cord Guide £3.74
To Basket
51 112292100/0 - Mountfield Hexagon Nut M6 £1.34
To Basket
52 112728706/0 - Mountfield Self - Tapping Screw Wn1451 K40 X 16 £1.48
To Basket
53 322192001/0 - Mountfield Cable Clamp £1.48
To Basket
54 112728702/0 - Mountfield Self - Tap Screw Pt Torx Wn1451 K50 X 40 £1.48
To Basket
55 381007098/0 - Mountfield 4 Speed Cable Assembly £44.18
To Basket
56 322399809/0 - Mountfield 4 Speed Cable Knob £1.48
To Basket
57 112728300/0 - Mountfield Self - Tapping Screw K50 X 22 £1.48
To Basket
151 112291000/0 - Mountfield Hexagon Nut M5 £1.48
To Basket
152 112581500/0 - Mountfield Washer M5 £1.48
To Basket
153 22171005/0 - Mountfield SPACER £3.40
154 112521360/0 - Mountfield Washer M10 10.5 X 20 X 2 £1.48
To Basket
155 112508100/0 - Mountfield Spring Washer 10.2 X 20 X 0.8 £1.48
To Basket
156 381007279/1 - Mountfield Throttle Lever £1.48
To Basket
157 481007080/0 - Mountfield Throttle Cable £23.30
To Basket
158 112815000/0 - Mountfield Carriage Bolt M5 X 45 £1.48
To Basket
159 114356702/0 - Mountfield Throttle Decal £1.87
To Basket
251 112728300/0 - Mountfield Self - Tapping Screw K50 X 22 £1.48
To Basket
252 322735553/0 - Mountfield Height Adjust Quadrant £8.64
To Basket
253 381002847/0 - Mountfield Front Wheels Axle £33.48
To Basket
254 322545160/0 - Mountfield Front Axle Plate £2.54
To Basket
255 112735664/0 - Mountfield Screw M6 X 16 £1.34
To Basket
256 122430210/0 - Mountfield Spring £1.61
To Basket
257 112521370/0 - Mountfield Washer M12 13 24 X 2.5 £1.48
To Basket
258 122122206/0 - Mountfield Bearing D=12 Omet 1000861 £1.74
To Basket
259 381007351/0 - Mountfield Wheel D=170 £12.98
To Basket
260 112521460/0 - Mountfield Washer M6 6.5 X 22 X 1.5 Stiga Textile £1.34
To Basket
261 112735662/1 - Mountfield Screw TCB Torx M6 X 12 £2.28
To Basket
262 322110381/0 - Mountfield Hub Cap Spark D=170 - Grey £3.22
To Basket
263 122446181/0 - Mountfield Spring £7.63
To Basket
264 112604898/0 - Mountfield Starlock Washer D=7 £1.48
To Basket
265 22033326/0 - Mountfield TIE ROD £10.25
267 112735664/0 - Mountfield Screw M6 X 16 £1.34
To Basket
268 112728690/0 - Mountfield Self - Tapping Screw Ka50 X 25 £1.48
To Basket
269 322399805/0 - Mountfield Height Adjust Knob £13.06
To Basket
270 322321505/0 - Mountfield Height Adjust Lever [Roller] £19.38
To Basket
271 381005117/0 - Mountfield Roller Support Assembly 55cm £147.30
To Basket
272 381007405/0 - Mountfield Roller Assembly [55 - R] £273.71
To Basket
273 119216036/0 - Mountfield Bearing 6201 - 2Rs £9.11
To Basket
274 322207323/0 - Mountfield Bearing Flange £18.07
To Basket
275 112735662/1 - Mountfield Screw TCB Torx M6 X 12 £2.28
To Basket
276 112523040/0 - Mountfield Washer M6 6.6 X 18 X 1.6 £1.48
To Basket
277 122170820/0 - Mountfield Roller Spacer £16.87
To Basket
278 112523100/0 - Mountfield Washer M12 14 X 36 X 3 £1.87
To Basket
279 112735592/0 - Mountfield Self - Tap Screw M6 X 20 £1.87
To Basket
280 112523040/0 - Mountfield Washer M6 6.6 X 18 X 1.6 £1.48
To Basket
281 322060203/0 - Mountfield Left Roller Cover [Red] £6.17
282 322060201/0 - Mountfield Right Roller Chain Cover - Red £2.08
To Basket
283 112735592/0 - Mountfield Self - Tap Screw M6 X 20 £1.87
To Basket
284 112735594/0 - Mountfield Hex - Head Screw M6 X 30 £1.48
To Basket
284 112735592/0 - Mountfield Self - Tap Screw M6 X 20 £1.87
To Basket
451 112000957/0 - Mountfield Circlip D=10 £1.48
To Basket
452 122671659/0 - Mountfield Washer M12 13 X 24 X 2 £1.48
To Basket
453 112520032/0 - Mountfield Washer 12 X 18 X 1 £1.48
To Basket
454 119035152/0 - Mountfield Seal Ring 12 X 18 X 4 £4.55
To Basket
455 322785153/0 - Mountfield Gearbox Support Bracket £14.87
To Basket
456 181003087/1 - Mountfield Gearbox 4 Speed £227.64
To Basket
457 122601916/0 - Mountfield Variator Pulley £61.33
To Basket
458 112645700/0 - Mountfield Pin £1.48
To Basket
459 1111-3423-01 - Mountfield Sprocket 10T £14.06
To Basket
460 1111-3424-01 - Mountfield Sprocket 21T £17.41
To Basket
461 1111-3562-01 - Mountfield Roller Chain (Riveted) £19.08
To Basket
462 112735662/1 - Mountfield Screw TCB Torx M6 X 12 £2.28
To Basket
463 112523040/0 - Mountfield Washer M6 6.6 X 18 X 1.6 £1.48
To Basket
464 112735664/0 - Mountfield Screw M6 X 16 £1.34
To Basket
465 122601917/0 - Mountfield Drive Engine Pulley D=22mm £23.16
To Basket
466 112714312/0 - Mountfield Dowel Pin M6 X 12 £1.48
To Basket
467 112735669/0 - Mountfield Screw TCB Torx M6 X 50 £1.48
To Basket
468 122671656/0 - Mountfield Washer £6.96
To Basket
469 322320003/0 - Mountfield Tension Arm £13.39
To Basket
471 112523040/0 - Mountfield Washer M6 6.6 X 18 X 1.6 £1.48
To Basket
472 112674550/0 - Mountfield Screw Te M6 X 30 £1.48
To Basket
473 122601914/0 - Mountfield Belt Guide Pulley £20.48
To Basket
474 112154510/0 - Mountfield Low Self - Locking Nut M6 Uni7474 Acc.6S £1.48
To Basket
475 112728300/0 - Mountfield Self - Tapping Screw K50 X 22 £1.48
To Basket
476 112735664/0 - Mountfield Screw M6 X 16 £1.34
To Basket
477 322778407/0 - Mountfield Gearbox Support Bracket £10.58
To Basket
478 112735664/0 - Mountfield Screw M6 X 16 £1.34
To Basket
479 322806619/0 - Mountfield Speed Cable Bracket £4.42
To Basket
480 135064383/0 - Mountfield Trapezoidal Belt XPZ LP=837 £14.33
To Basket
481 112735592/0 - Mountfield Self - Tap Screw M6 X 20 £1.87
To Basket
501 122465618/0 - Mountfield Blade Boss D=22.2 £8.98
To Basket
502 181004144/0 - Mountfield Blade Turbo 55 £27.85
To Basket
503 112530140/0 - Mountfield Washer M10 £1.87
To Basket
504 112735698/0 - Mountfield Hex - Head Screw 3/8" X 2" £1.74
To Basket
505 112139100/0 - Mountfield Woodruff Key 4 X 6.5 D=16 Uni6606 C40 £1.48
To Basket
601 381486014/0 - Mountfield Grasscatcher Top - Full Indicator - Black £20.35
To Basket
602 112728300/0 - Mountfield Self - Tapping Screw K50 X 22 £1.48
To Basket
603 112521460/0 - Mountfield Washer M6 6.5 X 22 X 1.5 Stiga Textile £1.34
To Basket
604 122608522/0 - Mountfield Grasscatcher Frame £22.90
To Basket
605 181002334/0 - Grassbag-White [Mountfield] £58.00
