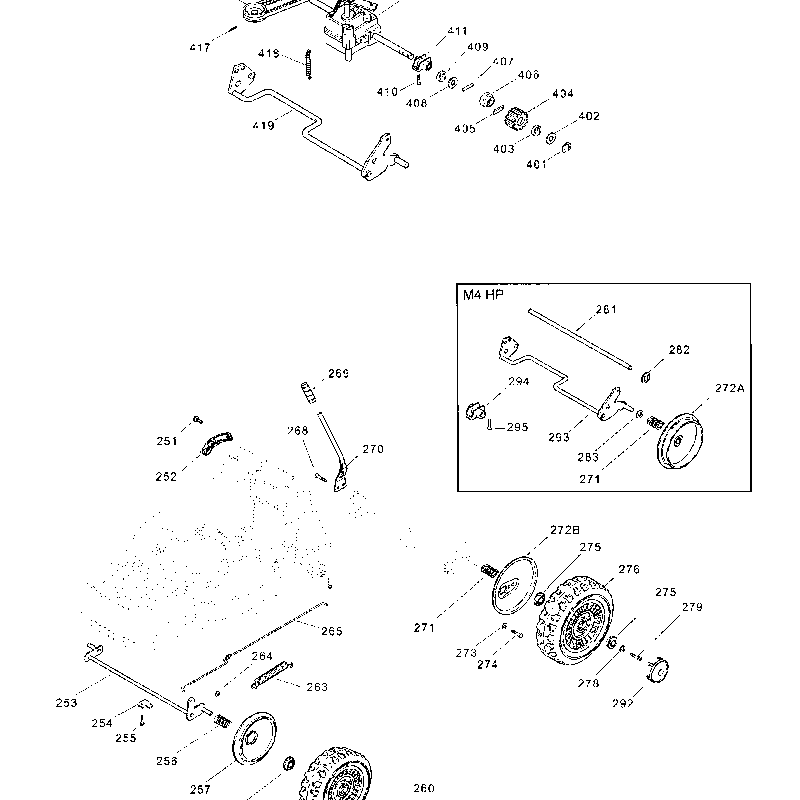

Mountfield M4SP (01-2005) Parts Diagram, Page 2
Look at the diagram and find parts that fit a Mountfield M4SP, or refer to the list below.
All Parts for M4SP
| # | Part | Price | |
|---|---|---|---|
| 251 |
112728300/0 Mountfield Self-Tapping Screw K50 X 22 |
£1.49 |
 Mountfield Self-Tapping Screw K50 X 22£1.49
P/N: 112728300/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 252 |
322735563/0 Mountfield Height Adjust Quadrant |
£14.42 |
Mountfield Height Adjust Quadrant£14.42
P/N: 322735563/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 253 |
81002821/0 Mountfield Front Wheel Axle Turbo 50 |
Mountfield Front Wheel Axle Turbo 50
P/N: 81002821/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 254 |
322545160/0 Mountfield Front Axle Plate |
Mountfield Front Axle Plate
P/N: 322545160/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
|
| 255 |
112735664/0 Mountfield Screw M6 X 16 |
£1.36 |
 Mountfield Screw M6 X 16£1.36
P/N: 112735664/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 256 |
122430210/0 Mountfield Spring |
£1.63 |
Mountfield Spring£1.63
P/N: 122430210/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 258 |
122122201/0 Mountfield Bearing-Plastic Case |
£2.17 |
 Mountfield Bearing-Plastic Case£2.17
P/N: 122122201/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 259 |
1111-2784-01 Mountfield Wheel Assembly 175mm |
£17.88 |
Mountfield Wheel Assembly 175mm£17.88
P/N: 1111-2784-01, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 260 |
112521460/0 Mountfield Washer M6 6.5 X 22 X 1.5 |
£1.36 |
Mountfield Washer M6 6.5 X 22 X 1.5£1.36
P/N: 112521460/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 261 |
112735662/1 Mountfield Screw Tcb Torx M6 X 12 |
£2.30 |
 Mountfield Screw Tcb Torx M6 X 12£2.30
P/N: 112735662/1, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 263 |
122446181/0 Mountfield Spring |
£7.72 |
Mountfield Spring£7.72
P/N: 122446181/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 264 |
112604898/0 Mountfield Starlock Washer D=7 |
£1.49 |
Mountfield Starlock Washer D=7£1.49
P/N: 112604898/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 265 |
122033322/0 Mountfield Wheels Control Rod TU50 (L=592,5) |
Mountfield Wheels Control Rod TU50 (L=592,5)
P/N: 122033322/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 268 |
112735661/0 Mountfield Screw Tcb Torx M6 X 10 |
£1.49 |
Mountfield Screw Tcb Torx M6 X 10£1.49
P/N: 112735661/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 269 |
322399808/0 Mountfield Height Adjust Knob |
£2.30 |
Mountfield Height Adjust Knob£2.30
P/N: 322399808/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 270 |
322321515/0 Mountfield Use 1111-2816-01 |
 Mountfield Use 1111-2816-01
P/N: 322321515/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 271 |
122430215/0 Mountfield Spring |
£3.12 |
Mountfield Spring£3.12
P/N: 122430215/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 272B |
322600121/0 Mountfield Wheel Cover Plate D=190 |
Mountfield Wheel Cover Plate D=190
P/N: 322600121/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 273 |
112523040/0 Mountfield Washer M6 6.6 X 18 X 1.6 |
£1.49 |
 Mountfield Washer M6 6.6 X 18 X 1.6£1.49
P/N: 112523040/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 274 |
112735661/0 Mountfield Screw Tcb Torx M6 X 10 |
£1.49 |
Mountfield Screw Tcb Torx M6 X 10£1.49
P/N: 112735661/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 275 |
122122201/0 Mountfield Bearing-Plastic Case |
£2.17 |
Mountfield Bearing-Plastic Case£2.17
P/N: 122122201/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 276 |
1111-2665-01 Mountfield Wheel Assembly C/W Bearing D=190 |
£30.82 |
 Mountfield Wheel Assembly C/W Bearing D=190£30.82
P/N: 1111-2665-01, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 278 |
112521460/0 Mountfield Washer M6 6.5 X 22 X 1.5 |
£1.36 |
Mountfield Washer M6 6.5 X 22 X 1.5£1.36
P/N: 112521460/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 279 |
112735662/1 Mountfield Screw Tcb Torx M6 X 12 |
£2.30 |
Mountfield Screw Tcb Torx M6 X 12£2.30
P/N: 112735662/1, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 291 |
322110383/0 Mountfield Hub Cap D=175 [Grey] |
£6.50 |
Mountfield Hub Cap D=175 [Grey]£6.50
P/N: 322110383/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 292 |
322110384/0 Mountfield Hub Cap 190/215 [Grey] |
£6.91 |
Mountfield Hub Cap 190/215 [Grey]£6.91
P/N: 322110384/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 402 |
112520032/0 Mountfield Washer 12 X 18 X 1 |
£1.49 |
Mountfield Washer 12 X 18 X 1£1.49
P/N: 112520032/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 403 |
322160520/0 Mountfield Dust Cover |
£1.49 |
 Mountfield Dust Cover£1.49
P/N: 322160520/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 404 |
122570125/0 Mountfield Right/Left Pinion Gear |
£14.09 |
 Mountfield Right/Left Pinion Gear£14.09
P/N: 122570125/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 405 |
122076645/0 Mountfield Drive Key 4 X 8 X 15 |
£1.63 |
 Mountfield Drive Key 4 X 8 X 15£1.63
P/N: 122076645/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 406 |
322170630/1 Mountfield Pinion Spacer |
£4.74 |
Mountfield Pinion Spacer£4.74
P/N: 322170630/1, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 407 |
112645705/0 Mountfield Roll Pin D=5 X 32 |
£1.49 |
Mountfield Roll Pin D=5 X 32£1.49
P/N: 112645705/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 408 |
112520032/0 Mountfield Washer 12 X 18 X 1 |
£1.49 |
Mountfield Washer 12 X 18 X 1£1.49
P/N: 112520032/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 409 |
119035152/0 Mountfield Seal Ring 12 X 18 X 4 |
£4.60 |
Mountfield Seal Ring 12 X 18 X 4£4.60
P/N: 119035152/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 410 |
112735664/0 Mountfield Screw M6 X 16 |
£1.36 |
Mountfield Screw M6 X 16£1.36
P/N: 112735664/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 411 |
322785153/0 Mountfield Gearbox Support Bracket |
£15.04 |
 Mountfield Gearbox Support Bracket£15.04
P/N: 322785153/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 412 |
112620310/0 Mountfield Pin |
£1.90 |
Mountfield Pin£1.90
P/N: 112620310/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 413 |
122601913/0 Mountfield Gearbox Pulley D=60 |
£16.25 |
 Mountfield Gearbox Pulley D=60£16.25
P/N: 122601913/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 414 |
181003085/0 Mountfield Gearbox [Black] |
£155.76 |
![Mountfield Gearbox [Black]](/images/parts/2d3141f4-ae69-4aef-800e-16f401e4f364.jpg?width=200&height=200&rmode=pad&bgcolor=white) Mountfield Gearbox [Black]£155.76
P/N: 181003085/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 415 |
135063175/0 Mountfield Trapezoidal Belt Lp=750 |
£9.23 |
 Mountfield Trapezoidal Belt Lp=750£9.23
P/N: 135063175/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 416 |
122601918/0 Mountfield Drive Engine Pulley D=22 |
£24.05 |
Mountfield Drive Engine Pulley D=22£24.05
P/N: 122601918/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 417 |
112714312/0 Mountfield Dowel Pin M6 X 12 |
£1.49 |
Mountfield Dowel Pin M6 X 12£1.49
P/N: 112714312/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 418 |
122450434/0 Mountfield Tension Spring |
£6.37 |
Mountfield Tension Spring£6.37
P/N: 122450434/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 419 |
381002823/0 Mountfield Rear Wheels Axle |
Mountfield Rear Wheels Axle
P/N: 381002823/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
