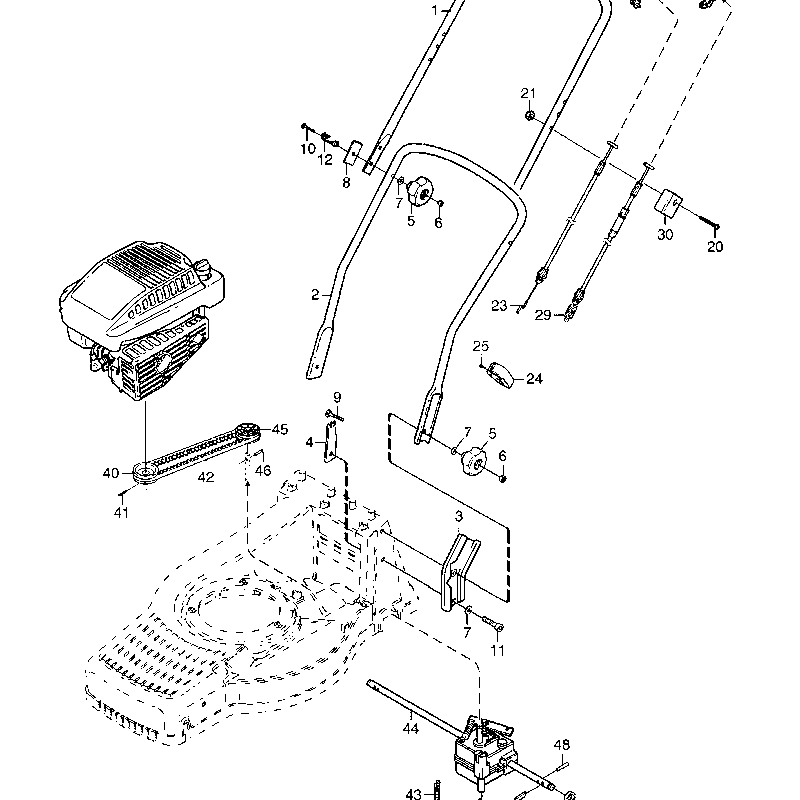

Mountfield M4SP (01-2004) Parts Diagram, Page 2

Look at the diagram and find parts that fit a Mountfield M4SP, or refer to the list below.

Mountfield M4SP (01-2004) Parts Diagram, Page 2

#	Part	Price
1	381006618/1 Mountfield Upper Handle [Black]	£48.76	Mountfield Upper Handle [Black] £48.76 P/N: 381006618/1, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
2	381006613/0 Mountfield Lower Pro Handle [Black]	£36.56	Mountfield Lower Pro Handle [Black] £36.56 P/N: 381006613/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
3	322778405/0 Mountfield Lower Handle Support Clamp	£22.99	Mountfield Lower Handle Support Clamp £22.99 P/N: 322778405/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
4	322551635/0 Mountfield Attachment Plate	£3.97	Mountfield Attachment Plate £3.97 P/N: 322551635/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
5	322399810/0 Mountfield Handwheel W/O Nut [Black]	£7.98	Mountfield Handwheel W/O Nut [Black] £7.98 P/N: 322399810/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
6	112361005/0 Mountfield Hexagon Nut 1/4" Unc	£4.07	Mountfield Hexagon Nut 1/4" Unc £4.07 P/N: 112361005/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
7	112521350/0 Mountfield Washer M8 8.4 X 16 X 1.6	£1.49	Mountfield Washer M8 8.4 X 16 X 1.6 £1.49 P/N: 112521350/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
8	322545137/0 Mountfield Handle Clamp Plate	£1.49	Mountfield Handle Clamp Plate £1.49 P/N: 322545137/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
9	9899-3545-12 Mountfield Screw 1/4" Unc X 45	£4.63	Mountfield Screw 1/4" Unc X 45 £4.63 P/N: 9899-3545-12, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
10	112820655/0 Mountfield Screw Ttdq 1/4" X 2 1/4"	£1.36	Mountfield Screw Ttdq 1/4" X 2 1/4" £1.36 P/N: 112820655/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
11	112760515/0 Mountfield Hexagonal Screw TC M8 X 20	£1.49	Mountfield Hexagonal Screw TC M8 X 20 £1.49 P/N: 112760515/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
12	122430311/0 Mountfield Pull Cord Guide	£6.64	Mountfield Pull Cord Guide £6.64 P/N: 122430311/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
20	112727783/0 Mountfield Cross-Head Screw M6 X 40	£1.63	Mountfield Cross-Head Screw M6 X 40 £1.63 P/N: 112727783/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
21	112154510/0 Mountfield Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.49	Mountfield Low Self-Locking Nut M6 Uni7474 Acc.6S £1.49 P/N: 112154510/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
22	381003298/1 Mountfield Brake Control Lever	£31.15	Mountfield Brake Control Lever £31.15 P/N: 381003298/1, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
23	181000686/0 Mountfield Engine Brake Cable L=975	£12.80	Mountfield Engine Brake Cable L=975 £12.80 P/N: 181000686/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
24	322192001/0 Mountfield Cable Clamp	£1.49	Mountfield Cable Clamp £1.49 P/N: 322192001/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
25	112728706/0 Mountfield Self-Tapping Screw K40 X 1 Torx Wn1451	£1.49	Mountfield Self-Tapping Screw K40 X 1 Torx Wn1451 £1.49 P/N: 112728706/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
28	381003297/1 Mountfield Drive Control Lever	£21.26	Mountfield Drive Control Lever £21.26 P/N: 381003297/1, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
29	381000697/0 Mountfield Clutch Drive Cable	£19.51	Mountfield Clutch Drive Cable £19.51 P/N: 381000697/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
30	322551685/0 Mountfield Cable Holder Block D=22	£7.24	Mountfield Cable Holder Block D=22 £7.24 P/N: 322551685/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
40	122601918/0 Mountfield Drive Engine Pulley D=22	£24.05	Mountfield Drive Engine Pulley D=22 £24.05 P/N: 122601918/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
41	112714312/0 Mountfield Dowel Pin M6 X 12	£1.49	Mountfield Dowel Pin M6 X 12 £1.49 P/N: 112714312/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
42	135063175/0 Mountfield Trapezoidal Belt Lp=750	£9.23	Mountfield Trapezoidal Belt Lp=750 £9.23 P/N: 135063175/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
43	122450434/0 Mountfield Tension Spring	£6.37	Mountfield Tension Spring £6.37 P/N: 122450434/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
45	122601913/0 Mountfield Gearbox Pulley D=60	£16.25	Mountfield Gearbox Pulley D=60 £16.25 P/N: 122601913/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
46	112620310/0 Mountfield Pin	£1.90	Mountfield Pin £1.90 P/N: 112620310/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
47	119035152/0 Mountfield Seal Ring 12 X 18 X 4	£4.60	Mountfield Seal Ring 12 X 18 X 4 £4.60 P/N: 119035152/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
48	112645705/0 Mountfield Roll Pin D=5 X 32	£1.49	Mountfield Roll Pin D=5 X 32 £1.49 P/N: 112645705/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
49	112520032/0 Mountfield Washer 12 X 18 X 1	£1.49	Mountfield Washer 12 X 18 X 1 £1.49 P/N: 112520032/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
50	322170630/1 Mountfield Pinion Spacer	£4.74	Mountfield Pinion Spacer £4.74 P/N: 322170630/1, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
51	122076645/0 Mountfield Drive Key 4 X 8 X 15	£1.63	Mountfield Drive Key 4 X 8 X 15 £1.63 P/N: 122076645/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
52	122570125/0 Mountfield Right/Left Pinion Gear	£14.09	Mountfield Right/Left Pinion Gear £14.09 P/N: 122570125/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
53	322160520/0 Mountfield Dust Cover	£1.49	Mountfield Dust Cover £1.49 P/N: 322160520/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
54	112520032/0 Mountfield Washer 12 X 18 X 1	£1.49	Mountfield Washer 12 X 18 X 1 £1.49 P/N: 112520032/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
