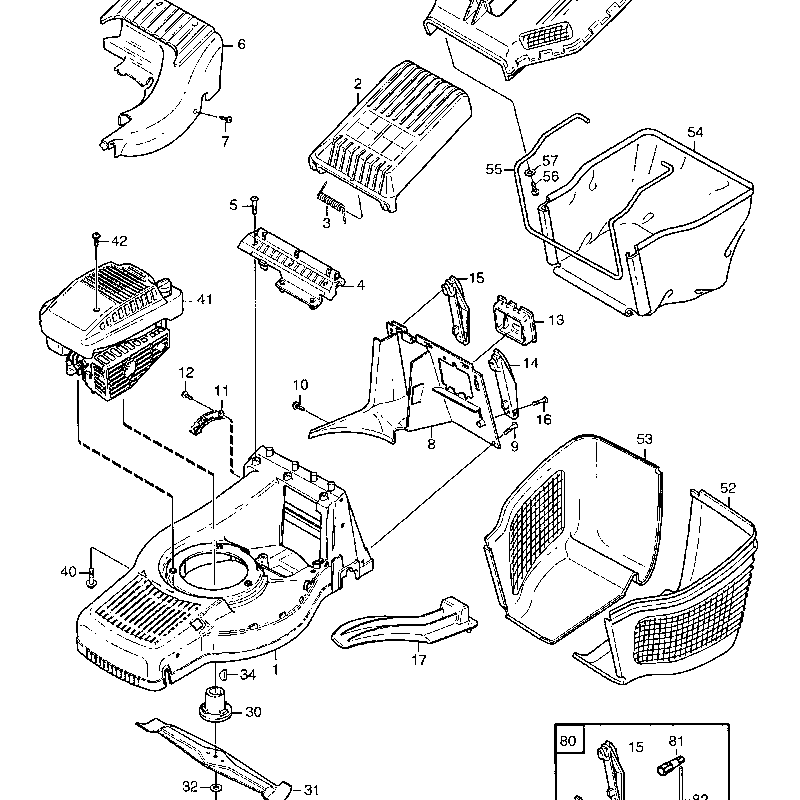

Mountfield M4SP (01-2004) Parts Diagram, Page 1

Look at the diagram and find parts that fit a Mountfield M4SP, or refer to the list below.

All parts that fit a M4SP


Page:1
Page:1
Page:2
Page:2
Page:3
Page:3


Mountfield M4SP (01-2004) Parts Diagram, Page 1
# Part Price
1 381002669/0 - Mountfield Deck Ass.Y Turbo 50 Red £396.85
2 322600068/2 - Mountfield Deflector - Black £11.76
To Basket
3 122450430/0 - Mountfield Deflector Spring £4.55
To Basket
4 322785179/0 - Mountfield Deflector Clamp - Black £5.09
To Basket
5 112735664/0 - Mountfield Screw M6 X 16 £1.34
To Basket
6 322060153/1 - Mountfield Deck Cover Tu50 [Red] £18.95
7 112728300/0 - Mountfield Self - Tapping Screw K50 X 22 £1.48
To Basket
8 322108277/0 - Mountfield Plastic Rear Baffle £46.87
To Basket
9 112735664/0 - Mountfield Screw M6 X 16 £1.34
To Basket
10 112728300/0 - Mountfield Self - Tapping Screw K50 X 22 £1.48
To Basket
11 322735563/0 - Mountfield Height Adjust Quadrant £14.26
To Basket
12 112728300/0 - Mountfield Self - Tapping Screw K50 X 22 £1.48
To Basket
13 322109531/0 - Mountfield Battery Cover £14.34
To Basket
14 381008658/1 - Mountfield Accessory Bag - Grasscatcher £16.61
To Basket
15 381008658/1 - Mountfield Accessory Bag - Grasscatcher £16.61
To Basket
16 112728714/0 - Mountfield Self - Tap Screw K50 X 20 £1.48
To Basket
17 322140231/0 - Mountfield Mulching Plug [Turbo 50] £43.28
30 122465618/0 - Mountfield Blade Boss D=22.2 £8.98
To Basket
31 181004143/0 - Mountfield Blade Turbo 48 £24.30
To Basket
32 112530140/0 - Mountfield Washer M10 £1.87
To Basket
33 112735698/0 - Mountfield Hex - Head Screw 3/8" X 2" £1.74
To Basket
34 112139100/0 - Mountfield Woodruff Key 4 X 6.5 D=16 Uni6606 C40 £1.48
To Basket
40 120001064/0 - Mountfield Screw £9.64
To Basket
41 1111-3352-01 - Mountfield Engine Cover (Black) £43.92
42 9500-9907-01 - Mountfield Screw £2.76
50 322486095/0 - Mountfield Grasscatcher Top - Black £53.57
To Basket
51 322486098/0 - Mountfield Grasstop Insert £5.35
To Basket
52 322486100/0 - Mountfield Grasscatcher Left Lower Part £29.96
53 322486099/0 - Mountfield Grasscatcher Right Lower Part £30.60
To Basket
80 381008658/1 - Mountfield Accessory Bag - Grasscatcher £16.61
To Basket
81 1111-2921-01 - Mountfield Spark Plug Wrench £8.65
82 1111-2113-01 - Mountfield Rod 2005 £5.82
83 9900-0060-00 - Mountfield Allen Wrench-6 Mm £5.11
