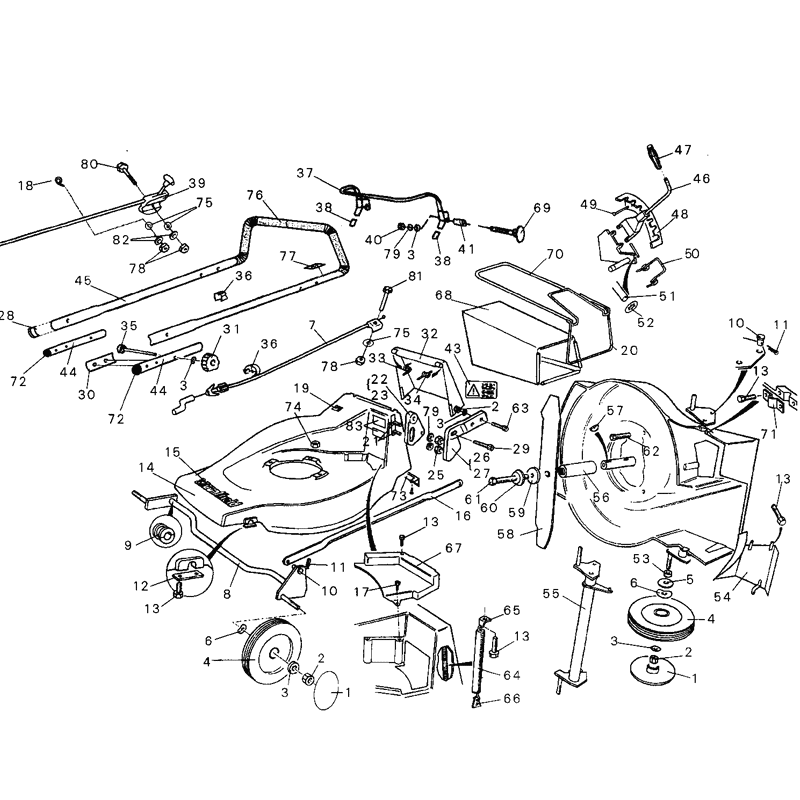

Mountfield MP84009 (01-2000) Parts Diagram, Page 1
Look at the diagram and find parts that fit a Mountfield MP84009, or refer to the list below.
All Parts for MP84009
| # | Part | Price | |
|---|---|---|---|
| 1 |
RCL136002-00 Mountfield Obsolete |
Mountfield Obsolete
P/N: RCL136002-00, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 2 |
RCL090-0808 Mountfield Nut |
Mountfield Nut£2.76
P/N: RCL090-0808, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 3 |
M011-0801 Mountfield WASHER |
 Mountfield WASHER£2.76
P/N: M011-0801, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 4 |
MF4521 Mountfield 8" WHEEL ASSEMBLY |
 Mountfield 8" WHEEL ASSEMBLY
P/N: MF4521, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 5 |
M014-1301 Mountfield WASHER |
Mountfield WASHER£2.76
P/N: M014-1301, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 6 |
MX1038 Mountfield SPRING WASHER |
Mountfield SPRING WASHER£2.76
P/N: MX1038, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 7 |
M7030 Mountfield Opc Cable |
Mountfield Opc Cable
P/N: M7030, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 8 |
MF4453 Mountfield Obsolete |
Mountfield Obsolete
P/N: MF4453, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 9 |
M2690 Mountfield AXLE BUSH |
Mountfield AXLE BUSH£4.08
P/N: M2690, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 10 |
M3966 Mountfield Pin |
Mountfield Pin£5.82
P/N: M3966, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 11 |
RCL001-0410 Mountfield COTTER PIN |
Mountfield COTTER PIN£2.76
P/N: RCL001-0410, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 12 |
M3067 Mountfield CLAMP PLATE |
Mountfield CLAMP PLATE£5.34
P/N: M3067, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 13 |
RCL124-1205 Mountfield SCREW |
Mountfield SCREW£2.76
P/N: RCL124-1205, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 14 |
M3993 Mountfield Obsolete |
Mountfield Obsolete
P/N: M3993, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 15 |
M7354 Mountfield Badge (Silver/Black) |
Mountfield Badge (Silver/Black)£14.96
P/N: M7354, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 16 |
M3963 Mountfield TIE BAR-18" Mirage |
Mountfield TIE BAR-18" Mirage£17.92
P/N: M3963, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 17 |
M037-0612 Mountfield Screw |
Mountfield Screw£2.76
P/N: M037-0612, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 18 |
M6467 Mountfield PULL CORD GUIDE |
Mountfield PULL CORD GUIDE£6.10
P/N: M6467, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 19 |
M2701 Mountfield Obsolete |
Mountfield Obsolete
P/N: M2701, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 20 |
M4037 Mountfield Obsolete |
Mountfield Obsolete
P/N: M4037, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 21 |
RCL030-0825 Mountfield Obsolete |
Mountfield Obsolete
P/N: RCL030-0825, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 22 |
M3996 Mountfield Handle Support Lh |
Mountfield Handle Support Lh£15.07
P/N: M3996, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 23 |
M3997 Mountfield HANDLE SUPPORT RH |
Mountfield HANDLE SUPPORT RH£13.16
P/N: M3997, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 24 |
M011-0801 Mountfield WASHER |
Mountfield WASHER£2.76
P/N: M011-0801, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 25 |
RCL061-0807 Mountfield Nut |
Mountfield Nut£2.76
P/N: RCL061-0807, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 26 |
M4795 Mountfield Handle Pressing Lh |
Mountfield Handle Pressing Lh£38.50
P/N: M4795, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 27 |
M4794 Mountfield Handle Pressing Rh |
Mountfield Handle Pressing Rh£38.50
P/N: M4794, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 28 |
M4782 Mountfield Handle Cap |
Mountfield Handle Cap£4.45
P/N: M4782, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 29 |
112793102/0 Mountfield Screw Te M8X20 Uni 5739 Acc.8.8 |
£1.46 |
 Mountfield Screw Te M8X20 Uni 5739 Acc.8.8£1.46
P/N: 112793102/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 30 |
M4823 Mountfield CLAMP PLATE |
Mountfield CLAMP PLATE£5.34
P/N: M4823, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 31 |
MX1143 Mountfield Handwheel |
Mountfield Handwheel£13.31
P/N: MX1143, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 32 |
MS769 Mountfield DEFLECTOR ASSY |
Mountfield DEFLECTOR ASSY£42.13
P/N: MS769, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 33 |
M4061 Mountfield DEFLECTOR SPRING |
Mountfield DEFLECTOR SPRING£5.34
P/N: M4061, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 34 |
M4321 Mountfield Deflector Spring |
Mountfield Deflector Spring£5.82
P/N: M4321, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 35 |
M074-0850 Mountfield Carriage Bolt M8 X 50 |
Mountfield Carriage Bolt M8 X 50£2.76
P/N: M074-0850, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 36 |
M4780 Mountfield CABLE CLIP |
Mountfield CABLE CLIP£4.08
P/N: M4780, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 37 |
MF6634 Mountfield OPC LEVER |
Mountfield OPC LEVER£31.90
P/N: MF6634, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 38 |
MX1311 Mountfield Obsolete |
Mountfield Obsolete
P/N: MX1311, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 39 |
M6464 Mountfield Obsolete |
Mountfield Obsolete
P/N: M6464, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 40 |
M115-08 Mountfield DOME NUT |
Mountfield DOME NUT£2.76
P/N: M115-08, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 41 |
M6414 Mountfield Obsolete |
Mountfield Obsolete
P/N: M6414, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 42 |
M4349 Mountfield Obsolete |
Mountfield Obsolete
P/N: M4349, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 43 |
M6709 Mountfield Warning Label |
Mountfield Warning Label£5.82
P/N: M6709, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 44 |
M4802 Mountfield Lower Handle |
Mountfield Lower Handle£15.65
P/N: M4802, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 45 |
M6488 Mountfield Obsolete |
Mountfield Obsolete
P/N: M6488, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 46 |
MF4244 Mountfield Obsolete |
Mountfield Obsolete
P/N: MF4244, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 47 |
MX588 Mountfield Ball Knob |
Mountfield Ball Knob£6.53
P/N: MX588, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 48 |
M3985 Mountfield Quadrant |
Mountfield Quadrant£9.98
P/N: M3985, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 49 |
MX545 Mountfield Rivet |
Mountfield Rivet£2.76
P/N: MX545, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 50 |
M4246 Mountfield Height Adj Spring |
Mountfield Height Adj Spring£5.82
P/N: M4246, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 51 |
M7329 Mountfield PIN |
Mountfield PIN£3.23
P/N: M7329, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 52 |
MX839 Mountfield Washer |
Mountfield Washer£2.76
P/N: MX839, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 53 |
M3161 Mountfield Spacer |
Mountfield Spacer£5.82
P/N: M3161, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 54 |
M4138 Mountfield Throw Plate-Mirage 18" |
Mountfield Throw Plate-Mirage 18"£23.10
P/N: M4138, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 55 |
MF4459 Mountfield REAR AXLE |
Mountfield REAR AXLE£70.25
P/N: MF4459, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 56 |
M4078 Mountfield Obsolete |
Mountfield Obsolete
P/N: M4078, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 57 |
112139100/0 Mountfield Woodruff Key 4X6.5 D16 Uni 6606 C40 |
£1.46 |
 Mountfield Woodruff Key 4X6.5 D16 Uni 6606 C40£1.46
P/N: 112139100/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 58 |
M6991 Mountfield Blade 18"-Empress/Mirage |
 Mountfield Blade 18"-Empress/Mirage£20.22
P/N: M6991, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 59 |
MX621 Mountfield BLADE WASHER |
 Mountfield BLADE WASHER
P/N: MX621, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 60 |
M3251 Mountfield SHOULDER WASHER |
 Mountfield SHOULDER WASHER
P/N: M3251, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 61 |
9987-5257-12 Mountfield Screw U6S 3/8" Unf X 57 |
£6.16 |
Mountfield Screw U6S 3/8" Unf X 57£6.16
P/N: 9987-5257-12, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 62 |
120001064/0 Mountfield Screw |
£9.65 |
Mountfield Screw£9.65
P/N: 120001064/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 63 |
RCL030-0840 Mountfield BOLT |
Mountfield BOLT£2.76
P/N: RCL030-0840, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 64 |
M1315 Mountfield Balance Spring |
Mountfield Balance Spring£5.82
P/N: M1315, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 65 |
M1313 Mountfield Obsolete |
Mountfield Obsolete
P/N: M1313, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 66 |
M4597 Mountfield Obsolete |
Mountfield Obsolete
P/N: M4597, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 67 |
M4109 Mountfield Obsolete |
Mountfield Obsolete
P/N: M4109, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 68 |
M4038 Mountfield Obsolete |
Mountfield Obsolete
P/N: M4038, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 69 |
M074-0840 Mountfield Bolt |
Mountfield Bolt£2.76
P/N: M074-0840, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 70 |
M4036 Mountfield U Frame-18" Mirage |
Mountfield U Frame-18" Mirage£32.11
P/N: M4036, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 71 |
M4048 Mountfield Obsolete |
Mountfield Obsolete
P/N: M4048, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 72 |
MX1123 Mountfield Obsolete |
Mountfield Obsolete
P/N: MX1123, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 73 |
M7274 Mountfield Obsolete |
Mountfield Obsolete
P/N: M7274, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 74 |
M5170 Mountfield Engine Spacer (Mirage) |
Mountfield Engine Spacer (Mirage)£6.06
P/N: M5170, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 75 |
RCL009-0612A Mountfield WASHER |
Mountfield WASHER
P/N: RCL009-0612A, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 76 |
G90892286 Mountfield Handle Cover |
Mountfield Handle Cover£13.28
P/N: G90892286, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 77 |
M6102 Mountfield LABEL OPC LEVR |
Mountfield LABEL OPC LEVR£5.34
P/N: M6102, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 78 |
M115-06 Mountfield DOME NUT |
Mountfield DOME NUT
P/N: M115-06, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 79 |
M013-08 Mountfield Shakeproof Washer |
Mountfield Shakeproof Washer£2.76
P/N: M013-08, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 80 |
M081-0650 Mountfield Screw |
Mountfield Screw£2.76
P/N: M081-0650, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 82 |
M013-06 Mountfield WASHER |
Mountfield WASHER
P/N: M013-06, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 83 |
M4349 Mountfield Obsolete |
Mountfield Obsolete
P/N: M4349, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
