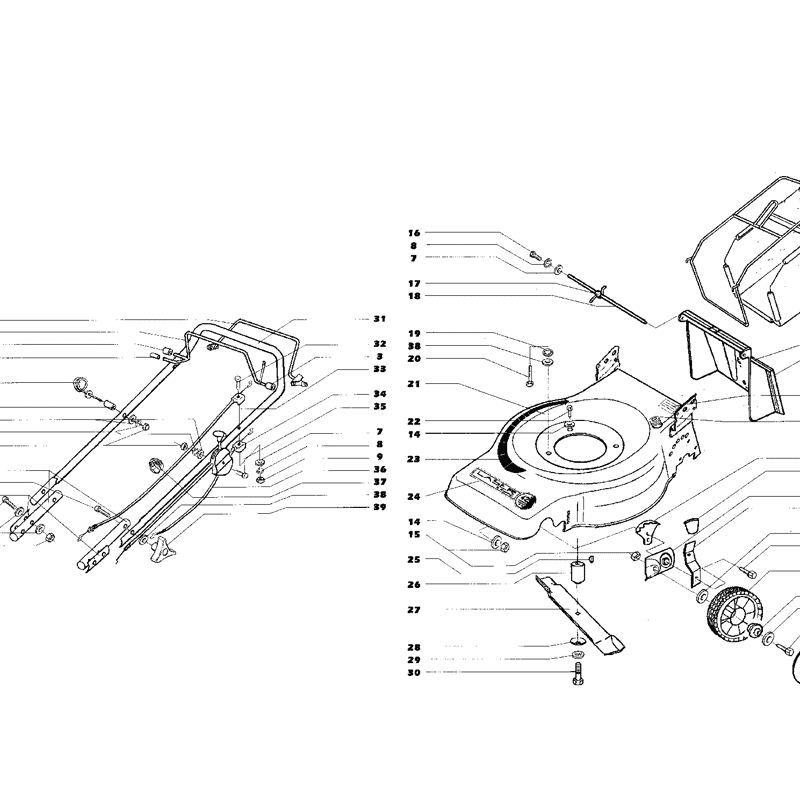

Mountfield MPR10005 (01-1998) Parts Diagram, Page 1
Look at the diagram and find parts that fit a Mountfield MPR10005, or refer to the list below.
All Parts for MPR10005
| # | Part | Price | |
|---|---|---|---|
| 1 |
MF5714 Mountfield Obsolete |
Mountfield Obsolete
P/N: MF5714, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 2 |
MF6839 Mountfield Obsolete |
Mountfield Obsolete
P/N: MF6839, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 3 |
RCL258000-00 Mountfield Obsolete |
Mountfield Obsolete
P/N: RCL258000-00, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 4 |
MX1283 Mountfield PLASTIC CAP |
Mountfield PLASTIC CAP£3.40
P/N: MX1283, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 5 |
122430311/0 Mountfield Pull Cord Guide |
£6.56 |
 Mountfield Pull Cord Guide£6.56
P/N: 122430311/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 6 |
M6468 Mountfield SPACER |
Mountfield SPACER
P/N: M6468, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 7 |
RCL009-0612A Mountfield WASHER |
Mountfield WASHER
P/N: RCL009-0612A, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 8 |
M013-06 Mountfield WASHER |
Mountfield WASHER
P/N: M013-06, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 9 |
M115-06 Mountfield DOME NUT |
Mountfield DOME NUT
P/N: M115-06, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 10 |
RCL584001-00 Mountfield LOWER HANDLE |
Mountfield LOWER HANDLE£17.38
P/N: RCL584001-00, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 11 |
M074-0850 Mountfield Carriage Bolt M8 X 50 |
Mountfield Carriage Bolt M8 X 50£2.76
P/N: M074-0850, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 12 |
M4823 Mountfield CLAMP PLATE |
Mountfield CLAMP PLATE£5.34
P/N: M4823, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 13 |
RCL030-0840 Mountfield BOLT |
Mountfield BOLT£2.76
P/N: RCL030-0840, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 14 |
RCL009-0817B Mountfield WASHER |
Mountfield WASHER£2.76
P/N: RCL009-0817B, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 15 |
RCL090-0808 Mountfield Nut |
Mountfield Nut£2.76
P/N: RCL090-0808, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 16 |
RCL048-0620 Mountfield Screw |
Mountfield Screw£2.76
P/N: RCL048-0620, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 17 |
M7618 Mountfield Deflector Spring |
Mountfield Deflector Spring£5.93
P/N: M7618, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 18 |
RCL584003-00 Mountfield Bracing Rod |
Mountfield Bracing Rod£19.34
P/N: RCL584003-00, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 19 |
M013-08 Mountfield Shakeproof Washer |
Mountfield Shakeproof Washer£2.76
P/N: M013-08, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 20 |
RCL030-0825 Mountfield Obsolete |
Mountfield Obsolete
P/N: RCL030-0825, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 21 |
RCL564007-00 Mountfield Obsolete |
Mountfield Obsolete
P/N: RCL564007-00, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 22 |
RCL030-0840 Mountfield BOLT |
Mountfield BOLT£2.76
P/N: RCL030-0840, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 23 |
M6237 Mountfield Obsolete |
Mountfield Obsolete
P/N: M6237, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 24 |
M6246 Mountfield Obsolete |
Mountfield Obsolete
P/N: M6246, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 25 |
112139100/0 Mountfield Woodruff Key 4X6.5 D16 Uni 6606 C40 |
£1.46 |
 Mountfield Woodruff Key 4X6.5 D16 Uni 6606 C40£1.46
P/N: 112139100/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 26 |
M2839 Mountfield Blade Boss |
 Mountfield Blade Boss£16.30
P/N: M2839, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 27 |
M5320 Mountfield Blade 46Cm-Laser/Omega |
 Mountfield Blade 46Cm-Laser/Omega£23.22
P/N: M5320, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 28 |
M1923 Mountfield Blade Washer |
 Mountfield Blade Washer£2.76
P/N: M1923, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 29 |
M1922 Mountfield Shoulder Washer |
 Mountfield Shoulder Washer£2.76
P/N: M1922, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 30 |
9987-5257-12 Mountfield Screw U6S 3/8" Unf X 57 |
£6.16 |
Mountfield Screw U6S 3/8" Unf X 57£6.16
P/N: 9987-5257-12, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 31 |
RCL584002-00 Mountfield Obsolete |
Mountfield Obsolete
P/N: RCL584002-00, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 32 |
M081-0645 Mountfield SCREW |
Mountfield SCREW£2.76
P/N: M081-0645, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 33 |
RCL290038-00 Mountfield Opc Cable |
 Mountfield Opc Cable
P/N: RCL290038-00, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 34 |
RCL290037-00 Mountfield Throttle Cable |
 Mountfield Throttle Cable£17.46
P/N: RCL290037-00, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 36 |
M5971 Mountfield Clutch Cable |
 Mountfield Clutch Cable£35.41
P/N: M5971, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 37 |
M4780 Mountfield CABLE CLIP |
Mountfield CABLE CLIP£4.08
P/N: M4780, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 38 |
M011-0801 Mountfield WASHER |
 Mountfield WASHER£2.76
P/N: M011-0801, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 39 |
RCL902146-00 Mountfield HANDWHEEL KIT |
Mountfield HANDWHEEL KIT
P/N: RCL902146-00, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 40 |
MF6337 Mountfield Obsolete |
Mountfield Obsolete
P/N: MF6337, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 41 |
M5319 Mountfield Obsolete |
Mountfield Obsolete
P/N: M5319, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 42 |
M6210 Mountfield DEFLECTOR-Laser Steel Deck |
 Mountfield DEFLECTOR-Laser Steel Deck
P/N: M6210, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 43 |
M6709 Mountfield Warning Label |
Mountfield Warning Label£5.82
P/N: M6709, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 44 |
M4349 Mountfield Obsolete |
Mountfield Obsolete
P/N: M4349, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 45 |
MX720 Mountfield Grommet |
Mountfield Grommet£4.45
P/N: MX720, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 47 |
M5710 Mountfield Height Adj Knob |
Mountfield Height Adj Knob£4.45
P/N: M5710, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 48 |
M6121 Mountfield AXLE PLATE |
Mountfield AXLE PLATE
P/N: M6121, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 49 |
M6116 Mountfield Obsolete |
Mountfield Obsolete
P/N: M6116, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 50 |
M5344 Mountfield Shoulder Bolt M8 |
Mountfield Shoulder Bolt M8£2.76
P/N: M5344, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 51 |
RCL134001-00 Mountfield Obsolete |
Mountfield Obsolete
P/N: RCL134001-00, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 52 |
RCL172000-00 Mountfield BEARING 12.2mm |
 Mountfield BEARING 12.2mm
P/N: RCL172000-00, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 53 |
M5117 Mountfield SHIM WASHER |
Mountfield SHIM WASHER£3.23
P/N: M5117, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 54 |
M5757 Mountfield Step Bolt |
Mountfield Step Bolt£2.76
P/N: M5757, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 55 |
RCL136001-00 Mountfield Obsolete |
Mountfield Obsolete
P/N: RCL136001-00, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 56 |
M035-0811 Mountfield Grub Screw |
Mountfield Grub Screw£2.76
P/N: M035-0811, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 57 |
M5440 Mountfield Obsolete |
Mountfield Obsolete
P/N: M5440, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 58 |
M5445 Mountfield BELT COVER SPACER |
Mountfield BELT COVER SPACER£5.56
P/N: M5445, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 59 |
M5436 Mountfield HEIGHT ADJ KNOB |
Mountfield HEIGHT ADJ KNOB£5.34
P/N: M5436, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 60 |
M5435 Mountfield Height Adj Lever |
Mountfield Height Adj Lever£16.24
P/N: M5435, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 62 |
M4245 Mountfield Obsolete |
Mountfield Obsolete
P/N: M4245, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 64 |
RCL104-0120 Mountfield CIRCLIP |
Mountfield CIRCLIP£2.76
P/N: RCL104-0120, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 65 |
M5558 Mountfield Obsolete |
Mountfield Obsolete
P/N: M5558, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 66 |
M5937 Mountfield Obsolete |
Mountfield Obsolete
P/N: M5937, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 67 |
M5561 Mountfield Wheel 200Mm |
Mountfield Wheel 200Mm£50.14
P/N: M5561, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 69 |
M5337 Mountfield Engine Pulley |
Mountfield Engine Pulley£43.87
P/N: M5337, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 70 |
RCL218000-00 Mountfield BELT-SPZX 662 COF |
 Mountfield BELT-SPZX 662 COF
P/N: RCL218000-00, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 71 |
G90802900 Mountfield Gearbox Pulley |
Mountfield Gearbox Pulley£24.28
P/N: G90802900, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 72 |
M5326 Mountfield Obsolete |
Mountfield Obsolete
P/N: M5326, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 73 |
M5333 Mountfield Woodruff Key |
Mountfield Woodruff Key£3.52
P/N: M5333, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 74 |
M5334 Mountfield Spring |
Mountfield Spring£3.91
P/N: M5334, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 75 |
G90803091 Mountfield Gearbox |
Mountfield Gearbox£75.22
P/N: G90803091, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 76 |
M5341 Mountfield Axle Block |
Mountfield Axle Block£5.82
P/N: M5341, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 77 |
M089-06 Mountfield Nut |
Mountfield Nut£2.76
P/N: M089-06, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 79 |
MX839 Mountfield Washer |
Mountfield Washer£2.76
P/N: MX839, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 80 |
6985 Mountfield Screw M6 X 12 |
Mountfield Screw M6 X 12£2.76
P/N: 6985, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 81 |
M5342 Mountfield Axle Block Plate |
Mountfield Axle Block Plate£4.45
P/N: M5342, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 82 |
M037-0620 Mountfield Obsolete |
Mountfield Obsolete
P/N: M037-0620, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 83 |
M5565 Mountfield Dust Cover |
Mountfield Dust Cover£5.82
P/N: M5565, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 84 |
MX1038 Mountfield SPRING WASHER |
Mountfield SPRING WASHER£2.76
P/N: MX1038, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 85 |
M014-1301 Mountfield WASHER |
Mountfield WASHER£2.76
P/N: M014-1301, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
