Mountfield MP84401 (01-1995) Parts Diagram, Page 1

#	Part	Price
1	M4372 - Mountfield Chassis-Black	£77.14
2	M4375 - Mountfield Cover-Red	£146.32
3	RCL902122-00 - Mountfield ELECTRIC MOTOR KIT-Princess	£169.15
4	M4396 - Mountfield WATER SHIELD	£5.09
5	M4376 - Mountfield Top Cover-Black
6	M4381 - Mountfield Throw Plate	£9.46

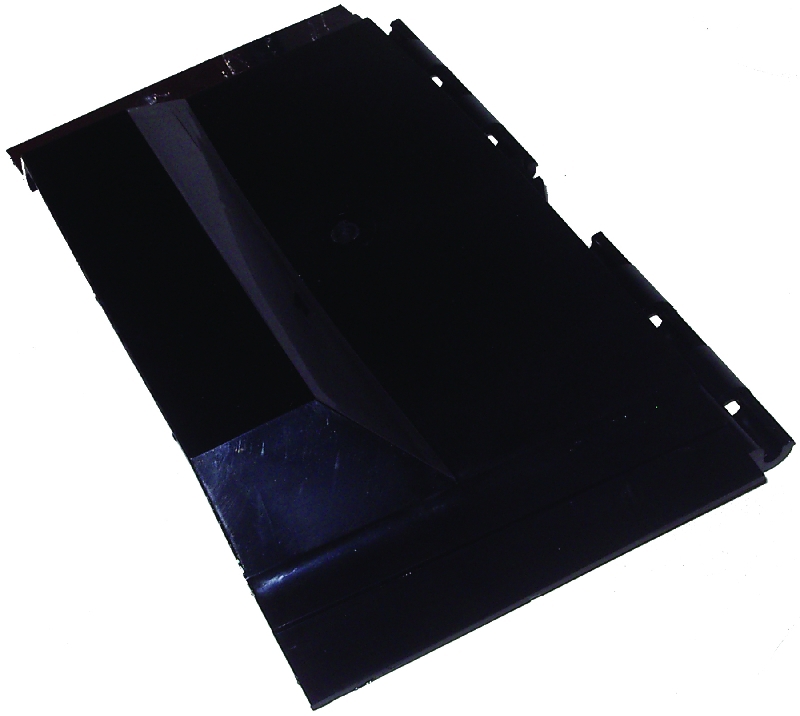

7	M4374 - Mountfield Deflector	£17.36	To Basket
8	M4399 - Mountfield Deflector Spring	£5.82
9	RCL037-0516 - Mountfield SCREW	£2.76
10	M4393 - Mountfield Rear Axle Rod	£17.90
11	MX542 - Mountfield Washer	£2.76
12	M015-1301 - Mountfield Washer	£2.76
13	MS777 - Mountfield Rear Wheel Assembly	£19.82
14	MF4387 - Mountfield Rear Axle	£26.58
15	M4561 - Mountfield Stripe Decal	£5.82
16	M4401 - Mountfield Blade 14"-Princess 14	£23.22
17	M2958 - Mountfield Cutter Boss	£17.16
18	M2959 - Mountfield Blade Bolt	£10.31
19	M4428 - Mountfield Bolt	£2.76
20	M7269 - Mountfield Hub Cap-Grey	£4.45
21	M4395 - Mountfield Tie Bar	£11.80
22	M4392 - Mountfield Height Adj Block R/H	£5.82
23	M4391 - Mountfield Height Adj Block L/H	£5.82
24	MF4388 - Mountfield Front Axle	£40.51
25	MS778 - Mountfield Front Wheel Assembly	£19.09
26	M4389 - Mountfield Spacer	£4.45
27	M4560 - Mountfield Obsolete
28	M4370 - Mountfield Height Adjust Knob	£5.82
29	M4371 - Mountfield Height Adjust Cap	£5.82
30	M4509 - Mountfield Spacer	£3.38
31	M4398 - Mountfield Deflector Rod	£5.82
32	M4520 - Mountfield Rear Axle Support Rh	£5.82
33	M4404 - Mountfield Rear Axle Support Lh	£5.82
34	RCL902123-00 - Mountfield Upper/Lower Handle Kit-Princess	£77.34
35	MX967/2 - Mountfield Switch	£22.56
37	M4394 - Mountfield Spacer	£4.45
38	M074-0645 - Mountfield Carriage Bolt M6 X 45	£2.76
39	M4108 - Mountfield Obsolete
40	MF3498 - Mountfield Handwheel	£5.82
41	M011-0601 - Mountfield Washer	£2.76
42	RCL902123-00 - Mountfield Upper/Lower Handle Kit-Princess	£77.34
43	M088-1025 - Mountfield Nylon Screw	£2.76
45	M4373 - Mountfield Grasscatcher Top	£46.15
46	M4400 - Mountfield Grassbag	£36.62
47	M4397 - Mountfield Grassbag Frame	£13.82
48	MX483 - Mountfield Cable Cleat	£5.82
49	M6241 - Mountfield Obsolete
50	M7255 - Mountfield Decal `Princess 14'	£5.82
51	M6709 - Mountfield Warning Label	£5.82
52	MX705 - Mountfield Shuttle Cable Assembly	£40.61
53	M4403 - Mountfield Axle Support L/H	£5.82
54	M4402 - Mountfield Axle Support R/H	£5.82
55	MX617 - Mountfield Obsolete
56	MX576 - Mountfield CLIP	£4.08
57	MX951 - Mountfield Sleeved Grommet	£5.82
58	MX965 - Mountfield Obsolete
59	M013-08 - Mountfield Shakeproof Washer	£2.76
60	RCL066-0805 - Mountfield Thin Nut	£2.76
61	MX609 - Mountfield Capacitor 240V
62	MX600 - Mountfield Obsolete
63	M018-1001 - Mountfield WASHER	£2.76
64	MX585 - Mountfield Push On Fixing	£2.76
65	M4559 - Mountfield Obsolete
66	MX595 - Mountfield CIRCLIP	£2.76
67	MX843 - Mountfield Fan	£21.55
68	MX606 - Mountfield TERMINAL BLOCK	£10.32

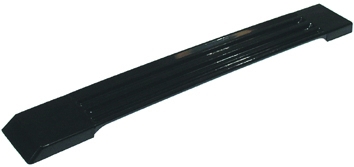

69	M3886 - Mountfield Grasscatcher Handle	£5.82
