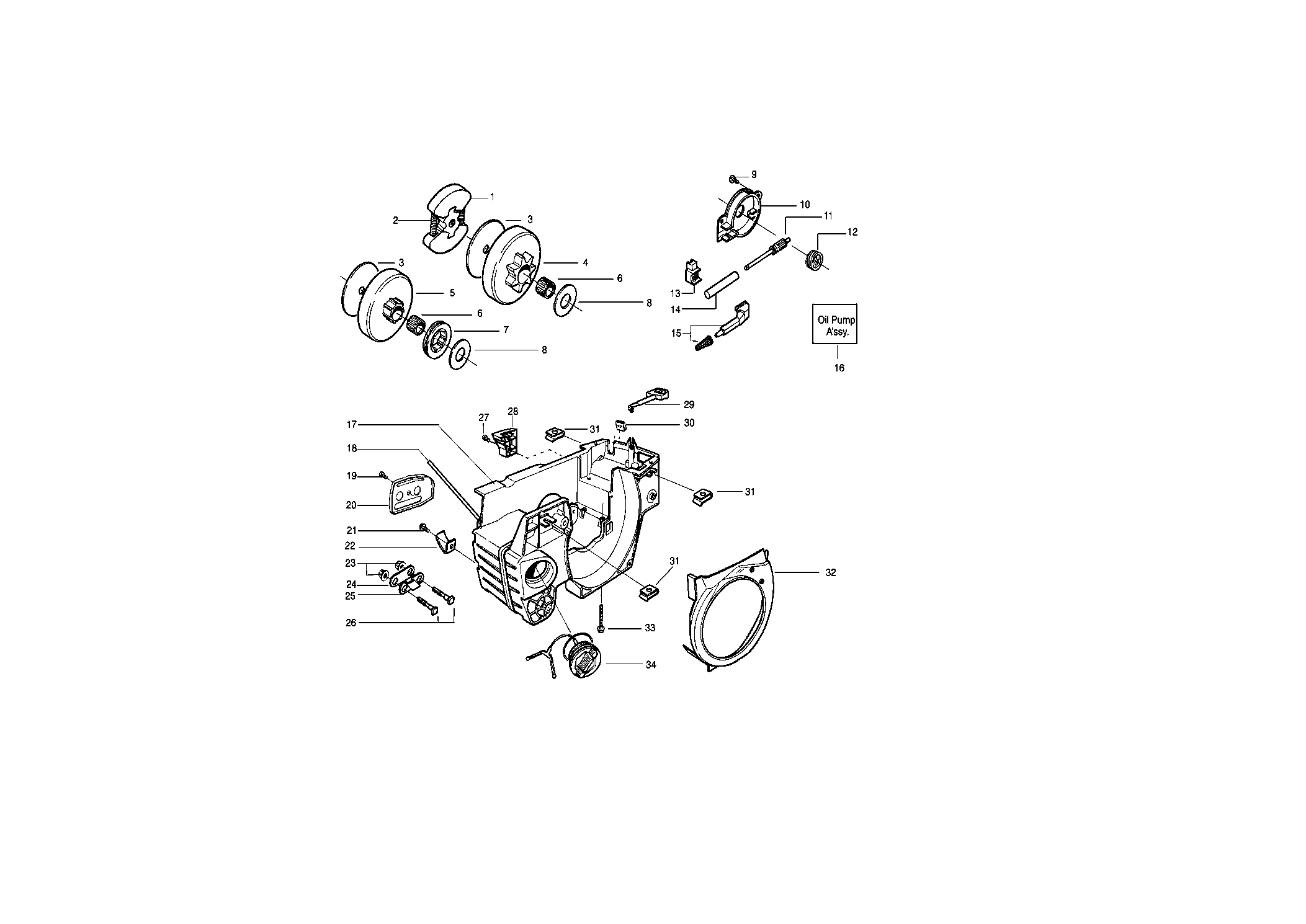

Husqvarna 136 Chainsaw (2004) Parts Diagram, Page 3

#	Part	Price
1	5300149-49 - Husqvarna Clutch	£54.95	To Basket
2	5300149-49 - Husqvarna Clutch	£54.95	To Basket
3	5300156-11 - Husqvarna Washer	£8.32	To Basket
4	5300470-61 - Husqvarna Clutch Drum	£35.35	To Basket
5	5300693-16 - Husqvarna Clutch Drum Cpl	£46.27	To Basket
6	5300321-19 - Husqvarna Support Bushing	£11.33	To Basket
8	5300159-07 - Husqvarna Washer	£2.86	To Basket
9	5300158-96 - Husqvarna Screw	£1.19	To Basket
10	5450368-01 - Husqvarna Oil Pump	£25.10	To Basket
11	5450368-01 - Husqvarna Oil Pump	£25.10	To Basket
12	5300298-33 - Husqvarna Pump Pinion	£9.22	To Basket
13	5450371-01 - Husqvarna Oil Hose	£7.81	To Basket
14	5450368-01 - Husqvarna Oil Pump	£25.10	To Basket
15	5450371-01 - Husqvarna Oil Hose	£7.81	To Basket
16	5450368-01 - Husqvarna Oil Pump	£25.10	To Basket
17	5300698-87/4 - Husqvarna Kit ASSY Chassis	£85.50
18	5450335-01 - Husqvarna Hose	£12.29	To Basket
19	5300158-96 - Husqvarna Screw	£1.19	To Basket
20	5300478-55 - Husqvarna Plate	£6.26	To Basket
21	5300158-78 - Husqvarna Screw	£1.46
22	5300298-50 - Husqvarna Chain Catcher	£4.99	To Basket
23	5300159-17 - Husqvarna Nut	£2.94	To Basket
24	5300192-28 - Husqvarna Gasket
25	5300360-43 - Husqvarna Support	£1.76
26	5300158-77 - Husqvarna Bolt	£5.59	To Basket
27	5300158-93 - Husqvarna Screw	£2.00	To Basket
28	5300524-28 - Husqvarna Cover	£4.49
29	5300298-31 - Husqvarna Choke Control	£6.50
30	5300298-30 - Husqvarna Guide	£3.10	To Basket
31	5300159-22 - Husqvarna Nut	£1.76	To Basket
32	5300298-00 - Husqvarna Air Conductor	£11.53
33	5300160-37 - Husqvarna Screw	£2.82	To Basket
34	5017656-02 - Husqvarna Tank Cap	£9.36	To Basket
