Husqvarna LTH 18-42 Tractor (01-2005) Parts Diagram, Page 9

Look at the diagram and find parts that fit a Husqvarna LTH 18-42 Tractor , or refer to the list below.

All parts that fit a Husqvarna LTH 18-42 Tractor


Page:1
Page:1
Page:2
Page:2
Page:3
Page:3
Page:4
Page:4
Page:5
Page:5
Page:6
Page:6
Page:7
Page:7
Page:8
Page:8
Page:9
Page:9
Page:10
Page:10


Husqvarna LTH 18-42 Tractor (01-2005) Parts Diagram, Page 9
# Part Price
1 5321760-27 - Husqvarna Housing £332.59
To Basket
2 5959016-01 - Husqvarna Bolt Square Round Head Square £3.65
To Basket
3 5321380-17 - Husqvarna Bracke £19.76
To Basket
4 5321654-60 - Husqvarna Bracket £23.29
5 5969196-01 - Husqvarna Pin Hair Cotter Pin 1/8 X 1-3/ £1.91
To Basket
6 5321780-24 - Husqvarna Arm £23.40
To Basket
8 5328508-57 - Husqvarna Bolt, Blade £6.50
To Basket
9 5399901-18 - Husqvarna Washer £3.12
10 5321402-96 - Husqvarna Washer £8.06
To Basket
11 5321389-71 - Husqvarna Blade £33.28
To Basket
13 5321376-46 - Husqvarna Shaft £81.61
To Basket
14 5321287-74 - Husqvarna Bearing Housing £76.93
To Basket
15 5321104-85 - Husqvarna Bearing £8.42
To Basket
16 5321744-93 - Husqvarna Stripper. Mandrel.Black £13.64
To Basket
18 5961364-01 - Husqvarna Bolt Square Round Head Square £3.92
To Basket
19 5321328-27 - Husqvarna Spec. Bolt £6.70
To Basket
20 5321597-70 - Husqvarna Rail £27.44
To Basket
21 8738005-00/1 - Husqvarna Nut £3.59
23 5321775-63 - Husqvarna Bracket Deflector Mo £11.50
To Basket
24 5321053-04 - Husqvarna Cap £3.50
To Basket
25 5321237-13 - Husqvarna Spring £11.70
To Basket
26 5321104-52 - Husqvarna Nut £2.00
To Basket
27 5321309-68 - Husqvarna Deflector £54.08
To Basket
28 7341163-01 - Husqvarna Washer £2.16
29 5321314-91 - Husqvarna Shaft £6.77
30 5321739-84 - Husqvarna Screw £4.66
31 5321876-90 - Husqvarna Washer Spacer £3.65
To Basket
32 5321734-36 - Husqvarna Pulley £41.84
To Basket
33 5324002-34/3 - Husqvarna Nut £5.42
34 8721106-12 - Husqvarna Bolt £6.77
To Basket
36 5321734-38 - Husqvarna Pulley Idler Flt 3.06 £55.68
To Basket
44 5321400-88 - Husqvarna Guard £37.97
To Basket
45 5320044-97 - Husqvarna Clip £1.82
To Basket
46 5321377-29 - Husqvarna Screw £2.56
To Basket
54 5321785-15 - Husqvarna Washer £8.58
To Basket
55 5321550-46 - Husqvarna Arm £22.80
To Basket
56 5321657-23 - Husqvarna Spacer £11.74
To Basket
59 5321410-43 - Husqvarna Guard £8.80
61 5321748-82 - Husqvarna Spring £18.59
To Basket
68 5321748-83 - Husqvarna Belt £103.19
To Basket
91 5321805-32 - Husqvarna Bracket £10.20
92 8736806-00 - Husqvarna Nut £3.88
To Basket
94 5321322-64 - Husqvarna Nose Roller £17.98
To Basket
95 5321805-33 - Husqvarna Bracket £10.14
To Basket
111 5321810-40 - Husqvarna Bracket £62.40
To Basket
112 5321810-40 - Husqvarna Bracket £62.40
To Basket
113 8170005-10 - Husqvarna Bolt 5/16-18 Hex Whs Hd £3.65
To Basket
116 5320048-98 - Husqvarna Bolt £8.90
To Basket

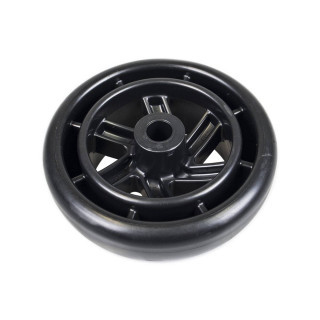

117 5895274-01 - Husqvarna Wheel Gauge, Rally- Narrow £15.82
To Basket
118 8736806-00 - Husqvarna Nut £3.88
To Basket
119 7341172-01 - Husqvarna Washer £1.72
129 7341172-01 - Husqvarna Washer £1.72
130 8747806-16 - Husqvarna Bolt £6.37
To Basket
131 8721106-08 - Husqvarna Bolt £6.62
To Basket
132 8170006-12 - Husqvarna Screw £5.82
To Basket
143 5321571-09 - Husqvarna Bracket £18.41
144 5321734-41 - Husqvarna Belt Guide £11.76
To Basket
145 5321734-37 - Husqvarna Pulley £57.58
To Basket
146 5321719-77 - Husqvarna Shaft £16.01
To Basket
148 5321690-22 - Husqvarna Spring £5.06
To Basket
149 5321658-98 - Husqvarna Spring £3.90
To Basket
150 7341154-41 - Husqvarna Washer £2.59
To Basket
159 8721406-14 - Husqvarna Bolt £7.02
To Basket
182 5321791-26 - Husqvarna Pin £26.58
To Basket
183 5321635-52 - Husqvarna Clip £4.14
184 7341172-01 - Husqvarna Washer £1.72
