15.5/38 (ST38) Parts and Diagrams

Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a 15.5/38 (ST38).

All parts that fit a 15.5/38 (ST38)

Diagrams for this machine

Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.

Choose your Year/Serial Number

150A001001-150A099999

Top

150A001001-150A099999

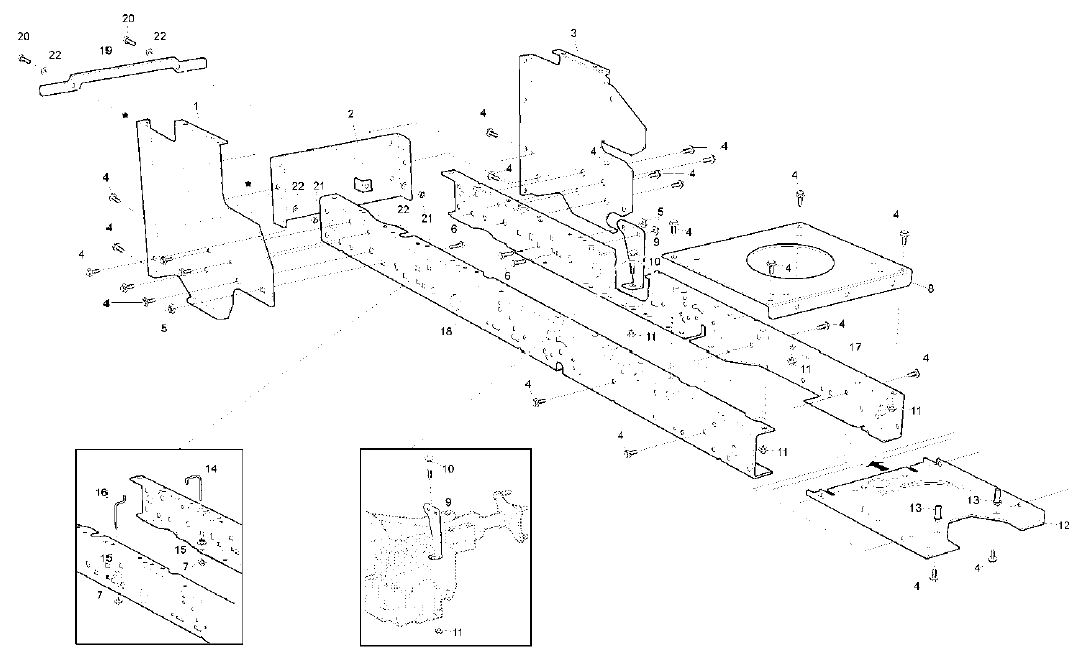

Chassis

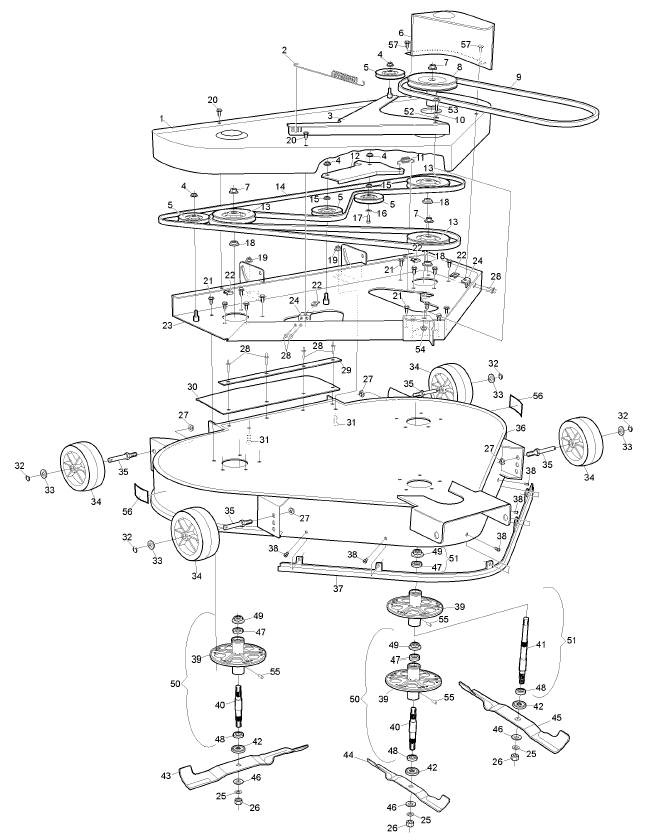

Cutter Deck

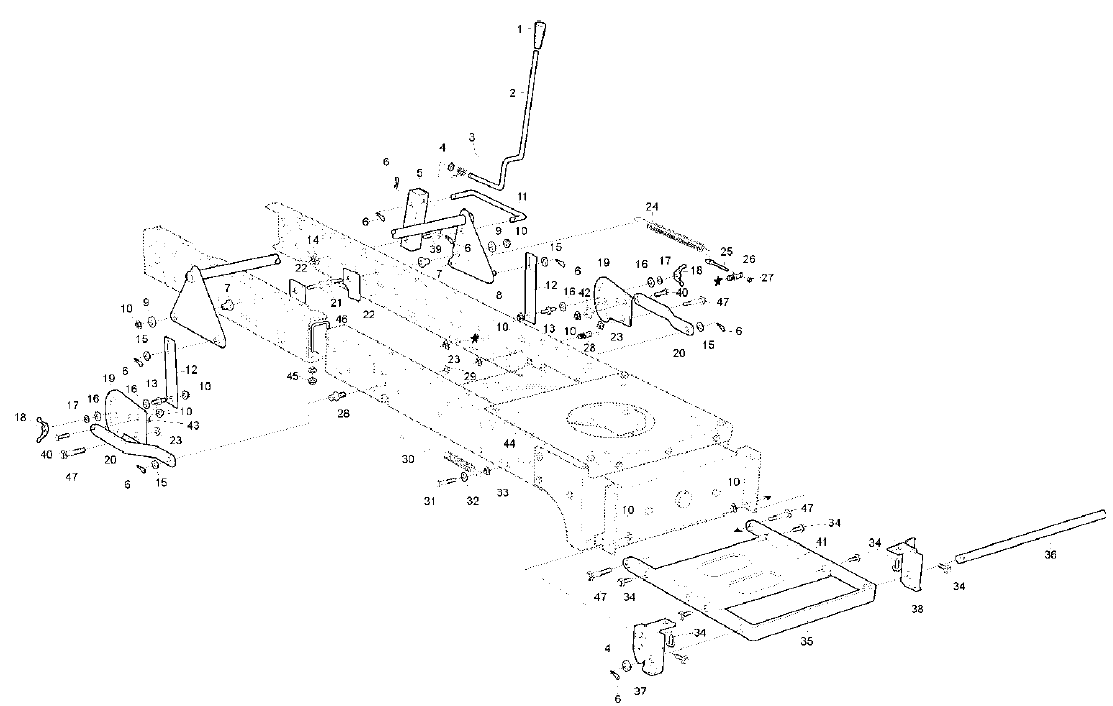

Cutterhead Suspension

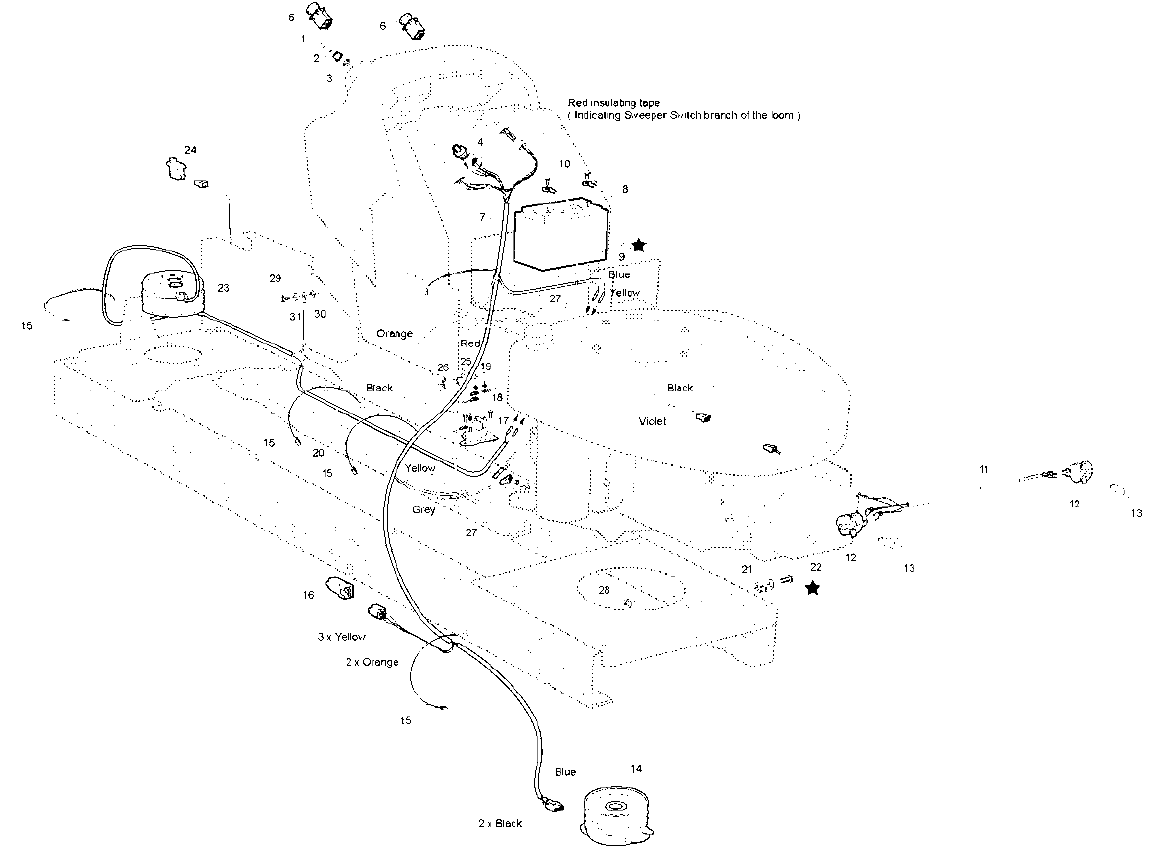

Electrics

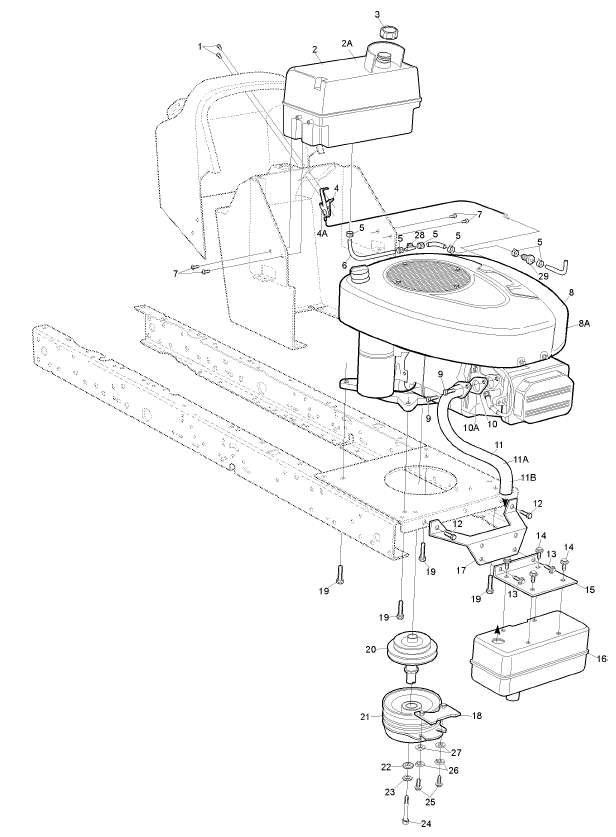

Engine

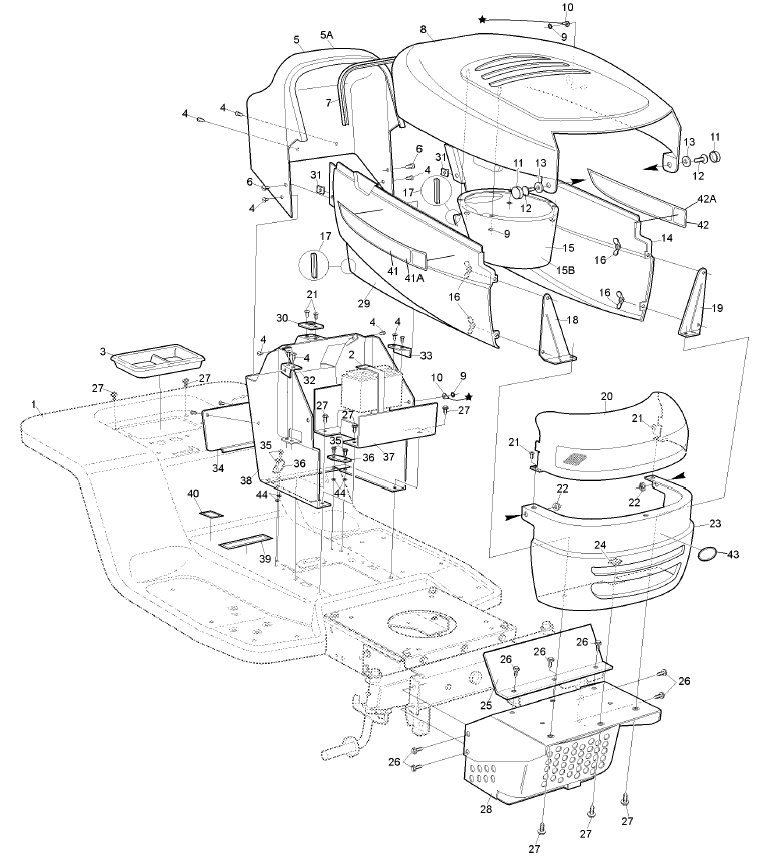

Engine Cover & Grill

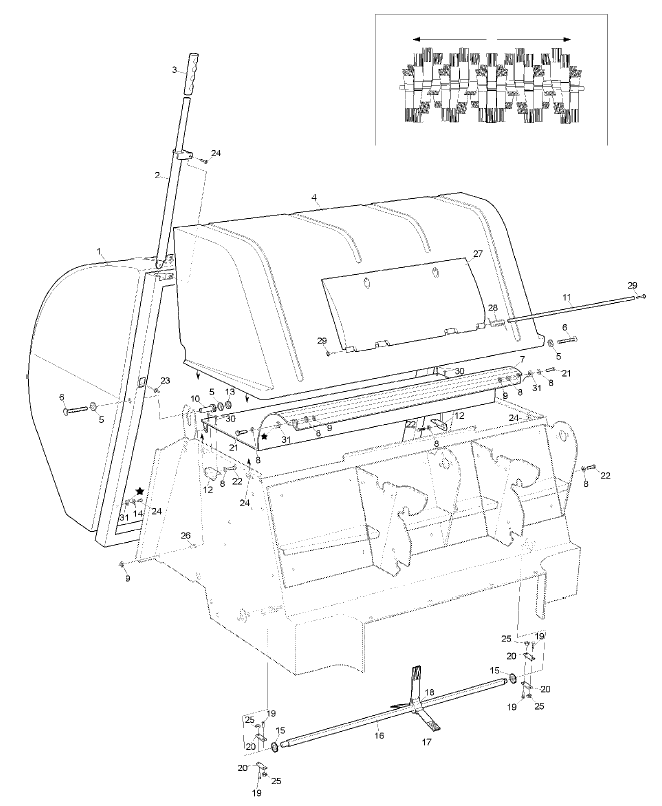

Hopper-Brush Assembly

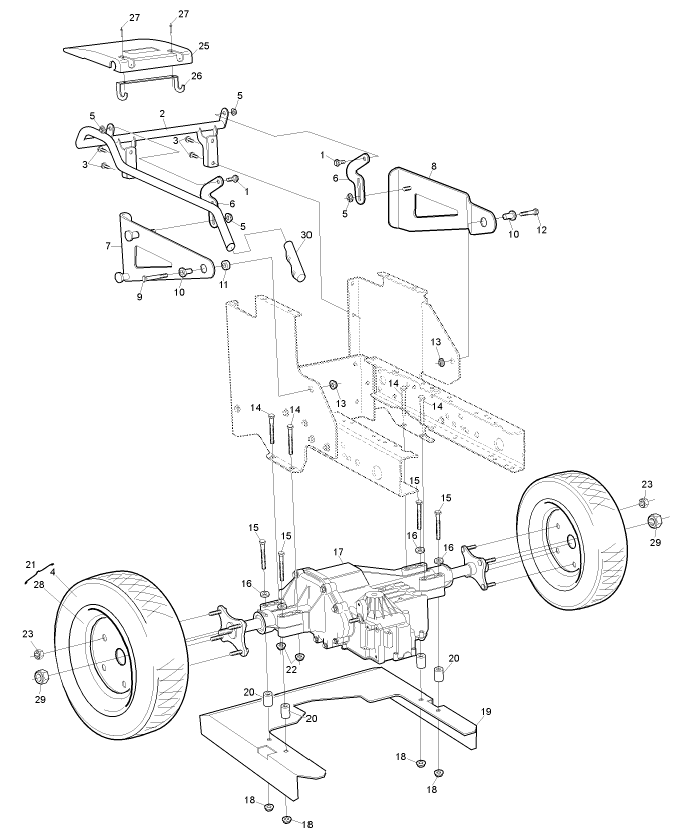

Rear Axle & Rear Frame

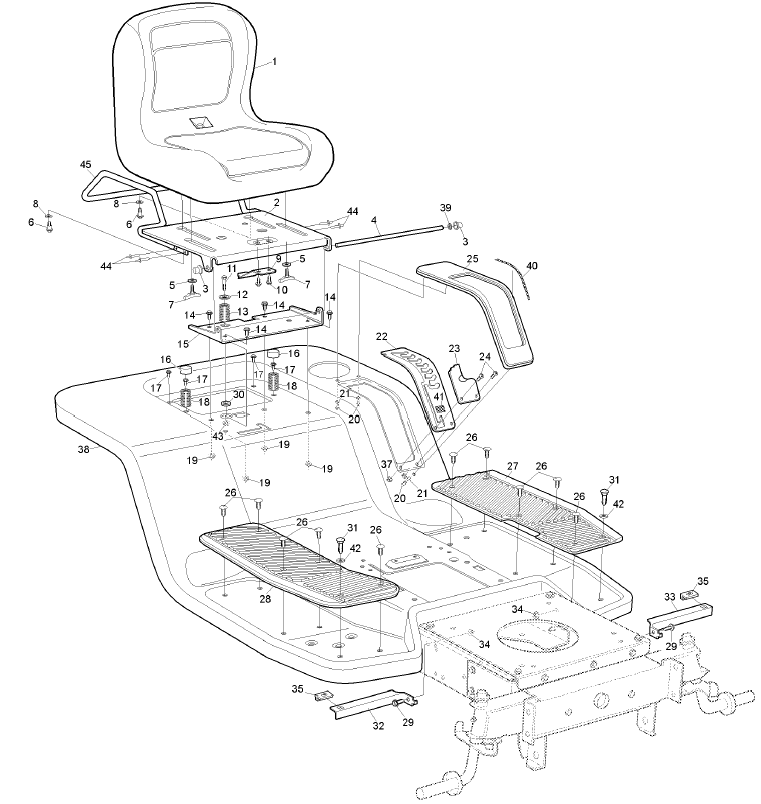

Rear Body

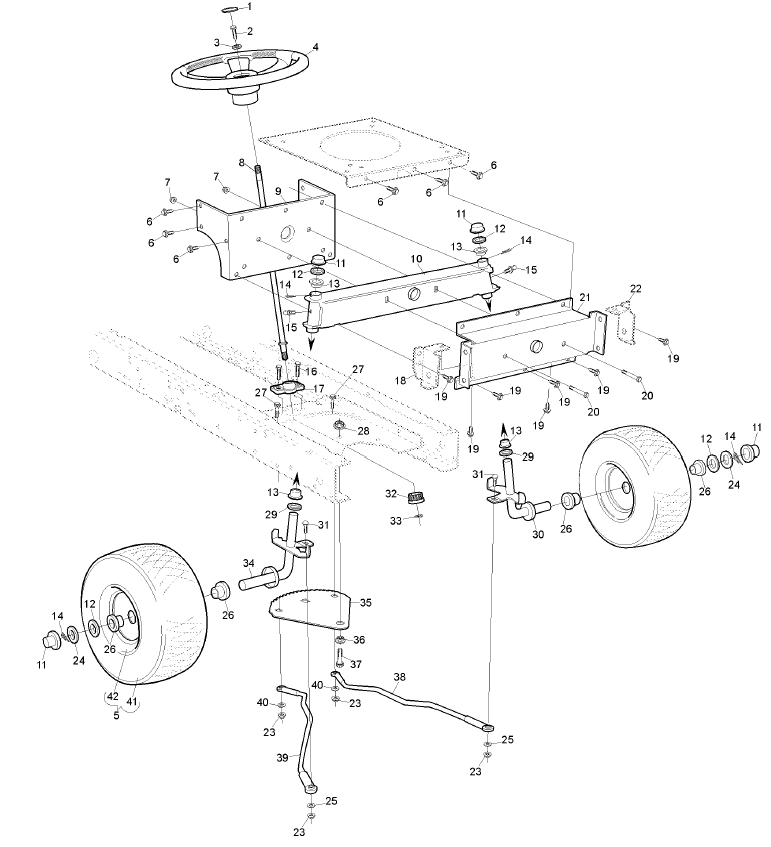

Steering & Front Axle

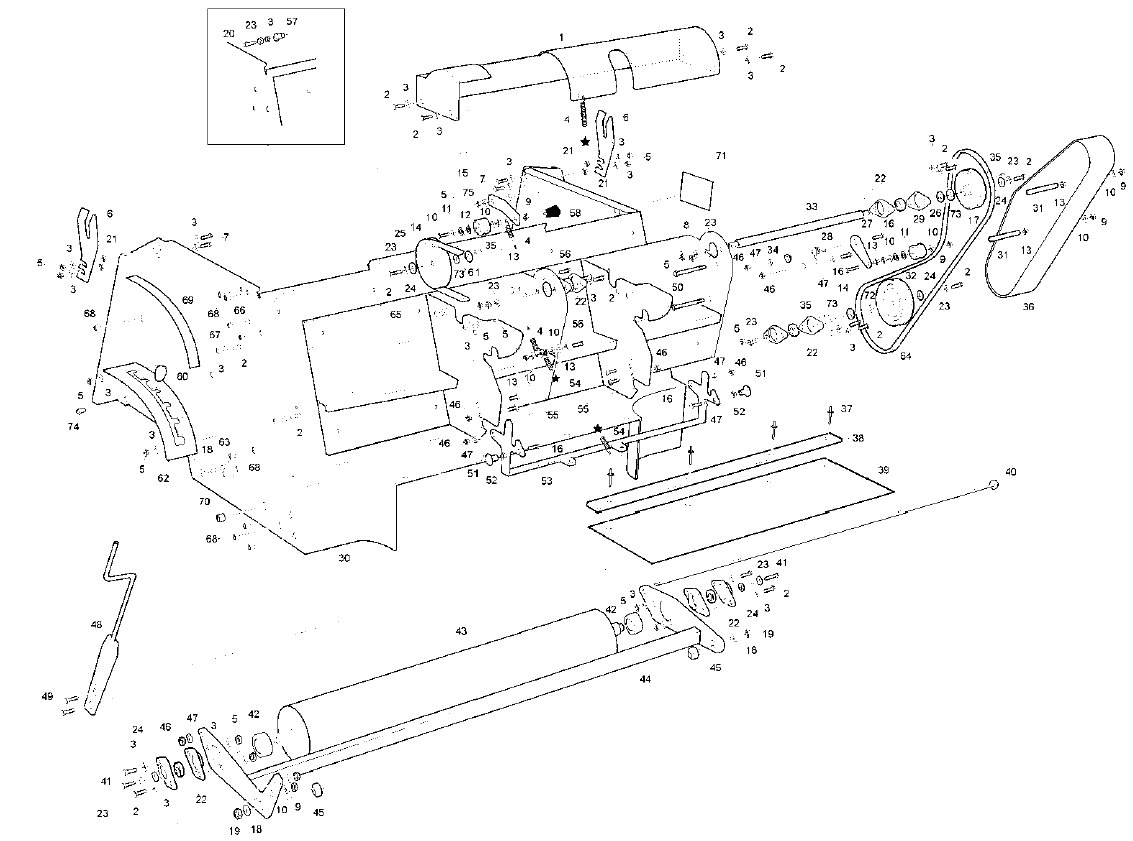

Sweeper Housing Assembly

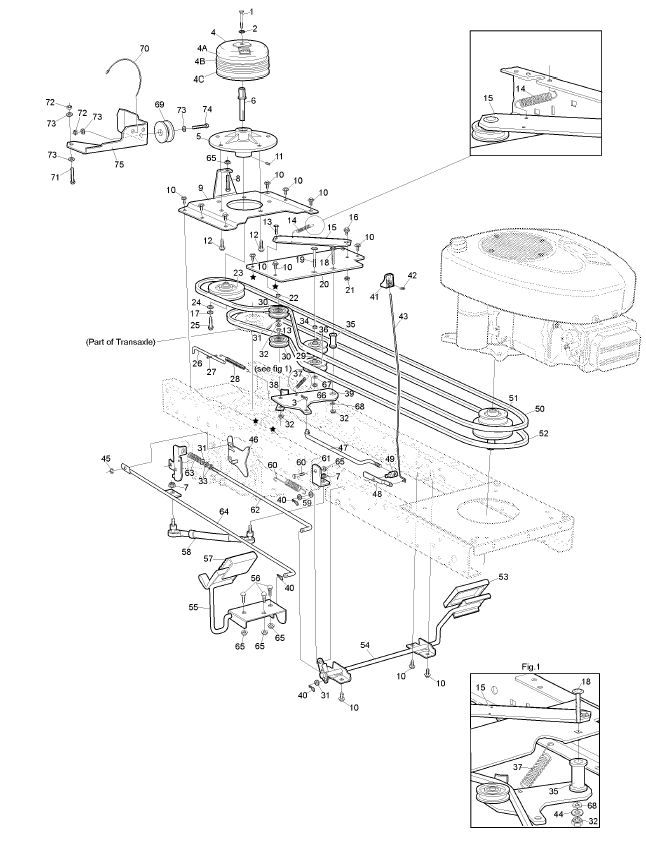

Transmission Drive- Control Pedals
